Klein Tools Impact Socket Adapter Set 65030A 3 Inch Length (1/4 3/8 1/2 Inch Drive Hex Shank Ball Detent High Visibility Power Driver Conversion)

Klein Tools 65030A 3-Inch Extended Impact Socket Adapter Set

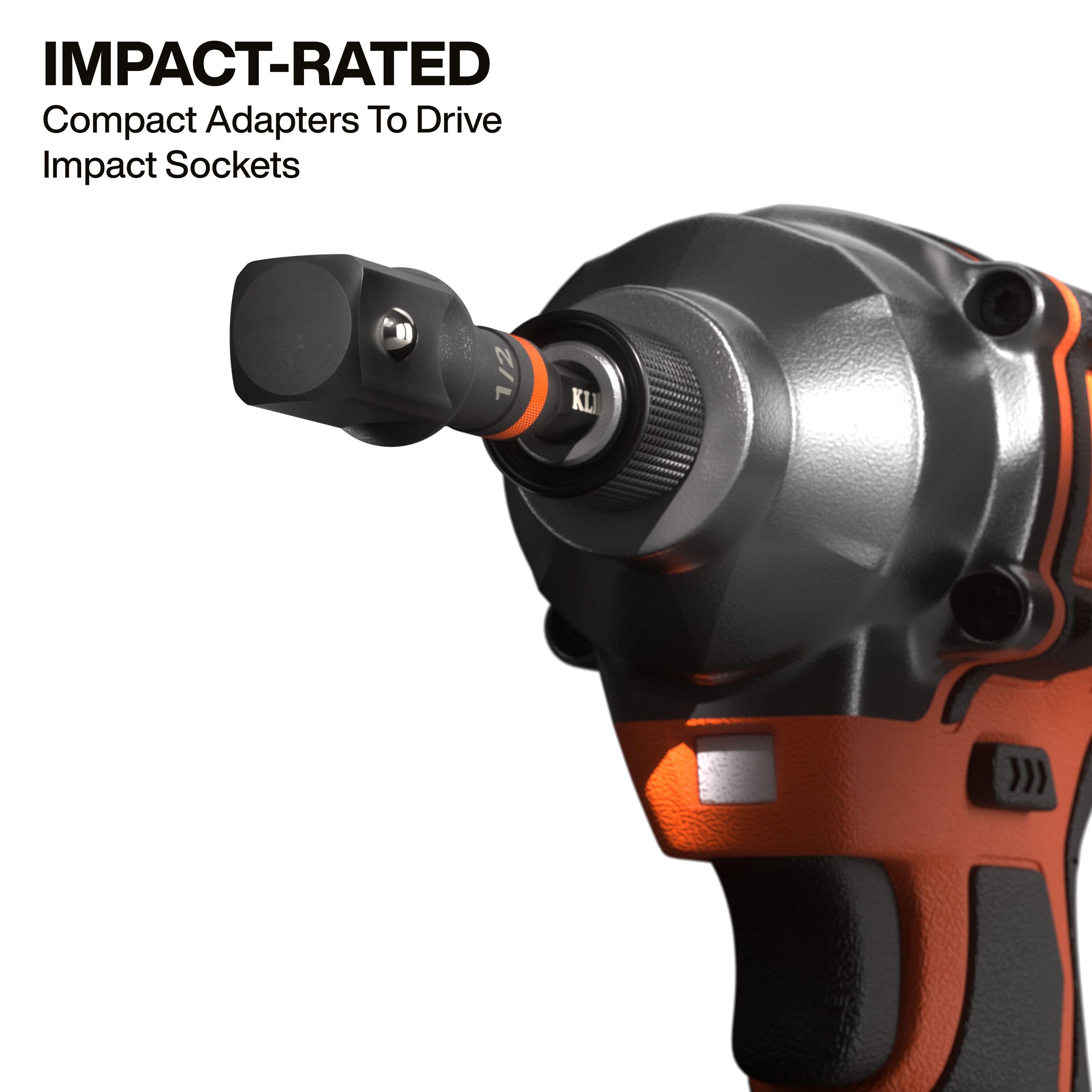

The Klein Tools 65030A 3-Inch Extended Impact Socket Adapter Set serves as a heavy-duty power drive conversion kit engineered to convert 1/4 inch quick-connect hex impact driver chucks into 1/4 inch, 3/8 inch, and 1/2 inch square drive socket drivers. Measuring 3 inches in shaft extension length inside a overall package framework of 6 inches long by 2.82 inches wide by 0.73 inches high and weighing 3-1/2 oz, these heat-treated alloy steel adapters incorporate spring-loaded retention ball detents, raised base knurling, and high-visibility orange identification bands. Constructed to endure severe rotational torque loads from high-speed power drivers, this 3-piece system allows mechanics, electricians, and steel erectors to drive mechanical square-drive sockets directly using 1/4 inch cordless impact drivers without binding or dropping socket attachments.

Best Used For:

• High-Torque Socket Conversion: Adapting standard 1/4 inch cordless impact drivers to operate 1/4 inch, 3/8 inch, and 1/2 inch square drive sockets for bolting tasks.
• Confined Engine & Panel Fastening: Utilizing the extended 3 inch shaft clearance to reach recessed hex head lag screws, conduit straps, and equipment frame bolts.
• Manual Fastener Pre-Threading: Employing the raised outer knurled band to hand-spin socket threads before engaging full impact power on fine-threaded hardware.

Key Performance & Safety Features

• Impact-Rated Alloy Steel Metallurgy: Premium heat-treated steel construction absorbs continuous rotational shock loads without twisting or snapping drive shanks.

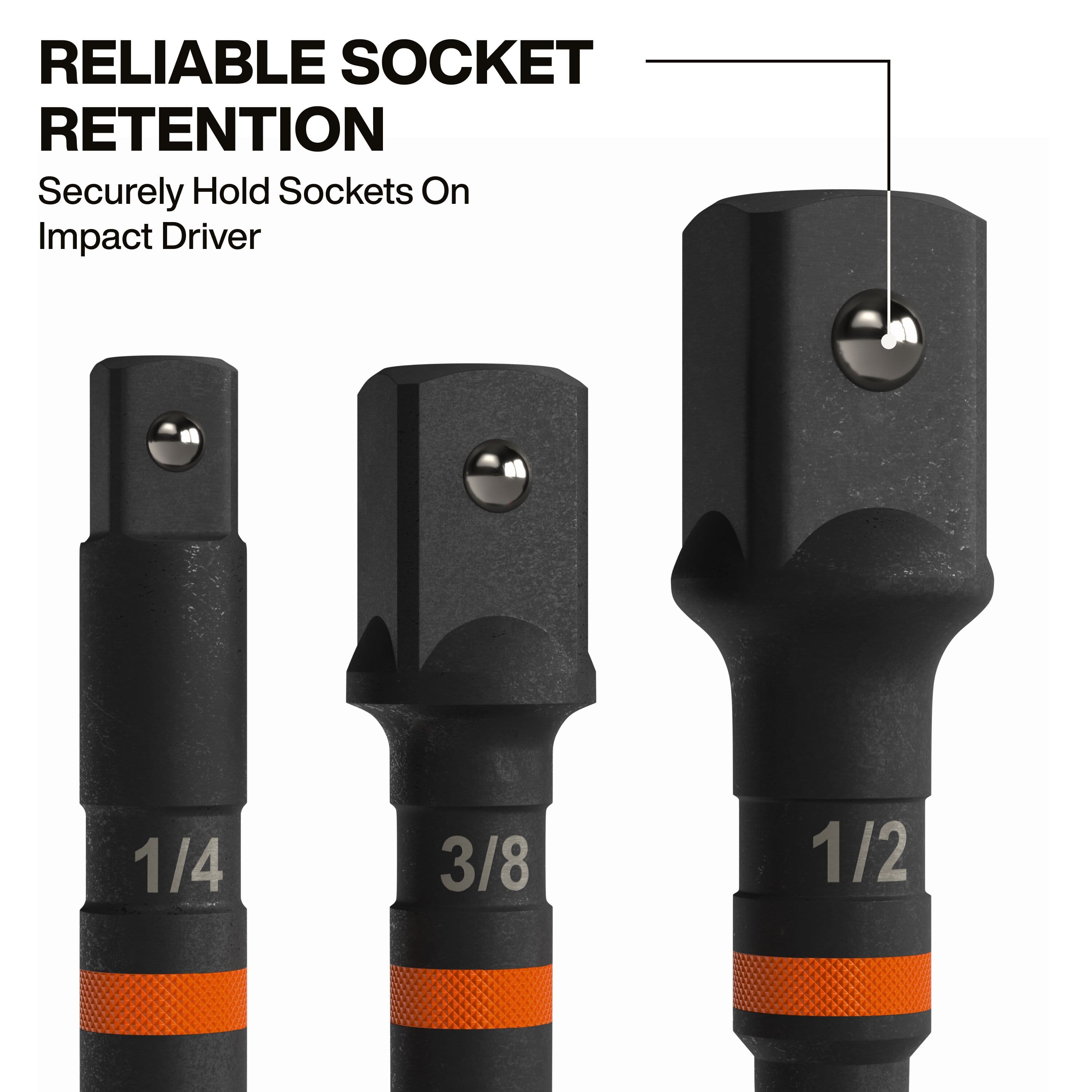

• Spring-Loaded Steel Retention Ball Detent: High-tension detent mechanism firmly secures drive sockets onto the square anvil to prevent unintentional drop-off during overhead work.

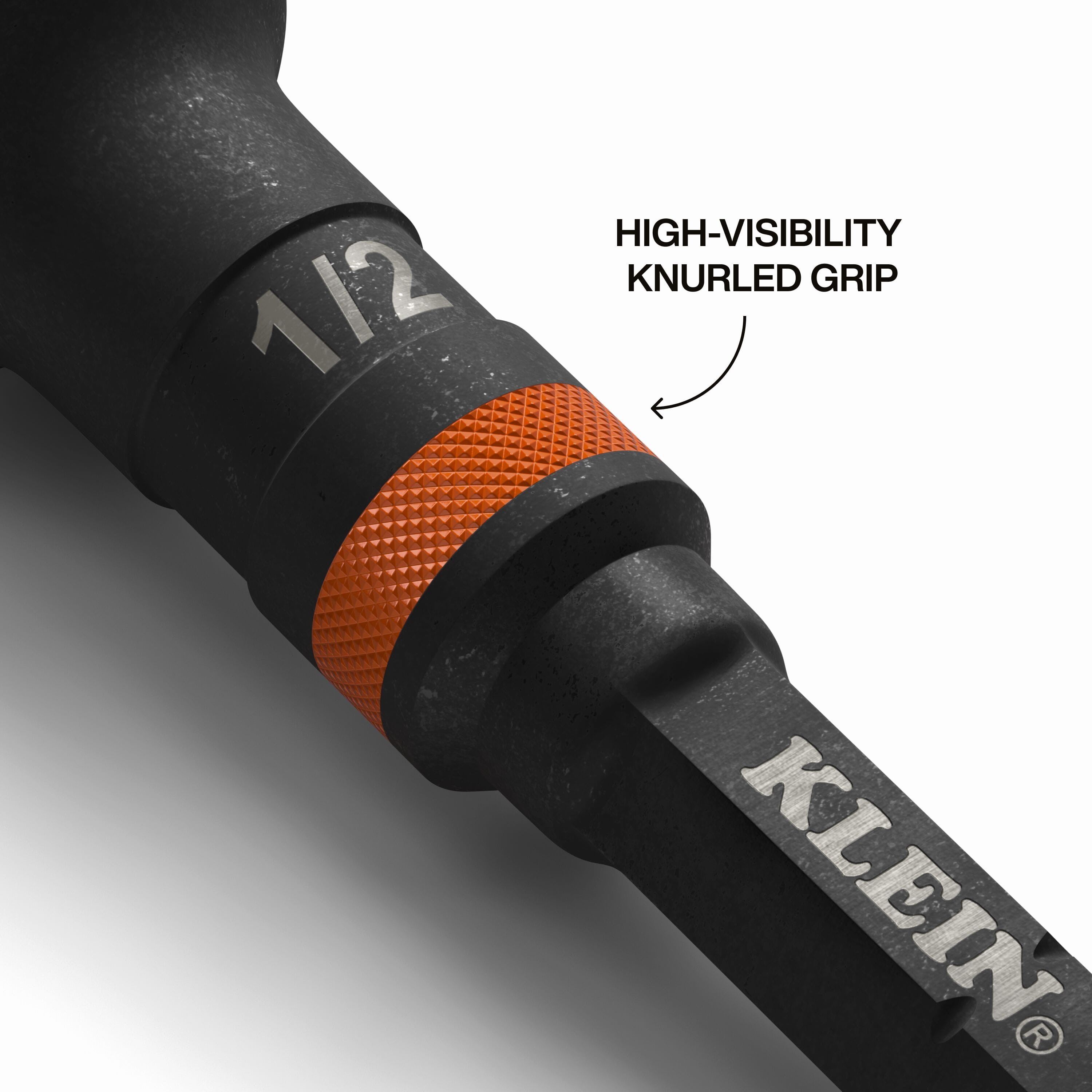

• High-Traction Knurled Base Grip: Diamond-knurled shaft perimeter provides superior tactile finger grip when starting fasteners manually with greasy or gloved hands.

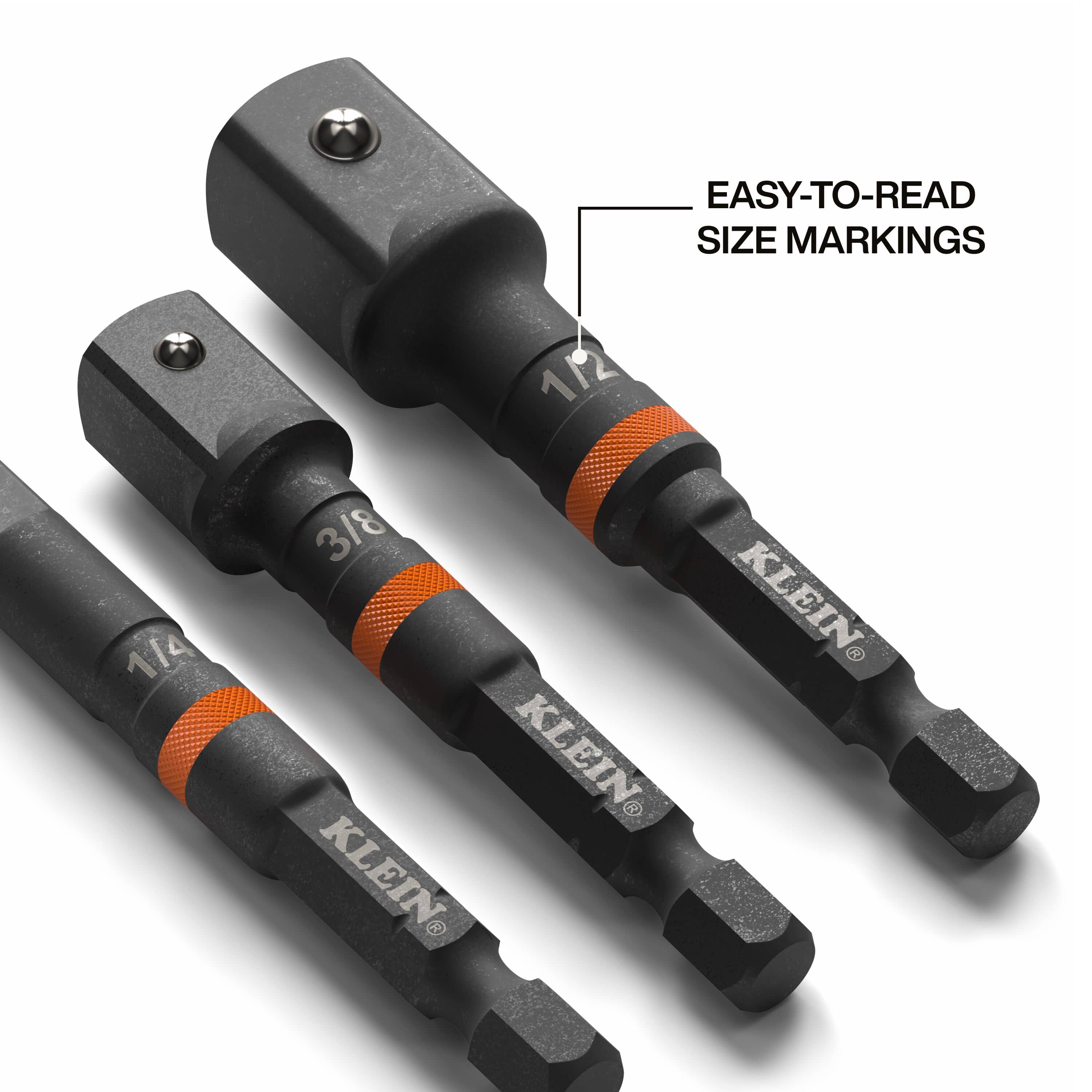

• High-Visibility Orange ID Bands: Bright orange identification rings and bold laser-stamped size markings allow rapid visual recognition in dark tool bags and low-light job sites.
• Dual Hand & Power Drive Compatibility: Form-fitted quick-connect 1/4 inch hex power shanks lock into standard power impact chucks or Klein quick-connect manual handles.

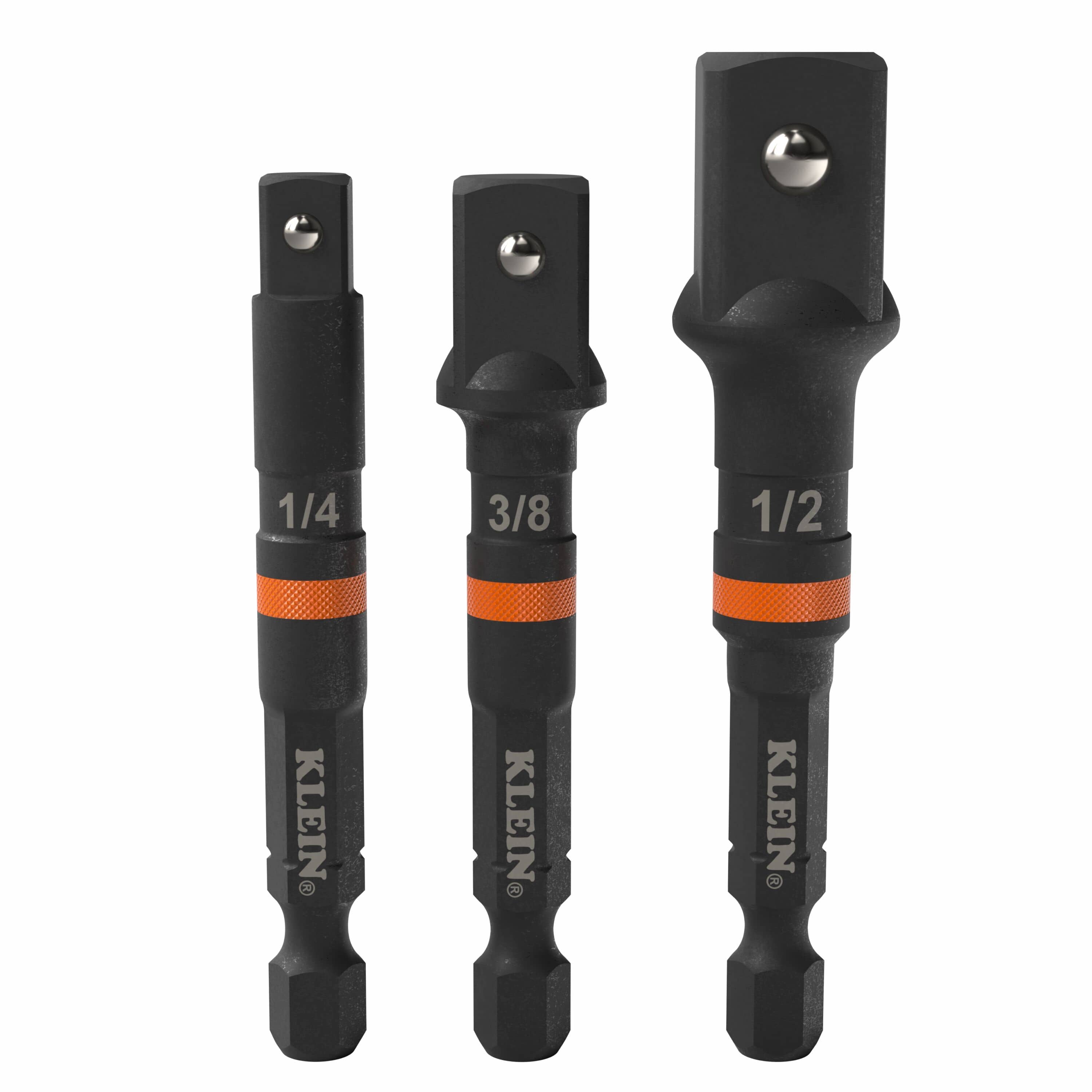

What's Included

• (1) 3-Inch Extension 1/4-Inch Hex Shank to 1/4-Inch Square Drive Impact Socket Adapter
• (1) 3-Inch Extension 1/4-Inch Hex Shank to 3/8-Inch Square Drive Impact Socket Adapter
• (1) 3-Inch Extension 1/4-Inch Hex Shank to 1/2-Inch Square Drive Impact Socket Adapter

Technical Specifications

Pro-Tip: When using the 1/2 inch drive adapter to run large structural nuts or lag bolts, make sure the spring-loaded ball detent fully snaps into the internal retaining recessed hole of your impact socket. Hearing that tactile click confirms proper alignment, preventing heavy impact sockets from slinging off the drive anvil under high rotational speeds.
