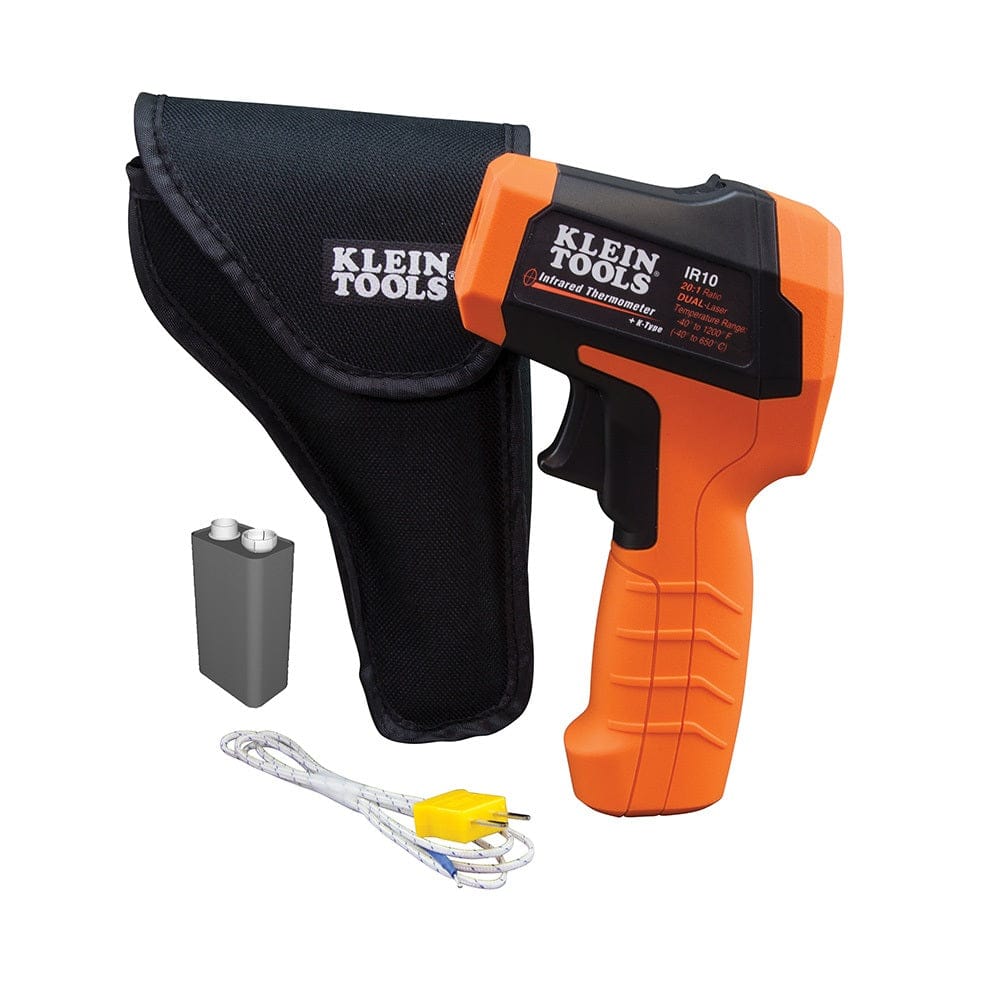

The Klein Tools IR10 Dual Laser Infrared Thermometer kit, including the orange and black thermometer, a 9V battery, a K-type probe, and a black carrying case.

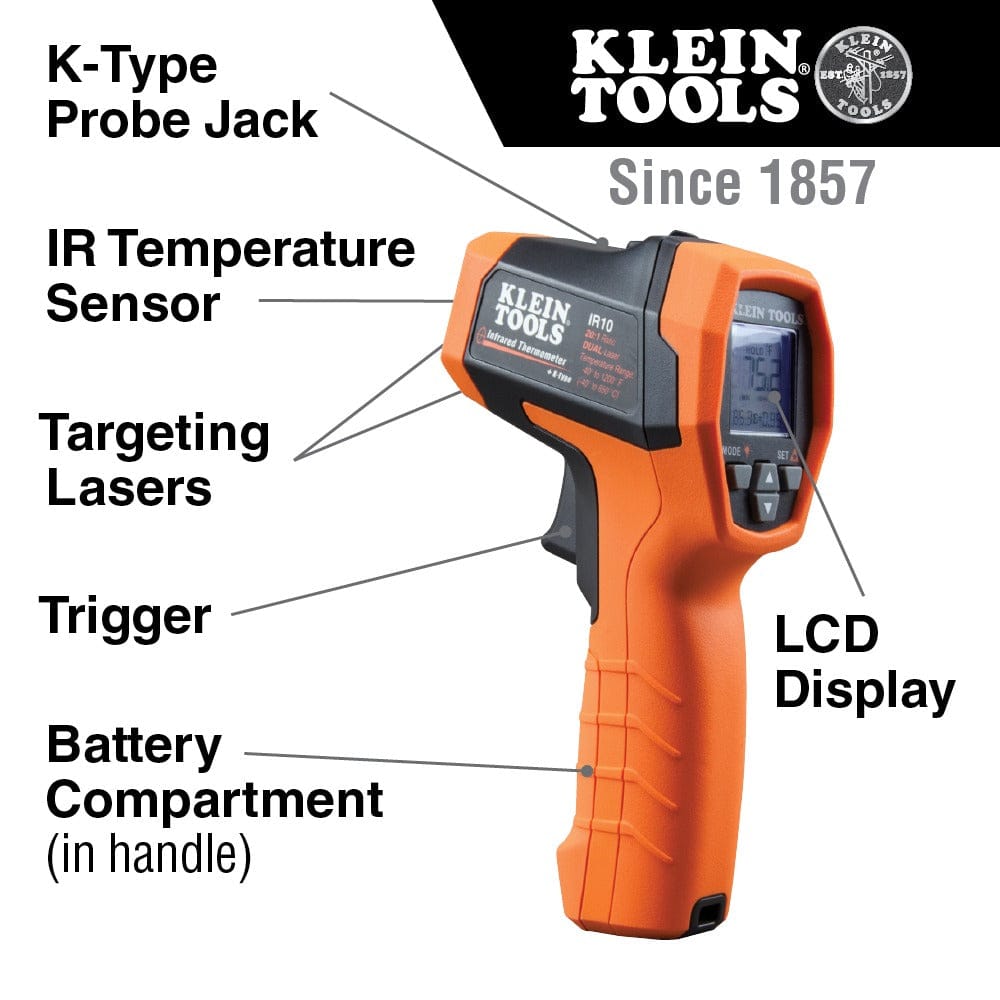

Product feature graphic of the IR10 thermometer with labeled callouts pointing to the probe jack, IR sensor, targeting lasers, trigger, battery compartment, and LCD display.

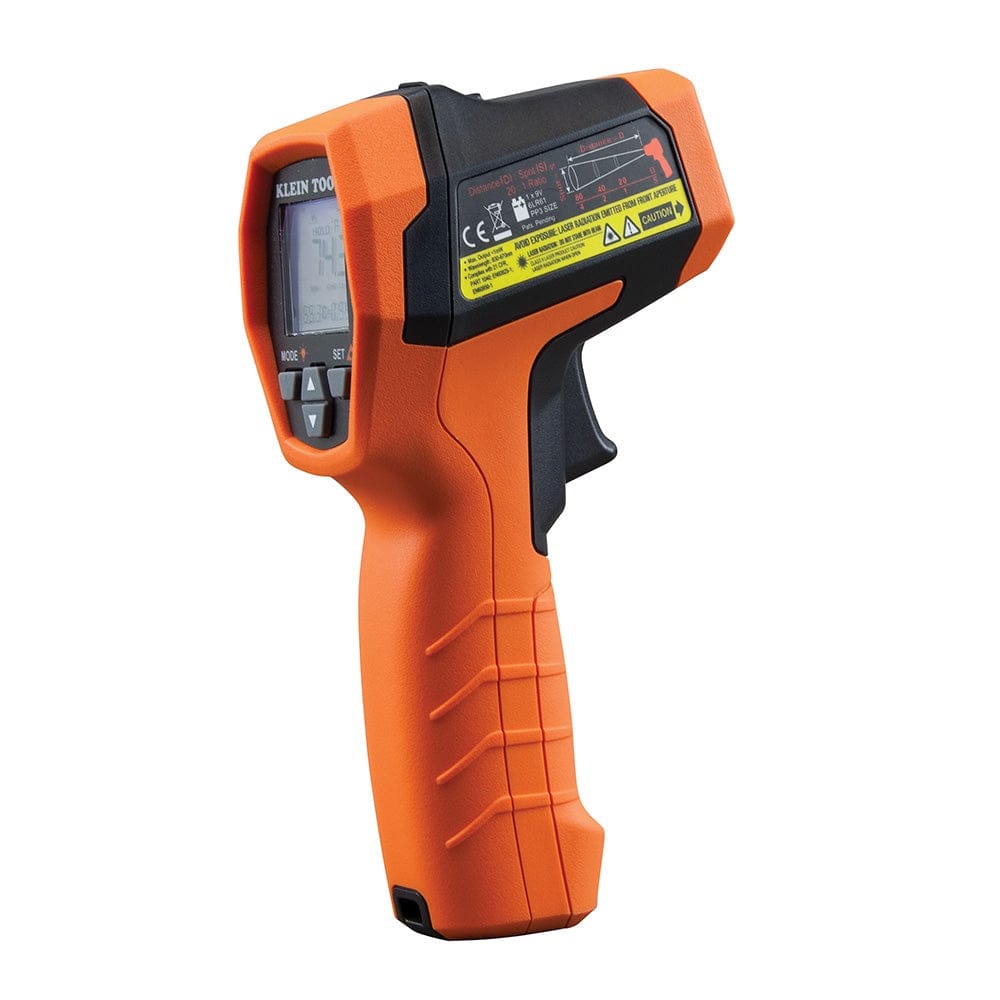

Side profile view of the IR10 thermometer showing the orange over-molded housing and the informative label with the 20 to 1 distance-to-spot ratio chart.
The IR10 dual laser infrared thermometer shown with a yellow K-type temperature probe plugged into the top input jack for contact measurements.
First-person view of the IR10 thermometer being used, showing the two red laser points on a target and the backlit digital display showing a temperature of 35.5 degrees Fahrenheit.
Front perspective view of the IR10 thermometer with the blue backlit display turned on, showing the temperature reading and measurement settings.

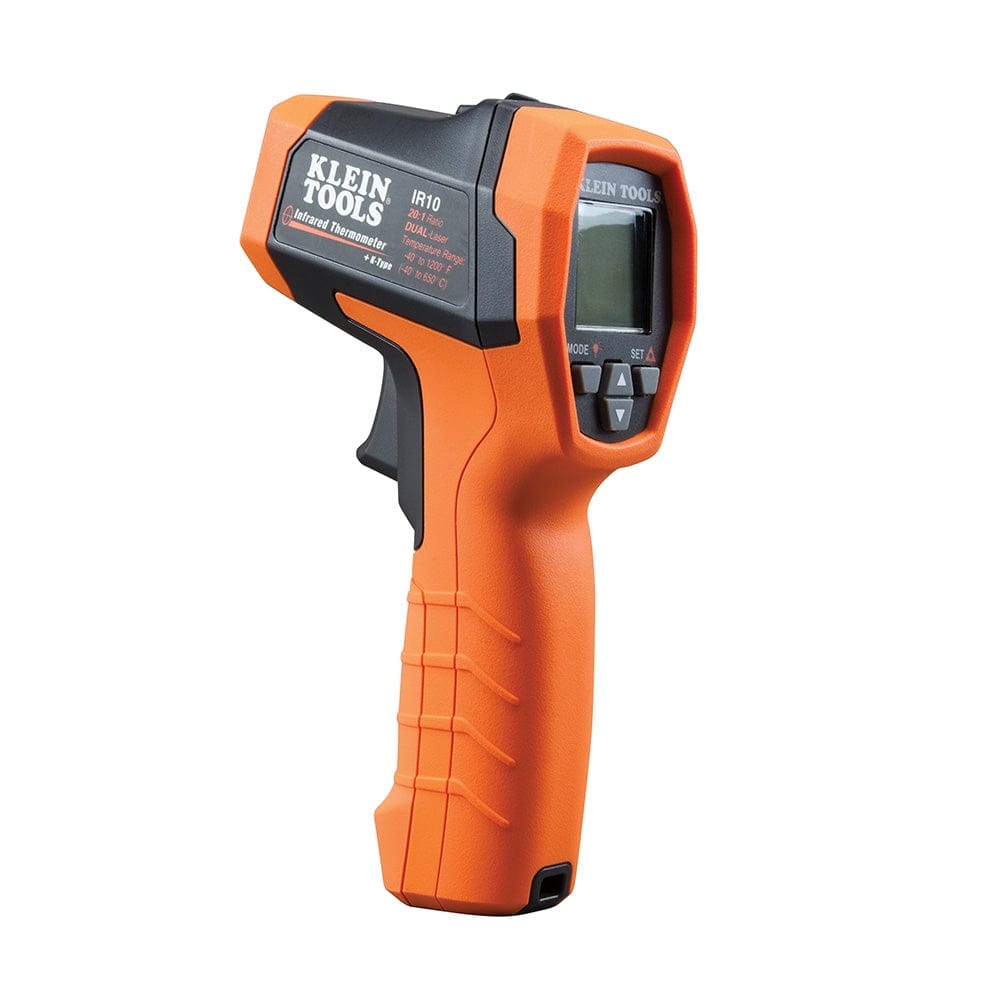

Front-facing angle of the IR10 thermometer highlighting the digital display screen and the mode, light, and set buttons on the control panel.
Close-up detail of the top section of the IR10 thermometer with the K-type probe connected, emphasizing the hybrid measurement functionality.
Standard front perspective view of the orange and black IR10 dual laser infrared thermometer against a white background.
Dual-Laser Infrared Thermometer, 20:1 (IR10) promotional video
The Klein Tools IR10 Dual Laser Infrared Thermometer kit, including the orange and black thermometer, a 9V battery, a K-type probe, and a black carrying case.
Product feature graphic of the IR10 thermometer with labeled callouts pointing to the probe jack, IR sensor, targeting lasers, trigger, battery compartment, and LCD display.
Side profile view of the IR10 thermometer showing the orange over-molded housing and the informative label with the 20 to 1 distance-to-spot ratio chart.
The IR10 dual laser infrared thermometer shown with a yellow K-type temperature probe plugged into the top input jack for contact measurements.
First-person view of the IR10 thermometer being used, showing the two red laser points on a target and the backlit digital display showing a temperature of 35.5 degrees Fahrenheit.
Front perspective view of the IR10 thermometer with the blue backlit display turned on, showing the temperature reading and measurement settings.
Front-facing angle of the IR10 thermometer highlighting the digital display screen and the mode, light, and set buttons on the control panel.
Close-up detail of the top section of the IR10 thermometer with the K-type probe connected, emphasizing the hybrid measurement functionality.
Standard front perspective view of the orange and black IR10 dual laser infrared thermometer against a white background.
Dual-Laser Infrared Thermometer, 20:1 (IR10) promotional video
KLEIN TOOLS

Klein Tools Infrared Thermometer IR10 Dual Laser 20 to 1 Distance Spot Ratio Professional Non Contact K Type Digital Temp Meter 1200F HVAC Kit

Only 1 left
SKU: IR10
$114.99 USD

Description

Klein promotional logo logout

Commercial-Grade 20:1 Distance-to-Spot Dual Laser Infrared Thermometer with Hybrid K-Type Probe Input, IP54 Dust Protection, and 1200°F Thermal Diagnostic Grid

The Klein Tools IR10 Dual Laser Infrared Thermometer 20:1 Distance to Spot Ratio Professional Non-Contact IR and K-Type Digital Temp Meter 1200F delivers specialized thermal telemetry utility and exceptional diagnostic accuracy across active electrical, HVAC, and mechanical systems. Engineered with a tight 20:1 optical resolution scale that maps small targets from safe working distances, this high-performance monitoring instrument tracks surface emissions from -40° to 1200° Fahrenheit while simultaneously supporting bulk fluid or air sampling via its hybrid K-type contact probe input. This professional contractor solution resolves intermittent motor overheating failures, dangerous live component thermal audits, and inaccurate emissivity calculations on reflective metals by combining adjustable emissivity parameters with high/low audible alarms and an integrated dual-laser targeting array. Outfitted with an IP54 moisture-tight seal, a ruggedized 9.9-foot drop-tested soft-touch over-mold casing, and comprehensive max/min/avg/diff computational calculation matrices, this compact diagnostic system optimizes subcontractor field testing throughput during commercial electrical panel scans, industrial boiler inspections, and advanced ventilation duct air balance profiling loops.

Best Used For:

  • Electrical Panel Thermal Audits: Mapping hot spots on high-voltage circuit breakers and terminal busbars safely from a distance using the 20:1 non-contact optical lens.
  • HVAC Duct Air Balancing: Alternating between laser non-contact register surface metrics and bulk air stream insertion diagnostics via the bundled K-Type wire probe sensor.
  • Mechanical Bearing Diagnostics: Checking real-time operating temperatures on high-velocity motor shafts and industrial pump bearings to catch mechanical breakdown issues early.

Key Performance & Safety Features

  • Dual-Targeting Class II Lasers: Twin precision beam lines converge to indicate the exact geometric perimeter of the target area being actively scanned for high data fidelity.
  • Adjustable Emissivity Scale: Configurable tracking dial spans from 0.1 to 1.0, enabling technicians to balance accuracy shifts when measuring across dull matte stone or reflective steel sheet stocks.
  • Smart High/Low Alarm Loops: User-defined thermal limit indicators trigger immediate audible tones and bright visual display flashes when custom temperature parameters are breached.
  • Advanced Data Computations: Internal digital processor calculates maximum, minimum, average, and differential data steps instantly to speed up on-site diagnostic telemetry.
  • IP54 Ingress Guard Shielding: Weather-resistant structural seal blocks dust penetration and water splashes, keeping internal electronic processing components secure in rough field settings.

What's Included

  • (1) IR10 Dual-Laser Professional Infrared Thermometer Chassis
  • (1) K-Type Flexible Wire Temperature Probe Attachment
  • (1) Padded Custom Fabric Equipment Carrying Pouch
  • (1) Heavy-Duty 9V Alkaline Industrial Power Battery

Technical Specifications

Specification Value
Brand Name Klein Tools
Model Number IR10
Product Classification Type Dual-Laser Infrared and Contact Thermometer Multimeter
Total Operational Temperature Scale -40°F to 1200°F
Optical Ratio Resolution (D:S) 20:1
Targeting Laser Mechanism Dual Laser Diodes (Class II)
Emissivity Ranges Adjustable 0.1 to 1.0 Dial Configuration
Infrared Sensor Accuracy >32°F: ± 3°F or 1.5% (Whichever is Greater)
K-Type Probe Contact Accuracy >32°F: ± 2°F or 1.0% (Whichever is Greater)
Telemetry Response Duration Less than 150 milliseconds (<150ms)
Structural Drop Protection Rating 9.9 ft. (3 Meters Field Shock Rating)
Ingress Environmental Standard IP54 Dust and Splash Resistant
Power Cell Type 1 x 9V Transistor Style Battery
Overall Housing Dimensions 7.0 in. L x 2.05 in. W x 4.49 in. H
Net Hardware Tool Weight 7.4 oz.

Pro-Tip: When diagnostic tracking across smooth bare metals like polished copper utility pipes or aluminum sheets, place a small piece of dark electrical tape or matte thermal paint over the target location. Allowing the surface material to match the tape's emissivity threshold prevents inaccurate, artificially low laser reflection readings.
