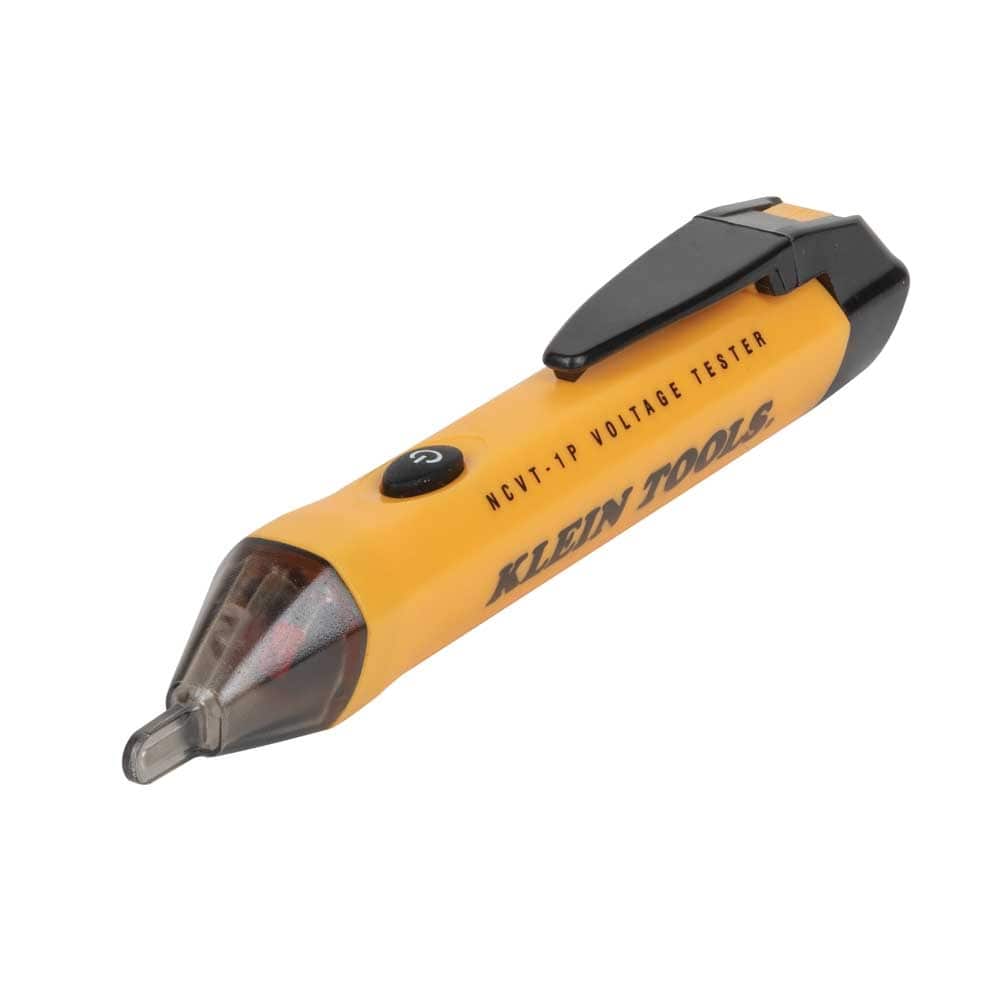

An angled studio shot of the Klein Tools NCVT1P non-contact voltage tester pen. The device features a bright yellow polymer body, a black pocket clip, a power button, and a clear plastic tip for electrical circuit detection.

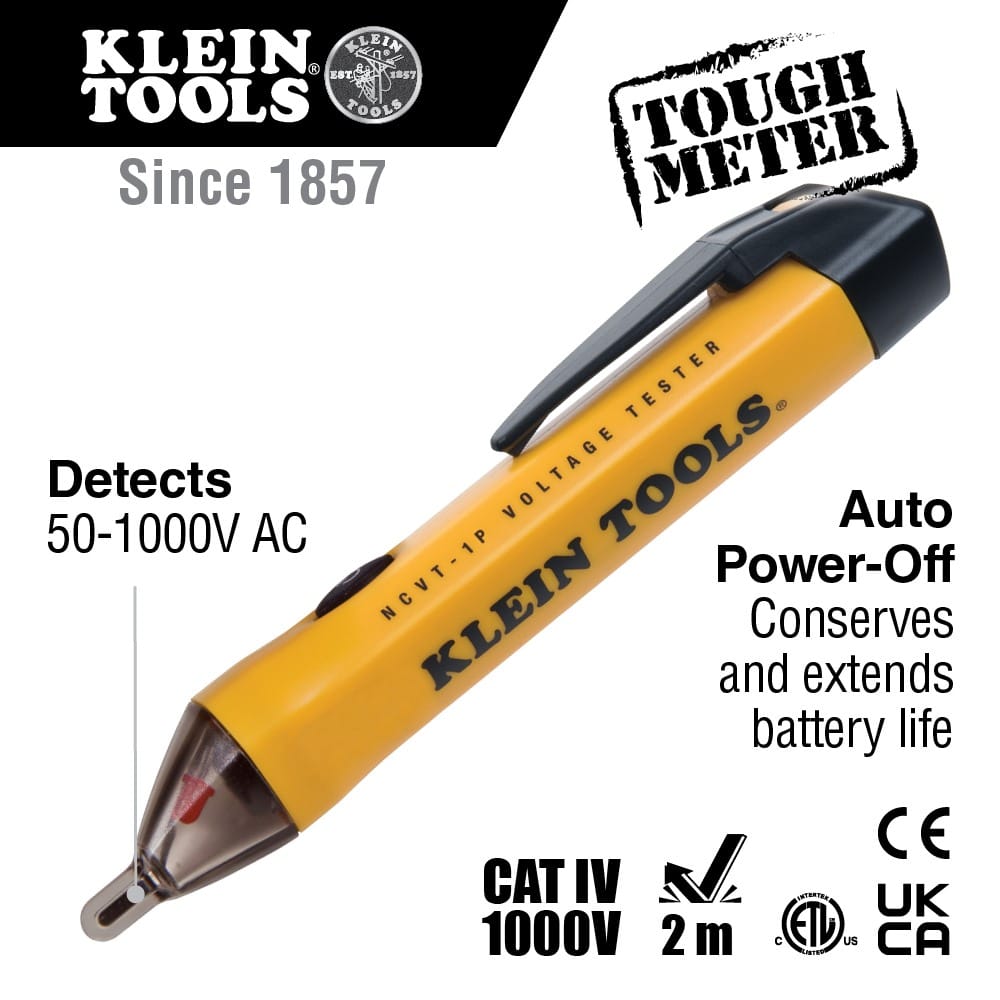

A marketing infographic for the Klein Tools NCVT1P volt pen. Text highlights include the 50 to 1000V AC detection range, auto power-off battery conservation, CAT IV 1000V safety rating, and 2-meter drop protection.

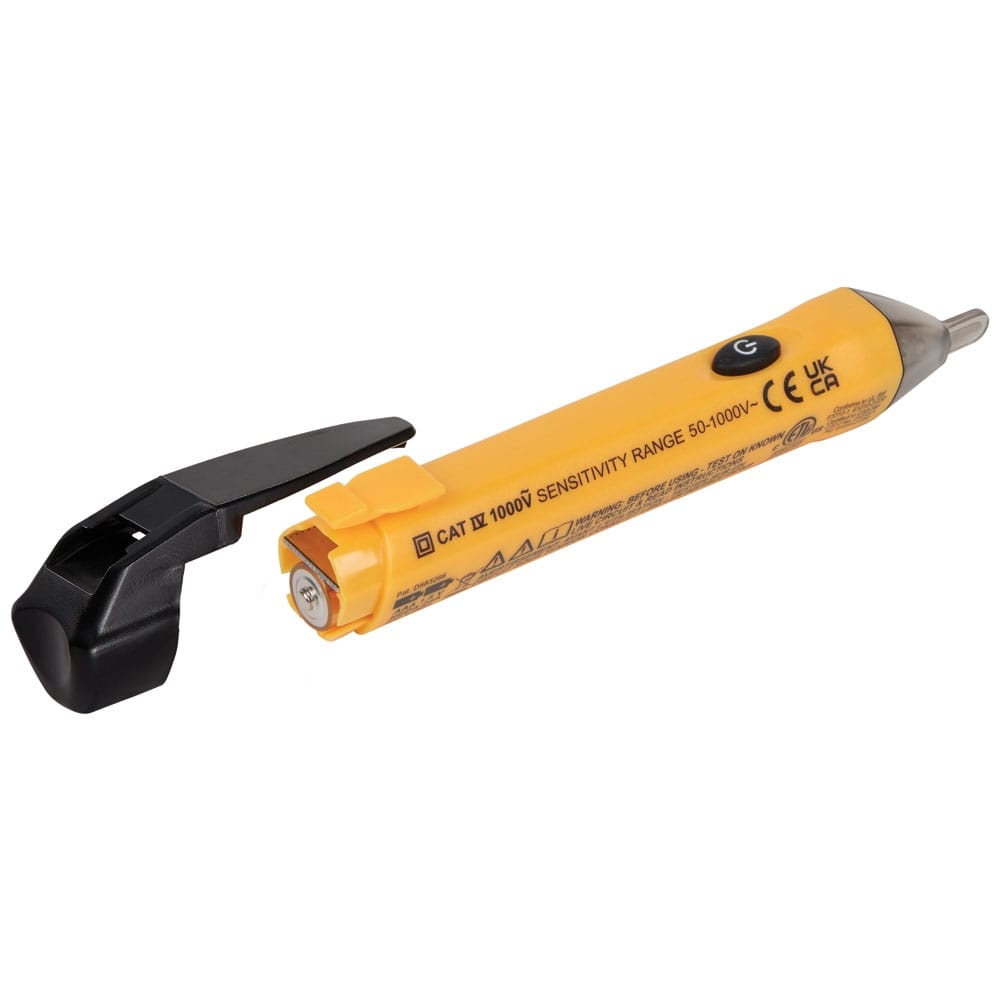

The Klein Tools NCVT1P voltage tester shown with the rear battery compartment open, revealing the placement of the two included AAA batteries. The device clearly displays the CAT IV 1000V sensitivity range specifications.

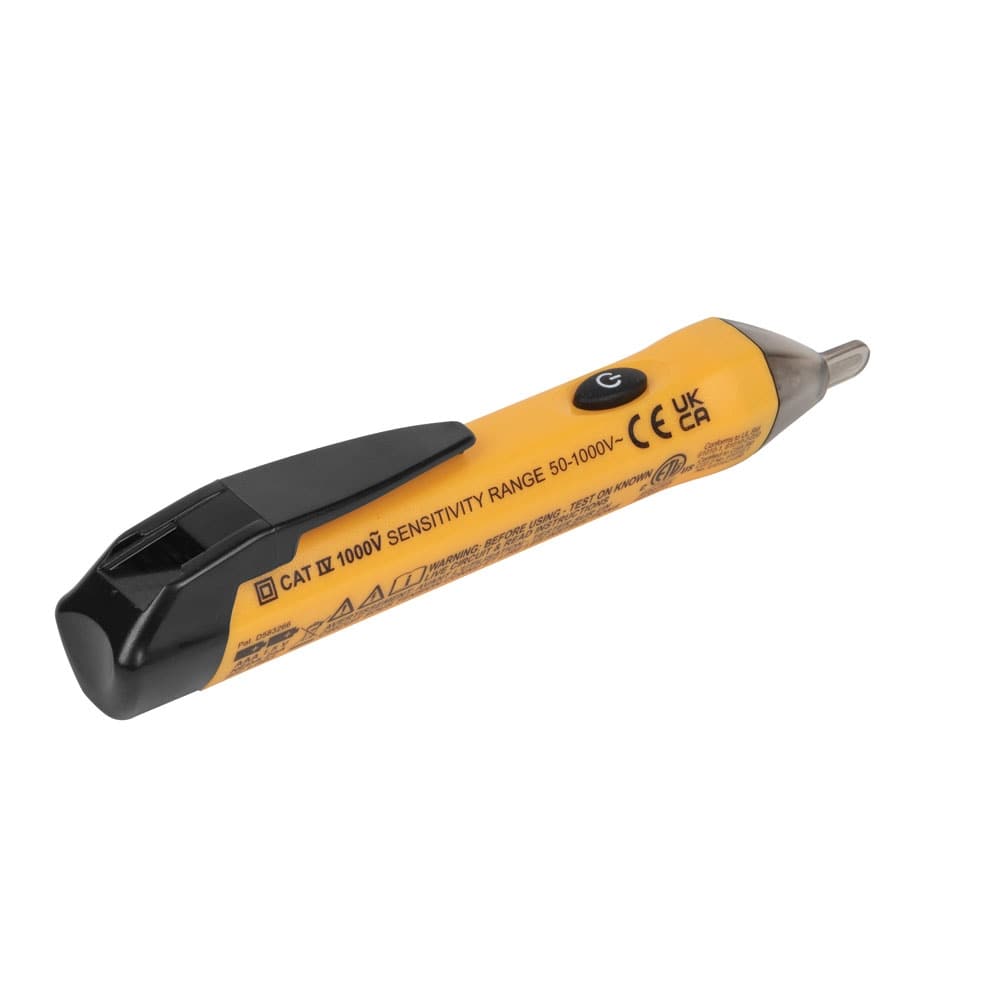

A rear perspective view of the NCVT1P electrical tester pen. The image showcases the streamlined design, integrated pocket clip, and safety compliance markings printed on the yellow body.

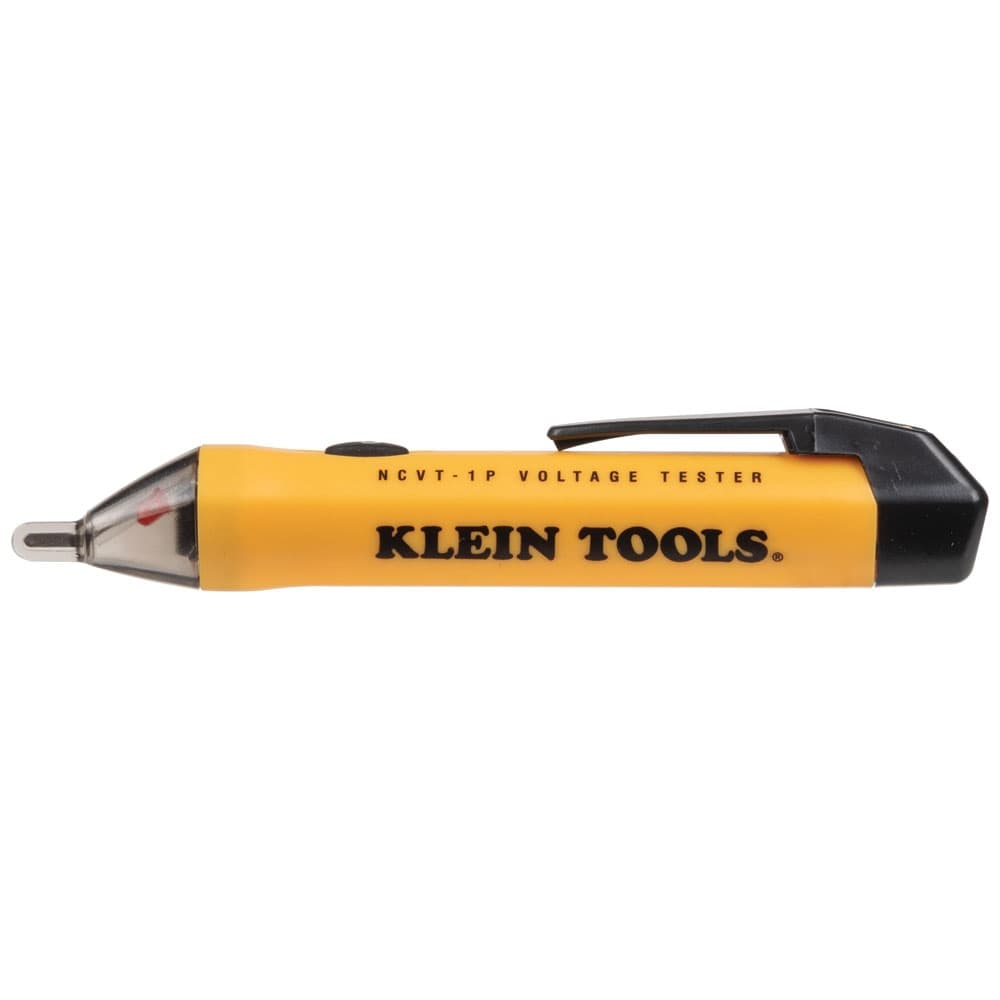

A direct side profile of the Klein Tools NCVT1P non-contact voltage tester, highlighting the ergonomic shape, black power button, and the bold black Klein Tools logo.

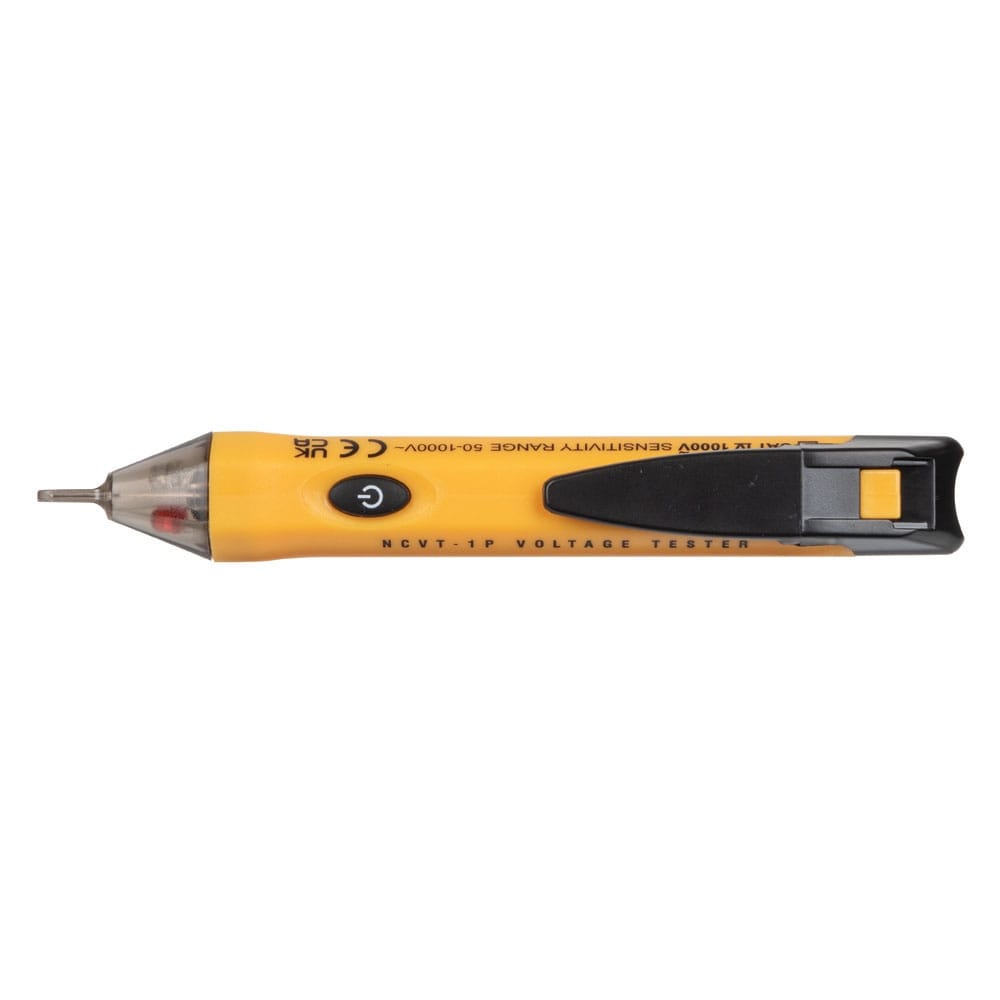

A top-down view of the NCVT1P volt pen, showing the symmetrical design, the black power button, and the clear tip where the red visual LED indicator illuminates during voltage detection.

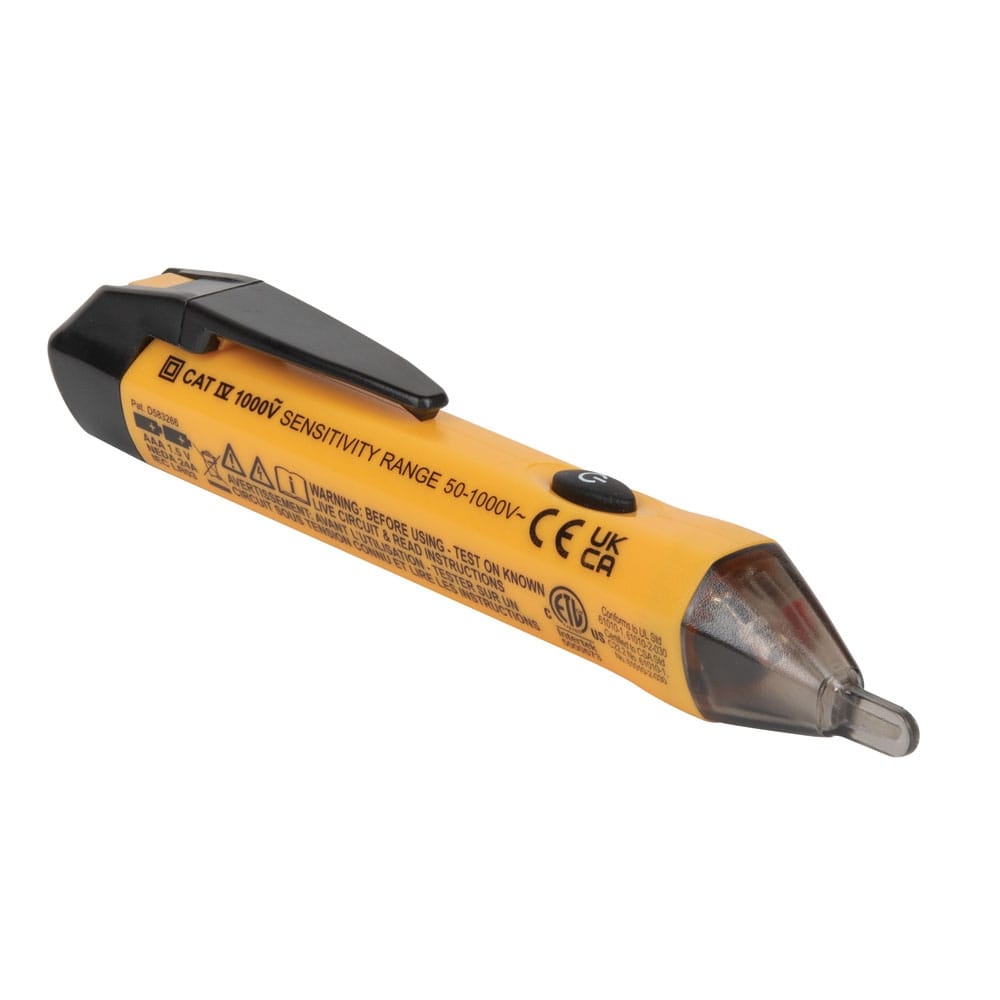

An angled rear-view shot of the Klein Tools NCVT1P voltage tester, displaying the safety certification stamps including the CE and UKCA markings on the yellow housing.

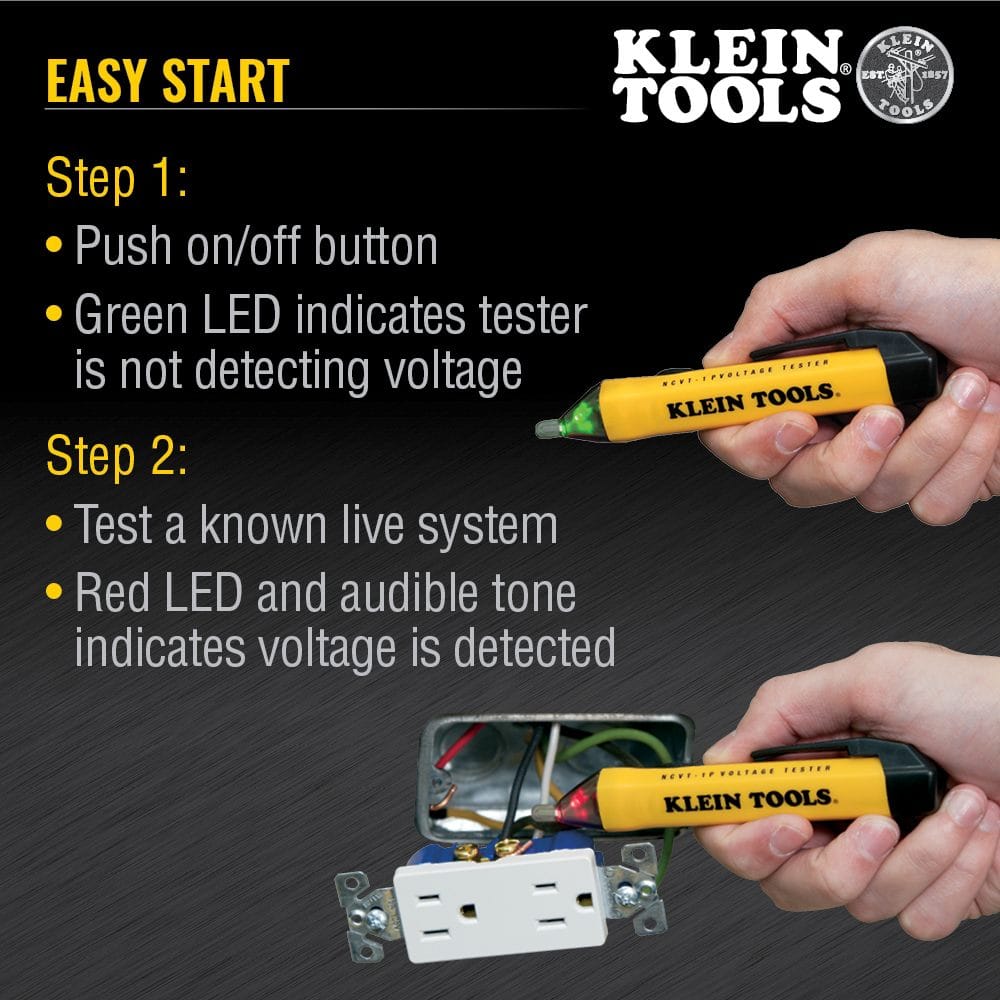

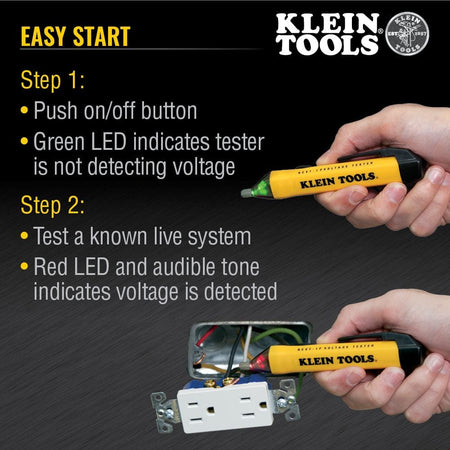

An "Easy Start" guide showing the NCVT1P in use. Step one shows the green LED indicating power-on with no voltage detected. Step two shows the red LED and audible alarm activating when the pen is placed near a live electrical outlet.

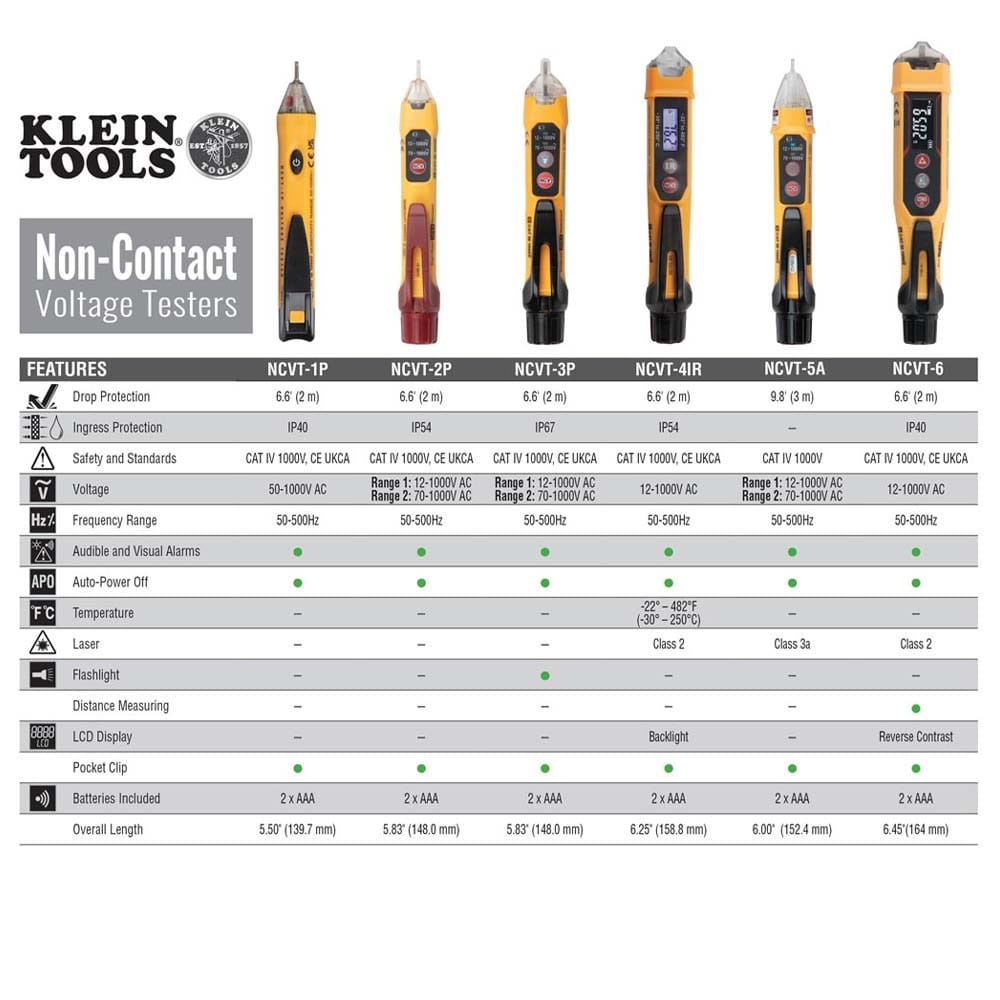

A comprehensive comparison chart for the Klein Tools non-contact voltage tester line. The table compares features of the NCVT1P, NCVT2P, NCVT3P, NCVT4IR, NCVT5A, and NCVT6 models, including voltage ranges, ingress protection, and additional functions like lasers or flashlights.

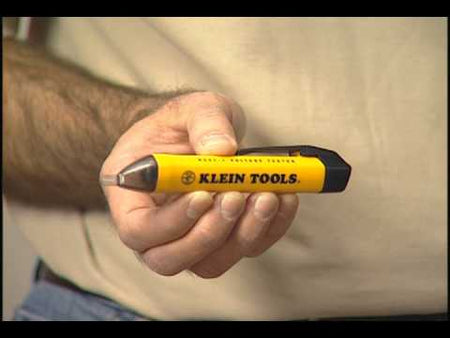

Klein Tools Non-Contact Voltage Detector promotional how to video
An angled studio shot of the Klein Tools NCVT1P non-contact voltage tester pen. The device features a bright yellow polymer body, a black pocket clip, a power button, and a clear plastic tip for electrical circuit detection.
A marketing infographic for the Klein Tools NCVT1P volt pen. Text highlights include the 50 to 1000V AC detection range, auto power-off battery conservation, CAT IV 1000V safety rating, and 2-meter drop protection.
The Klein Tools NCVT1P voltage tester shown with the rear battery compartment open, revealing the placement of the two included AAA batteries. The device clearly displays the CAT IV 1000V sensitivity range specifications.
A rear perspective view of the NCVT1P electrical tester pen. The image showcases the streamlined design, integrated pocket clip, and safety compliance markings printed on the yellow body.
A direct side profile of the Klein Tools NCVT1P non-contact voltage tester, highlighting the ergonomic shape, black power button, and the bold black Klein Tools logo.
A top-down view of the NCVT1P volt pen, showing the symmetrical design, the black power button, and the clear tip where the red visual LED indicator illuminates during voltage detection.
An angled rear-view shot of the Klein Tools NCVT1P voltage tester, displaying the safety certification stamps including the CE and UKCA markings on the yellow housing.
An "Easy Start" guide showing the NCVT1P in use. Step one shows the green LED indicating power-on with no voltage detected. Step two shows the red LED and audible alarm activating when the pen is placed near a live electrical outlet.
A comprehensive comparison chart for the Klein Tools non-contact voltage tester line. The table compares features of the NCVT1P, NCVT2P, NCVT3P, NCVT4IR, NCVT5A, and NCVT6 models, including voltage ranges, ingress protection, and additional functions like lasers or flashlights.
Klein Tools Non-Contact Voltage Detector promotional how to video
KLEIN TOOLS

Klein Tools Voltage Tester NCVT1P 50 to 1000V AC Non-Contact Pen (Electrical Circuit Detector Audible Alarm Visual LED Indicator Pocket Clip Hand Tool)

Only 2 left
SKU: NCVT1P
$19.97 USD

Description

Klein promotional logo logout

High-Precision Non-Contact 50V to 1000V AC Voltage Detector Pen with Dual Sensory Safeguards

The Klein Tools NCVT1P Non-Contact Voltage Tester Pen delivers reliable diagnostic detection of standard electrical line voltages ranging from 50 to 1000V AC. Operating without requiring physical contact with exposed copper conductors, this specialized testing instrument solves the problem of verifying live electrical circuits inside home junction outlets, lighting conduits, and distribution breaker frames. The tool features a robust industrial polymer housing rated CAT IV 1000V for heavy safety surge protection, incorporating an automated green power-on indicator LED that actively transitions to red accompanied by a distinct audible alarm upon proximity to active electrical fields.

Best Used For:

  • Residential Infrastructure Troubleshooting: Verifying the power status of recessed wall outlets, standard light switches, and common appliance cords prior to structural hardware repairs.
  • Breaker Panel Diagnostics: Scanning individual circuit breakers and multi-phase main panel supply clusters to identify specific live lines without touching open wires.
  • Junction Box Audits: Checking interior wire splices and tight terminal connections within cluttered junction boxes or overhead light fixtures safely.

Key Performance & Safety Features

  • Non-Contact Sensor Tip: Safely samples localized electromagnetic fields to detect AC current thresholds without requiring bare wire proximity or tool-to-metal contact.
  • Dual Sensory Alert Network: Emits an internal, loud audio chirp alongside a high-intensity red LED flash when live voltages are discovered in the target zone.
  • CAT IV 1000V Safety Rating: Heavy-duty internal structural shielding provides professional arc flash protection against significant overvoltage surges.
  • Rugged Polymer Shell Architecture: Specially engineered tool frame is field-certified to withstand harsh 6.6-foot impact drops onto unyielding concrete surfaces.
  • Battery Conservation Matrix: Integrated auto power-off circuitry automatically shuts down terminal operations after prolonged standby to preserve the internal cells.

What's Included

  • (1) NCVT1P Non-Contact Voltage Tester Pen with Integrated Pocket Clip
  • (2) Heavy-Duty AAA 1.5V Alkaline Batteries
  • (1) Complete Technical Operator Instruction Manual

Technical Specifications

Brand Manufacturer Klein Tools
Model Tool Number NCVT1P
Tester Instrument Type Non-Contact Voltage Detector Pen
Voltage Measurement Range 50V AC to 1000V AC
Industrial Safety Rating CAT IV 1000V
Frequency Bandwidth Range 50 Hz to 500 Hz
Diagnostic Status Indicators Visual LED (Green to Red Shift) and Audible Beeper
Structural Drop Protection 6.6 feet (2 meters)
Chassis Shell Metallurgy/Material Durable Impact-Polymer Compound
Overall Pen Length 5.5 inches
Overall Pen Width 1.0 inch
Net Operating Weight 0.8 ounces
Power Cell Requirements 2 x AAA Batteries (Included)
Pro-Tip: To ensure absolute circuit diagnosis, always test your non-contact pen against a known live outlet first to confirm that the internal diagnostic circuitry and green LED function are tracking precisely before relying on it to identify a dead circuit.
