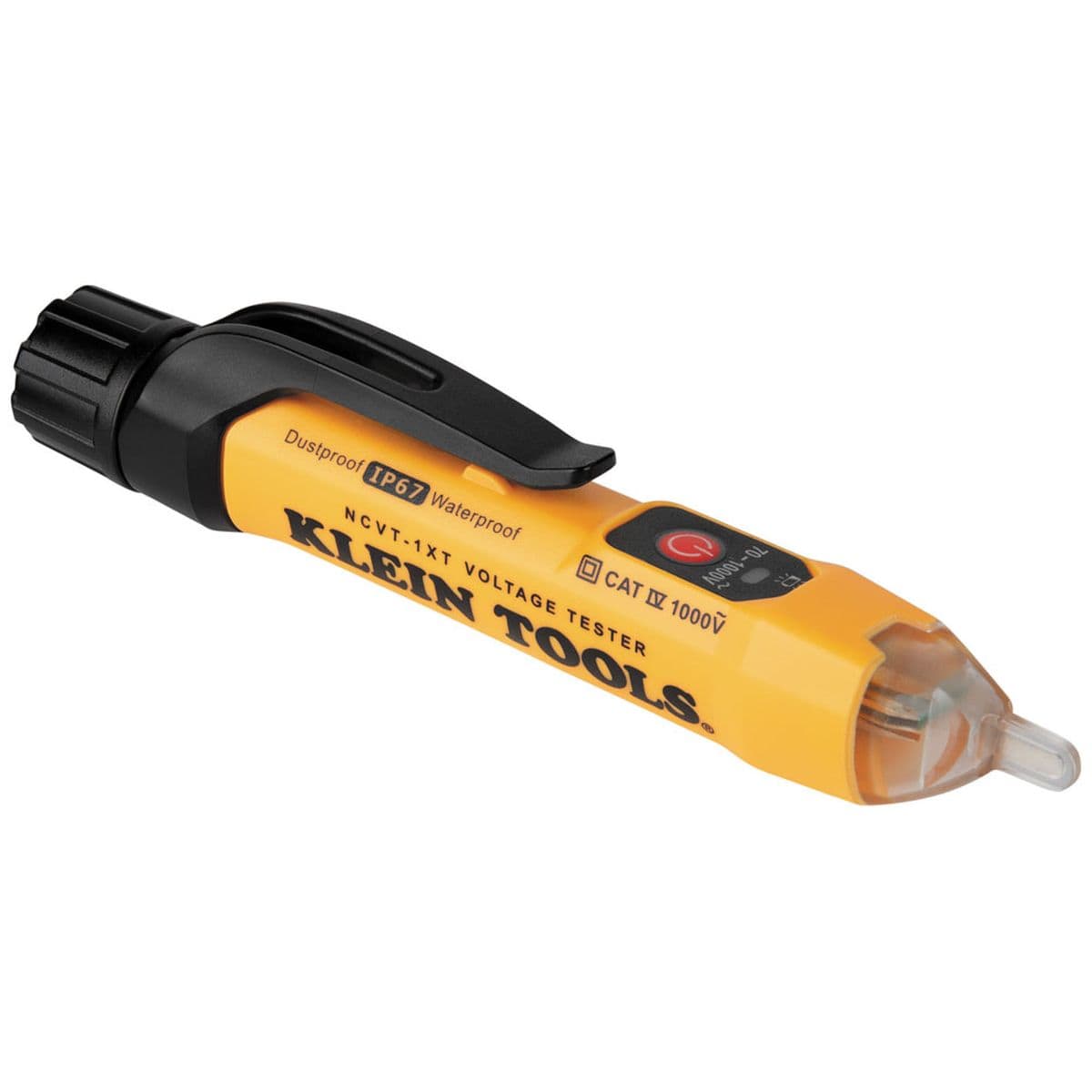

A close-up studio photograph of the yellow and black Klein Tools NCVT1XT non-contact voltage tester pen, displayed at a three-quarter angle showcasing its pocket clip, power button panel, and clear plastic sensor tip against a white background.

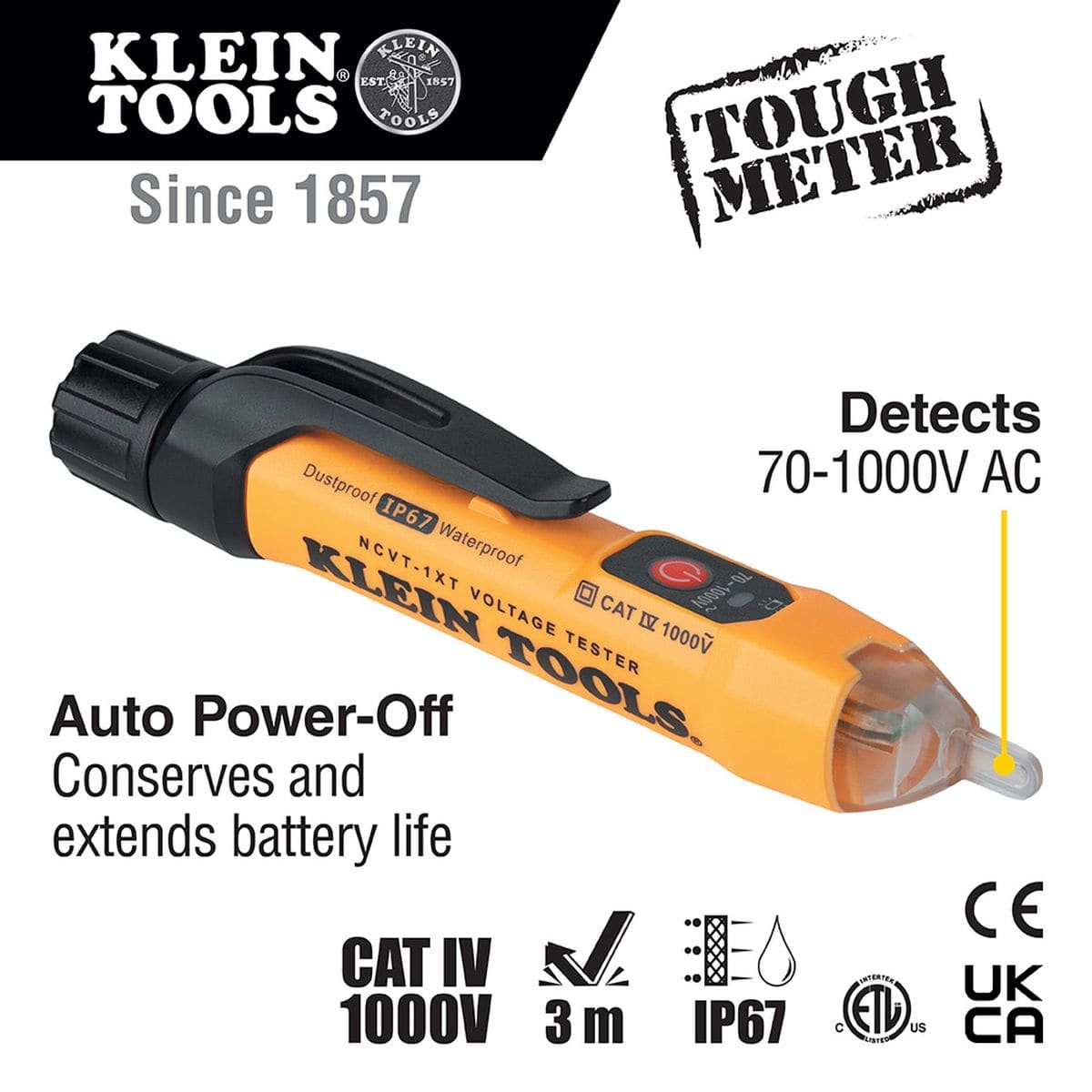

An informational marketing infographic for the Klein Tools NCVT1XT voltage tester, featuring the tool body alongside text highlights pointing out the 70 to 1000V AC detection range, auto power-off function, IP67 waterproof rating, and CAT IV 1000V safety certifications.

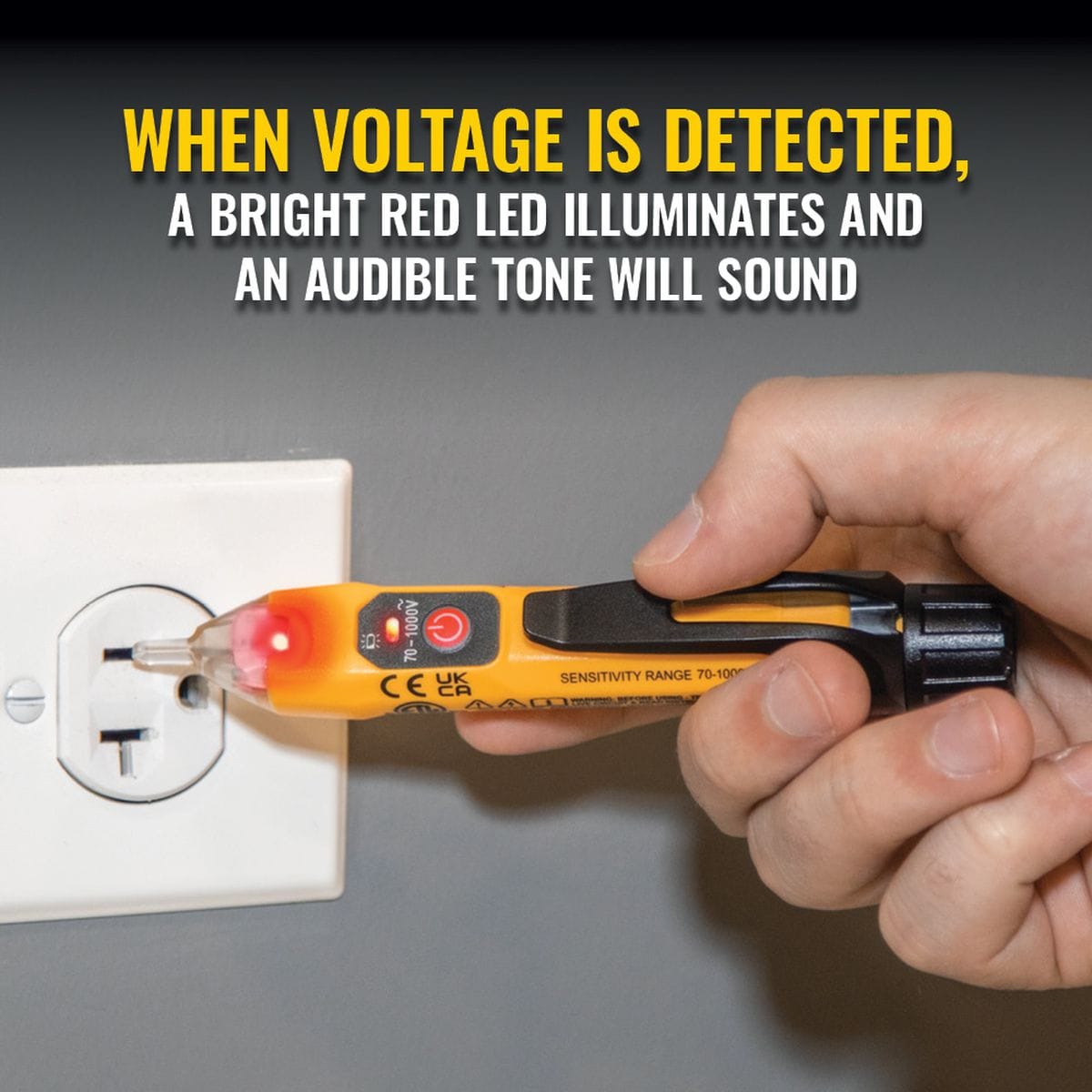

An application photograph showing a technician's hand using the yellow Klein Tools voltage detector pen on a white residential wall outlet, with a high-intensity bright red LED glowing at the tip to indicate live voltage detection.

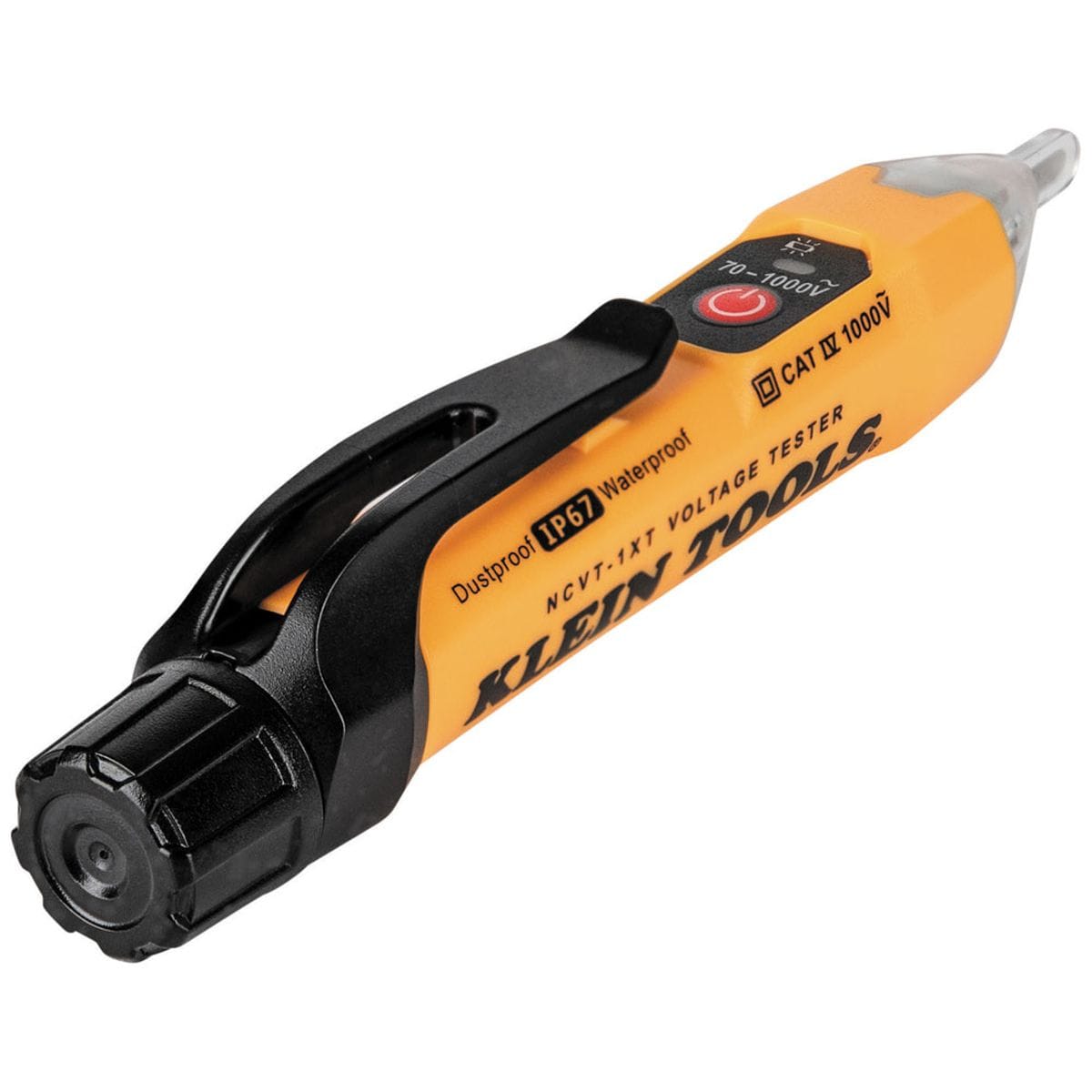

A rear-facing product shot of the Klein Tools non-contact voltage tester pen, emphasizing the durable black battery cap housing, the integrated pocket clip design, and the molded IP67 waterproof branding text.

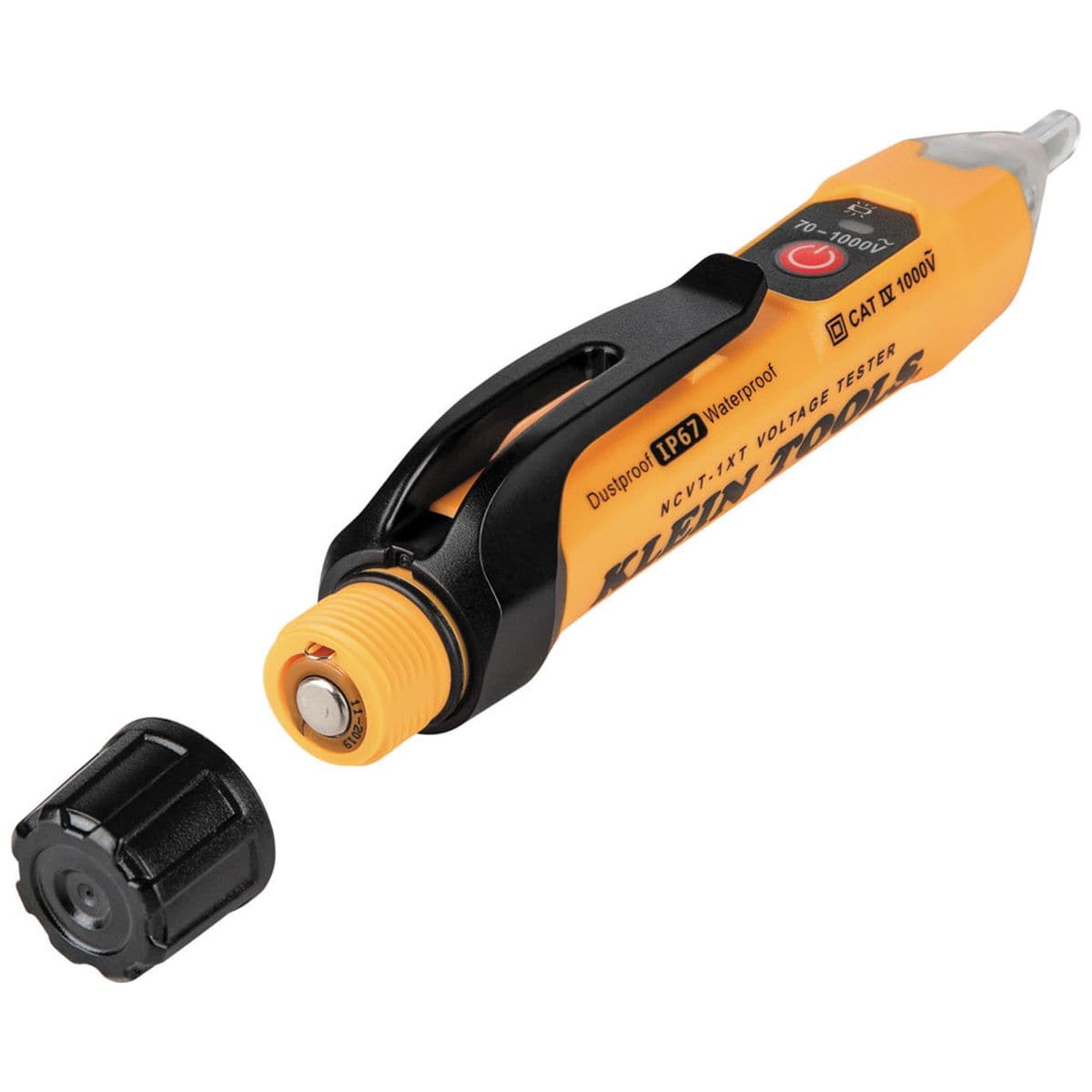

A detailed product shot of the Klein Tools voltage tester pen with the black threaded end cap removed, showing the internal battery compartment chamber and contact spring setup for the 1.5V AAA batteries.

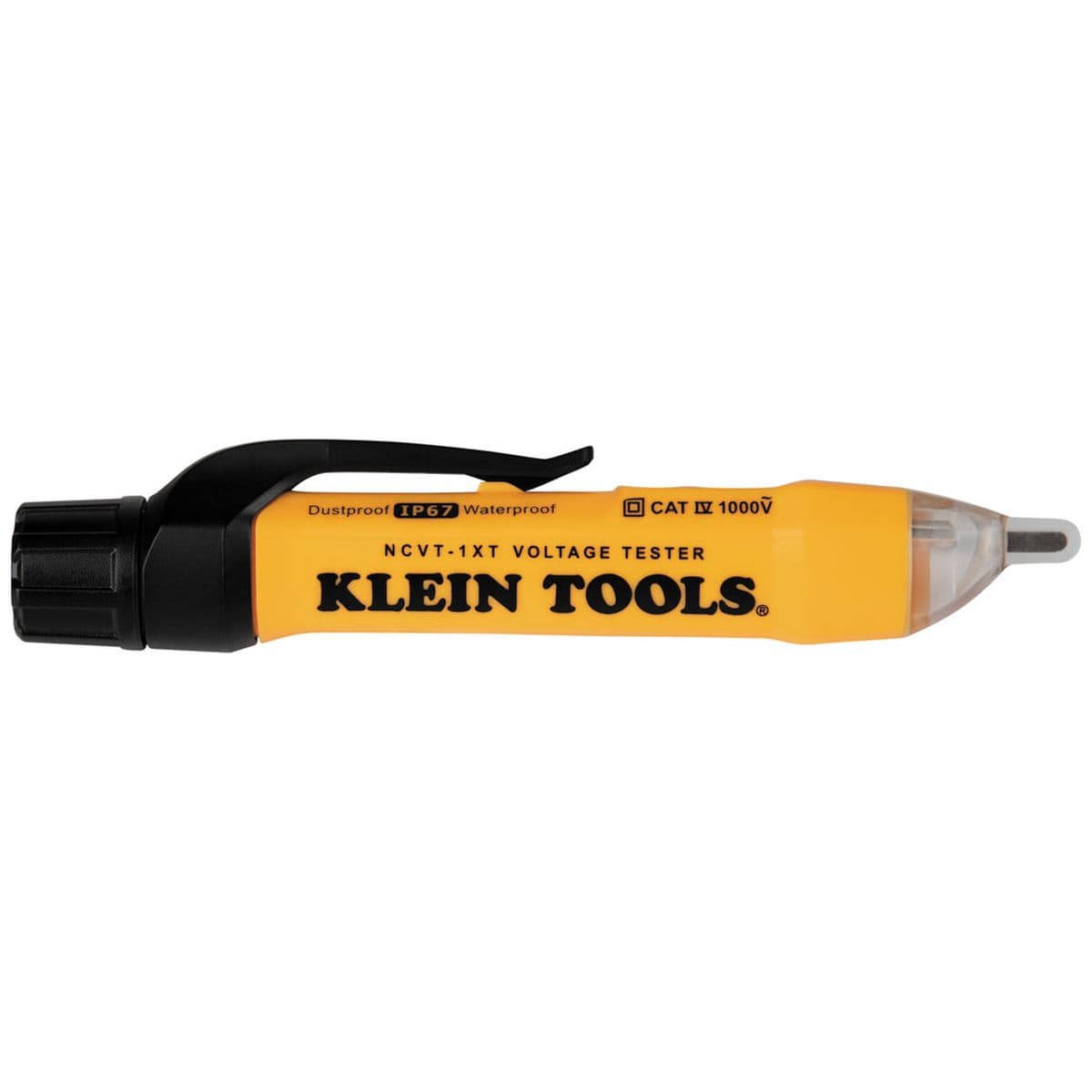

A clean flat-lay side profile view of the yellow Klein Tools NCVT1XT electrical circuit tester, showcasing the uniform layout of the pocket clip, the prominent black company logo, and the clear sensor tip extension.

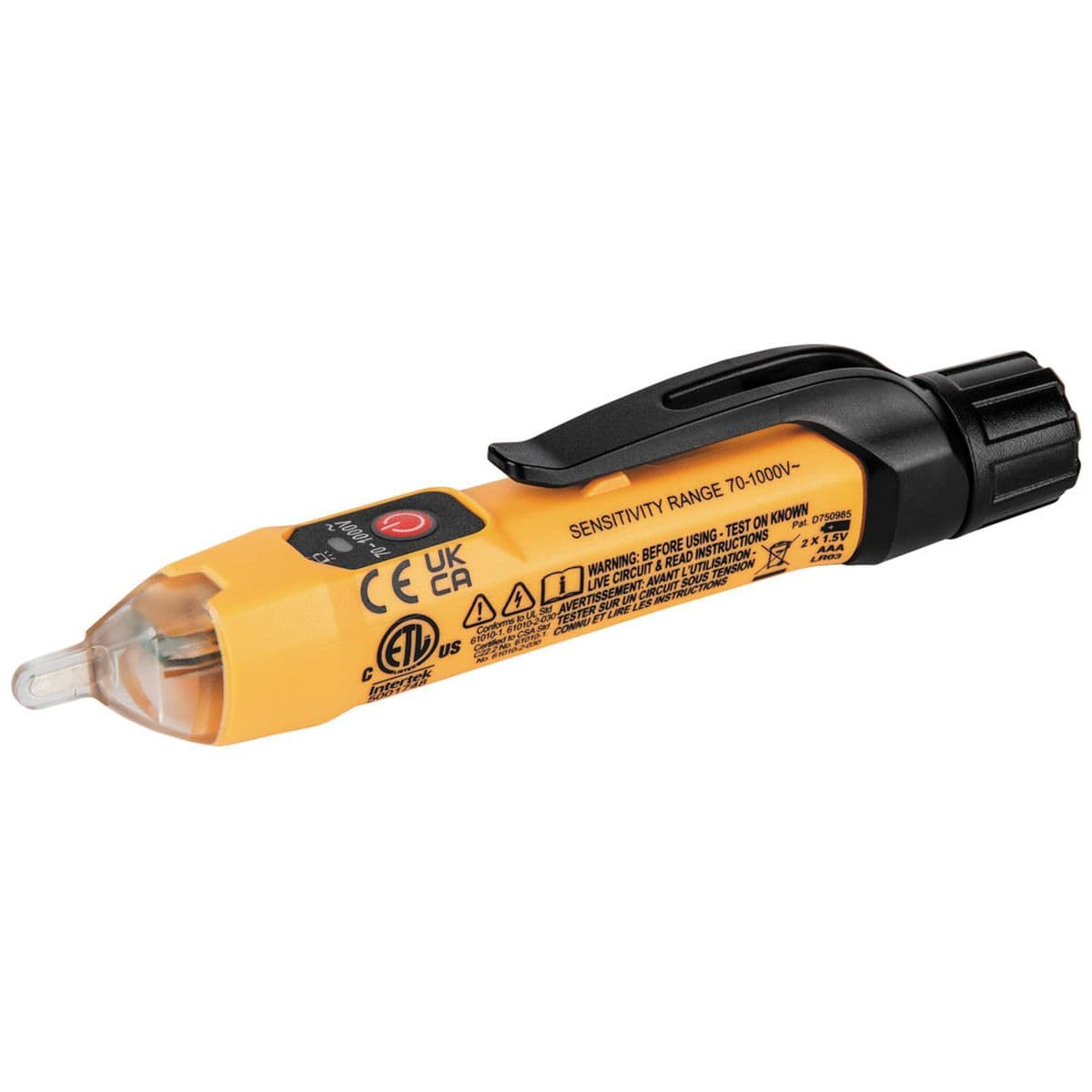

An inverted three-quarter product photograph of the Klein Tools voltage tester pen, highlighting the printed manufacturer safety specifications, warning labels, CE regulatory markings, and ETL certification seals on the underside of the yellow chassis.
The Name on the Tools is Our Reputation promotional how to video
A close-up studio photograph of the yellow and black Klein Tools NCVT1XT non-contact voltage tester pen, displayed at a three-quarter angle showcasing its pocket clip, power button panel, and clear plastic sensor tip against a white background.
An informational marketing infographic for the Klein Tools NCVT1XT voltage tester, featuring the tool body alongside text highlights pointing out the 70 to 1000V AC detection range, auto power-off function, IP67 waterproof rating, and CAT IV 1000V safety certifications.
An application photograph showing a technician's hand using the yellow Klein Tools voltage detector pen on a white residential wall outlet, with a high-intensity bright red LED glowing at the tip to indicate live voltage detection.
A rear-facing product shot of the Klein Tools non-contact voltage tester pen, emphasizing the durable black battery cap housing, the integrated pocket clip design, and the molded IP67 waterproof branding text.
A detailed product shot of the Klein Tools voltage tester pen with the black threaded end cap removed, showing the internal battery compartment chamber and contact spring setup for the 1.5V AAA batteries.
A clean flat-lay side profile view of the yellow Klein Tools NCVT1XT electrical circuit tester, showcasing the uniform layout of the pocket clip, the prominent black company logo, and the clear sensor tip extension.
An inverted three-quarter product photograph of the Klein Tools voltage tester pen, highlighting the printed manufacturer safety specifications, warning labels, CE regulatory markings, and ETL certification seals on the underside of the yellow chassis.
The Name on the Tools is Our Reputation promotional how to video
KLEIN TOOLS

Klein Tools Voltage Tester NCVT1XT 70 to 1000V AC Non Contact (IP67 Waterproof CAT IV 1000V Live Circuit Breaker Wire Electrical Detector Pen)

Only 2 left
SKU: NCVT1XT
$19.97 USD

Description

Klein promotional logo logout

Klein Tools NCVT1XT Non-Contact Voltage Tester Pen 70V to 1000V AC

The Klein Tools NCVT1XT Non-Contact Voltage Tester Pen operates as a pocket-sized electrical safety detector engineered to identify live AC voltage without physical contact with exposed conductors. Featuring a 70V to 1000V AC sensing range, an IP67 waterproof and dustproof rating, a 9.8-foot drop test rating, and a CAT IV 1000V safety classification, this voltage stick identifies live electrical fields in circuit breakers, cables, switches, and wall outlets. Weighing 1.7 ounces and powered by two AAA alkaline batteries, this tester uses a green power-on LED alongside simultaneous flashing red visual indicators and audible tones to confirm active electrical current.

Best Used For:

  • Circuit Breaker & Electrical Panel Testing: Checking live circuit breakers, busbars, and distribution panel wiring before performing electrical maintenance.
  • Wall Outlet & Appliance Cable Verification: Detecting active voltage in wall receptacles, light fixtures, extension cords, and industrial equipment switches without stripping insulation.
  • Severe Weather & High-Dust Jobsite Inspections: Testing electrical systems in rainy, muddy, or airborne-grit environments utilizing the IP67 sealed polymer housing.

Key Performance & Safety Features

  • 70V to 1000V AC Non-Contact Detection: Senses standard electrical fields across a 50Hz to 500Hz frequency range without direct conductor contact.
  • IP67 Waterproof & Dustproof Enclosure: Sealed polymer body prevents water ingress during heavy downpours and blocks dust contamination.
  • 9.8-Foot Impact Drop Protection: Industrial-grade housing withstands accidental 9.8-foot drops onto hard concrete floors.
  • Dual-Sensory Live Alert System: Emits a high-volume audible warning tone and flashes a bright red LED when energized circuits are detected.
  • CAT IV 1000V Safety Certification: Rated to withstand high-voltage transient surge spikes encountered in utility and industrial electrical installations.
  • Power-Saving Automatic Shutdown: Microprocessor automatically powers down the tester after inactivity to preserve battery life.

What's Included

  • (1) Klein Tools Non-Contact Voltage Tester Pen (NCVT1XT)
  • (2) 1.5-Volt AAA Alkaline Batteries
  • (1) Comprehensive Operator Instruction Manual

Technical Specifications

Brand Manufacturer Klein Tools
Model Part Number OEM SKU NCVT1XT
Operating Voltage Range 70 – 1000V AC
Operating Frequency Range 50 – 500 Hz
Ingress Protection Rating IP67 Waterproof & Dustproof
Impact Drop Resistance Rating 9.8 Feet (3.0 m)
Safety Standard Certification CAT IV 1000V Safety Rating
Visual Alert Indicators Green LED (Power-On) / Flashing Red LED (Voltage Detected)
Audible Alert Mechanism High-Decibel Audible Beeper Warning Tone
Power Source Requirements 2 × AAA 1.5 Volt Alkaline Batteries
Overall Dimensions (L x W x H) 5.34 in. × 1.08 in. × 0.97 in. (135.6 × 27.4 × 24.6 mm)
Net Operating Tool Weight 1.7 oz. (0.106 lbs. / 48.2 g)
Global UPC Barcode 092644693830

Pro-Tip: Always perform a "Live-Dead-Live" test before working on electrical circuits. Test the Klein NCVT1XT on a known live voltage source first to confirm the green LED, red flashing light, and audible alert function correctly, test the target circuit to ensure it is de-energized, and then re-test on the known live source to verify tester operation.
