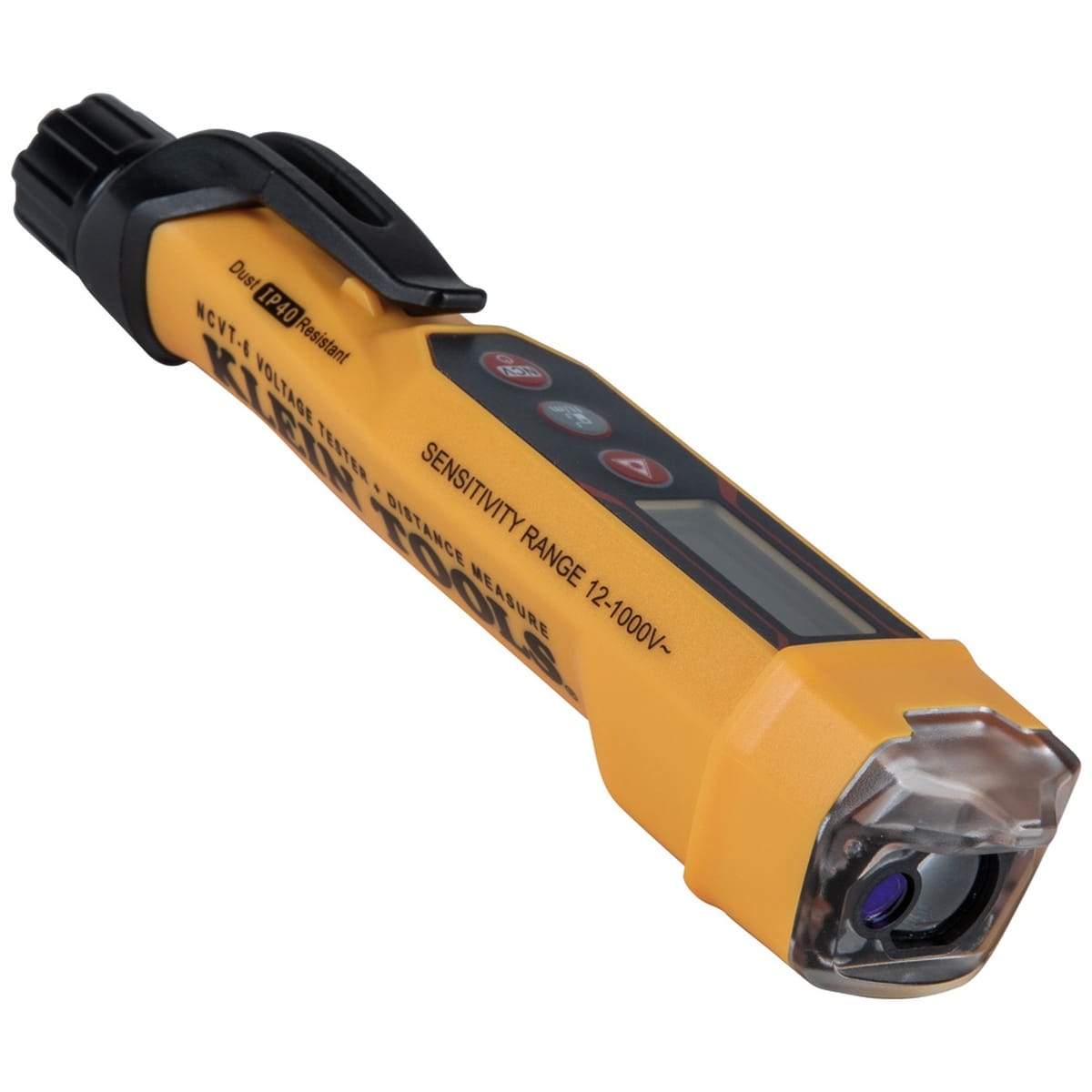

An angled studio shot of the Klein Tools NCVT6 dual-function tester. The device features a high-visibility yellow body with a black pocket clip and a clear sensing tip, prominently displaying the IP40 dust-resistant rating and the 12 to 1000V AC sensitivity range.

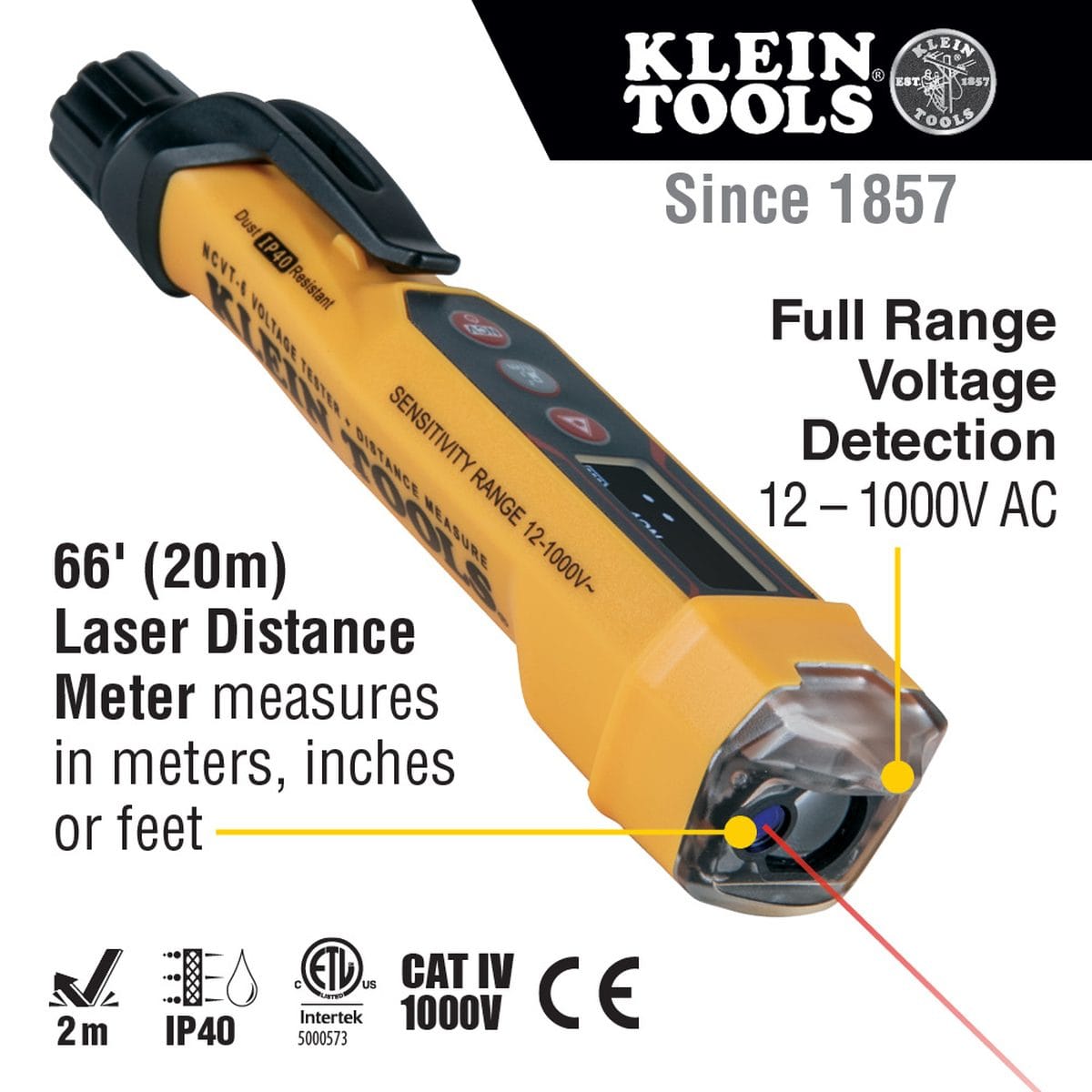

Marketing infographic for the Klein Tools NCVT6 highlighting its dual-purpose design. Text callouts emphasize the full-range voltage detection and the 66-foot laser distance meter that measures in meters, inches, or feet. Technical icons show the 2-meter drop protection, IP40 rating, and CAT IV 1000V safety certification.

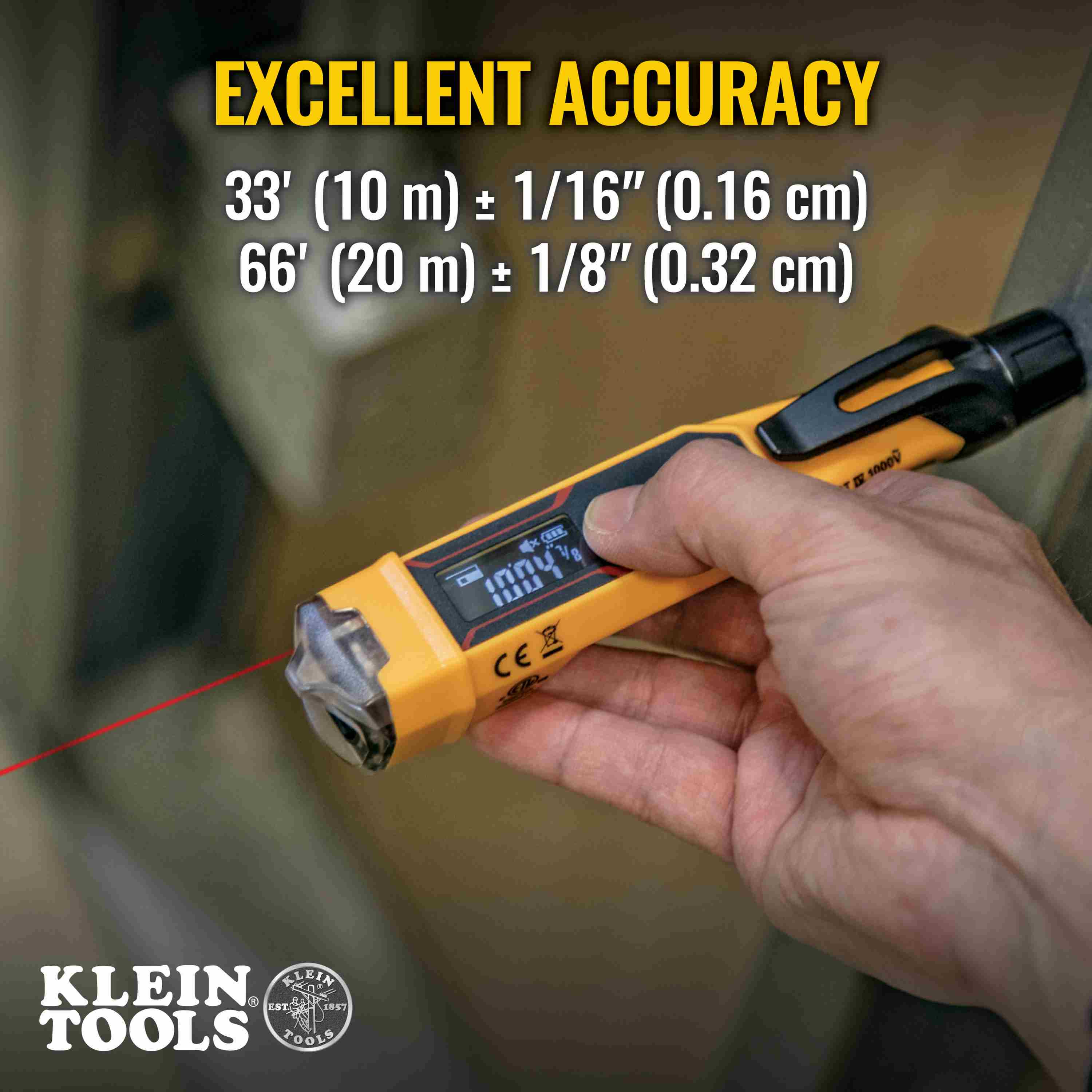

Action shot showcasing the precision of the NCVT6 laser distance meter. A technician holds the tool, which projects a red laser beam, while an overlay lists the excellent accuracy specifications of +/- 1/16-inch at 33 feet and +/- 1/8-inch at 66 feet.

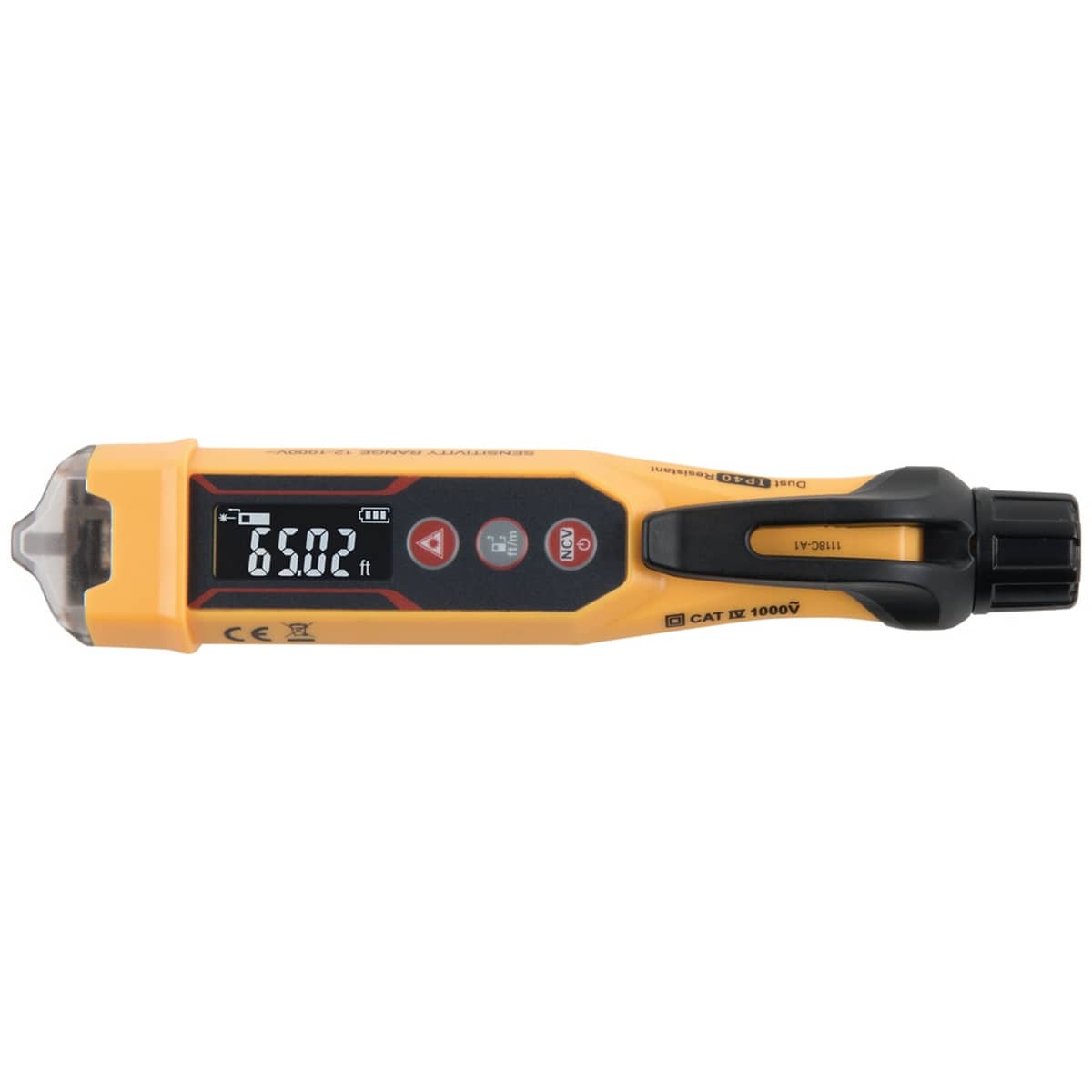

A top-down view of the Klein Tools NCVT6 showcasing the high-visibility reverse-contrast LCD. The screen is currently displaying a distance measurement of 65.02 feet, alongside the tactile buttons for laser measurement, unit selection, and non-contact voltage detection.

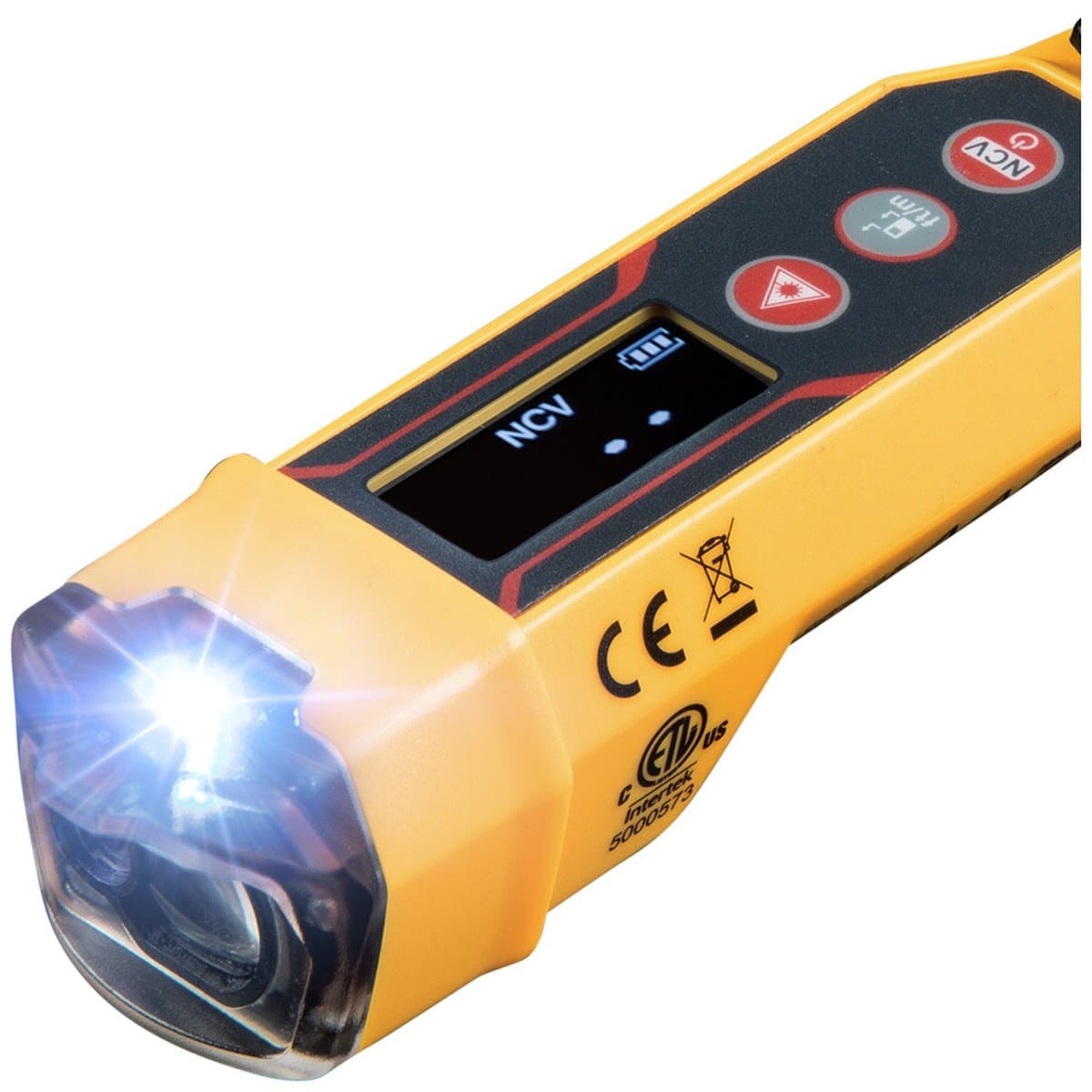

Close-up perspective of the NCVT6 sensing tip with the integrated LED light activated. The reverse-contrast display shows the NCV mode is active, illustrating the tool's ability to provide clear visual feedback in low-light environments.

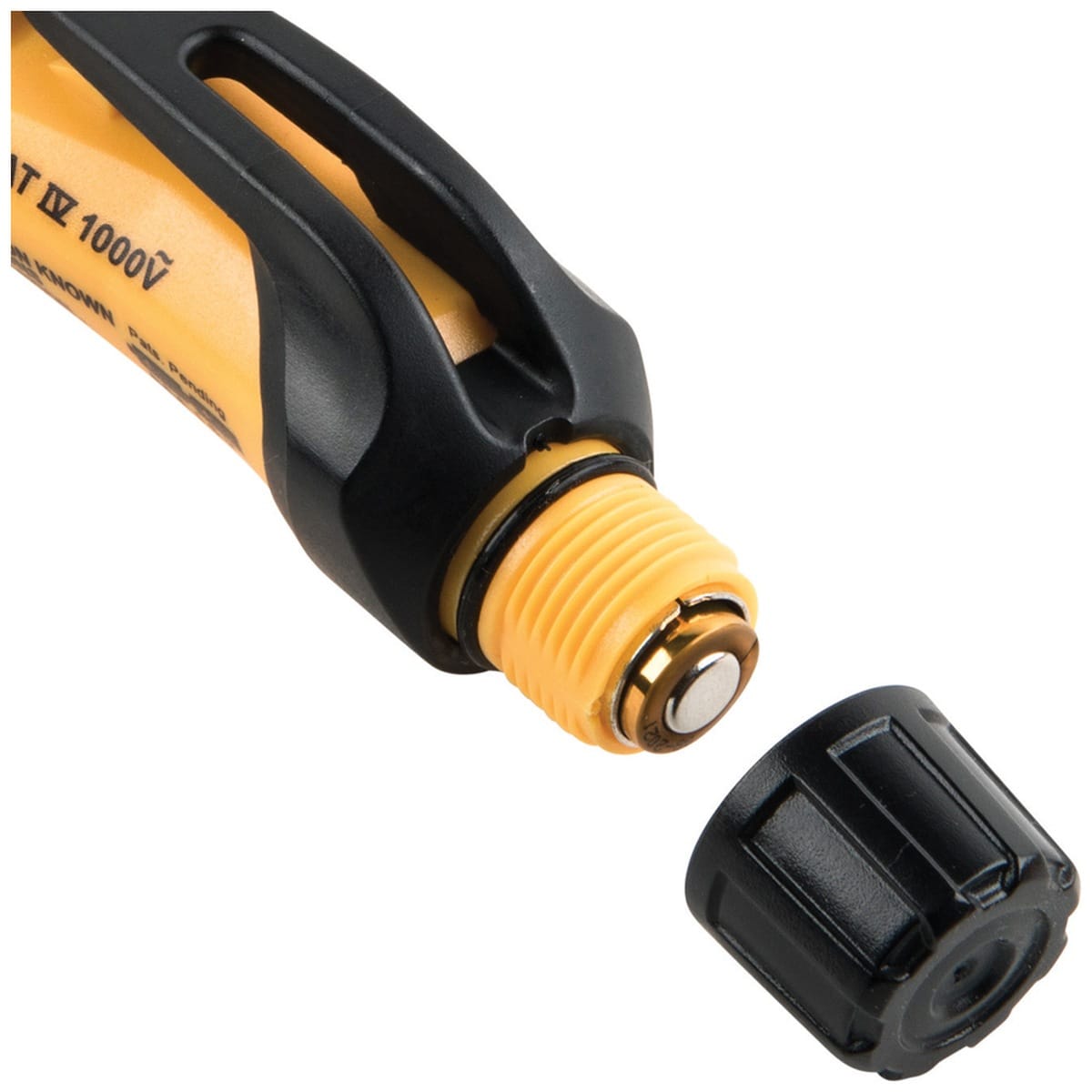

Detailed view of the NCVT6 battery compartment with the black screw-thread cap removed. The image highlights the O-ring seal for dust resistance and the compartment designed for two AAA batteries.

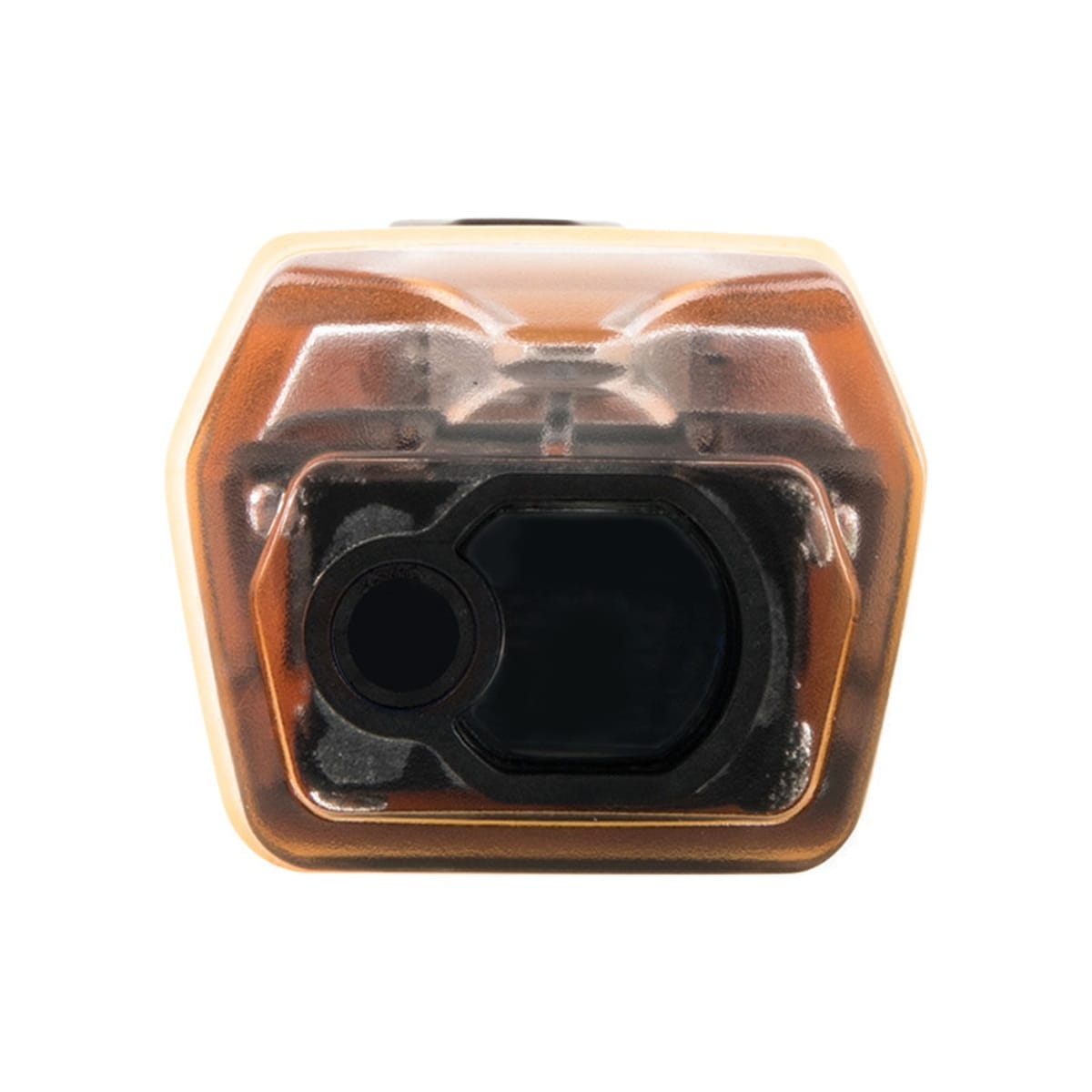

A front-end view of the NCVT6 sensing tip, showing the integrated laser distance meter lens and the non-contact voltage sensor housed within the durable clear plastic head.

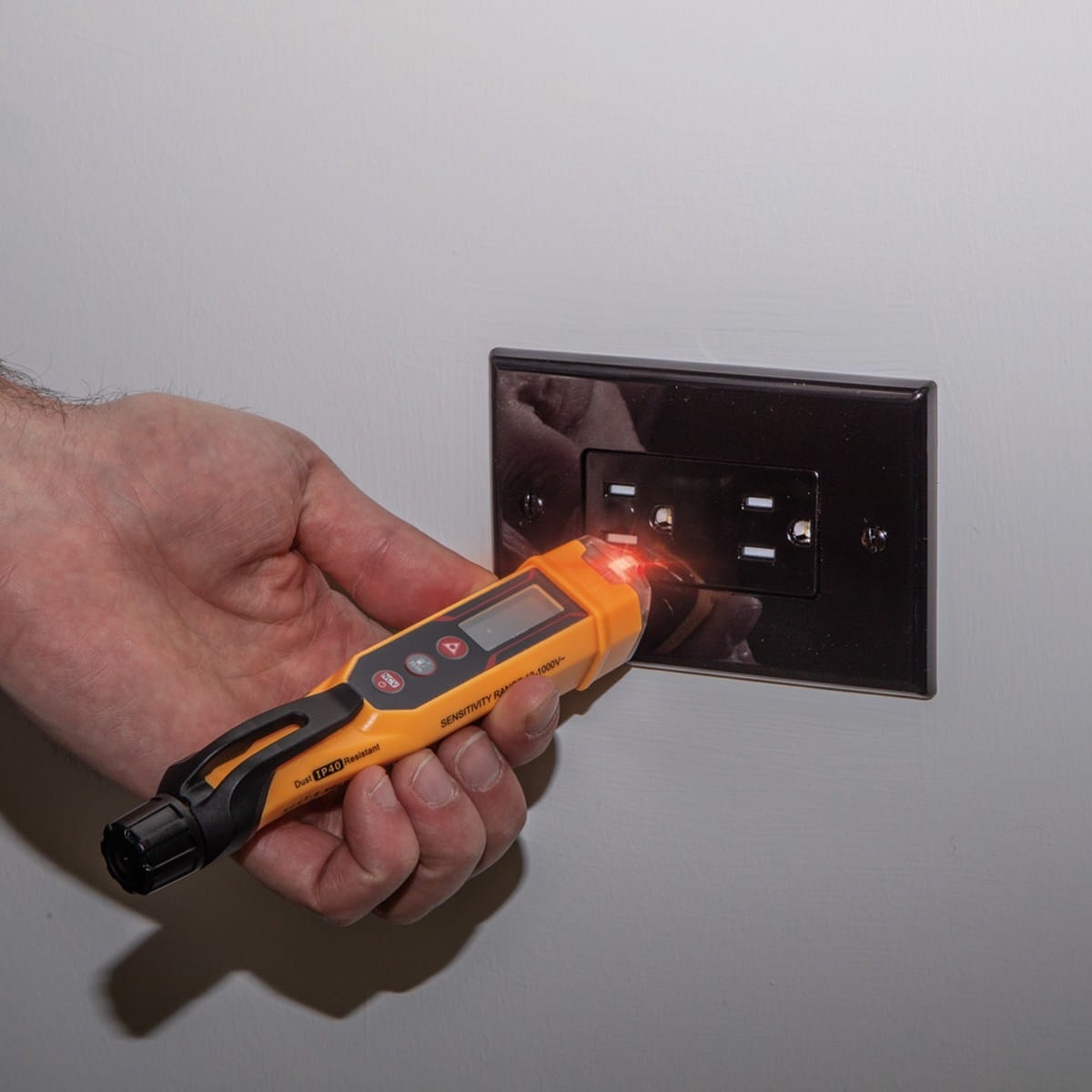

A technician using the Klein Tools NCVT6 to check a standard black electrical wall outlet. The clear tip is illuminated with a red LED, providing a simultaneous visual alarm that live voltage is present in the circuit.

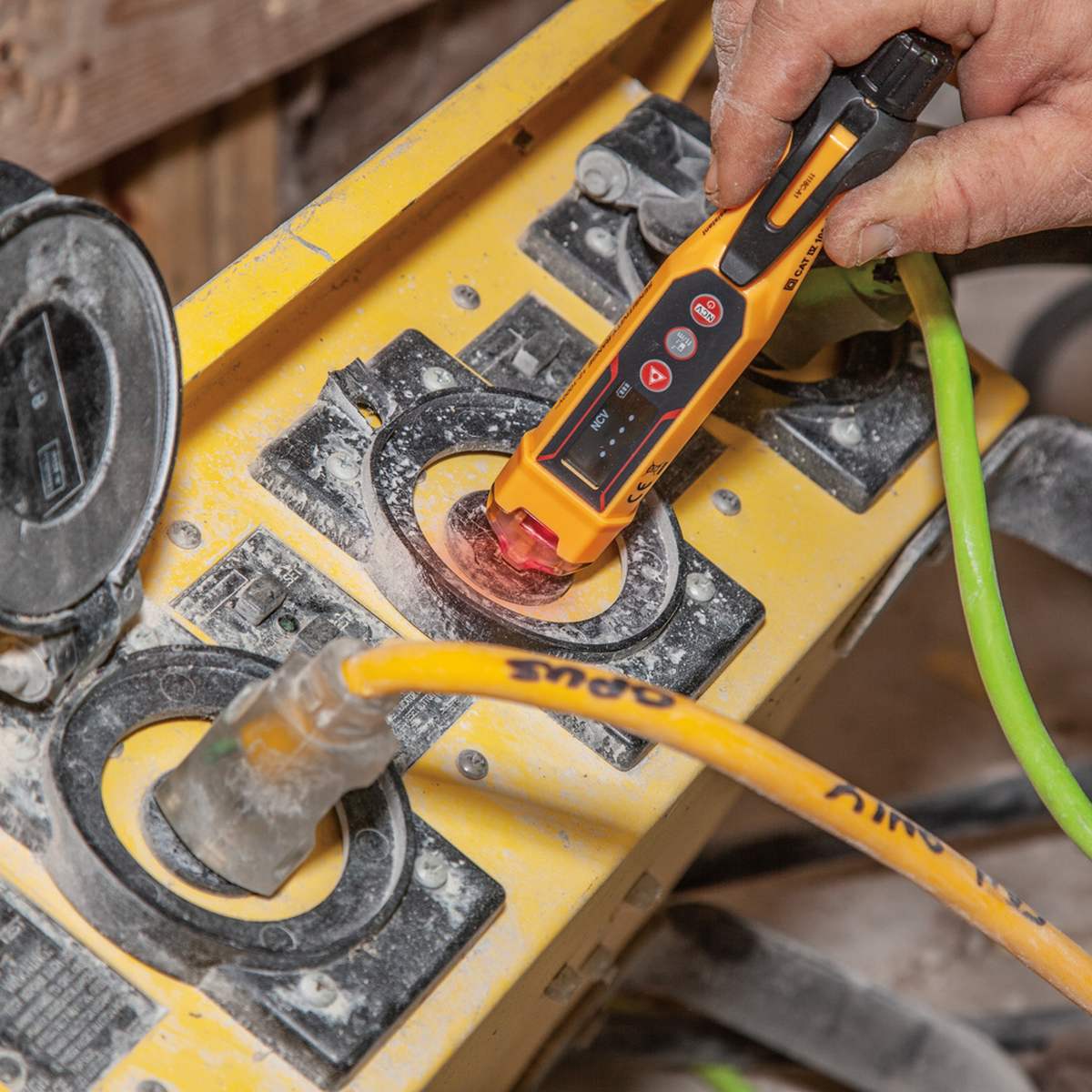

Professional application shot of the NCVT6 being used to test an industrial-grade outdoor power distribution box. The red visual indicator is active, demonstrating the tool's reliability in identifying live AC voltage in heavy-duty commercial settings.

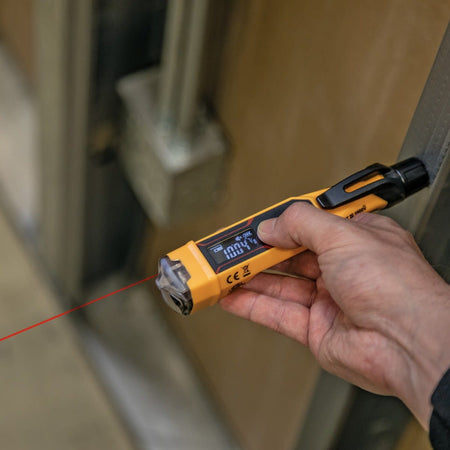

The NCVT6 laser distance meter being used to measure a wire run in a commercial building. The red laser beam is projected toward a distant wall while the technician views the precise measurement on the backlit reverse-contrast LCD.

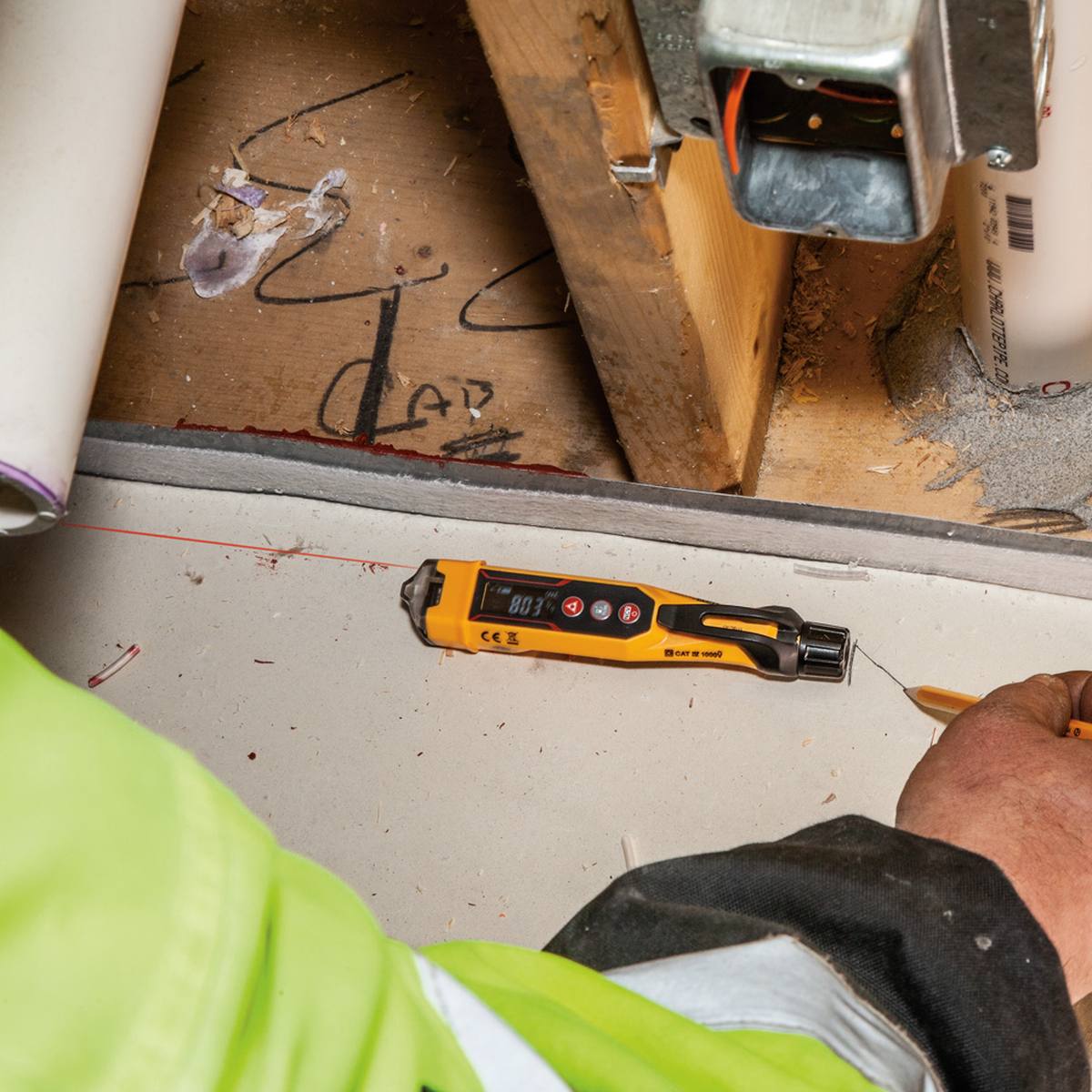

High-angle action shot of the Klein Tools NCVT6 being used on a construction jobsite to mark a specific distance. The integrated laser projects a bright red line across a concrete surface while a worker uses a pencil to mark the measurement, showcasing the tool's utility in rough-in electrical layouts.

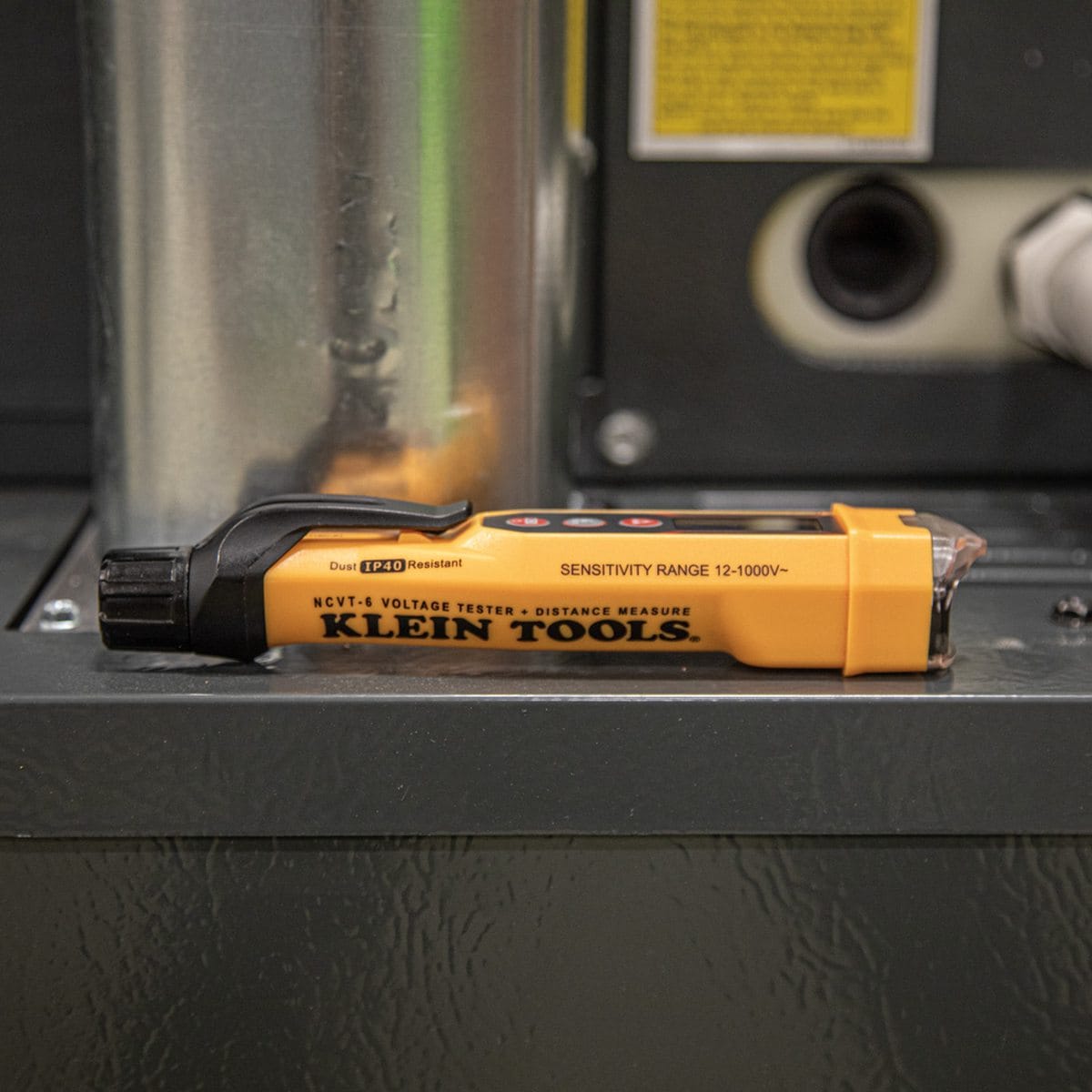

A side profile of the NCVT6 voltage tester and laser distance meter resting on a gray industrial electrical cabinet. The image highlights the "Sensitivity Range 12-1000V" branding and the IP40 dust-resistant rating, emphasizing its rugged design for professional environments.

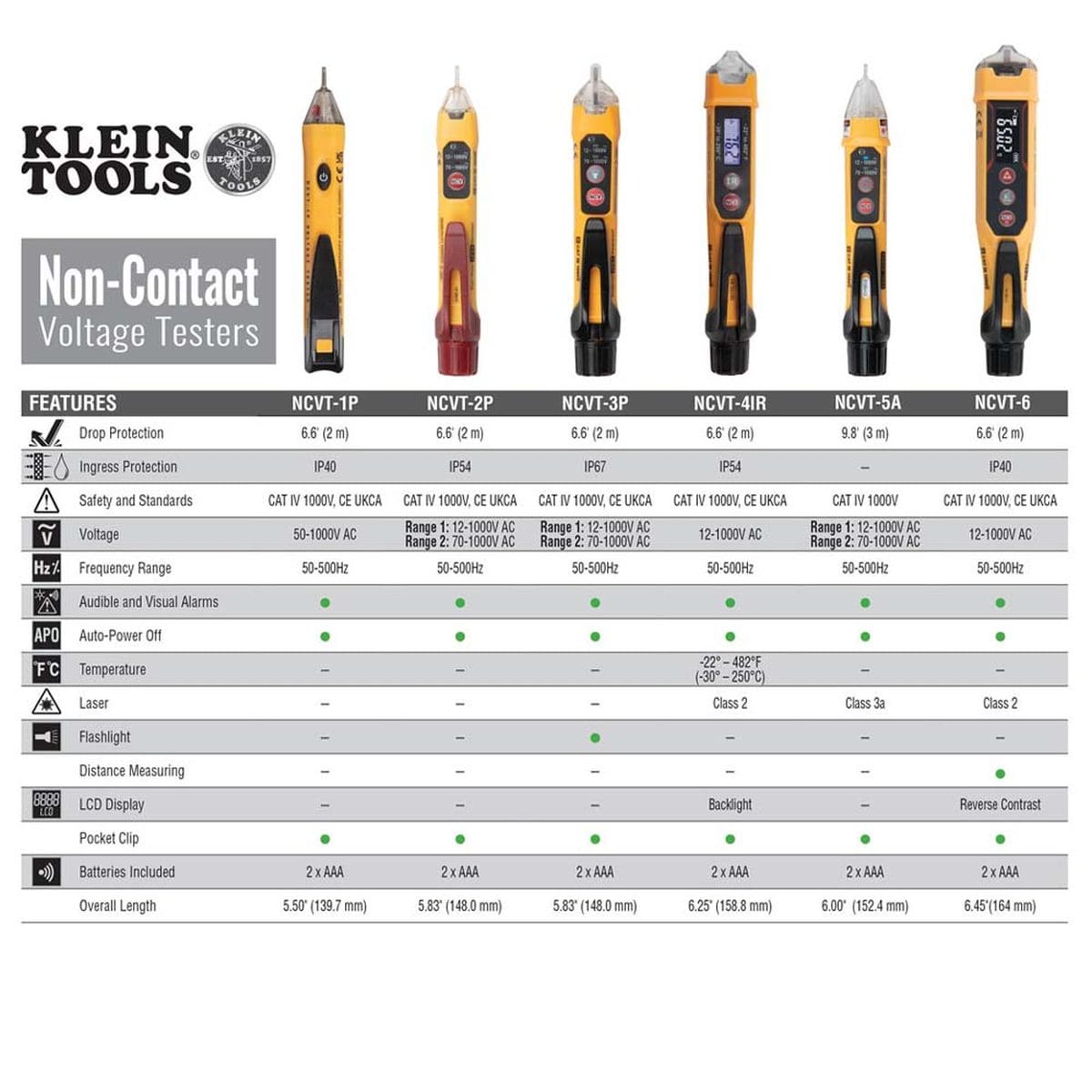

A comprehensive technical comparison chart for the Klein Tools non-contact voltage tester family. The table compares the NCVT6 against the NCVT1P, NCVT2P, NCVT3P, NCVT4IR, and NCVT5A models, detailing specifications such as laser integration, distance measuring capabilities, and reverse-contrast LCD availability.
Non-Contact Voltage Tester with Laser Distance Meter (NCVT-6) promotional how to video
An angled studio shot of the Klein Tools NCVT6 dual-function tester. The device features a high-visibility yellow body with a black pocket clip and a clear sensing tip, prominently displaying the IP40 dust-resistant rating and the 12 to 1000V AC sensitivity range.
Marketing infographic for the Klein Tools NCVT6 highlighting its dual-purpose design. Text callouts emphasize the full-range voltage detection and the 66-foot laser distance meter that measures in meters, inches, or feet. Technical icons show the 2-meter drop protection, IP40 rating, and CAT IV 1000V safety certification.
Action shot showcasing the precision of the NCVT6 laser distance meter. A technician holds the tool, which projects a red laser beam, while an overlay lists the excellent accuracy specifications of +/- 1/16-inch at 33 feet and +/- 1/8-inch at 66 feet.
A top-down view of the Klein Tools NCVT6 showcasing the high-visibility reverse-contrast LCD. The screen is currently displaying a distance measurement of 65.02 feet, alongside the tactile buttons for laser measurement, unit selection, and non-contact voltage detection.
Close-up perspective of the NCVT6 sensing tip with the integrated LED light activated. The reverse-contrast display shows the NCV mode is active, illustrating the tool's ability to provide clear visual feedback in low-light environments.
Detailed view of the NCVT6 battery compartment with the black screw-thread cap removed. The image highlights the O-ring seal for dust resistance and the compartment designed for two AAA batteries.
A front-end view of the NCVT6 sensing tip, showing the integrated laser distance meter lens and the non-contact voltage sensor housed within the durable clear plastic head.
A technician using the Klein Tools NCVT6 to check a standard black electrical wall outlet. The clear tip is illuminated with a red LED, providing a simultaneous visual alarm that live voltage is present in the circuit.
Professional application shot of the NCVT6 being used to test an industrial-grade outdoor power distribution box. The red visual indicator is active, demonstrating the tool's reliability in identifying live AC voltage in heavy-duty commercial settings.
The NCVT6 laser distance meter being used to measure a wire run in a commercial building. The red laser beam is projected toward a distant wall while the technician views the precise measurement on the backlit reverse-contrast LCD.
High-angle action shot of the Klein Tools NCVT6 being used on a construction jobsite to mark a specific distance. The integrated laser projects a bright red line across a concrete surface while a worker uses a pencil to mark the measurement, showcasing the tool's utility in rough-in electrical layouts.
A side profile of the NCVT6 voltage tester and laser distance meter resting on a gray industrial electrical cabinet. The image highlights the "Sensitivity Range 12-1000V" branding and the IP40 dust-resistant rating, emphasizing its rugged design for professional environments.
A comprehensive technical comparison chart for the Klein Tools non-contact voltage tester family. The table compares the NCVT6 against the NCVT1P, NCVT2P, NCVT3P, NCVT4IR, and NCVT5A models, detailing specifications such as laser integration, distance measuring capabilities, and reverse-contrast LCD availability.
Non-Contact Voltage Tester with Laser Distance Meter (NCVT-6) promotional how to video
KLEIN TOOLS

Klein Tools NCVT6 Non Contact Voltage Tester Pen with 66-Foot Laser Distance Meter 12 to 1000V AC Dual Function Electrical Circuit Detector Reverse Contrast LCD

Only 2 left
SKU: NCVT6
$54.97

Description

Klein promotional logo logout

The Ultimate 2-in-1 Electrical Companion: Klein Tools NCVT6 Voltage Tester & Laser Distance Meter

The Klein Tools NCVT-6 is a groundbreaking diagnostic tool that combines a professional-grade non-contact voltage tester (NCVT) with a high-precision laser distance meter. Engineered for maximum efficiency, this versatile pen allows electricians, HVAC technicians, and inspectors to detect AC voltage across a broad 12 to 1000V range while simultaneously measuring distances up to 66 feet with a single device. Whether you are verifying power in a circuit breaker, troubleshooting a low-voltage security system, or calculating wire run lengths and conduit requirements, the NCVT-6 eliminates the need for multiple tools. Its intuitive, single-button interface allows you to toggle instantly between detection and measurement, making it an essential addition to any professional tool belt.

Designed for the rigors of the modern jobsite, the NCVT-6 features a high-visibility reverse-contrast LCD that ensures crystal-clear distance readings even in dimly lit or high-glare environments. For voltage detection, the tool utilizes simultaneous visual and audible indicators, with a beeping frequency that increases as you approach the voltage source. Safety is built into every detail, including a CAT IV 1000V safety rating and a rugged housing tested to withstand a 6.6-foot (2-meter) drop. The lightweight design is complemented by a heavy-duty pocket clip for secure everyday carry and an auto-power off feature to conserve battery life. From measuring room dimensions for lighting layouts to ensuring electrical safety, the Klein Tools NCVT-6 provides the accuracy and reliability that industry pros demand.

Key Features

  • Dual-Function Performance: Combines a 12-1000V AC non-contact voltage tester with a 66-foot laser distance meter.
  • High-Precision Measurement: Laser meter provides accuracy up to 1/16-inch and supports measurements in feet, inches, and meters.
  • Reverse-Contrast Display: Backlit LCD ensures easy viewing of distance data in low-light or direct sunlight conditions.
  • Intelligent Alerts: Features a variable frequency audible alarm and visual LED that intensify as the voltage source gets closer.
  • Professional Safety Rating: CAT IV 1000V rated for use on a broad range of residential and commercial electrical systems.
  • Jobsite Durability: Engineered with IP40 dust resistance and tested for 6.6-foot (2-meter) drop protection.

What's Included

  • (1) NCVT6 Non-Contact Voltage Tester with Laser Distance Meter
  • (2) 1.5V AAA Alkaline Batteries
  • (1) Instruction Manual

Specifications

Voltage Range 12 - 1000V AC
Laser Distance Range 2 in. to 66 ft.
Measurement Accuracy +/- 1/16 in. (up to 32.8 ft.)
Safety Rating CAT IV 1000V
Display Type Backlit Reverse-Contrast LCD
Laser Class Class II, <1mW, 630-670nm
Drop Protection 6.6 ft. (2 m)
Ingress Protection IP40 Dust Resistant
Batteries 2 x AAA (Included)
Overall Length 6.45 in.
Overall Width 1.21 in.
Tool Weight 2.5 oz.

Pro-Tip: Use the laser distance meter to quickly estimate conduit runs along a ceiling. By pointing the laser from your ladder to the far wall, you can get a precise measurement in seconds without fighting a sagging tape measure, saving you significant time during the layout phase of your installation.
