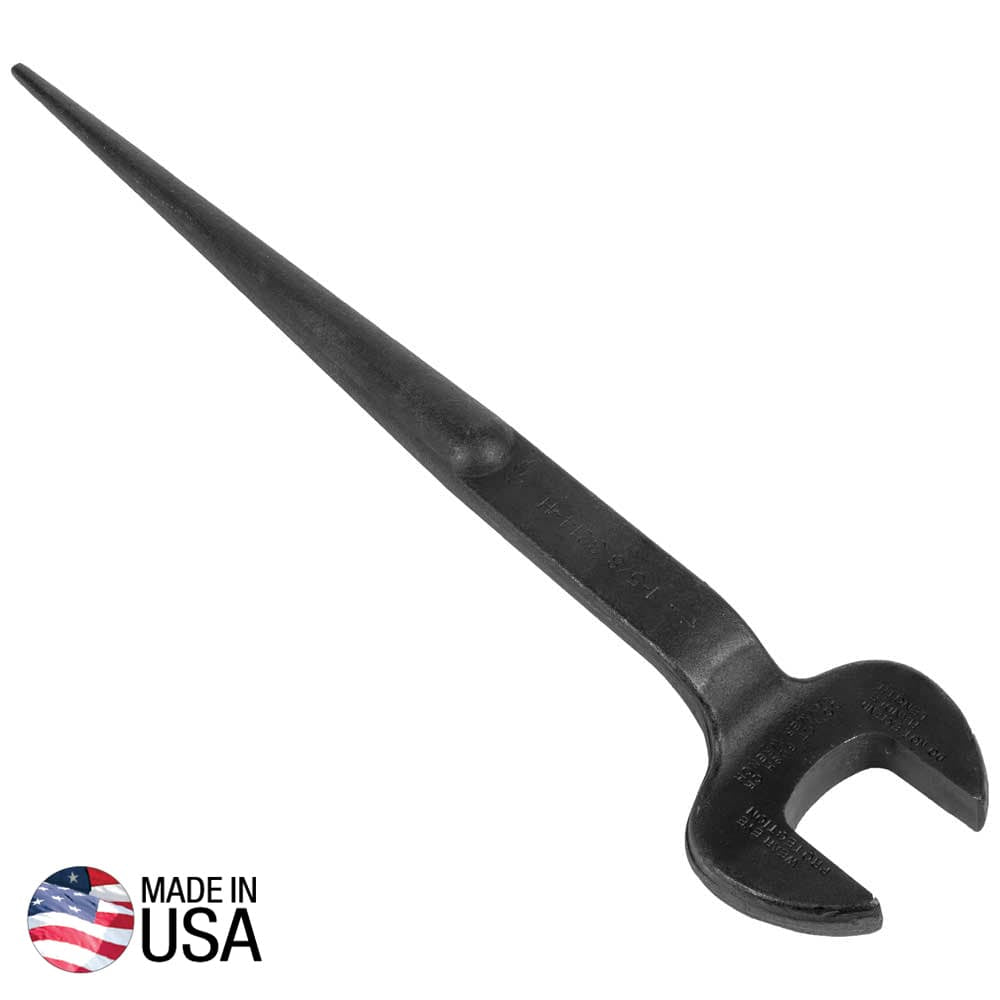

Klein Tools 3214 forged alloy steel spud wrench with 1-5/8 inch opening and continuous tapered handle for aligning structural bolt holes.

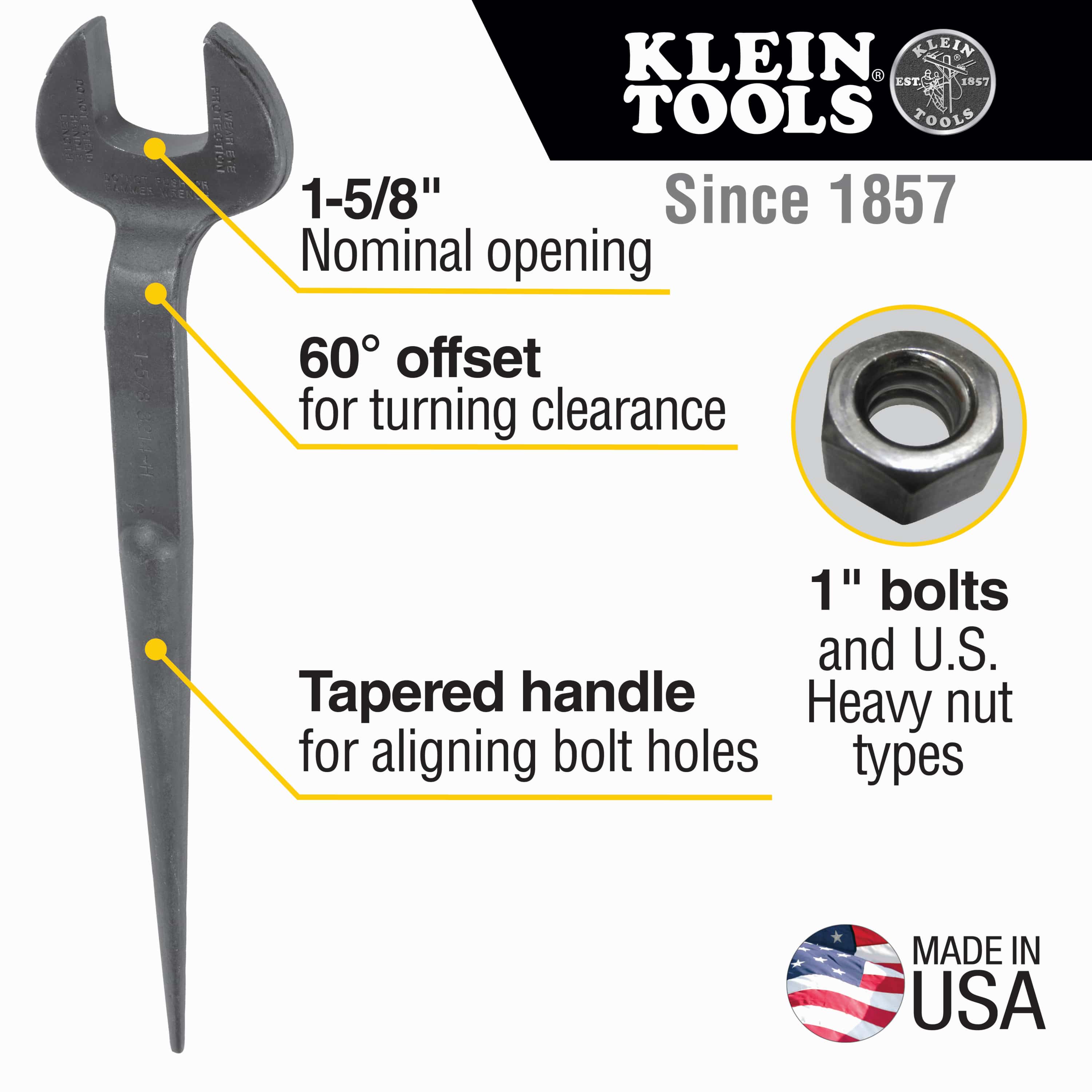

Diagram showing Klein Tools 3214 features including a 1-5/8 inch opening, 60-degree offset, and tapered handle for 1-inch U.S. heavy nuts.

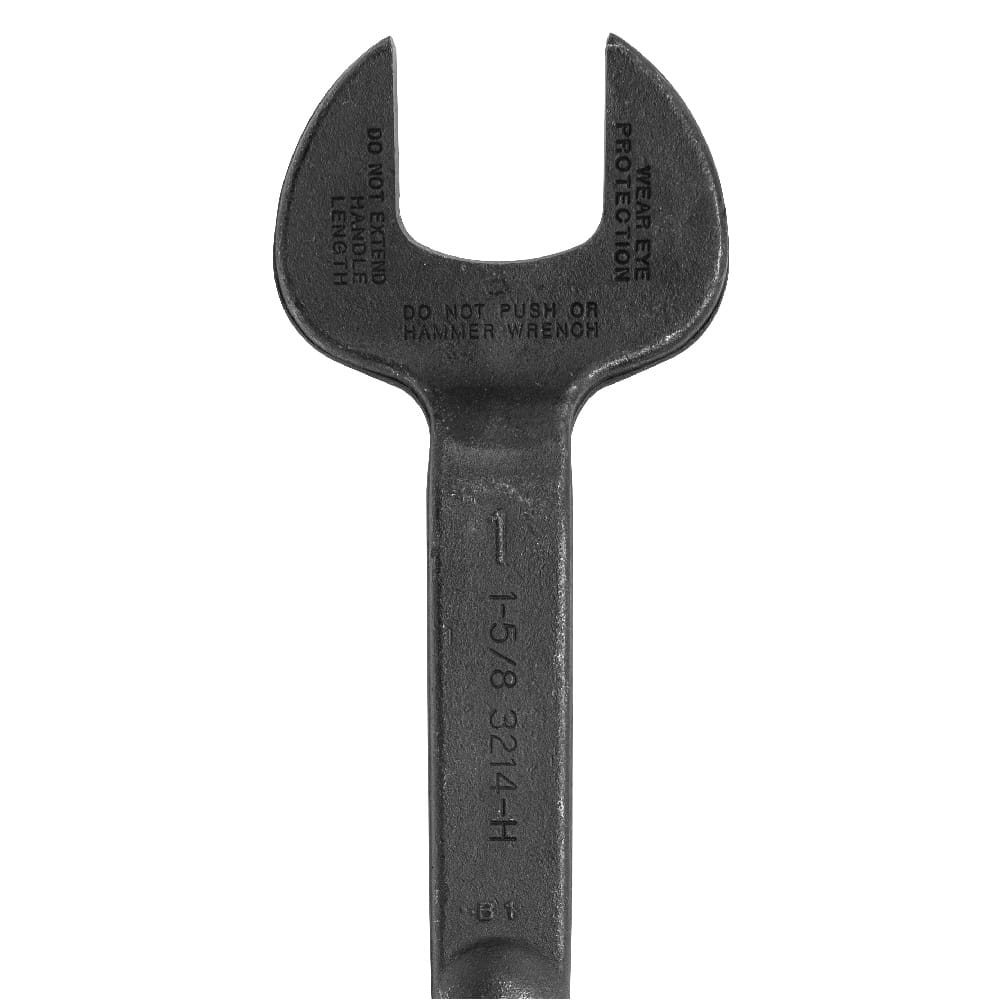

Close-up of forged Klein 3214 spud wrench head stamped with safety warnings, 1-5/8 inch size rating, and catalog model number.

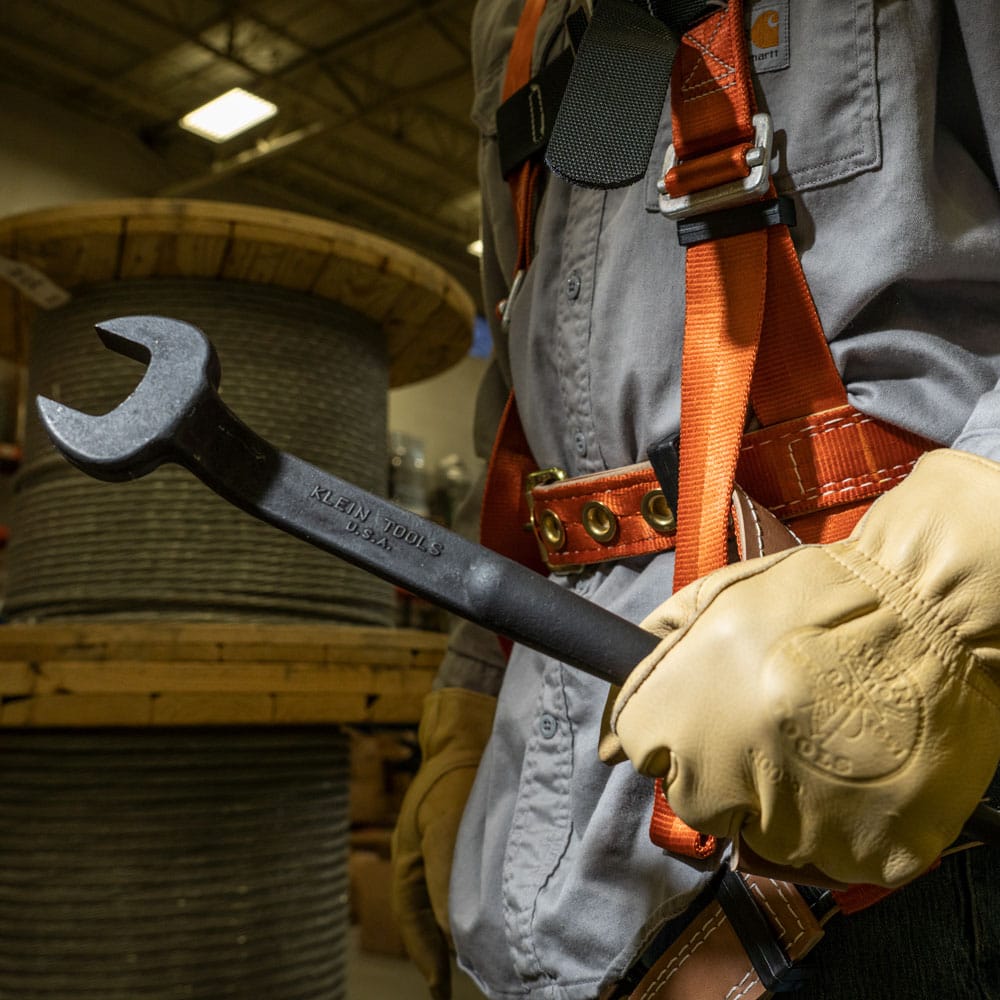

Ironworker wearing safety harness holding 18-inch Klein Tools spud wrench on structural steel construction site.

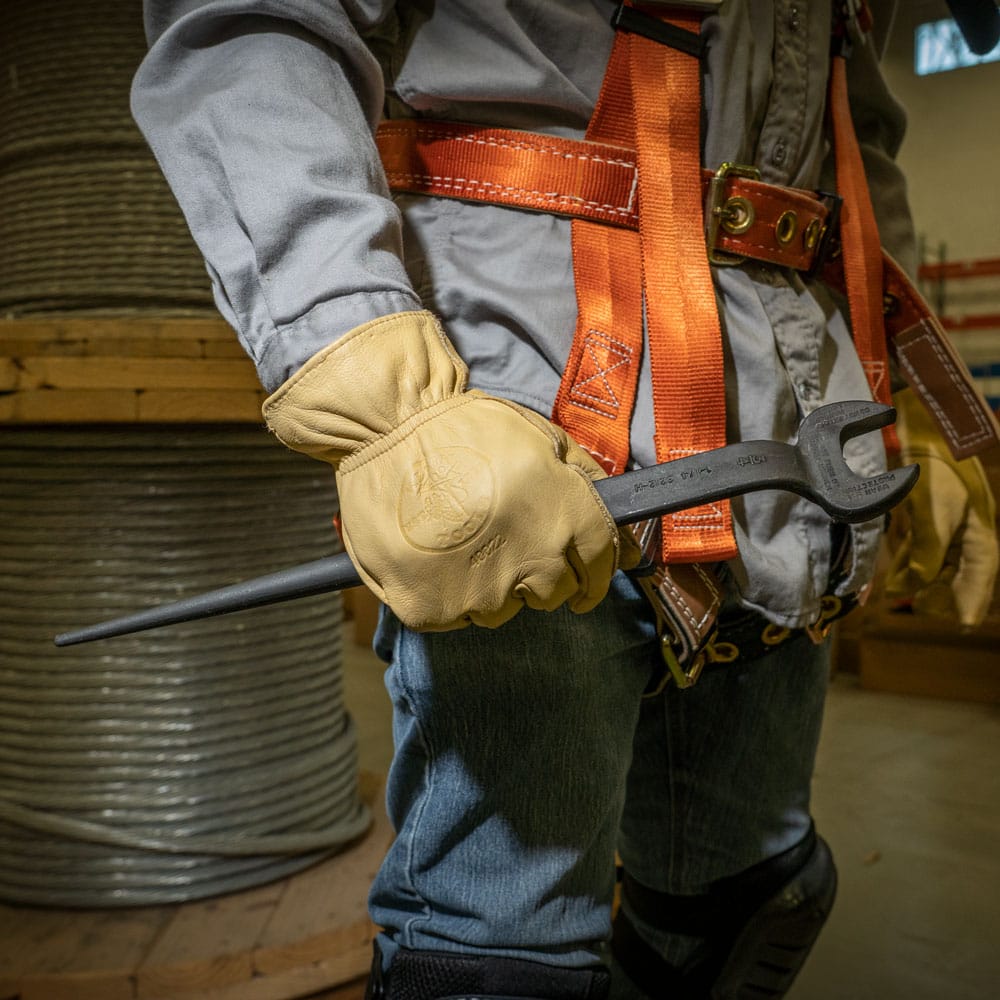

Structural steel worker holding Klein 3214 spud wrench displaying 60-degree offset head and smooth drift pin alignment handle.

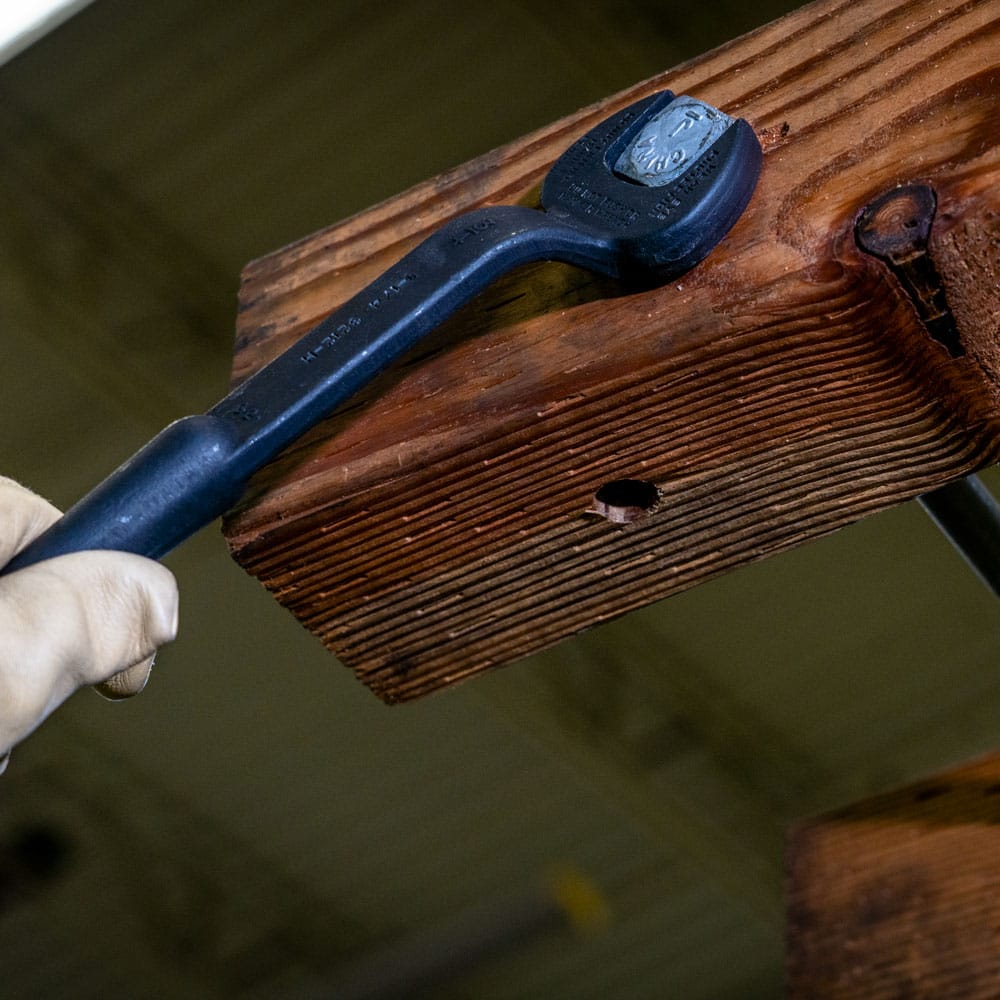

Ironworker using 60-degree offset head of Klein 3214 spud wrench to turn heavy hex nut in tight clearance application.

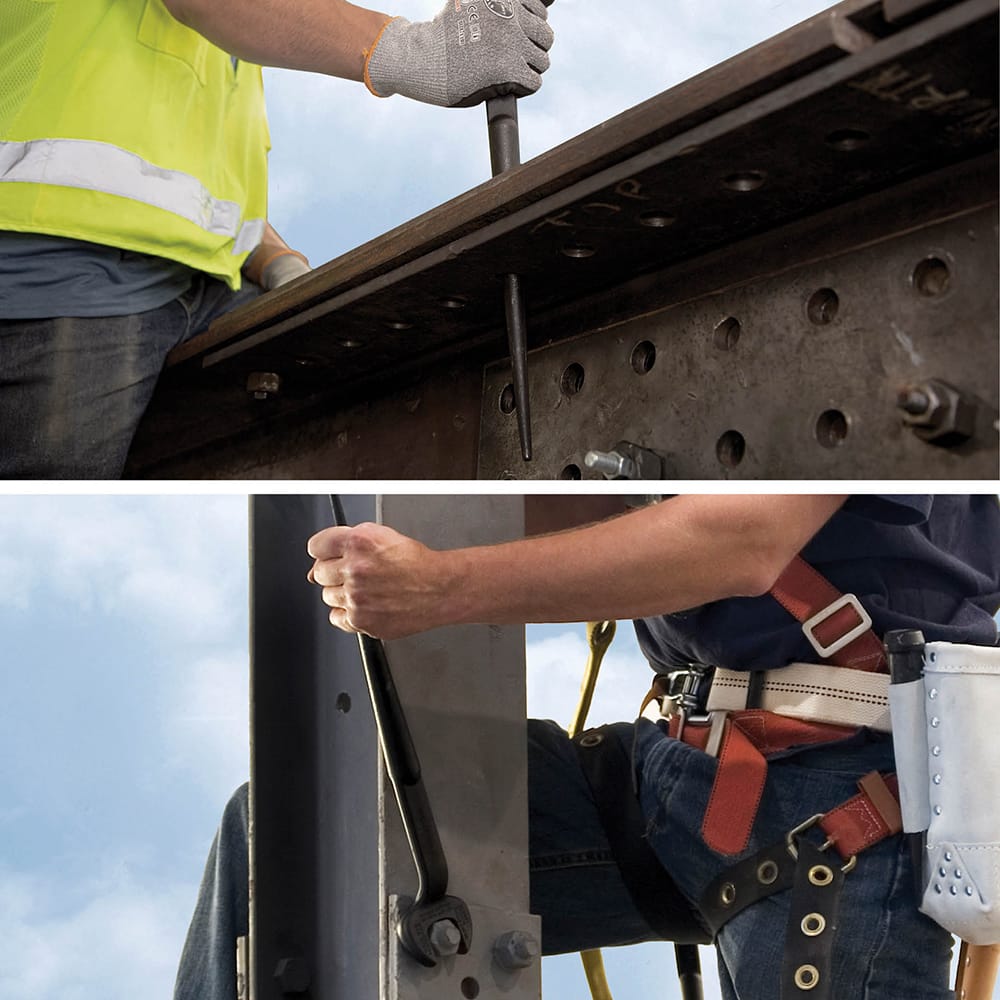

Ironworker inserting tapered spud wrench handle into beam holes for alignment and using offset head to tighten structural flange bolt.

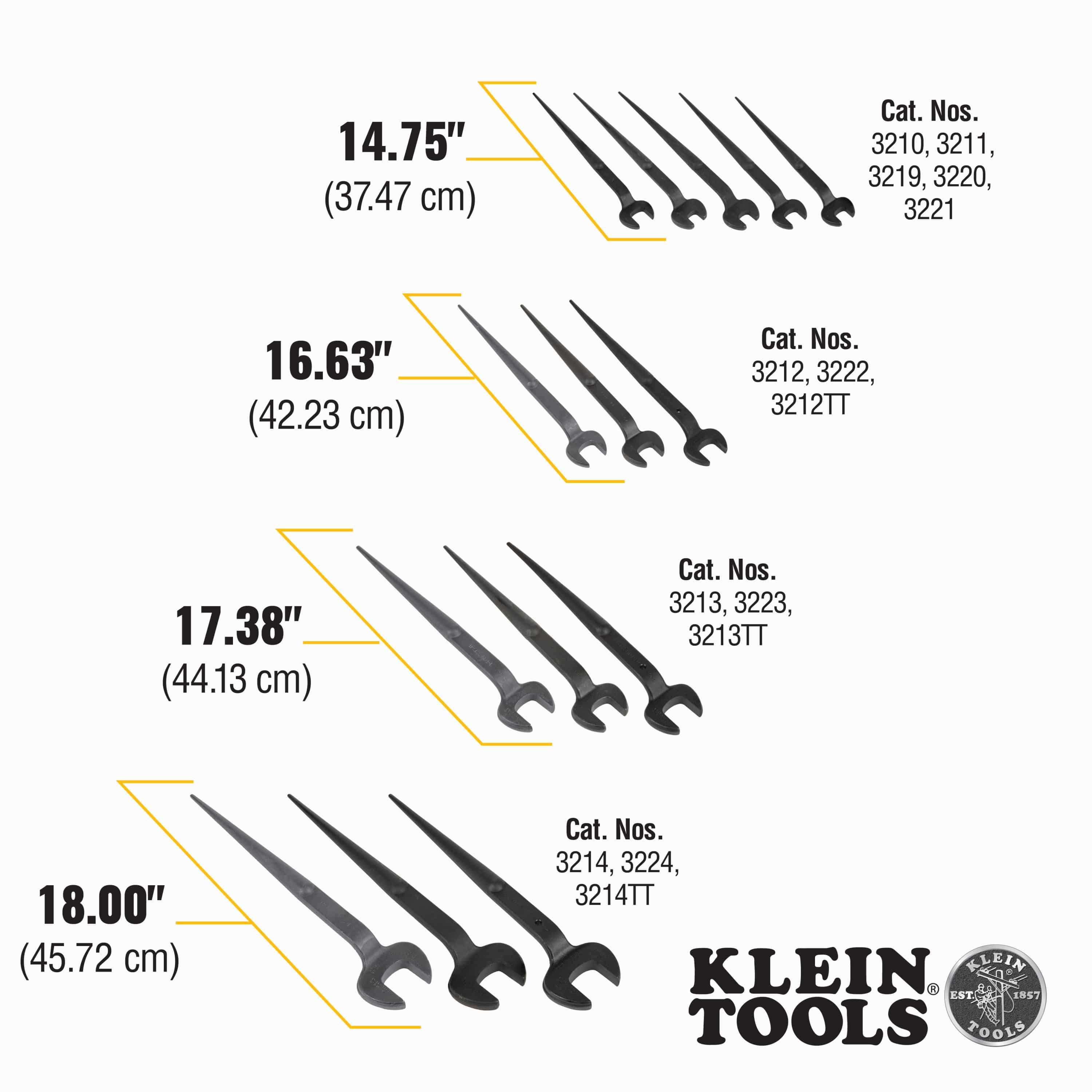

Size chart comparing Klein spud wrench lengths ranging from 14.75 inches up to 18.00 inches for model 3214.
The Name on the Tools is Our Reputation promotional how to video
Klein Tools 3214 forged alloy steel spud wrench with 1-5/8 inch opening and continuous tapered handle for aligning structural bolt holes.
Diagram showing Klein Tools 3214 features including a 1-5/8 inch opening, 60-degree offset, and tapered handle for 1-inch U.S. heavy nuts.
Close-up of forged Klein 3214 spud wrench head stamped with safety warnings, 1-5/8 inch size rating, and catalog model number.
Ironworker wearing safety harness holding 18-inch Klein Tools spud wrench on structural steel construction site.
Structural steel worker holding Klein 3214 spud wrench displaying 60-degree offset head and smooth drift pin alignment handle.
Ironworker using 60-degree offset head of Klein 3214 spud wrench to turn heavy hex nut in tight clearance application.
Ironworker inserting tapered spud wrench handle into beam holes for alignment and using offset head to tighten structural flange bolt.
Size chart comparing Klein spud wrench lengths ranging from 14.75 inches up to 18.00 inches for model 3214.
The Name on the Tools is Our Reputation promotional how to video
KLEIN TOOLS

Klein Tools Spud Wrench 3214 1-5/8 Inch Nominal Opening 18 Inch Length (1 Inch Heavy Nut Capacity Alloy Steel Continuous Taper Alignment)

Only 1 left
SKU: 3214
$62.99 USD

Description

Klein promotional logo logout

Klein Tools 1-5/8 Inch Nominal Opening Steel Connecting Spud Wrench

The Klein Tools 3214 1-5/8-Inch Nominal Opening Spud Wrench is an 18-inch forged alloy steel structural alignment hand tool designed for securing 1-inch heavy nuts and connecting steel members. Featuring a continuous handle taper that narrows from 1-1/8 inches down to 1/4 inch, this tool provides maximum leverage to align bolt holes without binding during structural steel erection.

Best Used For:

  • Structural Steel Alignment: Inserting the tapered handle drift pin through overlapping I-beam bolt holes to align connections accurately.
  • Heavy Nut Fastening: Torquing 1-inch U.S. heavy hex nuts across bridge construction and industrial framework.
  • High-Leverage Ironwork: Applying manual breakaway force to persistent structural hardware without handle flex.

Key Performance & Safety Features

  • Forged US Alloy Steel: One-piece forged steel construction withstands severe physical torque and high-leverage job site loads.
  • Continuous Tapered Handle: Smoothly tapered profile allows quick alignment of varied structural bolt holes without binding.
  • Extra Heavy-Duty Head: Reinforced head geometry and extra-large hub area handle high rotational stress on larger diameter holes.
  • Black Oxide Protective Finish: Black oxide coating treated with a rust preventative shields the tool against ambient job site corrosion.

What's Included

  • (1) Klein Tools 1-5/8-Inch Nominal Opening Spud Wrench (3214)

Technical Specifications

Brand Klein Tools
Model Number 3214
Tool Type Spud Wrench / Alignment Wrench
Nominal Opening 1-5/8 in.
Heavy Nut Size Capacity 1 in. U.S. Heavy
Overall Length 18 in.
Head Width 3-5/8 in. (3.625 in.)
Taper Diameter Range 1-1/8 in. to 1/4 in.
Material Forged Alloy Steel
Finish Black Oxide with Rust Preventative
Product Weight 3-2/5 lbs (3.4 lbs)
UPC 092644680106
Pro-Tip: Insert the tapered handle end completely through misaligned beam flanges to drift the steel plates into exact position before threading structural bolts into the 1-5/8-inch wrench opening.
