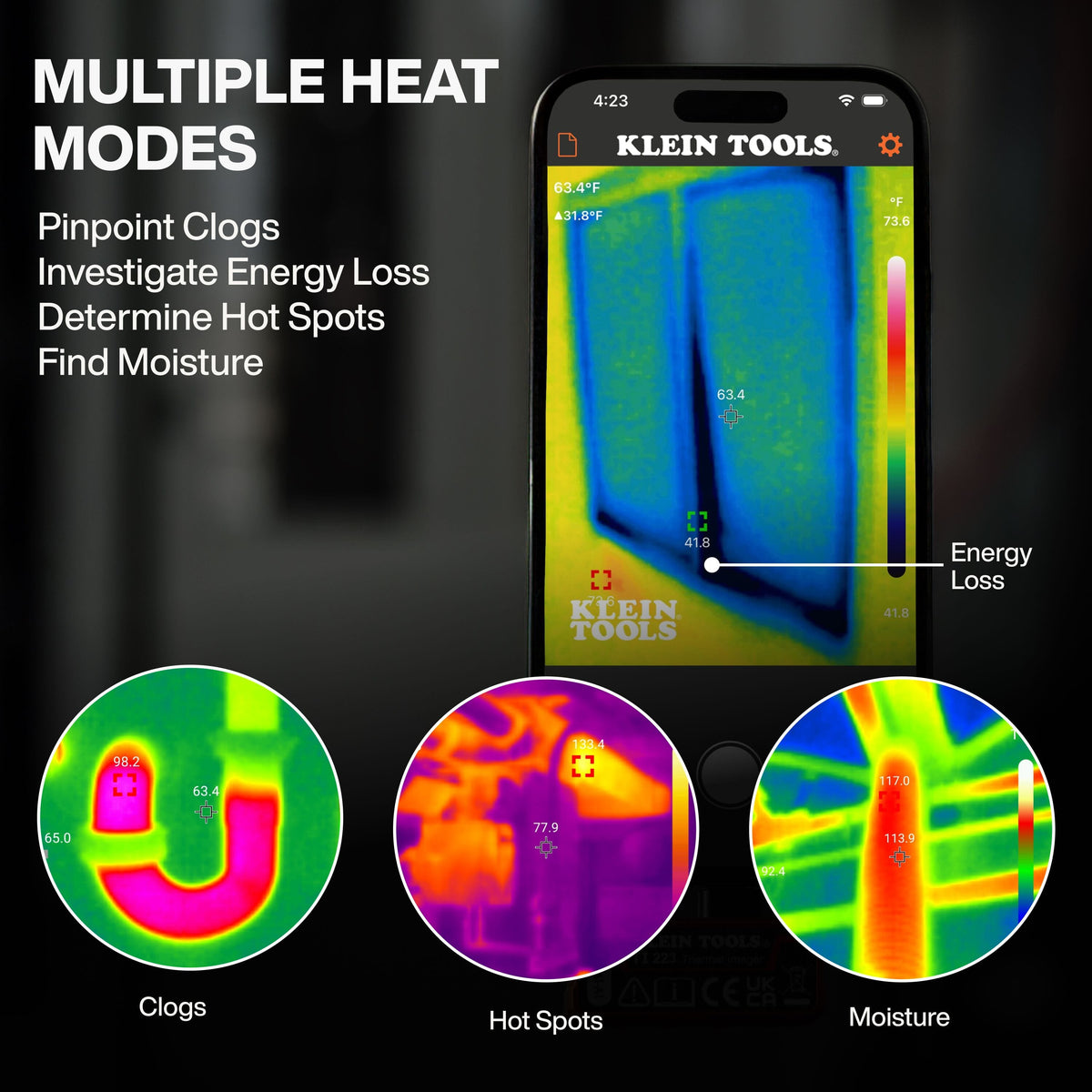

Educational infographic showing multiple heat modes for the TI223 mobile imager. Circular thermal examples demonstrate how technicians can pinpoint clogs in plumbing, investigate energy loss in windows, determine hot spots in machinery, and find moisture behind walls.

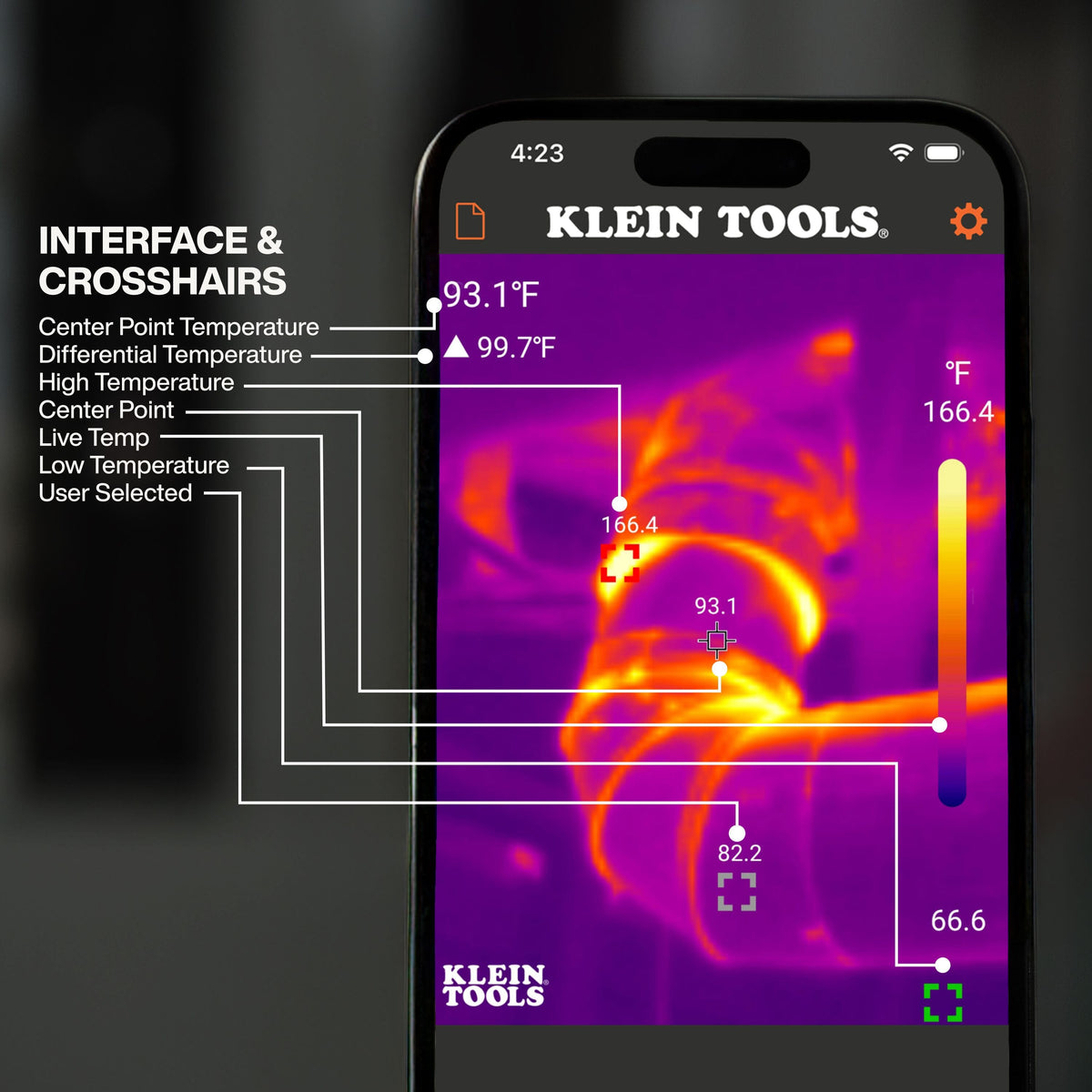

Interface and crosshairs guide for the TI223 smartphone app. The screen displays advanced diagnostic data including center point temperature, differential temperature (Delta-T), and high/low temperature markers on a thermal scan of an industrial pipe.

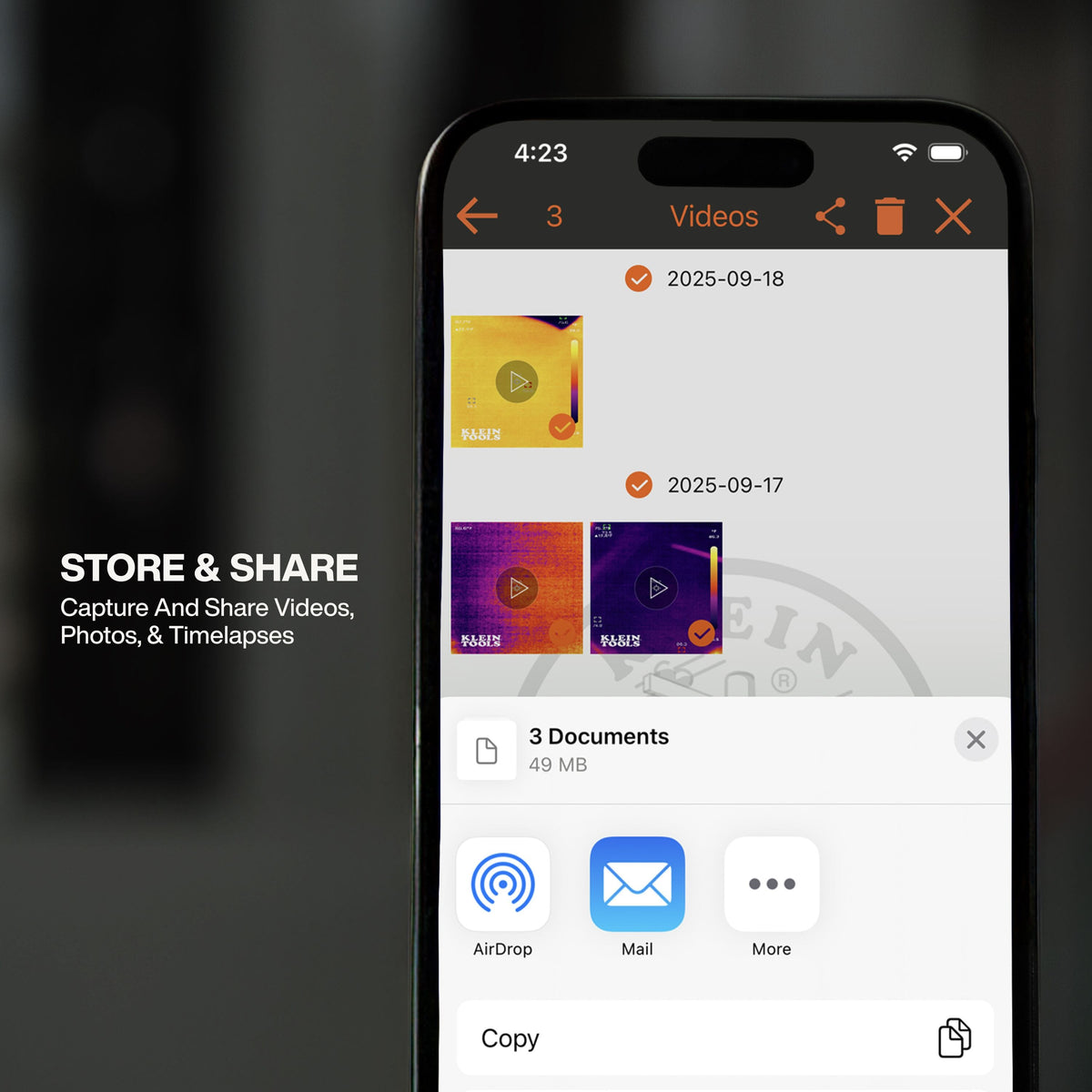

A smartphone screen showing the store and share functionality of the Klein Tools thermal imaging app. The interface displays a library of captured thermal videos and photos with options to share professional diagnostic reports via AirDrop, Mail, and other platforms.
Product dimension graphic for the Klein Tools TI223 showcasing its compact size. The measurements indicate a height of 0.75 inches (19mm), a width of 0.62 inches (15.75mm), and an overall length of 1.77 inches (45mm), emphasizing its pocket-sized professional utility.
A secondary view of the Klein Tools TI223 mobile thermal imager with its protective carrying case and carabiner. The USB-C connector is shown prominently, highlighting the plug-and-play compatibility for modern iOS and Android smartphones and tablets.
KLEIN TOOLS

Klein Tools Thermal Imager TI223 Mobile USB-C Infrared Camera (19200 Pixel Sensor -4 to 752F Hot Cold Spot Differential HVAC Electrical Tester)

Only 2 left
SKU: TI223
$299.99 USD

Description

Klein promotional logo logout

Visualize Overloaded Circuit Panels and Trace Mechanical Energy Friction Instantly with High Pixel Density Smartphone Infrared Imaging Matrix

Shop the Klein Tools TI223 mobile thermal imager engineered to adapt USB-C smartphones into high-resolution infrared diagnostic inspection cameras. This device captures 19,200 pixel matrix footprints across a temperature scale from -4°F to 752°F to evaluate structural panel anomalies and hidden fluid blockages. Operating via host phone power with a thermal sensitivity under 50 mK and an adjustable emissivity track, it isolates high-resistance wiring faults and energy transfer deficiencies through thick appliance cases without demanding structural component disassembly.

Best Used For:

  • Electrical Panel Scans: Interfacing with smartphone ports to isolate overheating circuit breaker lugs and unbalanced phases up to 752°F.
  • HVAC Duct Inspections: Mapping real-time thermal transfer leaks across insulation boundaries, air handler trunks, and furnace vents.
  • Mechanical Wear Diagnosis: Tracing friction-induced heat blooms in industrial motor bearings, pump shafts, and drive belt tracks.

Key Performance & Safety Features

  • 19200 Pixel Micro-Matrix: Dense focal plane sensor captures sharp structural heat gradients to pinpoint minor electrical resistance issues.
  • Case-Friendly USB-C Link: Elongated connector stalk slides securely into smart devices through shielding frames up to 1/5-inch thick.
  • High-Sensitivity Detection: Thermal resolution rating lower than 50 mK exposes minor environmental heat variations for micro-leak monitoring.
  • Differential Delta-T App Logic: Interactive interface app calculates maximum, minimum, and center-spot variances concurrently for fast site comparisons.
  • Anodized Metal Shielding: Rugged structural aluminum outer housing defends solid-state camera optics from jobsite contact wear.

What's Included

  • TI223 Mobile Thermal Imager (USB-C)
  • Hard Protective Storage Case
  • Aluminum Carabiner
  • Instruction Manual

Technical Specifications

Thermal Sensor Resolution: 19,200 Pixels (160 x 120 Array)
Monitored Temperature Span: -4° to 752° F
Thermal Sensitivity (NETD): < 50 mK
Optical Field of View: 56° Horizontal x 71° Diagonal
Hardware Interface Port: USB-C Connector (Elongated Neck)
Standard Sensor Accuracy: ±3.6°F (±2°C) or ±2% (Whichever Value is Greater)
Surface Emissivity Profile: Adjustable from 0.01 to 0.99 Coefficient
Image Refresh Frame Rate: < 9 Hz Frequency
Chassis Compound Material: Ruggedized Structural Aluminum
Imager Component Length: 1.77 Inches
Imager Component Height: 1.23 Inches
Net Accessory Base Weight: 0.9 oz.
Pro-Tip: When examining reflective surfaces like polished raw copper pipelines or aluminum distribution bars, configure the app emissivity down or apply matte electrical tape to the target area; this balances radiation capturing to guarantee clean accuracy.
