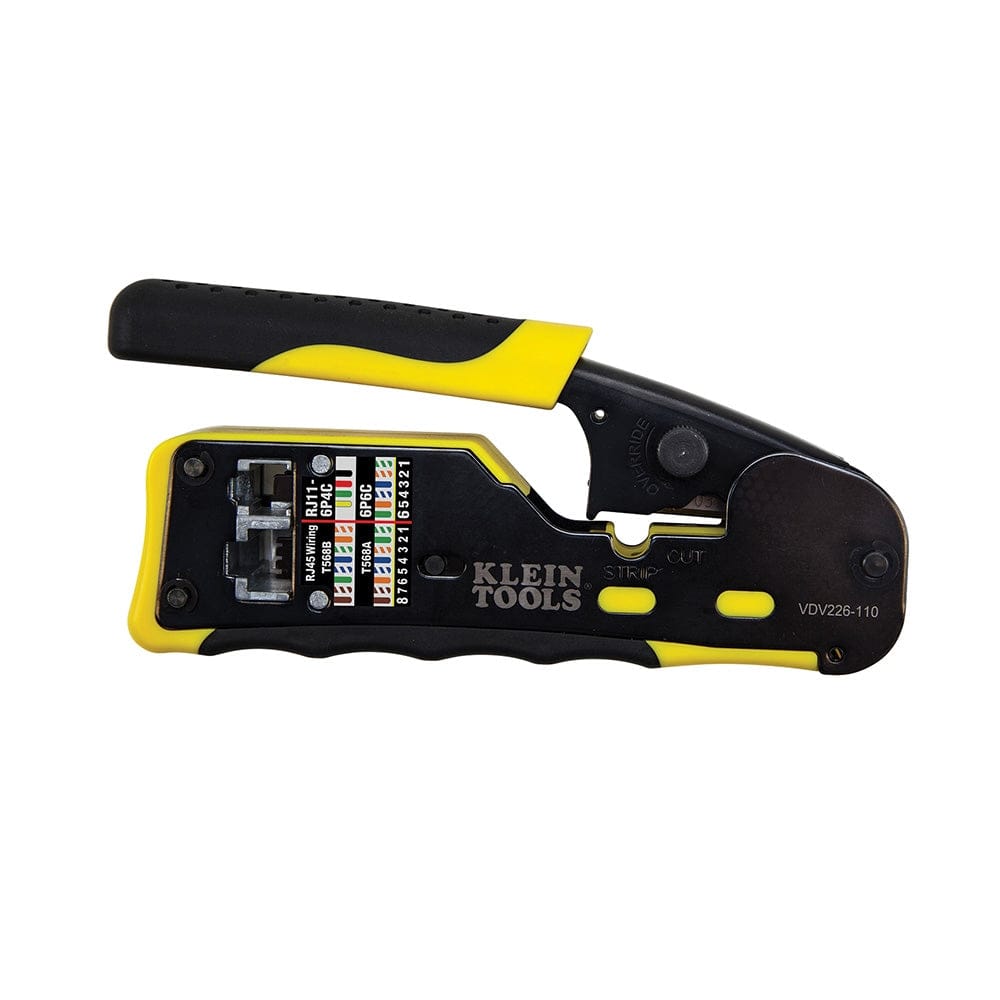

A profile view of the Klein Tools VDV226-110 ratcheting ethernet cable tool featuring a black and yellow handle, steel body with black oxide finish, and an integrated wiring guide for RJ45 and RJ11/RJ12 connections.
Product infographic demonstrating a blue ethernet cable being inserted through a Pass-Thru connector in the crimping die. Text highlights that the tool cuts, strips, and crimps CAT3, CAT5e, and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru connectors, while the wiring diagram eliminates rework.

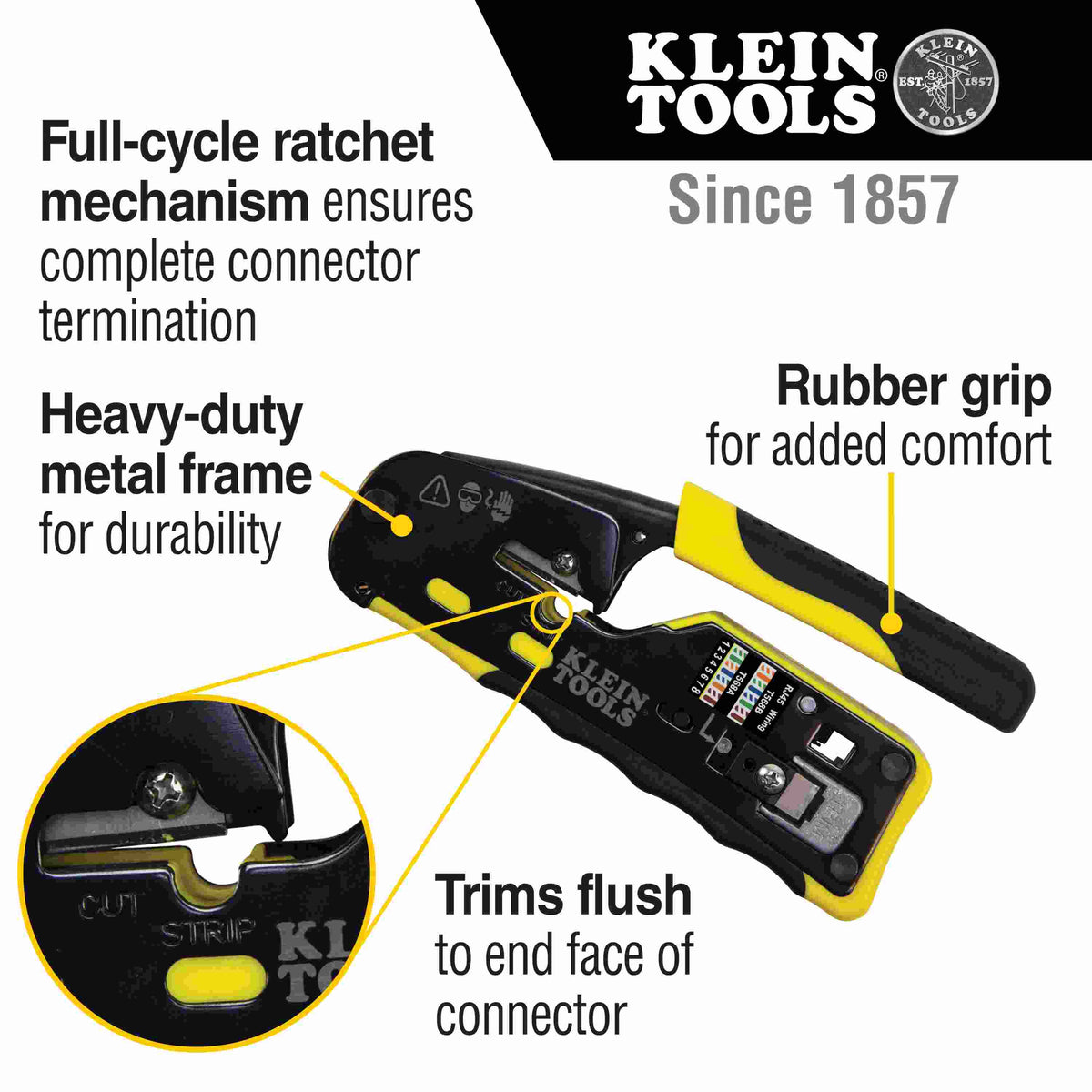

Detailed product diagram pointing to key features: a full-cycle ratchet mechanism for complete termination, heavy-duty metal frame for durability, rubber grips for comfort, and a flush-trimming cutting edge that aligns with the end face of the connector.

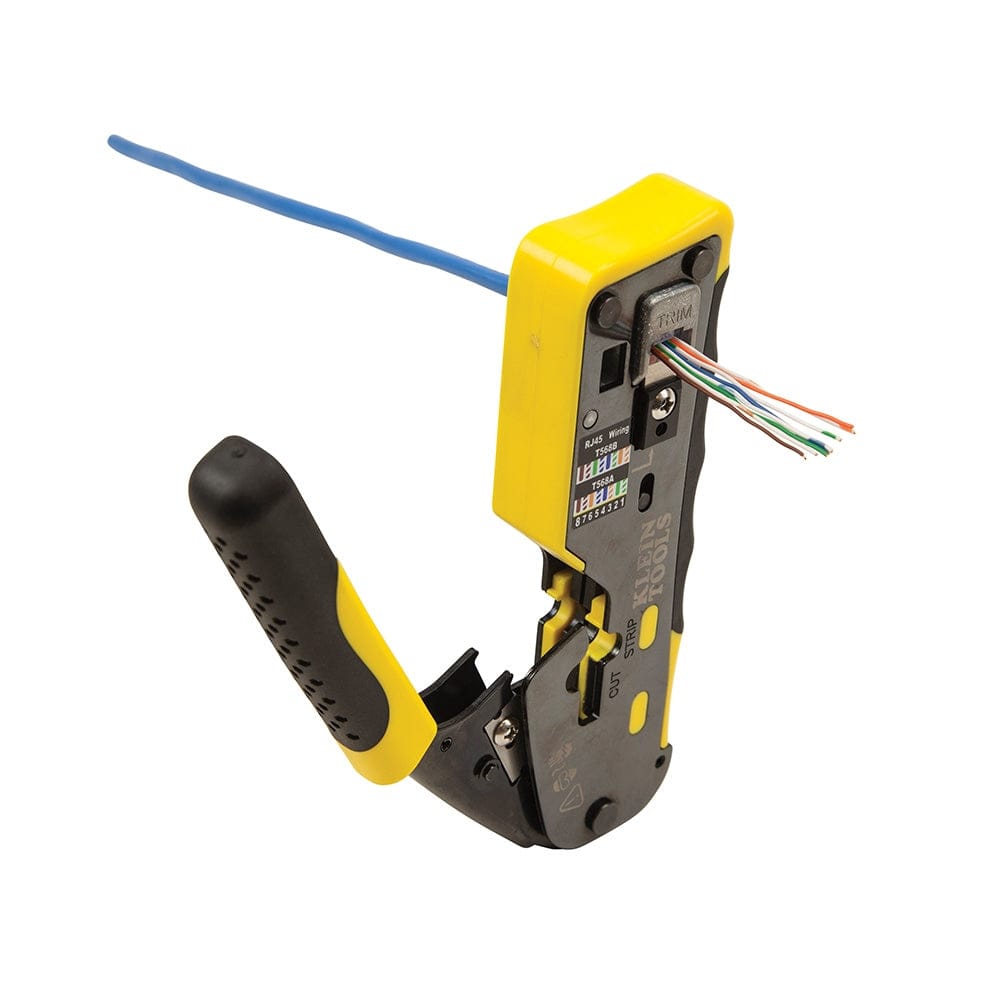

A perspective view of the ethernet crimper in action, showing a blue data cable passing through the crimping head with exposed conductors being prepared for a flush trim.

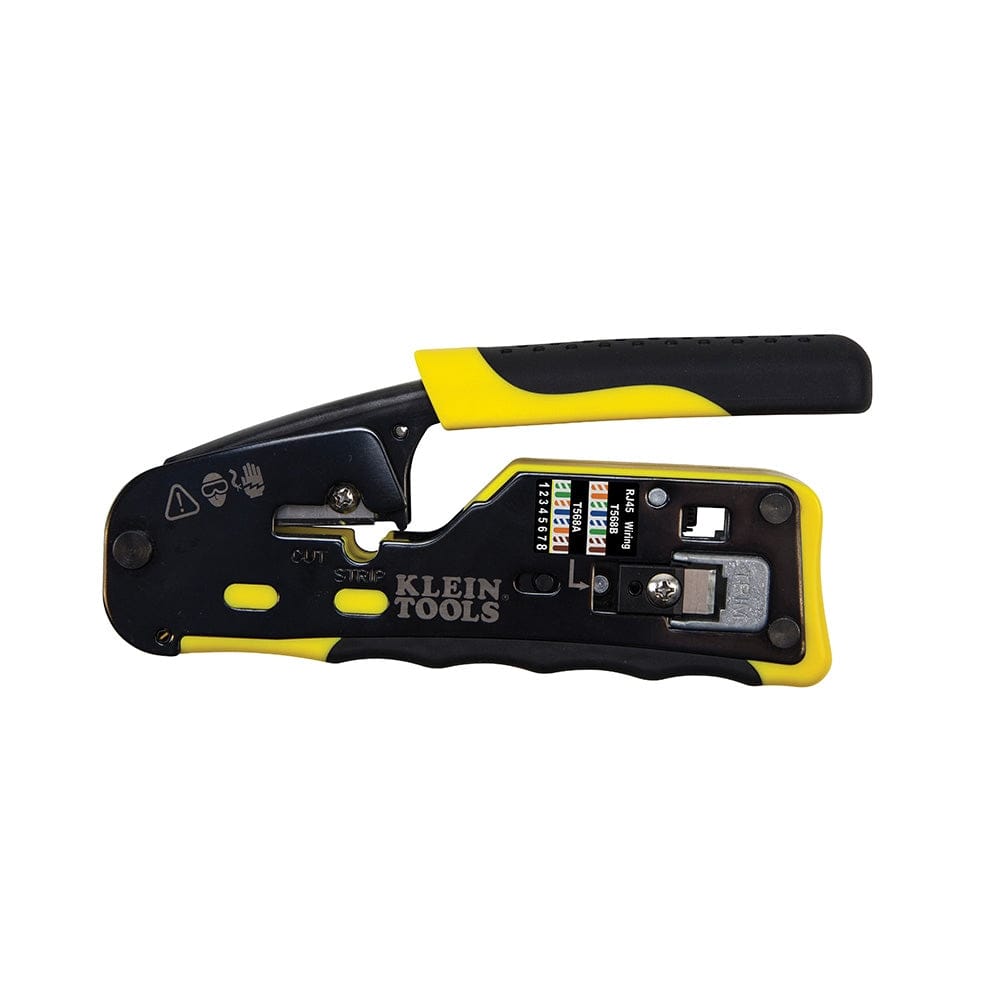

The reverse side of the ratcheting modular crimper, showing the alignment of the RJ45 Pass-Thru die and the wiring color-code reference chart printed directly on the steel frame.

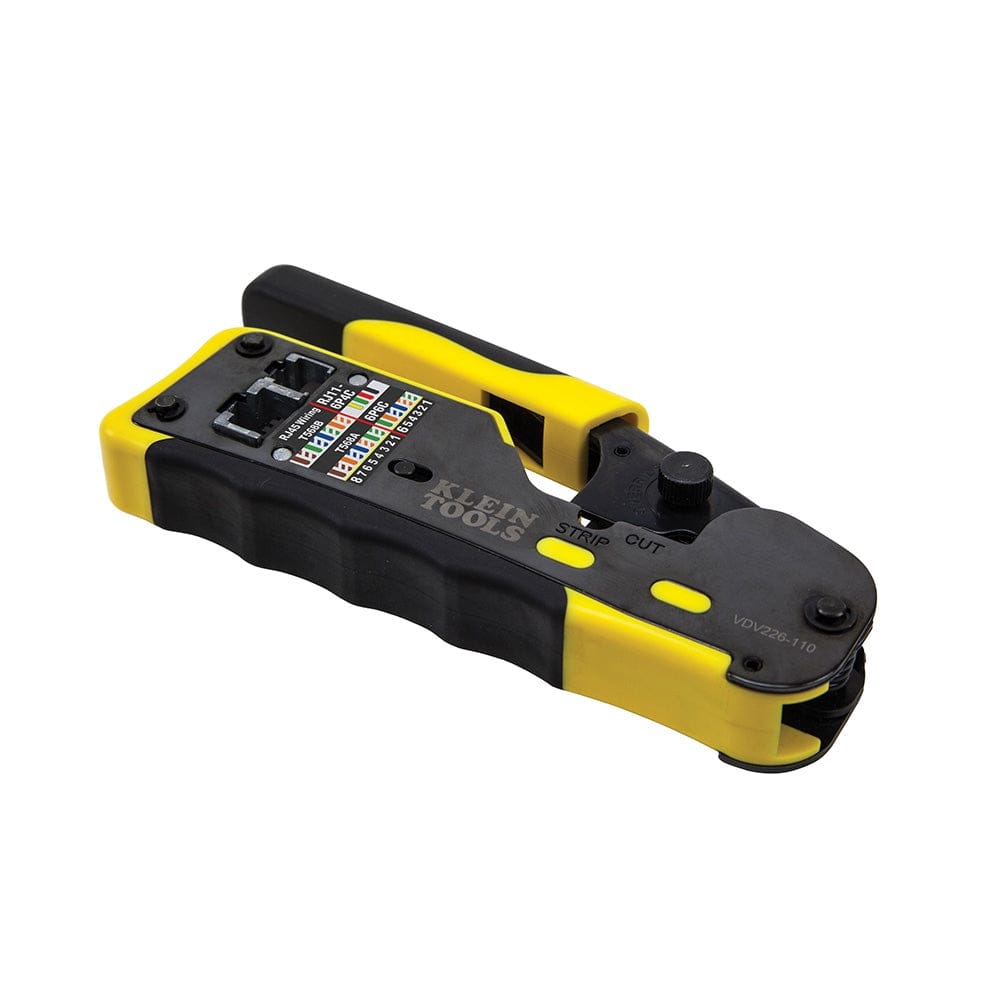

A high-angle studio shot of the VDV226110 tool in its closed position, showcasing the compact design and the textured non-slip yellow and black comfort grips.

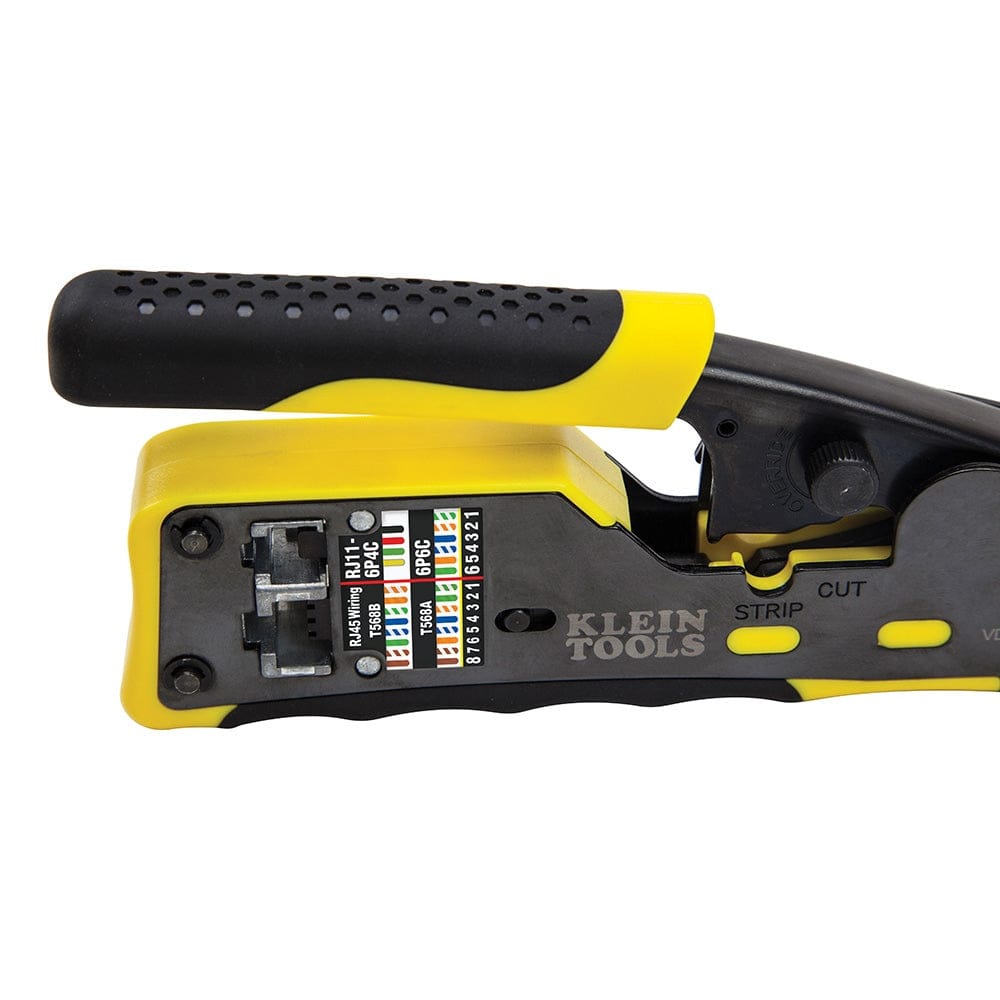

A close-up of the integrated wiring guide and the RJ45/RJ11-12 crimping ports, illustrating the color-coded T568A and T568B wiring patterns for quick reference during installation.

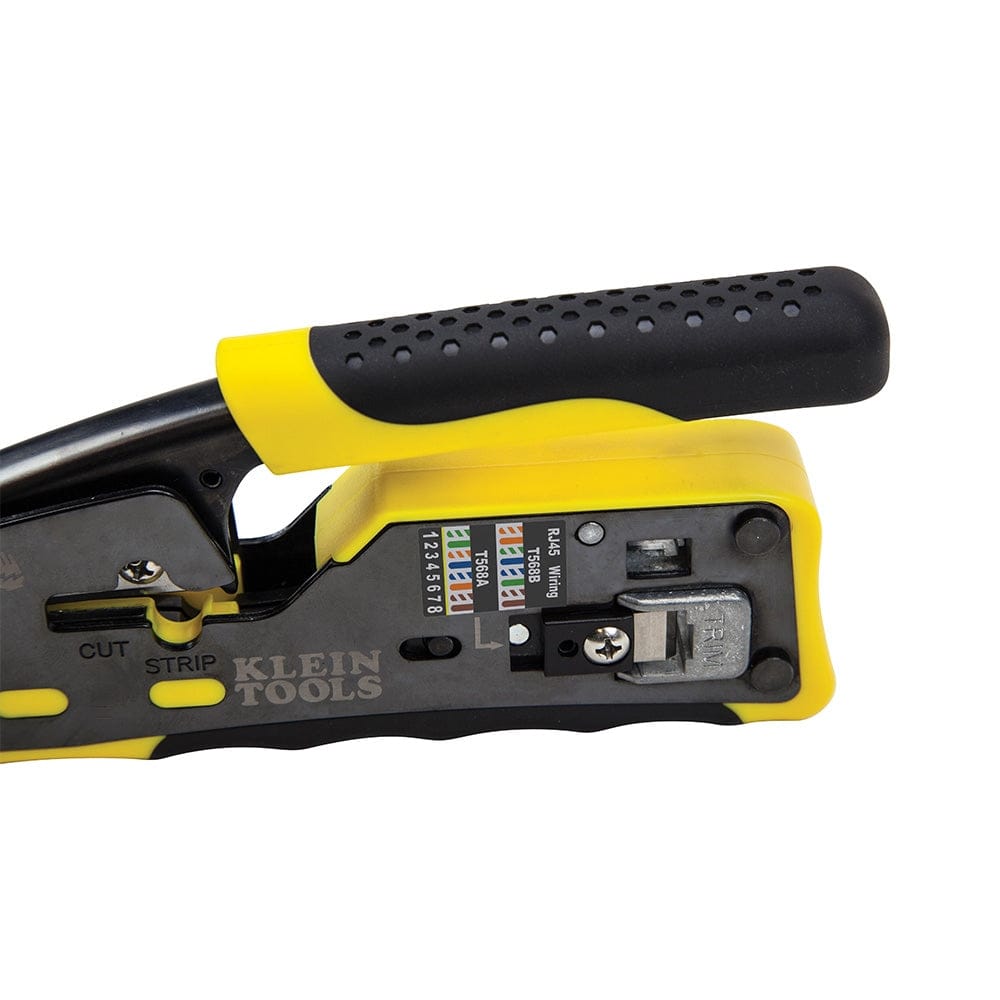

Detailed view of the crimping die area, focusing on the specialized trim blade designed to cut conductors flush to the connector face for high-performance data terminations.

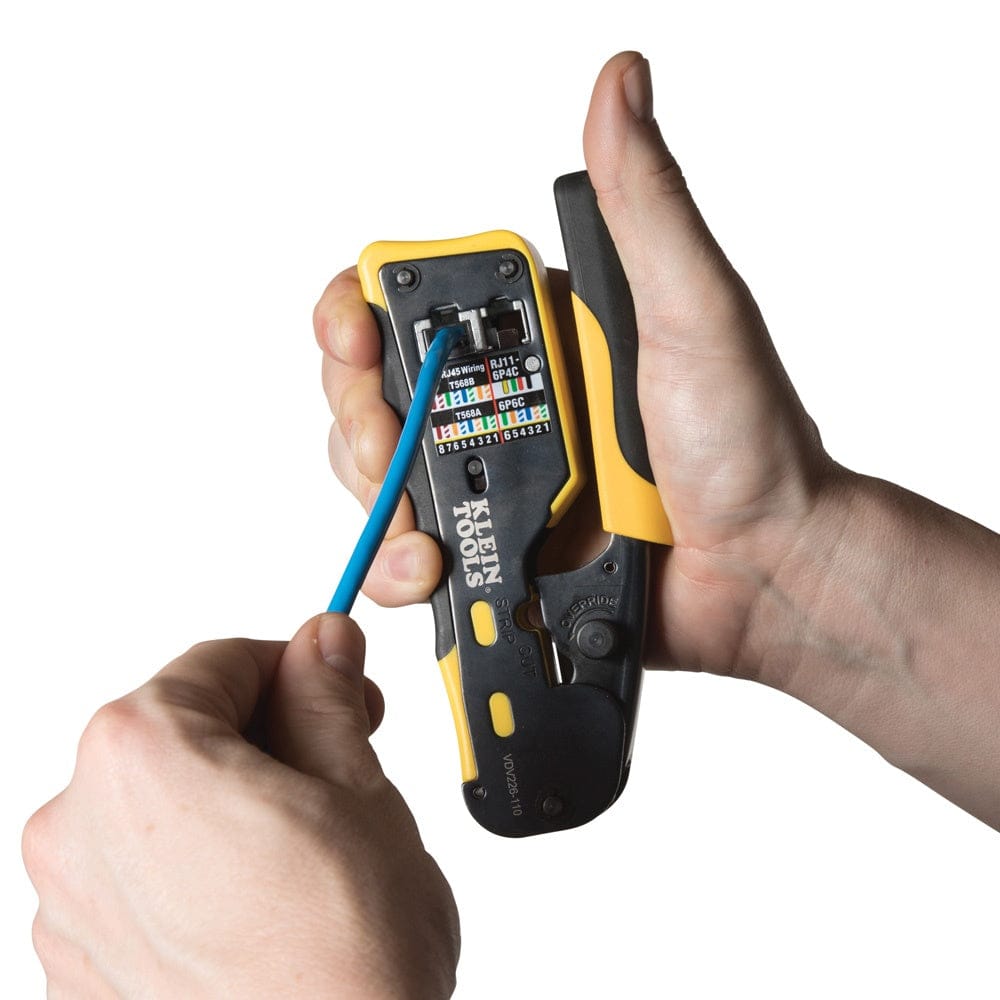

Action shot showing a user's hands using the crimper to terminate a blue ethernet cable, demonstrating the one-handed operation supported by the ergonomic handle design.

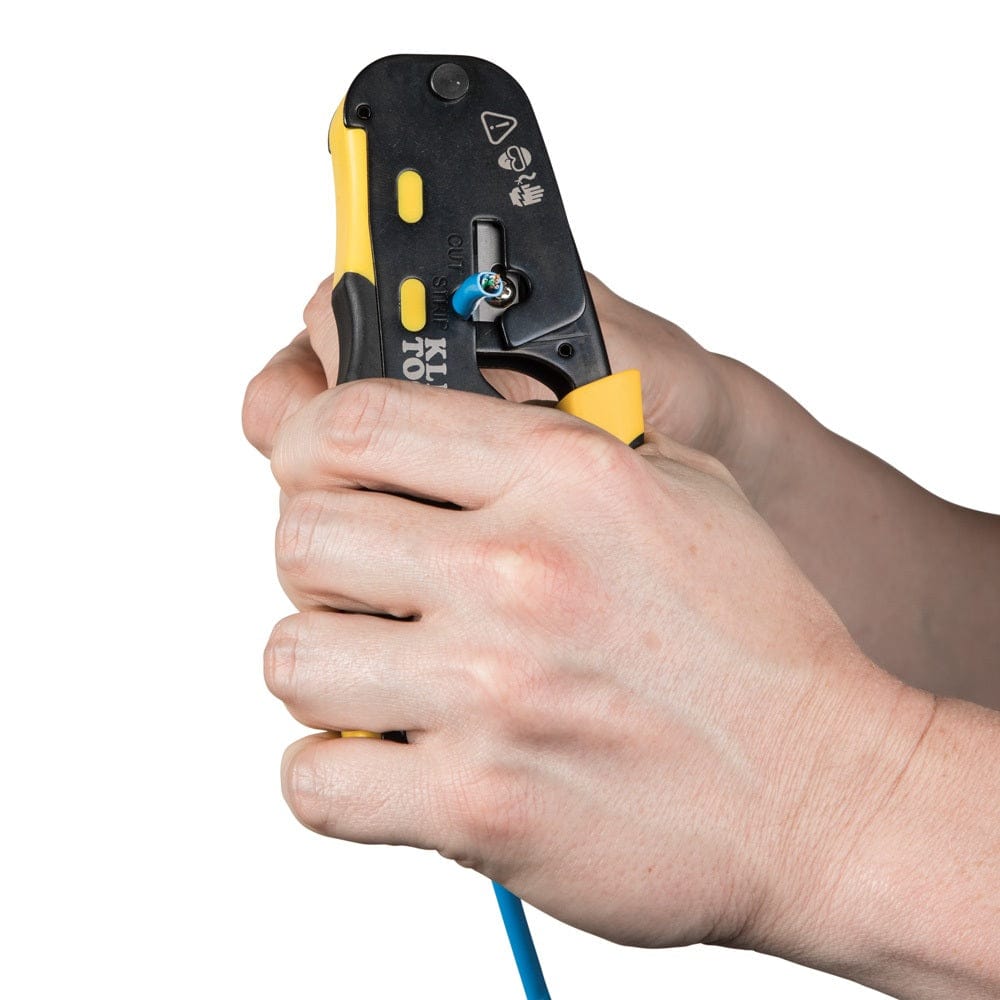

Close-up action shot of the tool being used to strip the outer jacket of a blue data cable using the integrated stripping port located near the handle pivot.

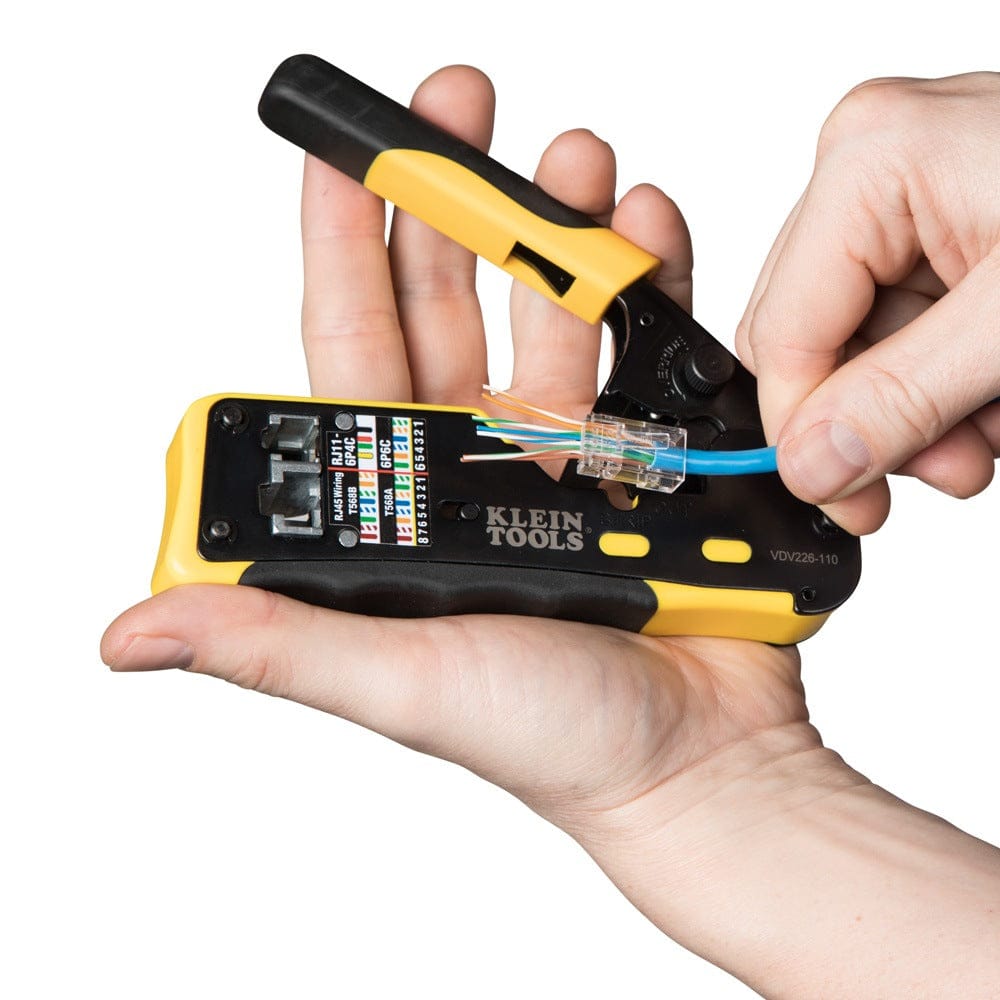

Action shot showing a pair of hands holding the Klein Tools ratcheting crimper while preparing a blue ethernet cable with a clear Pass-Thru connector. The individual colored wires are shown extended through the connector, positioned over the crimping die and color-coded wiring guide on the tool's metal frame.
Pass-Thru Modular Crimper how to and promotional video
Pass-Thruâ„¢ Modular Crimper (VDV226-110) how to and promotional video
A profile view of the Klein Tools VDV226-110 ratcheting ethernet cable tool featuring a black and yellow handle, steel body with black oxide finish, and an integrated wiring guide for RJ45 and RJ11/RJ12 connections.
Product infographic demonstrating a blue ethernet cable being inserted through a Pass-Thru connector in the crimping die. Text highlights that the tool cuts, strips, and crimps CAT3, CAT5e, and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru connectors, while the wiring diagram eliminates rework.
Detailed product diagram pointing to key features: a full-cycle ratchet mechanism for complete termination, heavy-duty metal frame for durability, rubber grips for comfort, and a flush-trimming cutting edge that aligns with the end face of the connector.
A perspective view of the ethernet crimper in action, showing a blue data cable passing through the crimping head with exposed conductors being prepared for a flush trim.
The reverse side of the ratcheting modular crimper, showing the alignment of the RJ45 Pass-Thru die and the wiring color-code reference chart printed directly on the steel frame.
A high-angle studio shot of the VDV226110 tool in its closed position, showcasing the compact design and the textured non-slip yellow and black comfort grips.
A close-up of the integrated wiring guide and the RJ45/RJ11-12 crimping ports, illustrating the color-coded T568A and T568B wiring patterns for quick reference during installation.
Detailed view of the crimping die area, focusing on the specialized trim blade designed to cut conductors flush to the connector face for high-performance data terminations.
Action shot showing a user's hands using the crimper to terminate a blue ethernet cable, demonstrating the one-handed operation supported by the ergonomic handle design.
Close-up action shot of the tool being used to strip the outer jacket of a blue data cable using the integrated stripping port located near the handle pivot.
Action shot showing a pair of hands holding the Klein Tools ratcheting crimper while preparing a blue ethernet cable with a clear Pass-Thru connector. The individual colored wires are shown extended through the connector, positioned over the crimping die and color-coded wiring guide on the tool's metal frame.
Pass-Thru Modular Crimper how to and promotional video
Pass-Thruâ„¢ Modular Crimper (VDV226-110) how to and promotional video
KLEIN TOOLS

Klein Tools Ethernet Cable Crimper VDV226110 Ratcheting Stripper Cutter (RJ45 Pass-Thru RJ11 RJ12 Modular Data CAT3 CAT5e CAT6 CAT6A Termination)

In stock
SKU: VDV226110
$49.97 USD

Description

Klein promotional logo logout

Contractor-Grade Pass-Thru Ratcheting Modular Crimper for T568A/B Data Cable Terminations and Flush Wire Trimming

The Klein Tools VDV226110 Ratcheting Pass-Thru Modular Crimper Stripper Cutter delivers professional-grade installation velocity when processing unshielded (UTP) and shielded (STP) paired-conductor network cables, including CAT3, CAT5e, CAT6, and CAT6A specifications. Engineered with a full-cycle ratcheting mechanism, this trade-focused hand tool eliminates half-crimped terminal faults by ensuring absolute connector termination before releasing the compression jaws. The compact structural steel frame features a laser-etched on-tool wiring configuration guide and specialized flush-trimming dies, solving cross-talk interference and loose wire short-circuit problems common during high-volume server room network architecture layouts or commercial telephony system changeouts.

Best Used For:

  • High-Speed Server Room Networking: Cutting, stripping, and crimping structural CAT6 and CAT6A ethernet lines to establish reliable, localized gigabit database links.
  • Commercial Telecom Telephony Deployments: Terminating flat-satin telephone cords using 4 or 6 position standard RJ11 and RJ12 modular connectors.
  • Smart Home Low-Voltage Automation: Wiring peripheral IP security cameras and home control hubs across shielded twisted pair infrastructure.

Key Performance & Safety Features

  • Pass-Thru Optimization Die: Integrated cutter shears copper conductors perfectly flush against the end connector face to eliminate electrical shorts between adjacent lines.
  • Full-Cycle Ratchet Assembly: Mechanical precision lock guarantees uniform downward terminal seating pressure across all 8 pin tracks with every stroke.
  • On-Tool Color Wiring Guide: Laser-etched pinout diagrams verify proper T568A and T568B component alignment directly on the jobsite without separate schematic sheets.
  • Black Oxide Surface Finish: High-tensile carbon steel frame receives protective chemical coatings to resist corrosion in damp underground equipment rooms.
  • Non-Slip Comfort Grips: Textured rubber handle skins dampen repetitive hand pressure, giving the operator higher structural leverage.

What's Included

  • (1) VDV226110 Ratcheting Pass-Thru Modular Crimper / Stripper / Cutter

Technical Specifications

Specification Value
Brand Klein Tools
Model Number VDV226110
Functional Operation Class Modular Compression Crimper, Jacket Stripper, Core Cutter
Data Cable Type Focus CAT3, CAT5e, CAT6, CAT6A STP/UTP
Connector Module Matrix RJ45 Pass-Thru, RJ11/RJ12 Standard (4/6/8 Positions)
Conductor Thickness Scope 28 to 22 AWG (Solid or Stranded Core)
Chassis Core Material High-Strength Steel Alloy with Black Oxide Coat
Overall Body Length 6.094 in
Handle Type Configuration Cushion / Non-Slip Rubber Grip
Chassis Design Colors Yellow / Black
Net Hand Tool Weight 14.4 oz (0.90 lbs)
UPC Code Identifier 092644690945

Pro-Tip: When working with high-density shielded CAT6A runs, ensure that your internal cable drain wire is folded back cleanly along the outer shield layer before executing the crimping cycle. This mechanical step guarantees robust terminal shielding continuity and avoids crushing raw copper conductors inside the modular plug housing grid.
