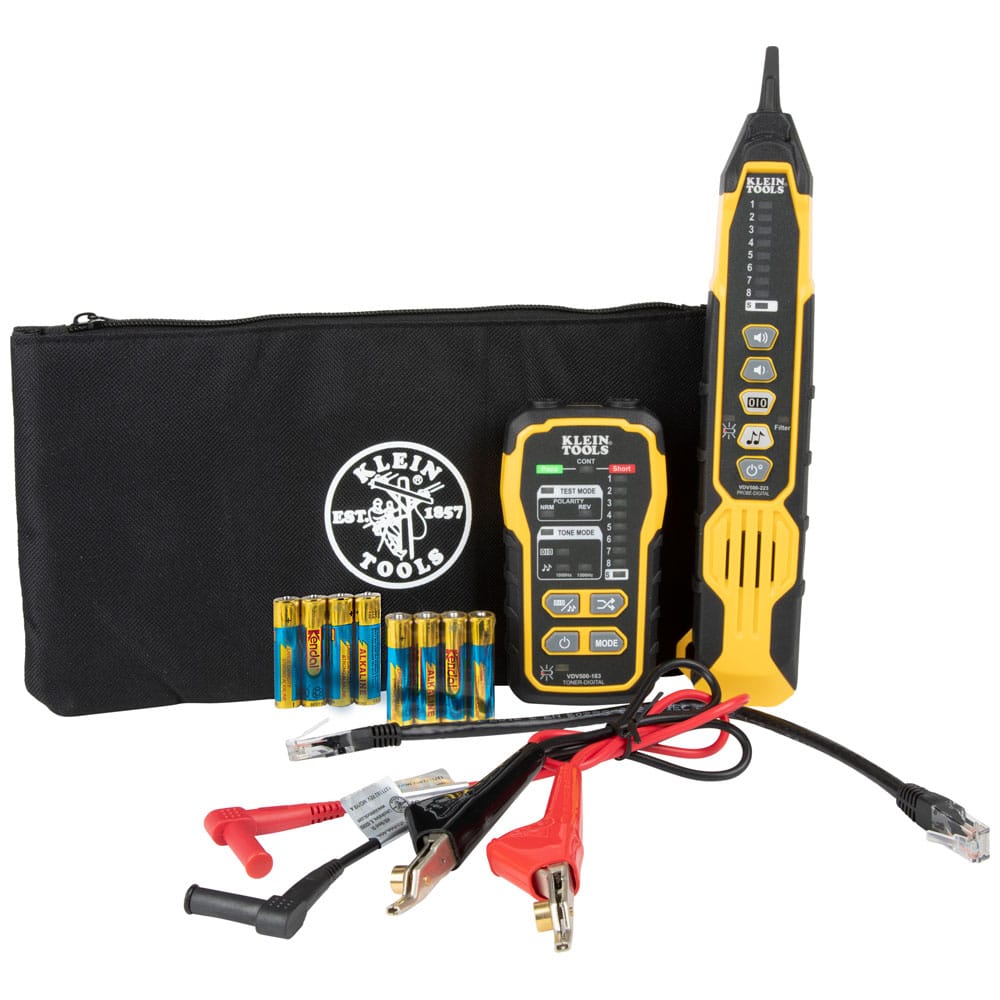

A complete studio product kit view of the Klein Tools VDV500-820 Digital Tone and Probe Kit. The set includes the VDV500-163 Digital Tone Generator, the VDV500-223 Digital Tracing Probe, a black padded carrying case, high-quality ABN test leads, an RJ45 patch cable, and 8 AAA batteries for immediate professional wire tracing.
Product feature infographic for the VDV500-223 Digital Tracing Probe showcasing its professional capabilities. Highlighted features include the inclusion of 4 AAA batteries, a responsive non-metallic conductive tip, a terminal block for wire mapping verification, an integrated LED work light for dark spaces, and a 3.5 mm headphone jack for use in noisy environments.

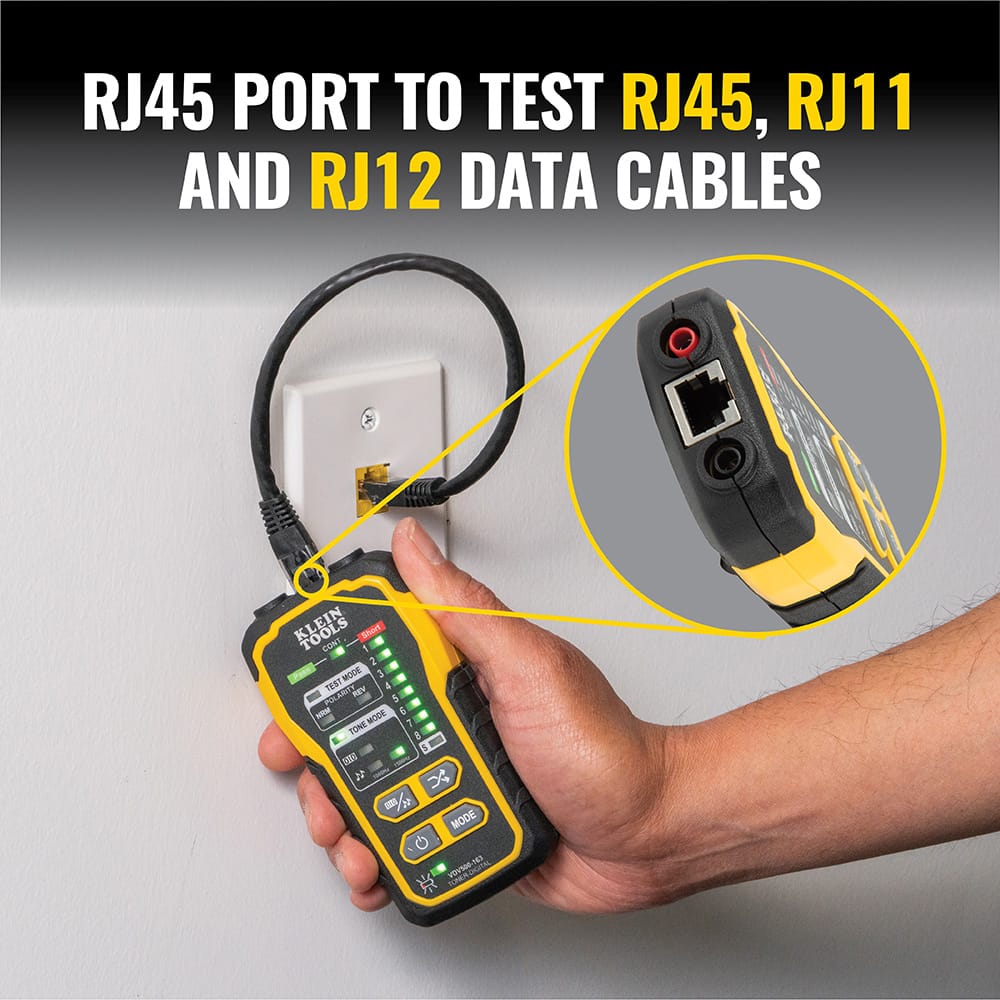

Action shot demonstrating the active network testing capability of the Klein Tools VDV500-820 kit. The VDV500-163 digital tone generator is shown connected to an Ethernet wall jack via an RJ45 port to test RJ45, RJ11, and RJ12 data cables, with a zoomed-in view of the high-performance diagnostic ports.
A detailed view of the VDV500-163 Digital Tone Generator with its heavy-duty test leads attached. The image highlights the rugged angled bed of nails (ABN) clips designed for secure attachment to unstripped wires and the interactive LED interface for digital and analog toning.
A layout view of the professional accessories included in the VDV500-820 kit. The image features the heavy-duty ABN test leads with piercing pins, a high-quality RJ45-to-RJ45 data patch cable, and protective lead caps, emphasizing the kit's versatility for network and electrical diagnostics.

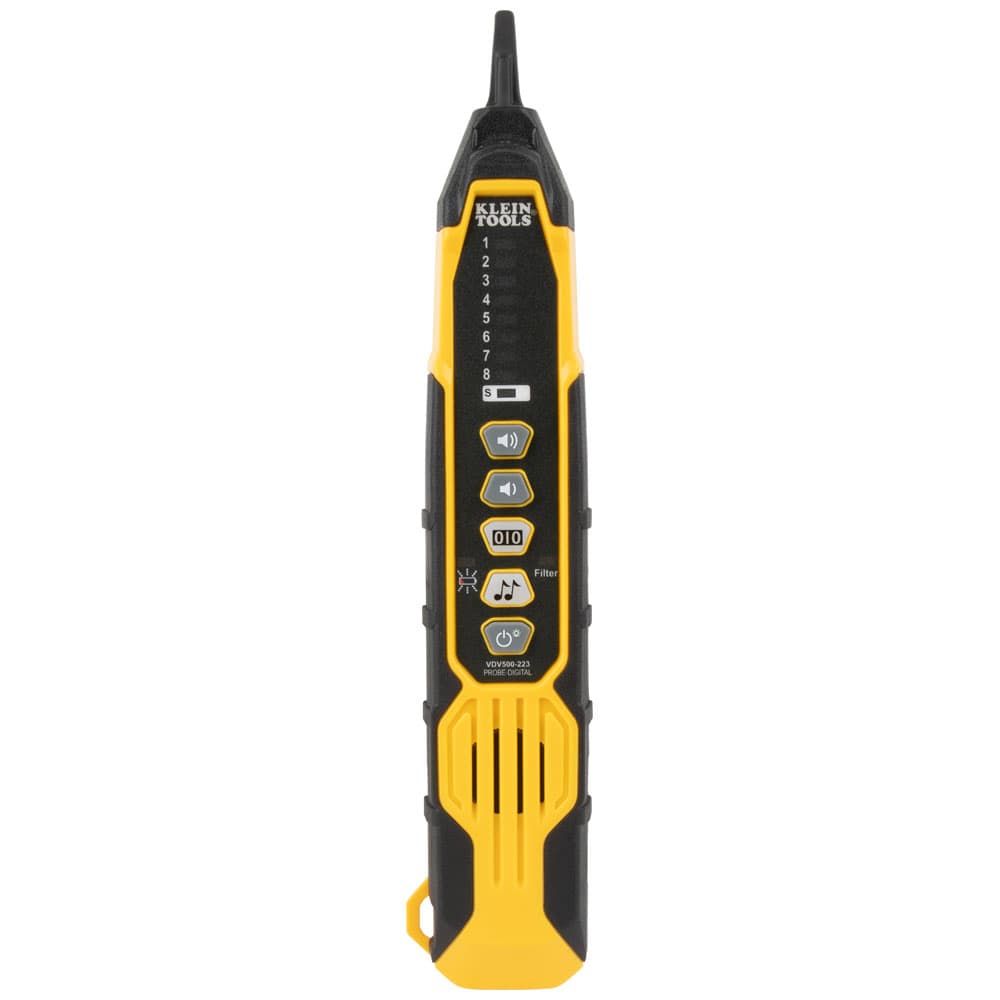

Action shot of a technician using the VDV500-163 digital toner on a wooden workbench. The device is shown with its interactive signal strength LEDs active while connected to unterminated wire pairs, illustrating its role in identifying and tracing cables in industrial or residential environments.
A detailed close-up of the rugged angled bed of nails (ABN) clips from the VDV500-820 kit. The clips are shown securely biting into the conductors of a blue CAT6 data cable, demonstrating how the specialized pins allow for precise electrical connection and toning without stripping the wire insulation.
Action shot of a professional technician using the VDV500-163 digital tone generator to verify a network run. The unit is connected to an RJ45 wall plate with a patch cable, showing the diagnostic LED sequence used to confirm continuity, polarity, and pin-to-pin mapping on an active data network.

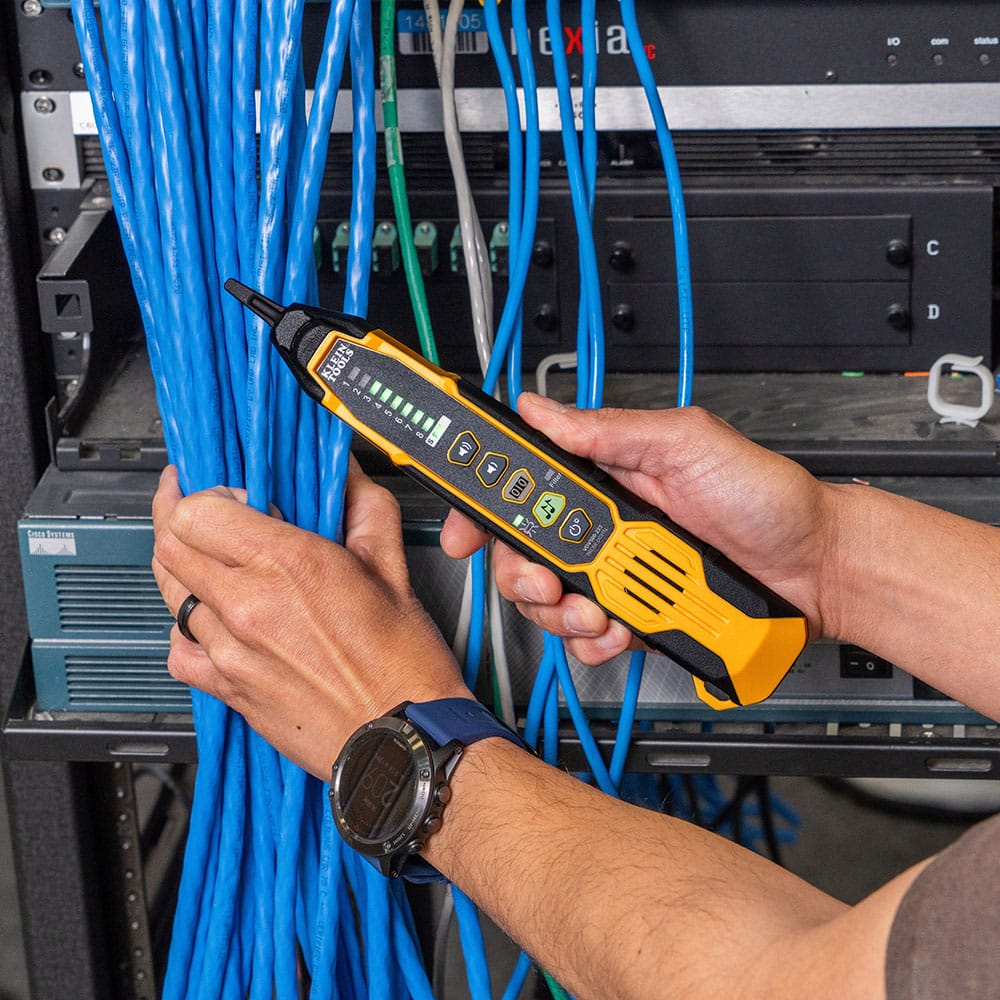

Action shot of a professional identifying cables within a high-density server rack using the VDV500-223 digital tracing probe. The technician is shown scanning a large bundle of blue Ethernet lines, with the probe's signal strength LEDs illuminated to indicate the precise location of the toned pair.

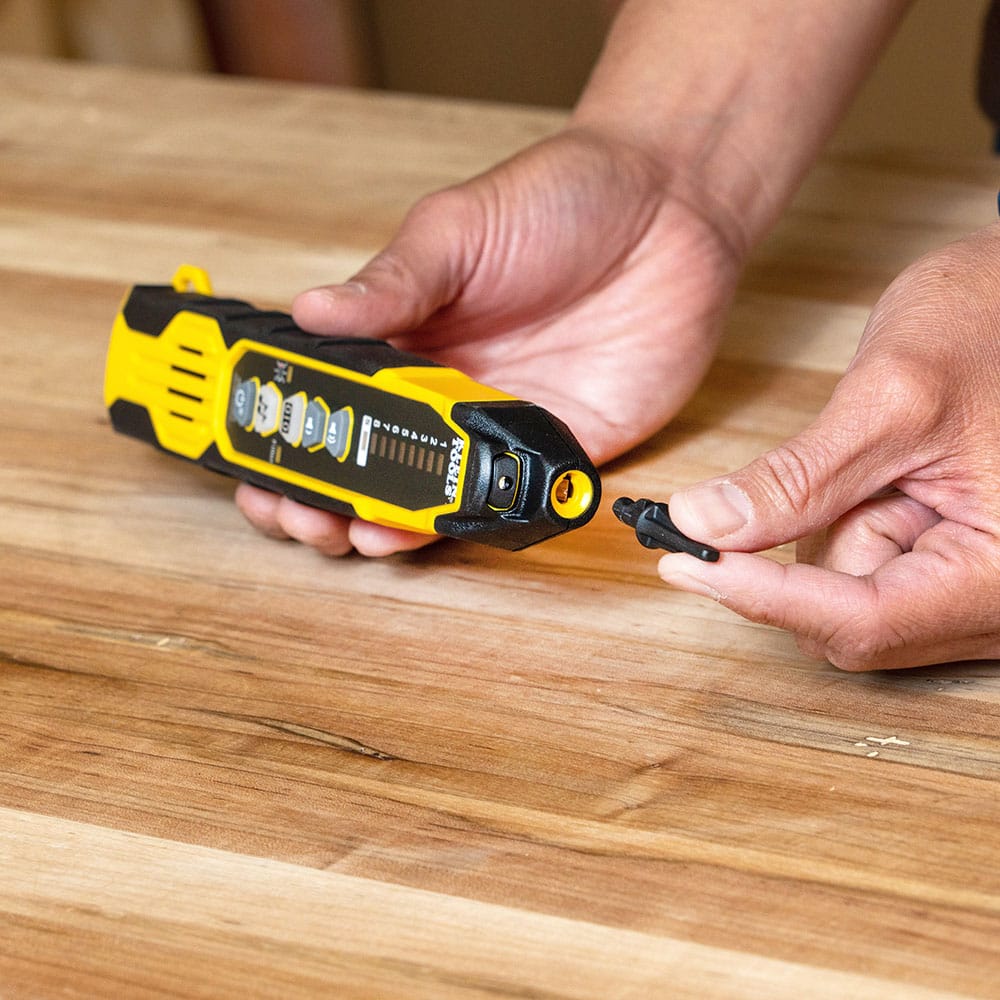

A detailed demonstration of the tool-less maintenance feature for the VDV500-223 probe. A technician is shown holding the probe while easily attaching the twist-and-lock non-metallic conductive replacement tip, highlighting the kit's design for long-term jobsite reliability and ease of use.
Action shot of a technician using the VDV500-163 digital tone generator to trace cables within a high-density server rack. The professional toner is held in one hand while the heavy-duty angled bed of nails (ABN) clips are securely attached to an individual wire pair among a bundle of blue Ethernet cables, demonstrating precision cable identification in a live network environment.
The Name on the Tools is Our Reputation promotional how to video
A complete studio product kit view of the Klein Tools VDV500-820 Digital Tone and Probe Kit. The set includes the VDV500-163 Digital Tone Generator, the VDV500-223 Digital Tracing Probe, a black padded carrying case, high-quality ABN test leads, an RJ45 patch cable, and 8 AAA batteries for immediate professional wire tracing.

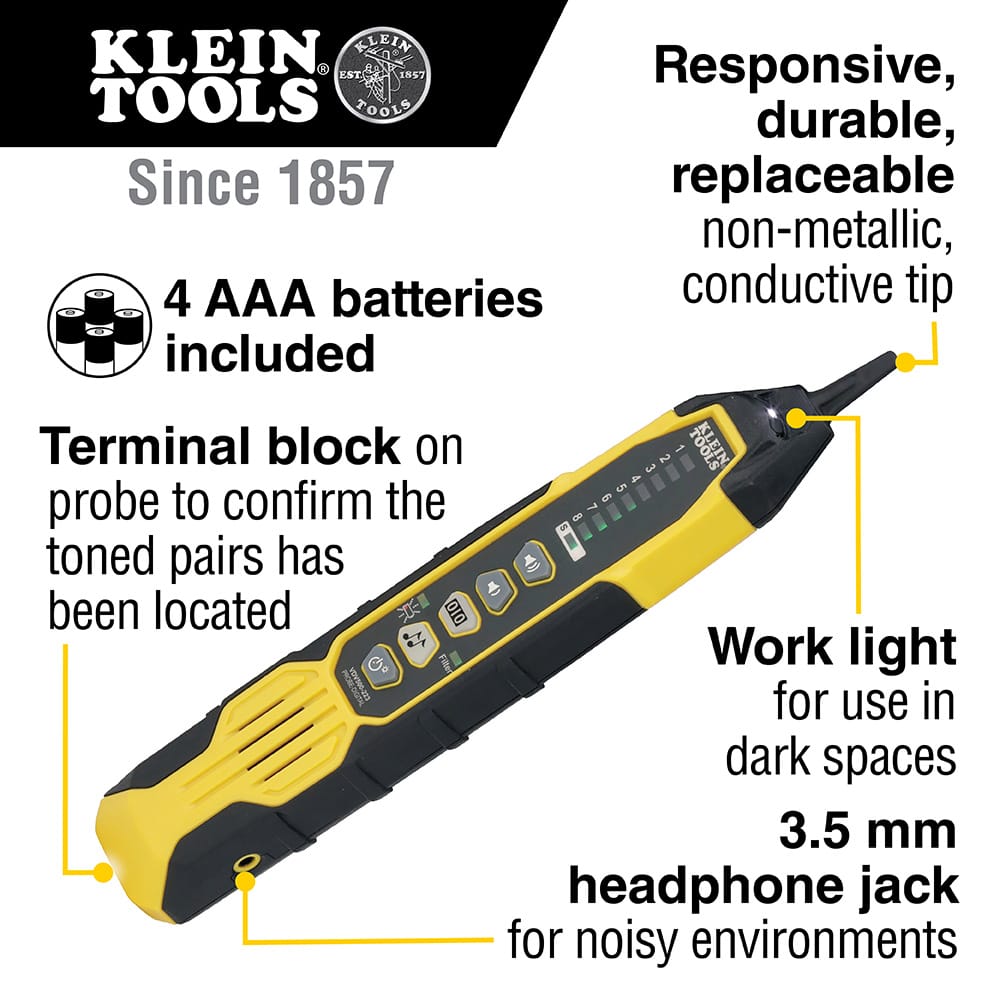

Product feature infographic for the VDV500-223 Digital Tracing Probe showcasing its professional capabilities. Highlighted features include the inclusion of 4 AAA batteries, a responsive non-metallic conductive tip, a terminal block for wire mapping verification, an integrated LED work light for dark spaces, and a 3.5 mm headphone jack for use in noisy environments.
Action shot demonstrating the active network testing capability of the Klein Tools VDV500-820 kit. The VDV500-163 digital tone generator is shown connected to an Ethernet wall jack via an RJ45 port to test RJ45, RJ11, and RJ12 data cables, with a zoomed-in view of the high-performance diagnostic ports.

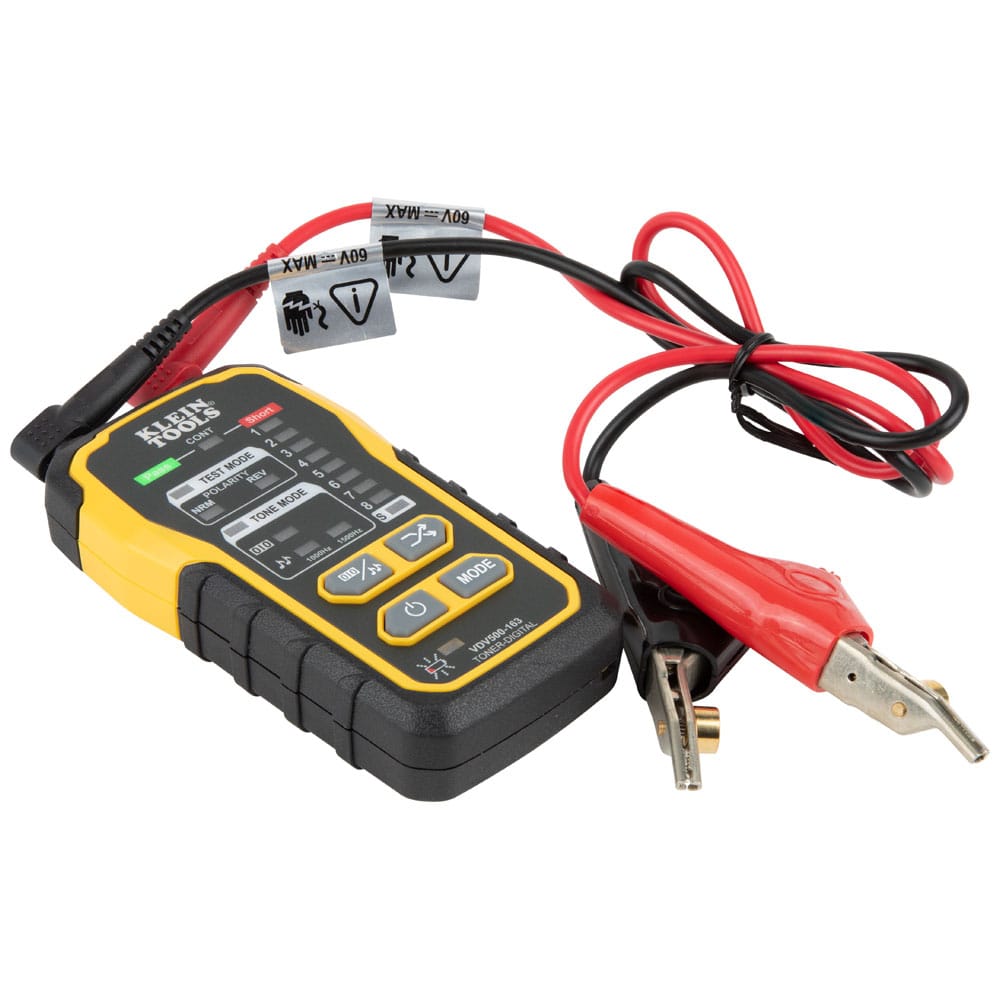

A detailed view of the VDV500-163 Digital Tone Generator with its heavy-duty test leads attached. The image highlights the rugged angled bed of nails (ABN) clips designed for secure attachment to unstripped wires and the interactive LED interface for digital and analog toning.

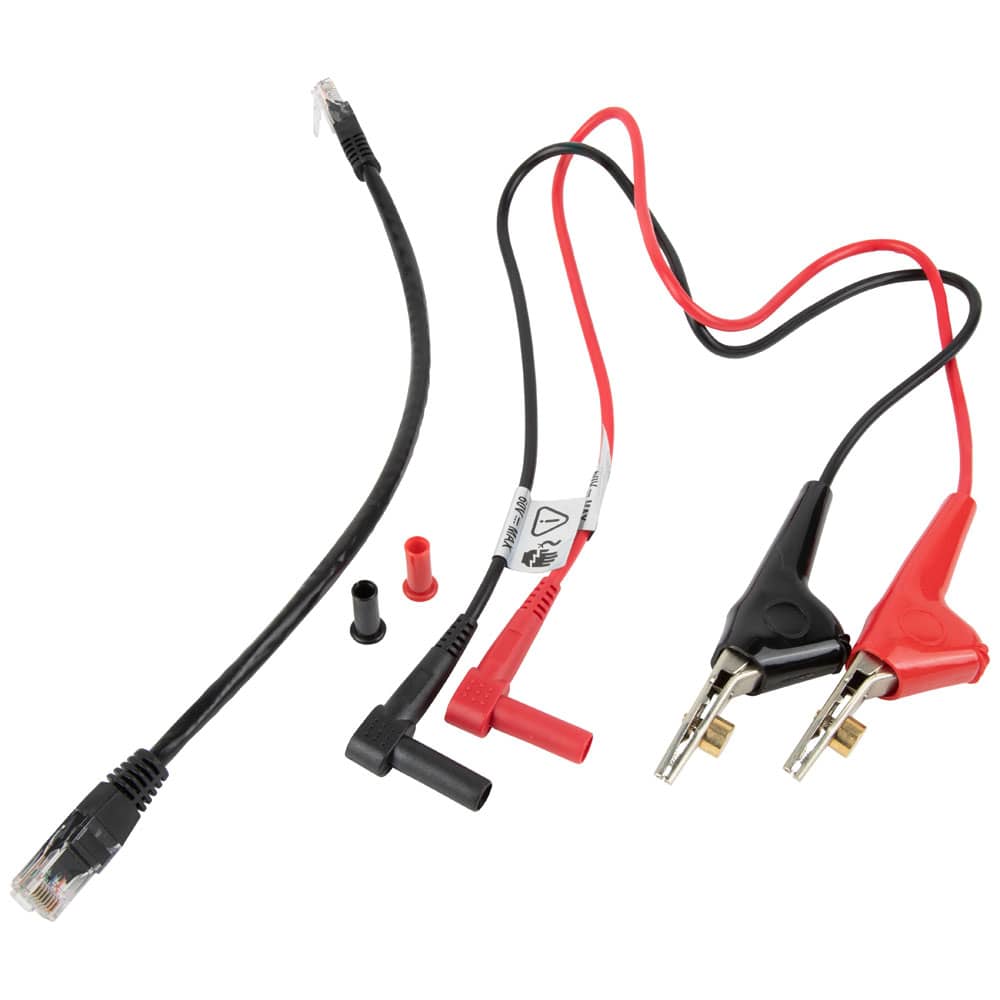

A layout view of the professional accessories included in the VDV500-820 kit. The image features the heavy-duty ABN test leads with piercing pins, a high-quality RJ45-to-RJ45 data patch cable, and protective lead caps, emphasizing the kit's versatility for network and electrical diagnostics.
Action shot of a technician using the VDV500-163 digital toner on a wooden workbench. The device is shown with its interactive signal strength LEDs active while connected to unterminated wire pairs, illustrating its role in identifying and tracing cables in industrial or residential environments.

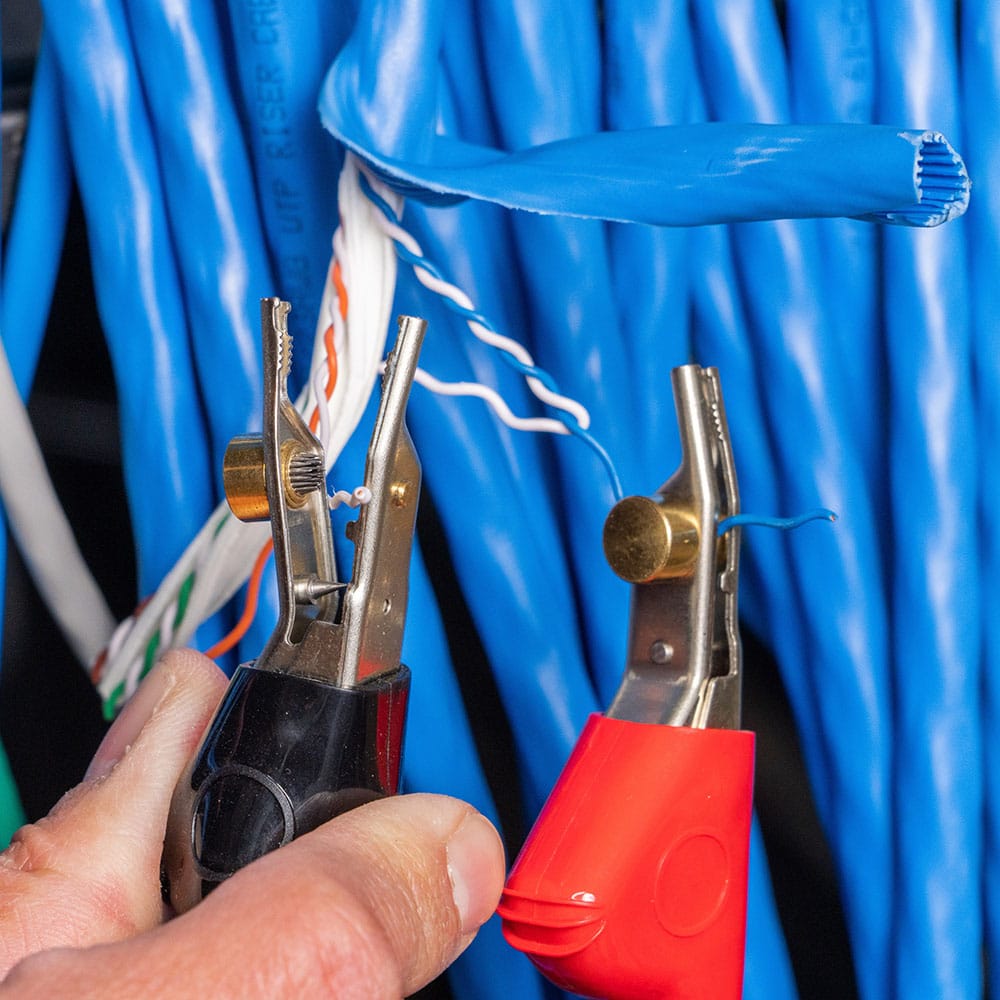

A detailed close-up of the rugged angled bed of nails (ABN) clips from the VDV500-820 kit. The clips are shown securely biting into the conductors of a blue CAT6 data cable, demonstrating how the specialized pins allow for precise electrical connection and toning without stripping the wire insulation.

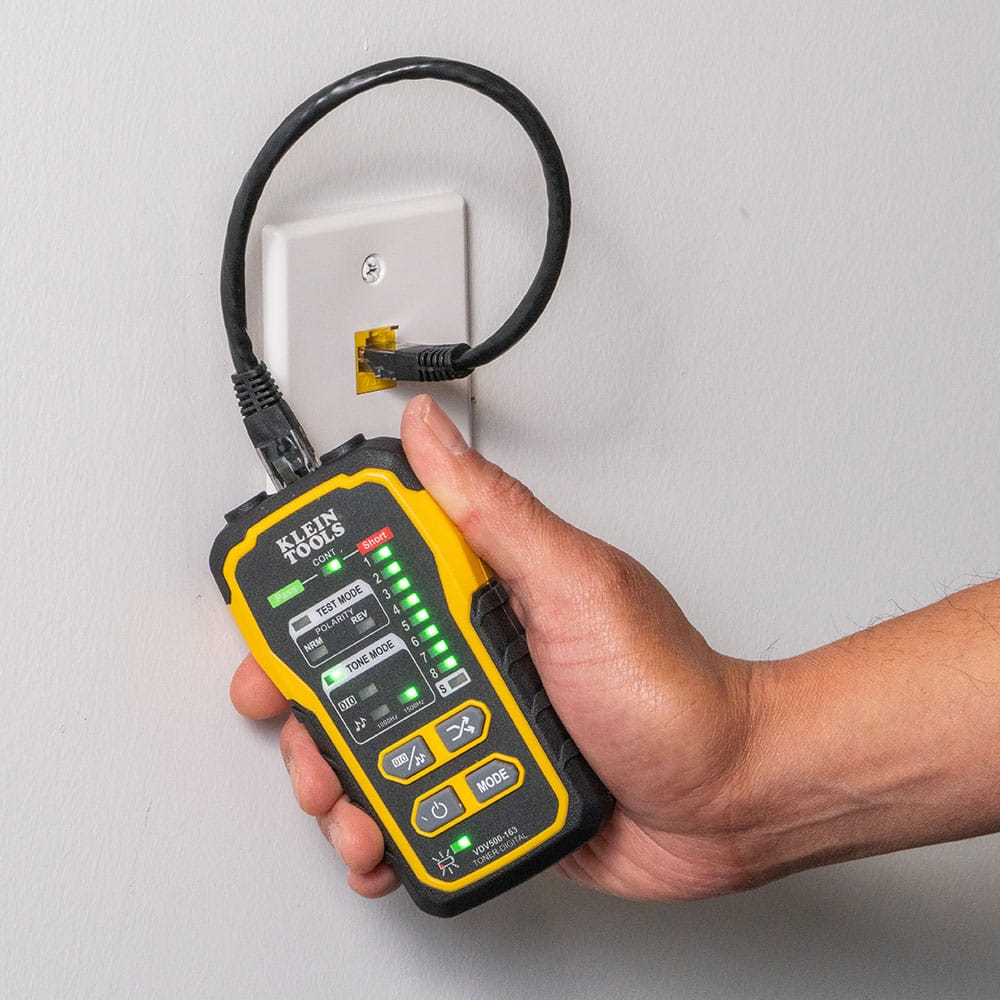

Action shot of a professional technician using the VDV500-163 digital tone generator to verify a network run. The unit is connected to an RJ45 wall plate with a patch cable, showing the diagnostic LED sequence used to confirm continuity, polarity, and pin-to-pin mapping on an active data network.
Action shot of a professional identifying cables within a high-density server rack using the VDV500-223 digital tracing probe. The technician is shown scanning a large bundle of blue Ethernet lines, with the probe's signal strength LEDs illuminated to indicate the precise location of the toned pair.
A detailed demonstration of the tool-less maintenance feature for the VDV500-223 probe. A technician is shown holding the probe while easily attaching the twist-and-lock non-metallic conductive replacement tip, highlighting the kit's design for long-term jobsite reliability and ease of use.

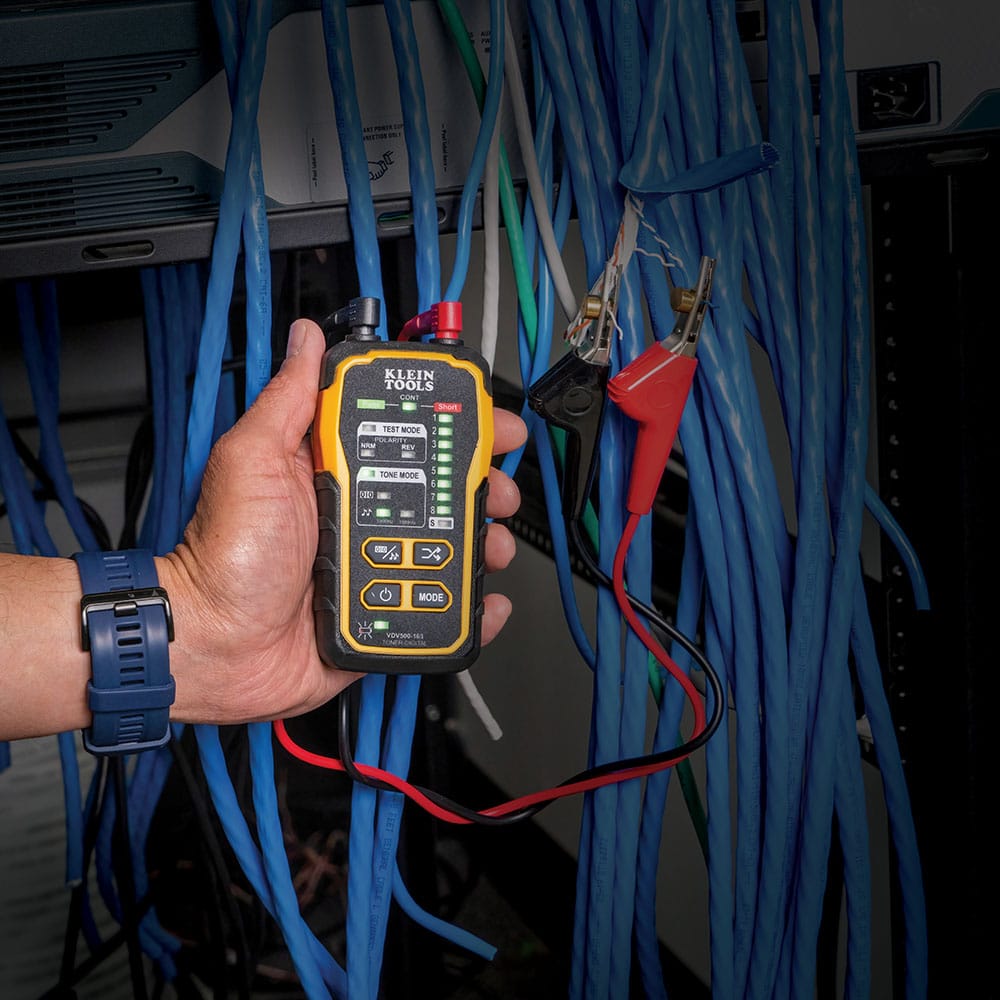

Action shot of a technician using the VDV500-163 digital tone generator to trace cables within a high-density server rack. The professional toner is held in one hand while the heavy-duty angled bed of nails (ABN) clips are securely attached to an individual wire pair among a bundle of blue Ethernet cables, demonstrating precision cable identification in a live network environment.
The Name on the Tools is Our Reputation promotional how to video
KLEIN TOOLS

Klein Tools VDV500920 Digital Tone and Probe Kit for Active Network Wire Tracing Data Cable Mapping 60Hz Filter ABN Clips RJ45 Toner and Tracer Set

Only 2 left
SKU: VDV500920
$169.97

Description

Klein promotional logo logout

Pinpoint Precision in Complex Networks: Klein Tools VDV500-920 Digital Tone and Probe Kit for Professional Wire Identification

Master the complexity of modern data environments with the Klein Tools VDV500-920 Digital Tone and Probe Kit. This professional-grade diagnostic set is engineered to trace and locate network cables more effectively within dense bundles, at high-traffic switches, patch panels, or termination blocks. By offering both digital and analog signaling in one versatile system, this kit provides a powerful solution for any work environment. Whether you are a network administrator troubleshooting an active network or a low-voltage technician installing new voice and data lines, the VDV500-920 ensures you can identify the correct cable the first time, every time.

The digital mode is specifically designed to trace and locate data cables on active networks without the risk of interference or network downtime, while the analog mode allows for isolating individual wire pairs to trace voice, video, and audio cables. For added utility, the probe features a 60Hz noise filter to eliminate "buzz" from fluorescent lighting and power cables, ensuring a crystal-clear signal. Equipped with Angled Bed of Nails (ABN) clips for tracing unstripped wires and an RJ45 port for direct plug-in testing, this kit is built for the rigors of the field, housed in durable ABS material and including full pin-to-pin wire mapping capabilities with shield detection.

Key Features

  • Active Network Tracing: Locate and tone cables connected to live switches or routers without needing to disconnect equipment.
  • Dual-Mode Signaling: Features both digital and analog modes for versatile tracing of data, voice, video, and audio lines.
  • Precision 60Hz Filter: Integrated filter removes background hum for more accurate tracing near power sources.
  • Rugged ABN Clips: Angled Bed of Nails (ABN) leads allow for secure connections and tracing on unstripped wires.
  • Advanced Wire Mapping: Easily check pin-to-pin wiring configurations and perform shield detection on data cables.
  • Visual Indicators: Integrated worklight on the probe tip improves visibility in dark server rooms and ceiling voids.
  • Multiple Cadences: Three distinct tone cadences help distinguish between different wire runs.

What's Included

  • (1) VDV500-163 Digital Tone Generator
  • (1) VDV500-223 Digital Tracing Probe
  • (1) Set of Test Leads with ABN Clips
  • (1) Specialized Carrying Pouch
  • (8) AAA Batteries (Required for Operation)
  • (1) Instruction Manual

Specifications

Manufacturer Klein Tools
Model Number VDV500-920
Type Digital/Analog Tone and Probe Kit
Application Active/Inactive Wire Toning & Tracing
Overall Height 13.3 Inches
Overall Length 6.8 Inches
Overall Width 3.0 Inches
Weight 1.4 lbs
Material Durable ABS
Batteries 8 x AAA (Included)
UPC 092644583872

Pro-Tip: When tracing cables in a high-noise environment like a server room, switch the probe to "Digital Mode." This utilizes advanced signaling that ignores digital data packets and common noise, allowing the tone to cut through electromagnetic interference that would drown out a traditional analog tracer. Always test your batteries before heading to the site to ensure the signal strength is at its maximum for long-distance runs.
