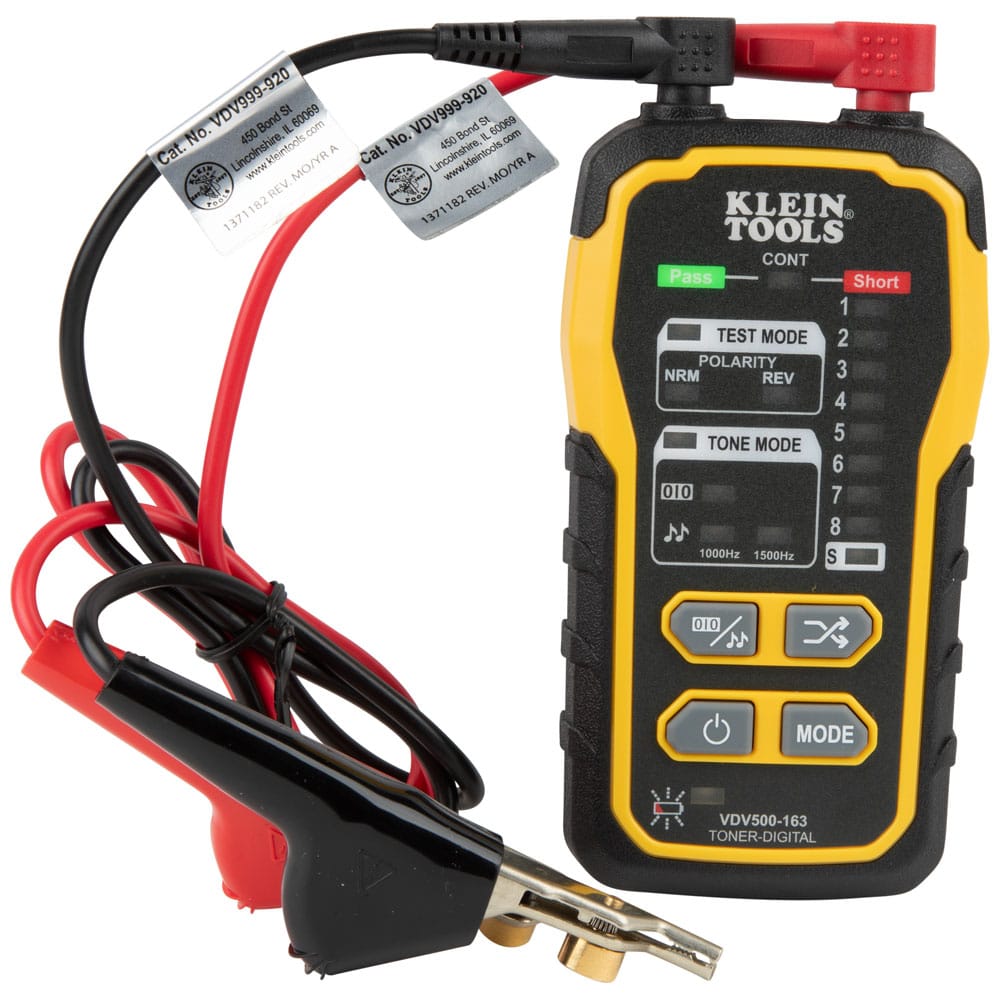

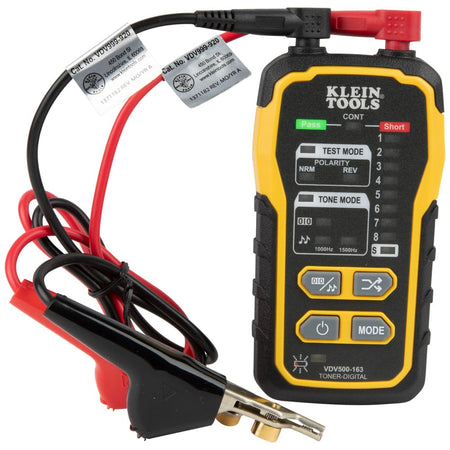

A studio product view of the Klein Tools VDV500163 Digital Tone Generator. The compact orange and black handheld device features a professional interface with clearly labeled LED indicators for digital and analog wire tracing, designed for locating cables on active networks.
Product feature infographic for the Klein Tools Digital Tone Generator highlighting its primary functions. The graphic identifies the wire mapping capabilities to check pin-to-pin connections, the integrated RJ45 port for data cable testing, and the heavy-duty angled bed of nails clips for secure wire attachment.
A detailed perspective of the VDV500163 top interface. This view showcases the integrated RJ45 port and the heavy-duty test lead connection point, emphasizing the tool's versatility in identifying and tracing Ethernet and telephone wire pairs.

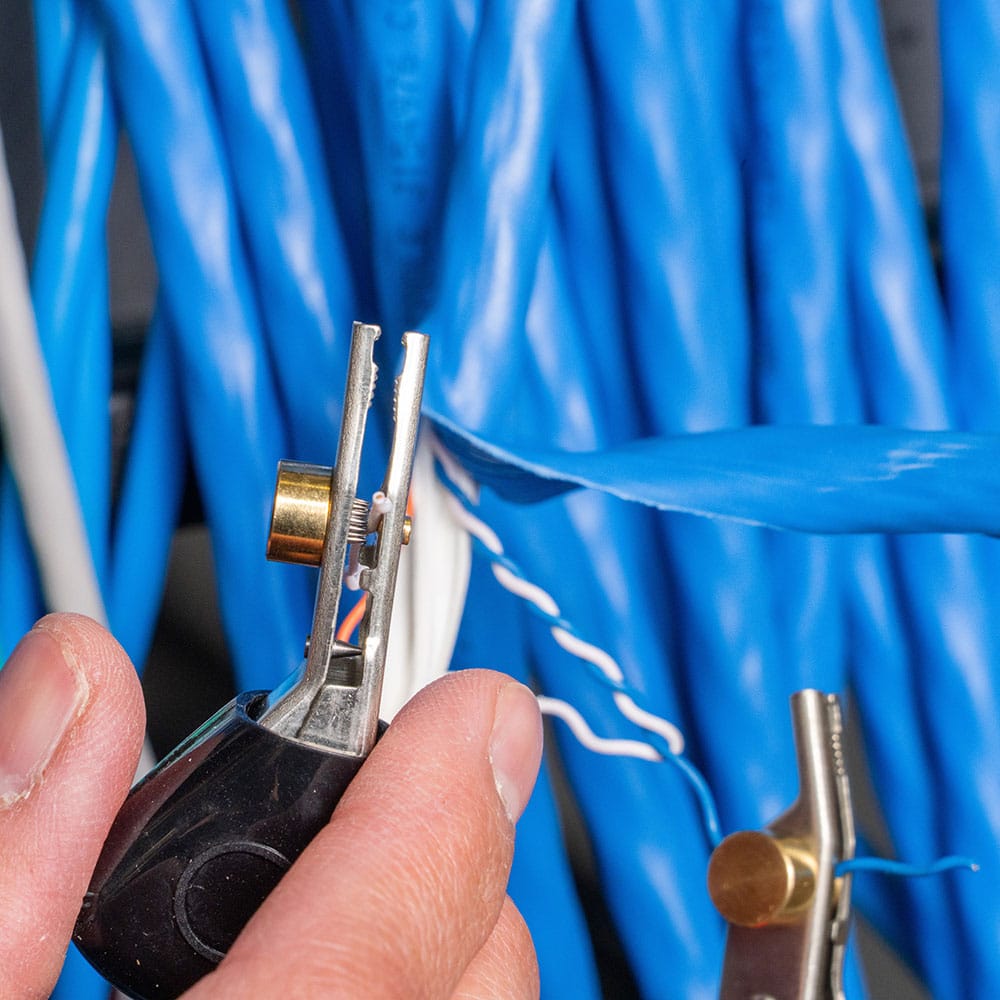

Close-up view of the rugged angled bed of nails (ABN) clips attached to the VDV500163. The image highlights the specialized "bed of nails" design and the piercing pin, which allow for a secure electrical connection to insulated copper conductors without stripping the wire.

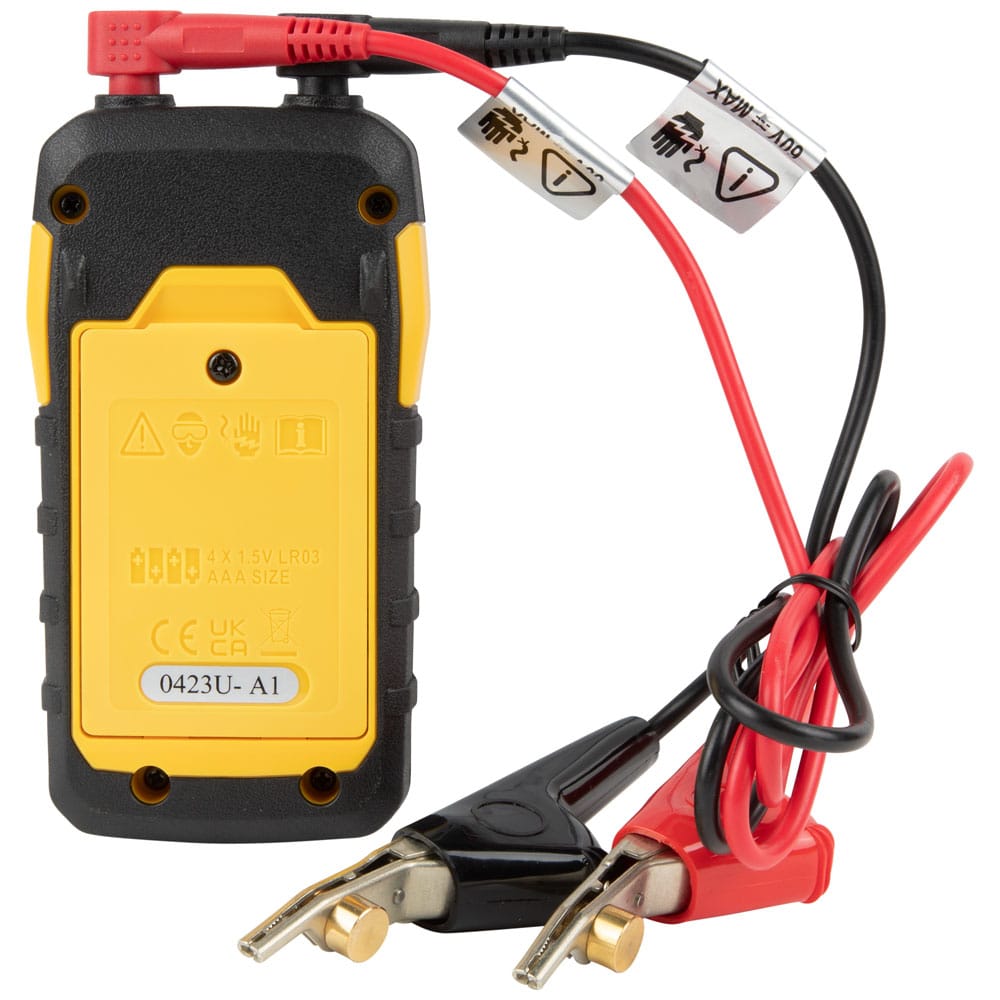

Rear view of the VDV500163 digital tone generator with its test leads and data cable neatly arranged. This layout emphasizes the tool’s portability and the high build quality of the test leads, essential for daily use by professional network installers.

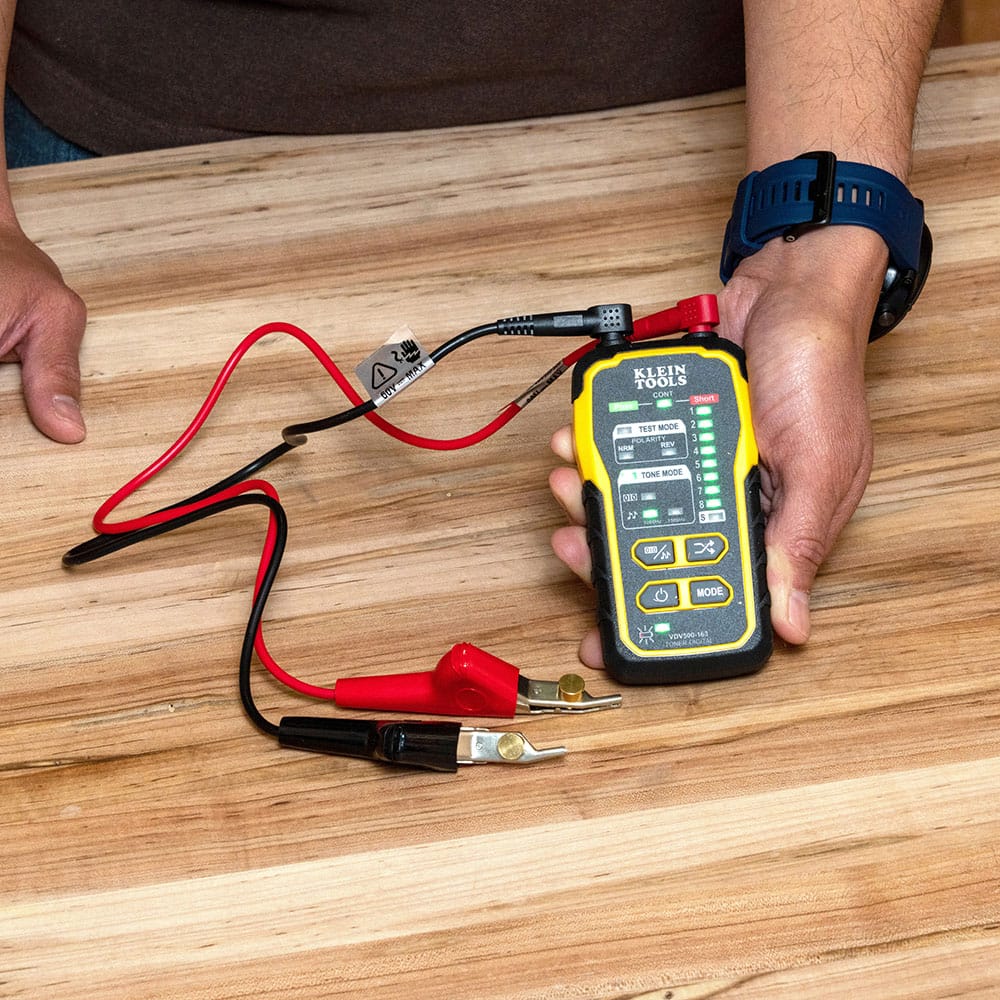

Full product kit view of the VDV500163 featuring the handheld digital tone generator and its professional accessories. The set includes heavy-duty ABN test leads and a standard RJ45-to-RJ45 patch cable, providing a complete solution for wire identification and tracing.

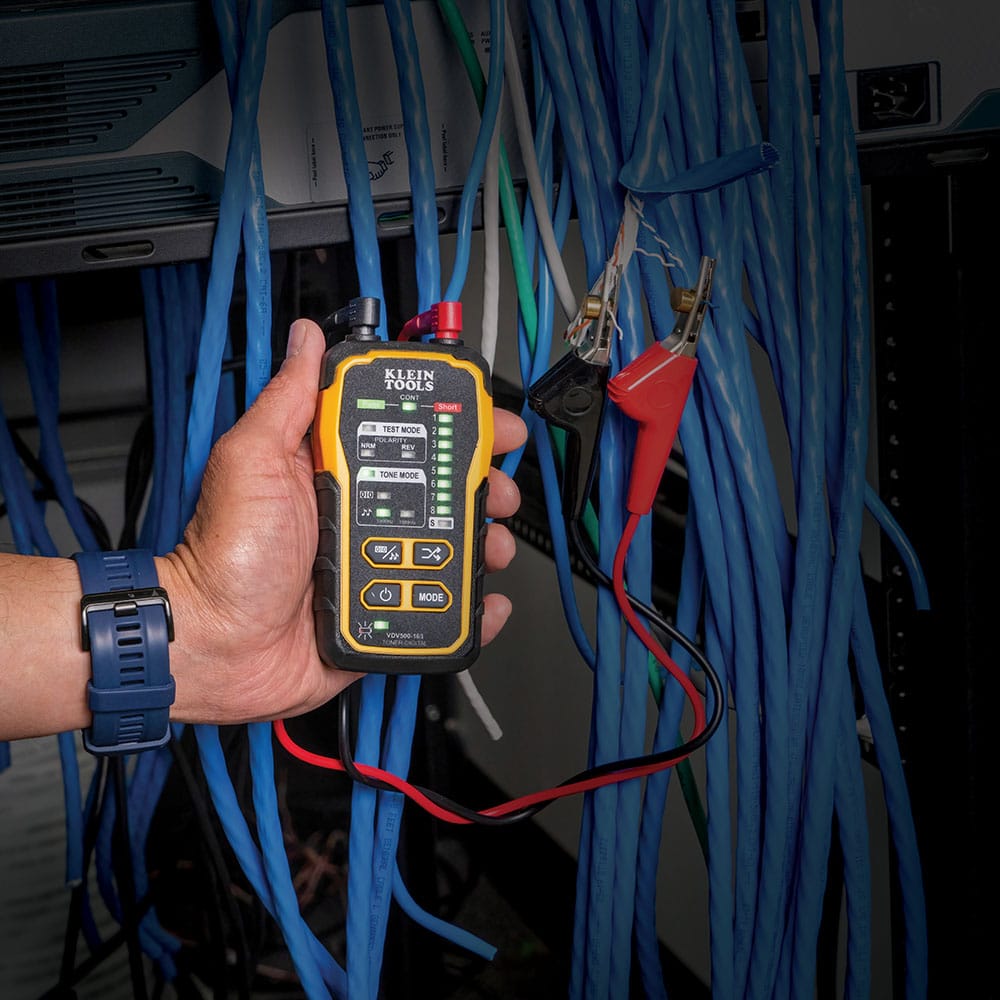

Action shot of a technician using the VDV500163 tone generator to test a data cable run. The generator is shown with its interactive LED display active, while the angled bed of nails clips are securely connected to an unterminated wire pair for active network tracing.
Action shot of a professional using the Klein Tools VDV500163 in an industrial environment. The device is shown providing a digital tone signal through high-quality test leads, illustrating its reliability for troubleshooting complex communication systems on a jobsite.

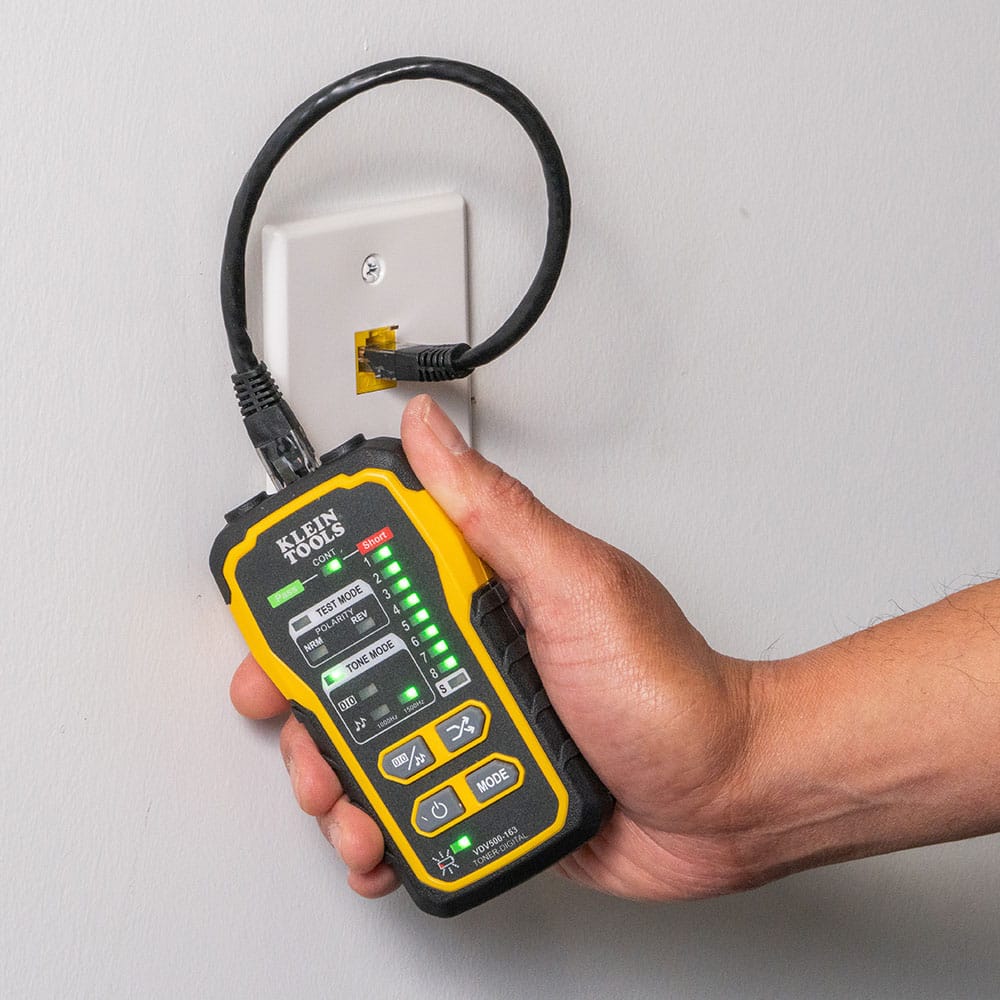

Action shot demonstrating the wire mapping function of the VDV500163. The tone generator is connected via its RJ45 port to an Ethernet wall jack, while a technician uses a compatible probe to verify the pin-to-pin continuity and shield integrity of the network installation.
The Name on the Tools is Our Reputation promotional how to video
A studio product view of the Klein Tools VDV500163 Digital Tone Generator. The compact orange and black handheld device features a professional interface with clearly labeled LED indicators for digital and analog wire tracing, designed for locating cables on active networks.
Product feature infographic for the Klein Tools Digital Tone Generator highlighting its primary functions. The graphic identifies the wire mapping capabilities to check pin-to-pin connections, the integrated RJ45 port for data cable testing, and the heavy-duty angled bed of nails clips for secure wire attachment.
A detailed perspective of the VDV500163 top interface. This view showcases the integrated RJ45 port and the heavy-duty test lead connection point, emphasizing the tool's versatility in identifying and tracing Ethernet and telephone wire pairs.
Close-up view of the rugged angled bed of nails (ABN) clips attached to the VDV500163. The image highlights the specialized "bed of nails" design and the piercing pin, which allow for a secure electrical connection to insulated copper conductors without stripping the wire.
Rear view of the VDV500163 digital tone generator with its test leads and data cable neatly arranged. This layout emphasizes the tool’s portability and the high build quality of the test leads, essential for daily use by professional network installers.
Full product kit view of the VDV500163 featuring the handheld digital tone generator and its professional accessories. The set includes heavy-duty ABN test leads and a standard RJ45-to-RJ45 patch cable, providing a complete solution for wire identification and tracing.
Action shot of a technician using the VDV500163 tone generator to test a data cable run. The generator is shown with its interactive LED display active, while the angled bed of nails clips are securely connected to an unterminated wire pair for active network tracing.
Action shot of a professional using the Klein Tools VDV500163 in an industrial environment. The device is shown providing a digital tone signal through high-quality test leads, illustrating its reliability for troubleshooting complex communication systems on a jobsite.
Action shot demonstrating the wire mapping function of the VDV500163. The tone generator is connected via its RJ45 port to an Ethernet wall jack, while a technician uses a compatible probe to verify the pin-to-pin continuity and shield integrity of the network installation.
The Name on the Tools is Our Reputation promotional how to video
KLEIN TOOLS

Klein Tools VDV500163 Digital Tone Generator for Active Network Wire Tracing Identification and Tracing with ABN Bed of Nails Clips and RJ45 Port

Only 2 left
SKU: VDV500163
$99.99

Description

Klein promotional logo logout

Streamline Network Diagnostics: High-Performance Digital Tone Generator for Active Circuit Tracing and Precision Wire Mapping

The Klein Tools VDV500163 Digital Tone Generator is a professional-grade diagnostic powerhouse designed for the rigorous demands of modern data-com and electrical environments. Unlike standard analog toners, this digital generator is engineered to trace and locate cables even on active networks when paired with the Digital Tracing Probe (sold separately). Whether you are identifying complex wire pairs in a high-density server room or troubleshooting industrial control panels, the VDV500163 provides the clarity and interference-free performance required to get the job done accurately.

Versatility is at the core of this tool's design, featuring rugged Angled Bed-of-Nails (ABN) clips that ensure a secure, "bite-in" connection to insulated wires. The integrated RJ45 port allows for instant testing of RJ45, RJ11, and RJ12 data cables, while the interactive LED interface provides immediate feedback on continuity and polarity. With wire mapping capabilities to verify pin-to-pin connections and shield detection, this toner ensures that every installation meets professional standards. Compact, durable, and energy-efficient with an auto-power off feature, it is the essential transmitter for any professional technician's diagnostic arsenal.

Key Features

  • Active Network Compatibility: Traces and locates cables on live networks when used with the VDV500-223 Digital Probe.
  • Precision Wire Mapping: Checks Pin-to-Pin connections with full shield detection for verified network integrity.
  • Secure Connectivity: Rugged Angled Bed of Nails (ABN) clips provide superior attachment to single wires and pairs.
  • Universal Data Port: Integrated RJ45 port for seamless testing of RJ45, RJ11, and RJ12 cables.
  • Visual Diagnostics: Clearly labeled, easy-to-read LEDs display continuity and polarity results instantly.
  • Triple Tone Cadence: Features three distinct tone patterns to easily distinguish between multiple cable runs.
  • Power Intelligence: Includes a low battery indicator and auto power-off function to maximize battery life.

What's Included

  • (1) VDV500163 Digital Tone Generator
  • (1) Set of Heavy-Duty ABN Test Leads
  • (4) AAA Alkaline Batteries
  • (1) Instruction Manual

Specifications

Toning Type Analog and Digital
Cable Compatibility RJ45, RJ11, RJ12, and Loose Wire
Continuity Testing Yes
Polarity Testing Yes
Number of Tones 3 Distinct Cadences
Battery Type 4 x AAA (Included)
Battery Life (Active) 20 Hours
Housing Material Durable ABS Plastic
Overall Height 4.7 Inches
Overall Length 2.2 Inches
Weight 5.3 oz
UPC 092644583896

Pro-Tip: When using the ABN clips on shielded twisted pair (STP), clip one lead to the center conductor and the other to the shield. This helps the signal travel further and makes it much easier for the probe to detect the tone through the metallic shielding of the cable.
