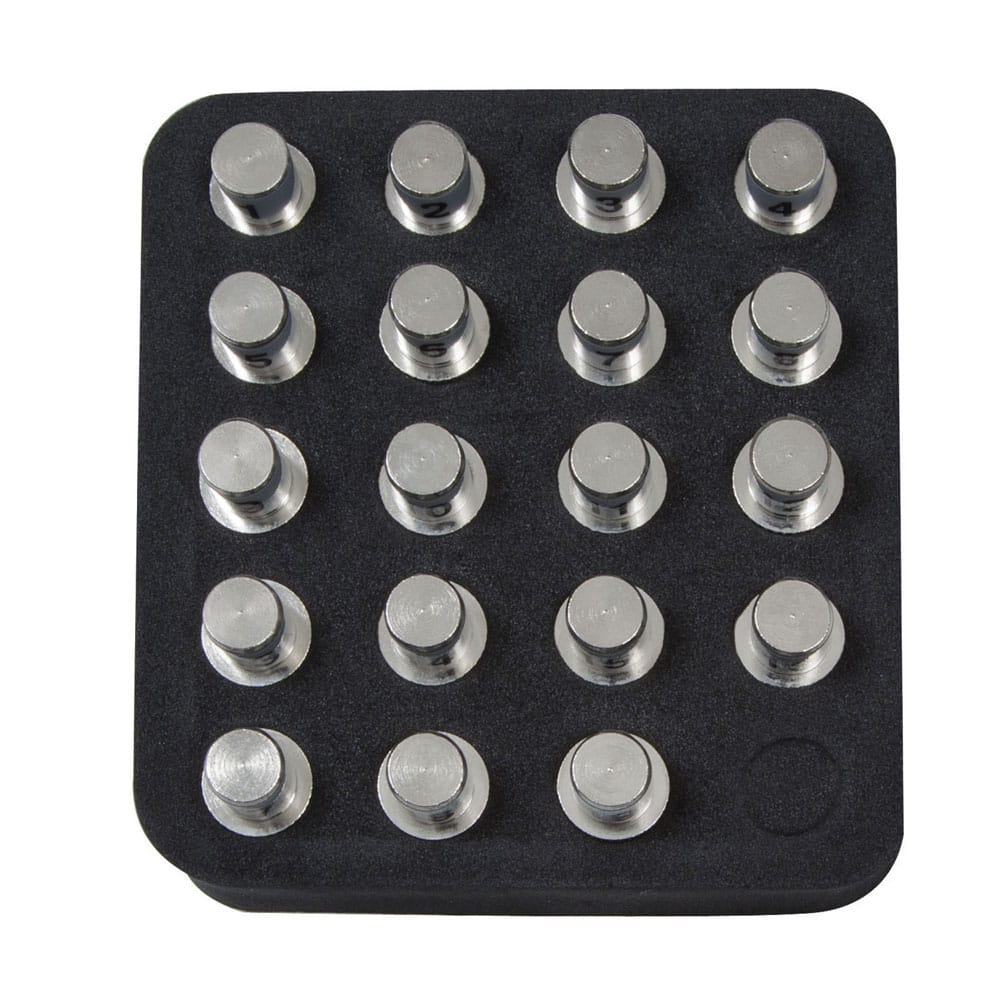

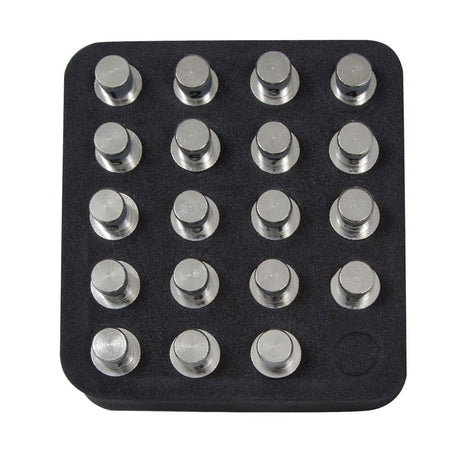

A studio product view of the Klein Tools VDV512056 CoaxMap Kit. The set features 19 silver-colored F-connector remote identifiers neatly organized in a professional black storage holder, designed for mapping coaxial cable infrastructure with Scout Pro and Commander series testers.
Product feature infographic for the VDV512056 CoaxMap Kit. The graphic highlights the 19 numbered remotes and emphasizes that this kit provides the fastest and most efficient way to identify multiple coaxial cable locations at one time using a compatible Klein Tools cable tester.

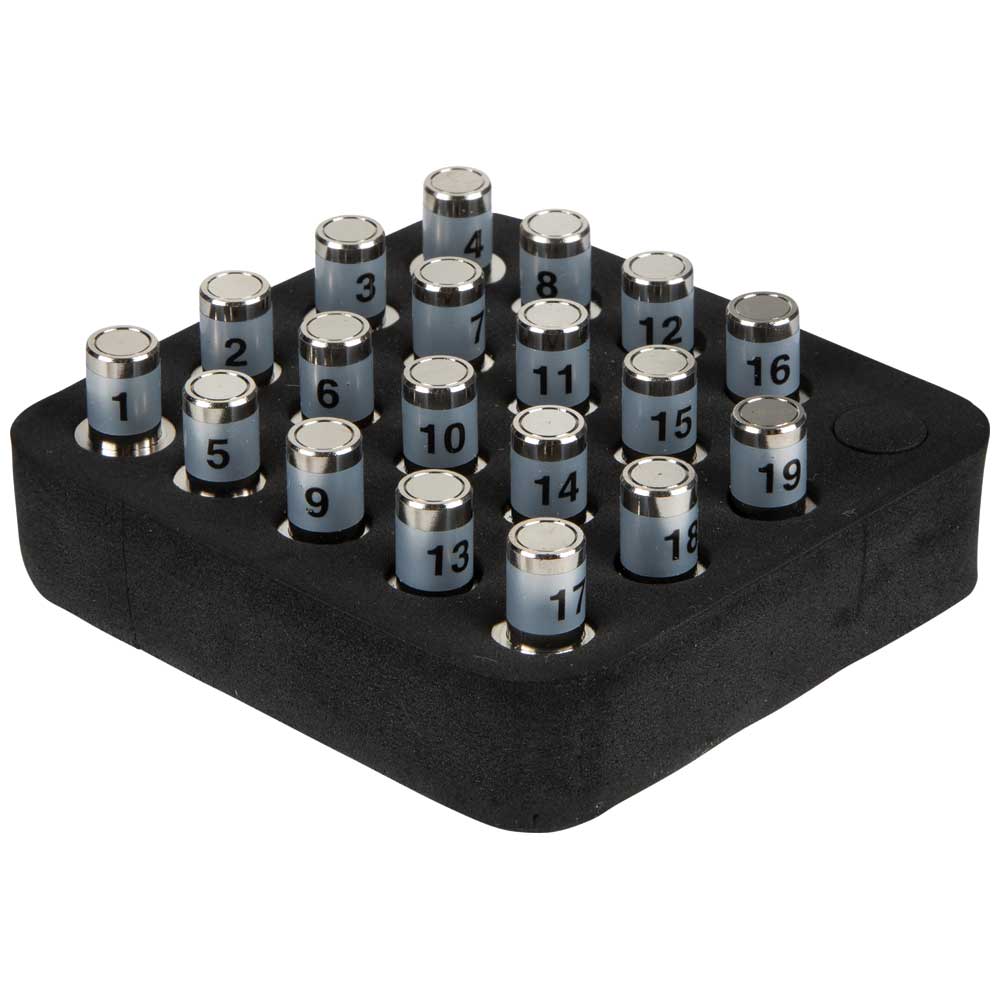

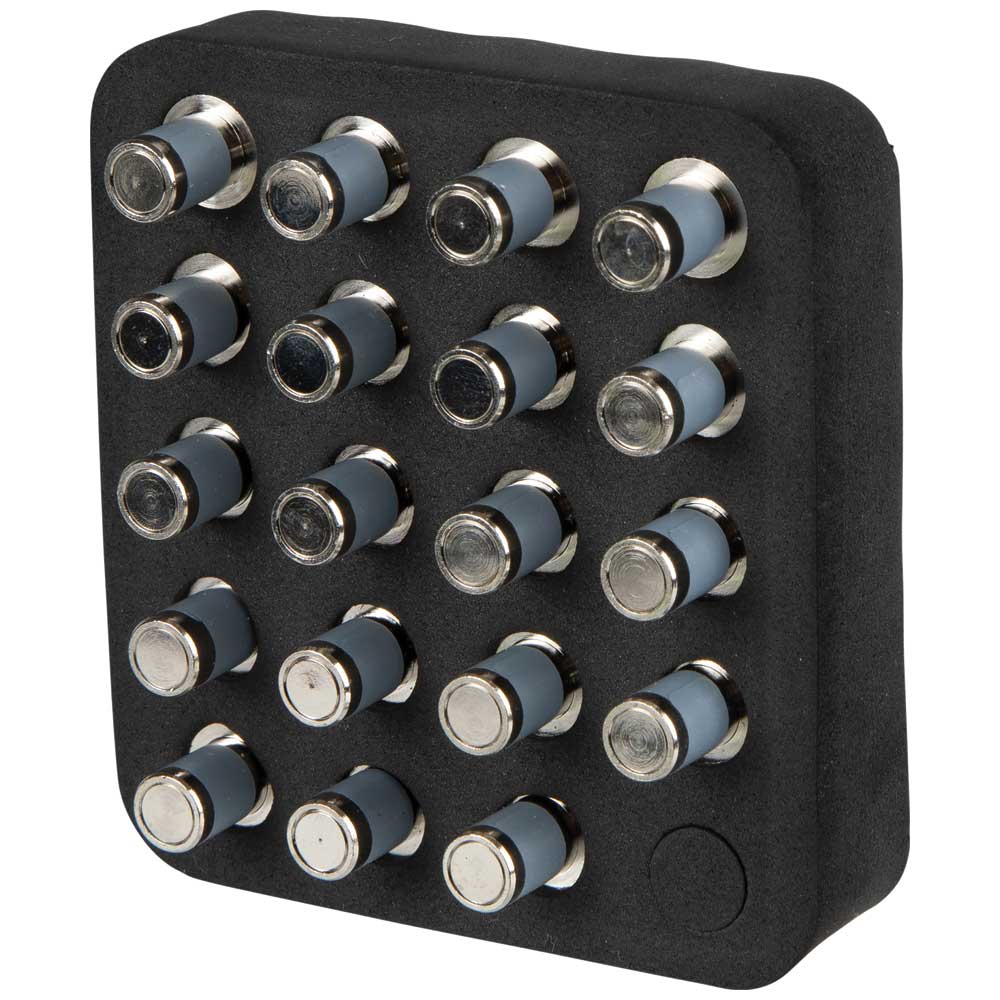

Close-up perspective of the VDV512056 CoaxMap remotes in their specialized storage tray. The image showcases the clear numerical labeling from 1 to 19 and the rugged, heavy-duty design of the F-connector adapters, essential for repeated professional use on jobsites.

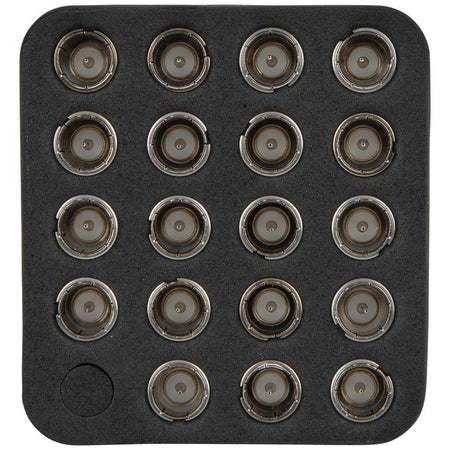

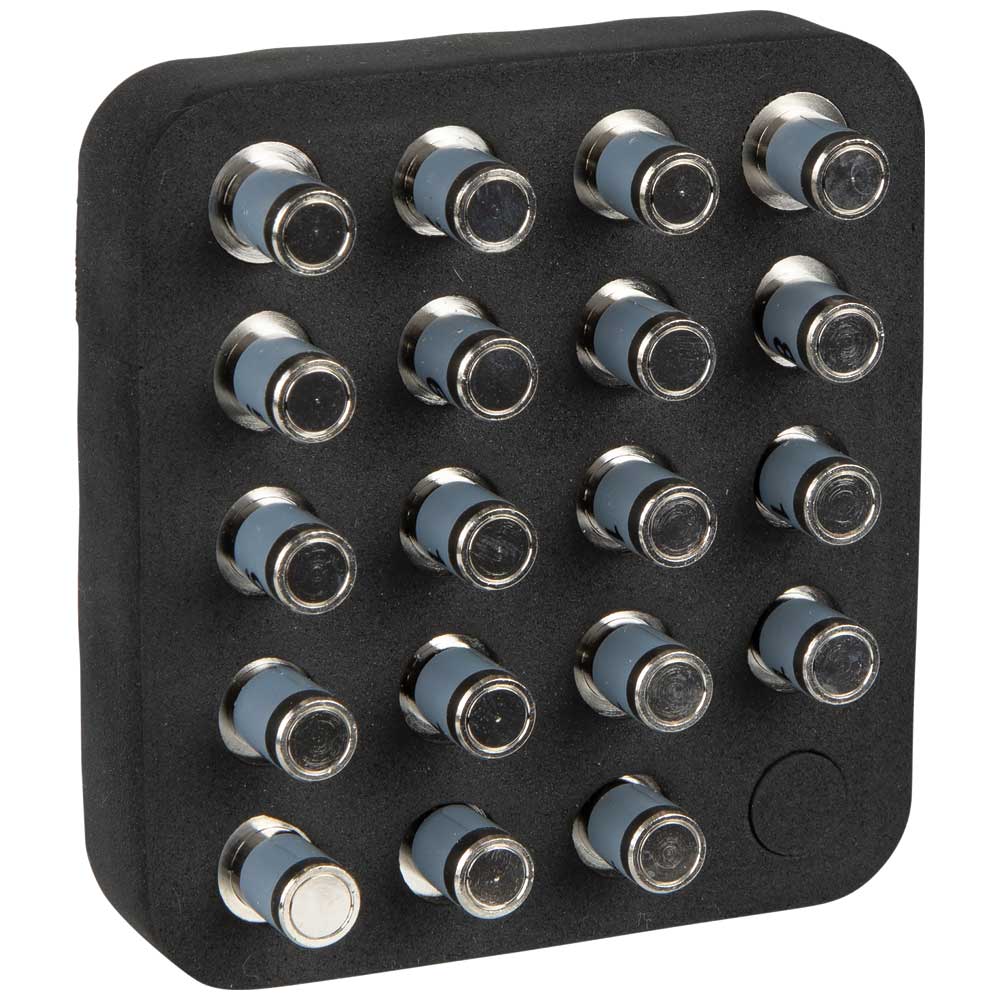

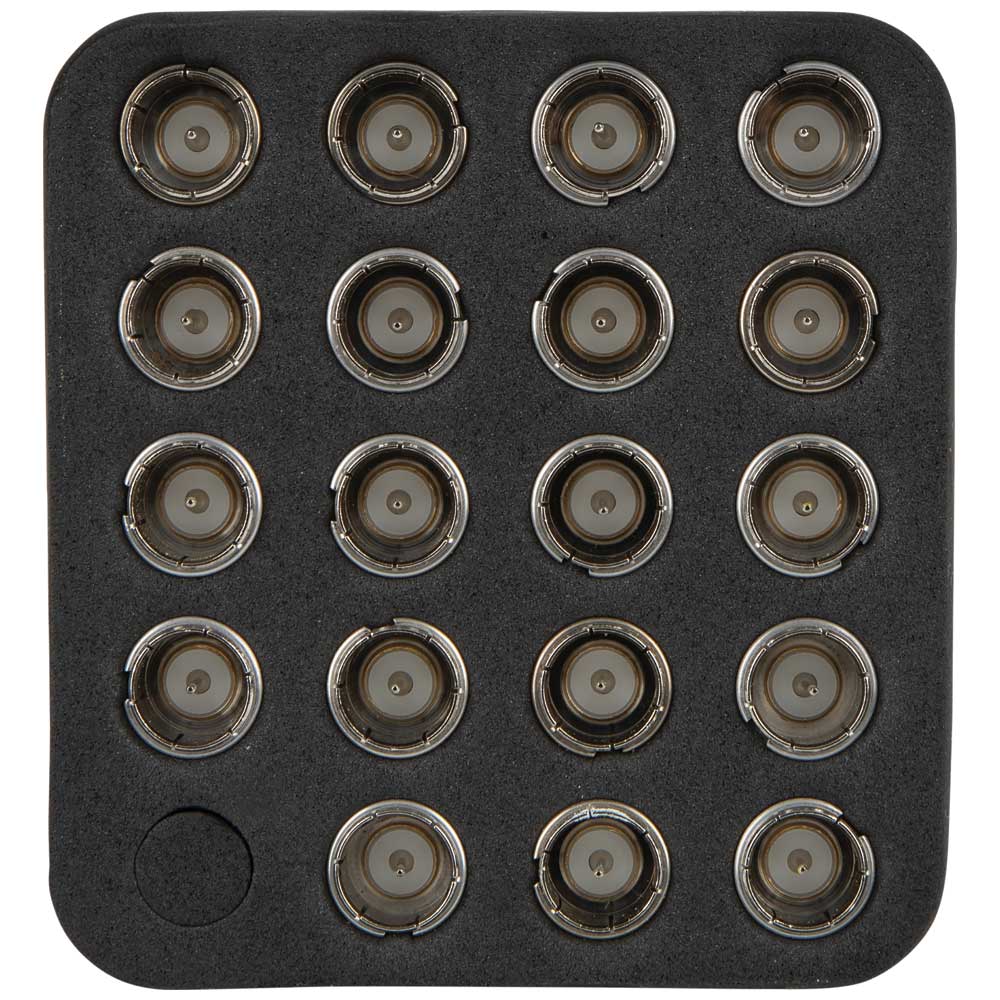

Top-down view of the Klein Tools CoaxMap Kit holder. This image illustrates the compact and organized layout of the 19 remote identifiers, demonstrating how the kit helps technicians manage complex coaxial installations and troubleshoot cable runs efficiently.
Top-down view of the Klein Tools CoaxMap Kit holder. This image illustrates the compact and organized layout of the 19 remote identifiers, demonstrating how the kit helps technicians manage complex coaxial installations and troubleshoot cable runs efficiently.
A studio product view of the Klein Tools VDV512056 CoaxMap Kit. The set features 19 silver-colored F-connector remote identifiers neatly organized in a professional black storage holder, designed for mapping coaxial cable infrastructure with Scout Pro and Commander series testers.
Product feature infographic for the VDV512056 CoaxMap Kit. The graphic highlights the 19 numbered remotes and emphasizes that this kit provides the fastest and most efficient way to identify multiple coaxial cable locations at one time using a compatible Klein Tools cable tester.
Close-up perspective of the VDV512056 CoaxMap remotes in their specialized storage tray. The image showcases the clear numerical labeling from 1 to 19 and the rugged, heavy-duty design of the F-connector adapters, essential for repeated professional use on jobsites.
Top-down view of the Klein Tools CoaxMap Kit holder. This image illustrates the compact and organized layout of the 19 remote identifiers, demonstrating how the kit helps technicians manage complex coaxial installations and troubleshoot cable runs efficiently.
Top-down view of the Klein Tools CoaxMap Kit holder. This image illustrates the compact and organized layout of the 19 remote identifiers, demonstrating how the kit helps technicians manage complex coaxial installations and troubleshoot cable runs efficiently.
KLEIN TOOLS

Klein Tools Coaxial Remote Identifier Set VDV512056 CoaxMap Kit 19 Location Remotes (F Connector Compatibility Scout Pro Commander Series Testing)

Only 2 left
SKU: VDV512056
$44.99 USD

Description

Klein promotional logo logout

Map Nineteen Coaxial Locations Simultaneously And Eliminate Repetitive Testing Walks Across Large Facilities

The Klein Tools VDV512056 CoaxMap Kit is a 19-piece F-connector remote tracking expansion set engineered for simultaneous multi-location coaxial cable infrastructure identification. Compatible directly with Klein Tools Scout Pro and Commander series testers, these individually numbered modules map out distinct line endpoints without requiring repetitive structural backtracking to the head-end distribution panel. The heavy-duty design ensures long-term connection integrity and precise terminal verification across residential, broadcast, and industrial video networks.

Best Used For:

  • Multi-Room Video Mapping: Tracing and sorting mixed coaxial line networks across multi-family housing complexes or single-family residential layouts from a central head-end.
  • Broadcast Infrastructure Auditing: Labeling hidden satellite drops and security monitor cable runs inside commercial properties and server hubs.
  • Conduit Line Sorting: Sorting unidentified F-connector drops running through dark wall framing bays, ceiling voids, and mechanical conduits.

Key Performance & Safety Features

  • High-Capacity Location Tracing: Maps up to 19 discrete F-connector terminal ports in a single structural sweep to maximize on-site labor efficiency.
  • Seamless Tester Integration: Designed for immediate software recognition on Scout Pro and Commander diagnostics platforms, ensuring instant line tracking readouts.
  • Individually Numbered Layouts: Remotes feature clear, bold numbering from 1 to 19 to construct a foolproof structural cable registry.
  • Rugged Component Shells: Heavy-duty terminal bodies withstand continuous jobsite drop stresses and high-volume matching connection cycles.
  • Pocket-Sized Portability: Highly compact modules fit easily inside standard equipment pouches, maintaining easy access during high-volume field deployment.
  • Organized Tray Storage: Included molded storage holder keeps all 19 remote heads securely sorted in sequence to prevent jobsite asset loss.

What's Included

  • 19 Individually Numbered CoaxMap Location ID Remotes (#1 - #19)
  • Specialized Storage Holder Tray

Technical Specifications

Connector Interface: Coaxial F-Connector
Maximum Location Capacity: 19 Unique Locations
Scout Pro Compatibility: VDV501-851, VDV501-852, VDV501-853, VDV501-823, VDV501-824, VDV501-825, VDV501-826, VDV501-827
Commander Compatibility: VDV501-828, VDV501-829
Module Body Material: Durable ABS Polymer
Overall Tray Height: 3.0 in.
Overall Tray Width: 3.297 in.
Overall Tray Length: 1.0 in.
Product Kit Type: Coaxial Remote Identifier Set
Net Kit Weight: 5.3 oz.
Pro-Tip: Before beginning your layout verification, screw the remotes hand-tight onto the wall jacks or cable splitter leads in numerical order from left to right; this keeps your diagnostic screen map aligned logically with the physical floor plan.
