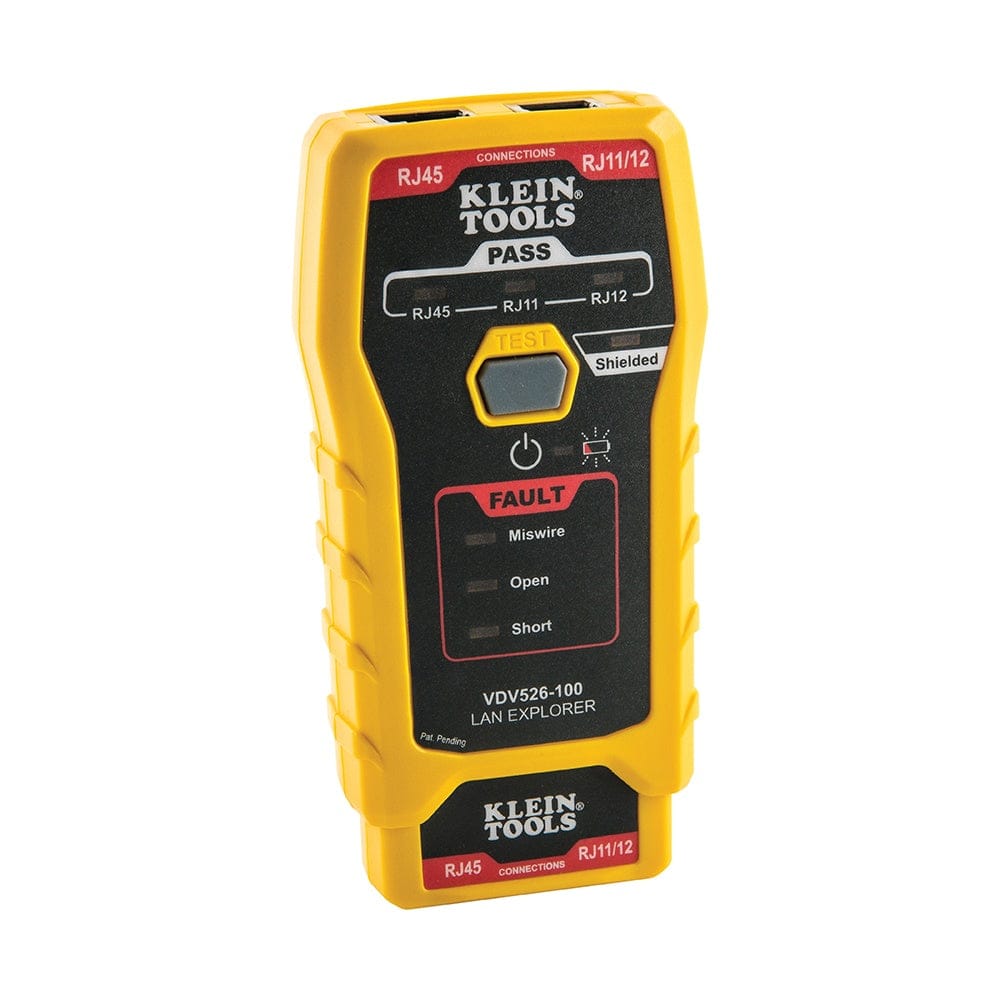

Front perspective view of the yellow and black Klein Tools LAN Explorer data cable tester with the self-storing remote attached to the base.

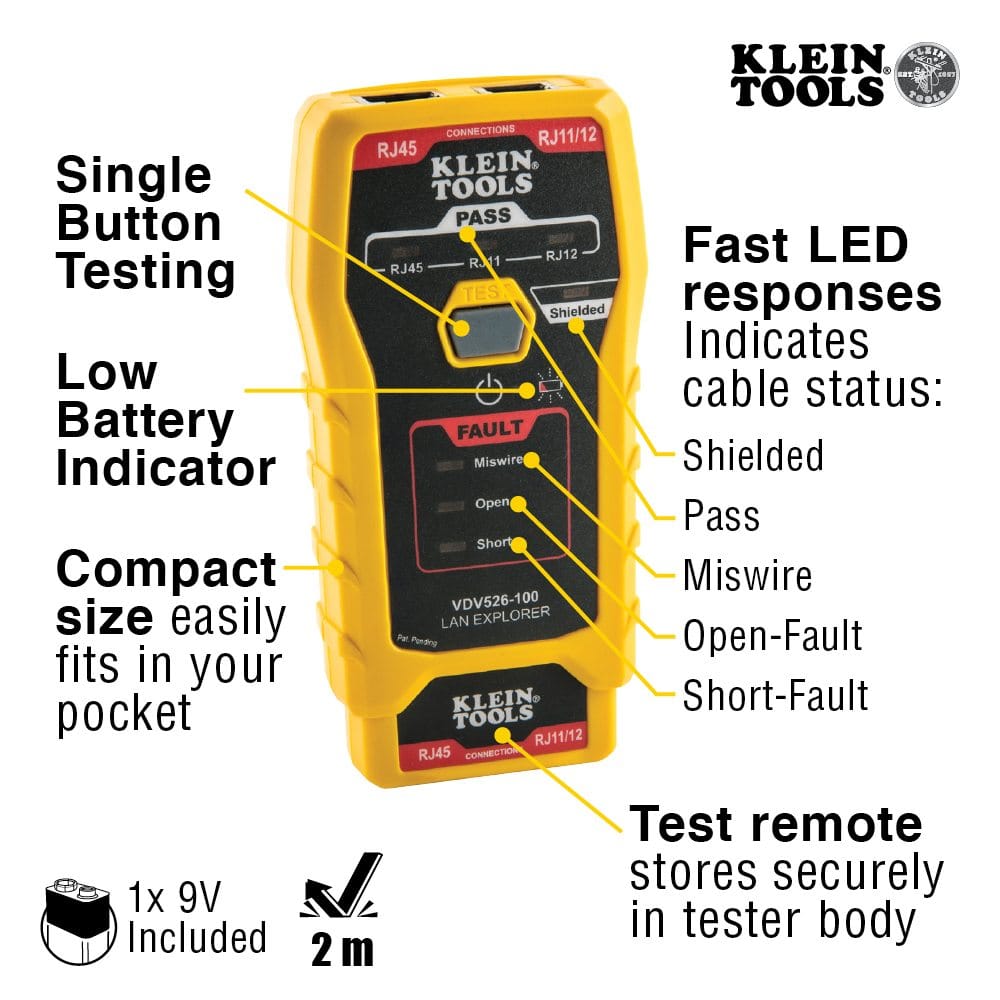

Product informational graphic for the LAN Explorer highlighting features such as single-button testing, a low battery indicator, compact pocket size, and fast LED responses for cable status including shielded, pass, miswire, open-fault, and short-fault.

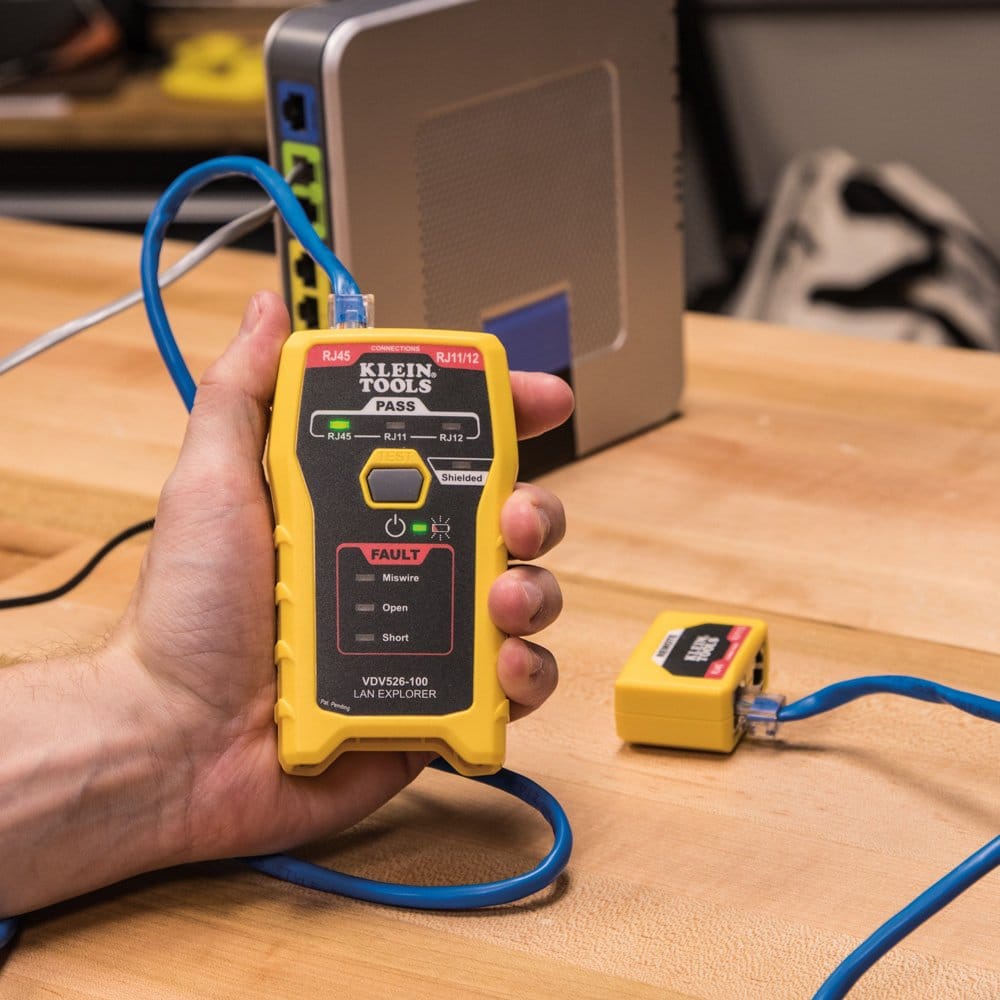

Action shot of a person using the LAN Explorer tester connected to a network device via a blue Ethernet cable, with the green Pass indicator LED illuminated.

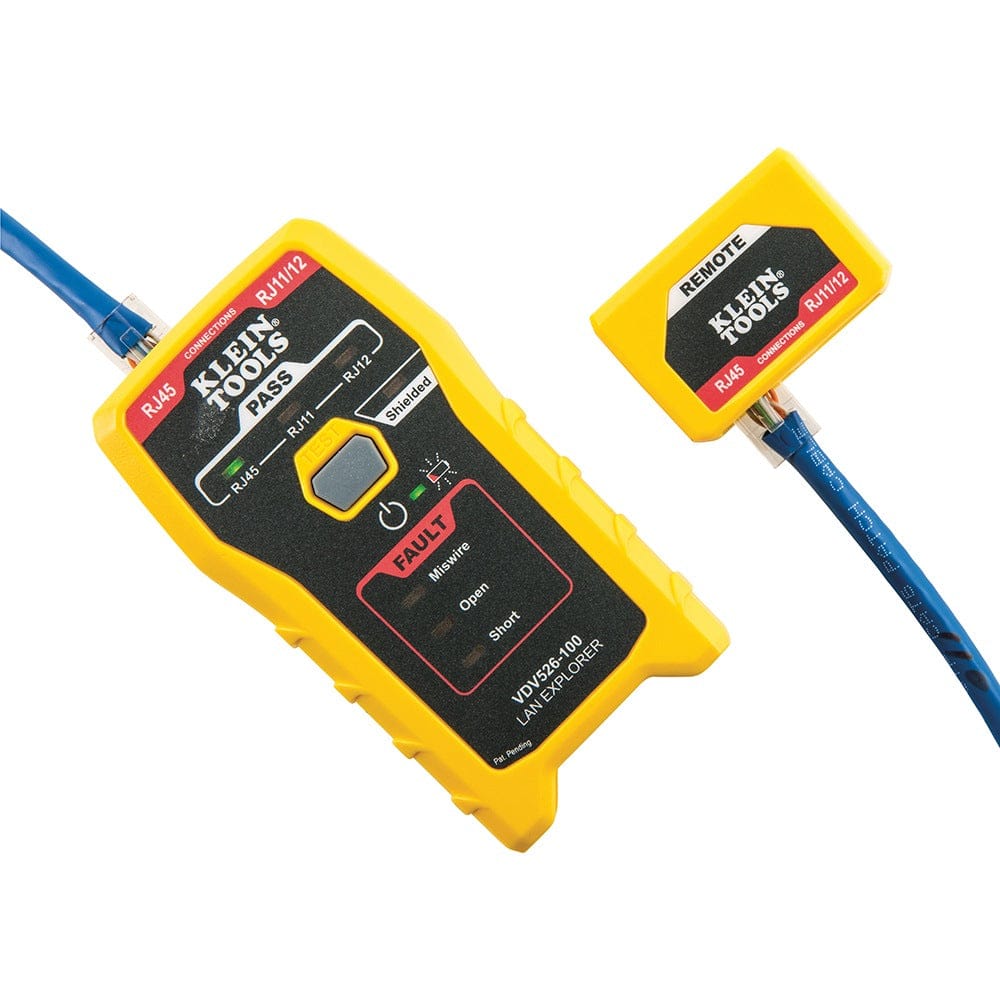

Close-up of the LAN Explorer tester and detached remote connected by a blue patch cable, showing active green LEDs for Pass and RJ45 connection status.

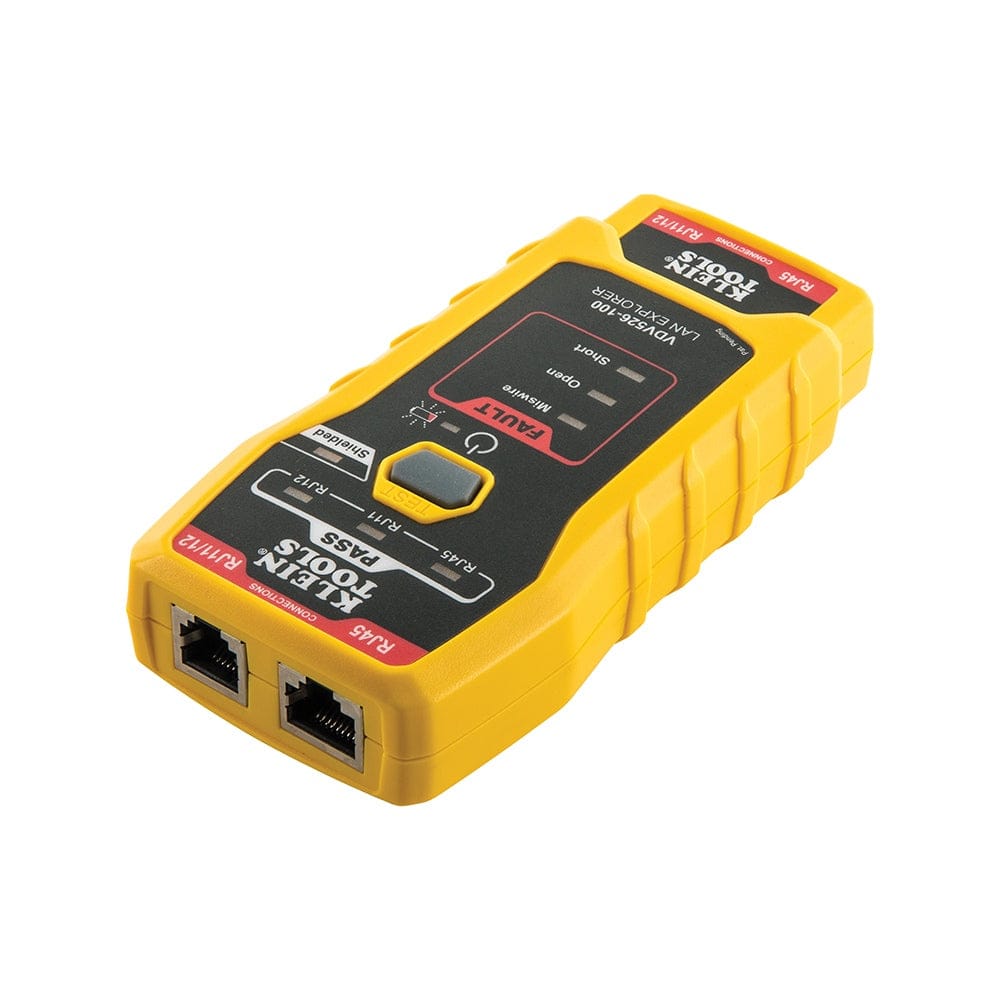

High-angle view of the LAN Explorer unit showing the dual RJ45 and RJ11/12 testing ports located at the top of the device.
The LAN Explorer tester and its detached remote displayed side-by-side to highlight the matching RJ45 and RJ11/12 connection ports on both units.

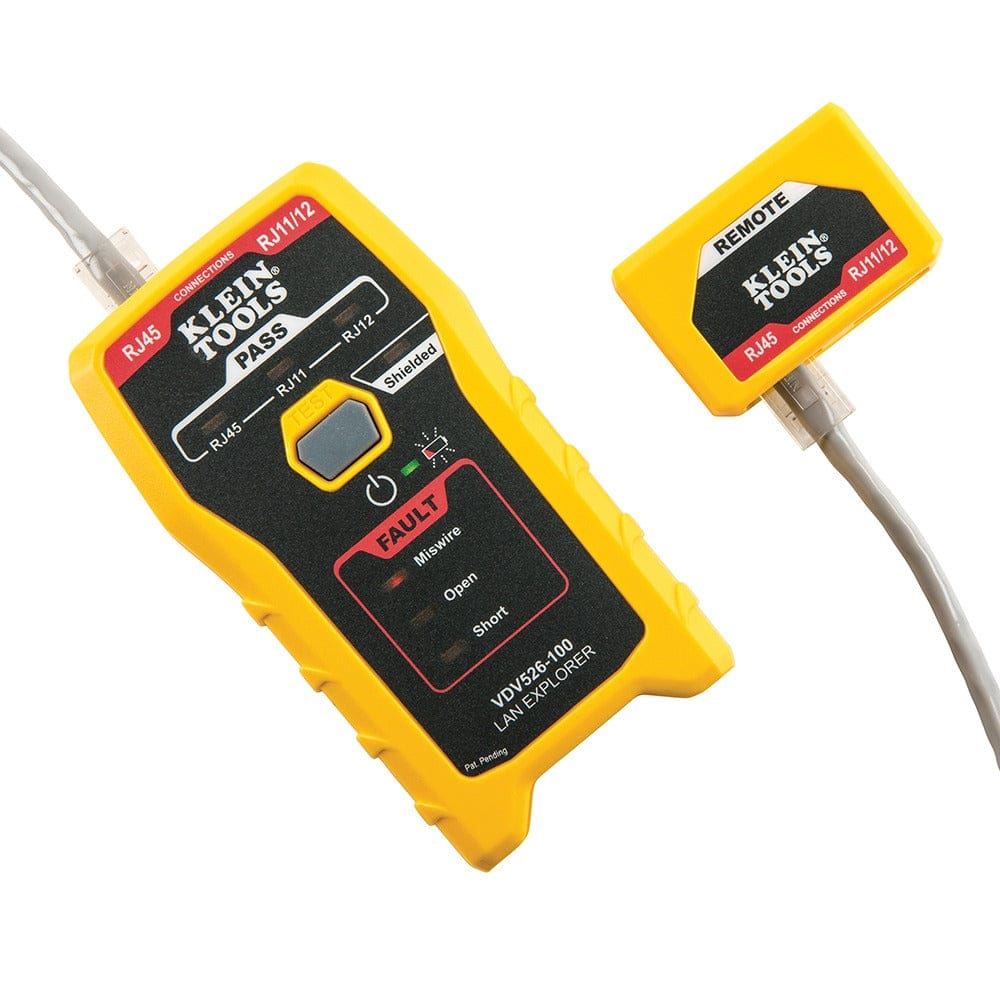

Close-up of the tester unit and remote connected by a grey cable, with the red Miswire LED illuminated to indicate a wiring fault.
A hand holding the LAN Explorer tester connected to a network switch, displaying a green Pass result for an RJ45 data cable test.
The LAN Explorer tester being used to troubleshoot a cable, with the red Open fault indicator LED illuminated.
A direct top-down view of the head of the LAN Explorer tester, showing the integrated RJ45 and RJ11/12 connection ports.
VDV526100 LAN EXPLORER DATA CABLE TESTER promotional video
Front perspective view of the yellow and black Klein Tools LAN Explorer data cable tester with the self-storing remote attached to the base.
Product informational graphic for the LAN Explorer highlighting features such as single-button testing, a low battery indicator, compact pocket size, and fast LED responses for cable status including shielded, pass, miswire, open-fault, and short-fault.
Action shot of a person using the LAN Explorer tester connected to a network device via a blue Ethernet cable, with the green Pass indicator LED illuminated.
Close-up of the LAN Explorer tester and detached remote connected by a blue patch cable, showing active green LEDs for Pass and RJ45 connection status.
High-angle view of the LAN Explorer unit showing the dual RJ45 and RJ11/12 testing ports located at the top of the device.
The LAN Explorer tester and its detached remote displayed side-by-side to highlight the matching RJ45 and RJ11/12 connection ports on both units.
Close-up of the tester unit and remote connected by a grey cable, with the red Miswire LED illuminated to indicate a wiring fault.
A hand holding the LAN Explorer tester connected to a network switch, displaying a green Pass result for an RJ45 data cable test.
The LAN Explorer tester being used to troubleshoot a cable, with the red Open fault indicator LED illuminated.
A direct top-down view of the head of the LAN Explorer tester, showing the integrated RJ45 and RJ11/12 connection ports.
VDV526100 LAN EXPLORER DATA CABLE TESTER promotional video
KLEIN TOOLS

Klein Tools VDV526100 LAN Explorer Network Cable Tester RJ11 RJ12 RJ45 Voice Data CAT3 CAT5e CAT6 CAT6A Ethernet Cable Troubleshooting Self Storing Remote

In stock
SKU: VDV526100
$32.97

Description

Klein promotional logo logout

Streamline Your Network Troubleshooting with the Klein Tools LAN Explorer® Data Cable Tester

The Klein Tools VDV526100 LAN Explorer® is a professional-grade, compact data cable tester designed for instant verification of RJ11, RJ12, and RJ45 terminated voice and data cables. Perfect for IT professionals, electricians, and home network installers, this pocket-sized tool provides simple, single-button testing to ensure your connections are secure and correctly wired. Whether you are installing new CAT6 lines in an office or troubleshooting a residential telephone jack, the LAN Explorer® delivers reliable results in seconds, making it an essential addition to any low-voltage toolkit.

Engineered for efficiency and durability, this tester features a high-visibility LED interface that provides immediate responses for Pass, Miswire, Open-Fault, Short-Fault, and Shield status. The ingenious design includes a test remote that stores securely inside the tester body, ensuring you never lose vital components on the job site. With integrated Auto Power-Off technology to preserve the included 9V battery and a rugged build capable of withstanding a 2-foot drop, the LAN Explorer® is built to handle the rigors of daily field use while maintaining pinpoint accuracy up to 1,000 feet of cable.

Key Features

  • Versatile Connection Testing: One-button testing for RJ11, RJ12, and RJ45 terminated voice and data cables.
  • Comprehensive Cable Compatibility: Designed to test CAT3, CAT5e, and CAT6/6A cables.
  • Instant LED Diagnostics: Rapidly identifies Pass, Miswire, Open-Fault, Short-Fault, and Shielded status.
  • Integrated Remote Storage: The test remote snaps securely into the main tester body for convenient transport and storage.
  • Ultra-Portable Design: Compact, lightweight frame easily fits into pockets or small tool pouches.
  • Intelligent Power Management: Features Auto Power-Off to conserve battery and a dedicated low battery indicator.
  • Field Tested Durability: Rated for 2-foot drop protection for reliable performance in demanding environments.

What's Included

  • (1) LAN Explorer® Data Cable Tester
  • (1) Self-Storing Test Remote
  • (1) 9V Alkaline Battery

Specifications

Application Cable Testing up to 1,000 feet
Cable Types CAT3, CAT5e, CAT6/6A
Connection Types RJ11, RJ12, RJ45
Faults Detected Pass, Miswire, Open, Short, Shield
Overall Length 5 inches
Overall Width 2.5 inches
Overall Height 1.25 inches
Weight 4 oz
Battery Type 1 x 9V (Included)
Battery Life (Active) 80 hours
Drop Protection 2 feet
Material Plastic and Stamped Metal

Pro-Tip: When troubleshooting a suspected faulty cable, always test a known-good patch cable first to verify the tester and remote are properly synced before diagnosing long-run installations. This helps isolate whether the issue is with the device or the cabling infrastructure.
