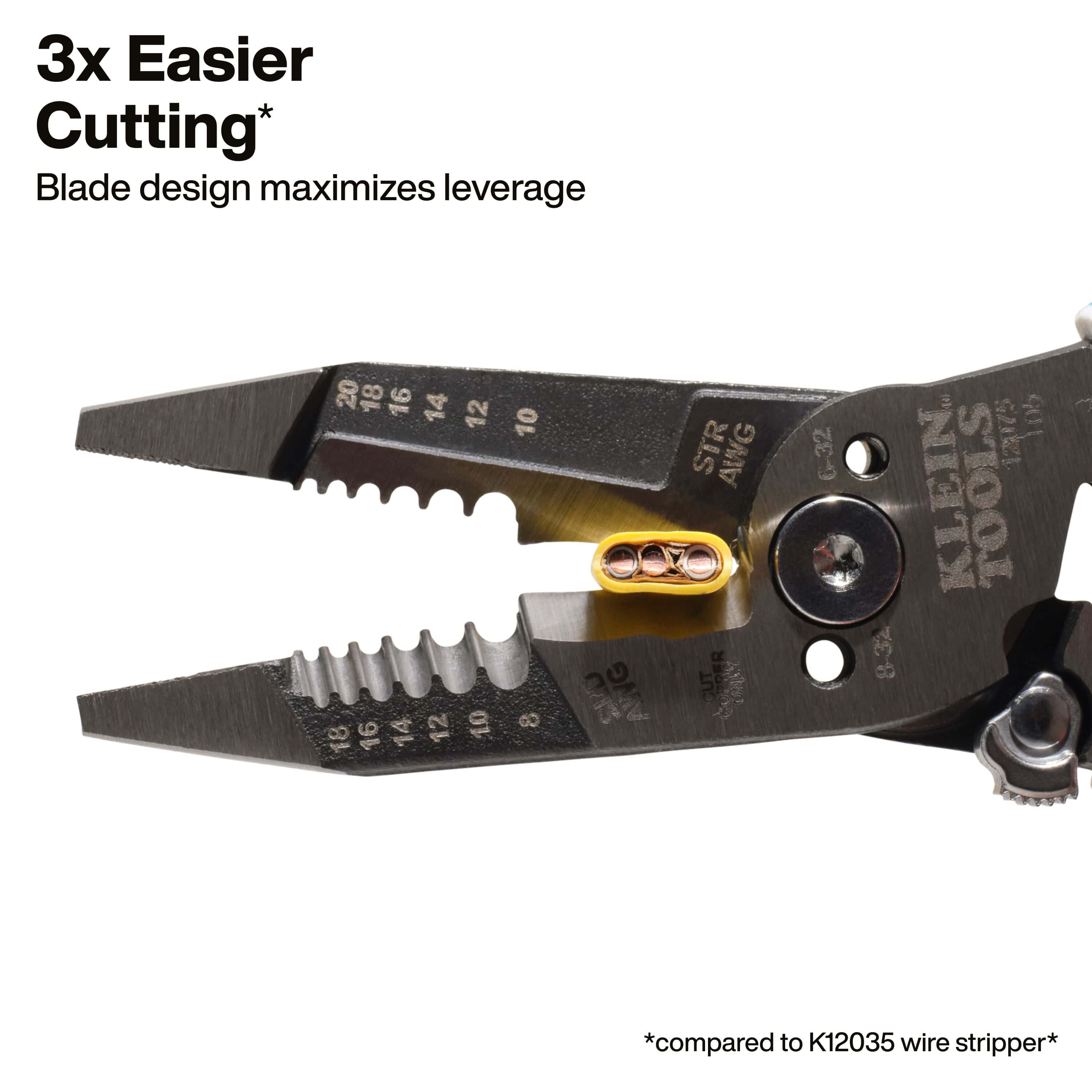

High-leverage cutting blades on Klein Tools wire stripper delivering 3x easier cuts compared to the K12035 model.

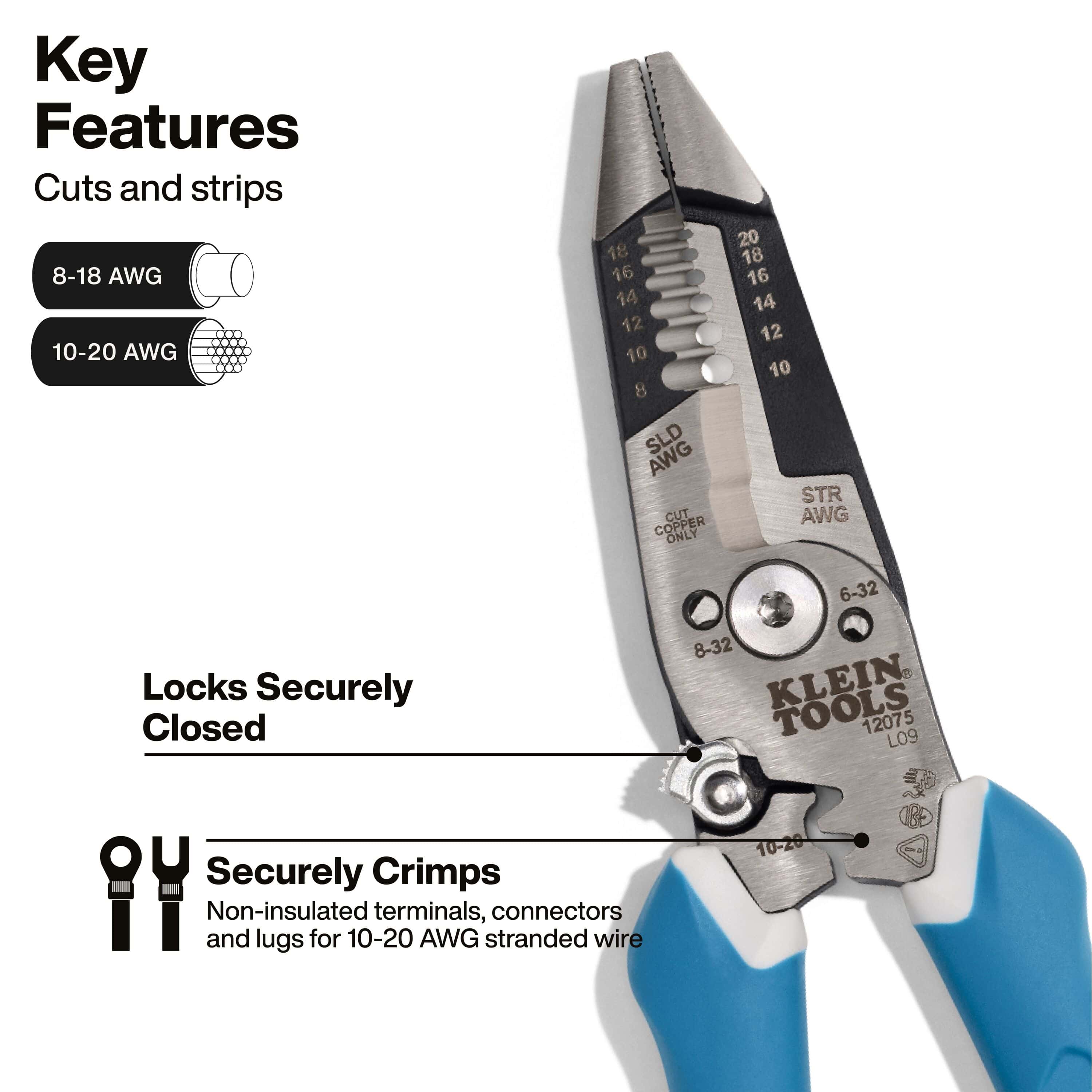

Diagram highlighting key features of Klein Tools 12075 stripper including wire stripping cavities, handle lock, and crimping die for 10-20 AWG wire.

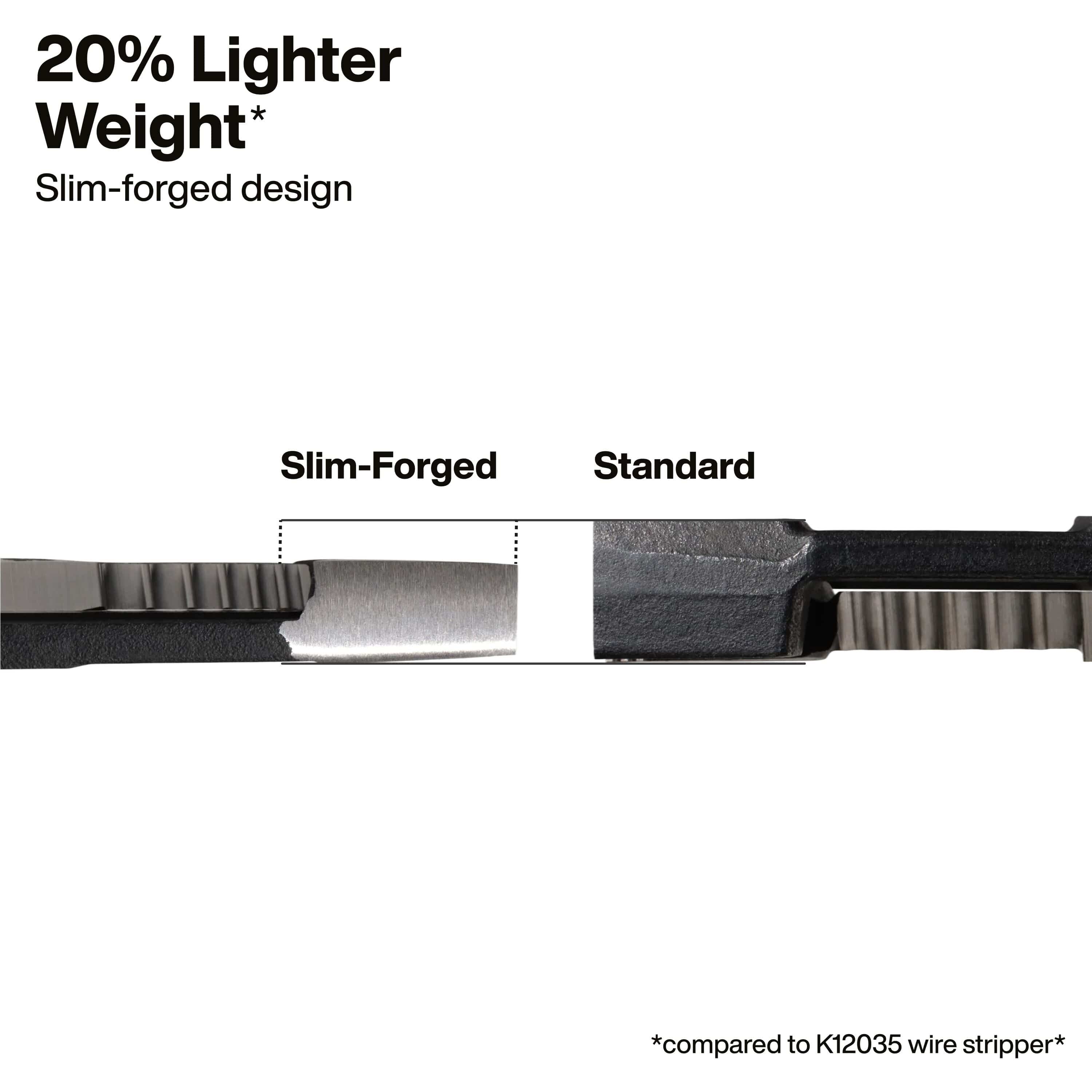

Profile comparison showing the 20% lighter slim-forged forged stainless steel design of Klein 12075 versus standard wire strippers.

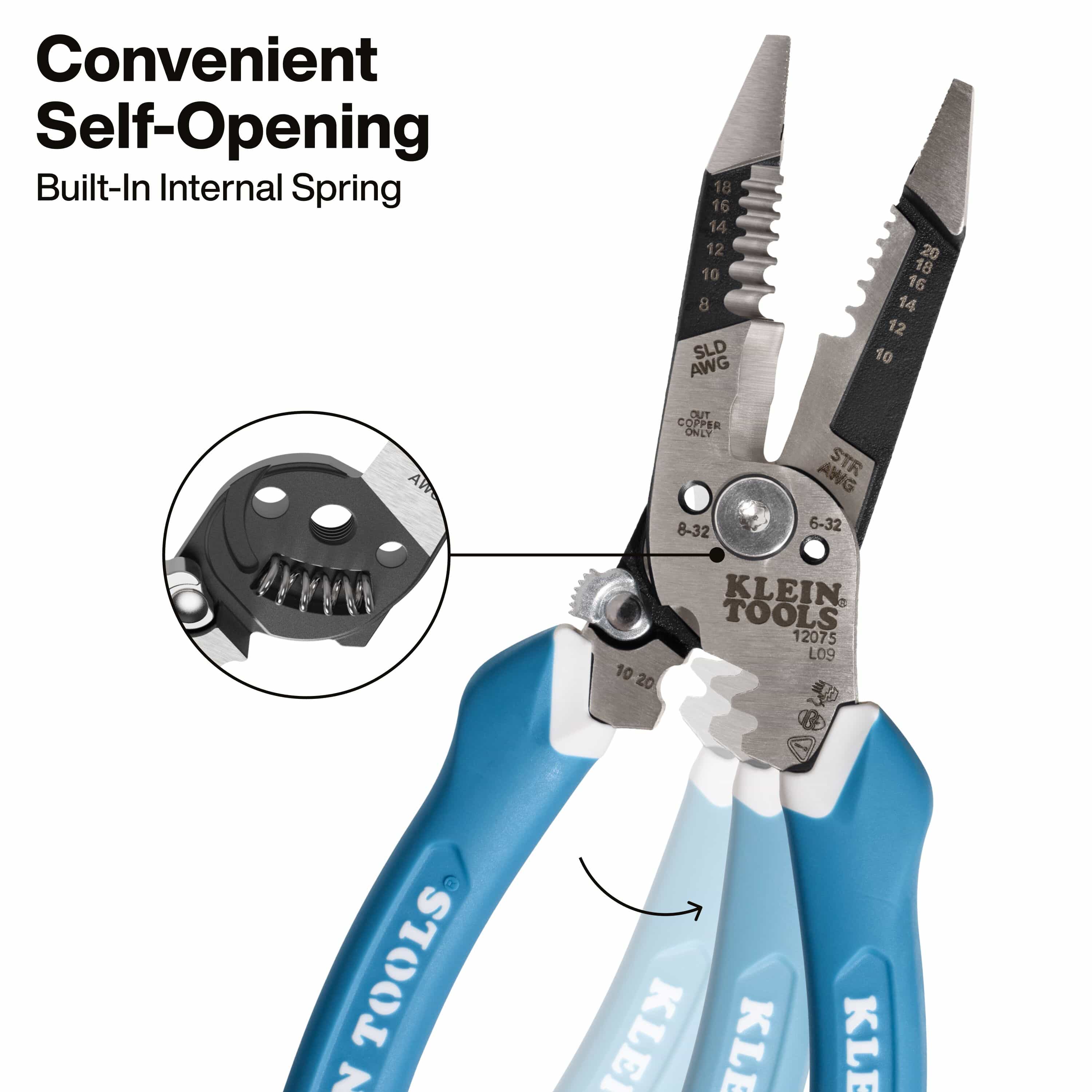

Internal coil spring mechanism providing automatic self-opening action to reduce hand fatigue during repetitive wire stripping.

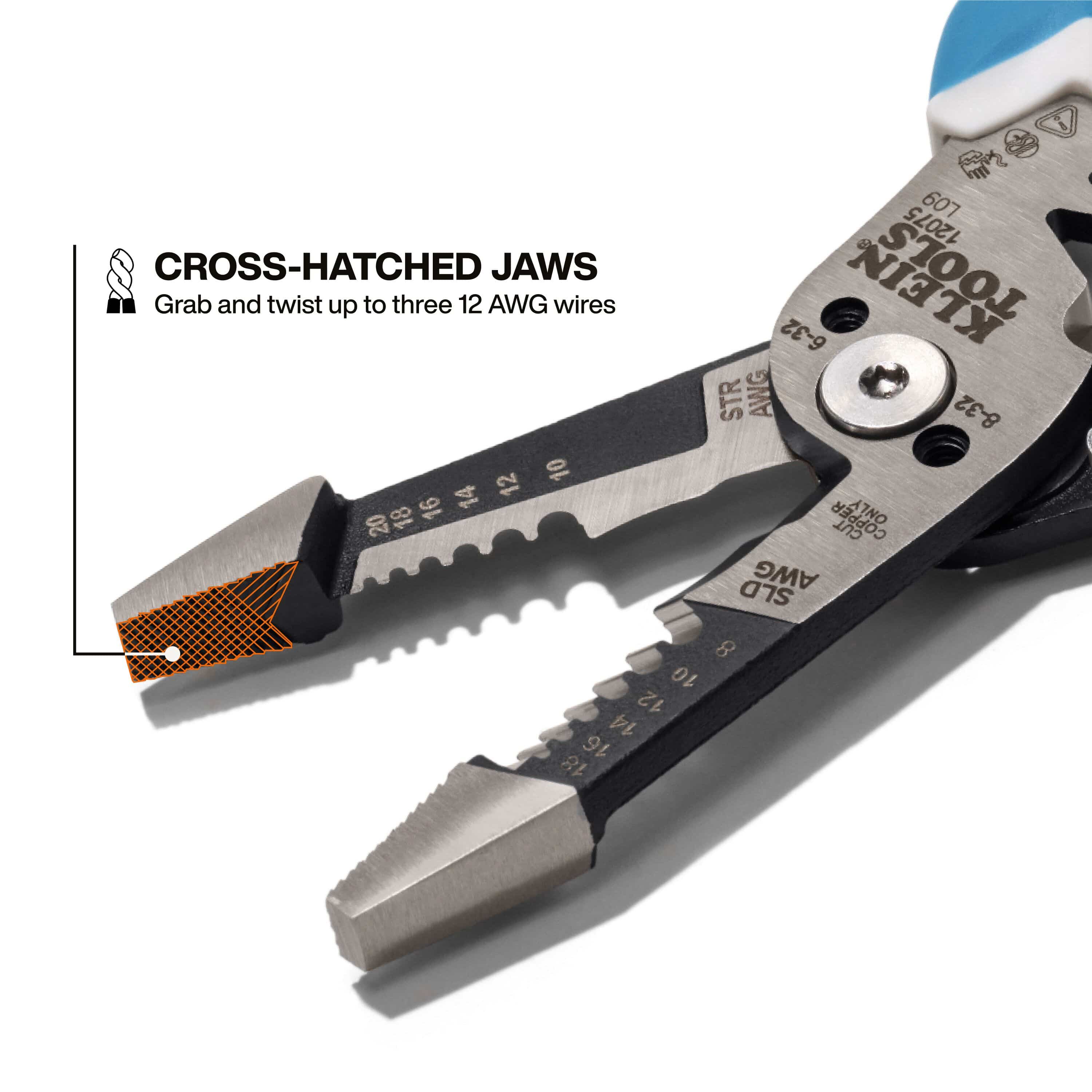

Knurled cross-hatched nose jaws on Klein wire stripper engineered to grip and twist up to three 12 AWG solid copper conductors.

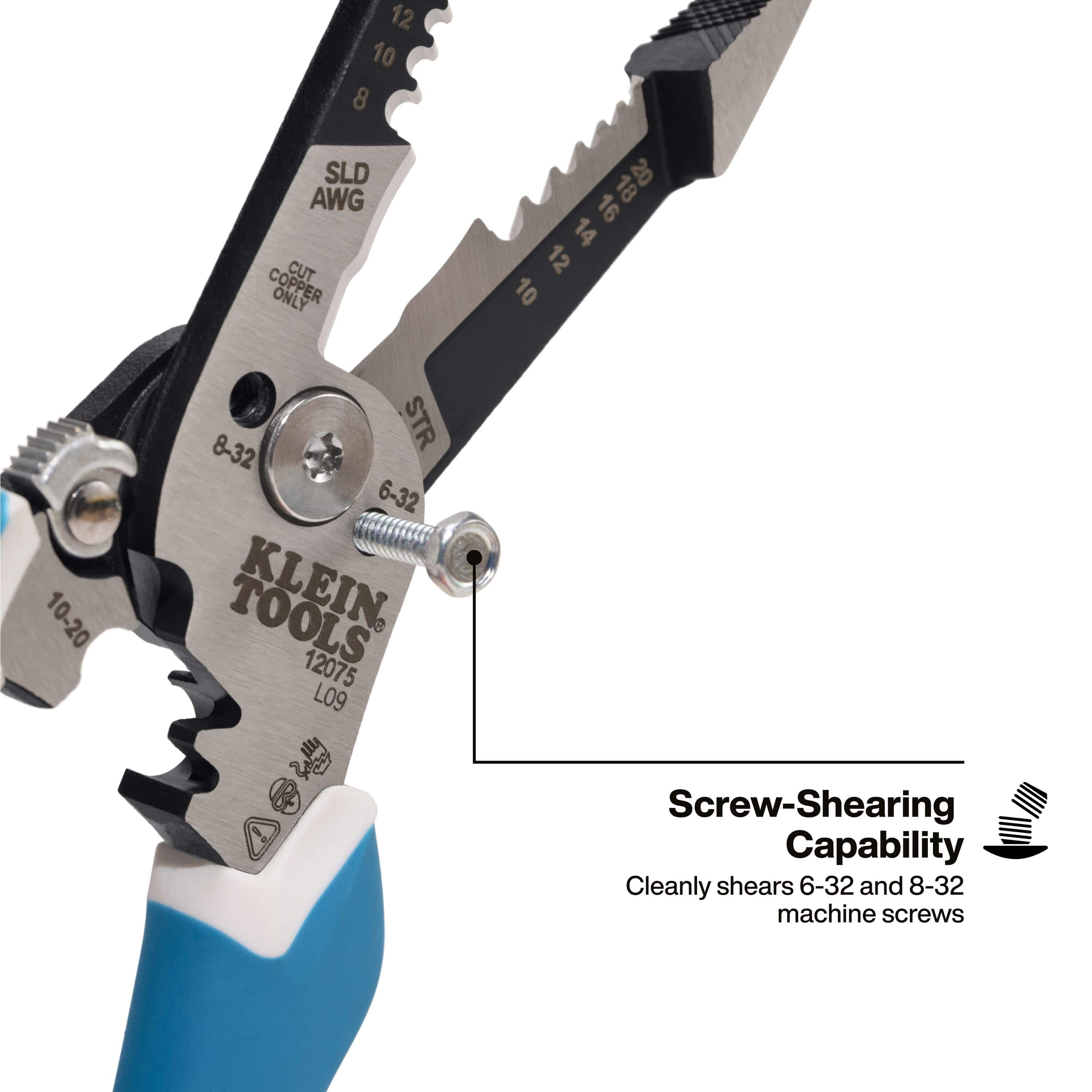

Integrated threaded screw shearing dies cutting 6-32 and 8-32 machine screws cleanly without thread burrs.

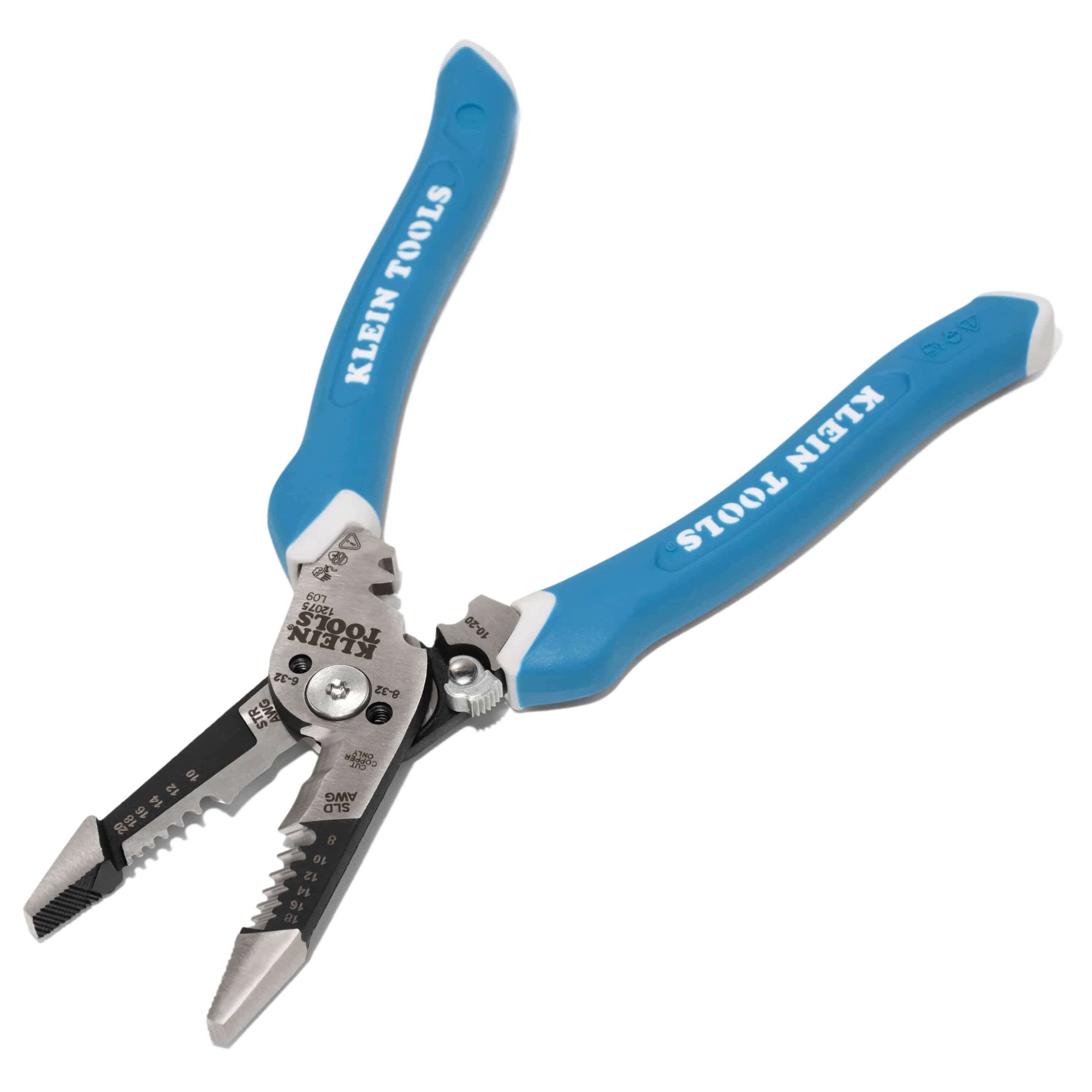

Klein Tools 12075 stainless steel wire stripper with textured TPE straight handles for comfortable electrical work.
Klein Tools Manufacturing promotional video
Klein Tools 12075 slim forged wire stripper featuring dual-gauge stripping cavities for 8 to 18 AWG solid and 10 to 20 AWG stranded copper wire.
High-leverage cutting blades on Klein Tools wire stripper delivering 3x easier cuts compared to the K12035 model.
Diagram highlighting key features of Klein Tools 12075 stripper including wire stripping cavities, handle lock, and crimping die for 10-20 AWG wire.
Profile comparison showing the 20% lighter slim-forged forged stainless steel design of Klein 12075 versus standard wire strippers.
Internal coil spring mechanism providing automatic self-opening action to reduce hand fatigue during repetitive wire stripping.
Knurled cross-hatched nose jaws on Klein wire stripper engineered to grip and twist up to three 12 AWG solid copper conductors.
Integrated threaded screw shearing dies cutting 6-32 and 8-32 machine screws cleanly without thread burrs.
Klein Tools 12075 stainless steel wire stripper with textured TPE straight handles for comfortable electrical work.
Klein Tools Manufacturing promotional video
KLEIN TOOLS

Klein Wire Stripper 12075 Slim Forged Stainless Steel Hand Tool (Strips 8 to 18 AWG Solid 10 to 20 AWG Stranded Shears Screws Straight Handle)

Only 2 left
SKU: 12075
$31.98 USD

Description

Klein promotional logo logout

Klein Tools 12075 Slim Forged Wire Stripper and Cutter with Straight Handle

The Klein Tools 12075 Slim Forged Wire Stripper and Cutter is an industrial electrician hand tool engineered for stripping 8 to 18 AWG solid wire and 10 to 20 AWG stranded wire. Forged from high-grade stainless steel, this 7.4 oz compact tool features knurled plier jaws for twisting multiple conductors, integrated screw shearing holes for 6-32 and 8-32 machine screws, and an internal self-opening hold-open spring that reduces hand fatigue during continuous wiring installs.

Best Used For:

  • Electrical Junction Box Wiring: Stripping insulation cleanly off 8-18 AWG solid and 10-20 AWG stranded conductors before securing terminals inside outlet boxes.
  • Conductor Twisting and Splicing: Gripping and twisting up to three 12 AWG solid copper wires simultaneously using the knurled cross-hatched nose jaws.
  • Terminal Machine Screw Trimming: Shearing 6-32 and 8-32 thread machine screws to custom lengths without damaging the underlying threads.

Key Performance & Safety Features

  • Slim Forged Stainless Steel Body: Lightweight forged construction delivers maximum structural leverage and corrosion resistance in a compact frame.
  • Precision Wire Stripping Cavities: Laser-etched laser markings cleanly score and remove insulation across 8-18 AWG solid and 10-20 AWG stranded wire gauges.
  • Threaded Screw Shearing Holes: Built-in shearing dies cut 6-32 and 8-32 machine bolts cleanly without thread burrs.
  • Knurled Plier Nose Jaws: Cross-hatched jaw face grabs, pulls, and twists multiple solid conductors securely without slipping.

What's Included

  • (1) Klein Tools 12075 Slim Forged Wire Stripper/Cutter with Straight Handle

Technical Specifications

Brand Klein Tools
Model Number 12075
Tool Type Wire Stripper / Cutter / Plier
Solid Wire Capacity 8 to 18 AWG Solid
Stranded Wire Capacity 10 to 20 AWG Stranded
Screw Shearing Sizes 6-32 and 8-32 Machine Screws
Body Material Forged Stainless Steel
Jaw Capacity / Opening 1.45 in.
Jaw Length 2.52 in.
Handle Material & Style Textured TPE Straight Handle
Overall Length 8.23 in.
Overall Weight 7.4 oz. (0.46 lbs)
Spring Return Mechanism Internal Hold-Open Spring
Pro-Tip: Thread 6-32 or 8-32 machine screws completely into the designated shearing hole before squeezing handles to achieve clean, burr-free cuts that thread back into electrical boxes smoothly.
