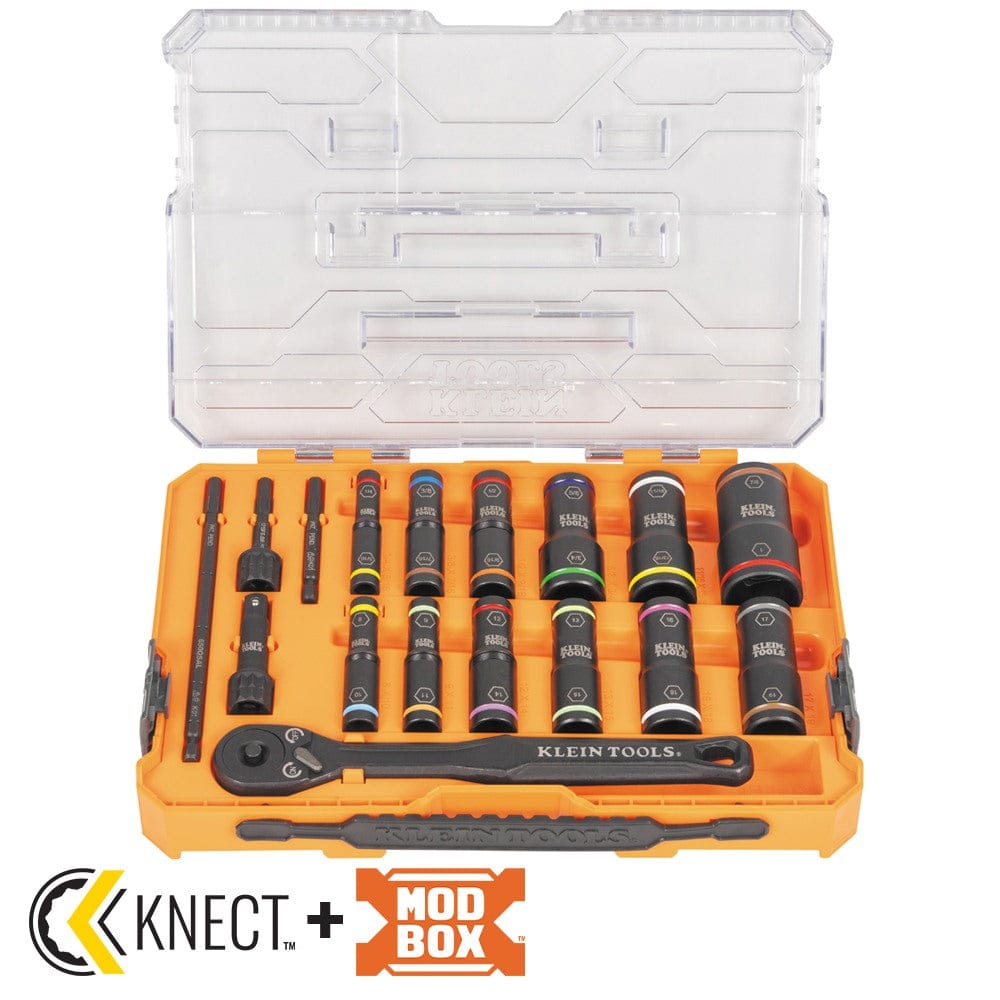

Open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, showing the tools inside the orange modular case with a clear lid, and logos for KNECT and MODbox compatibility at the bottom.

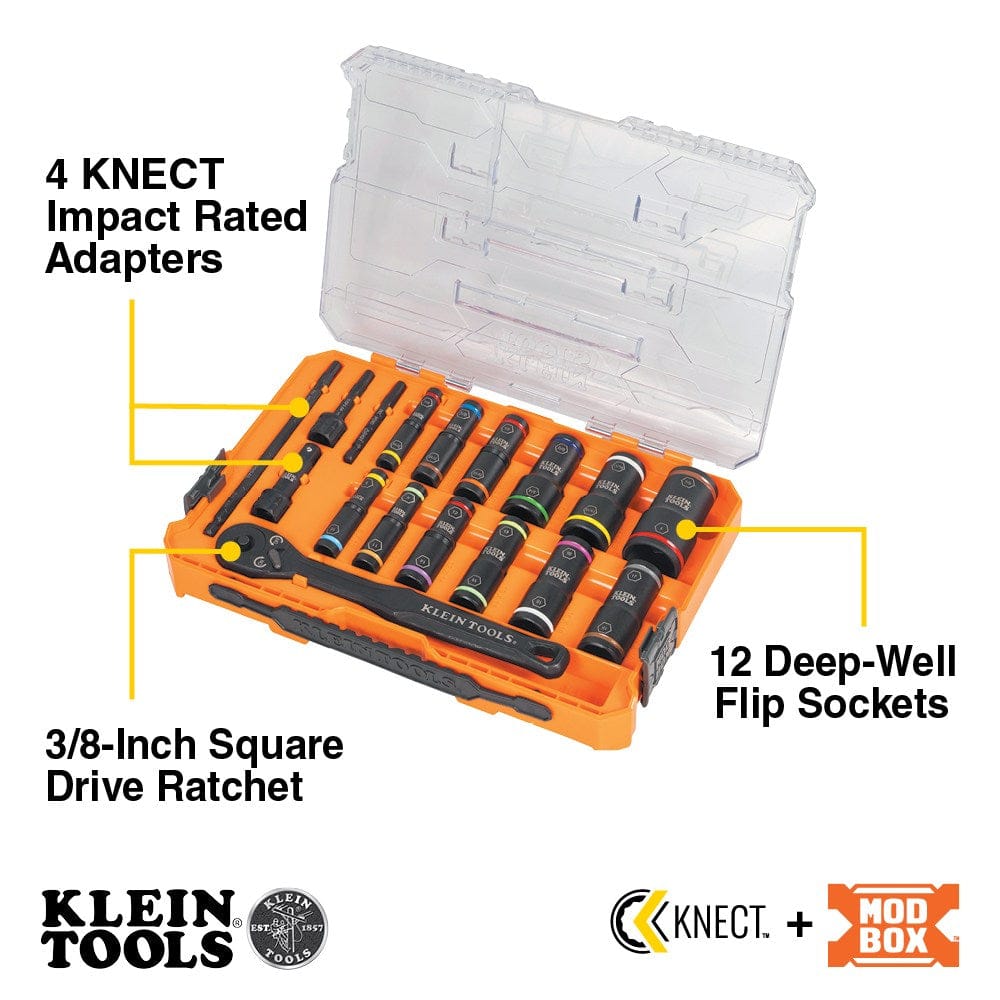

Annotated image of the open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, highlighting the 3/8-Inch Square Drive Ratchet, 4 KNECT Impact Rated Adapters, and 12 Deep-Well Flip Sockets.

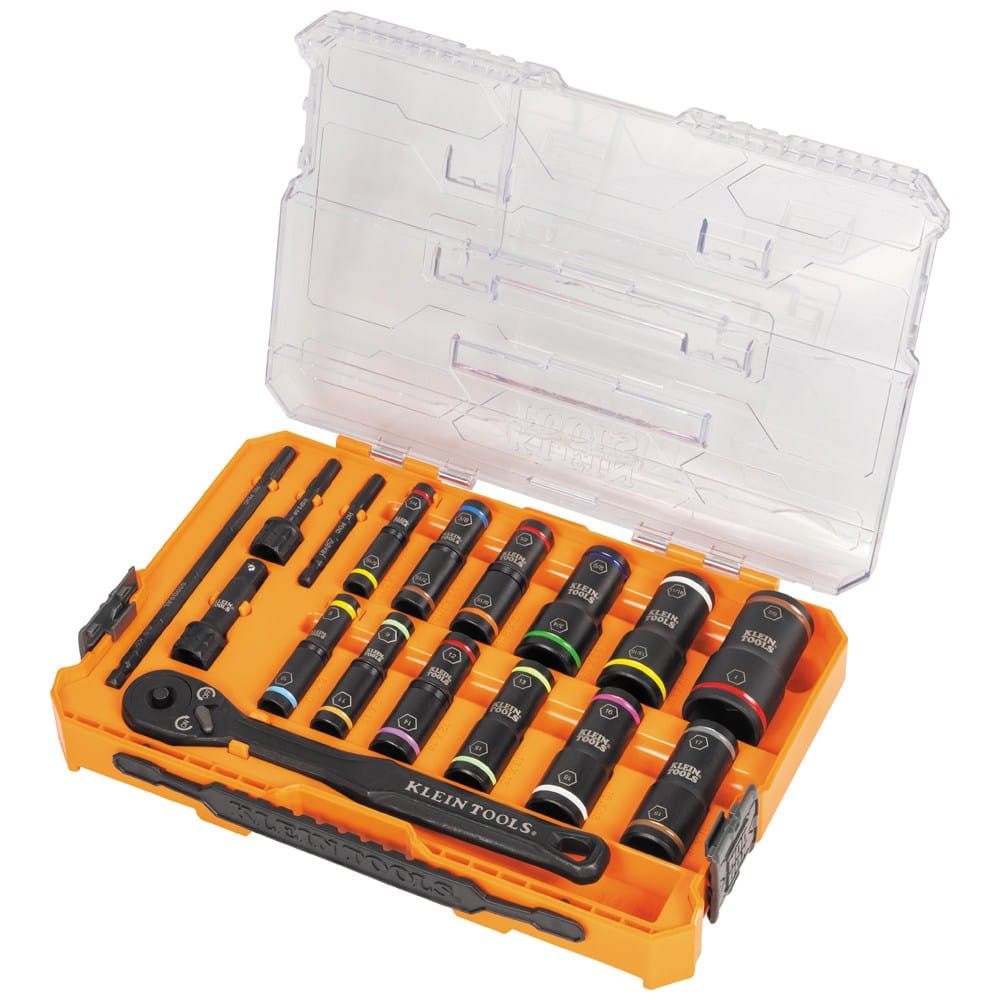

Open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, showing the black ratchet, 12 color-coded deep-well flip sockets, and adapters stored neatly in the orange modular case with a clear lid.

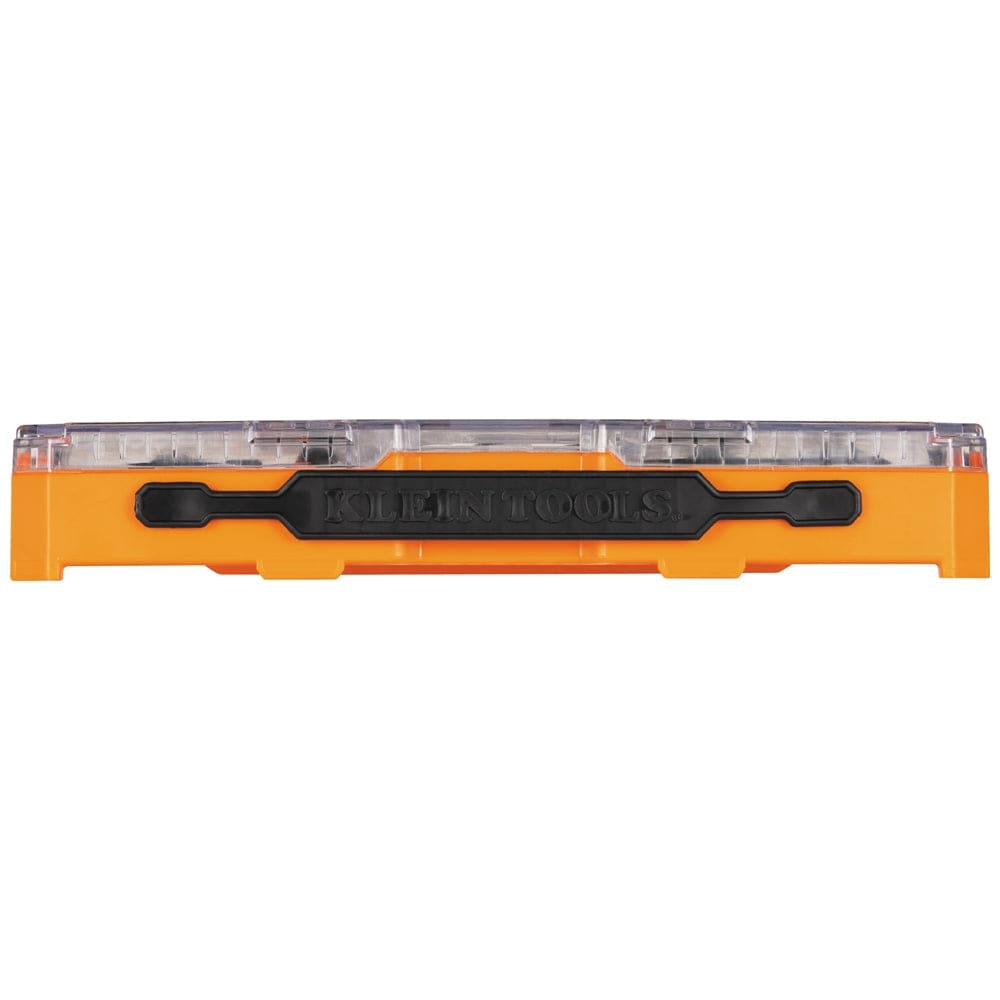

Side profile view of the closed Klein KNECT modular storage case, showing the orange base and clear lid locked together.

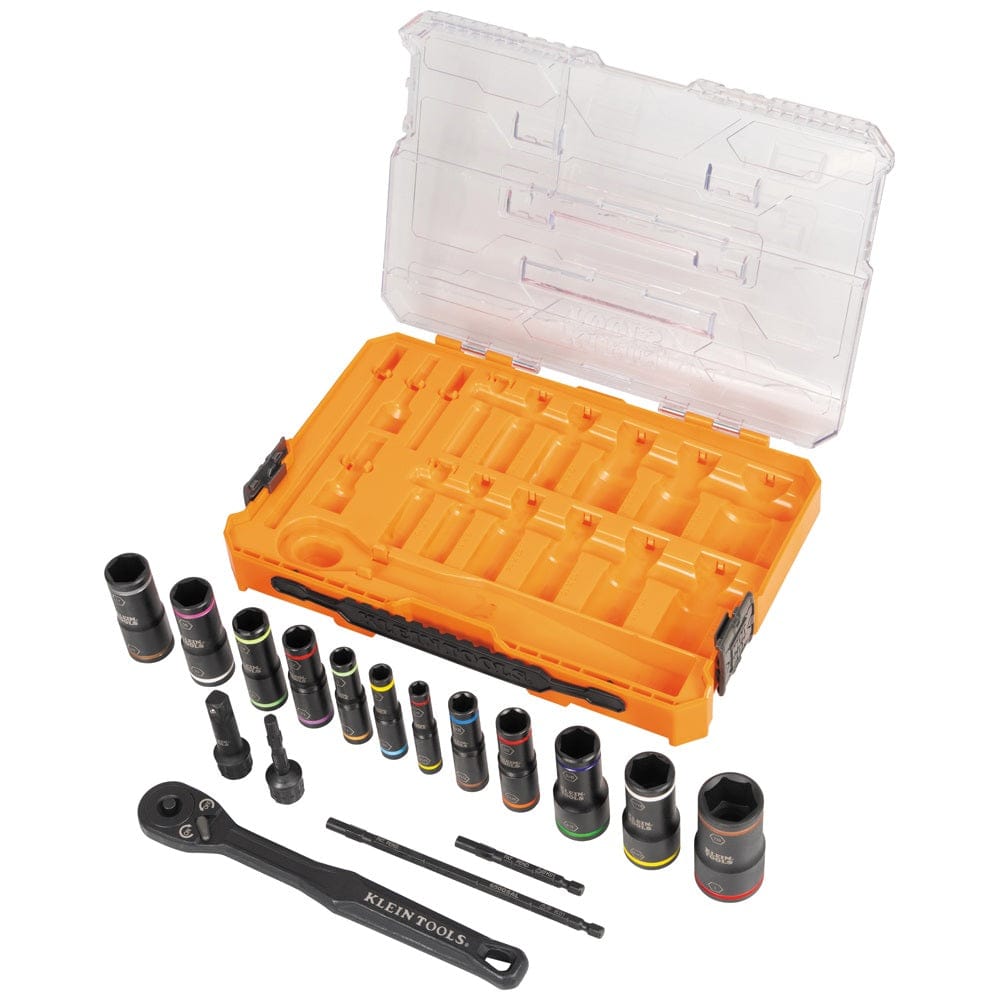

Contents of the Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set removed from the orange modular case, showing the ratchet, flip sockets, adapters, and extended shafts laid out next to the empty case.

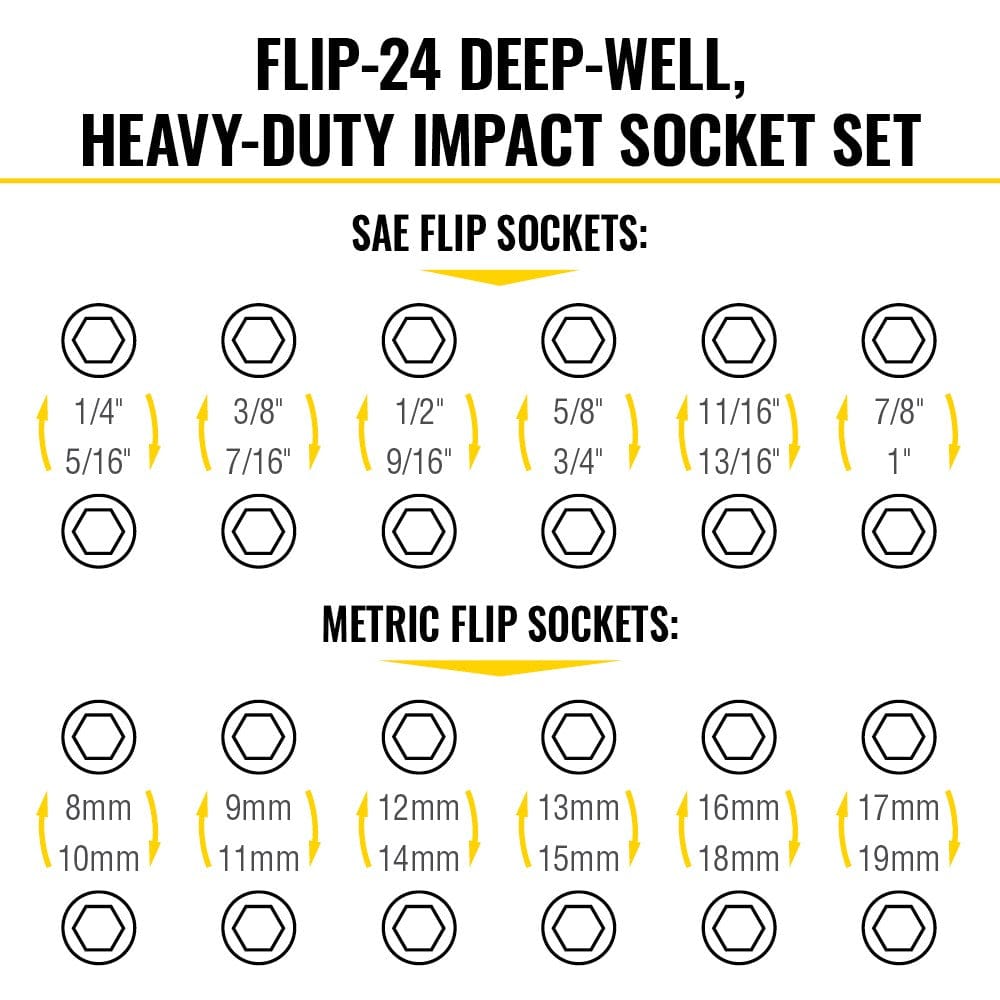

Diagram illustrating the 24 sizes included in the Flip-24 Deep-Well, Heavy-Duty Impact Socket Set, with 6 SAE flip sockets (1/4 to 1 inch) and 6 Metric flip sockets (8mm to 19mm).
Open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, showing the tools inside the orange modular case with a clear lid, and logos for KNECT and MODbox compatibility at the bottom.
Annotated image of the open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, highlighting the 3/8-Inch Square Drive Ratchet, 4 KNECT Impact Rated Adapters, and 12 Deep-Well Flip Sockets.
Open Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set, showing the black ratchet, 12 color-coded deep-well flip sockets, and adapters stored neatly in the orange modular case with a clear lid.
Side profile view of the closed Klein KNECT modular storage case, showing the orange base and clear lid locked together.
Contents of the Klein KNECT 18-Piece Deep-Well Impact Flip Socket Set removed from the orange modular case, showing the ratchet, flip sockets, adapters, and extended shafts laid out next to the empty case.
Diagram illustrating the 24 sizes included in the Flip-24 Deep-Well, Heavy-Duty Impact Socket Set, with 6 SAE flip sockets (1/4 to 1 inch) and 6 Metric flip sockets (8mm to 19mm).
KLEIN TOOLS

Klein Impact Socket Set 65626 18 Piece KNECT (Deep Well Flip Sockets 24 Sizes SAE Metric 3/8 Drive Ratchet MODbox Case Hex Fastener Driving)

In stock
SKU: 65626
$129.98 USD

Description

Klein promotional logo logout

Klein KNECT 65626 18-Piece Deep-Well Impact Flip Socket Set

The Klein KNECT 65626 18-Piece Deep-Well Impact Flip Socket Set is a compact fastener driving tool system engineered to provide 24 dual-ended SAE and Metric sizes across 12 color-coded deep-well sockets. Forged from high-torque impact-rated alloy steel and paired with a 90-tooth 3/8-inch drive pass-through ratchet, this 4.03-pound set drives hex nuts down extended threaded rods and long bolts. Housed in a MODbox-compatible clear-lid modular case, this 18-piece drive collection solves tool weight, storage bulk, and rapid size-swapping challenges across electrical, HVAC, and mechanical installations.

Best Used For:

  • Electrical & HVAC Threaded Rod Fastening: Running hex nuts up long 3/8-inch and 1/2-inch threaded drop rods and strut channels using deep-well pass-through sockets.
  • High-Torque Impact Driver Securing: Driving high-torque hex lag screws and heavy equipment anchor bolts with impact drivers using nested KNECT adapters.
  • Mobile Field Service Work: Carrying 24 full fastener sizes in a compact MODbox-compatible modular case to eliminate heavy socket tray transport.

Key Performance & Safety Features

  • 24 Sizes in 12 Flip Sockets: Reversible dual-ended socket barrels deliver two distinct SAE or Metric sizes per socket to halve carrying weight.
  • Impact-Rated Alloy Steel Construction: High-strength forged steel withstands continuous high-torque shock loads from 1/4-inch and 3/8-inch impact drivers.
  • Deep-Well Pass-Through Profile: Extended socket cavity allows long threaded rods and protruding studs to pass completely through during nut driving.
  • 90-Tooth Pass-Through Ratchet: Fine 4-degree arc swing provides continuous ratcheting engagement in cramped electrical panels and tight mechanical bays.
  • KNECT System Modular Adapters: Nested drive adapters convert seamlessly between 1/4-inch hex impact shanks and 3/8-inch square drive ratchets.
  • MODbox Stackable Organizer Case: Clear-lid protective storage box locks onto Klein MODbox systems and includes an internal tray for loose fasteners.

What's Included

  • (12) Color-Coded Deep-Well Flip Sockets (24 SAE/Metric Sizes: 1/4" to 1" & 8 mm to 19 mm)
  • (1) 90-Tooth 3/8-Inch Square Drive Pass-Through Ratchet
  • (2) Nested KNECT Drive Adapters
  • (1) Extended Drive Shaft
  • (1) Internal Small Parts Storage Tray
  • (1) Compact MODbox-Compatible Modular Case with Clear Lid

Technical Specifications

Manufacturer Brand Klein Tools
Model Number / Part ID 65626
System Family Compatibility Klein KNECT & MODbox Systems
Total Set Piece Count 18 Pieces (Includes Ratchet & Case)
Fastener Size Coverage Range 1/4 in. to 1.0 in. SAE & 8 mm to 19 mm Metric (24 Sizes)
Socket Material Composition Impact-Rated Chrome-Moly / Chrome-Vanadium Steel
Input Drive Size Interfaces 1/4 in. Hex & 3/8 in. Square Drive
Ratchet Mechanism Specifications 90-Tooth Gear (4° Arc Swing) Pass-Through Design
Overall Case Length 11.38 in. (28.9 cm)
Overall Case Width 7.5 in. (19.1 cm)
Overall Case Height 1.63 in. (4.1 cm)
Set Net Weight 4.03 lbs (1.83 kg)
Pro-Tip: Slide the color-coded flip sockets directly onto the included pass-through ratchet when running hex nuts down long overhead ceiling rods so the threaded rod passes straight through the open ratchet head.
