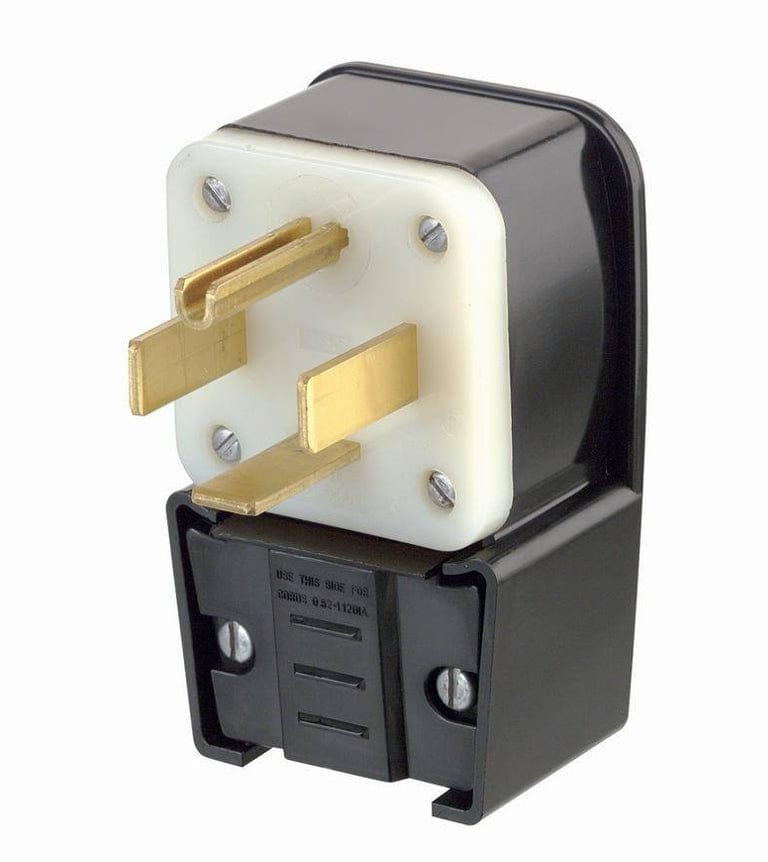

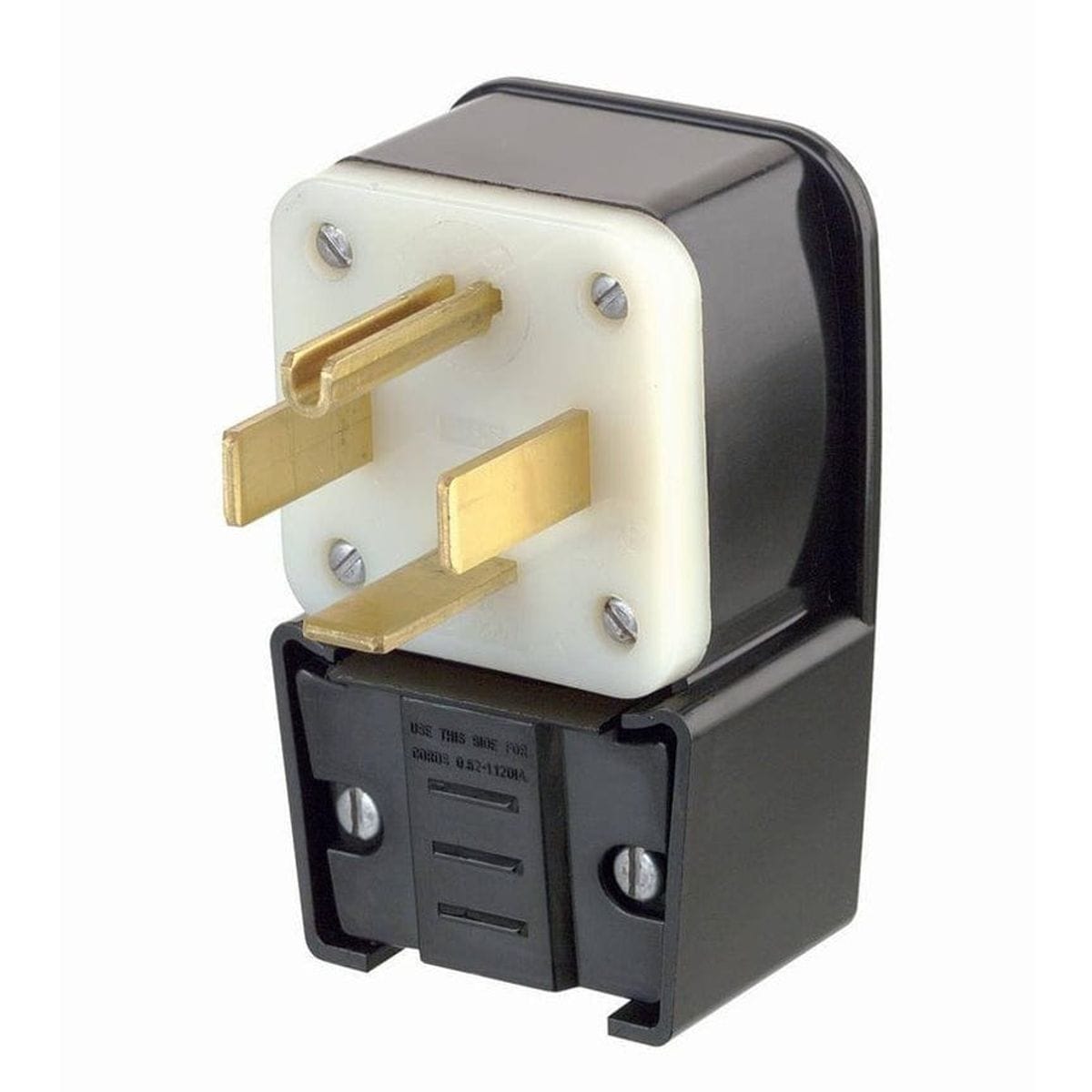

Leviton 9462-P 60 Amp 125/250V Angle Plug NEMA 14-60P Industrial Grade Grounding 4-Wire Black

Heavy-Duty Power for Industrial Ranges and Welders

Upgrade your high-amperage connections with the Leviton 9462-P 60 Amp Angle Plug. Part of Leviton's renowned "Black and White" line of industrial-grade devices, this plug is engineered to withstand the rigorous demands of commercial and industrial environments. It features a super-tough nylon body that resists impact, chemicals, and abrasion, ensuring a long service life even in harsh conditions. The unique space-saving angle design allows the cord to exit parallel to the wall, reducing stress on the cable and allowing equipment to be placed closer to the wall—perfect for tight spaces behind large ranges, welders, or generators.

Safety and performance are built into every detail. The plug utilizes solid brass blades for maximum conductivity and low heat buildup, while internal wiring chambers isolate individual conductors to prevent dangerous arcing or flashover. The ergonomic fluted body with a radial gripping ridge provides a secure hold, making it easy to plug and unplug even with gloves on. Designed for NEMA 14-60P applications, this 4-wire grounding plug is the reliable choice for powering 60-amp equipment requiring 125/250 volts.

Key Features

• Industrial Grade Durability: Constructed with an impact-resistant nylon body and rugged cord clamp to prevent cable strain.
• Space-Saving Angle: Orientation keeps the cord flush with the wall, protecting the connection and saving floor space.
• Superior Conductivity: Solid brass blades and contacts ensure low resistance and efficient power transmission.
• Enhanced Safety: Internal wiring chambers isolate conductors to prevent flashover, arcing, and stray wire strands.
• Ergonomic Grip: Fluted body design with a radial ridge allows for easy handling and removal from receptacles.
• Secure Termination: Transparent wiring chambers and clearly marked NEMA ratings simplify installation and inspection.
• Wide Compatibility: Accepts wire gauges from #10 to #4 AWG, accommodating various cable sizes.

What's Included

• (1) Leviton 9462-P 60 Amp Angle Plug

Specifications

Pro-Tip: Double-check your receptacle before purchasing! This is a **NEMA 14-60P** (60 Amp) plug. It looks very similar to the common NEMA 14-50P (50 Amp) found in RV parks and EV chargers, but the neutral blade orientation is different, and they are NOT interchangeable. Ensure your outlet is rated for 60 Amps (NEMA 14-60R) to ensure a proper fit and safety compliance.
