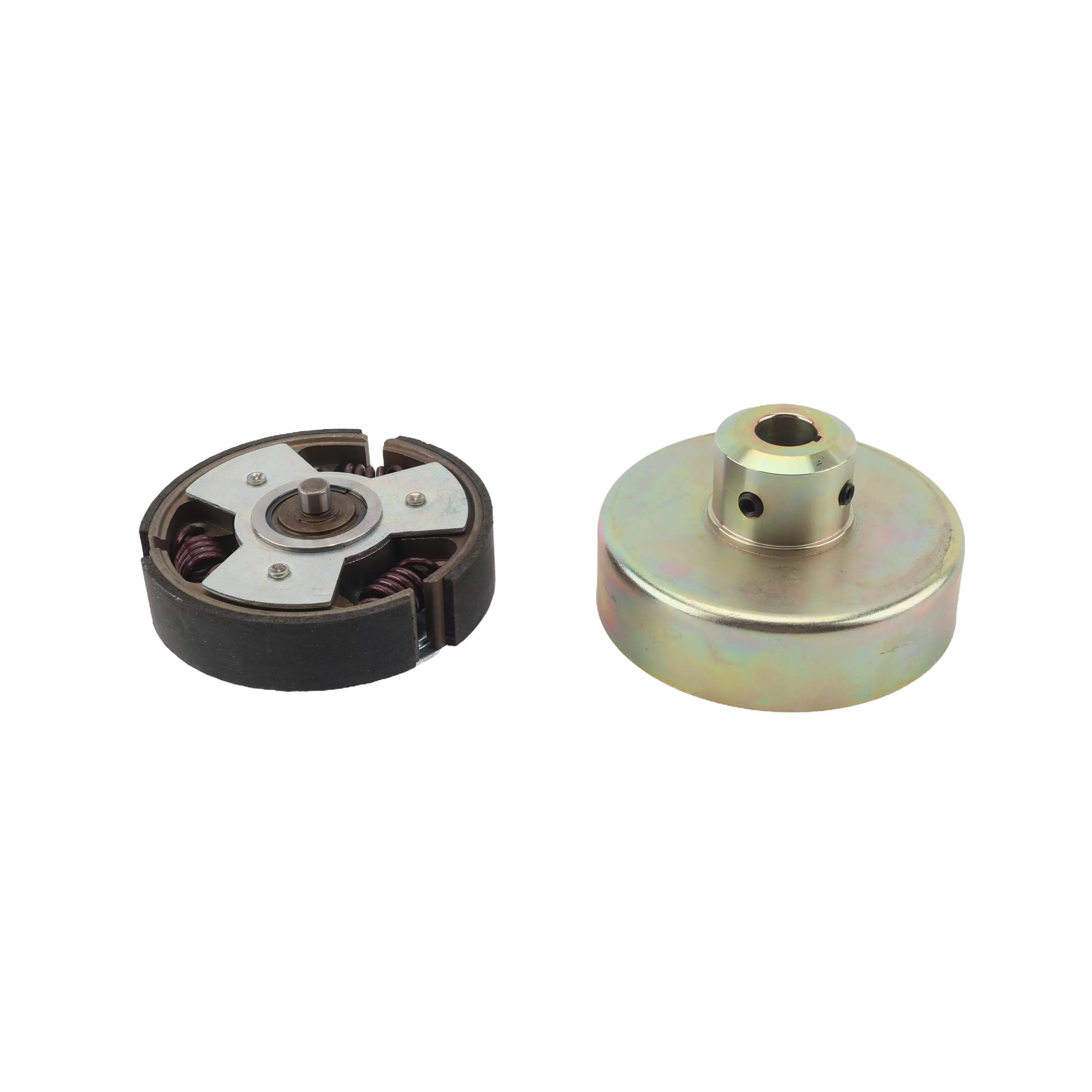

Little Beaver CCO-8# clutch change-over kit showing the spring-loaded fiber shoe hub alongside the 1-inch bore cast steel drum.

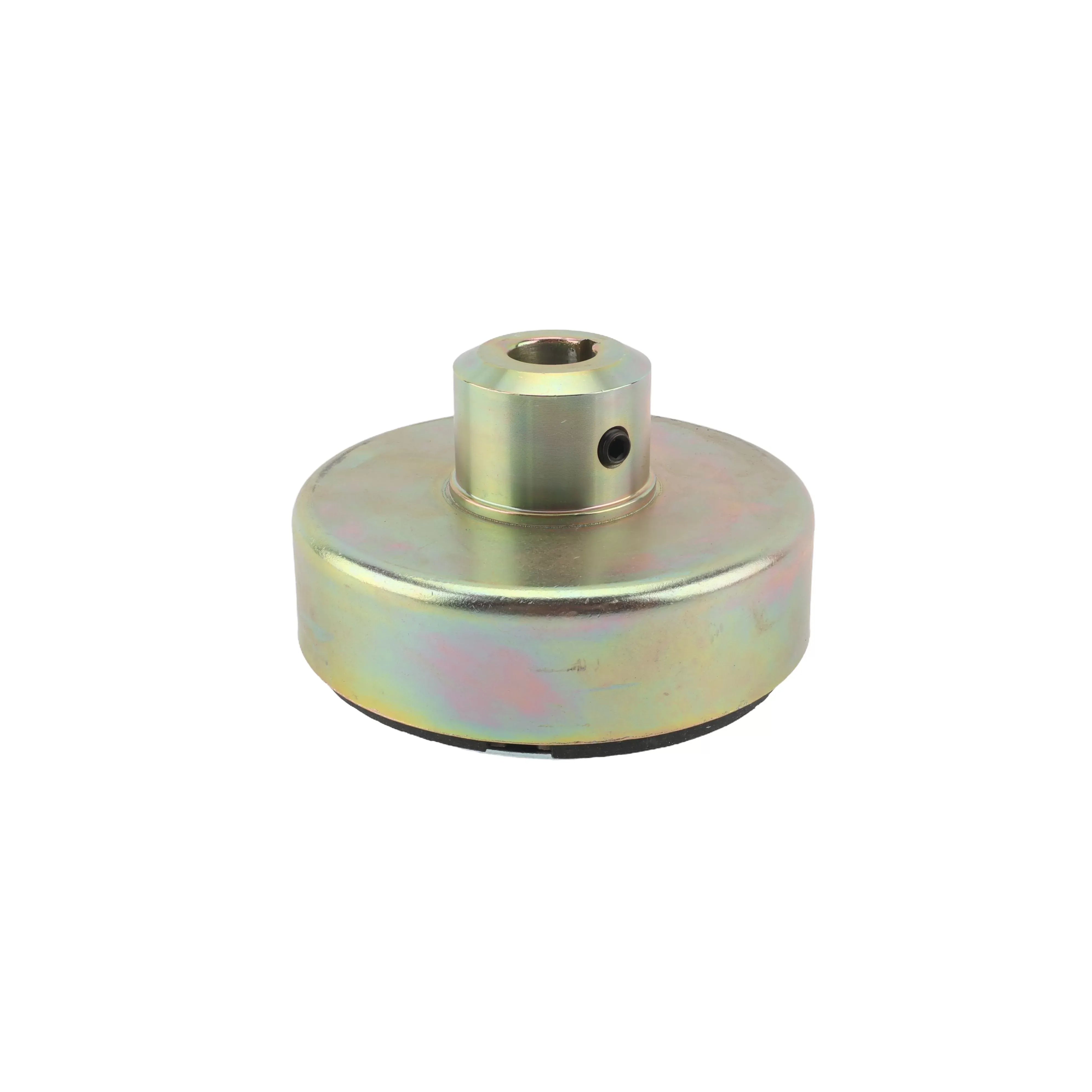

Steel outer clutch drum for 8 HP Little Beaver mechanical earth drills showing the 1-inch engine shaft hub with set screw mounting.

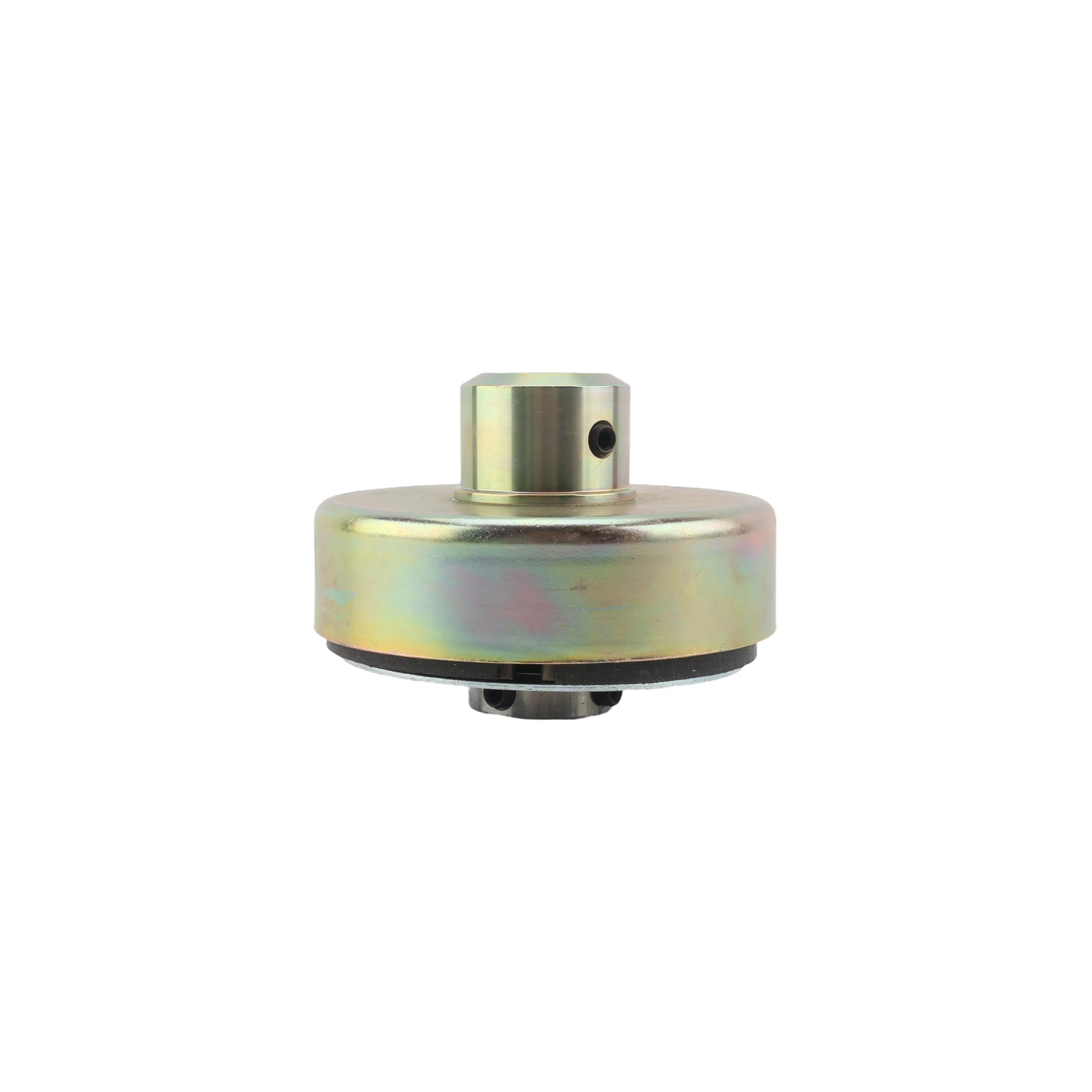

Side profile of the Little Beaver CCO-8# clutch drum and fiber shoe assembly engaged for 8 HP earth drill replacement.

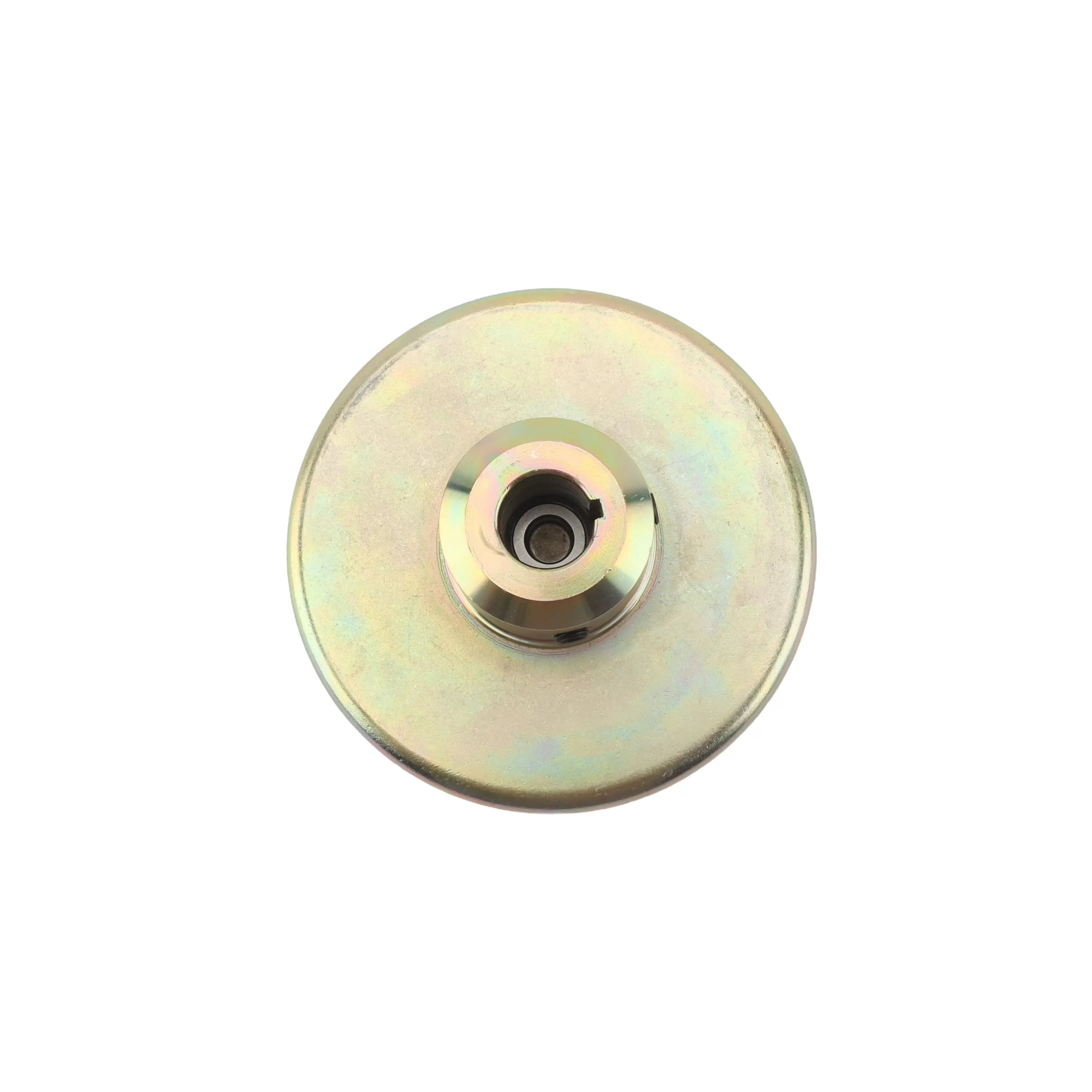

Top-down view of the 1-inch engine bore hub and keyway slot on the Little Beaver CCO-8# clutch drum for shaft mounting.

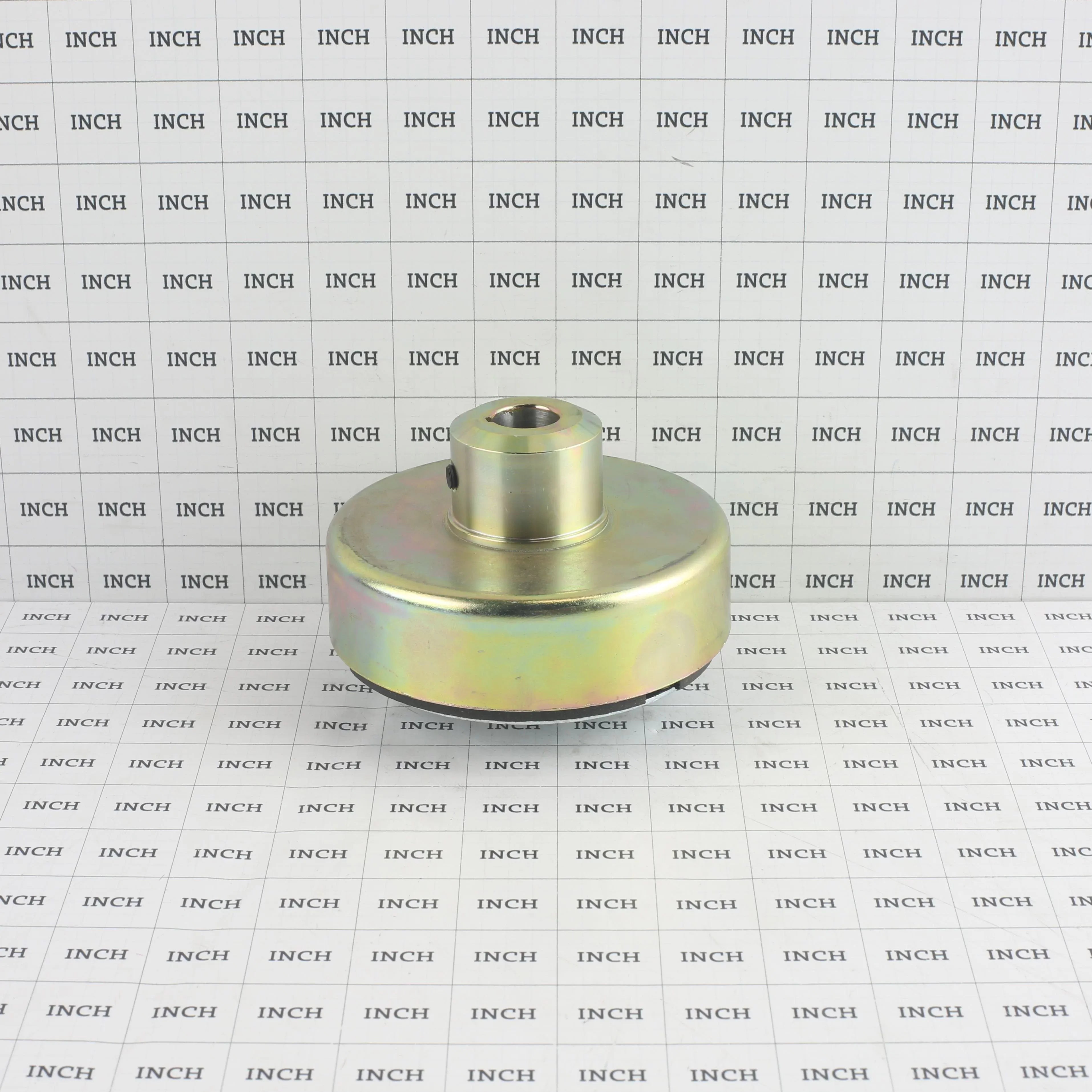

Little Beaver CCO-8# clutch drum measured on an inch grid scale showing the 1-inch shaft bore hub height and drum diameter.

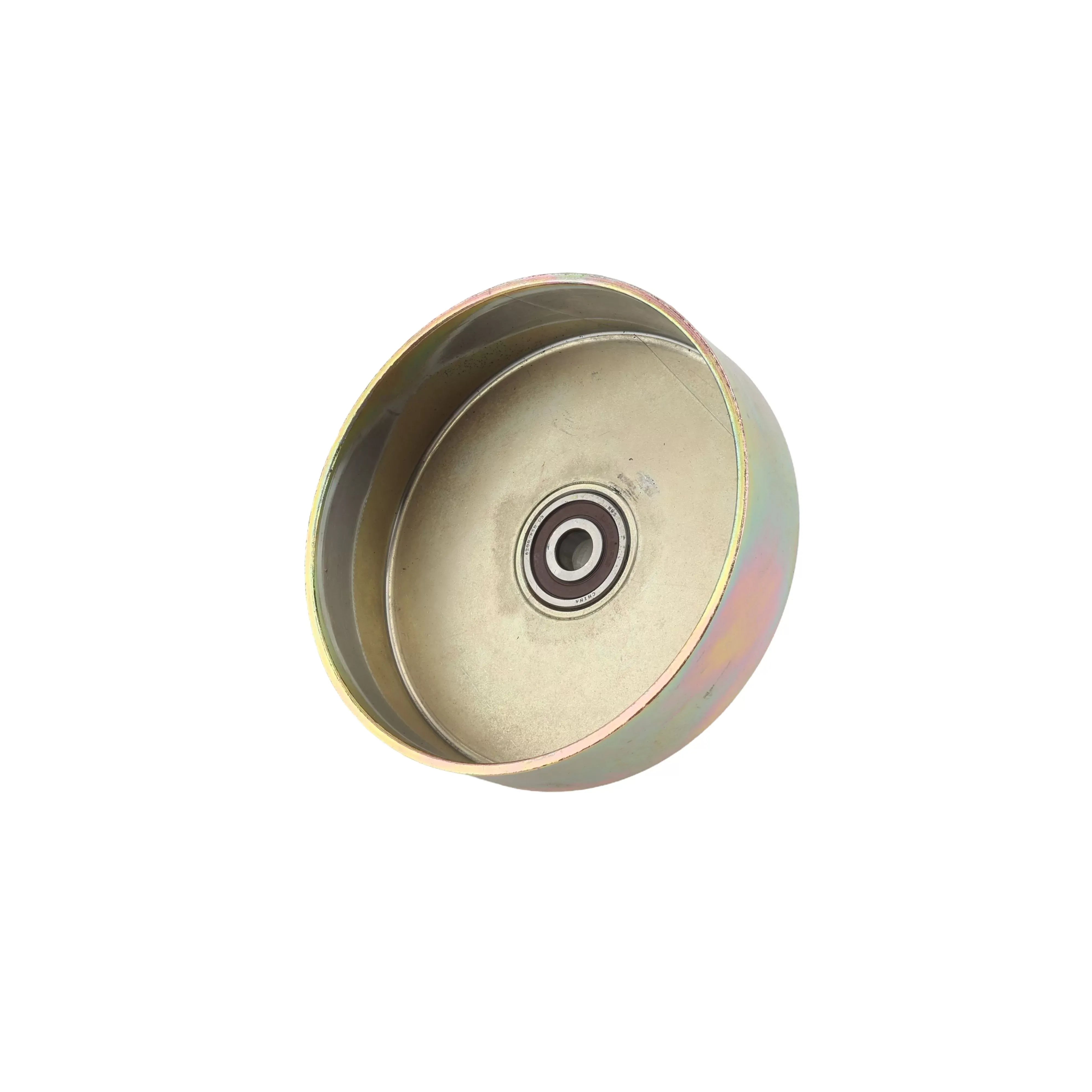

Inner lining of the cast steel clutch drum showing the smooth friction surface and center ball bearing assembly.

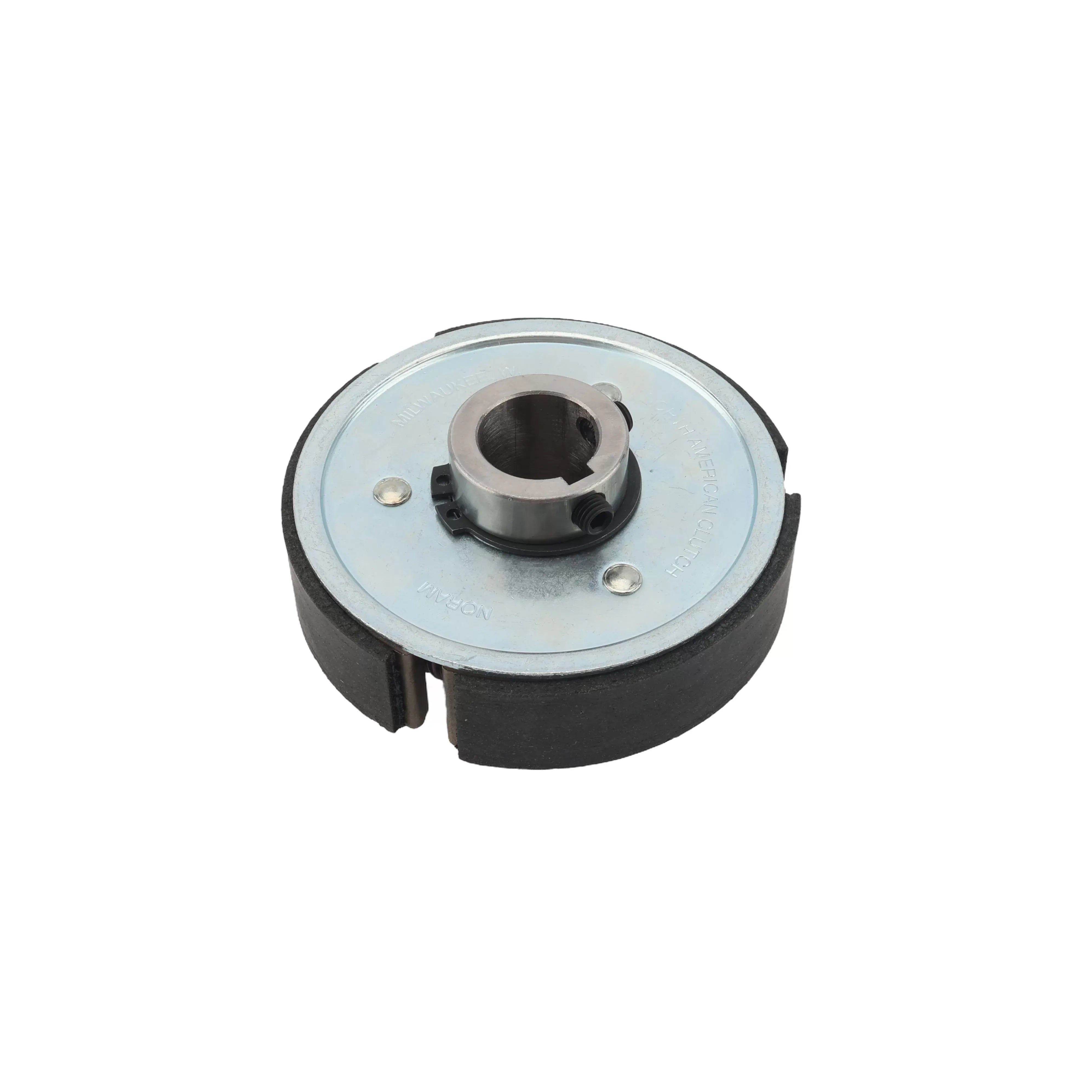

Top-down view of the Little Beaver CCO-8# fiber shoe assembly showing three centrifugal weights and a keyway shaft collar.

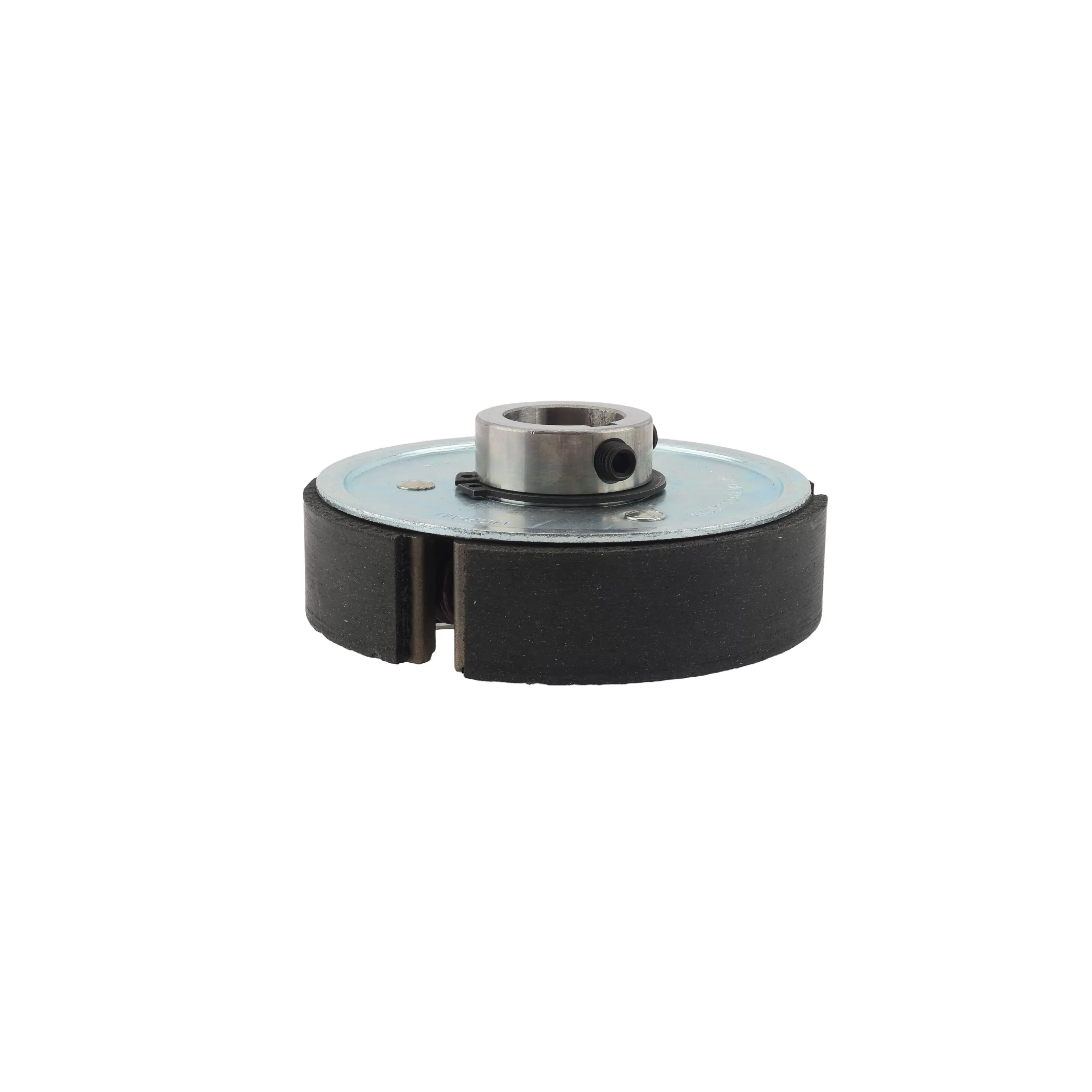

Side profile of the composite fiber clutch shoe assembly showing the friction pads and internal engine shaft mounting collar.

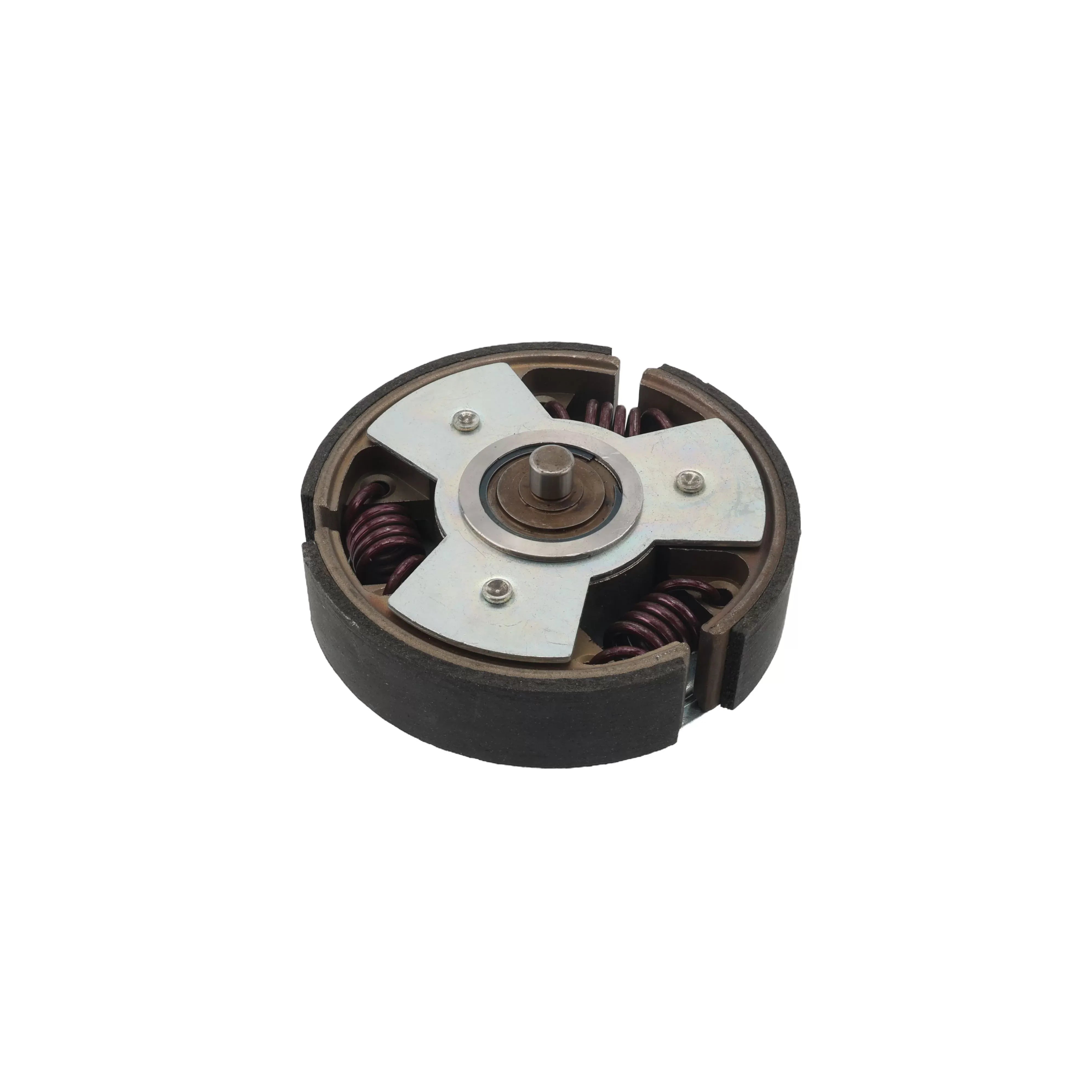

Bottom view of the Little Beaver CCO-8# clutch shoe hub showing internal tension springs that control RPM engagement speed.

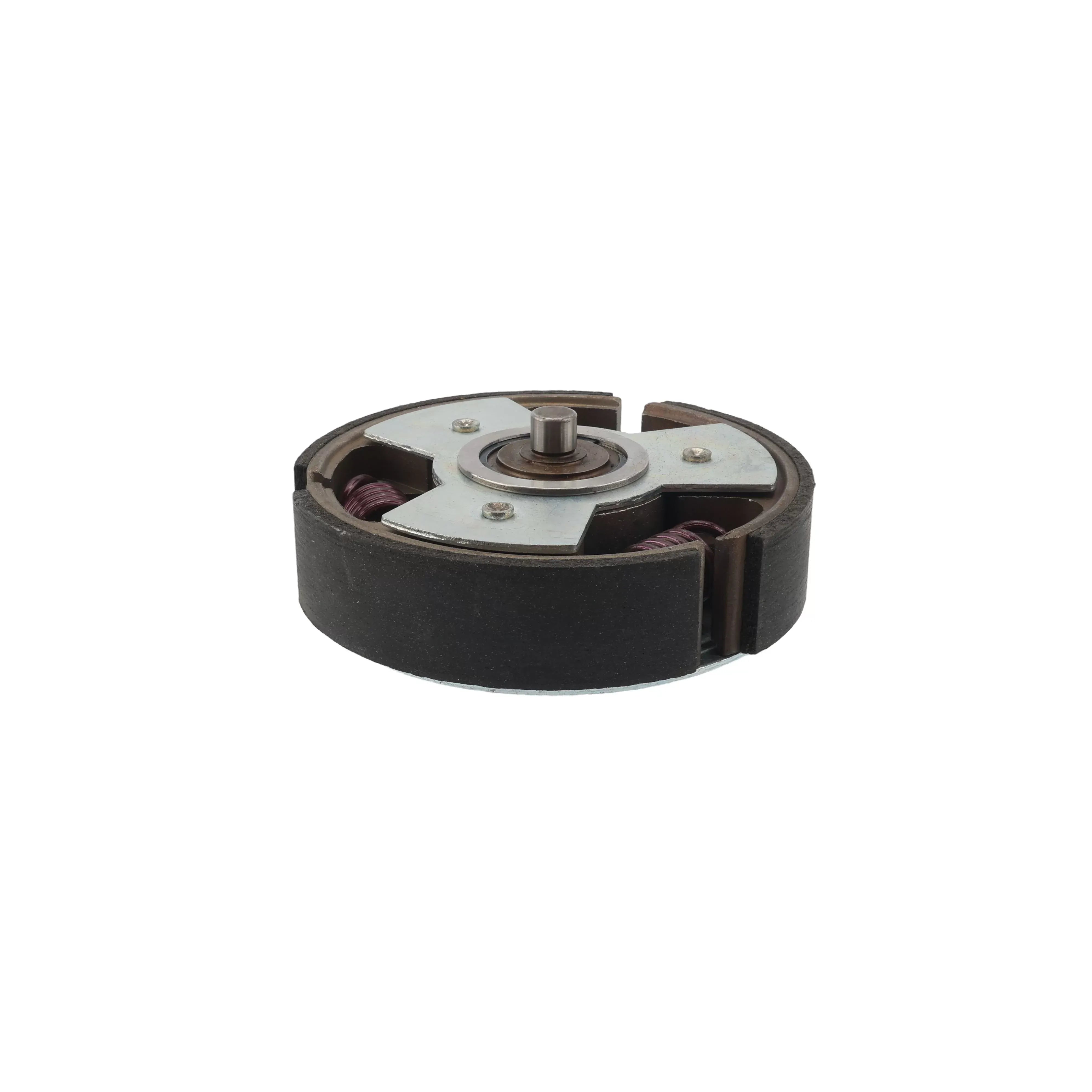

Angled view of the spring-loaded fiber clutch shoes that expand outward under centrifugal force to drive mechanical earth drills.

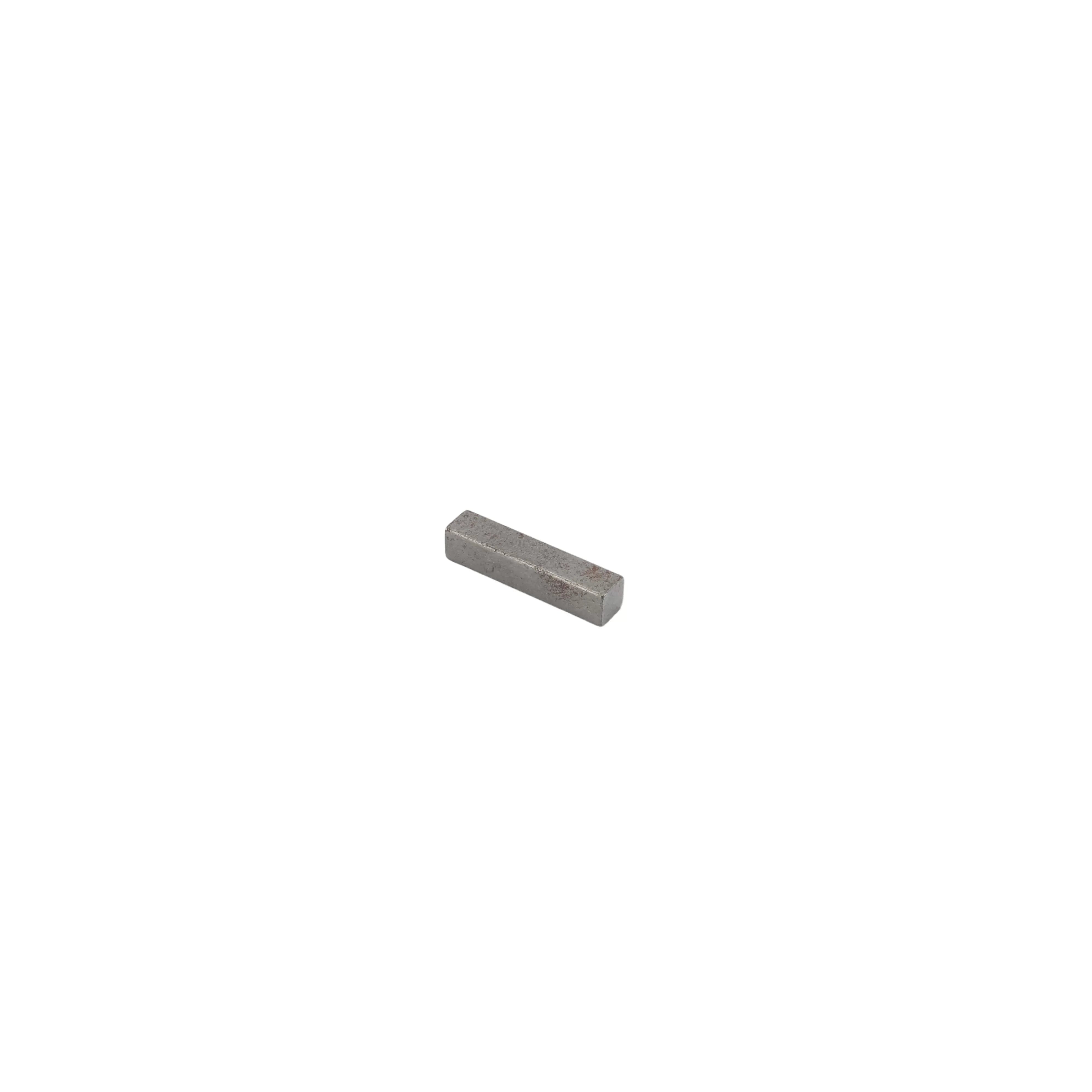

Replacement steel square drive key used to lock the Little Beaver CCO-8# 1-inch clutch hub securely to the 8 HP engine crankshaft.
Little Beaver CCO-8# clutch change-over kit showing the spring-loaded fiber shoe hub alongside the 1-inch bore cast steel drum.
Steel outer clutch drum for 8 HP Little Beaver mechanical earth drills showing the 1-inch engine shaft hub with set screw mounting.
Side profile of the Little Beaver CCO-8# clutch drum and fiber shoe assembly engaged for 8 HP earth drill replacement.
Top-down view of the 1-inch engine bore hub and keyway slot on the Little Beaver CCO-8# clutch drum for shaft mounting.
Little Beaver CCO-8# clutch drum measured on an inch grid scale showing the 1-inch shaft bore hub height and drum diameter.
Inner lining of the cast steel clutch drum showing the smooth friction surface and center ball bearing assembly.
Top-down view of the Little Beaver CCO-8# fiber shoe assembly showing three centrifugal weights and a keyway shaft collar.
Side profile of the composite fiber clutch shoe assembly showing the friction pads and internal engine shaft mounting collar.
Bottom view of the Little Beaver CCO-8# clutch shoe hub showing internal tension springs that control RPM engagement speed.
Angled view of the spring-loaded fiber clutch shoes that expand outward under centrifugal force to drive mechanical earth drills.
Replacement steel square drive key used to lock the Little Beaver CCO-8# 1-inch clutch hub securely to the 8 HP engine crankshaft.
Little Beaver

Little Beaver Change Over Kit CCO-8# 8 HP 1 Inch Bore Clutch Fiber Shoes Drum (Earth Drill Mechanical Power Drive Replacement Part)

Only 2 left
SKU: CCO-8#
$269.00 USD

Description

Little Beaver CCO-8# 8 HP 1-Inch Bore Centrifugal Clutch Change-Over Kit with Fiber Shoes and Drum

The Little Beaver CCO-8# Change-Over Kit is an industrial mechanical replacement assembly designed to restore centrifugal engagement on 8 HP mechanical earth drill power units. Featuring a 1-inch shaft bore engine clutch paired with heavy-duty fiber shoes and a precision-machined clutch drum, this power drive service kit replaces worn drive components to maintain rotational torque transfer to auger extensions without slippage under heavy soil resistance.

Best Used For:

  • Mechanical Earth Drill Service & Repair: Replacing worn-out centrifugal drive components on 8 HP Little Beaver ground drilling engines.
  • Fence Post & Foundation Hole Digging: Eliminating drive belt or clutch slippage when boring deep post holes through dense clay and rocky soils.
  • Soil Sampling & Landscaping Maintenance: Restoring instant throttle-response engagement during continuous commercial auger operation.

Key Performance & Safety Features

  • 1-Inch Engine Bore Fitment: Precision-machined 1-inch inside diameter bore mounts directly onto standard 8 HP engine drive shafts.
  • Friction-Resistant Fiber Shoes: High-density composite fiber shoe linings provide positive centrifugal lockup while reducing thermal wear.
  • Balanced Clutch Drum Assembly: Cast steel outer drum housing engineered to absorb engagement friction and distribute rotational torque evenly.
  • Direct OEM Replacement Fit: Specifically engineered to match factory mounting geometry on Little Beaver 8 HP mechanical earth drills.
  • Heavy-Duty Engagement Springs: Calibrated spring tension keeps shoes disengaged at engine idle speed to ensure safe operator handling.
  • Thermal Heat Dissipation: Vented drum design assists in shedding friction heat generated during heavy soil boring passes.

What's Included

  • (1) 8 HP Centrifugal Clutch Assembly with 1-Inch Bore
  • (1) Set of Heavy-Duty Composite Fiber Clutch Shoes
  • (1) Steel Clutch Outer Drum Housing
  • (1) Internal Retention Spring Kit

Technical Specifications

Brand / Manufacturer Little Beaver
Model / Part Number CCO-8# (CCO8)
Equipment Compatibility Little Beaver 8 HP Mechanical Earth Drills
Engine Power Rating 8 HP (6.0 kW Output Class)
Drive Shaft Bore Diameter 1.0 in. (25.4 mm) Shaft Bore
Clutch Type Heavy-Duty Centrifugal Friction Clutch
Friction Shoe Material High-Friction Composite Fiber Material
Drum Material Machined Cast Steel Housing
Keyway Slot Size 1/4 in. Standard Engine Keyway
Product Type Mechanical Power Transmission Change-Over Kit
Shipping Weight 5.25 lbs (2.38 kg)
Pro-Tip: Clean the engine crank drive shaft with fine emery cloth and apply a light anti-seize coating to the shaft before sliding on the 1-inch bore clutch hub to prevent thermal galling and ensure easy future maintenance.
