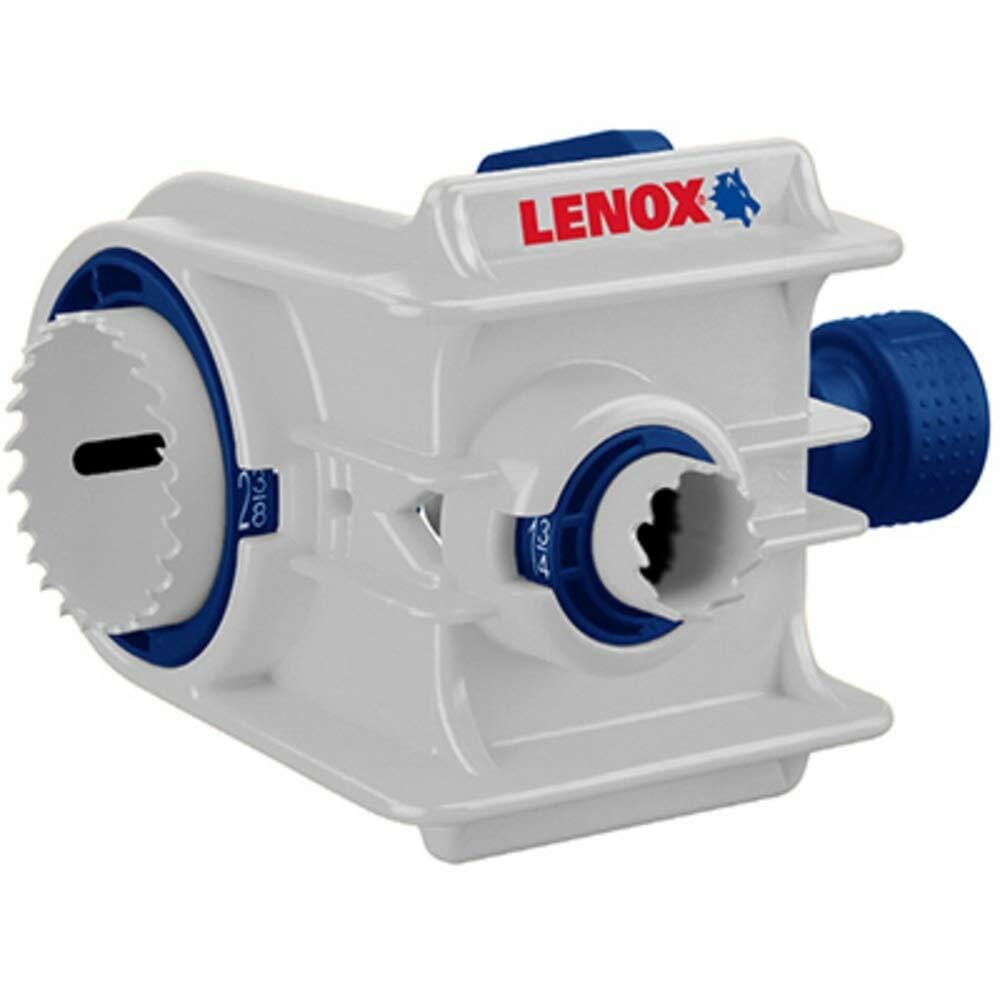

Three-quarter angle view of the LENOX door lock installation jig, showing the white body, blue clamp, and the two bi-metal hole saws in place.

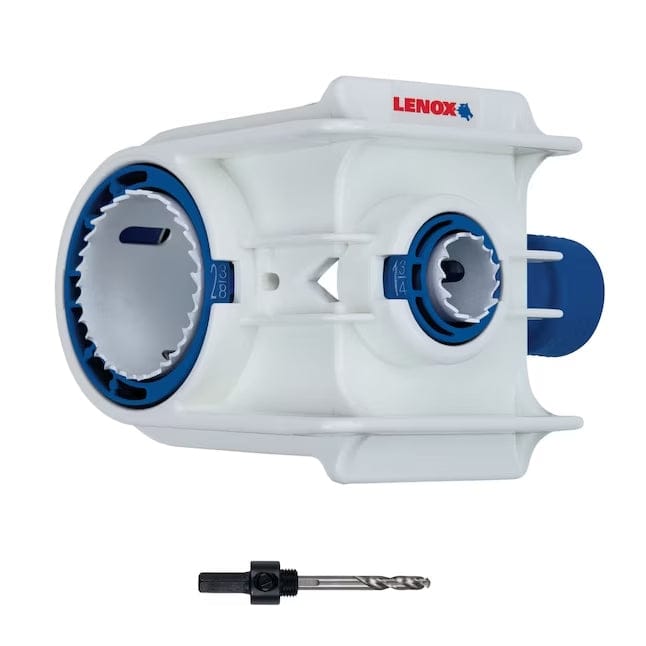

Top-down view of the LENOX door lock jig with the bi-metal hole saws installed, and the separate pilot drill bit with arbor shown below.

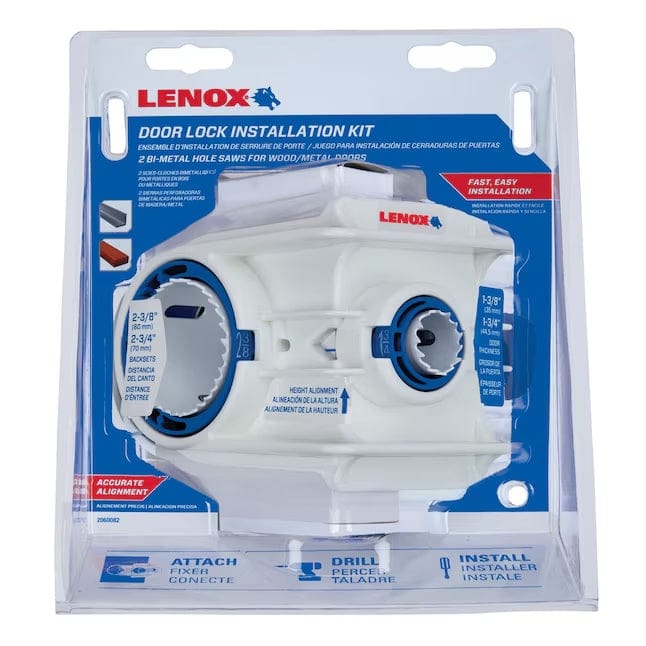

The LENOX door lock installation kit in its clear and blue retail packaging, showing the jig and its features.
Three-quarter angle view of the LENOX door lock installation jig, showing the white body, blue clamp, and the two bi-metal hole saws in place.
Top-down view of the LENOX door lock jig with the bi-metal hole saws installed, and the separate pilot drill bit with arbor shown below.
The LENOX door lock installation kit in its clear and blue retail packaging, showing the jig and its features.
Lenox

Lenox Door Lock Installation Kit 2060082 4 Piece Bi Metal Hole Saws C Clamp Jig (Wood Metal Standard Backsets Tool)

In stock
SKU: 2060082
$37.29 USD

Description

Lenox 2060082 4-Piece Bi-Metal Door Lock Installation Kit with C-Clamp Jig

The Lenox 2060082 4-Piece Door Lock Installation Kit cuts precise locksets, deadbolts, and latch bores through solid wood, hollow core, and heavy metal entry doors. Engineered with a tool-free C-clamp alignment jig, adjustable backset bushings, and high-speed bi-metal hole saws, this comprehensive installation system eliminates crooked bores and surface marring. Featuring clear alignment windows and compatibility with standard 2-3/8 inch and 2-3/4 inch backsets plus 1-3/8 inch and 1-3/4 inch door thicknesses, this professional template kit ensures carpenters and locksmiths achieve exact hardware placement on every residential and commercial door setup.

Best Used For:

  • Interior & Exterior Door Lockset Bores: Drilling clean, aligned holes for doorknobs and passage latches in wood or steel doors.
  • Deadbolt & Latchplate Mortising: Installing deadbolt security locks and latch faceplates accurately to standard door edge depths.
  • Commercial & Residential Retrofitting: Replacing old hardware or hanging new interior doors with precise backset measurements.

Key Performance & Safety Features

  • Tool-Free C-Clamp Jig Design: Clamps securely onto door edges without requiring wrenches or damaging finished wood and metal surfaces.
  • Adjustable Backset Bushings: Supports standard 2-3/8" and 2-3/4" backsets alongside 1-3/8" and 1-3/4" door thickness settings.
  • Visual Alignment Window: Built-in sighting window and tall drill guide bushings ensure perpendicular, straight hole boring.
  • Bi-Metal Hole Saw Cutters: High-speed steel teeth slice cleanly through both wood grain and heavy sheet metal door assemblies.
  • Complete 4-Piece Kit Solution: Contains all necessary hole saws, arbor, and alignment guide components in a single organized package.

What's Included

  • (1) Lenox 2060082 C-Clamp Door Lock Alignment Jig
  • (1) Bi-Metal Hole Saw Set for Wood and Metal Doors
  • (1) Adjustable Backset Bushing Insert Set
  • (1) Mandrel Arbor Driver

Technical Specifications

Specification Detail
Model Number / Part ID 2060082 (Door Lock Kit)
Hole Saw Blade Material Bi-Metal High-Speed Steel Construction
Total Kit Piece Count 4 Pieces Total Components
Arbor Configuration Style Non-Arbored Component System
Compatible Door Substrates Wood Doors and Metal Entry Doors
Standard Backset Distances 2.375 in (2-3/8") and 2.75 in (2-3/4")
Standard Door Thicknesses 1.375 in (1-3/8") and 1.75 in (1-3/4")
Jig Clamping Mechanism Tool-Free C-Clamp Screw Assembly
Alignment Aid Feature Integrated Optical Sighting Window
Primary Trade Application Door Hardware and Deadbolt Installation
Pro-Tip: Bore halfway through the door face with your bi-metal hole saw, then finish drilling from the opposite side to prevent splintering the wood grain or tearing the metal skin on exit.
