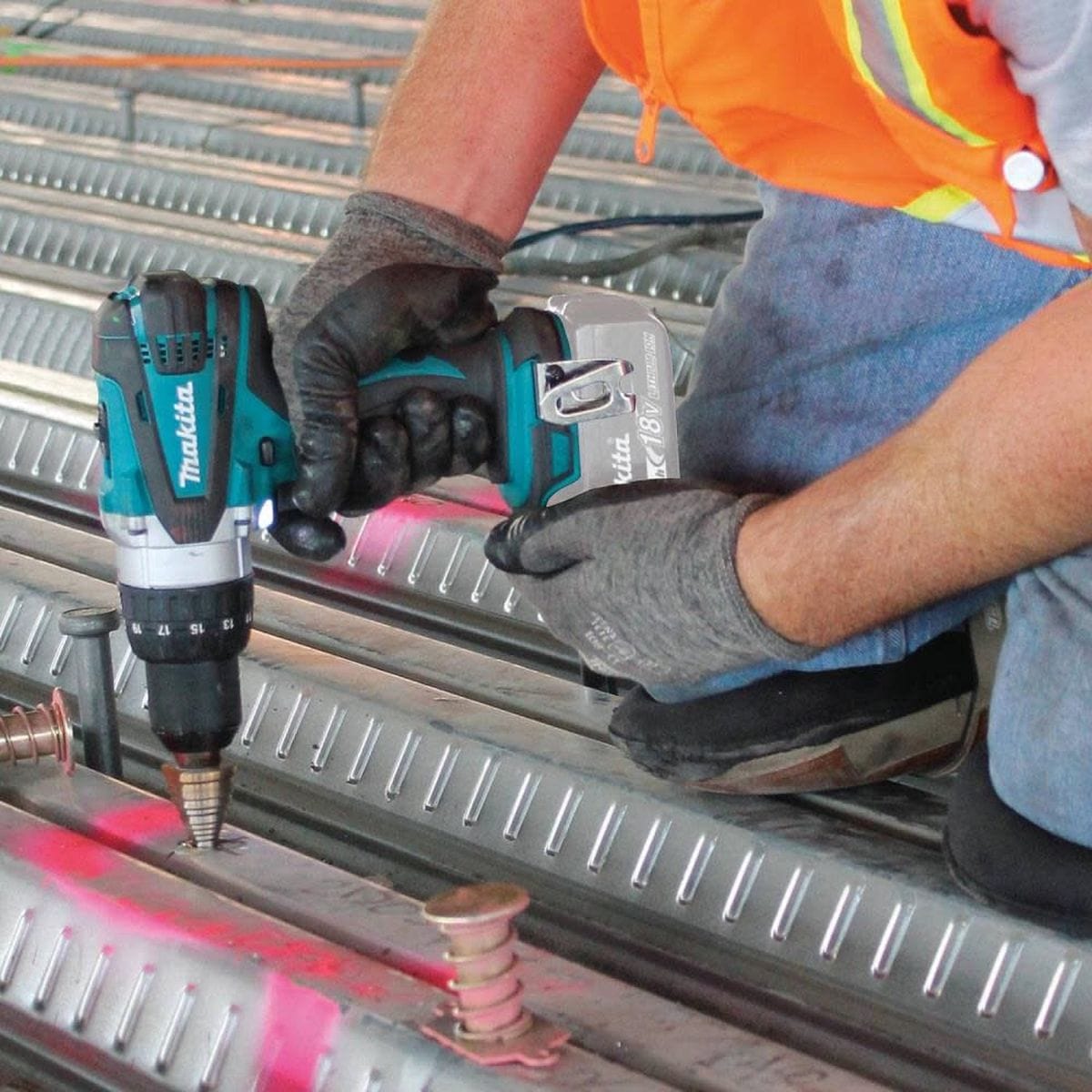

Person using Makita power tools on metal framing
Makita cordless drill on a wooden surface with a wooden panel background
Makita 18V LXT cordless half inch driver drill XFD03Z shown with teal and black housing metal chuck side handle torque adjustment ring and ergonomic grip for high torque drilling performance.
Hand holding Makita 18V LXT cordless driver drill XFD03Z highlighting lightweight 5 pound design rubberized soft grip and ergonomic comfort for extended drilling and fastening tasks.
Close up of Makita 18V LXT driver drill XFD03Z showing user pressing two speed selector switch with visible torque adjustment ring for precise drilling and fastening control.
Hand tightening drill bit into Makita 18V LXT driver drill XFD03Z metal chuck with visible torque settings demonstrating secure bit installation for accurate drilling applications.

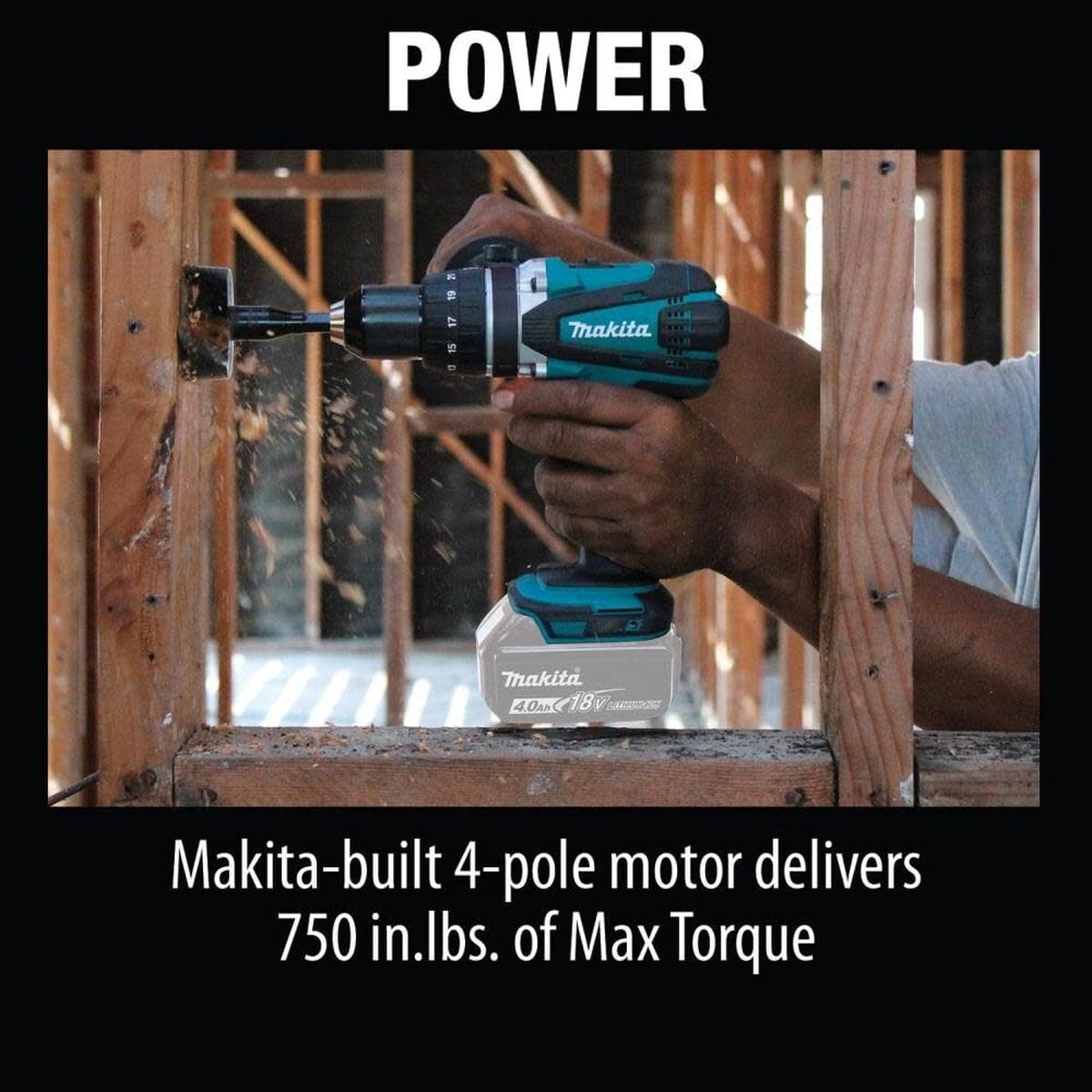

Person using a Makita drill with text highlighting power and torque.
Hand holding a cordless drill with a white background

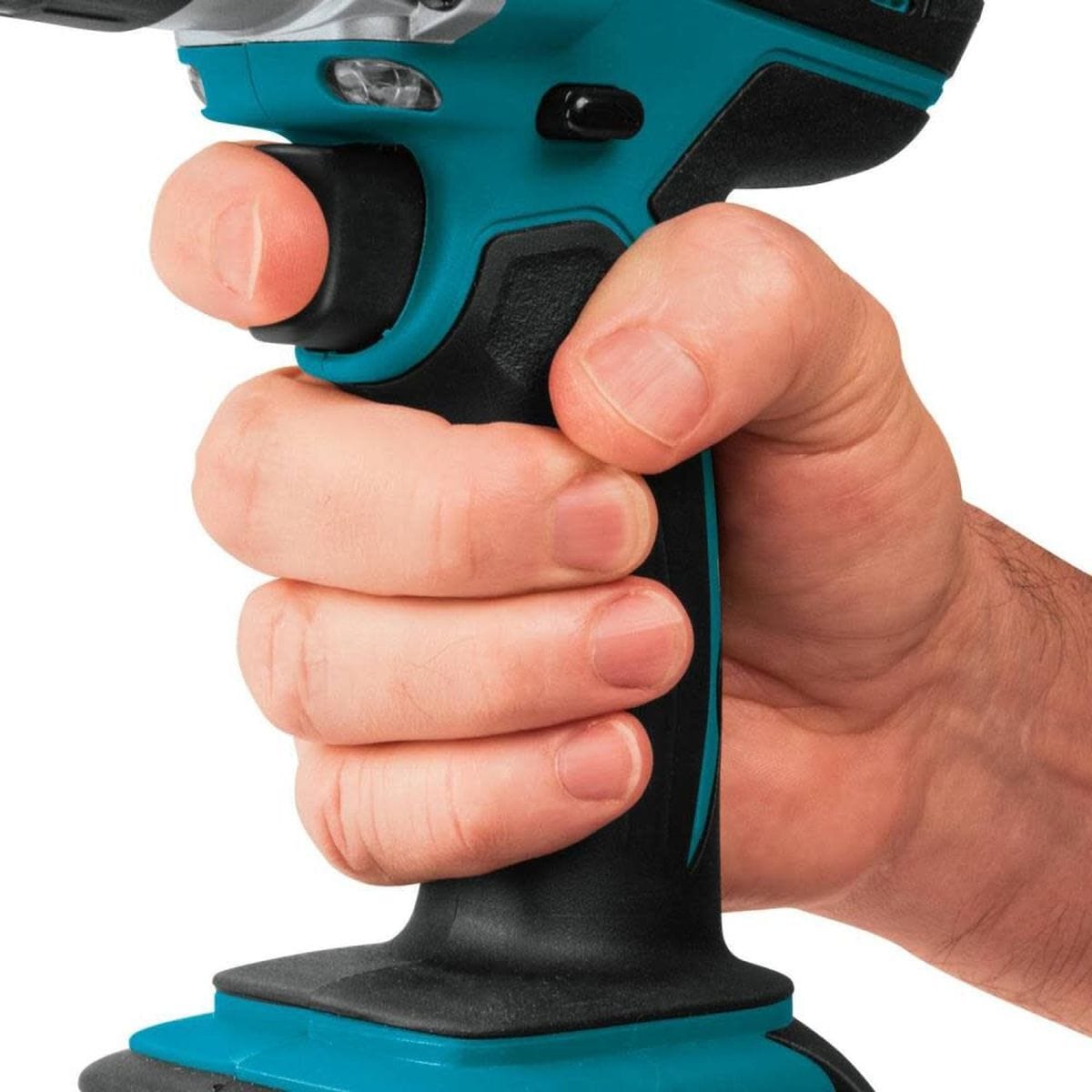

Hand holding a blue and black power tool against a white background
Hand holding a cordless drill with a focus on the trigger and dial.
Close-up of a power tool with a focus on the handle and switch area.
Hand holding a Makita cordless drill on a white background

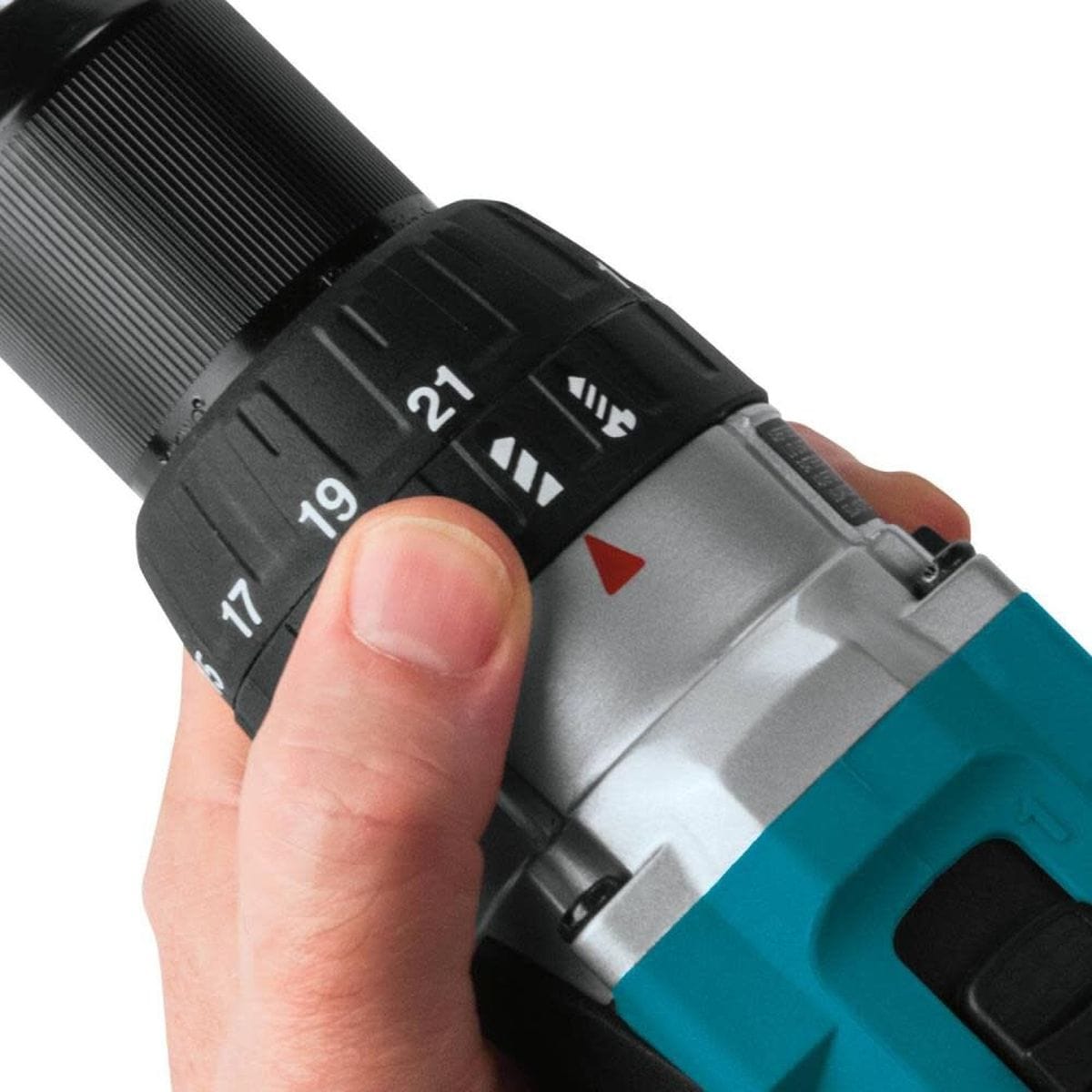

Hand holding a cordless drill with speed control dial on a white background

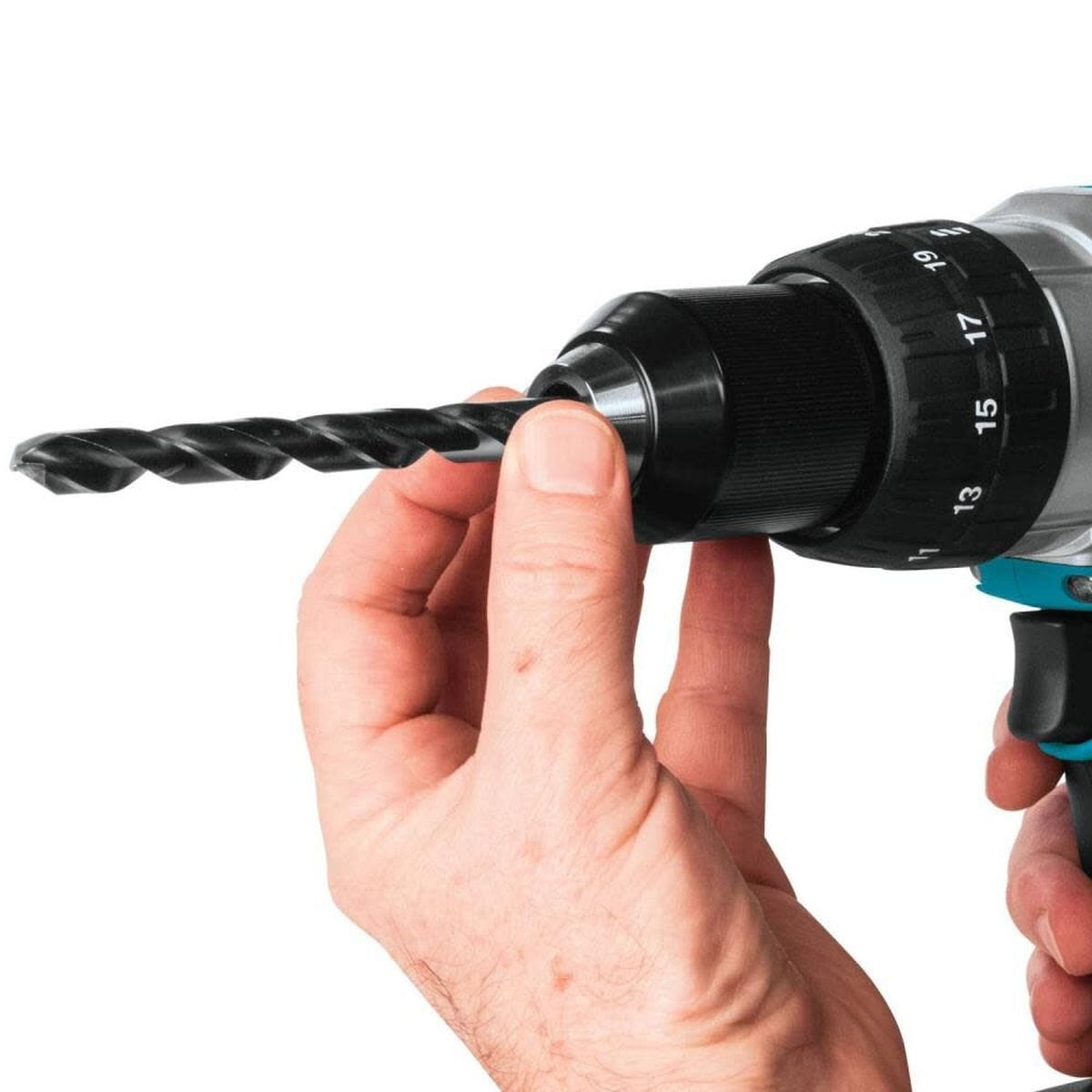

Hand holding a drill with a drill bit attached on a white background
Person using Makita power tools on metal framing
Makita cordless drill on a wooden surface with a wooden panel background
Makita

Makita Drill Driver XFD03Z 18V LXT 1/2 Inch Bare Tool (750 In Lbs Torque 2000 RPM All Metal Gears Dual LED Lights Star Protection Power Unit)

Only 1 left
SKU: XFD03Z
$134.00 USD

Description

Makita Logo Logout

Makita XFD03Z 18V LXT 1/2 Inch Cordless Driver Drill Bare Tool

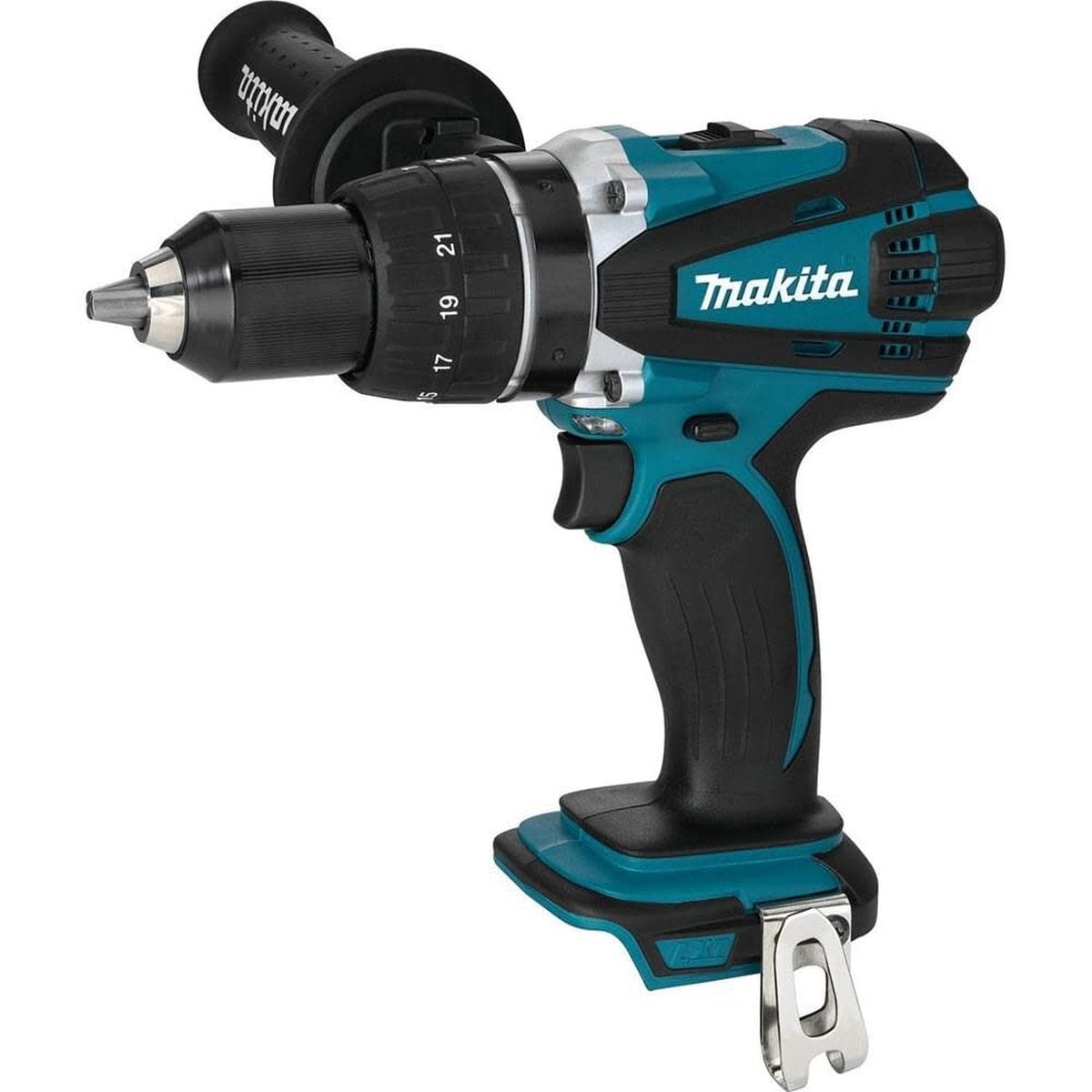

The Makita XFD03Z 18V LXT 1/2-Inch Driver-Drill operates as a cordless rotary drilling and fastening power tool engineered to bore holes through wood framing, drill structural steel, and drive large threaded fasteners. Powered by a 4-pole motor paired with a 2-speed mechanical transmission delivering 0–400 and 0–2,000 RPM, this 8-7/8-inch long tool generates up to 750 in-lbs of maximum torque. Featuring an all-metal 1/2-inch keyless ratcheting chuck, aluminum gear housing, 21-position clutch, dual LED work lights, and Star Protection Computer Controls, this 5-pound pistol-grip driver-drill executes high-demand construction, electrical rough-in, and metal fabrication tasks. **Battery and charger sold separately.

Best Used For:

  • Wood Framing & Joist Boring: Drilling 3-inch clearance holes through dimensional lumber and floor joists using hole saws or spade bits.
  • Metal Fabrication & Hole Punching: Boring 1/2-inch diameter holes through structural steel plates, iron box channels, and sheet metal.
  • Electrical Conduit & Box Fastening: Driving self-tapping screws and mounting junction boxes in overhead steel stud framing.

Key Performance & Safety Features

  • High-Torque 4-Pole Motor: Delivers up to 750 in-lbs of maximum torque to handle heavy-duty wood and metal drilling operations.

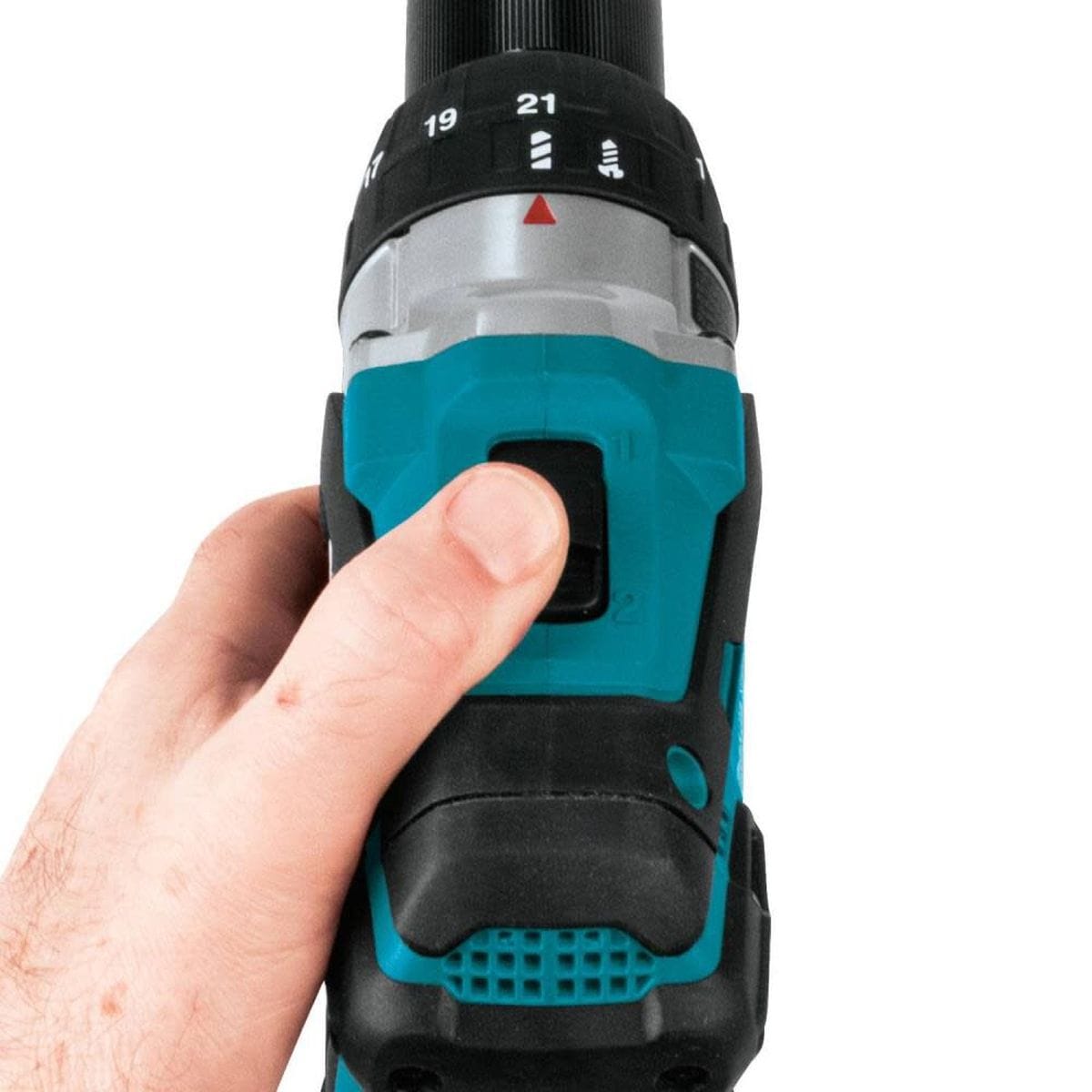

  • Mechanical 2-Speed Transmission: Dual speed settings (0–400 RPM for high torque / 0–2,000 RPM for high speed) provide versatile drilling control.
  • All-Metal Gearbox & Housing: Aluminum gear housing and planetary metal gear assembly ensure maximum power transfer and jobsite durability.
  • Star Protection Computer Controls: Monitors thermal status, current draw, and voltage in real time to guard against motor overload and overheating.

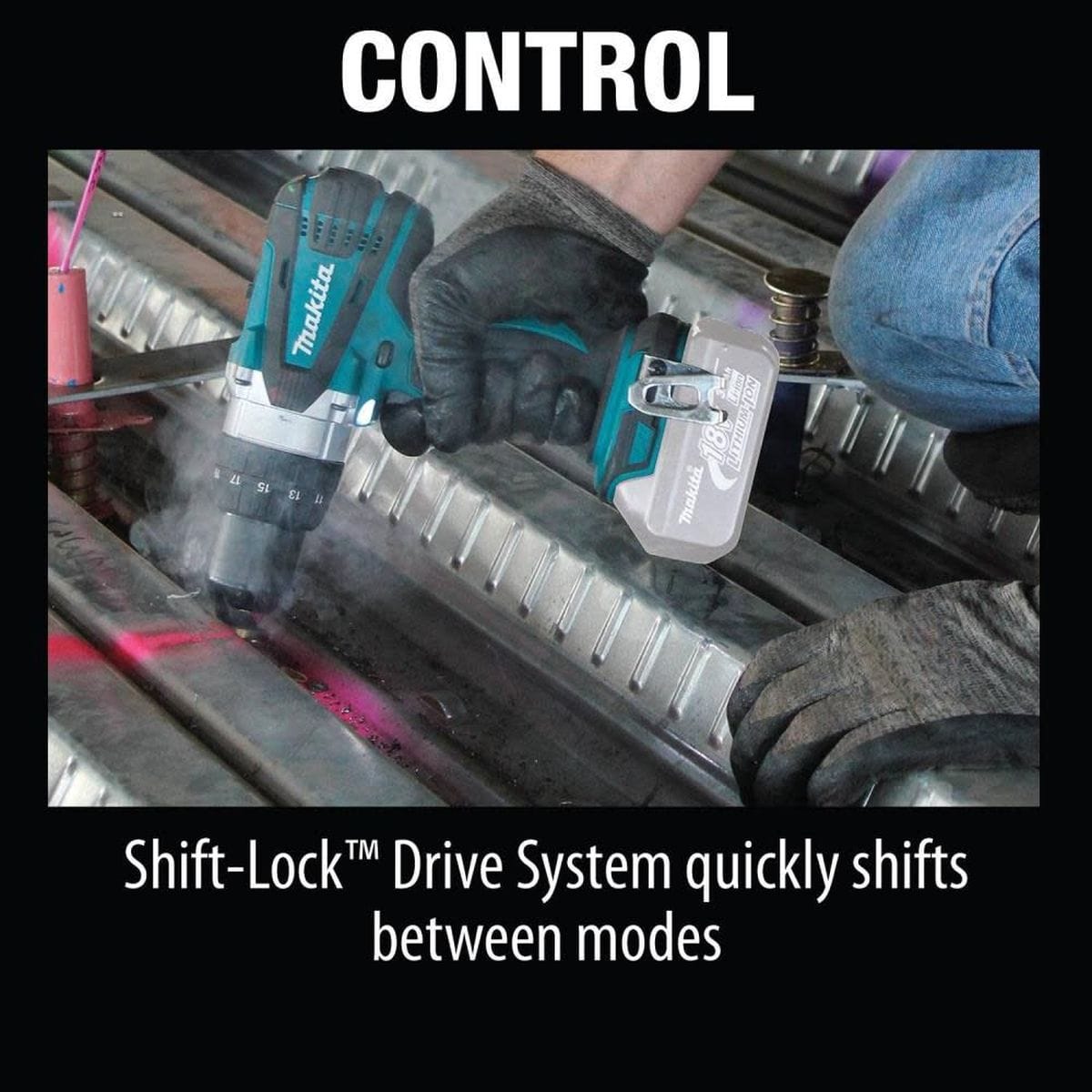

  • Shift-Lock Drive Mechanism: Smart mode-switching mechanism permits quick transitions between drilling and torque-controlled driving settings.

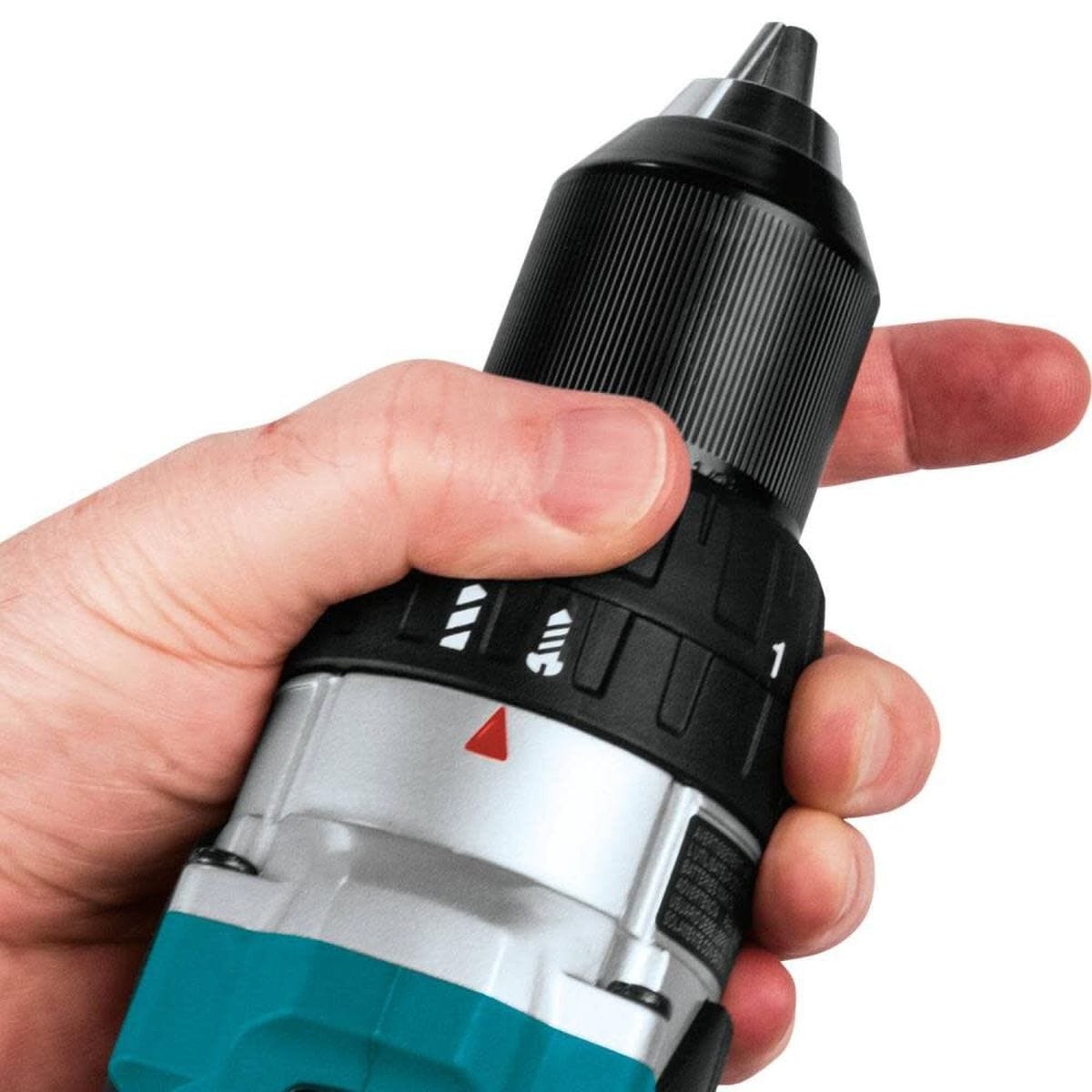

  • All-Metal Ratcheting Chuck: Heavy-duty 1/2-inch keyless chuck grips bit shanks securely to prevent slippage during high-torque drilling.

What's Included

  • (1) Makita XFD03Z 18V LXT 1/2 Inch Driver-Drill Bare Tool
  • (1) Heavy-Duty Steel Belt Clip

Technical Specifications

Brand Manufacturer Makita® U.S.A. Inc.
Model Part Number OEM SKU XFD03Z (Bare Tool)
Tool Classification Type Cordless Rotary Driver-Drill Power Tool
Battery Platform Voltage 18V LXT® Lithium-Ion System
Maximum Fastening Torque 750 in-lbs. (62.5 ft-lbs. / 84.7 Nm)
No-Load Speed Range Settings 0–400 RPM (Low) / 0–2,000 RPM (High)
Drilling Capacity in Wood 3.0 in. Maximum Capacity (76.2 mm)
Drilling Capacity in Steel 0.5 in. Maximum Capacity (12.7 mm)
Chuck Mechanism Size & Type 1/2 in. All-Metal Keyless Single-Sleeve Ratcheting Chuck
Clutch Torque Settings 21-Position Torque Clutch + Drill Mode
Overall Tool Length Profile 8.875 in. (8-7/8 in. / 225.425 mm)

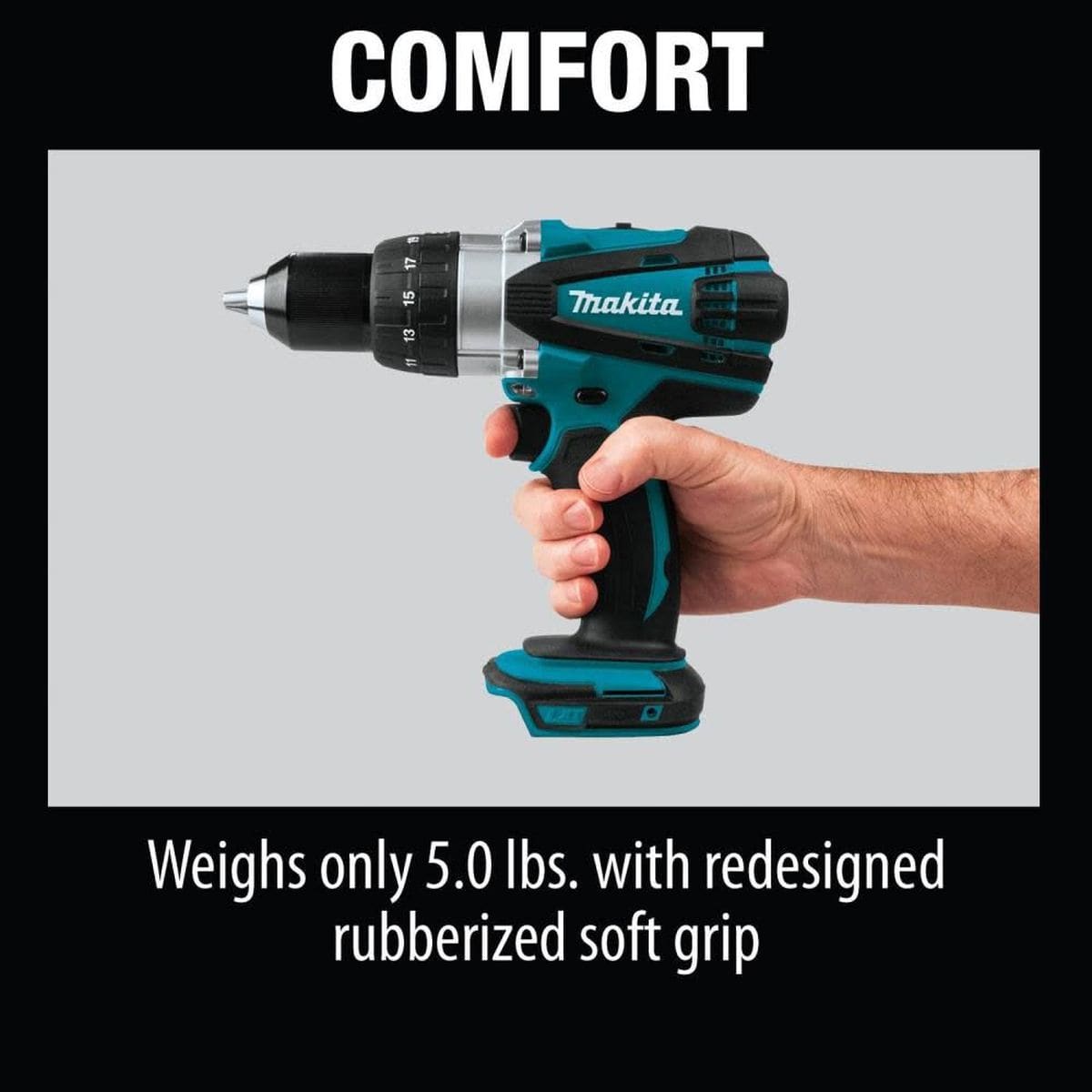

Net Tool Weight (with battery) 5.0 lbs. (2.26 kg)

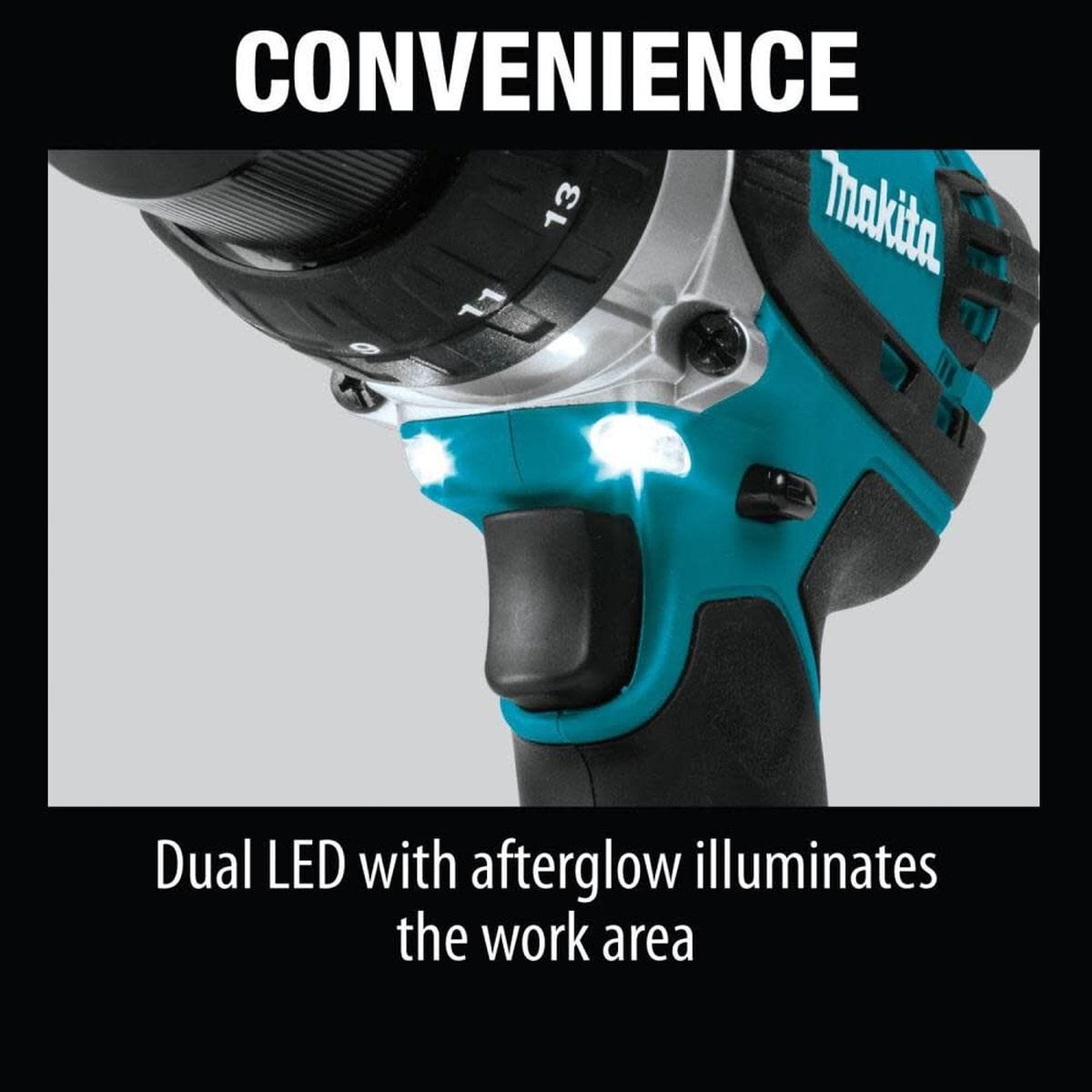

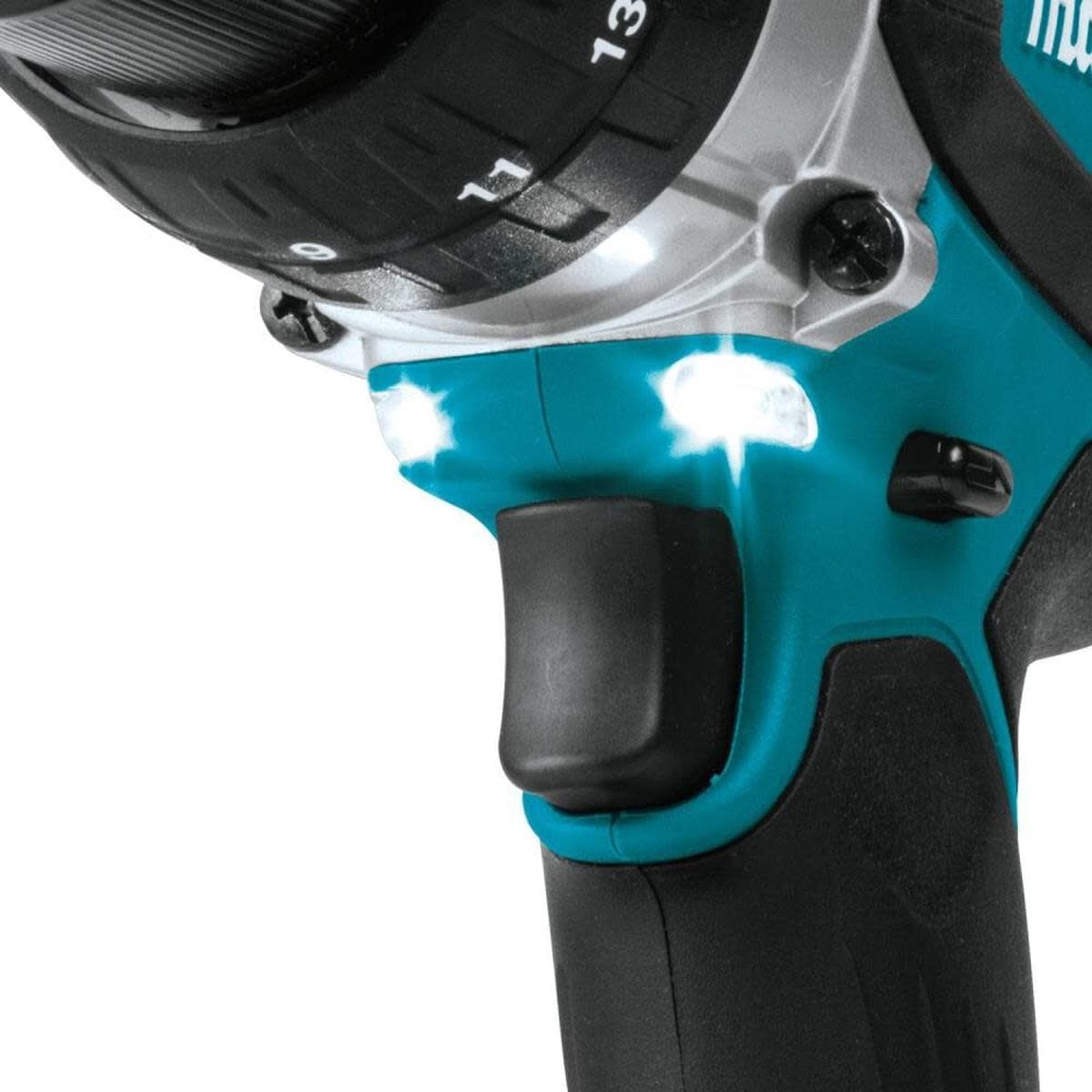

Illumination System Dual LED Lights with Afterglow Feature
Motor Type Architecture Makita-Built 4-Pole High-Torque Brushed Motor
Product Packaging Dimensions 4.69 in. D × 9.49 in. H × 10.0 in. W (119.126 × 241.046 × 254.0 mm)

Pro-Tip: When boring large 3-inch holes in dimensional lumber with the Makita XFD03Z, select speed setting 1 (0–400 RPM). Utilizing the lower gear range delivers the motor's full 750 in-lbs of mechanical torque, preventing motor stall and extending battery runtime per charge during heavy drilling.
