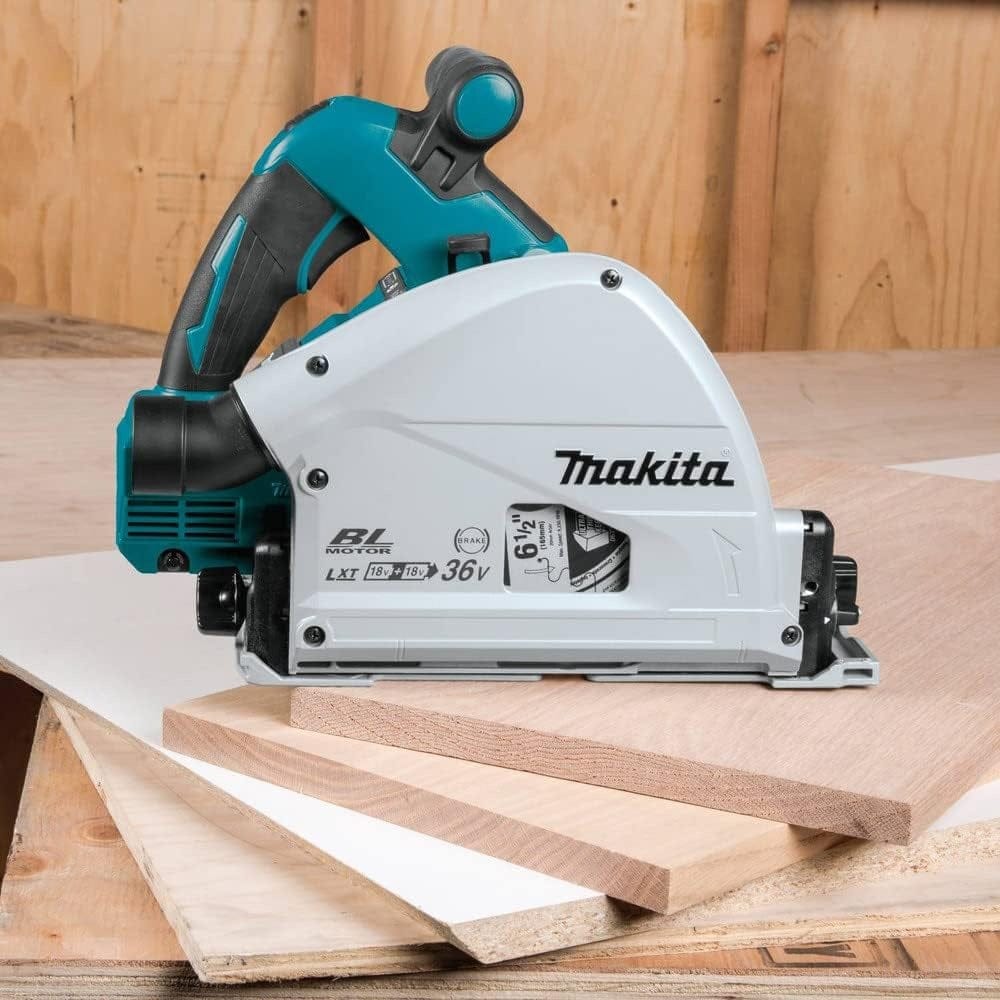

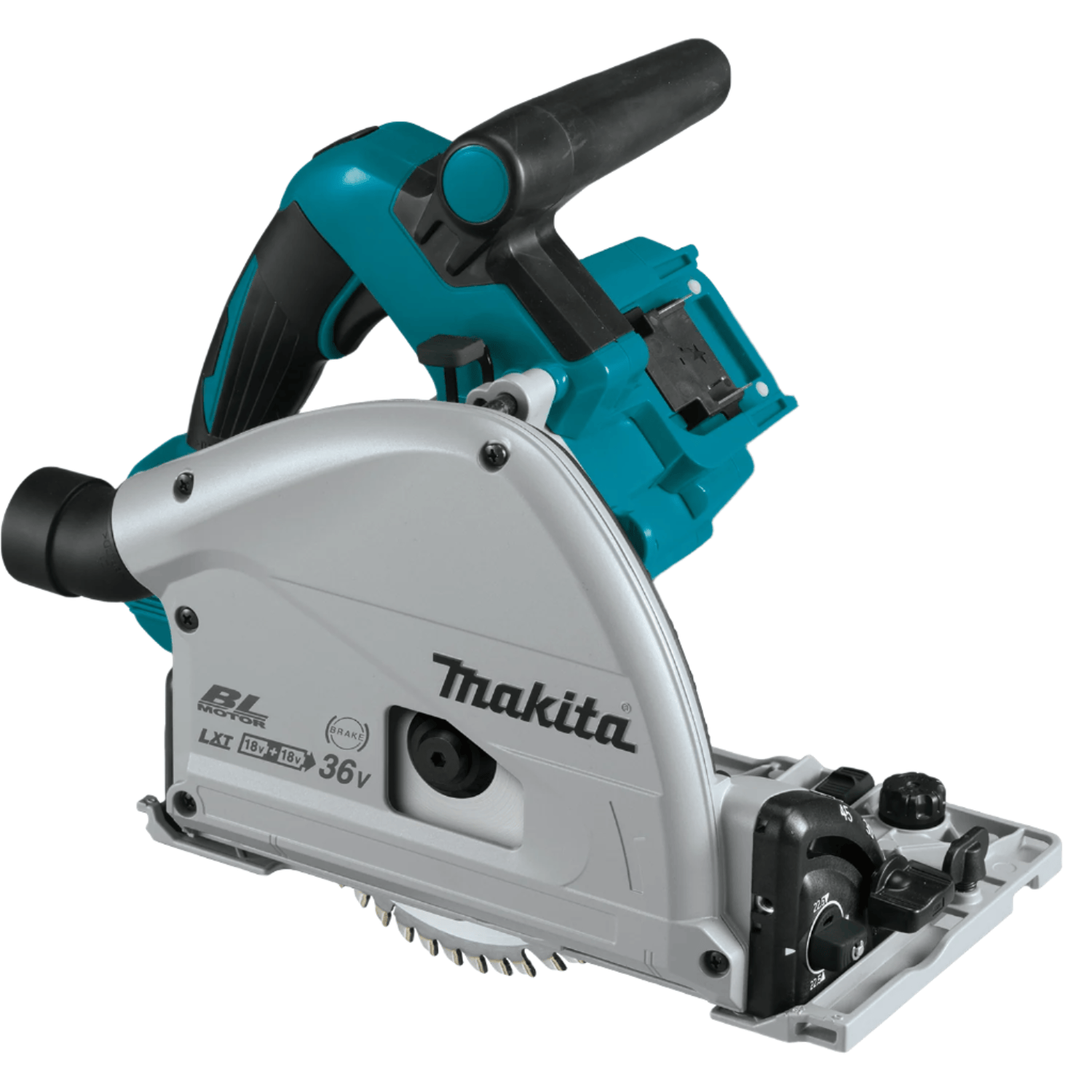

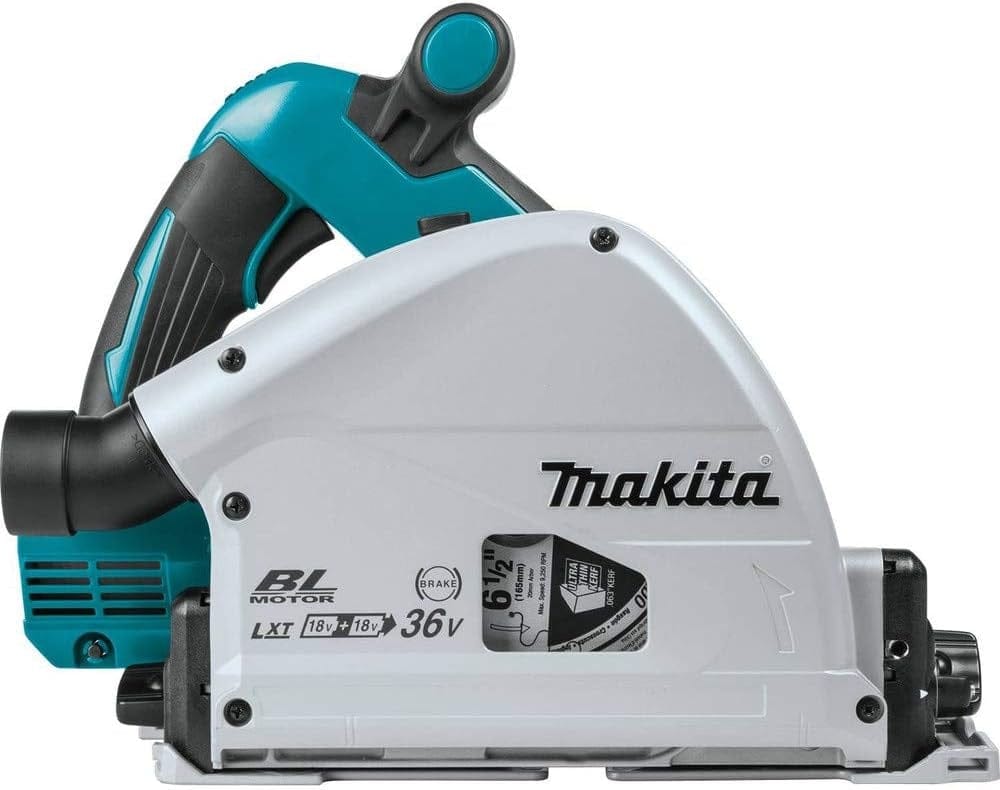

Makita 36V LXT® Brushless 6‑1/2" Plunge Circular Saw (Bare Tool) XPS01Z
The Makita 36V (18V X2) LXT Brushless 6-1/2” Plunge Circular Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2-3/16” cutting capacity at 90 degrees, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) the Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop.
FEATURES
-

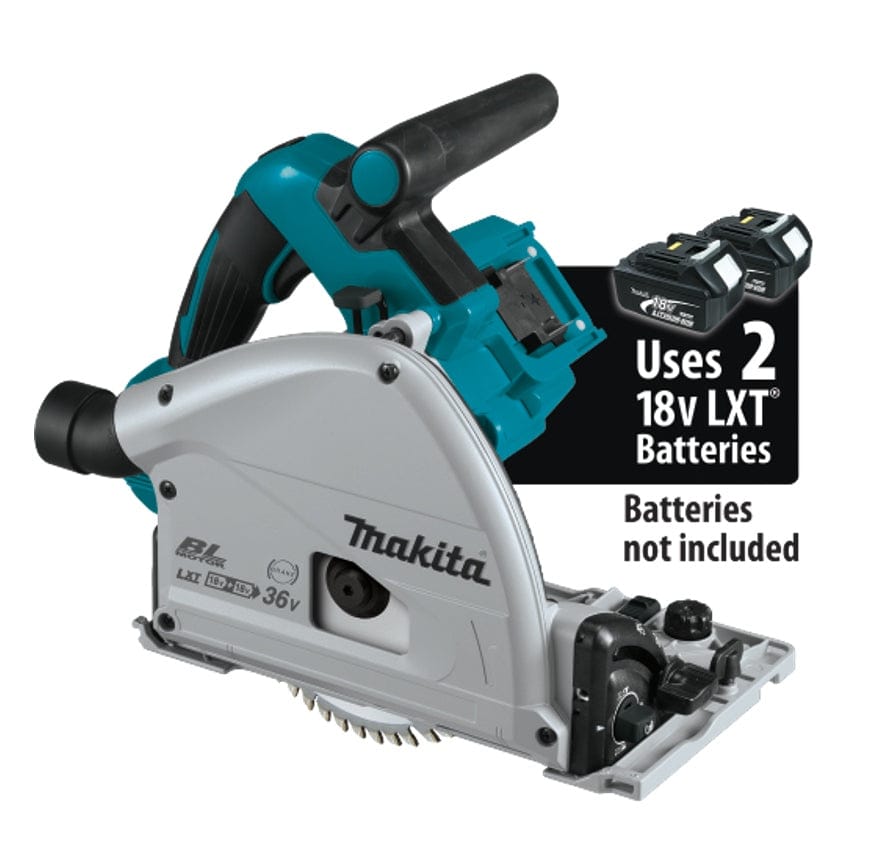

POWERED BY TWO LXT® BATTERIES; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord (batteries not included)
-
BRUSHLESS MOTOR: Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
-
AUTOMATIC SPEED CHANGE™ technology adjusts cutting speed and torque during cut for optimum performance
-
VARIABLE SPEED CONTROL dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
-
IDEAL FOR cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades (includes wood blade, other blades sold separately)
-
LARGE CUTTING CAPACITY: (2-3/16" at 90º; and 1-9/16" at 45º)
-

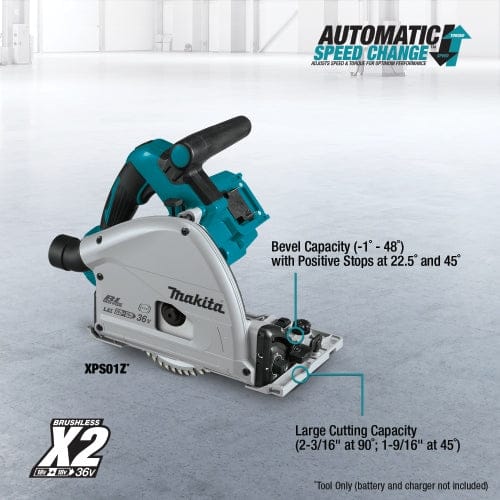

BEVEL CAPABILITY: (-1º to 48º) with positive stops at 22.5º and 45º
-
ELECTRONIC SPEED CONTROL maintains constant speed under load for smooth cutting
-
SOFT START feature for smooth start-ups
-
EASY MANEUVERABILITY: Smooth and convenient plunge release lever for operator comfort
-

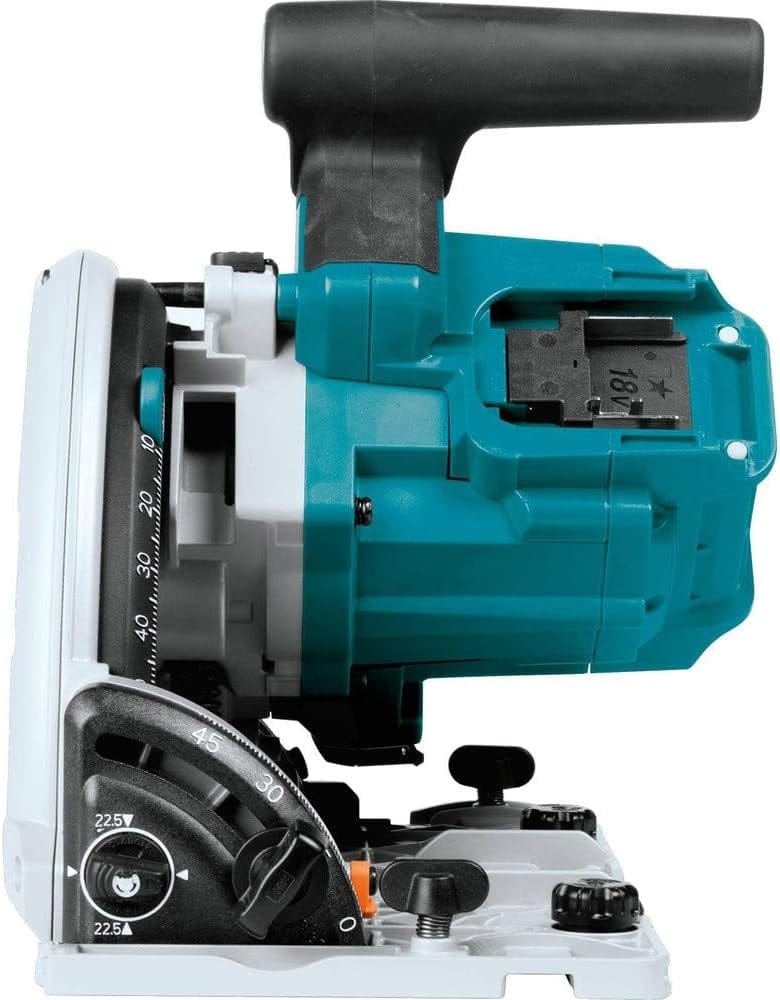

DUAL FRONT AND REAR BEVEL supports provide additional rigidity for precise and accurate bevel cuts
-
LOCKING LEVER holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
-

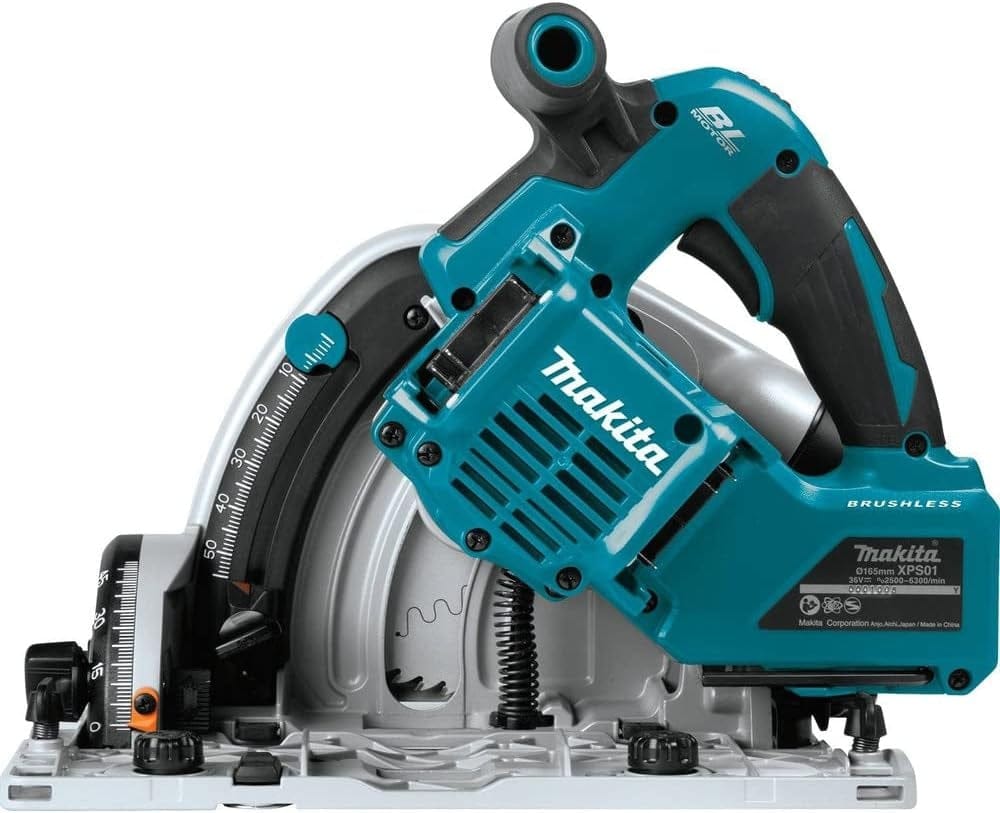

BUILT-IN DEPTH STOP allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
-

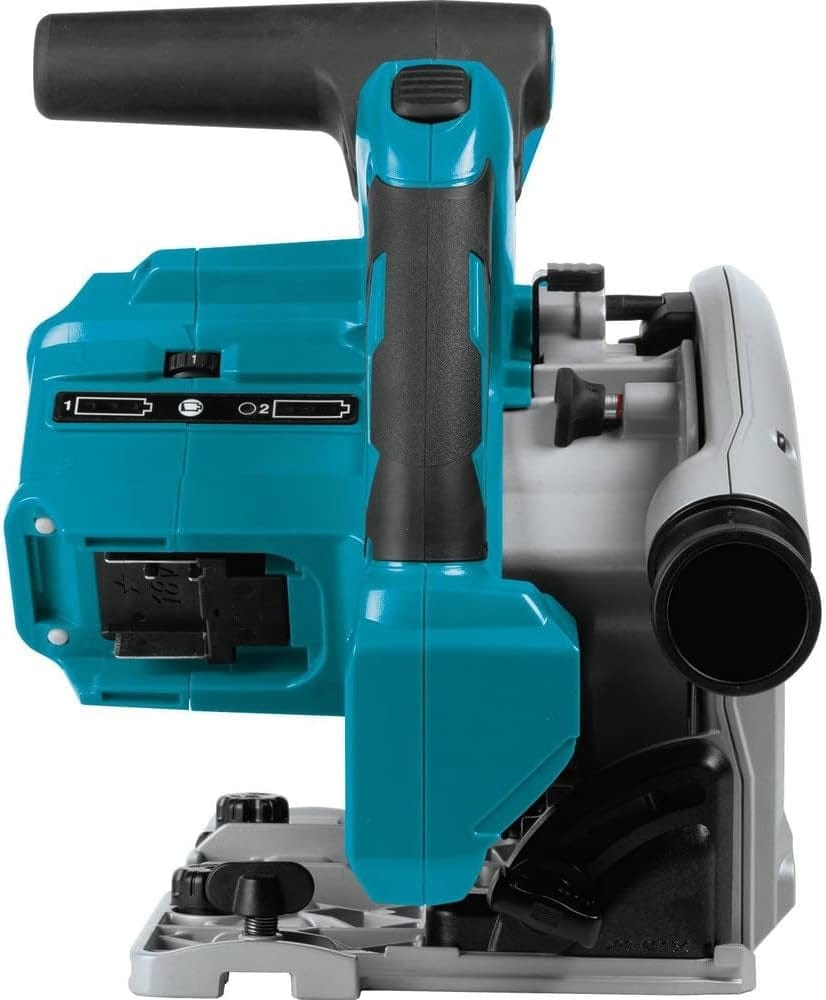

REAR DUST PORT: Large 1-7/16" rear dust port directs material away from the operator and easily connects to a vacuum system
-
CHARGE INDICATOR: 3-stage L.E.D. gauges indicate battery charge levels
-
STAR PROTECTION: Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
-
COMPATABILITY: Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (batteries sold separately)
- 3-YEAR LIMITED WARRANTY
SPECIFICATIONS
-
BLADE DIAMETER: 6-1/2"
-
ARBOR (MM): 20 mm
-
MAX CUTTING CAPACITY (@ 90°): 2-3/16"
-
MAX CUTTING CAPACITY (@ 45°): 1-9/16"
-
NO LOAD SPEED (VARIABLE SPEED): 2,500 - 6,300 RPM
-
BATTERY: 2X 18V LXT® Lithium-Ion
-
OVERALL LENGTH: 13-5/8"
-
NET WEIGHT (WITH BATTERY): 11.2 lbs.
-
FORM FACTOR (LXT): X2
-
MOTOR TYPE: Brushless
-
SHIPPING WEIGHT: 11.77 lbs.
INCLUDES
- Hex Wrench (783203-8)
- 6-1/2" C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam.
