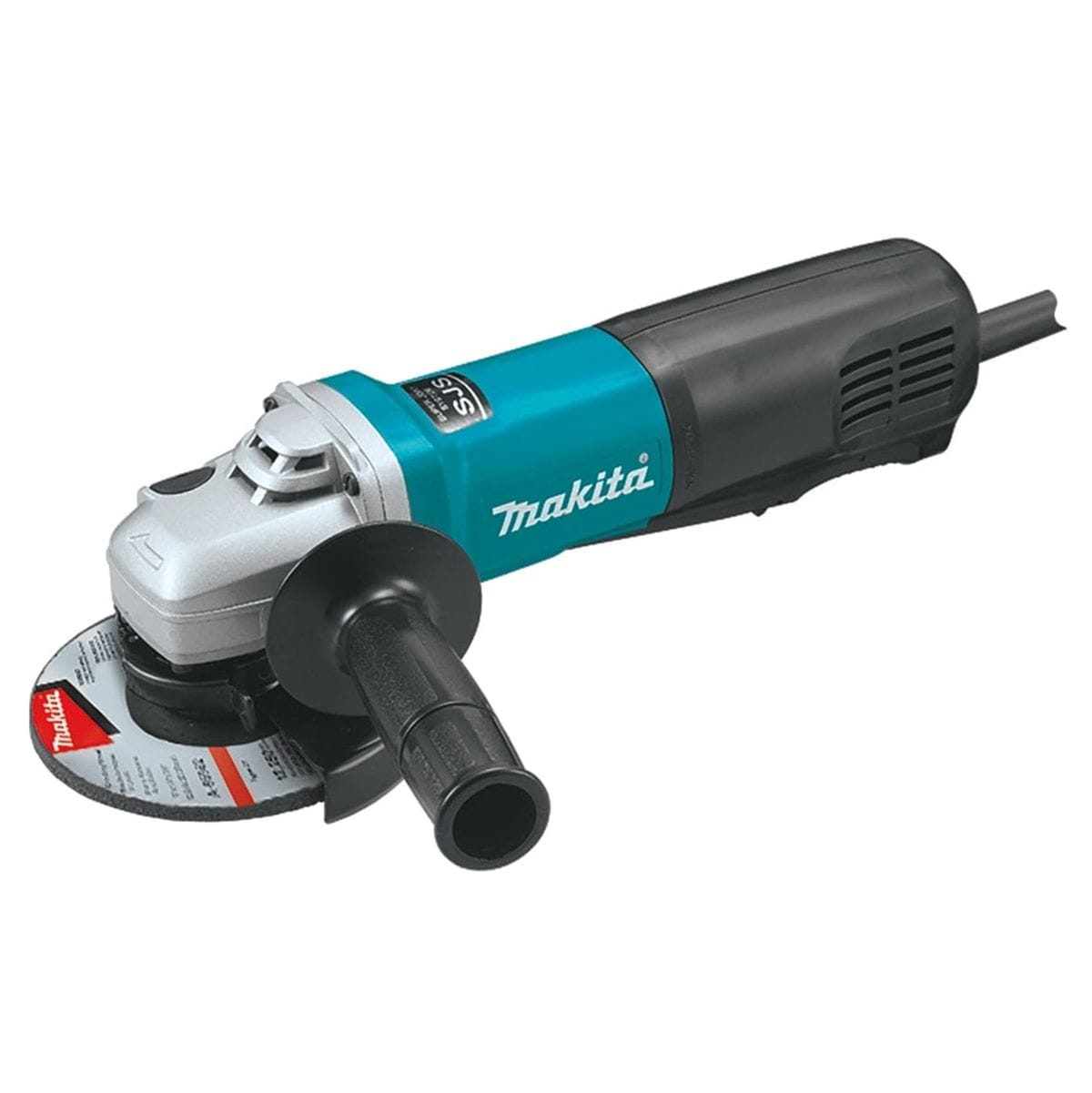

A studio product shot of the Makita 9565PCV 5-inch SJS angle grinder featuring its iconic teal and black body, powerful 13 Amp motor, side handle, and installed grinding disc.

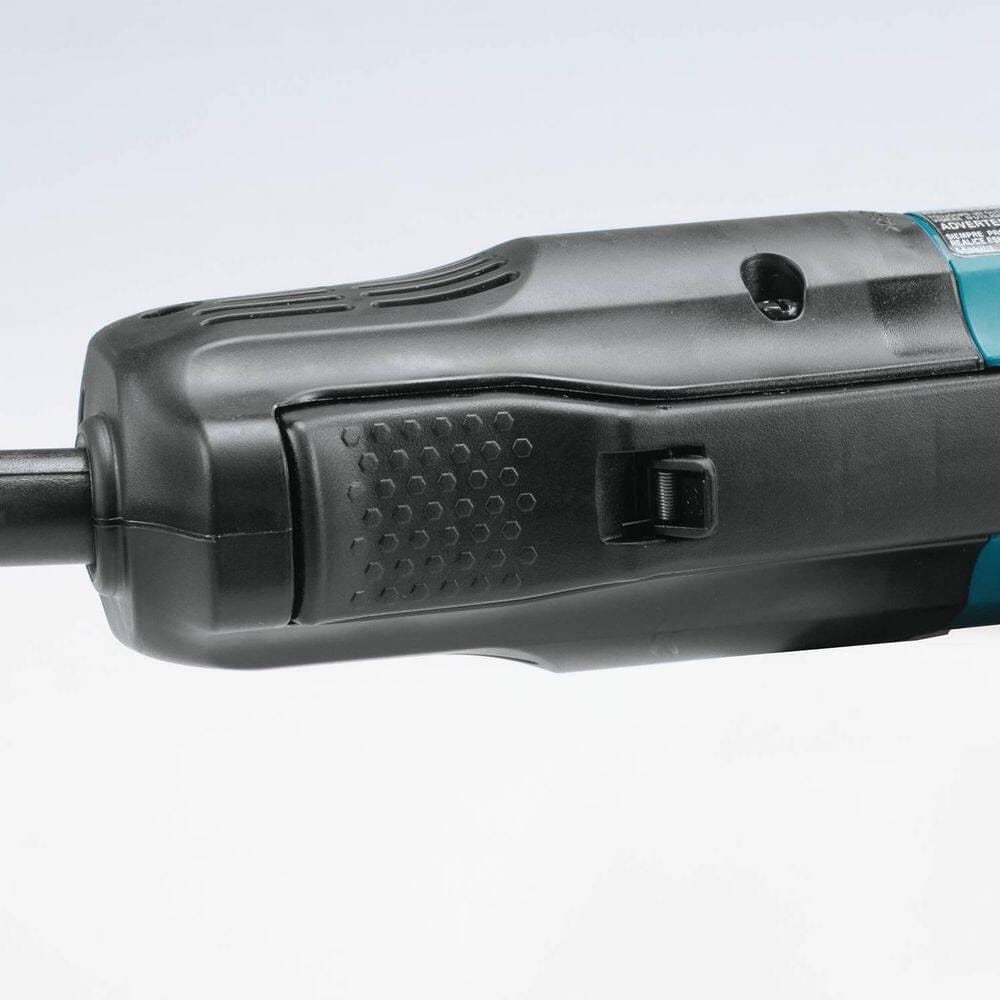

A detailed view of the large high-power paddle switch located on the body of the Makita angle grinder, designed for comfortable operation and enhanced jobsite safety.
Action photograph showing a professional tradesperson using the Makita 5-inch angle grinder to clean and prep a heavy-duty metal pipe for welding.

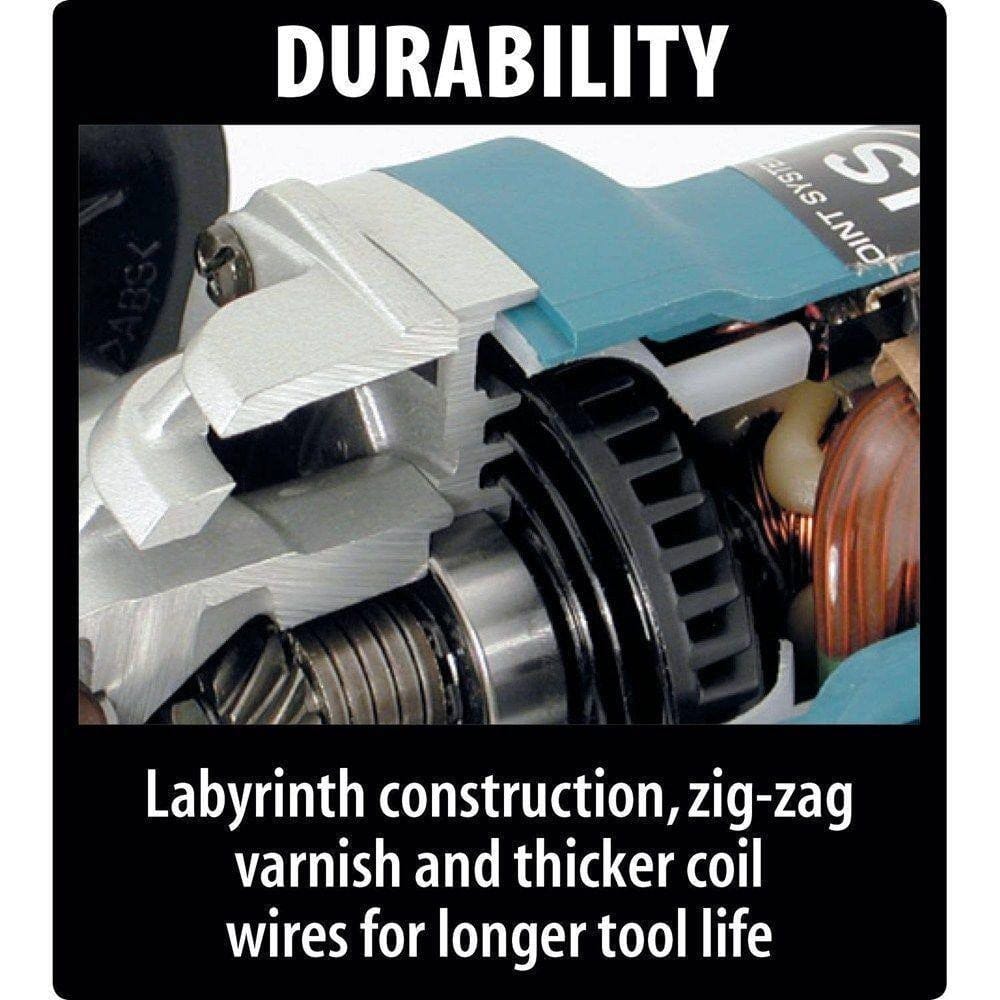

A technical durability graphic featuring a cutaway of the Makita grinder motor to show the labyrinth construction and zig-zag varnish that protect internal components for a longer tool life.

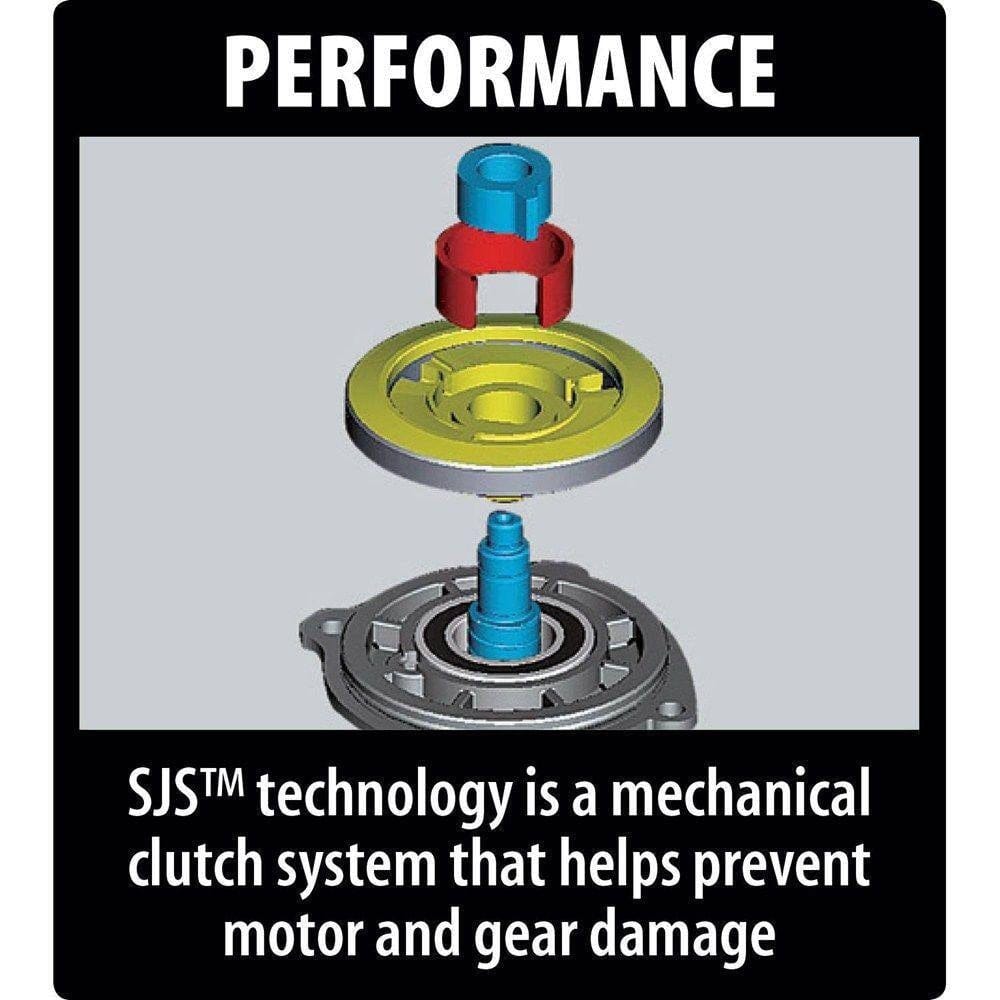

A performance graphic illustrating the internal components of the Makita Super Joint System (SJS) mechanical clutch, designed to protect gears and the motor from damage during wheel binds.

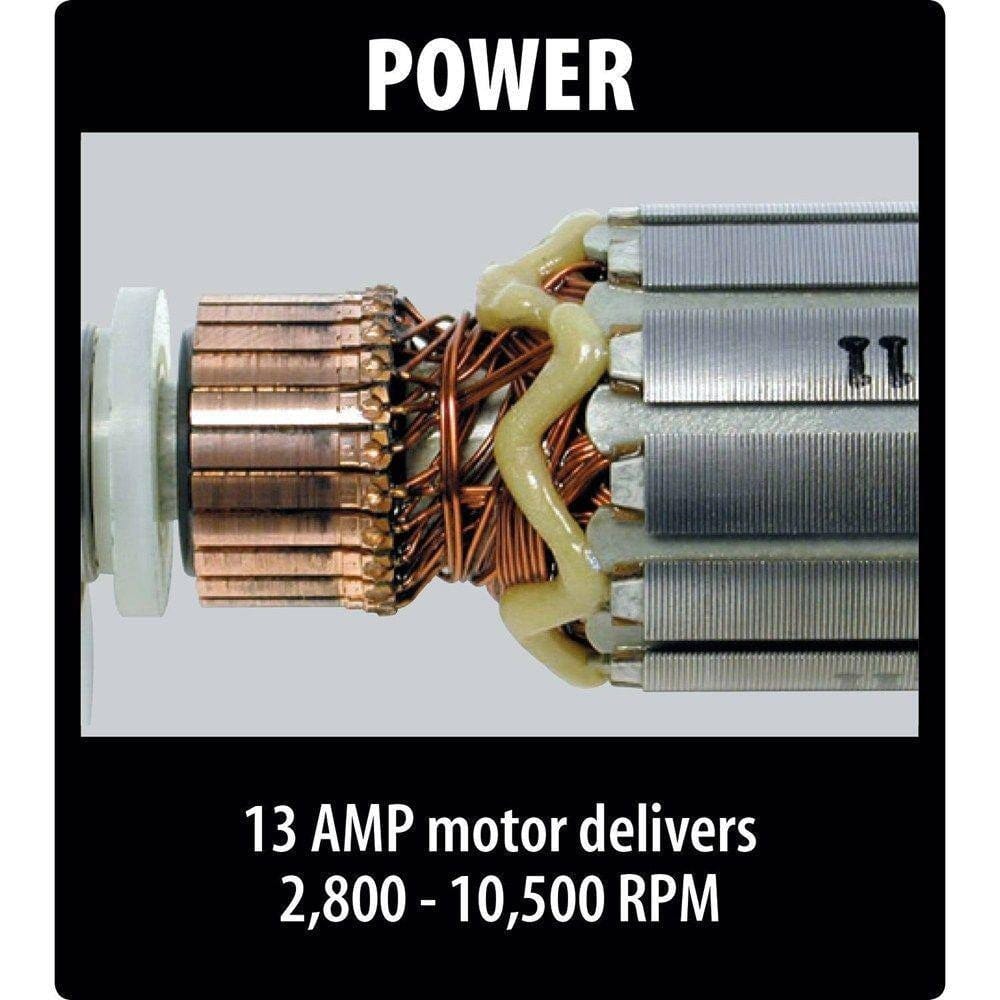

A power-focused technical graphic of the Makita 13 Amp motor armature, capable of delivering a wide variable speed range from 2,800 to 10,500 RPM for demanding tasks.

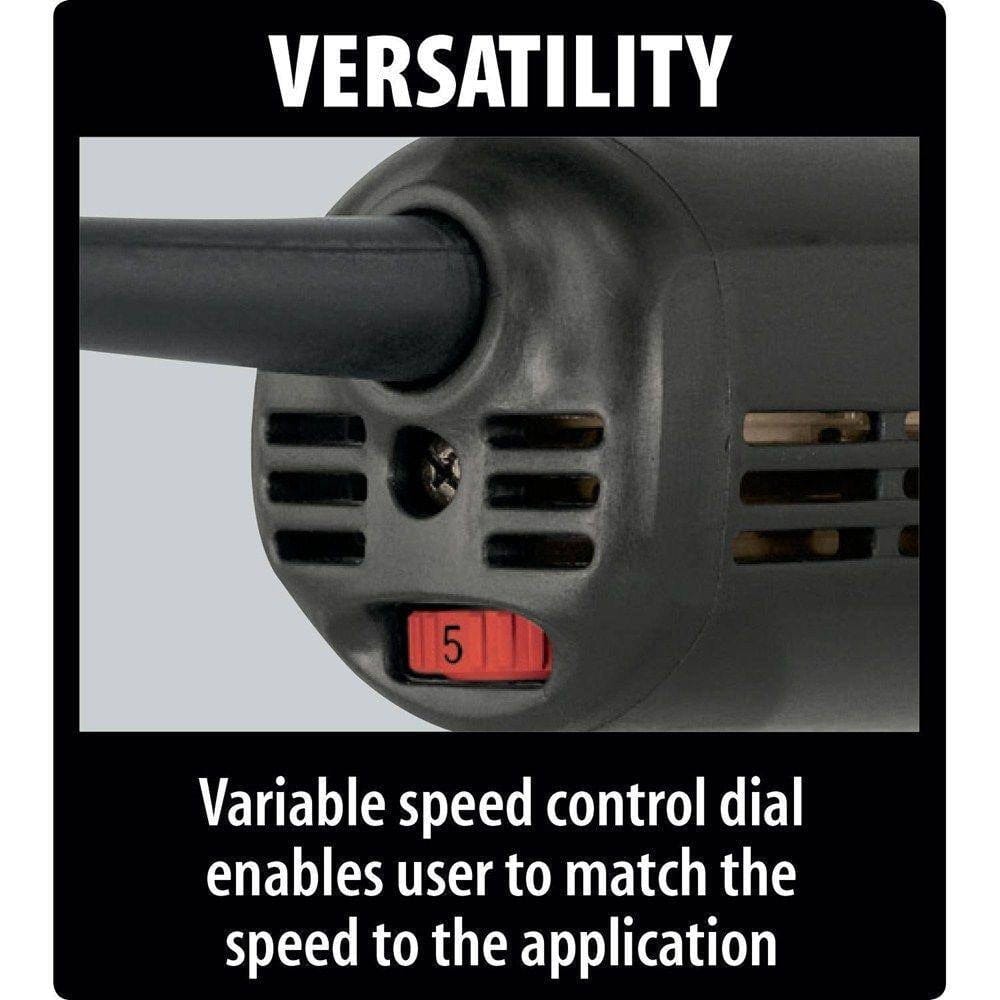

A detailed close-up of the variable speed control dial on the Makita 9565PCV angle grinder, highlighting the versatility to match RPM settings to specific professional grinding and cutting applications.
Action photograph of a professional using the Makita 13 Amp high-power angle grinder to grind a steel beam, showing a high volume of sparks and demonstrating industrial performance and control.
Close-up action shot of the Makita 5-inch corded angle grinder equipped with a cutting wheel to precisely slice through square metal tubing in a fabrication shop.
An action-oriented perspective of the Makita 9565PCV angle grinder with a paddle switch being used on a metal surface, emphasizing the ergonomic grip and high-torque capability.
A professional construction worker in a hard hat and safety gear using the Makita 9565PCV angle grinder to perform overhead metal grinding on a jobsite steel structure.
Action shot showing the Makita 5-inch angle grinder being used with a side handle for stability while cutting through metal framing, highlighting the tool's precision and high output.
A professional welder wearing a protective hood using the Makita 13 Amp corded angle grinder to finish a metal workpiece, showcasing the tool's reliability in extreme industrial environments.
MAKITA 4-1/2" SJS® Paddle Switch Angle Grinder (9564P) promotional video
A studio product shot of the Makita 9565PCV 5-inch SJS angle grinder featuring its iconic teal and black body, powerful 13 Amp motor, side handle, and installed grinding disc.
A detailed view of the large high-power paddle switch located on the body of the Makita angle grinder, designed for comfortable operation and enhanced jobsite safety.
Action photograph showing a professional tradesperson using the Makita 5-inch angle grinder to clean and prep a heavy-duty metal pipe for welding.
A technical durability graphic featuring a cutaway of the Makita grinder motor to show the labyrinth construction and zig-zag varnish that protect internal components for a longer tool life.
A performance graphic illustrating the internal components of the Makita Super Joint System (SJS) mechanical clutch, designed to protect gears and the motor from damage during wheel binds.
A power-focused technical graphic of the Makita 13 Amp motor armature, capable of delivering a wide variable speed range from 2,800 to 10,500 RPM for demanding tasks.
A detailed close-up of the variable speed control dial on the Makita 9565PCV angle grinder, highlighting the versatility to match RPM settings to specific professional grinding and cutting applications.
Action photograph of a professional using the Makita 13 Amp high-power angle grinder to grind a steel beam, showing a high volume of sparks and demonstrating industrial performance and control.
Close-up action shot of the Makita 5-inch corded angle grinder equipped with a cutting wheel to precisely slice through square metal tubing in a fabrication shop.
An action-oriented perspective of the Makita 9565PCV angle grinder with a paddle switch being used on a metal surface, emphasizing the ergonomic grip and high-torque capability.
A professional construction worker in a hard hat and safety gear using the Makita 9565PCV angle grinder to perform overhead metal grinding on a jobsite steel structure.
Action shot showing the Makita 5-inch angle grinder being used with a side handle for stability while cutting through metal framing, highlighting the tool's precision and high output.
A professional welder wearing a protective hood using the Makita 13 Amp corded angle grinder to finish a metal workpiece, showcasing the tool's reliability in extreme industrial environments.
MAKITA 4-1/2" SJS® Paddle Switch Angle Grinder (9564P) promotional video
Makita

Makita Angle Grinder 9565PCV 5 Inch 13 Amp Corded SJS Paddle Switch (10500 RPM Soft Start Metal Grinding Masonry Cutting)

In stock
SKU: 9565PC
$249.00 USD

Description

Makita Logo Logout

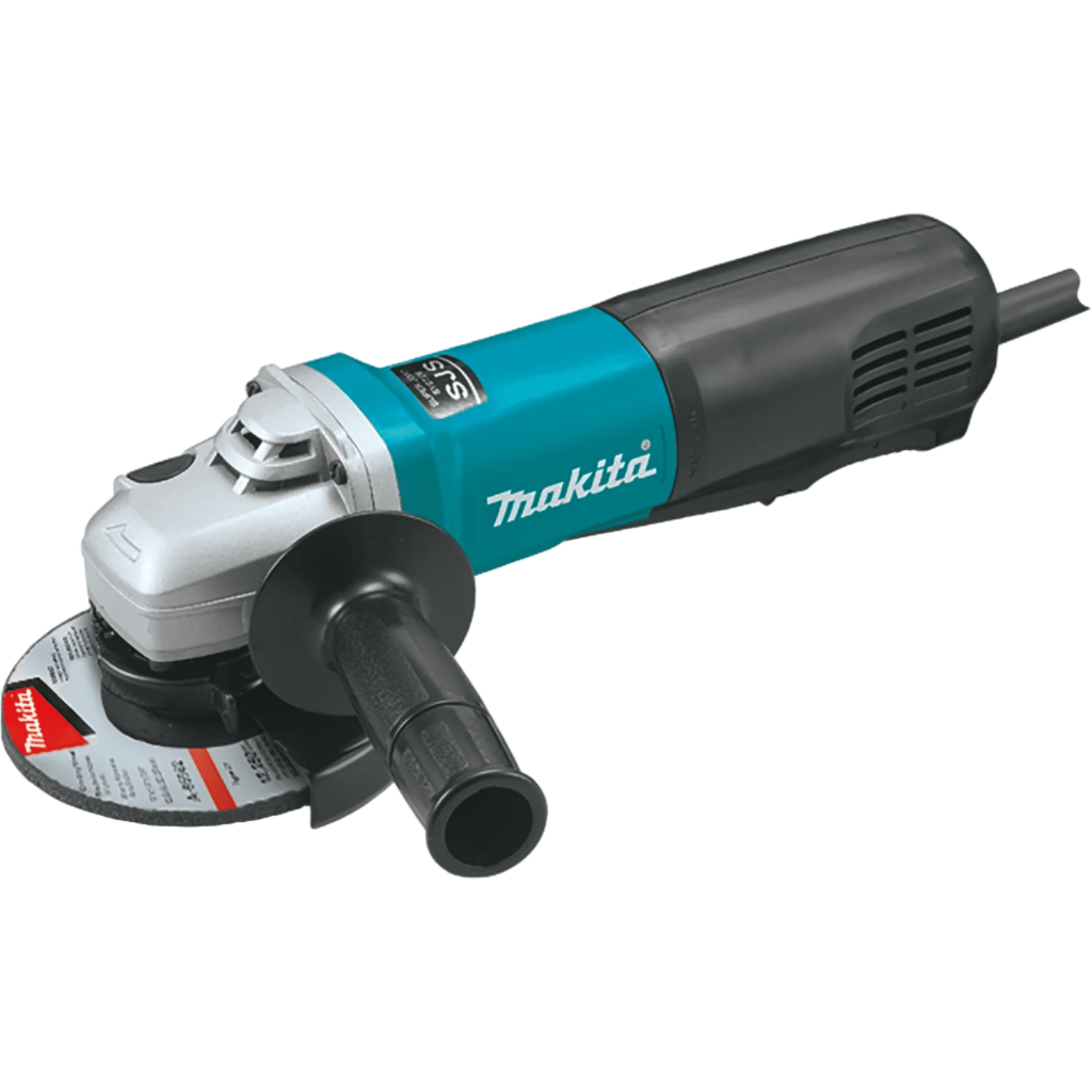

Makita 9565PCV 5-Inch 13.0 Amp Corded SJS High-Power Angle Grinder with Paddle Switch

The Makita 9565PCV 5-Inch Angle Grinder is an industrial electric surface prep machine engineered for heavy weld removal, structural steel beveling, and concrete scoring. Driven by a 13.0-amp motor operating at 10,500 RPM, this 5.3-pound corded tool integrates Makita's Super Joint System (SJS) mechanical clutch that disengages the drive shaft if the grinding wheel binds to prevent motor burnout. Outfitted with constant speed control to maintain rotational RPM under load, electronic soft-start, electronic current limiting, and a tool-less guard, this 12-1/8 inch unit utilizes labyrinth housing seals and protective armature varnish to isolate bearings from conductive grinding dust.

Best Used For:

  • Heavy Weld Removal & Structural Beveling: Milling down thick weld beads and profiling structural steel plates with 5-inch grinding wheels at 10,500 RPM.
  • Concrete Control Joint Scoring: Cutting straight expansion joints in concrete slabs and brick masonry using 5-inch diamond blades.
  • Industrial Rust & Scale Stripping: Removing heavy mill scale, paint, and rust from iron pipe stock using wire cup brushes without motor bogging.

Key Performance & Safety Features

  • Super Joint System (SJS) Clutch: Mechanical clutch disengages the drive shaft if the wheel catches to protect internal gears and prevent kickback.
  • 13.0 Amp High-Output Motor: Heavy-duty motor generates 10,500 RPM for continuous metal fabrication and masonry cutting.
  • Electronic Constant Speed Control: Automatically directs supplemental power to the motor under load to maintain consistent cutting wheel speed.
  • Labyrinth Housing Dust Seals: Complex internal baffle channels isolate drive bearings and armature coils from metal shavings and concrete dust.
  • Soft-Start & Current Limiter: Soft-start suppresses initial startup reaction, while an electronic current limiter guards against overload burnouts.

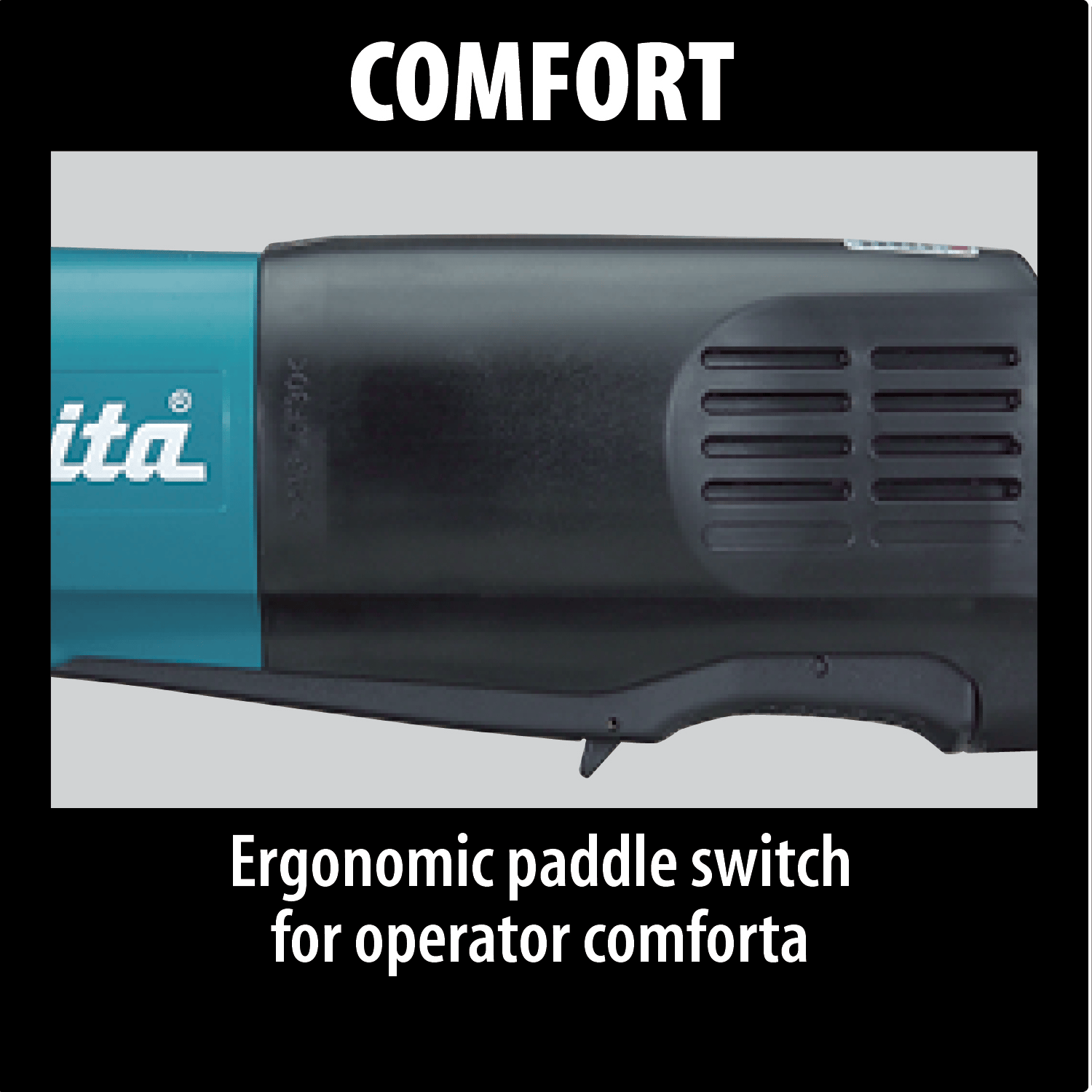

  • Two-Stage Safety Paddle Switch: Flush-mounted paddle switch features a lock-off lever to prevent accidental motor engagement.

What's Included

  • (1) Makita 9565PCV 5" SJS High-Power Angle Grinder
  • (1) 5" x 1/4" x 7/8" INOX Grinding Wheel (36 Grit)
  • (1) 5" Tool-Less Adjustable Wheel Guard
  • (1) Vibration-Absorbing Side Handle
  • (1) Inner Flange and Lock Nut Assembly
  • (1) Lock Nut Wrench

Technical Specifications

Brand / Manufacturer Makita
Model / Part Number 9565PCV
Motor Amperage & Voltage 13.0 Amps @ 120V AC / 60 Hz
No Load Operating Speed 10,500 RPM
Grinding Wheel Diameter 5.00 in. (127.0 mm / 5 in.)
Spindle Thread Size 5/8 in. - 11 UNC Standard Spindle
Mechanical Clutch System Super Joint System (SJS) Bind-Up Clutch
Switch Type & Safety Paddle Switch with Two-Stage Lock-Off (No Lock-On)
Motor Control Electronics Constant Speed Control, Soft Start, Current Limiter
Guard Style & Adjustment Tool-Less Quick Adjustment Guard
Overall Tool Length 12.125 in. (308.0 mm / 12-1/8 in.)
Tool Net Weight 5.3 lbs (2.40 kg)
Shipping Total Weight 7.2 lbs (3.26 kg)
Pro-Tip: To maximize the effectiveness of the SJS mechanical clutch when making deep cuts in structural steel, maintain steady forward feeding pressure without twisting the grinder body in the kerf.
