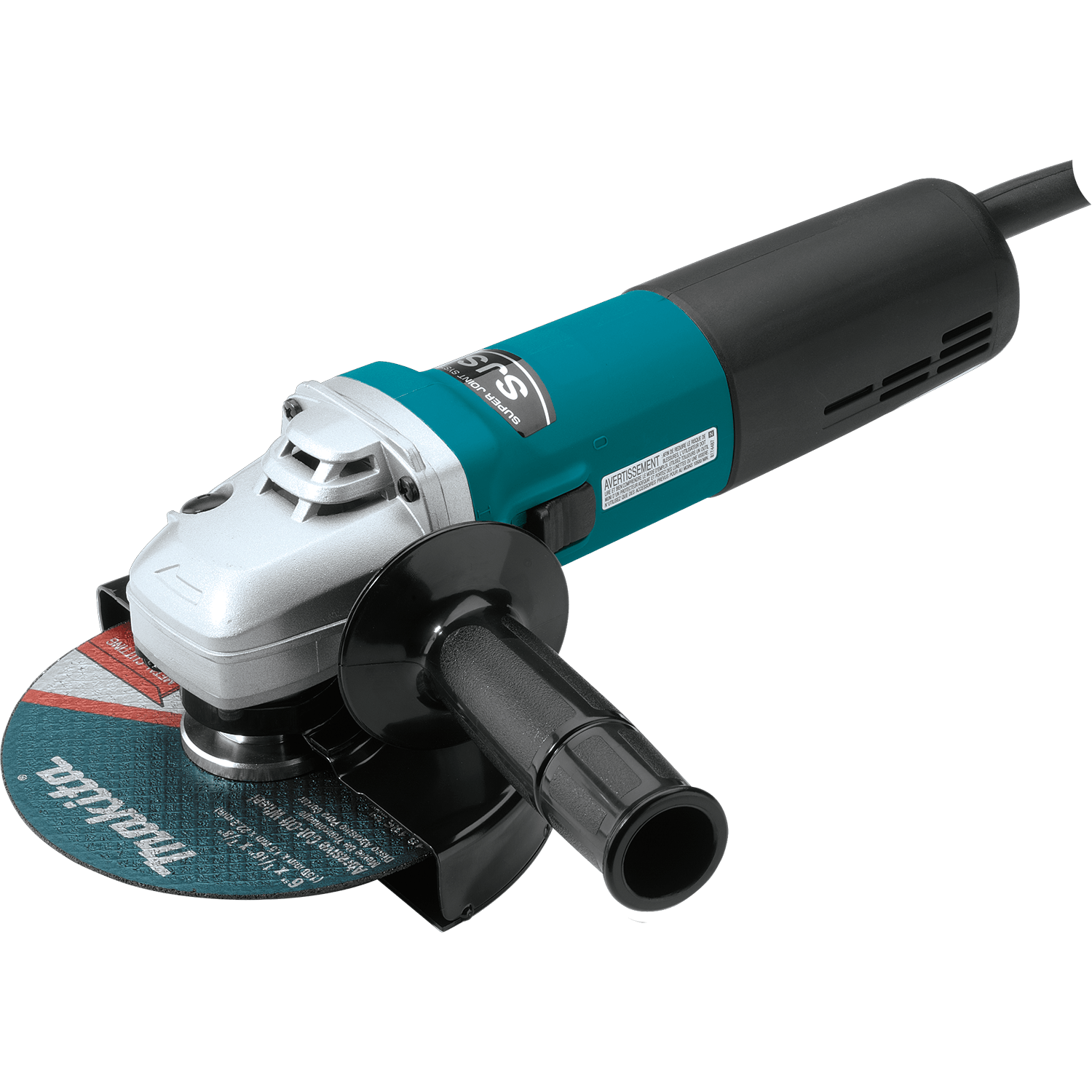

Makita 6" Corded SJS™ High‑Power Cut‑Off/Angle Grinder - 9566CV

Makita’s 6” SJS™ Cut-Off/Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9566CV is engineered with Makita’s innovative SJS™ mechanical clutch system to help protect the gears for longer tool life.

FEATURES

• POWERFUL 13.0 AMP MOTOR: delivers more output and variable (4,000 - 10,000) RPM
• SJS™ TECHNOLOGY: is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
• VARIABLE SPEED CONTROL DIAL: enables user to match the speed to the application
• CONSTANT SPEED CONTROL: automatically applies additional power to the motor to maintain speed under load
• SOFT START: suppresses start-up reaction for smooth start-ups and longer gear life
• ELECTRONIC CURRENT LIMITER: helps protect the motor from overload
• LABYRINTH CONSTRUCTION: seals and protects the motor and bearings from dust and debris for longer tool life
• SPIRAL BEVEL GEARS: for smoother rotations and a more efficient transfer of energy
• ZIG-ZAG VARNISH: protects the armature coil from dust and debris for longer motor life
• ADJUSTABLE SIDE HANDLE: Two position adjustable side handle for operator convenience

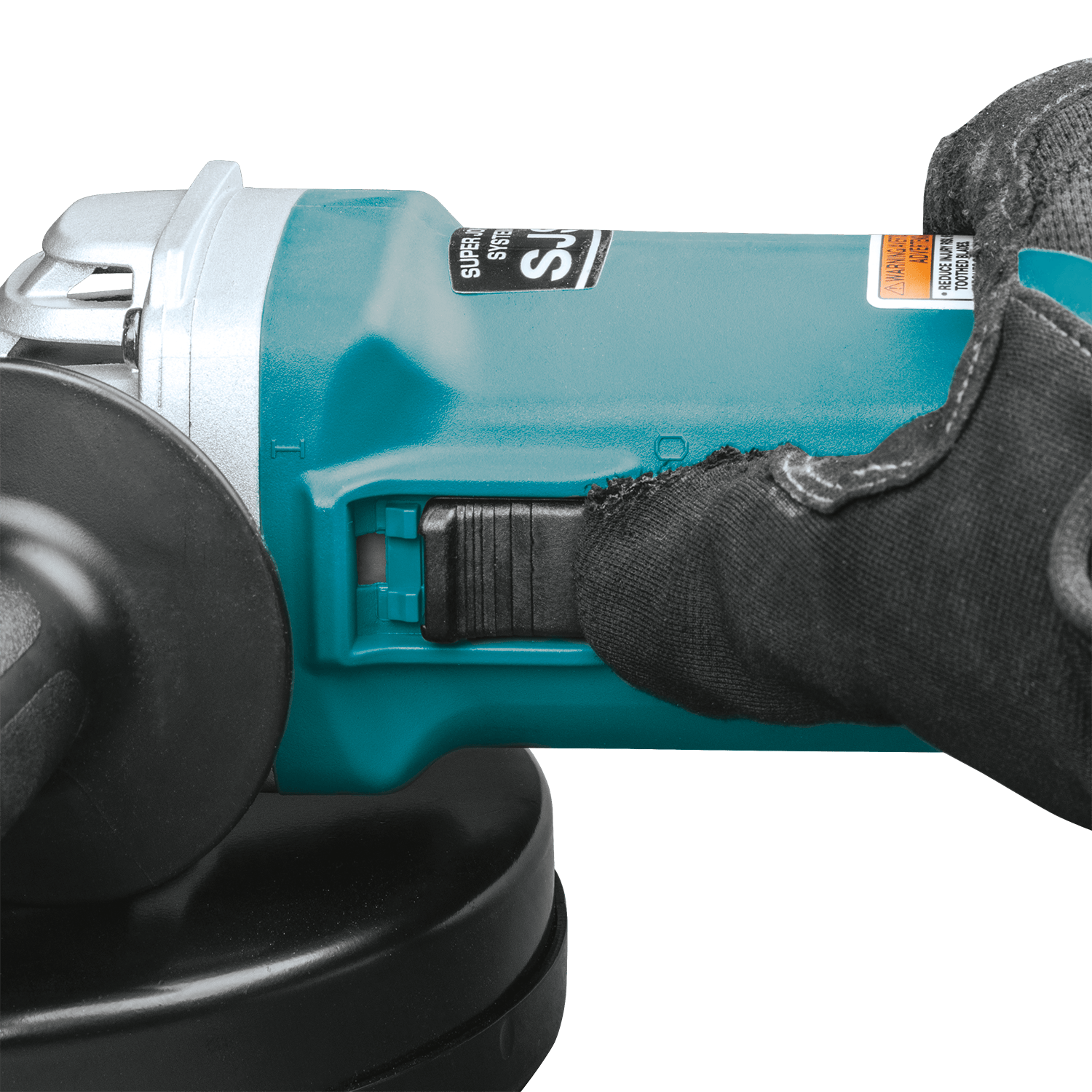

• SLIDE SWITCH WITH LOCK-ON SETTING: for continuous use

SPECIFICATIONS

• WHEEL DIAMETER: 6"
• AMPS: 13
• NO LOAD SPEED (VARIABLE SPEED): 4,000 - 10,000 RPM
• SPINDLE TYPE: 5/8" - 11 UNC
• LOCK-ON SWITCH: Yes
• LOCK-OFF SWITCH: No
• SWITCH TYPE: Body grip/slide
• OVERALL LENGTH: 11-3/4"
• NET WEIGHT: 5.3 lbs.
• VARIABLE SPEED DIAL: Yes
• POWER TYPE: Corded
• BIND-UP CONTROL: Yes

INCLUDES

• (1) 6" x 7/8" x 1/16" Super Thin Cut-off Wheel, Metal (724117-A)
• (1) 6" Cut-Off Wheel Guard (122912-8)
• (1) Lock Nut (224574-9)
• (1) Lock Nut Wrench (782412-6)
• (1) Inner Flange (224390-9)
• (1) Side Handle (153489-2)
