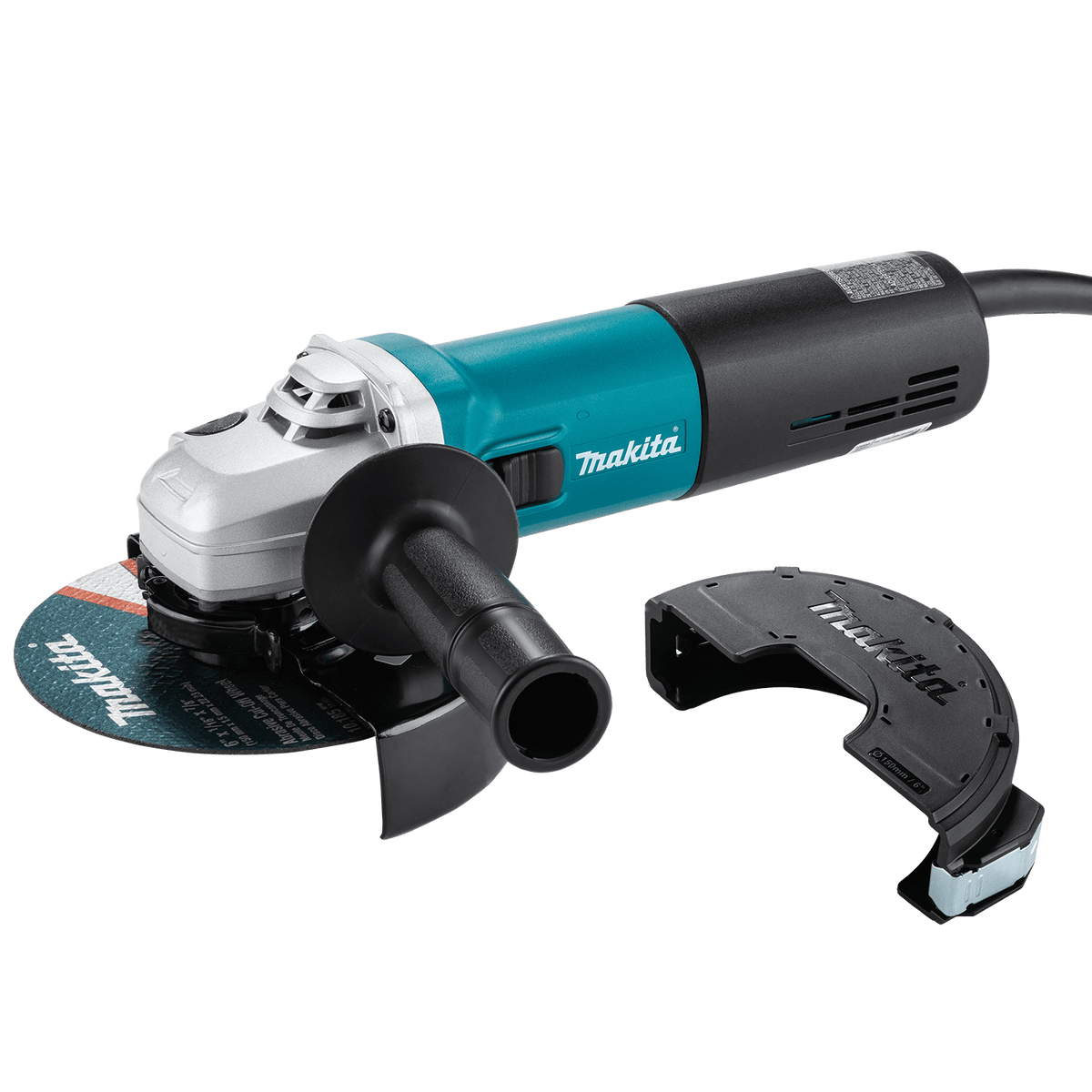

Makita 9566CVR 6-inch 13-amp cut-off angle grinder featuring variable speed control and an attachable wheel guard cover.

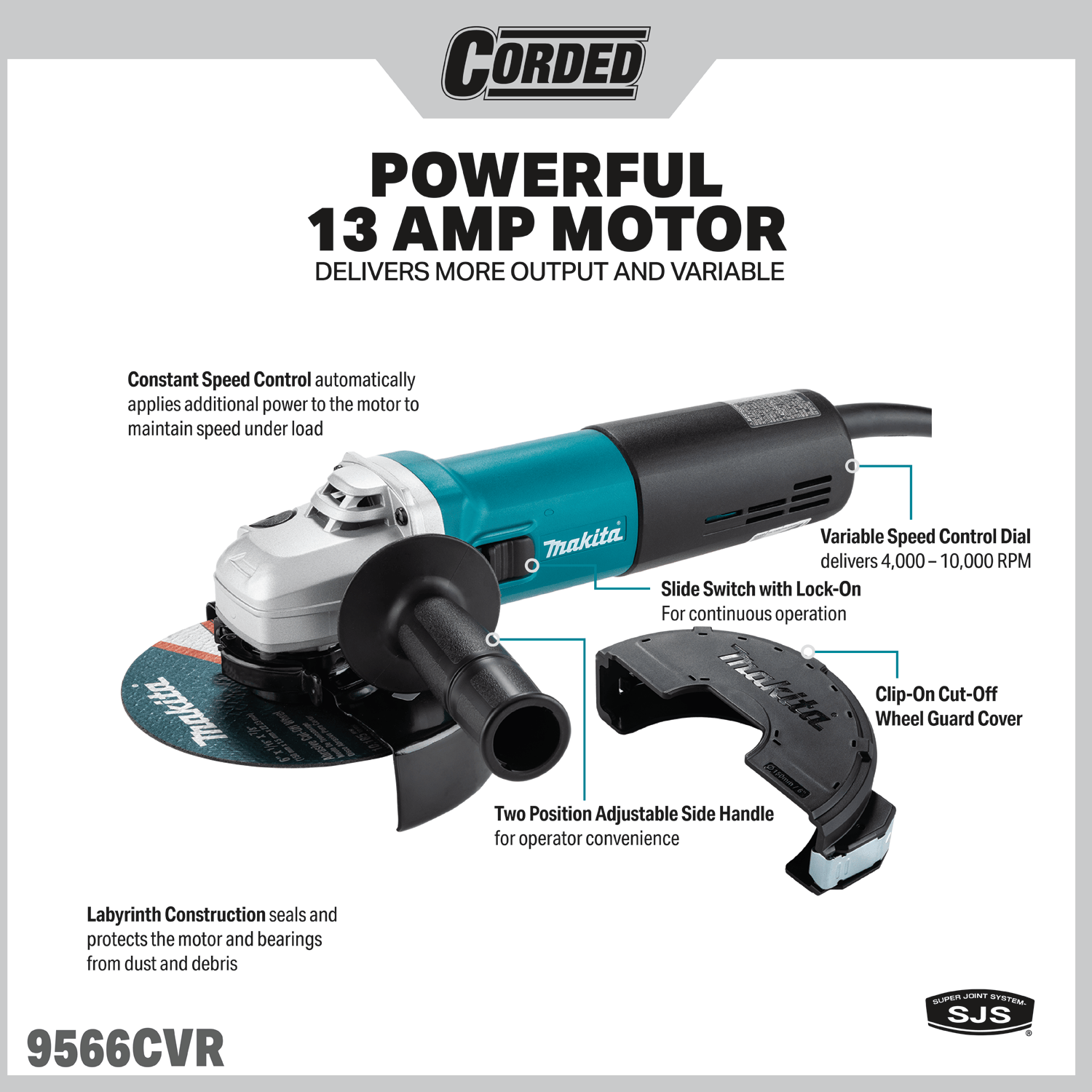

Diagram highlighting the 13-amp motor, constant speed control, SJS clutch, and variable speed dial of the Makita angle grinder.

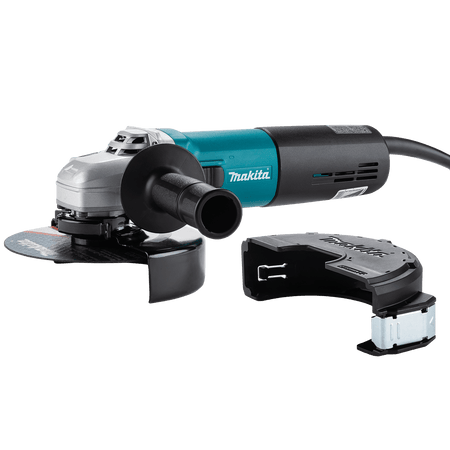

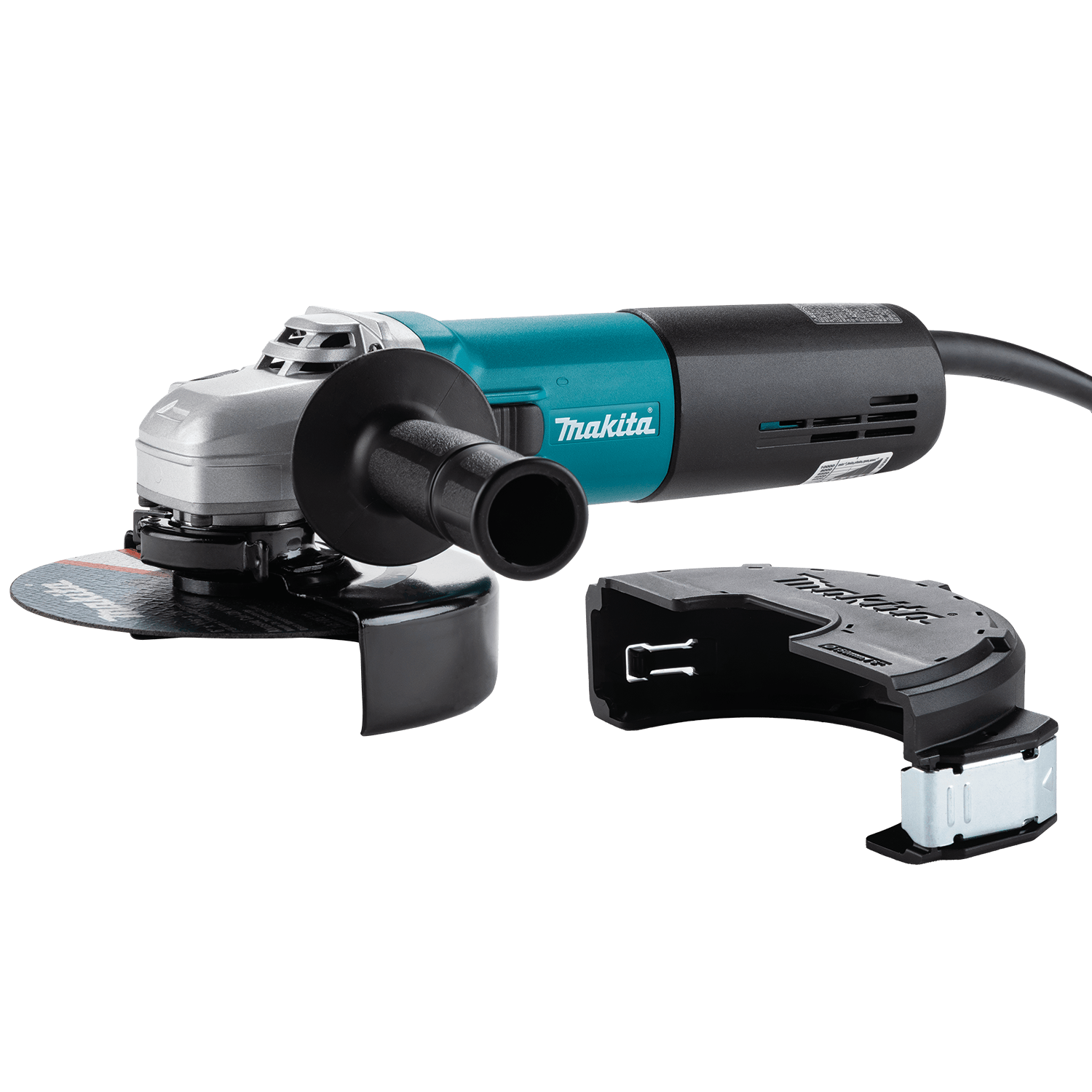

Makita angle grinder displayed with its removable clip-on cut-off wheel guard cover for safe metal fabrication tasks.

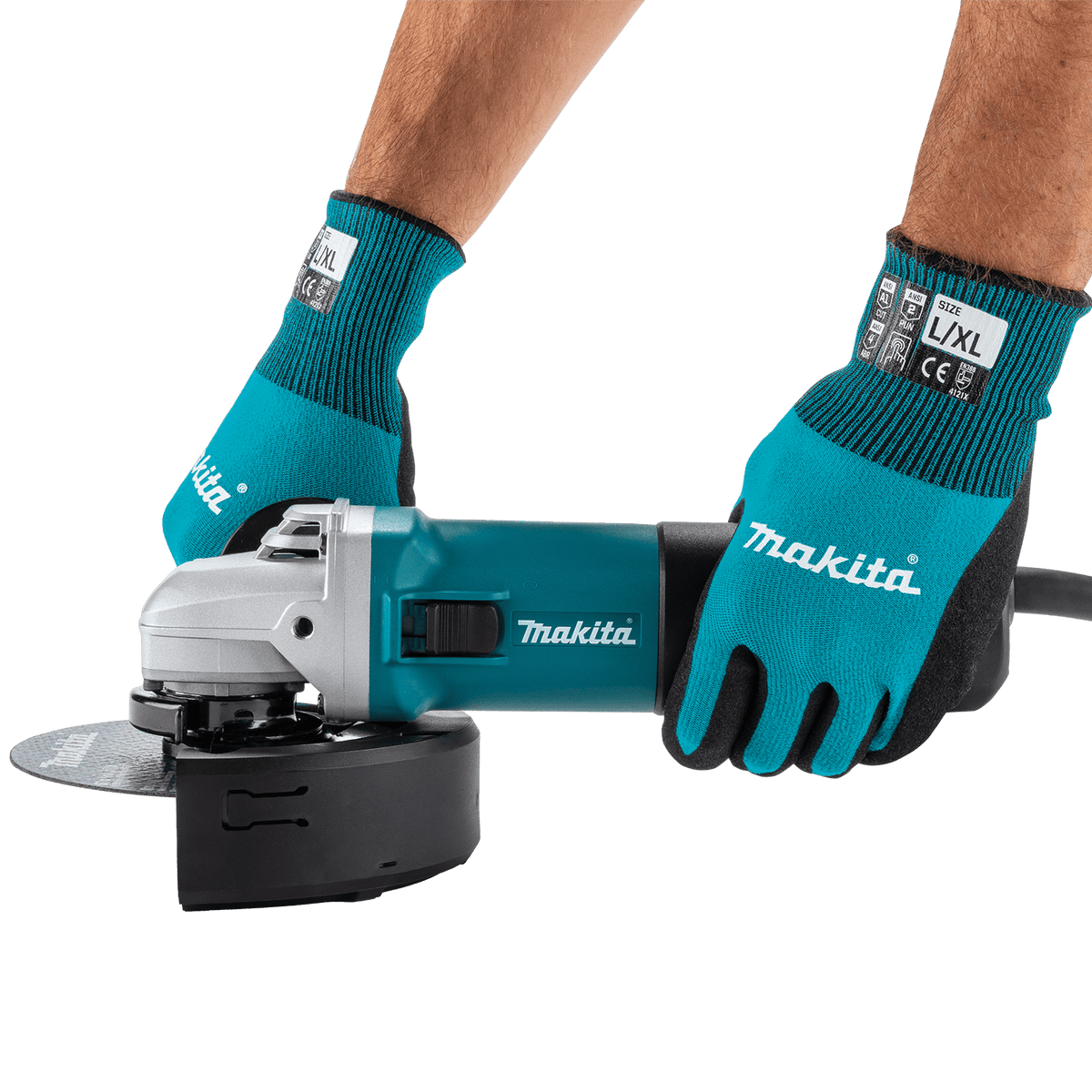

Operator wearing protective gloves gripping the Makita 9566CVR angle grinder during heavy-duty cutting operations.

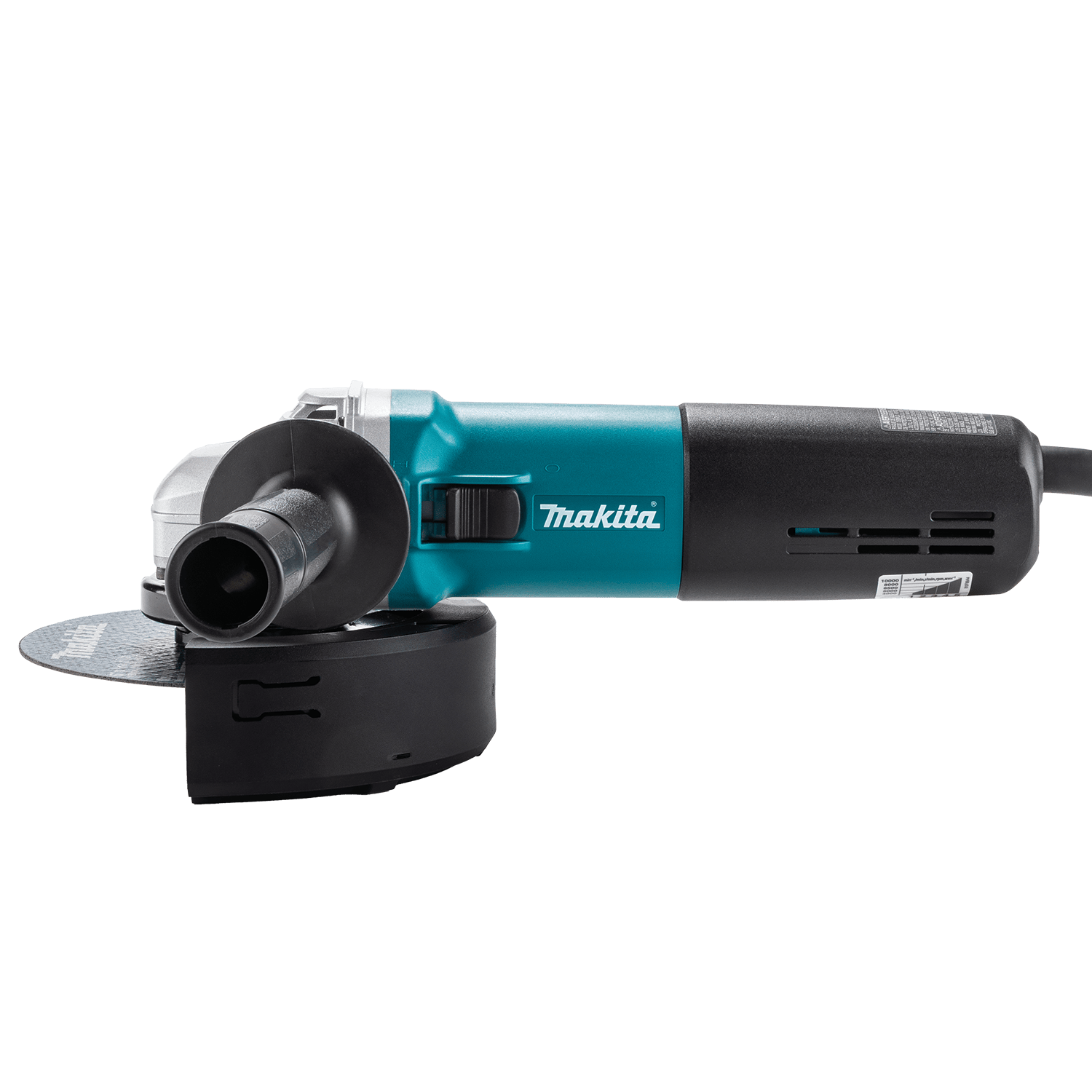

Side profile of the Makita 6-inch angle grinder showing the ergonomic housing, side handle, and protective wheel guard.

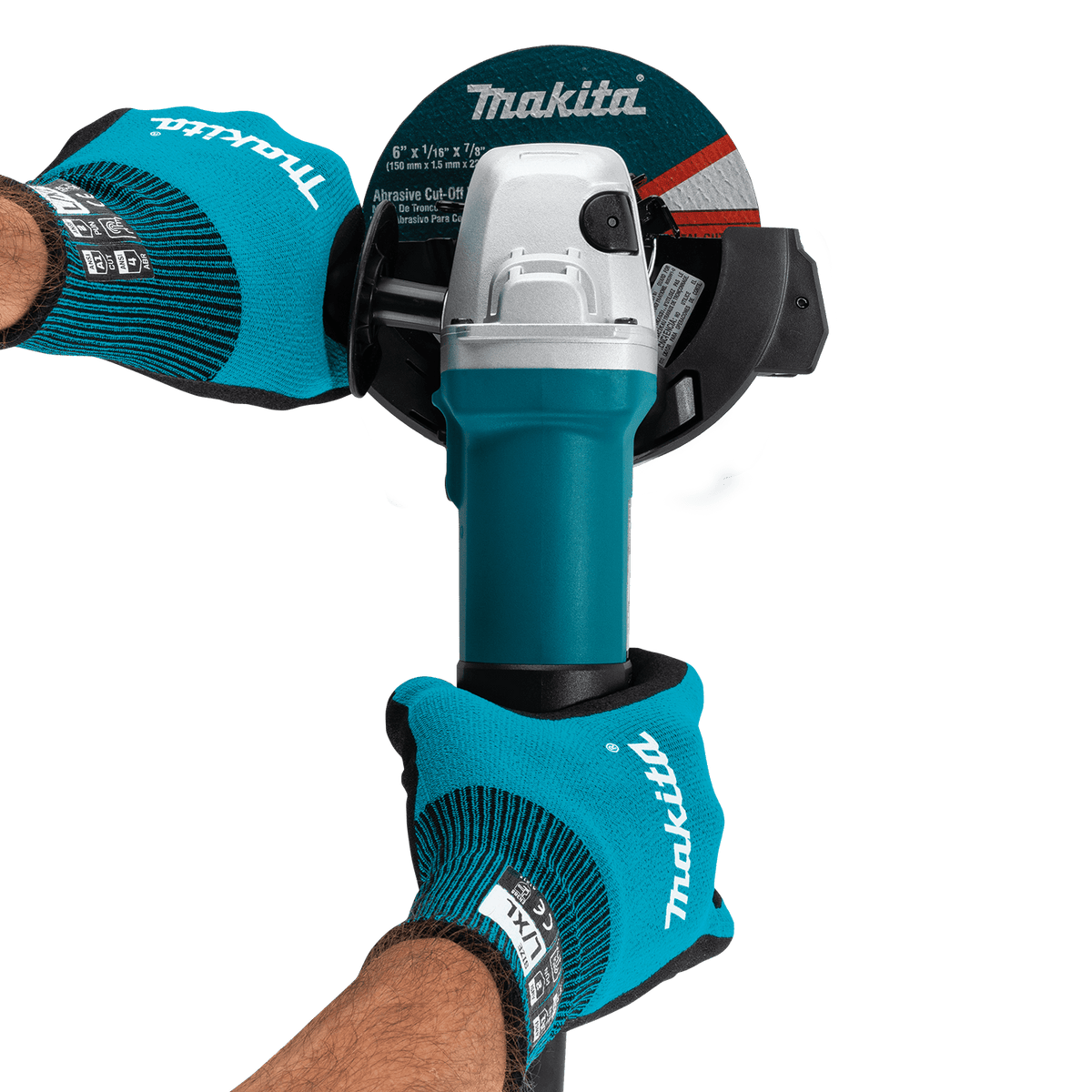

Front view of the Makita angle grinder demonstrating the clear cutting line and secure two-handed operator grip.

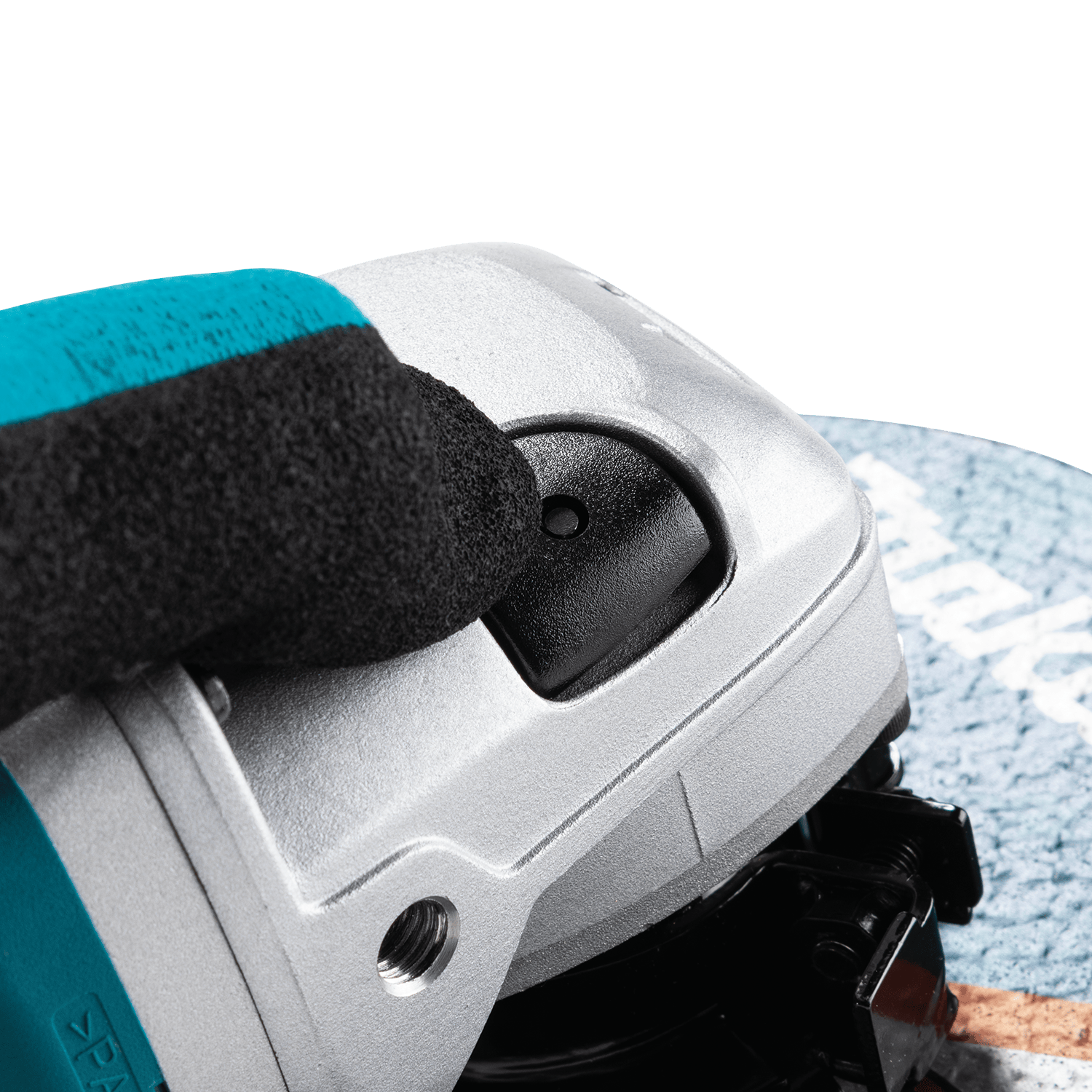

Close-up of the spindle lock button on the Makita angle grinder head for secure, efficient accessory changes.

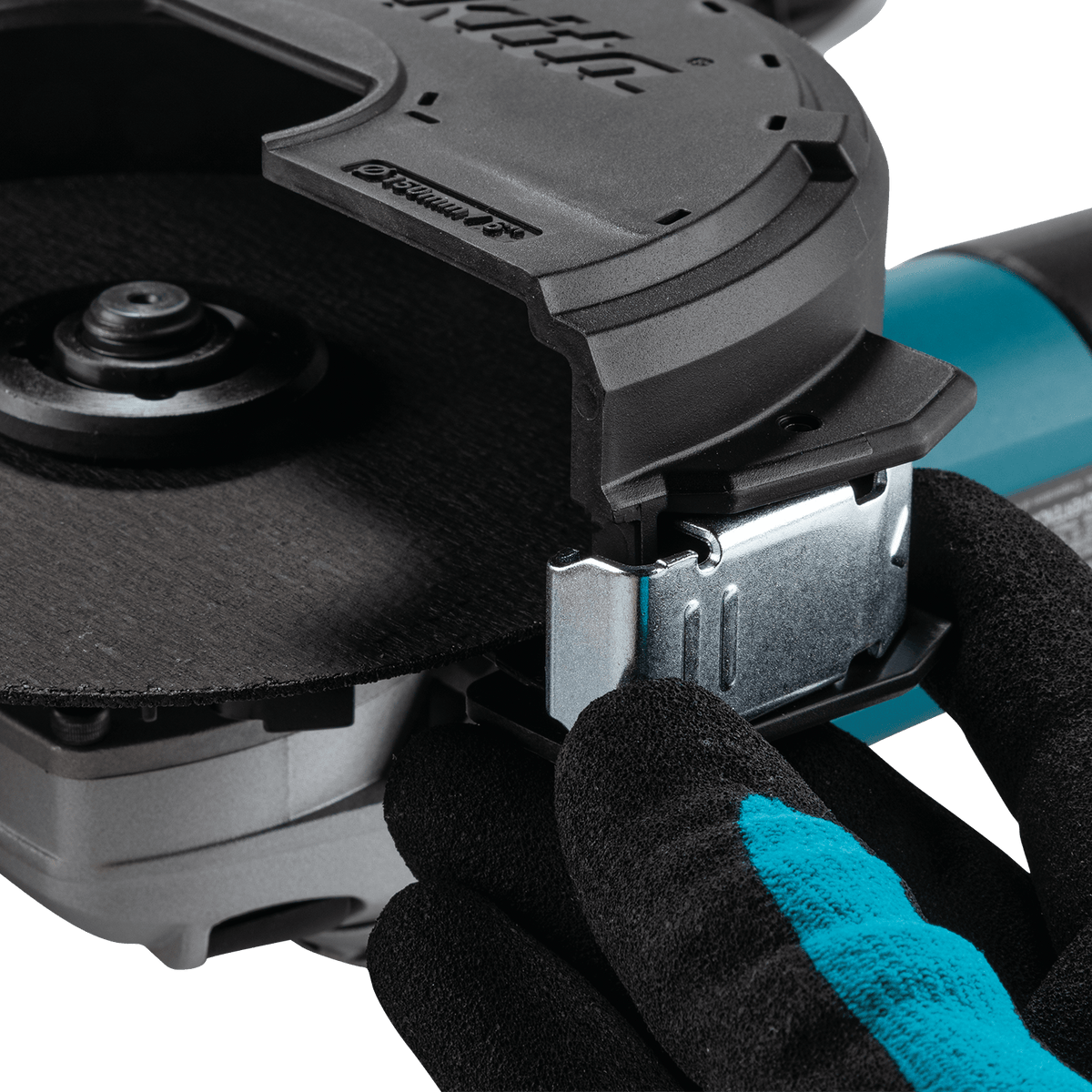

Close-up of the secure locking latch securing the clip-on cut-off wheel guard cover onto the Makita grinder housing.

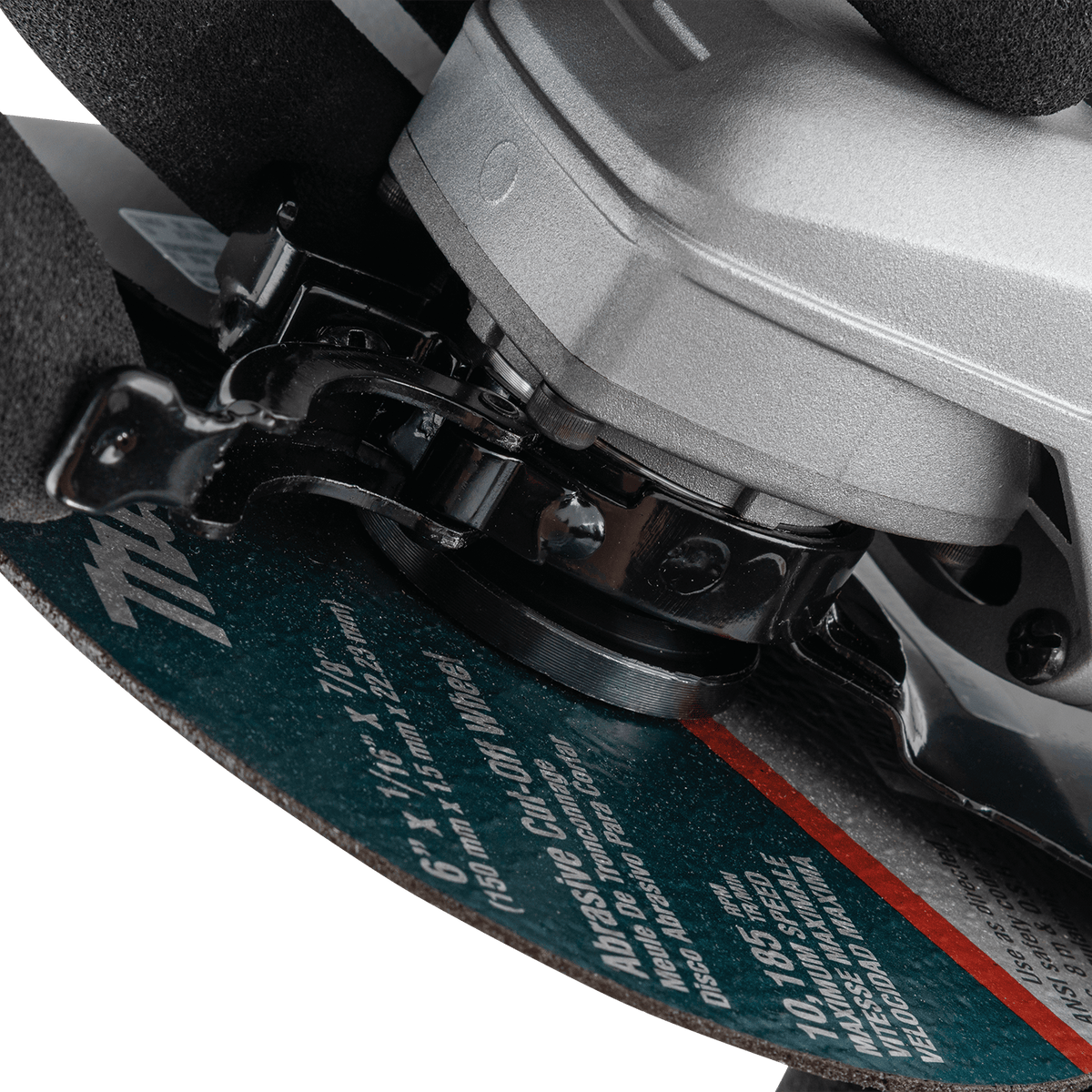

Close-up view of the SJS mechanical clutch and drive system on the Makita grinder protecting gears from wheel binding.

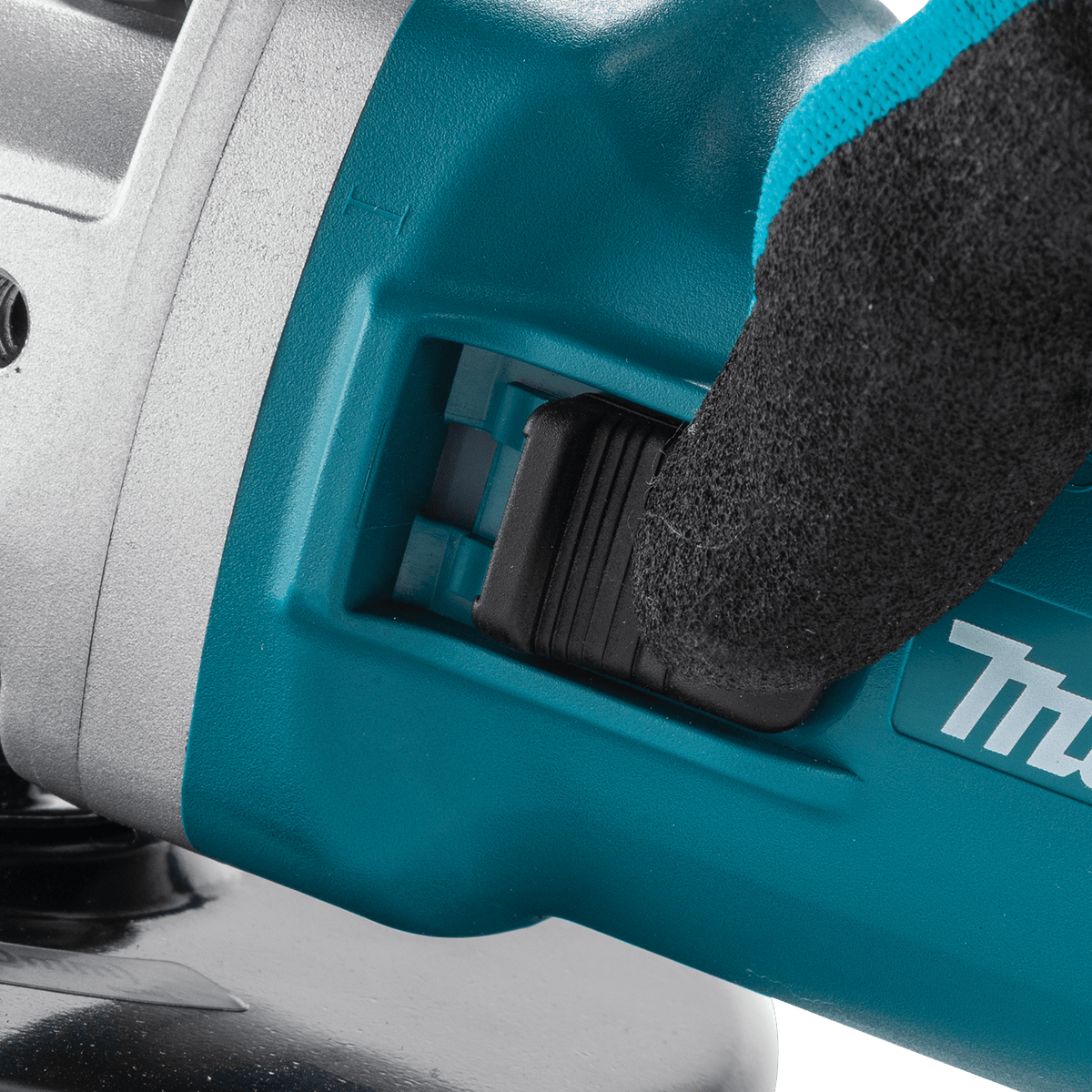

Close-up of the slide switch with lock-on feature on the Makita angle grinder for continuous, fatigue-free operation.

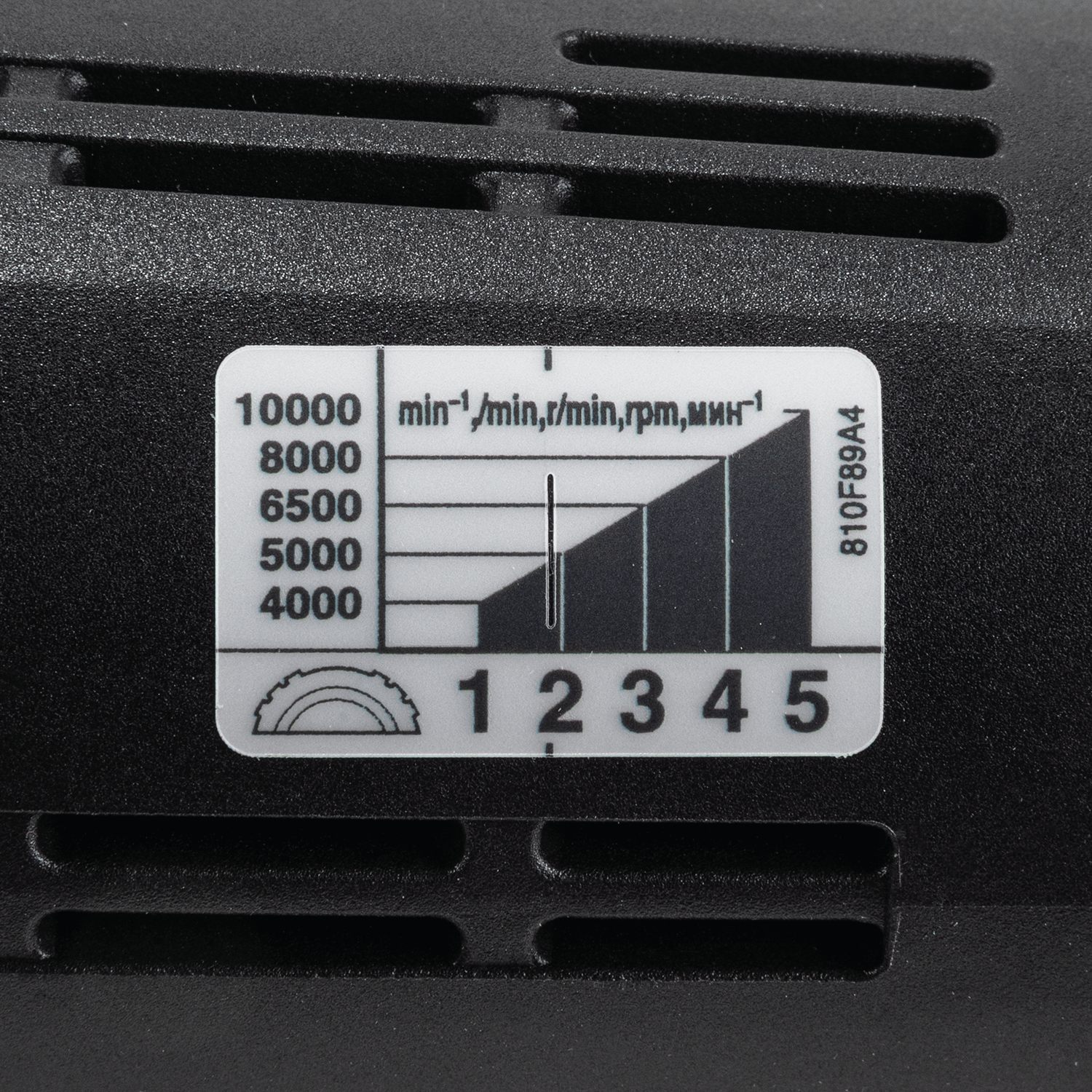

Makita speed chart diagram detailing the 5-stage variable speed dial settings from 4,000 to 10,000 RPM.

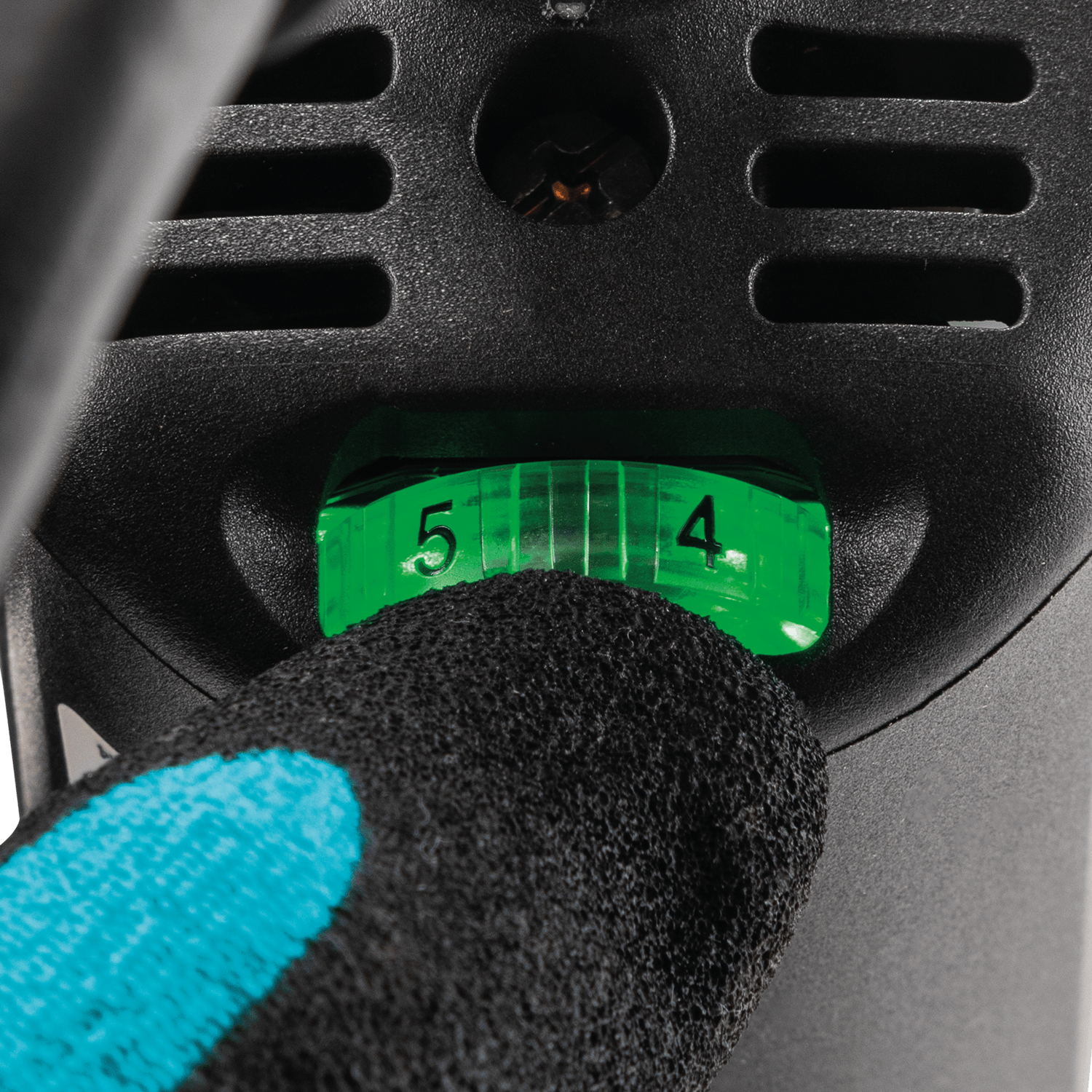

Close-up of the variable speed control dial on the Makita grinder adjusted to setting 5 for maximum RPM output.
Contractor wearing safety gear using the Makita angle grinder to cut metal tubing, generating a heavy spray of sparks.
Side angle of a tradesperson cutting thick steel stock with the Makita 9566CVR angle grinder in a workshop.
Close-up view of the Makita grinder cutting a square steel tube cleanly while producing bright amber sparks.
Metal fabricator wearing a protective face shield operating the Makita cut-off grinder on a structural steel workpiece.

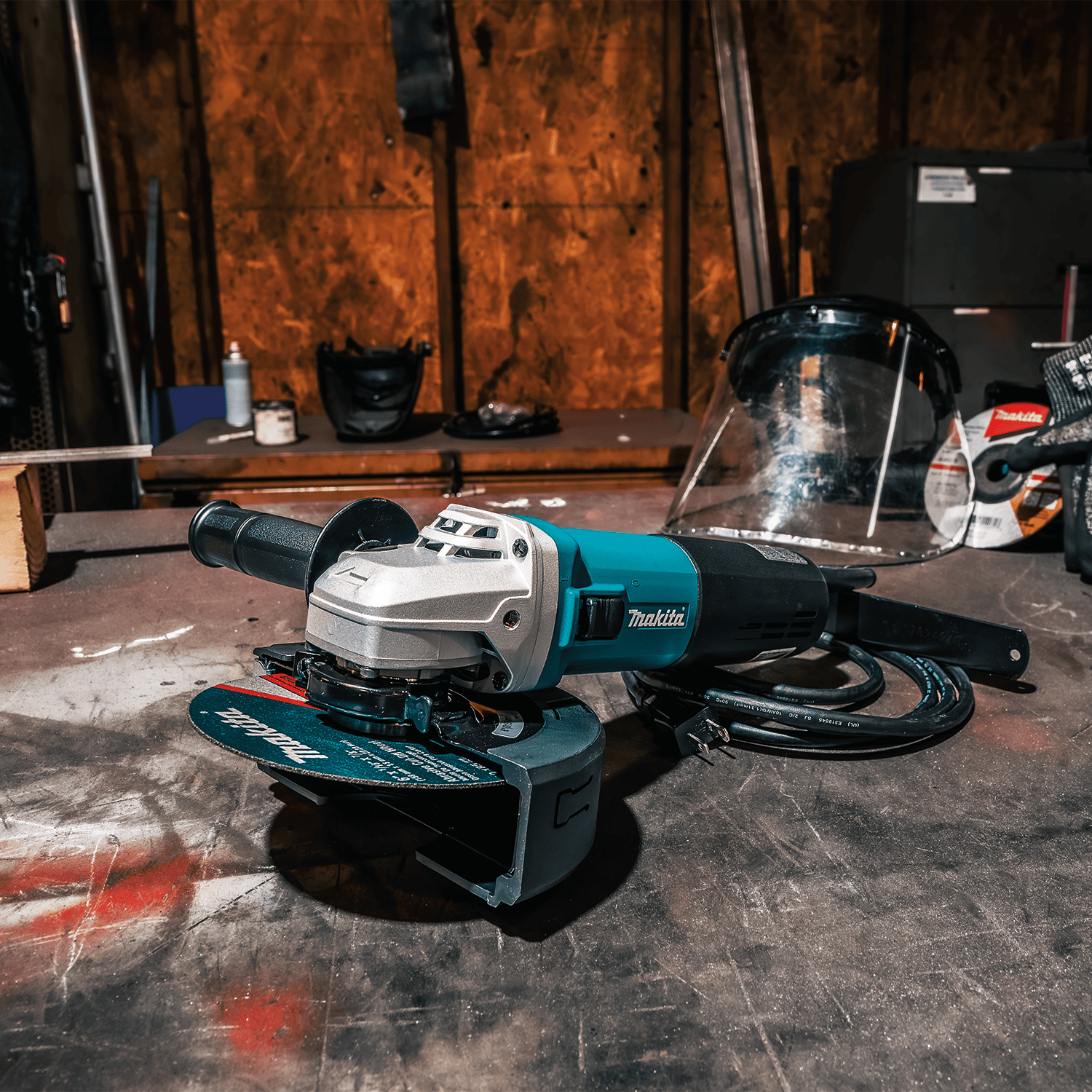

Makita 9566CVR angle grinder resting on a workshop welding table alongside safety gear and a cut-off wheel.
Makita 9566CVR 6-inch 13-amp cut-off angle grinder featuring variable speed control and an attachable wheel guard cover.
Diagram highlighting the 13-amp motor, constant speed control, SJS clutch, and variable speed dial of the Makita angle grinder.
Makita angle grinder displayed with its removable clip-on cut-off wheel guard cover for safe metal fabrication tasks.
Operator wearing protective gloves gripping the Makita 9566CVR angle grinder during heavy-duty cutting operations.
Side profile of the Makita 6-inch angle grinder showing the ergonomic housing, side handle, and protective wheel guard.
Front view of the Makita angle grinder demonstrating the clear cutting line and secure two-handed operator grip.
Close-up of the spindle lock button on the Makita angle grinder head for secure, efficient accessory changes.
Close-up of the secure locking latch securing the clip-on cut-off wheel guard cover onto the Makita grinder housing.
Close-up view of the SJS mechanical clutch and drive system on the Makita grinder protecting gears from wheel binding.
Close-up of the slide switch with lock-on feature on the Makita angle grinder for continuous, fatigue-free operation.
Makita speed chart diagram detailing the 5-stage variable speed dial settings from 4,000 to 10,000 RPM.
Close-up of the variable speed control dial on the Makita grinder adjusted to setting 5 for maximum RPM output.
Contractor wearing safety gear using the Makita angle grinder to cut metal tubing, generating a heavy spray of sparks.
Side angle of a tradesperson cutting thick steel stock with the Makita 9566CVR angle grinder in a workshop.
Close-up view of the Makita grinder cutting a square steel tube cleanly while producing bright amber sparks.
Metal fabricator wearing a protective face shield operating the Makita cut-off grinder on a structural steel workpiece.
Makita 9566CVR angle grinder resting on a workshop welding table alongside safety gear and a cut-off wheel.
Makita

Makita Angle Grinder 9566CVR 6 Inch 13 Amp (4000 to 10000 RPM SJS Clutch Variable Speed Metal Cutting Shaping Fabrication Disc Unit)

In stock
SKU: 9566CVR
$249.00 USD

Description

Makita Logo Logout

Makita 9566CVR 6" 13-Amp SJS Variable Speed Cut-Off Angle Grinder

The Makita 9566CVR 6-inch 13-amp variable speed cut-off angle grinder cuts, grinds, shapes, and finishes structural steel plates, iron pipes, and concrete weld seams across heavy industrial workshops. Driven by a powerful 13.0-amp motor featuring a 5-stage variable speed dial delivering 4,000 to 10,000 RPM with constant speed control, this heavy-duty grinder integrates an SJS™ mechanical clutch system that disengages gears if the wheel binds to protect internal components. Outfitted with soft start, anti-restart protection, labyrinth dust seals, spiral bevel gears, and a lightweight 5.1-pound frame, it equips professional fabricators and metalworkers with smooth, high-torque cutting performance.

Best Used For:

  • Structural Steel Cutting and Fabrication: Slicing through heavy steel stock, rebar, and metal tubing using the included super-thin cut-off wheel and clip-on guard.
  • Weld Grinding and Metal Surface Prep: Smoothing out structural steel welds, removing mill scale, and blending metal joints under constant load speed.
  • Heavy Masonry and Concrete Surface Chasing: Cutting channels and grinding concrete surfaces safely with optimized variable speed dial control.

Key Performance & Safety Features

  • SJS™ Mechanical Clutch System: Advanced drive system protects motor and gears by disengaging smoothly if grinding wheels experience unexpected binding.
  • 5-Stage Variable Speed Control: Dial adjusts operational velocity from 4,000 to 10,000 RPM to match exact material grinding and cutting requirements.
  • Constant Speed Control Technology: Automatically applies additional electrical power to the motor under heavy loads to maintain RPM consistency.
  • Anti-Restart Protection Switch: Engineered safety feature prevents accidental motor start-up when power is restored while the switch is locked ON.
  • Labyrinth Dust Construction Seals: Advanced labyrinth channeling seals out abrasive metallic dust and bearing debris to maximize operational tool longevity.

What's Included

  • (1) Makita 9566CVR 6" SJS™ High-Power Cut-Off / Angle Grinder
  • (1) 6" x 7/8" x 1/16" Super Thin Metal Cut-Off Wheel (724117-A)
  • (1) 6" Tool-Less Wheel Guard (Tall) (123074-5)
  • (1) 6" Clip-On Cut-Off Wheel Guard Cover (191V57-5)
  • (1) Inner Flange (224390-9)
  • (1) Lock Nut (224574-9)
  • (1) Lock Nut Spanner Wrench (782412-6)
  • (1) Two-Position Side Handle (153489-2)

Technical Specifications

Manufacturer Makita U.S.A. Inc.
Model Number 9566CVR
Product Classification 6" SJS™ Variable Speed Cut-Off Angle Grinder
Grinding Wheel Diameter Size 6.00 inches (152.4 mm Wheel Capacity)
Motor Amperage Rating 13.0 Amps High-Output Motor
Electrical Input Voltage 120V AC Standard Household Power
Variable Speed Range 4,000 to 10,000 No-Load RPM (5-Stage Dial)
Spindle Thread Size Type 5/8 in - 11 UNC Standard Spindle
Switch Control Mechanism Body Grip Slide Switch with Lock-On
Mechanical Clutch System SJS™ Bind-Up Protective Drive Clutch
Overall Tool Length 11.75 inches (11-3/4 in / 29.85 cm)
Net Grinder Body Weight 5.10 lbs (2.31 kg Without Accessories)
Target Substrates Structural Steel, Iron Pipe, Rebar, Welds, & Masonry

Pro-Tip: When engaging in cutting applications with the 9566CVR, always snap the included clip-on wheel guard cover over the tool-less guard; this provides complete spark enclosure and complies with safety standards for abrasive disc cutting.
