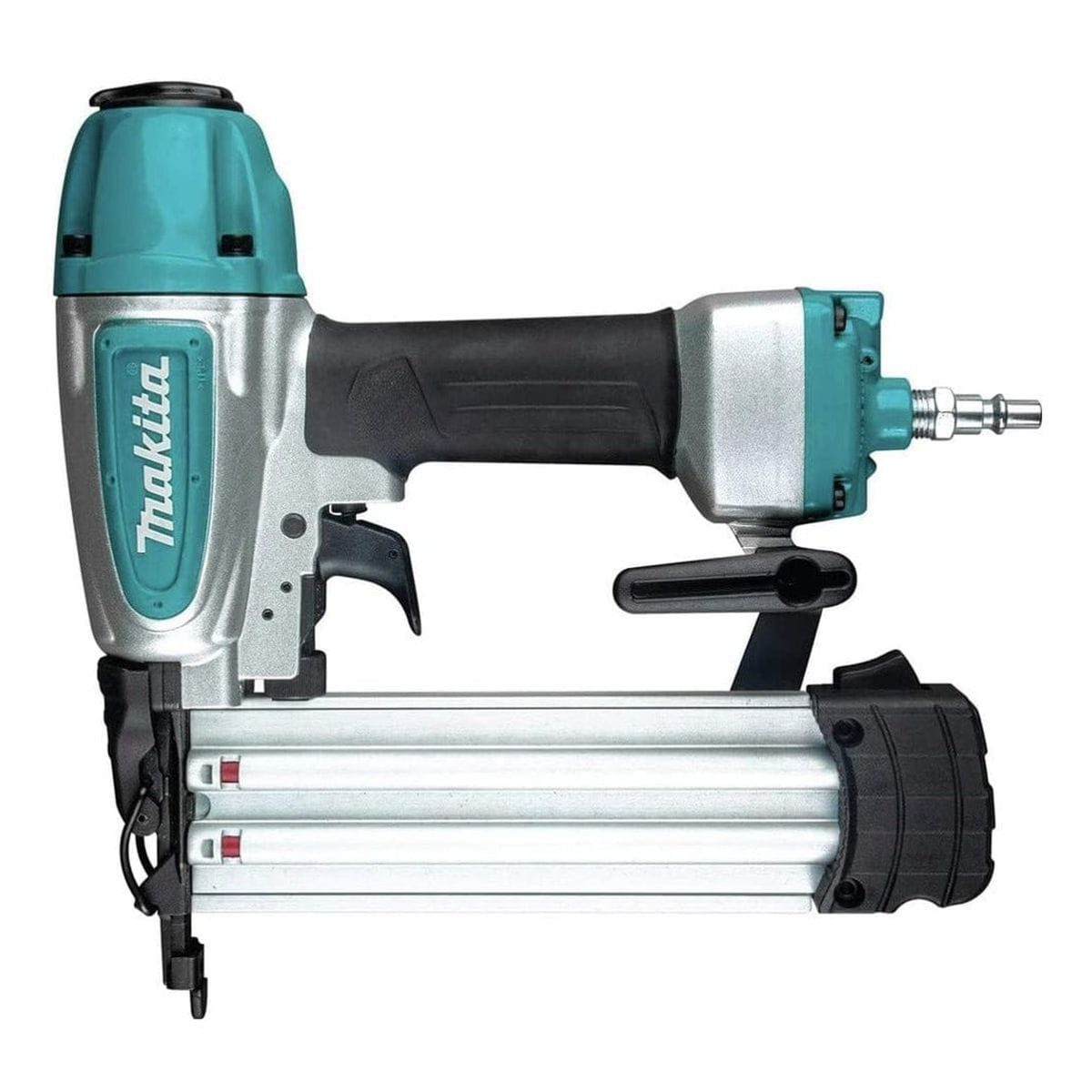

A full side profile studio shot of the Makita AF506 18-gauge brad nailer.
A feature callout diagram of the Makita AF506 brad nailer, highlighting its exhaust port, non-marring nose, tool-less depth adjustment, and built-in air duster.
A studio shot of the Makita AF506 brad nailer next to its teal Makita-branded hard carrying case.
A three-quarter angle studio shot of the Makita AF506 18-gauge brad nailer.
A close-up of a hand adjusting the 360-degree multi-directional exhaust port on the cap of the Makita AF506.
A detailed close-up of the reversible belt hook attached to the Makita AF506 nailer.
A detailed close-up of the narrow nose and tool-free jam release latch on the Makita AF506 brad nailer.
A close-up of a hand pressing the built-in air duster button on the back of the Makita AF506 nailer's handle.
A close-up of a hand opening the tool-free jam release latch on the nose of the Makita AF506 brad nailer.
A detailed close-up of the "tool-less" depth adjustment dial on the side of the Makita AF506 brad nailer.
A marketing graphic, labeled "ACCURACY," showing a close-up of the nailer's nose, stating "Narrow nose design allows easy nailing access in confined areas".
A full side profile studio shot of the Makita AF506 18-gauge brad nailer.
A full side profile studio shot of the Makita AF506 18-gauge brad nailer.
A feature callout diagram of the Makita AF506 brad nailer, highlighting its exhaust port, non-marring nose, tool-less depth adjustment, and built-in air duster.
A studio shot of the Makita AF506 brad nailer next to its teal Makita-branded hard carrying case.
A three-quarter angle studio shot of the Makita AF506 18-gauge brad nailer.
A close-up of a hand adjusting the 360-degree multi-directional exhaust port on the cap of the Makita AF506.
A detailed close-up of the reversible belt hook attached to the Makita AF506 nailer.
A detailed close-up of the narrow nose and tool-free jam release latch on the Makita AF506 brad nailer.
A close-up of a hand pressing the built-in air duster button on the back of the Makita AF506 nailer's handle.
A close-up of a hand opening the tool-free jam release latch on the nose of the Makita AF506 brad nailer.
A detailed close-up of the "tool-less" depth adjustment dial on the side of the Makita AF506 brad nailer.
A marketing graphic, labeled "ACCURACY," showing a close-up of the nailer's nose, stating "Narrow nose design allows easy nailing access in confined areas".
A full side profile studio shot of the Makita AF506 18-gauge brad nailer.
Makita

Makita AF506 Pneumatic 18 Gauge 2 Inch Brad Nailer Kit with Tool Less Depth Adjustment Narrow Nose and Hard Case for Finish Woodworking

In stock
SKU: AF506
$134.00 USD

Description

Makita Logo Logout

Achieve Professional Carpentry Results with the Makita AF506 Pneumatic Brad Nailer

The Makita AF506 18 Gauge 2-Inch Brad Nailer is the perfect pneumatic tool for a wide variety of finish carpentry and woodworking applications. Designed with a durable, lightweight aluminum body, magazine, and cylinder, this powerful nail gun weighs only 2.9 lbs, dramatically reducing user fatigue during all-day installations. Operating between 70 and 120 PSI, the AF506 effortlessly drives a full range of 18 gauge brad nails from 5/8-inch up to 2 inches into both hard and soft woods. Whether you are installing baseboards, intricate crown molding, flooring, or assembling cabinetry, this tool provides the consistent driving power you need for a flawless finish.

Engineered for precision and convenience, the Makita AF506 features an ultra-narrow, cast and machined nose piece that allows easy nailing access in confined areas. The tool-less depth adjustment dial lets you quickly set the perfect countersink depth for any application, while the non-marring rubber nose and housing bumpers protect delicate wood surfaces from scratches. Additional premium features include a built-in air duster to clear your workspace, a 360-degree rotating exhaust port, a dual nail reload indicator window to prevent dry fires, and a tool-less easy-to-clear nose for rapid jam extraction. Complete with a hard tool case, this pneumatic brad nailer kit is essential for any professional trim carpenter.

Key Features

  • Powerful pneumatic motor drives a range of 18 gauge brad nails from 5/8 inch to 2 inches
  • Durable, lightweight aluminum body, magazine, and cylinder construction; weighs only 2.9 lbs
  • Ultra-narrow nose design allows easy nailing access in tight corners and confined areas
  • Built-in air duster provides convenient air flow to clear your work surface of dust and debris
  • Easy-to-use "tool-less" depth adjustment dial for a wide variety of finish applications
  • Cast and machined nose piece ensures precise contact with the workpiece
  • "Tool-less" easy-to-clear nose design allows for fast and easy nail extraction if a jam occurs
  • Non-marring rubber nose and housing bumpers protect wood surfaces from scratches and damage
  • Side-loading magazine holds up to 100 brad nails for maximum job site efficiency
  • Dual nail reload indicator window alerts the user when to reload nails, avoiding blank drives
  • Multi-directional exhaust port rotates 360 degrees to direct air away from the operator
  • Reversible belt hook allows the tool to remain conveniently close during large projects
  • Integrated rubber soft grip for enhanced operator comfort and reduced vibration
  • Ideal for trim work, baseboard and crown molding installation, flooring, and cabinet building

What's Included

  • (1) Pneumatic Nailer Oil
  • (2) No-Mar Tips
  • (1) Air Fitting
  • (1) Safety Glasses
  • (1) Hard Tool Case

Specifications

Power Type Pneumatic (Air Powered)
Fastening Category Brad Nailer
Nail Size Compatibility 5/8 Inch to 2 Inches (18 Gauge)
Maximum Magazine Capacity 100 Brad Nails
Operating Air Pressure 70 - 120 PSI
Air Consumption 2 SCFM
Dimensions (LxWxH) 9-7/8 x 2-3/4 x 10-1/8 Inches
Net Weight 2.9 lbs.
Inlet Size 1/4 Inch NPT
Packaged Depth 2.76 Inches
Packaged Height 10.08 Inches
Packaged Width 9.84 Inches
Shipping Weight 7.5 lbs.

Pro-Tip

Pro-Tip: When firing 2-inch brad nails into dense hardwoods (like oak or maple), utilize the tool-less depth adjustment dial to increase the driving depth slightly. Additionally, ensure your air compressor is set closer to the 120 PSI maximum. This combination ensures the brad nail head sinks cleanly below the surface of the hard wood, leaving a perfect hole for wood putty without having to follow up with a hammer and nail set.
