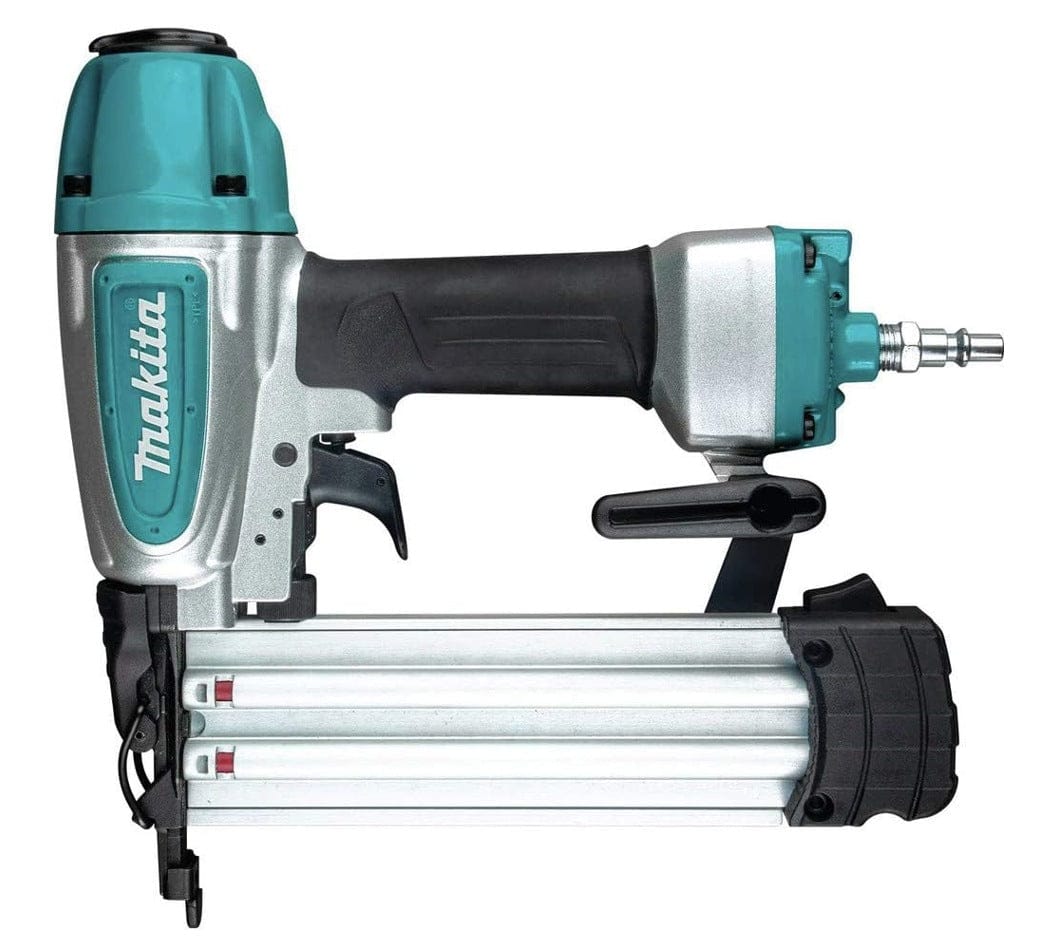

A full side profile studio shot of the Makita AF506 18-gauge brad nailer.

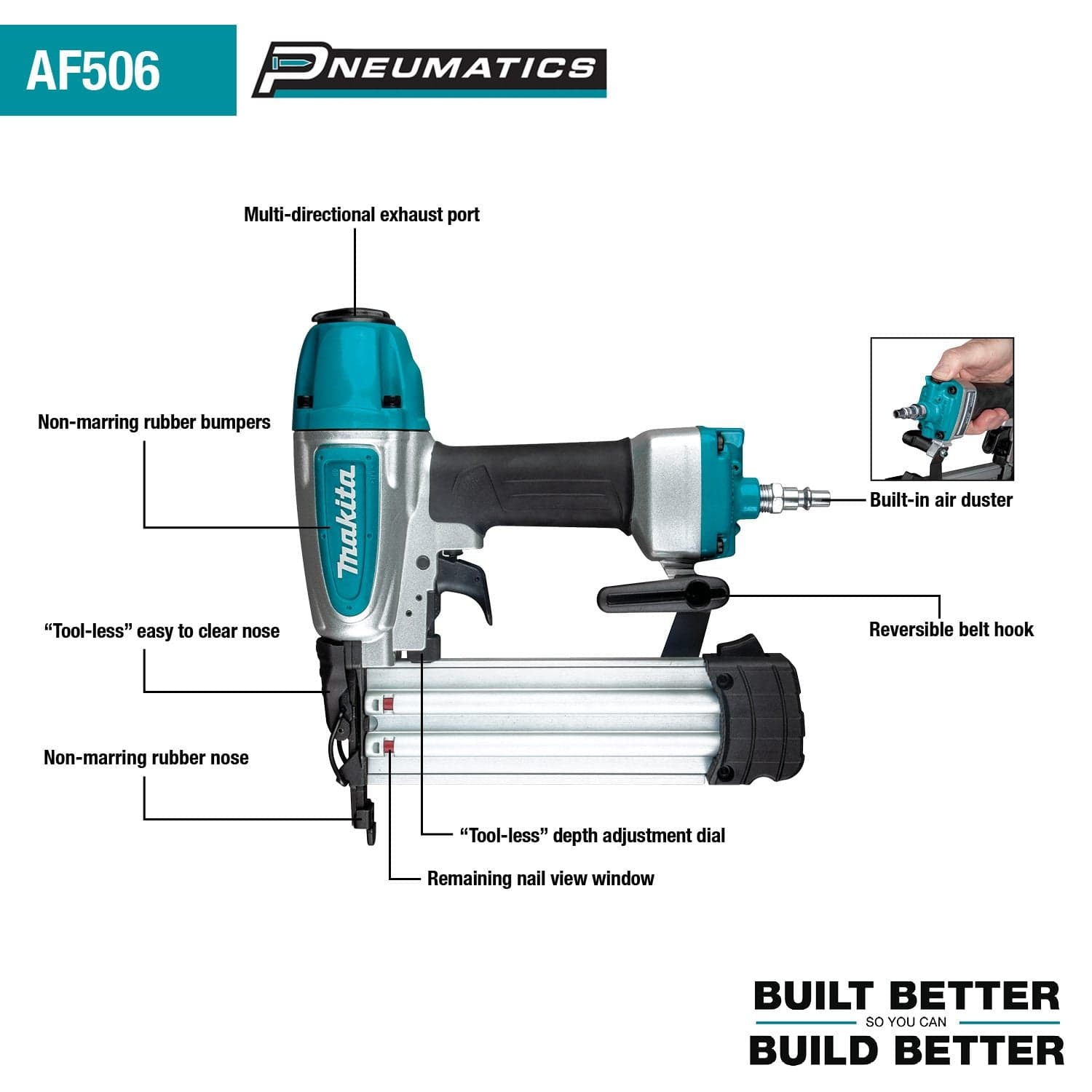

A feature callout diagram of the Makita AF506 brad nailer, highlighting its exhaust port, non-marring nose, tool-less depth adjustment, and built-in air duster.
A studio shot of the Makita AF506 brad nailer next to its teal Makita-branded hard carrying case.

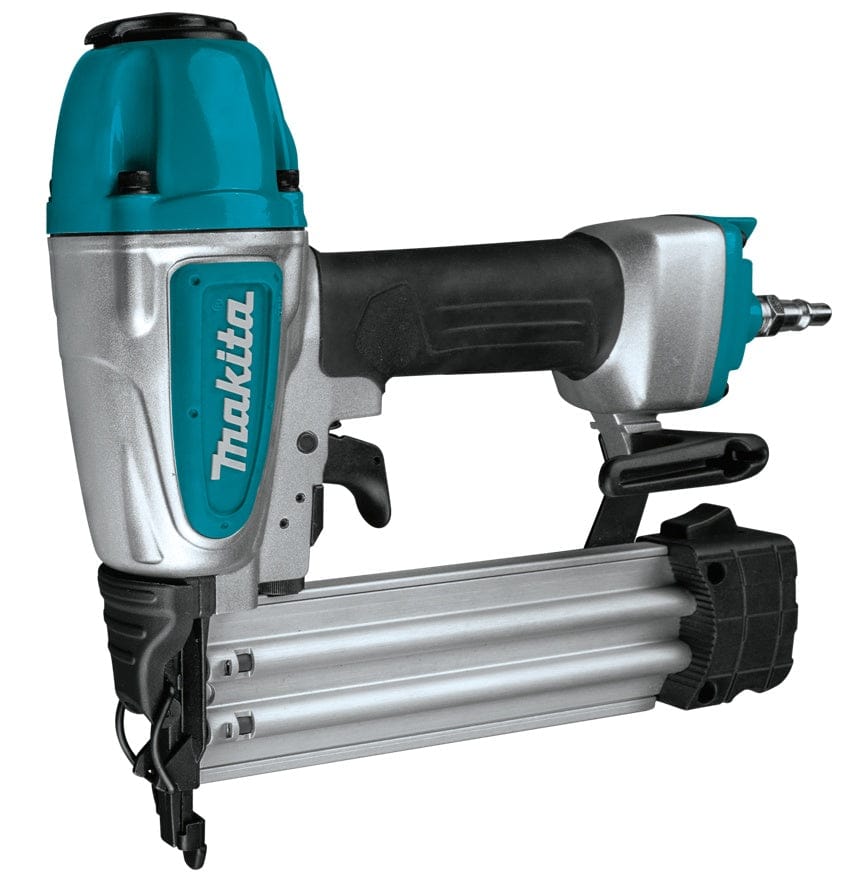

A three-quarter angle studio shot of the Makita AF506 18-gauge brad nailer.
A close-up of a hand adjusting the 360-degree multi-directional exhaust port on the cap of the Makita AF506.
A detailed close-up of the reversible belt hook attached to the Makita AF506 nailer.
A detailed close-up of the narrow nose and tool-free jam release latch on the Makita AF506 brad nailer.
A close-up of a hand pressing the built-in air duster button on the back of the Makita AF506 nailer's handle.
A close-up of a hand opening the tool-free jam release latch on the nose of the Makita AF506 brad nailer.
A detailed close-up of the "tool-less" depth adjustment dial on the side of the Makita AF506 brad nailer.

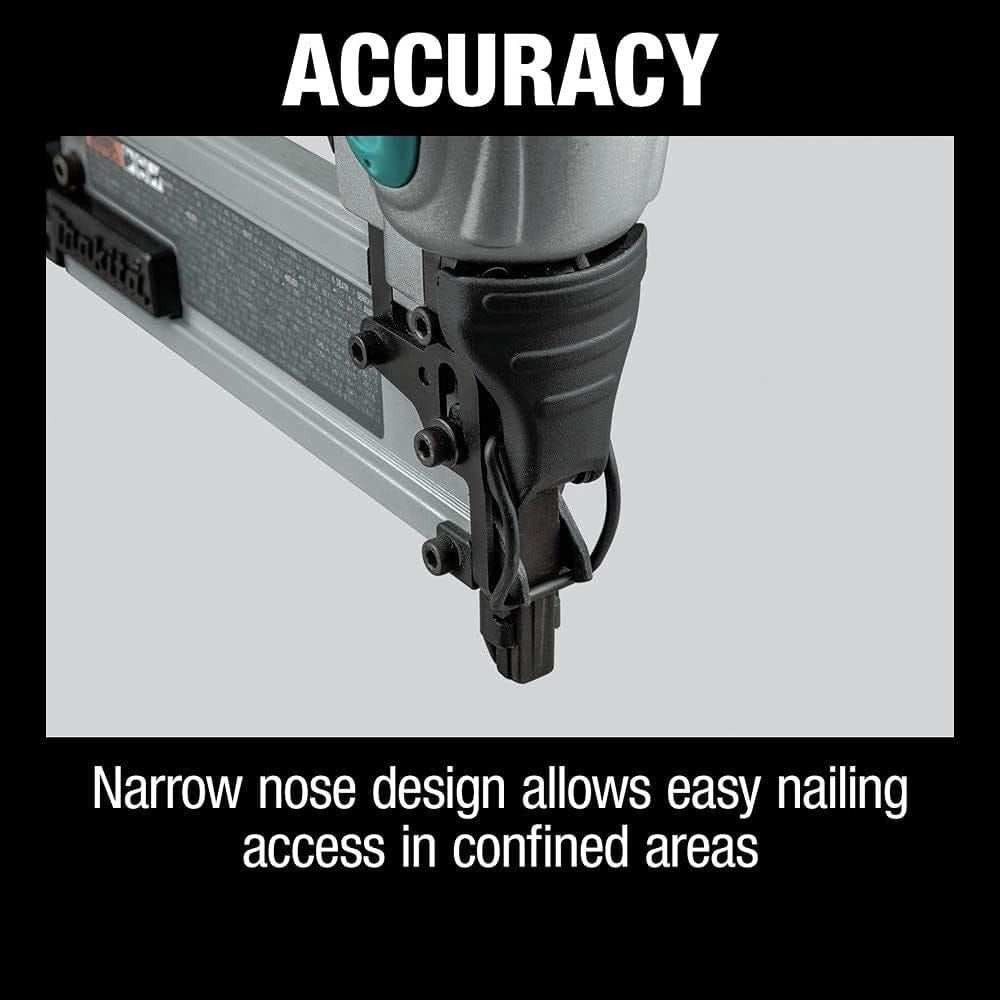

A marketing graphic, labeled "ACCURACY," showing a close-up of the nailer's nose, stating "Narrow nose design allows easy nailing access in confined areas".
A full side profile studio shot of the Makita AF506 18-gauge brad nailer.
A feature callout diagram of the Makita AF506 brad nailer, highlighting its exhaust port, non-marring nose, tool-less depth adjustment, and built-in air duster.
A studio shot of the Makita AF506 brad nailer next to its teal Makita-branded hard carrying case.
A three-quarter angle studio shot of the Makita AF506 18-gauge brad nailer.
A close-up of a hand adjusting the 360-degree multi-directional exhaust port on the cap of the Makita AF506.
A detailed close-up of the reversible belt hook attached to the Makita AF506 nailer.

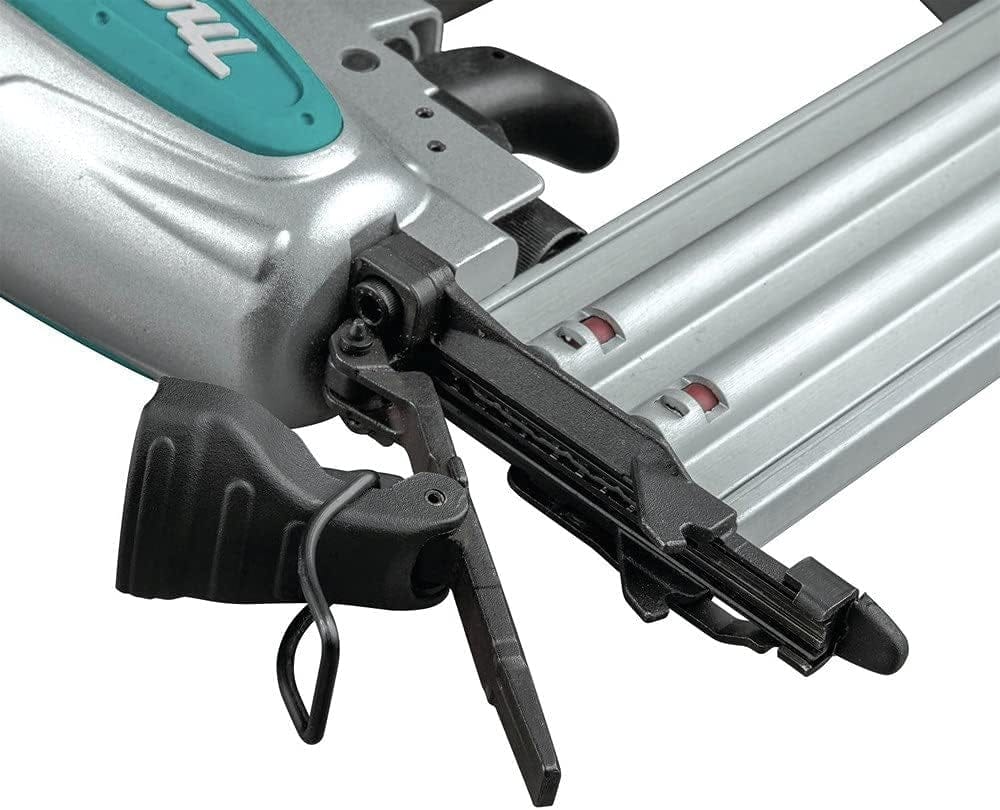

A detailed close-up of the narrow nose and tool-free jam release latch on the Makita AF506 brad nailer.

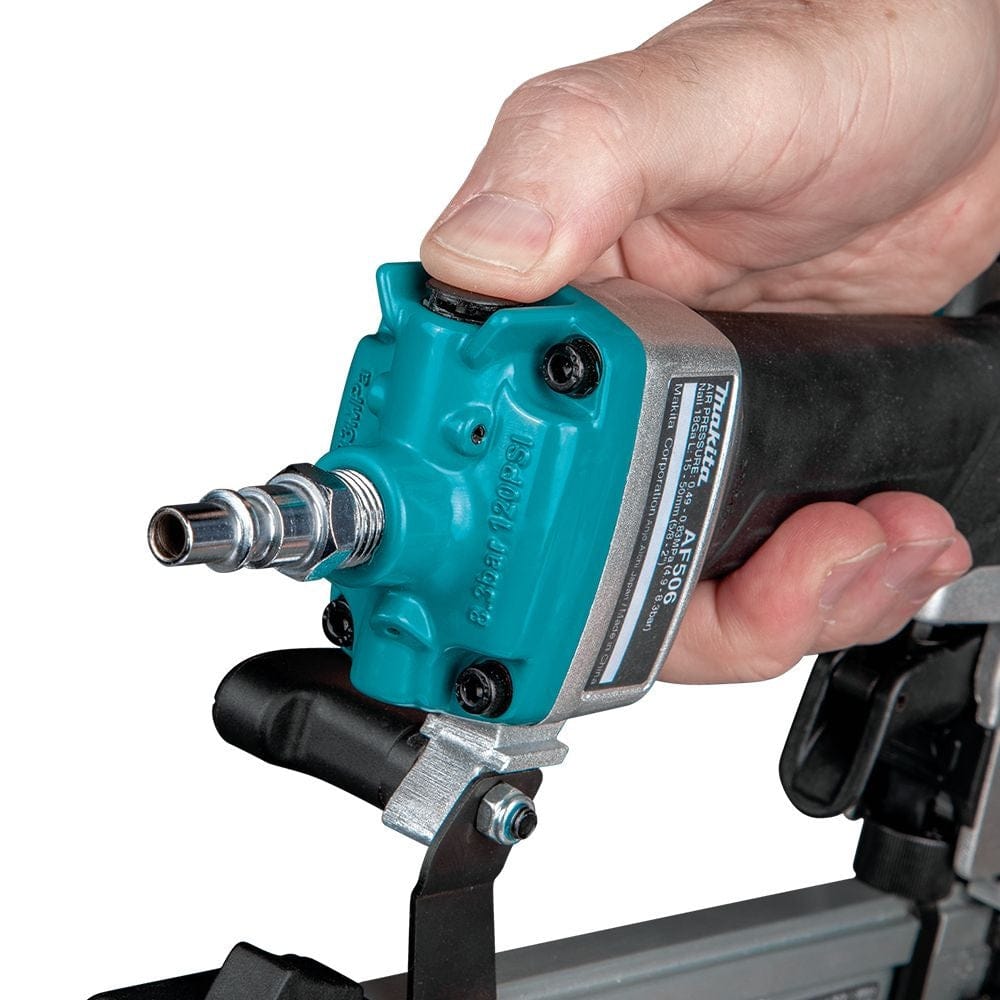

A close-up of a hand pressing the built-in air duster button on the back of the Makita AF506 nailer's handle.

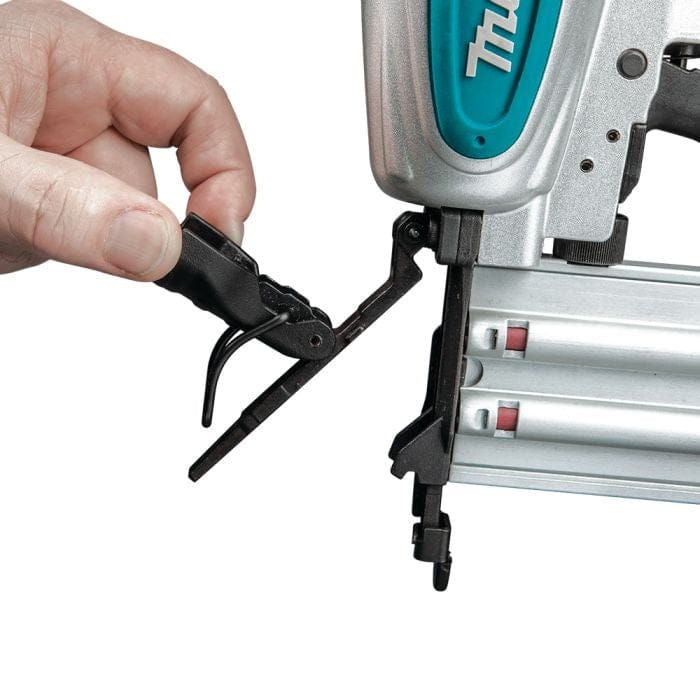

A close-up of a hand opening the tool-free jam release latch on the nose of the Makita AF506 brad nailer.
A detailed close-up of the "tool-less" depth adjustment dial on the side of the Makita AF506 brad nailer.
A marketing graphic, labeled "ACCURACY," showing a close-up of the nailer's nose, stating "Narrow nose design allows easy nailing access in confined areas".
Makita

Makita AF506 18 Gauge 2-Inch Brad Nailer Pneumatic Tool with Narrow Nose Tool-less Depth Adjustment for Finish Trim Crown Molding and Woodworking

Only 1 left
SKU: AF506
$134.00

Description

The Lightweight Nailer for a Flawless Finish

Stop fighting a heavy, clunky nailer for delicate trim. The Makita AF506 is the pro's choice for a reason. At only 2.9 pounds, this 18-gauge brad nailer is incredibly lightweight, but it’s built tough for the jobsite. Its ultra-narrow nose design lets you get into tight corners, and the non-marring tip protects your work surface, making it perfect for crown molding, baseboards, and all your finish woodworking.

Key Features

  • Drives 18-gauge brad nails from 5/8" to 2" in length.
  • Ultra-Narrow Nose: Engineered for precise contact and fastening in confined areas.
  • "Tool-less” Depth Adjustment: Dial can be easily set for a wide variety of finish applications.

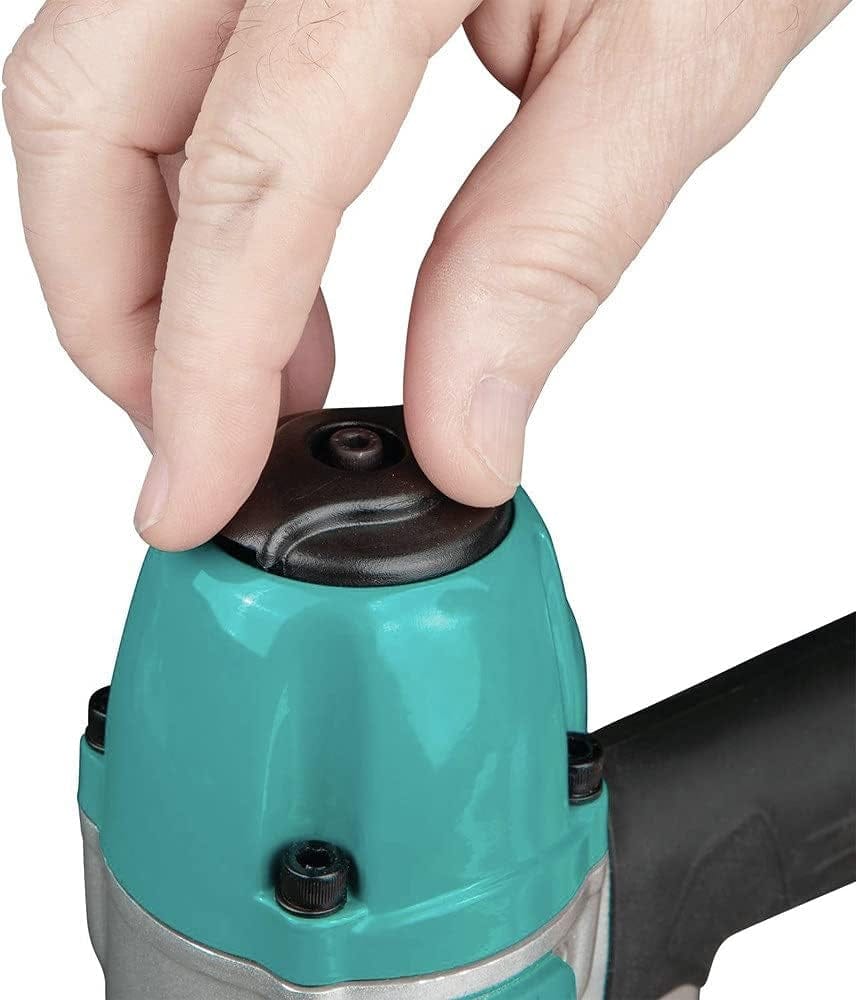

  • Multi-Directional Exhaust Port: Rotates 360 degrees to direct exhaust air away from the user.
  • Lightweight Design: At only 2.9 lbs., it's built for all-day use with minimal fatigue.
  • Non-Marring Rubber Nose: Protects the work surface from damage (includes 2).
  • High-Capacity Magazine: Holds up to 100 nails for less downtime.

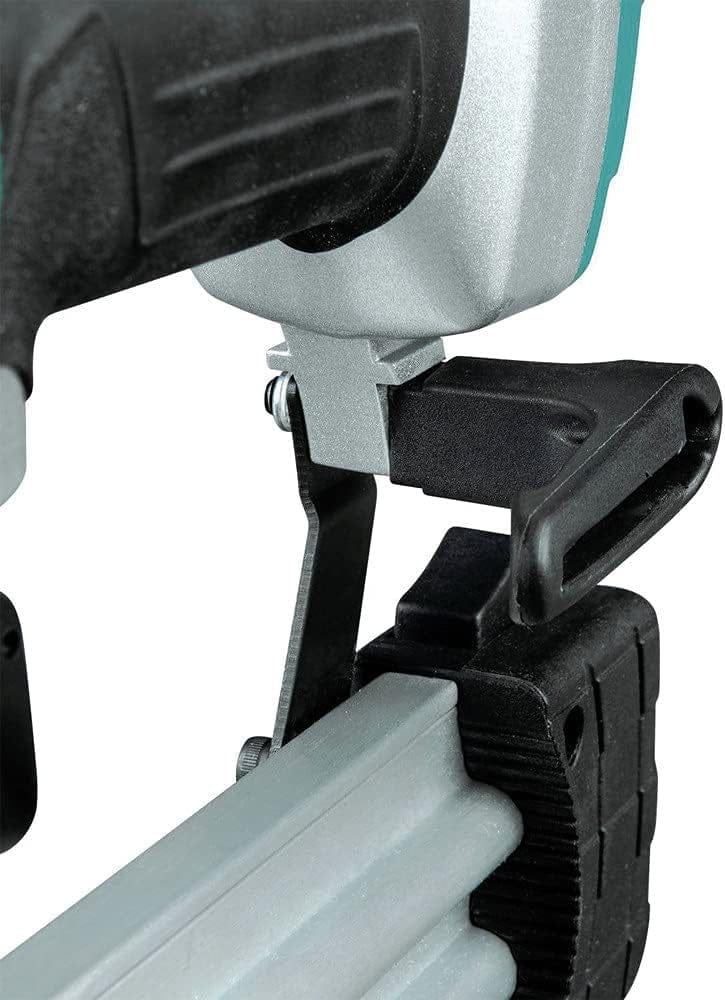

  • Reversible Tool Hook: Allows the tool to remain close by, attached to a belt or rafter.

What's Included

  • (1) AF506 18 Gauge 2" Brad Nailer
  • (1) 1/4" NPT Air Fitting
  • (1) Pneumatic Nailer Oil
  • (1) Reversible Tool Hook
  • (2) Non-Marring Noses

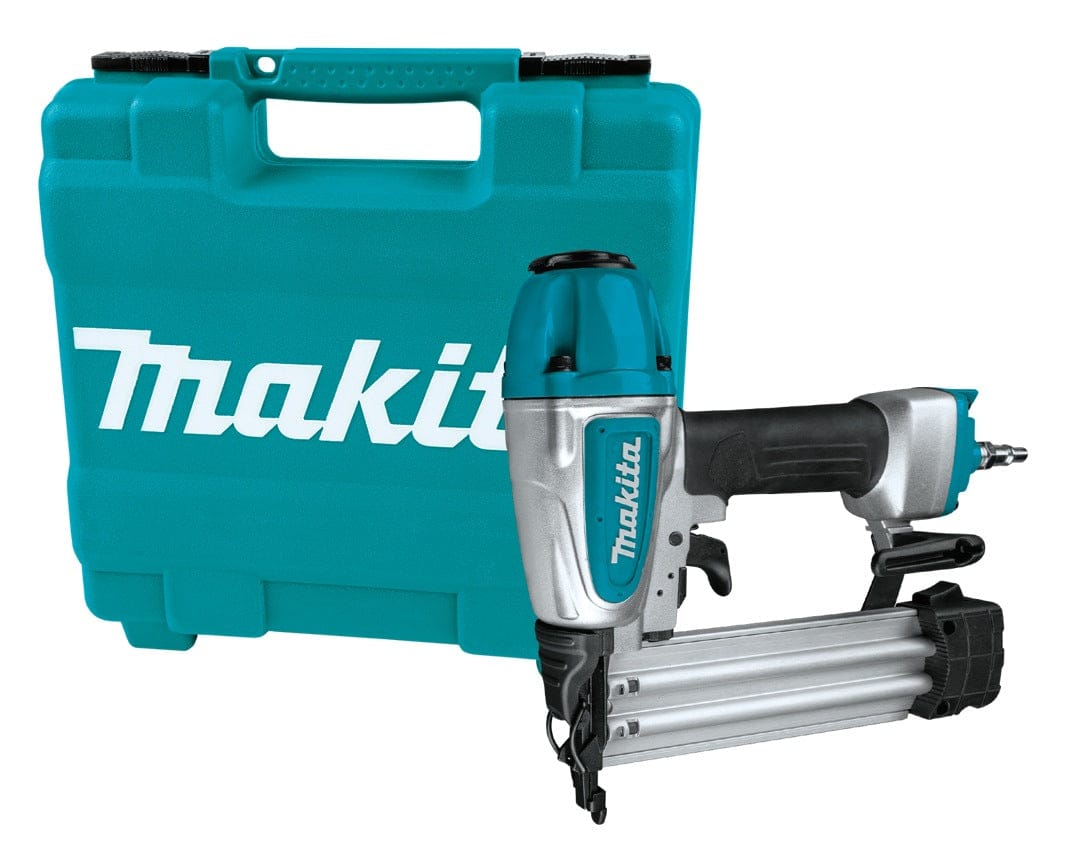

  • (1) Tool Case
  • (1) Safety Goggles

Specifications

Specification Detail
Model AF506
Power Type Pneumatic
Nail Gauge 18 ga.
Nail Size 5/8" to 2"
Magazine Capacity 100
Operating Air Pressure 70 - 120 PSI
Air Consumption 2 SCFM
Air Inlet 1/4" NPT
Net Weight 2.9 lbs.
Dimensions (LxWxH) 9-7/8" x 2-3/4" x 10-1/8"
UPC Code 088381-870733
