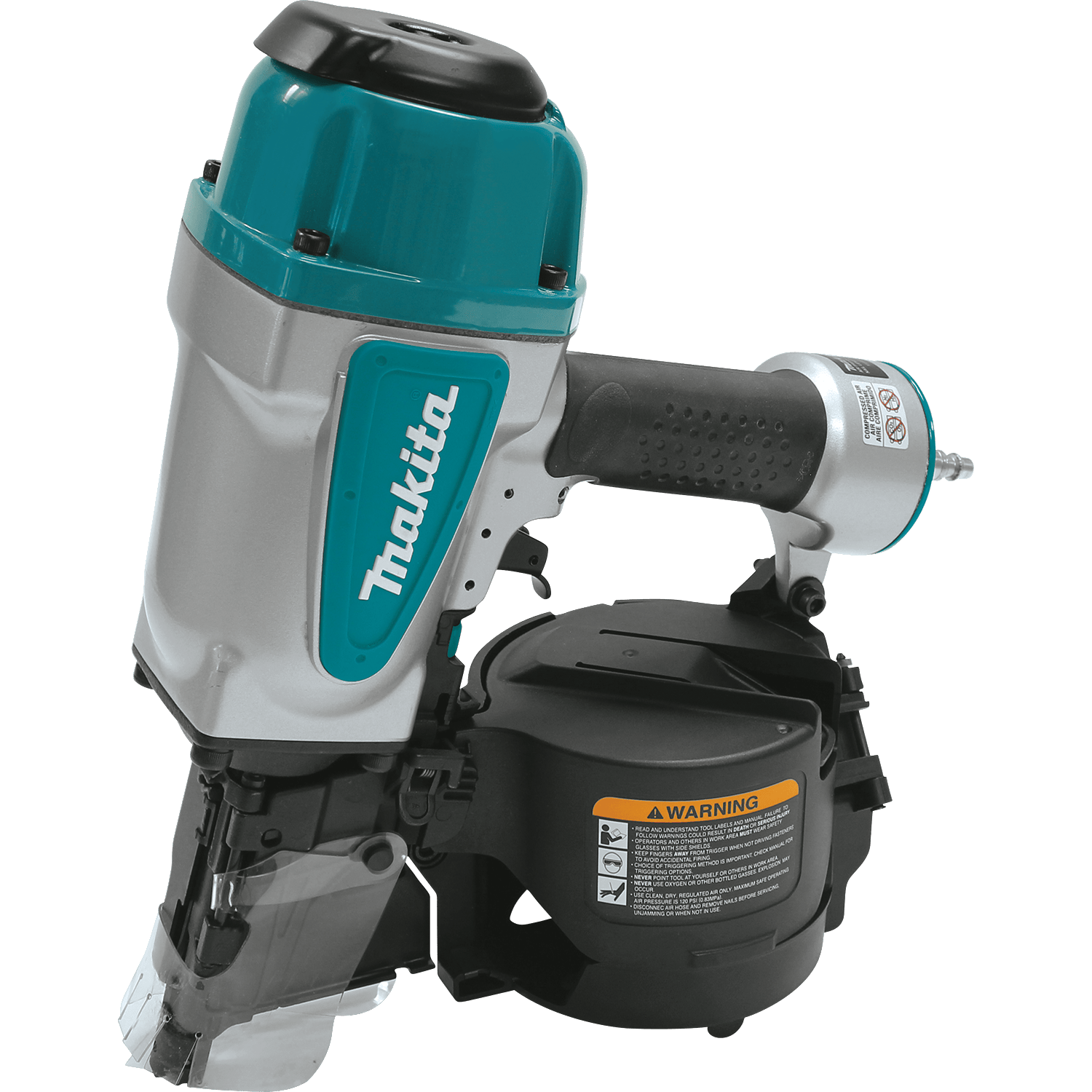

Makita AN902 pneumatic 3-1/2 inch coil framing nailer featuring a high-capacity canister for 15 degree wire collated nails and a durable aluminum body.

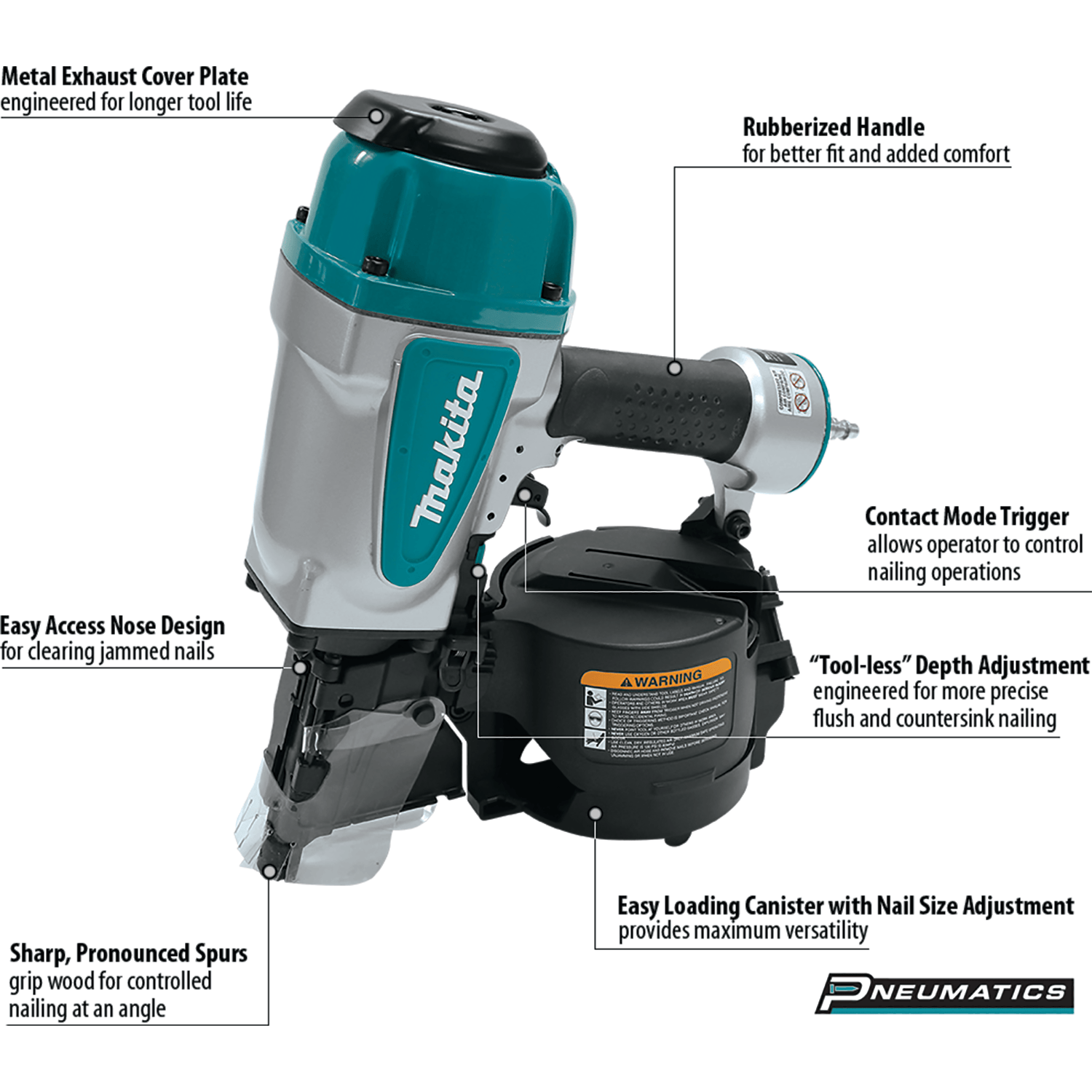

Diagram of the Makita AN902 pneumatic coil framing nailer highlighting key features including the metal exhaust cover plate, rubberized handle, tool-less depth adjustment, and easy loading canister.

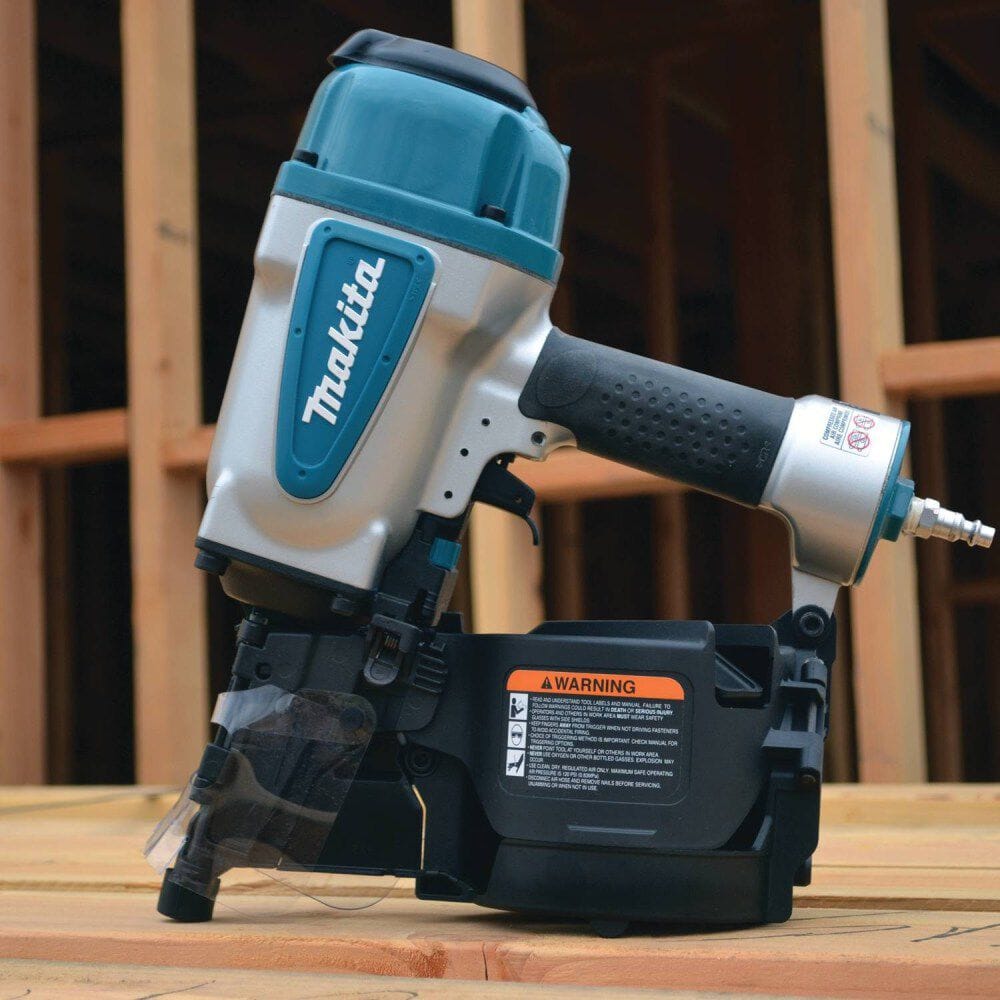

Side profile of the Makita AN902 air powered coil framing nailer resting on a wooden construction surface with a framing project visible in the background.

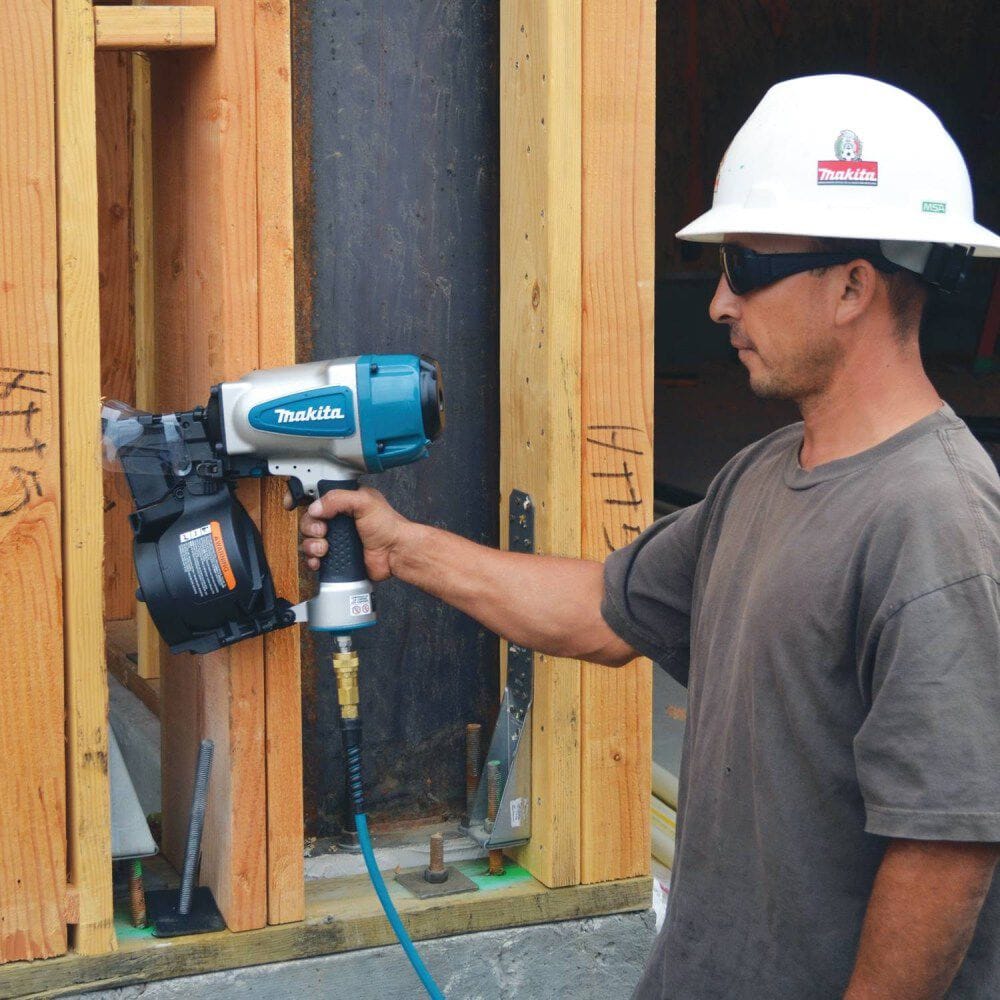

A professional contractor wearing a hard hat and safety glasses holding the Makita AN902 pneumatic coil framing nailer while standing next to wooden structural framing.

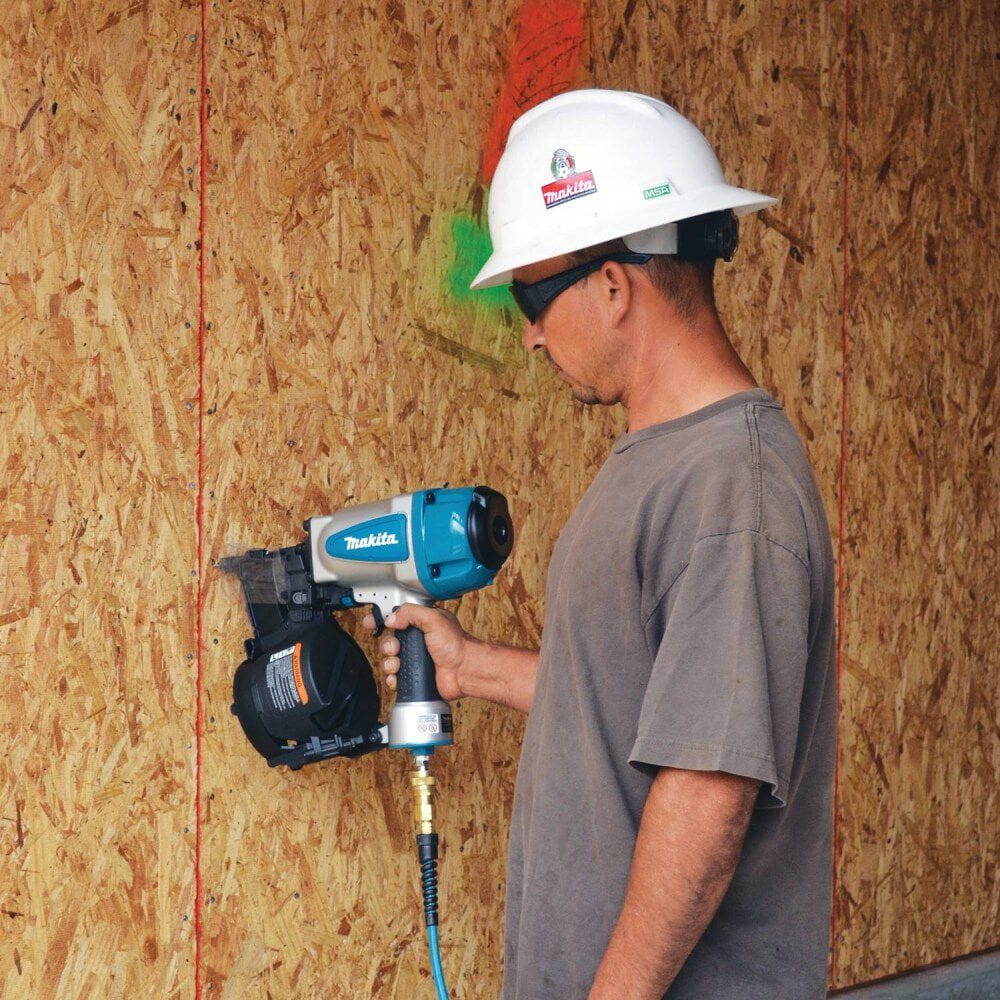

Action shot of a builder using the Makita AN902 pneumatic coil framing nail gun to securely fasten exterior sheathing board to a residential wall frame.

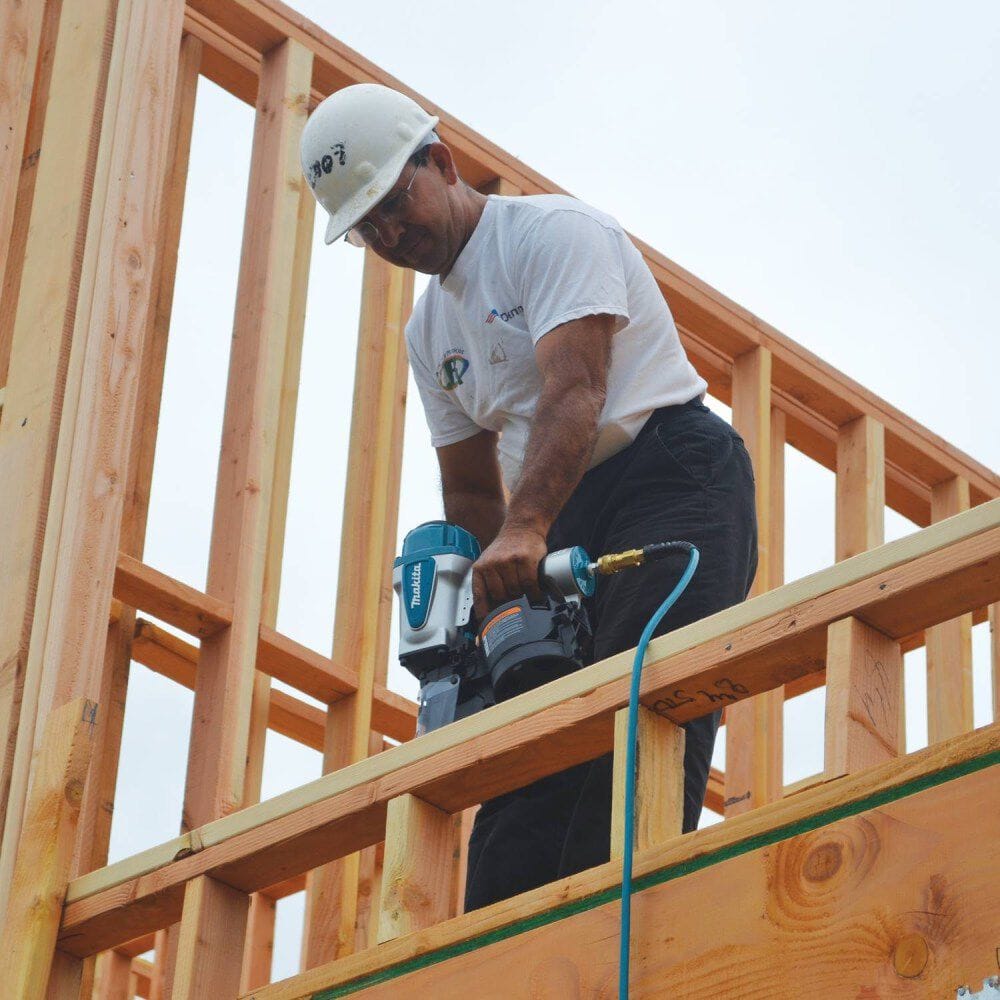

A woodworker operating the Makita AN902 coil framing nailer to drive fasteners into an upper wooden beam during a home construction project.

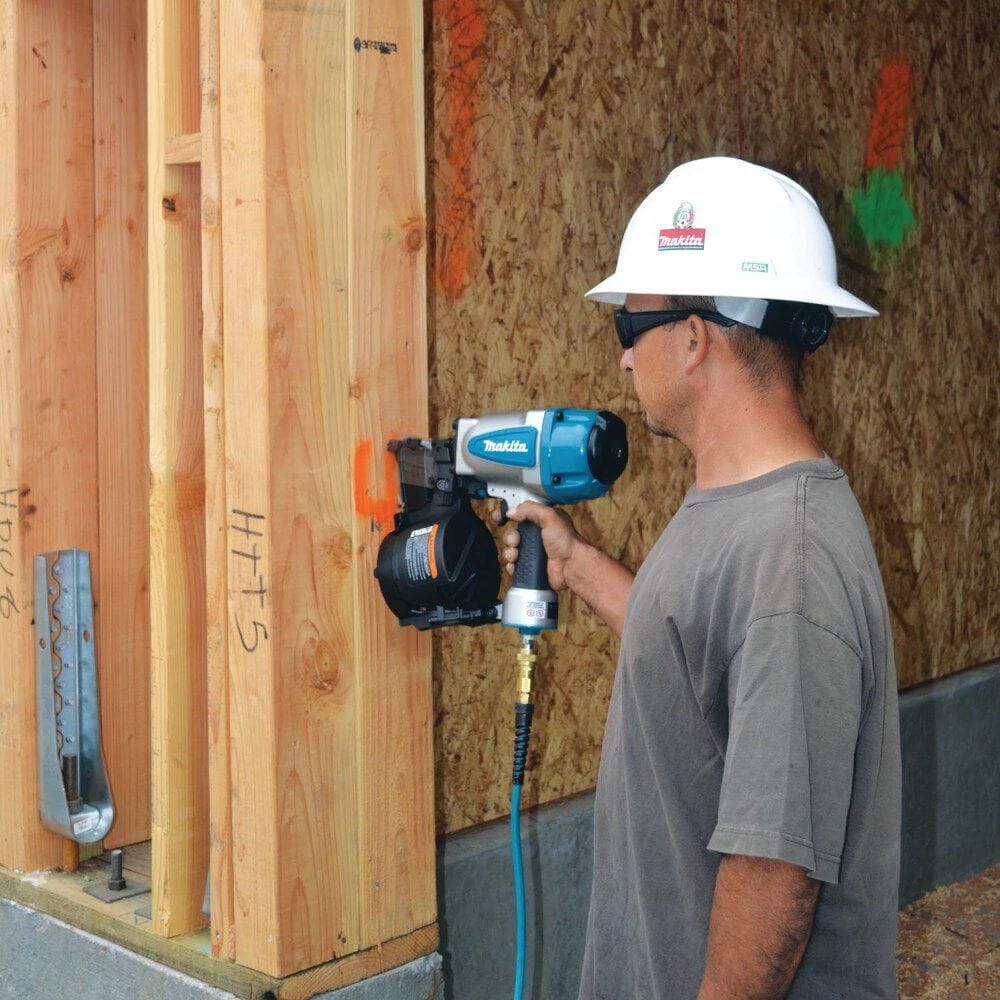

Detailed shot of a contractor accurately positioning the Makita AN902 pneumatic coil nailer against a vertical wooden stud for high-production framing.

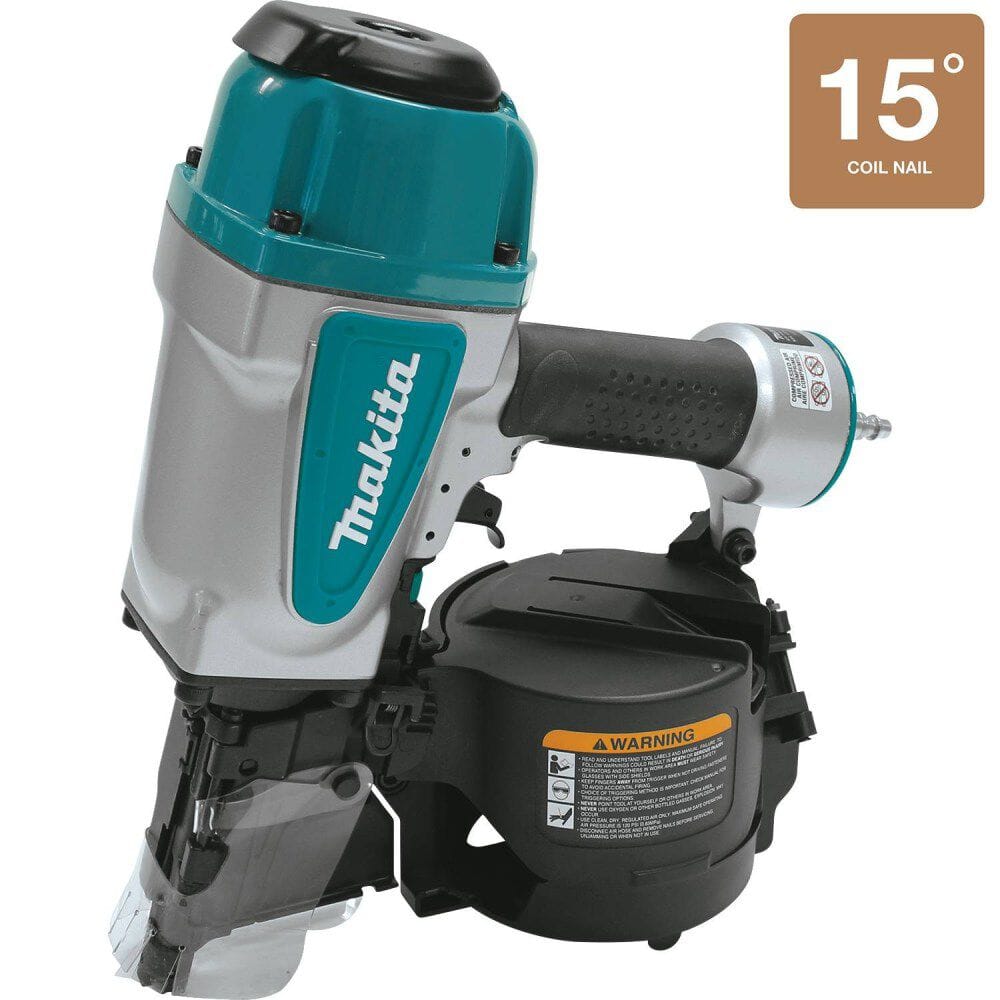

Makita AN902 3-1/2 inch pneumatic coil framing nailer displaying a graphic overlay for 15 degree coil nail compatibility and a large black adjustable loading canister.

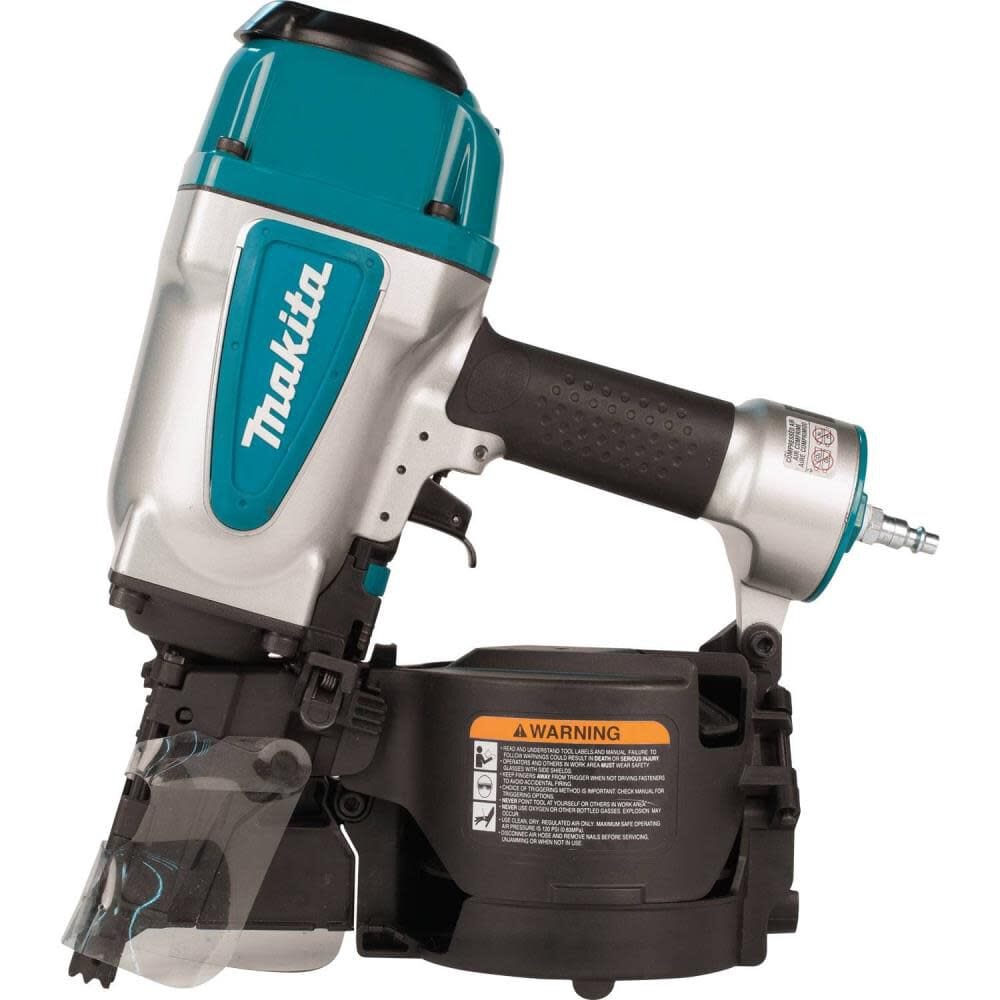

Side view of the Makita AN902 air powered framing nailer showcasing the sharp pronounced spurs on the nose piece designed for controlled toe-nailing at an angle.
Makita Celebrates 100 Years of Innovation promotional video
Makita AN902 pneumatic 3-1/2 inch coil framing nailer featuring a high-capacity canister for 15 degree wire collated nails and a durable aluminum body.
Diagram of the Makita AN902 pneumatic coil framing nailer highlighting key features including the metal exhaust cover plate, rubberized handle, tool-less depth adjustment, and easy loading canister.
Side profile of the Makita AN902 air powered coil framing nailer resting on a wooden construction surface with a framing project visible in the background.
A professional contractor wearing a hard hat and safety glasses holding the Makita AN902 pneumatic coil framing nailer while standing next to wooden structural framing.
Action shot of a builder using the Makita AN902 pneumatic coil framing nail gun to securely fasten exterior sheathing board to a residential wall frame.
A woodworker operating the Makita AN902 coil framing nailer to drive fasteners into an upper wooden beam during a home construction project.
Detailed shot of a contractor accurately positioning the Makita AN902 pneumatic coil nailer against a vertical wooden stud for high-production framing.
Makita AN902 3-1/2 inch pneumatic coil framing nailer displaying a graphic overlay for 15 degree coil nail compatibility and a large black adjustable loading canister.
Side view of the Makita AN902 air powered framing nailer showcasing the sharp pronounced spurs on the nose piece designed for controlled toe-nailing at an angle.
Makita Celebrates 100 Years of Innovation promotional video
Makita

Makita Pneumatic Coil Framing Nailer AN902 3-1/2 Inch Air Powered Gun (120 PSI 6.1 SCFM 15 Degree Wire Collated Sheathing Fencing Woodworking)

In stock
SKU: AN902
$559.00 USD

Description

Makita Logo Logout

High Capacity Air Fastening for Wood Framing and Structural Sheathing

The Makita AN902 3-1/2 Inch Coil Framing Nailer is a pneumatic high-production construction tool engineered to drive 15-degree wire-collated framing nails from 1-3/4 to 3-1/2 inches in length. Operating at air pressures between 70 and 120 PSI, this air-powered nail gun provides the consistent driving power required for continuous subflooring, structural framing, and external roof sheathing. Built with a lightweight body weighing 7.7 pounds, it features a 300-nail capacity canister, a tool-less depth adjustment system, and aggressive nose spurs to optimize rapid sequential or contact-fire field layouts.

Best Used For:

  • Structural Home Framing: Joining studs, headers, and rafters securely with high-rigidity wire-collated structural fasteners.
  • Wall and Roof Sheathing: Rapidly securing large structural plywood or OSB panels down using a high-capacity 300-nail drum magazine.
  • Heavy Pallet Assembly: Fabricating industrial wood pallets, crates, and boundary fencing where continuous high-speed fastening is essential.

Key Performance & Safety Features

  • High Capacity Canister: Adjustable drum magazine holds up to 300 nails to reduce reloading intervals during production carpentry tasks.
  • Tool-Less Depth Control: Micro-fine adjustment dial enables precise tactile configuration between clean flush seating and deep countersunk driving.
  • Aggressive Toe-Nailing Spurs: Pronounced mechanical teeth on the nose piece grip lumber grain tightly for slip-free angled fastening.
  • Job Site Reinforcement: Outfitted with an integrated steel exhaust plate and perimeter rubber housing bumpers to prevent tool damage.
  • Surface Protection: Removable non-marring nose tip insert shields premium exterior decking and wood surfaces from impact blemishes.

What's Included

  • (1) AN902 3-1/2 Inch Coil Framing Nailer
  • (1) Pneumatic Nailer Oil (181434-7)
  • (1) Safety Goggles (191687-A)
  • (1) No-Mar Tip (BA00000372)

Technical Specifications

Power Type Pneumatic (Air Powered)
Fastening Category Framing
Nail Size Compatibility 1-3/4 to 3-1/2 Inches
Shank Diameter Range 0.099 to 0.148 Inches (Wire Collated)
Maximum Magazine Capacity 300 Nails
Operating Air Pressure 70 - 120 PSI
Minimum Air Delivery 6.1 SCFM @ 90 PSI
Dimensions (LxWxH) 12-1/2 x 5 x 14-7/8 Inches
Net Weight 7.7 lbs.
Inlet Size 1/4 Inch NPT
Shipping Weight 10.1 lbs.
Pro-Tip: To avoid structural wood splitting when toe-nailing at steep angles, position the nose spurs firmly into the stud grain before triggering the tool, allowing the compressor pressure to drive the nail uniformly along the diagonal plane.
