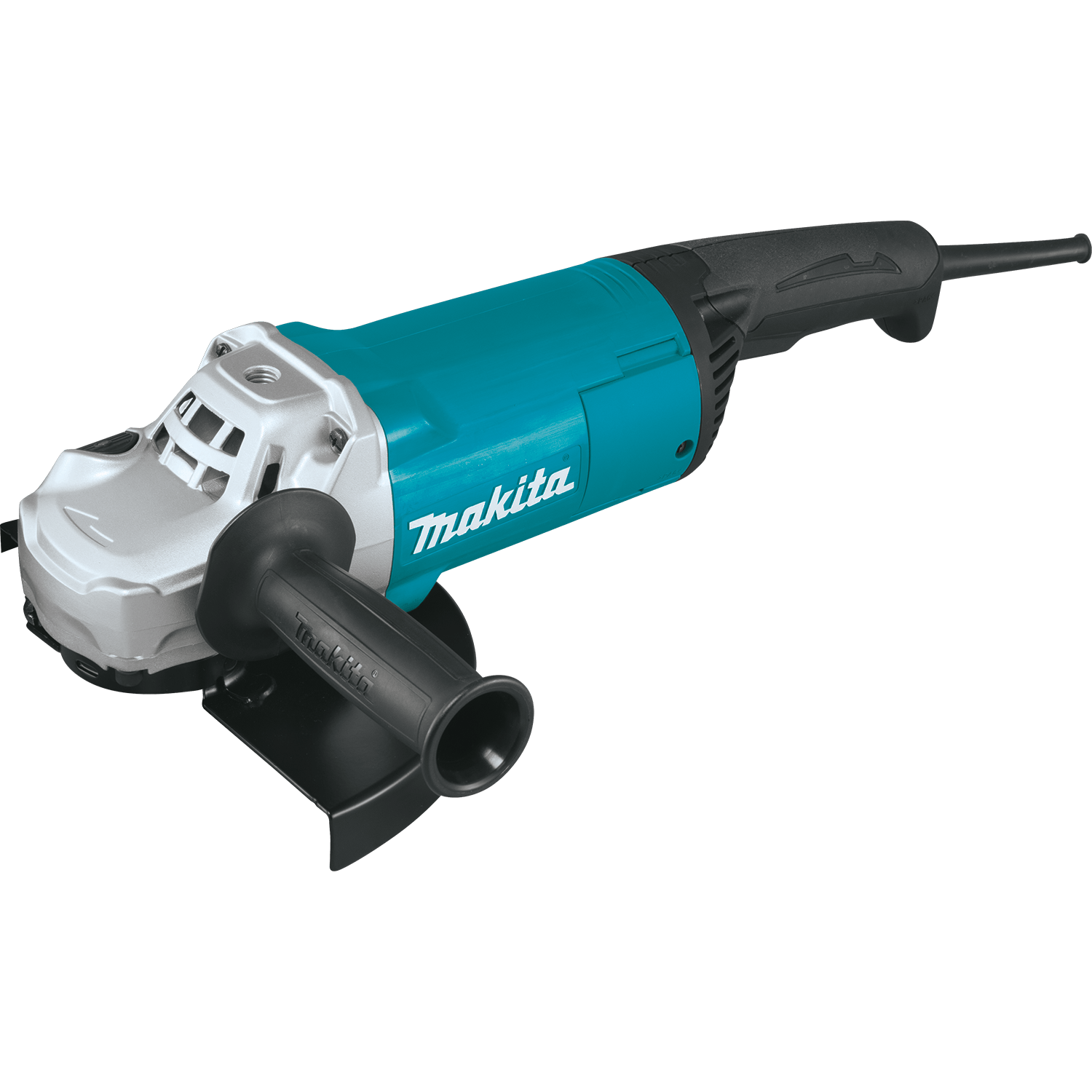

Makita GA9060 9-inch corded angle grinder featuring a 15.0A motor, side handle, 9-inch wheel guard, and cast aluminum gear housing.

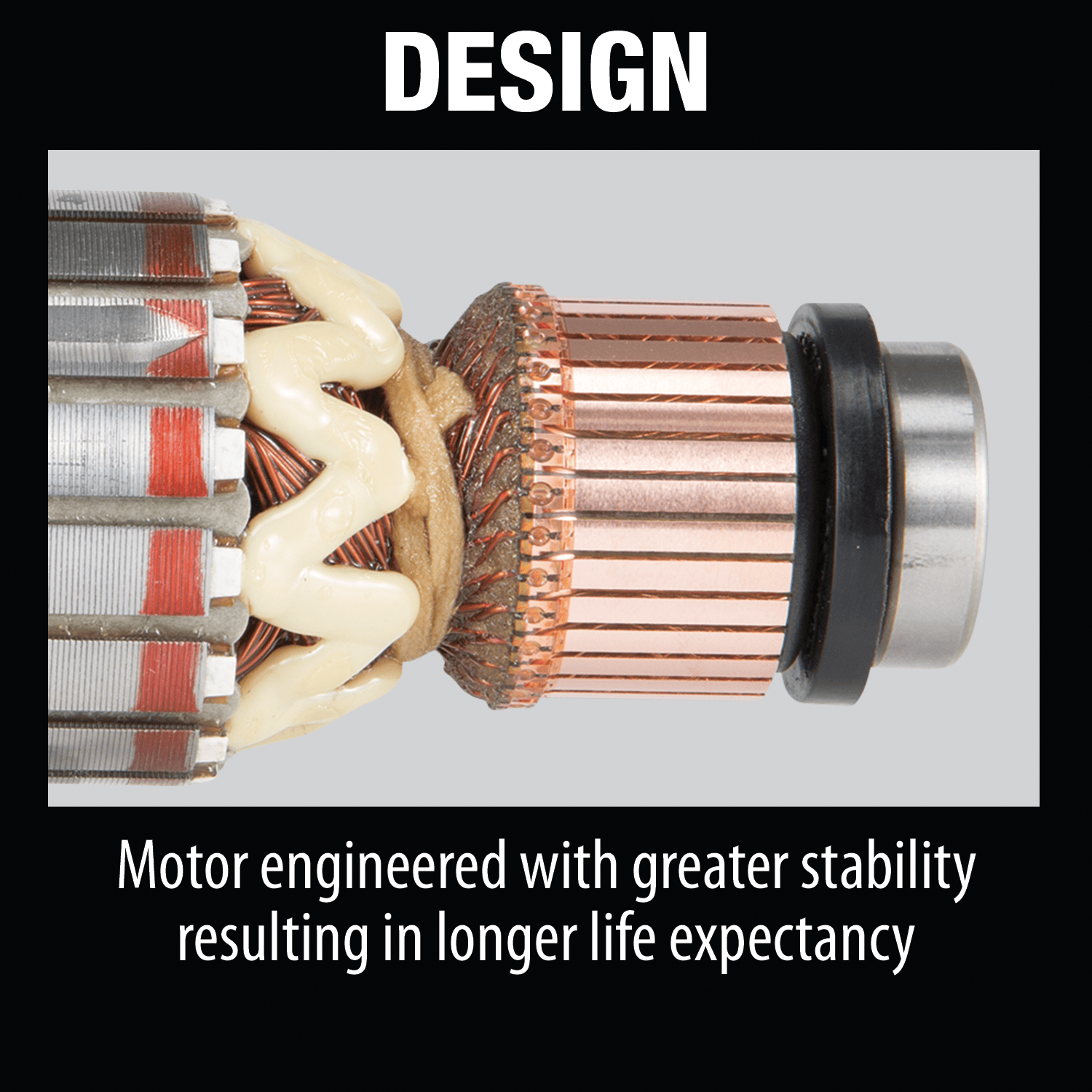

Motor design graphic illustrating the reinforced motor armature engineered for high stability and extended operational life.

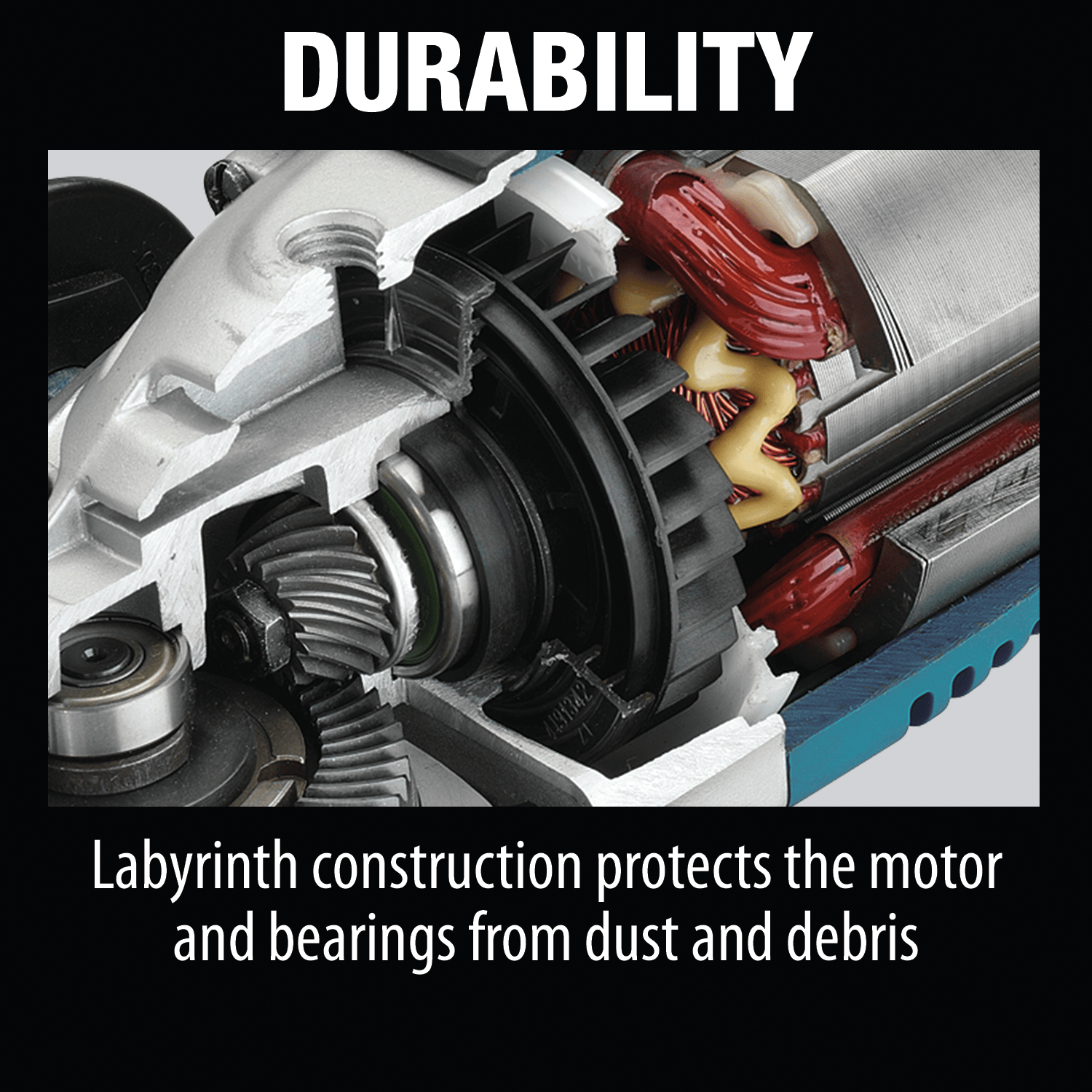

Durability diagram showing a gear housing cutaway with labyrinth seals that protect internal bearings and motor windings from abrasive dust.

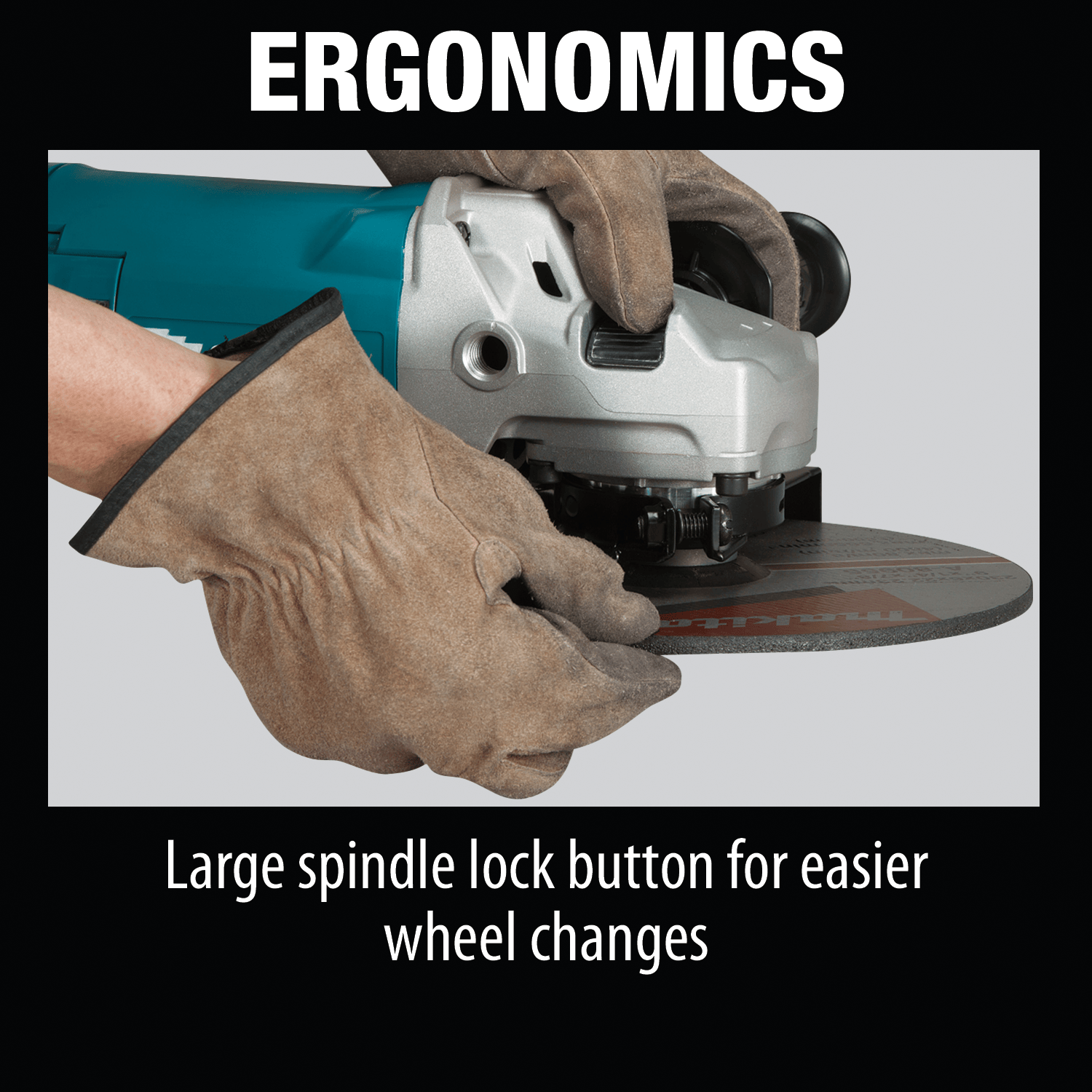

Ergonomics callout demonstrating a gloved hand engaging the large top-mounted spindle lock button for rapid 9-inch grinding wheel changes.

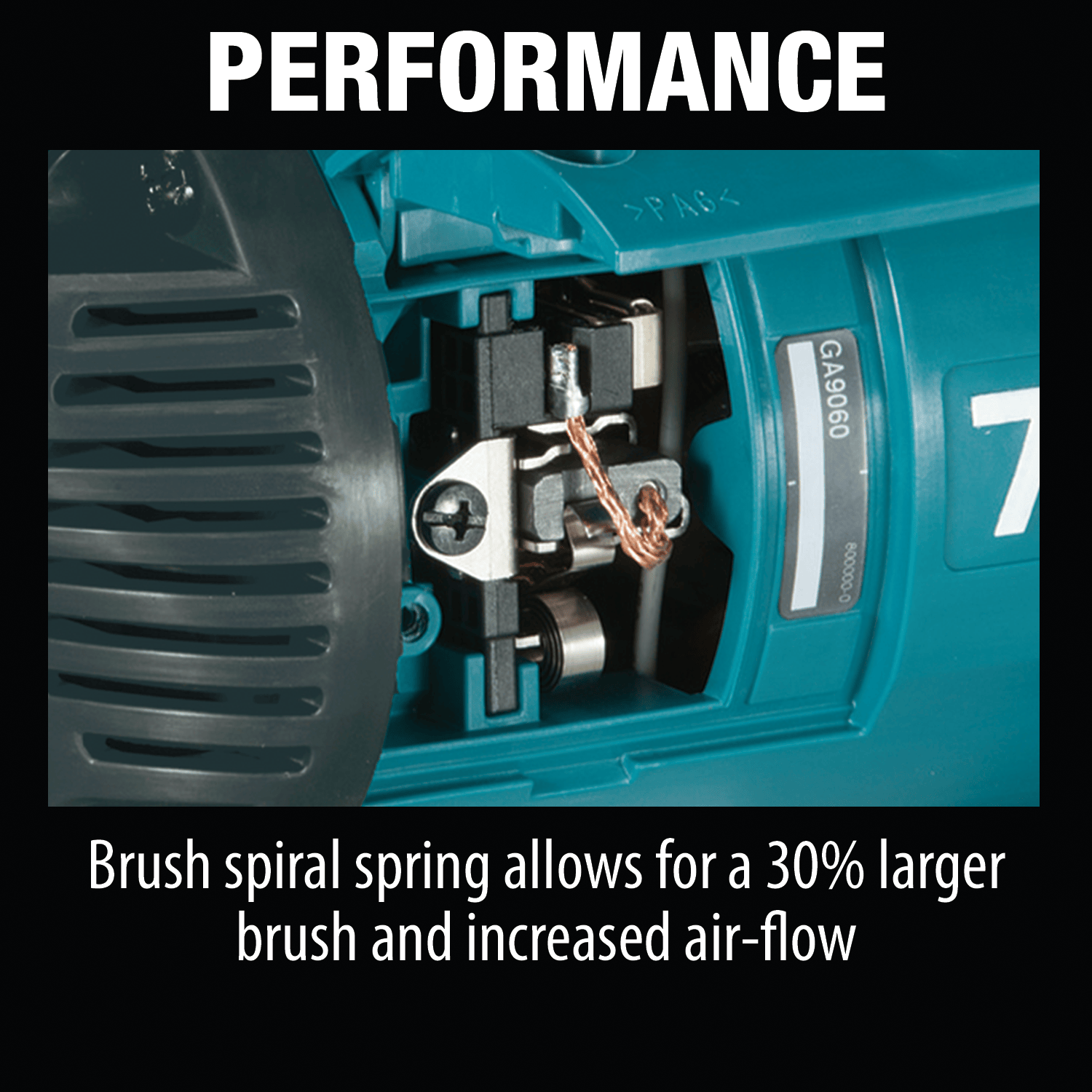

Performance diagram displaying the internal brush spiral spring assembly that accommodates a 30 percent larger carbon brush for increased airflow.

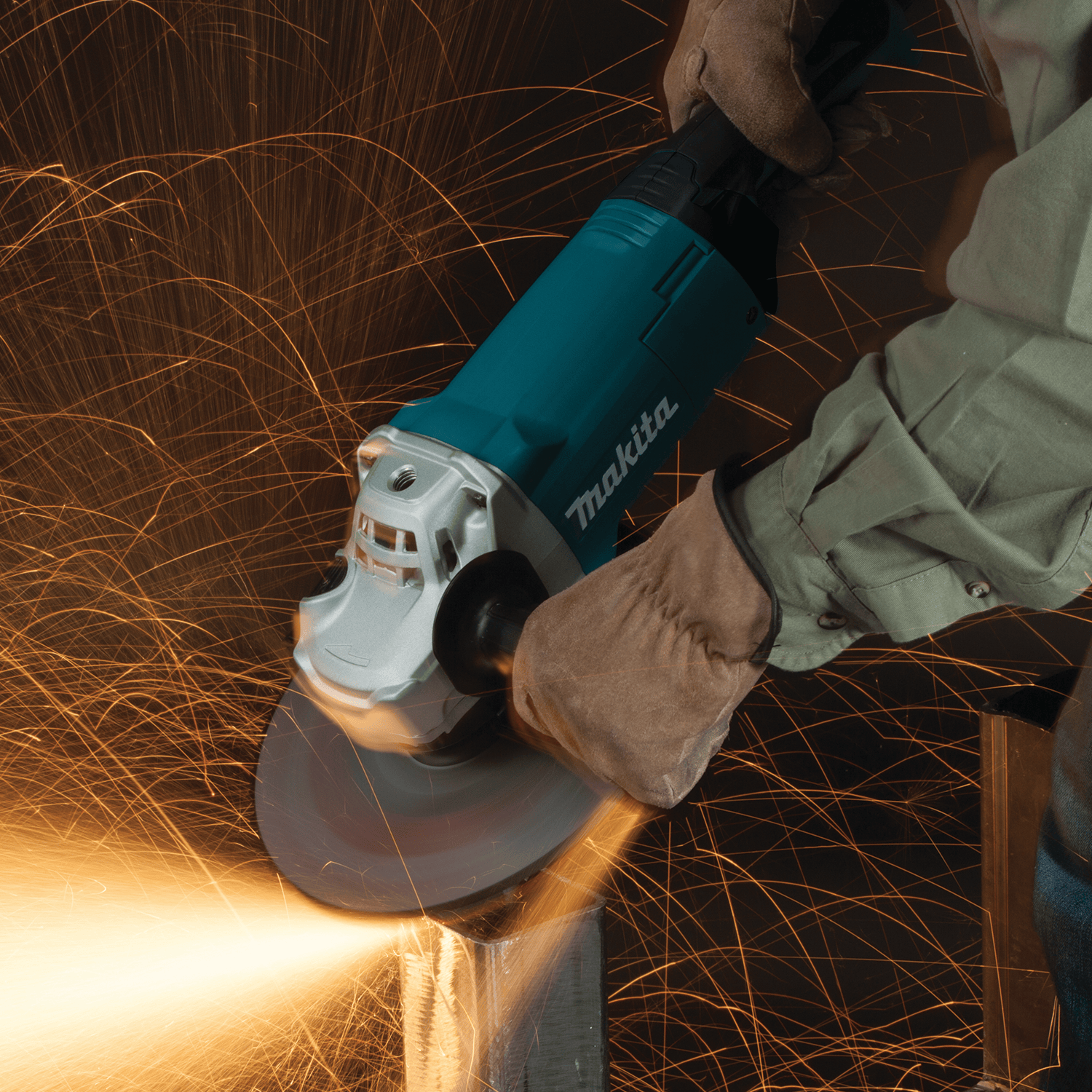

Fabricator using the 15.0A Makita GA9060 9-inch angle grinder at 6,600 RPM to bevel a heavy steel box tube.

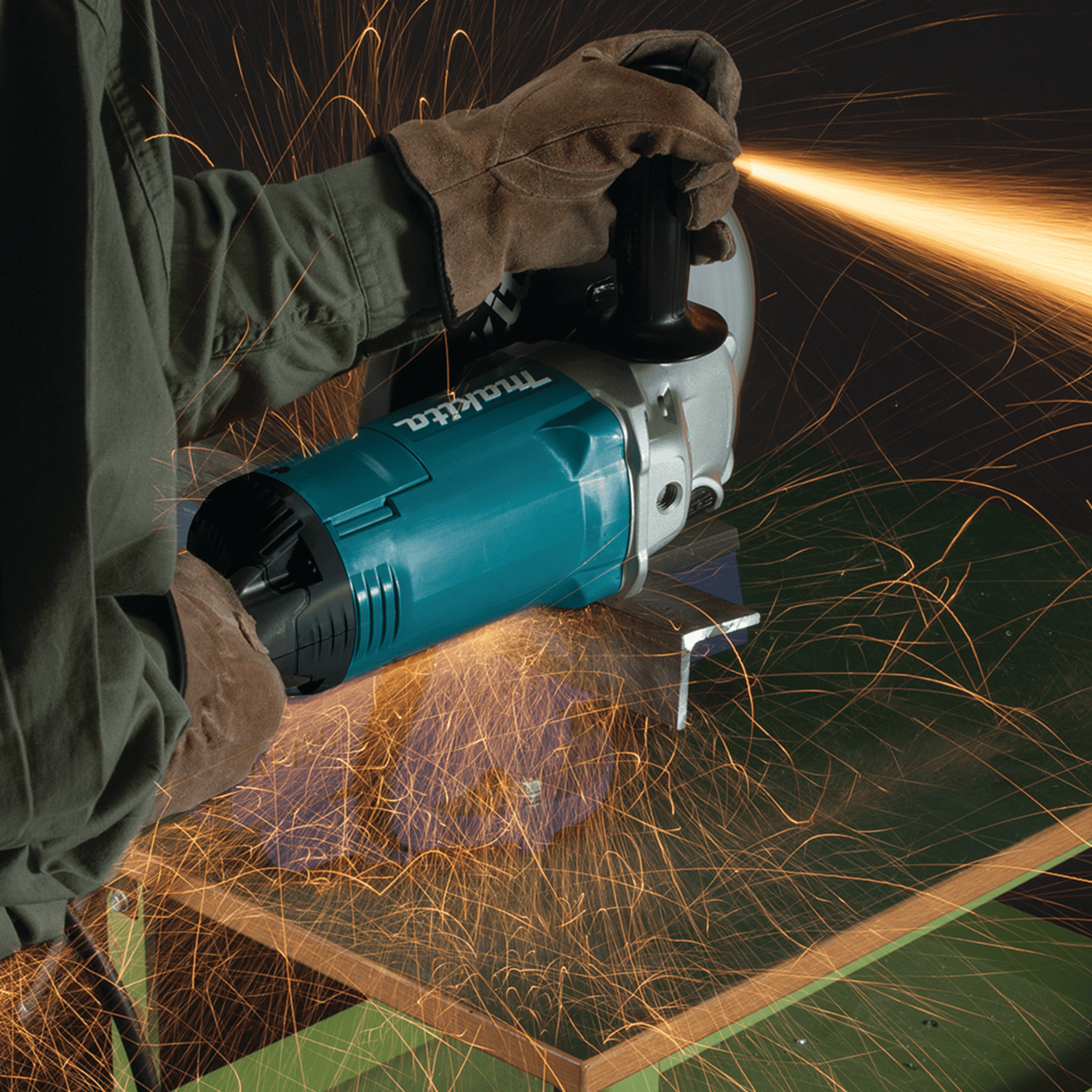

Metal worker using the Makita GA9060 angle grinder to grind down structural steel angle iron welds while throwing sparks.

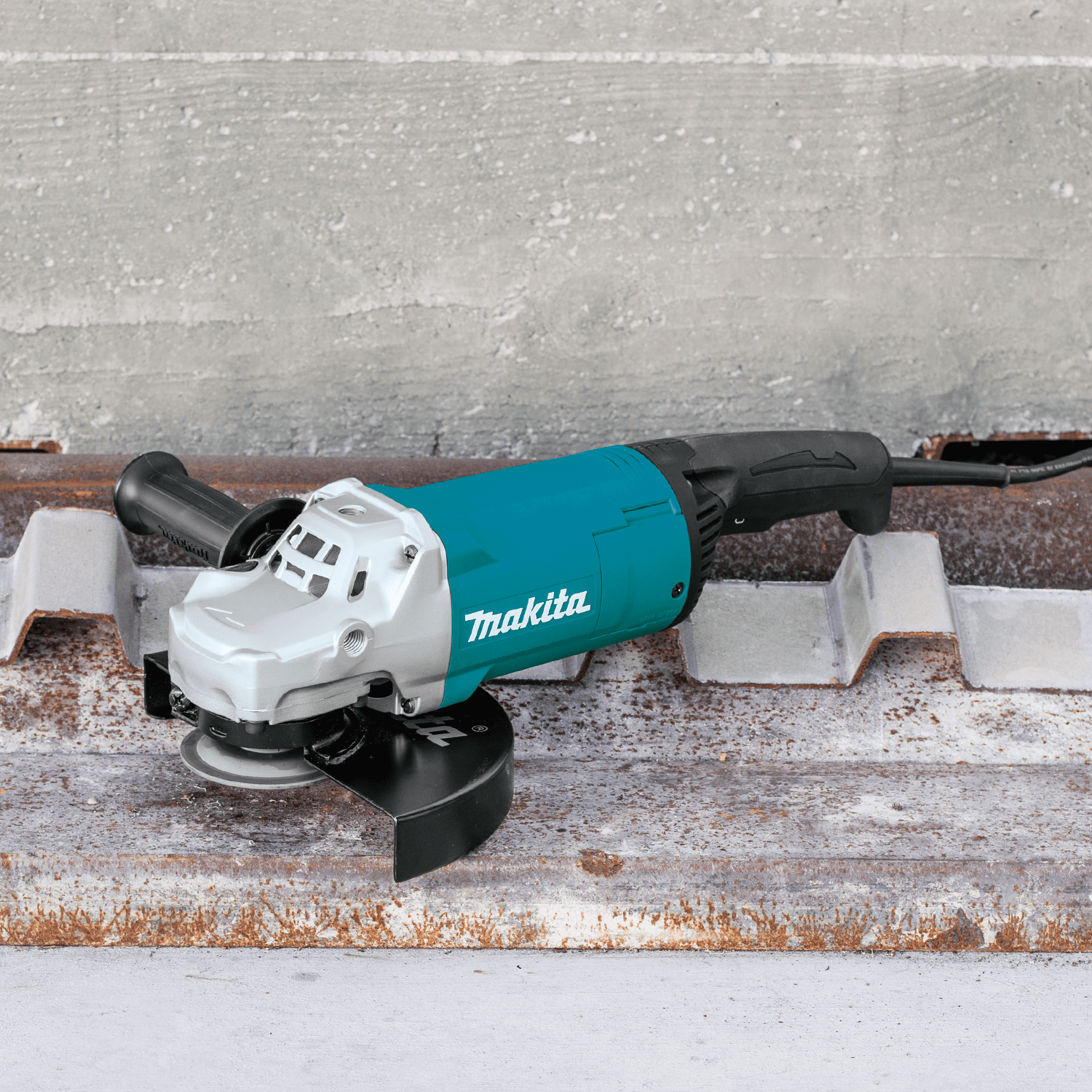

Makita GA9060 9-inch 15.0A corded angle grinder resting on a rusted metal deck plate at an industrial construction site.
Makita GA9060 9-inch corded angle grinder featuring a 15.0A motor, side handle, 9-inch wheel guard, and cast aluminum gear housing.
Motor design graphic illustrating the reinforced motor armature engineered for high stability and extended operational life.
Durability diagram showing a gear housing cutaway with labyrinth seals that protect internal bearings and motor windings from abrasive dust.
Ergonomics callout demonstrating a gloved hand engaging the large top-mounted spindle lock button for rapid 9-inch grinding wheel changes.
Performance diagram displaying the internal brush spiral spring assembly that accommodates a 30 percent larger carbon brush for increased airflow.
Fabricator using the 15.0A Makita GA9060 9-inch angle grinder at 6,600 RPM to bevel a heavy steel box tube.
Metal worker using the Makita GA9060 angle grinder to grind down structural steel angle iron welds while throwing sparks.
Makita GA9060 9-inch 15.0A corded angle grinder resting on a rusted metal deck plate at an industrial construction site.
Makita

Makita Angle Grinder GA9060 9 Inch 15 Amp Corded (6600 RPM Lock-On Switch Labyrinth Dust Seals Bevel Gears Heavy Steel Masonry Cutting)

In stock
SKU: GA9060
$259.00 USD

Description

Makita Logo Logout

Makita GA9060 9-Inch 15.0 Amp Corded Heavy-Duty Angle Grinder with Lock-On Switch

The Makita GA9060 9-Inch Angle Grinder is an industrial electric metalworking and masonry grinding tool engineered for high-volume weld removal, steel plate beveling, and concrete joint scoring. Driven by a 15.0-amp motor operating at 6,600 RPM, this 12.1-pound corded grinder features an aluminum gear housing that rotates every 90 degrees to optimize trigger positioning. Outfitted with a 9-inch wheel guard, labyrinth dust seals, zig-zag protective epoxy coatings on the armature coils, spiral bevel gears, and a 3-position side handle, this 17-3/4 inch machine utilizes auto-cutoff carbon brushes to shield the motor during heavy shipyard and structural fabrication tasks.

Best Used For:

  • Heavy Structural Steel Weld Removal: Milling down thick structural weld seams and beveling heavy plate edges using 9-inch grinding wheels at 6,600 RPM.
  • Deep Concrete & Brick Masonry Cutting: Scoring control joints and cutting thick brick, paver stones, and foundation blocks with 9-inch diamond blades.
  • Industrial Rust & Scale Stripping: Removing heavy mill scale, ship hull corrosion, and rust from steel plate stock using wire cup brushes.

Key Performance & Safety Features

  • 15.0 Amp High-Output Industrial Motor: High-torque motor delivers 6,600 RPM for continuous heavy grinding without wheel bogging under downward pressure.
  • Labyrinth Housing Dust Seals: Complex internal channels seal drive bearings and motor armatures against abrasive metal shavings and silica dust.
  • Zig-Zag Armature Coil Protection: Protective epoxy coatings baked onto armature coils prevent dust particle impact from damaging internal wiring.
  • Spiral Bevel Gear Transmission: Heavy-duty bevel gear train ensures smooth rotational power transfer and maximizes gear life under load.
  • 3-Position Adjustable Side Handle: Mounting ports on top, left, and right sides permit custom hand placement for right- or left-handed leverage.
  • Auto-Cutoff Carbon Brushes: Spring-loaded brushes automatically disengage commutator contact when worn to protect the armature from damage.

What's Included

  • (1) Makita GA9060 9" 15.0A Heavy-Duty Angle Grinder
  • (1) 9" Adjustable Grinding Wheel Guard (122938-0)
  • (1) 3-Position Side Handle (143486-6)
  • (1) Inner Flange (224317-9)
  • (1) Outer Lock Nut (224486-6)
  • (1) Lock Nut Wrench (782412-6)

Technical Specifications

Brand / Manufacturer Makita
Model / Part Number GA9060
Motor Amperage & Voltage 15.0 Amps @ 120V AC / 60 Hz
No Load Operating Speed 6,600 RPM
Grinding Wheel Capacity 9.00 in. (228.6 mm / 9 in.)
Spindle Thread Size 5/8 in. - 11 UNC Standard Spindle
Switch Style & Safety Rear Trigger Switch with Lock-On & Lock-Off Safety
Gear Housing Material Die-Cast Aluminum (Rotates Every 90°)
Dust & Motor Protection Labyrinth Seals, Zig-Zag Epoxy Armature Coating
Overall Tool Length 17.75 in. (450.85 mm / 17-3/4 in.)
Tool Net Weight 12.1 lbs (5.49 kg)
Shipping Total Weight 15.57 lbs (7.06 kg)
UPC Code 088381-809962
Pro-Tip: Unbolt and rotate the aluminum gear housing 90 degrees when setting up the grinder for horizontal masonry cutting; this keeps the rear trigger switch positioned naturally under your index finger for improved control.
