Makita Pneumatic Crown Stapler AT1150A 7/16 Inch Medium 16 Gauge Air Gun (120 PSI 3.7 SCFM Sheathing Subflooring Woodworking Framing Kit Case)

In stock
SKU: AT1150A
$329.00 USD

Description

Makita Logo Logout

High Capacity Heavy Duty Fastening for Structural Sheathing and Subflooring

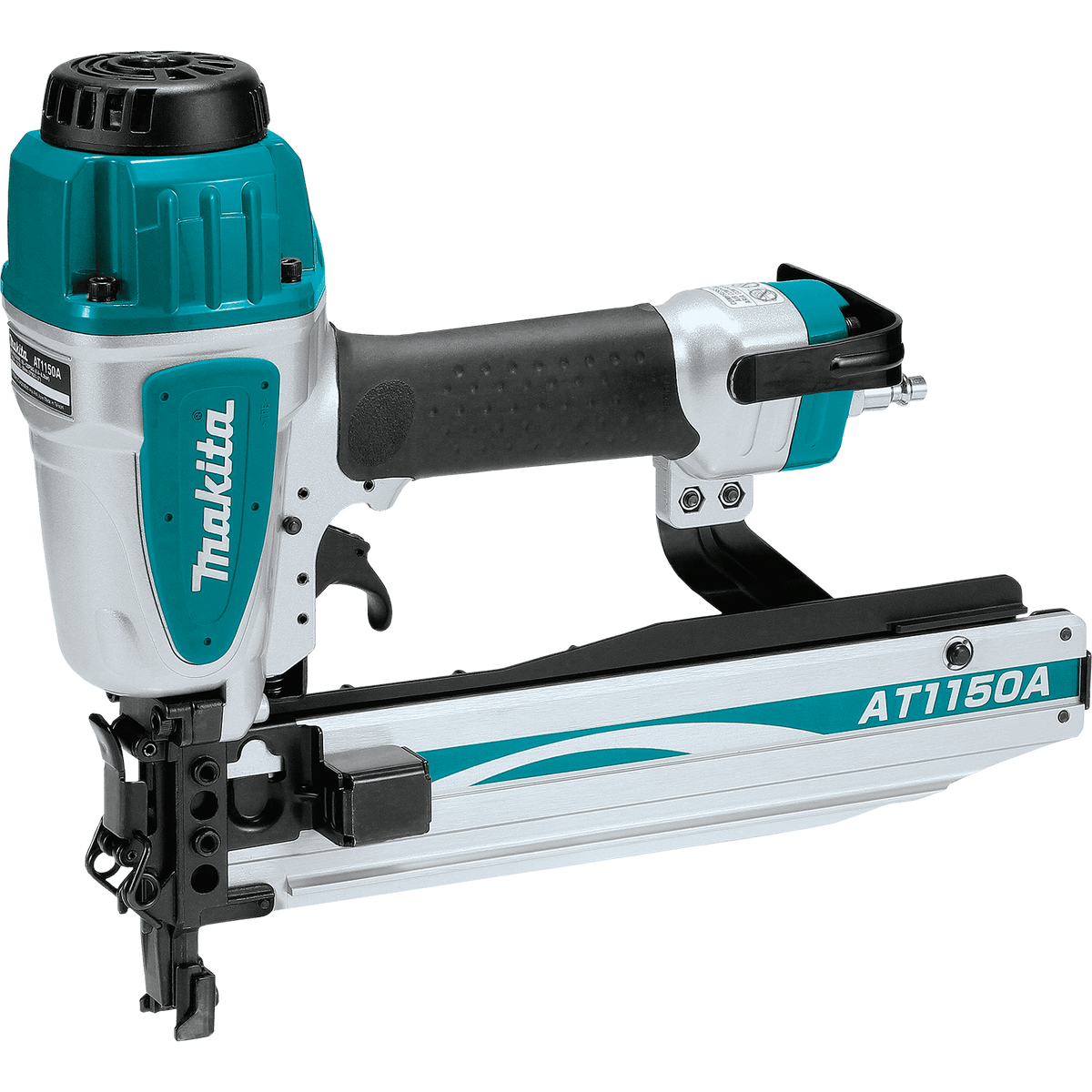

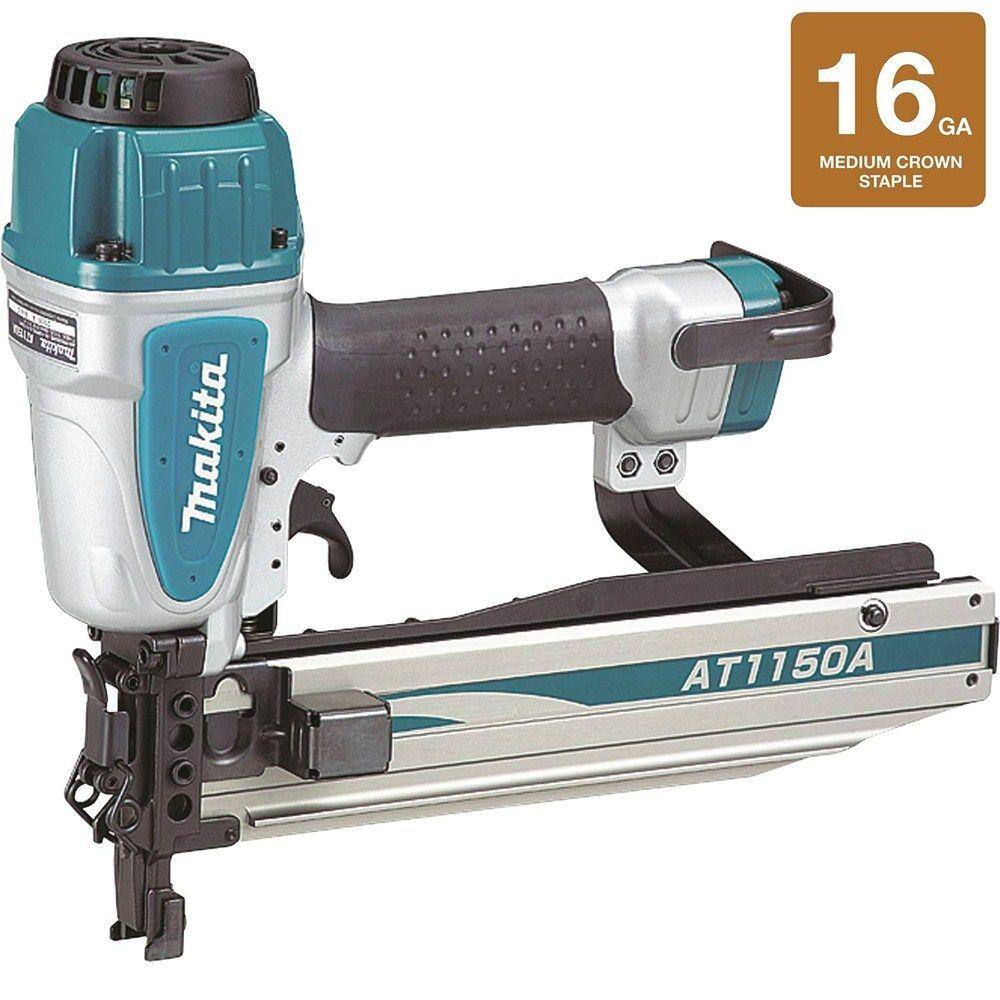

The Makita AT1150A 16-Gauge 7/16" Medium Crown Stapler is a pneumatic structural construction tool engineered to drive medium crown staples with leg lengths from 1 inch to 2 inches. Operating within a compressed air pressure range of 65 to 120 PSI, this air-powered hand tool provides consistent driving force for high-volume sheathing, framing, and pallet production environments. The lightweight 5.1-pound design integrates a top-loading aluminum magazine, a tool-less depth adjustment system, and a quick-release cam-lock nose to optimize mechanical output and maintain job-site efficiency.

Best Used For:

  • Structural Wall Sheathing: Fastening plywood or OSB panels directly to exterior framing members with code-compliant structural holding power.
  • Subflooring Installation: Securing subfloor panels rapidly to floor joists to eliminate floor squeaks and assure a stable underlying deck.
  • High-Volume Crating: Assembling heavy-duty commercial wooden shipping crates, pallets, and industrial storage packaging containers.

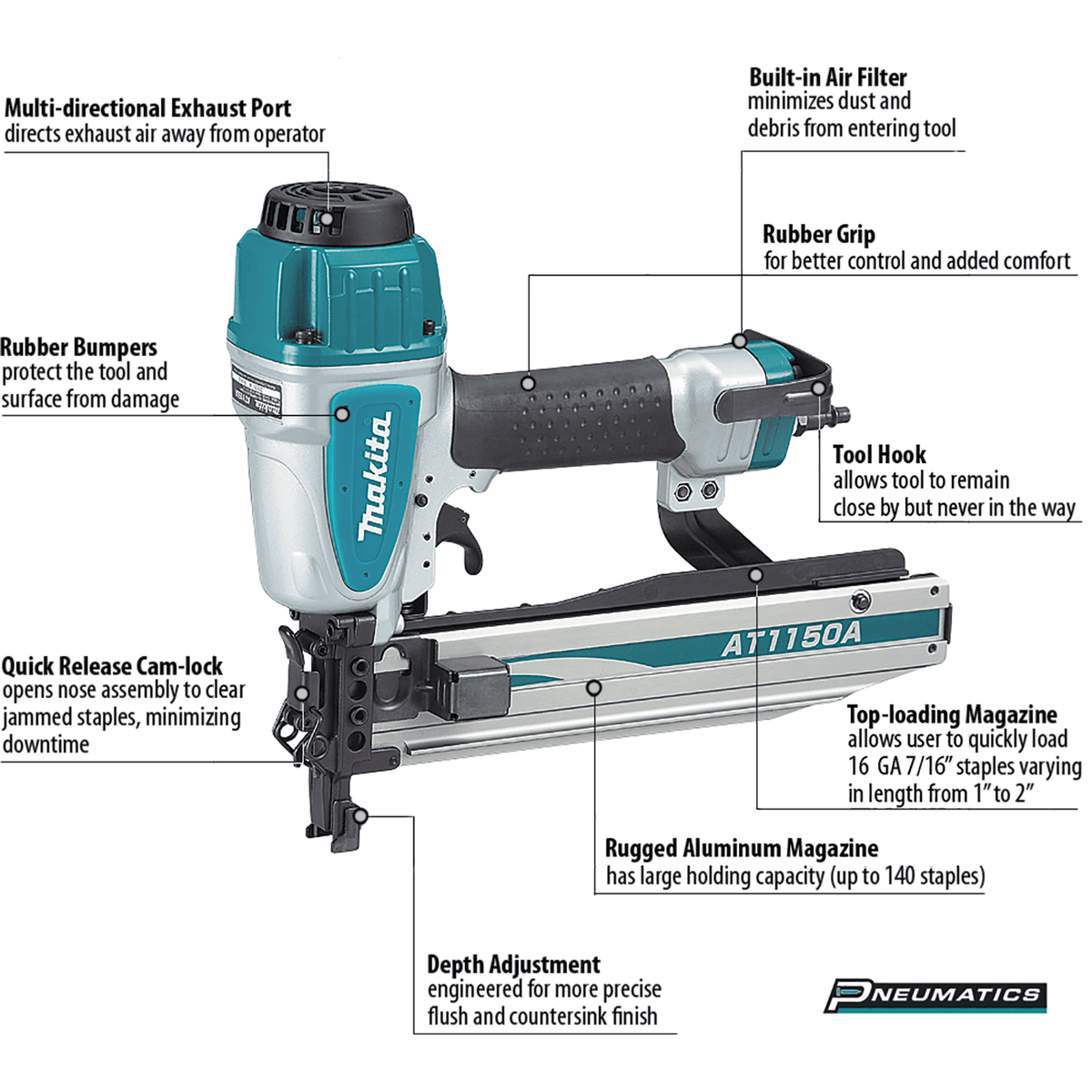

Key Performance & Safety Features

  • Top-Loading Aluminum Magazine: Holds up to 140 staples for minimal reloading downtime during long structural fastening runs.
  • Tool-Less Depth Control: Tactile micro-adjustment dial enables fast changes between perfectly flush seating and clean countersunk driving.

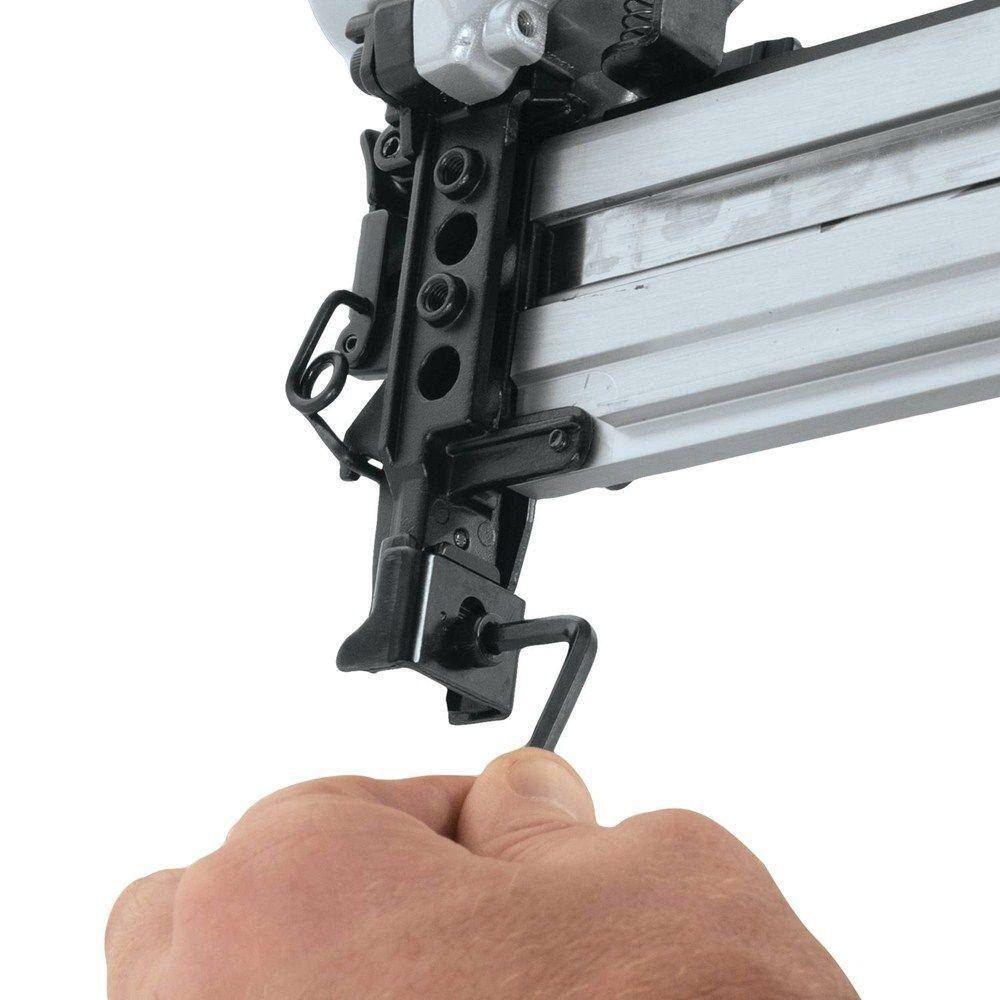

  • Cam-Lock Jam Clearance: Quick-release nose assembly pops open without extra tools to facilitate instant removal of jammed fasteners.
  • Inlet Filter Integration: Built-in internal air filter traps ambient dust and compressor moisture to extend inner cylinder motor life.
  • 360-Degree Multi Exhaust: Rotating exhaust deflector allows the operator to direct spent compressed air paths entirely away from their face.

What's Included

  • (1) 7/16" Medium Crown Stapler (AT1150A)
  • (1) Hex Wrench (A0913-0011)
  • (1) Reversible Hook (A0316-0311)
  • (1) Oil Supply (A09070001)
  • (1) Safety Goggles (A09080-171)
  • (1) Air Fitting (311006-A)

Technical Specifications

Power Type Pneumatic (Air Powered)
Fastening Category Medium Crown Stapler
Staple Gauge 16 Gauge
Crown Size 7/16 Inch
Leg Length Range 1 Inch to 2 Inches
Maximum Magazine Capacity 140 Staples
Operating Air Pressure 65 - 120 PSI
Air Consumption 3.7 SCFM @ 90 PSI
Dimensions (LxWxH) 14-1/2 x 3-7/16 x 11-3/8 Inches
Net Weight 5.1 lbs.

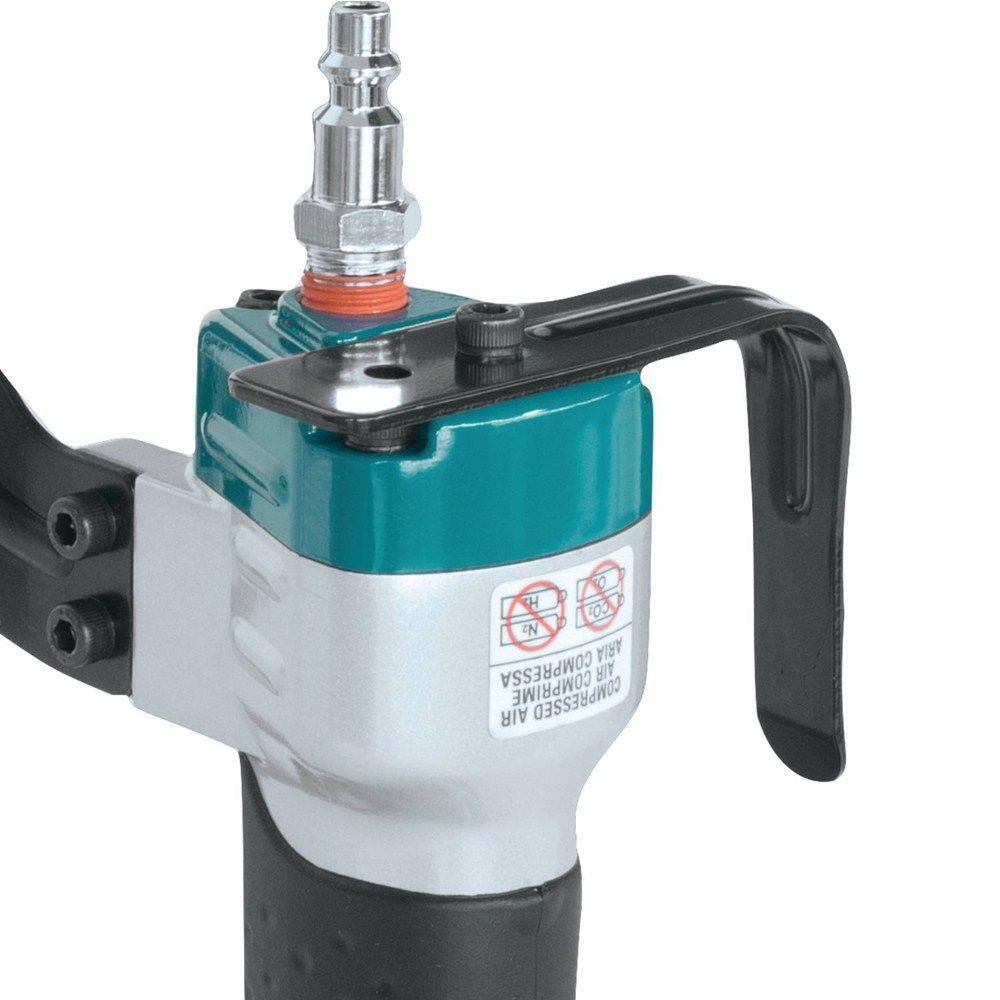

Inlet Size 1/4 Inch NPT
Shipping Weight 6.75 lbs.
Pro-Tip: Check your line pressure dynamically by firing a test staple into scrap workpiece material; if the crown sits proud, adjust your compressor regulator upward rather than just driving the tool harder, as this avoids uneven cylinder fatigue.
