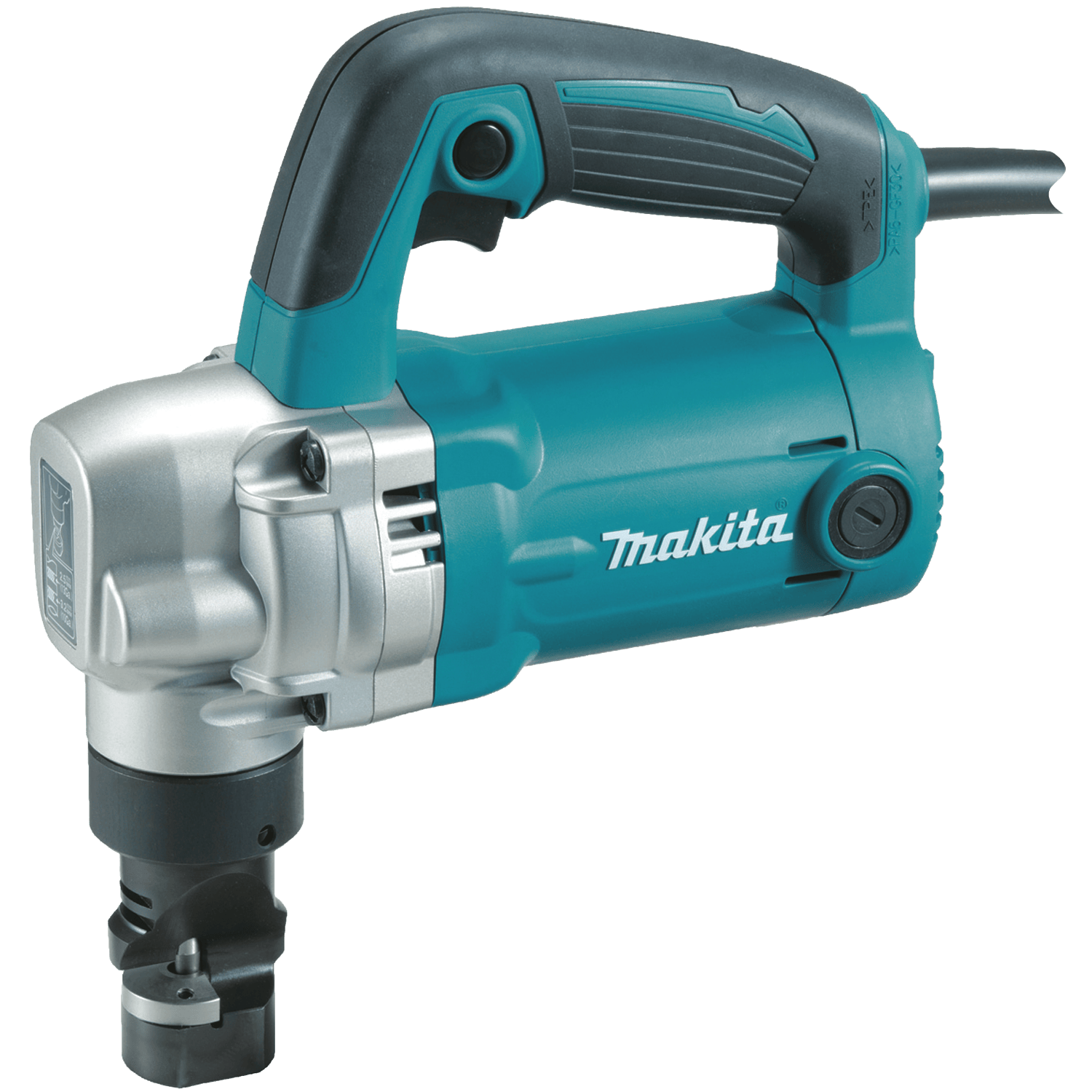

Makita JN3201 6.2 Amp 10-gauge corded sheet metal nibbler featuring a rubberized D-handle and cast aluminum gear housing for clean metal cutting.

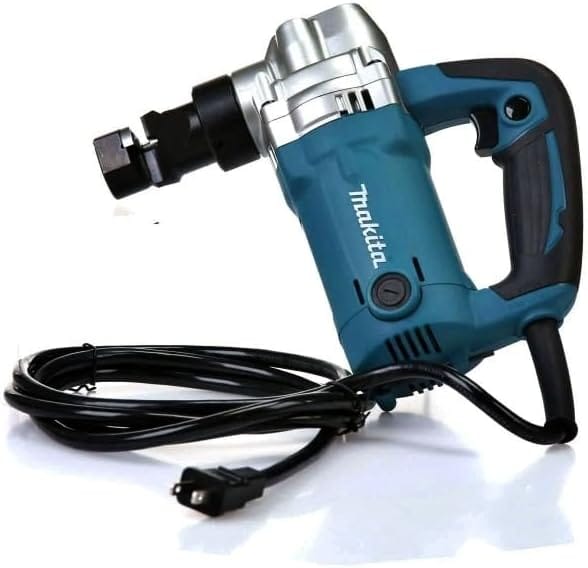

Makita JN3201 corded metal nibbler with its grounded heavy-duty power cord prepared for continuous 1,300 SPM sheet metal cutting operations.

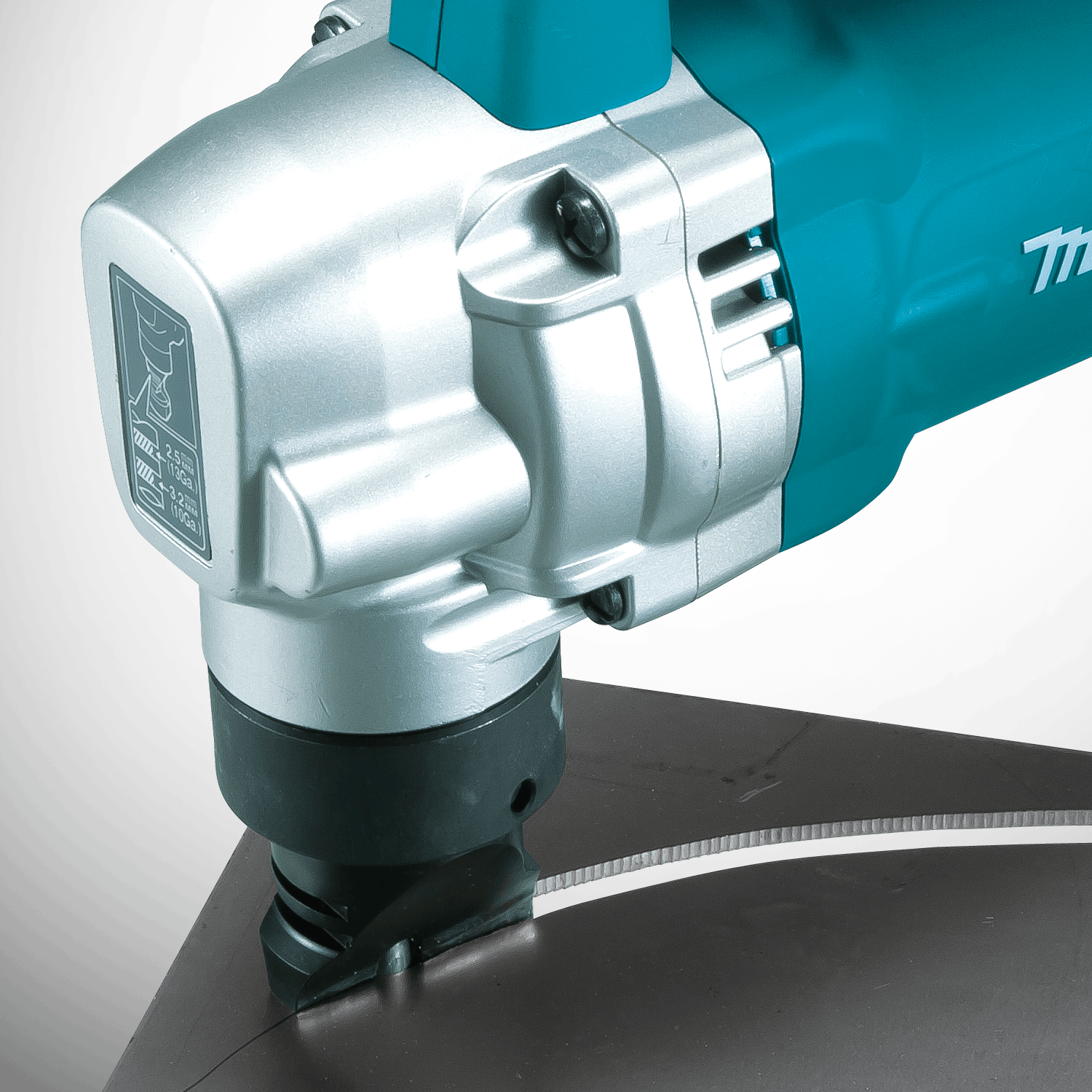

Close-up of the Makita JN3201 nibbler cutting head slicing smoothly through 10-gauge steel plate with clear material thickness reference markings.

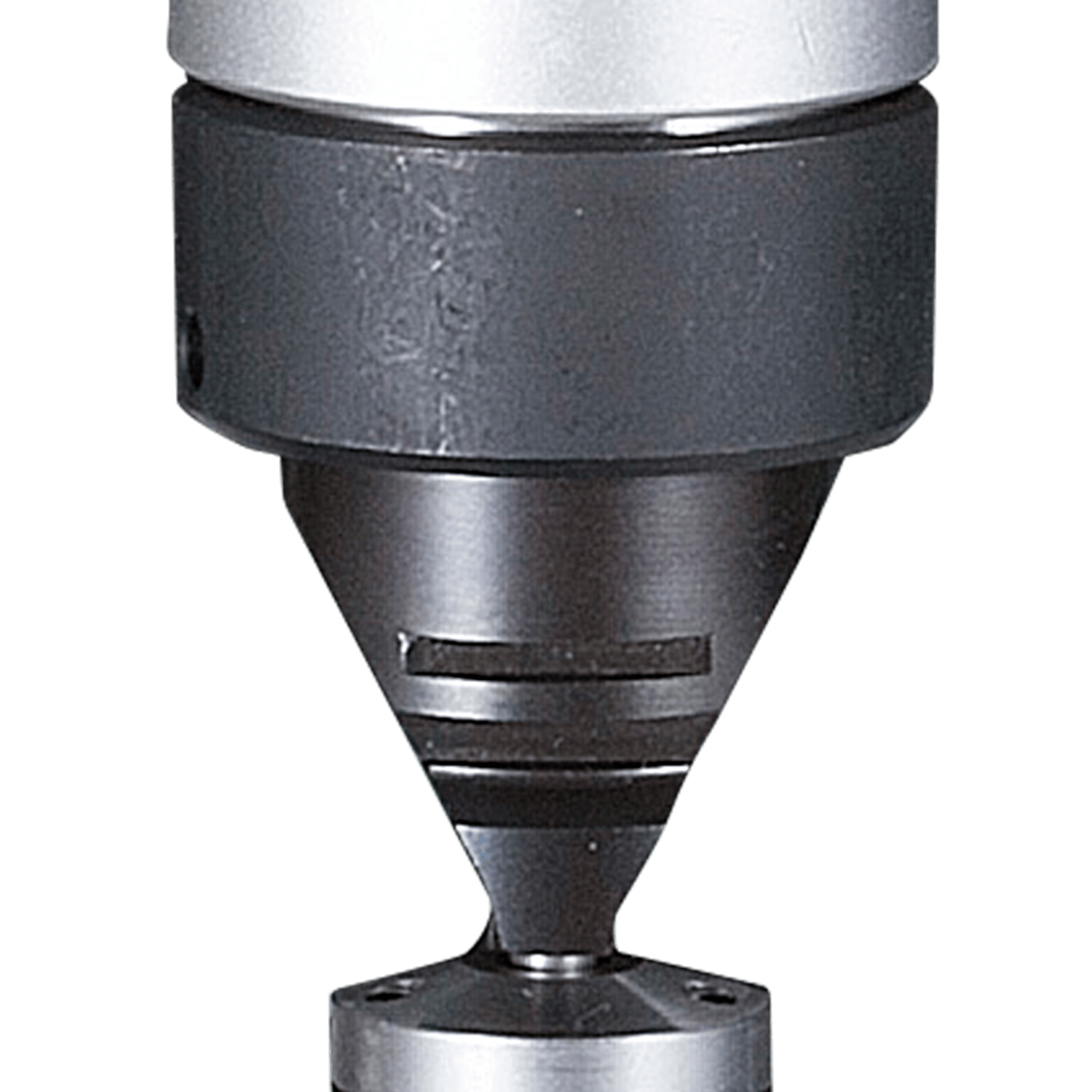

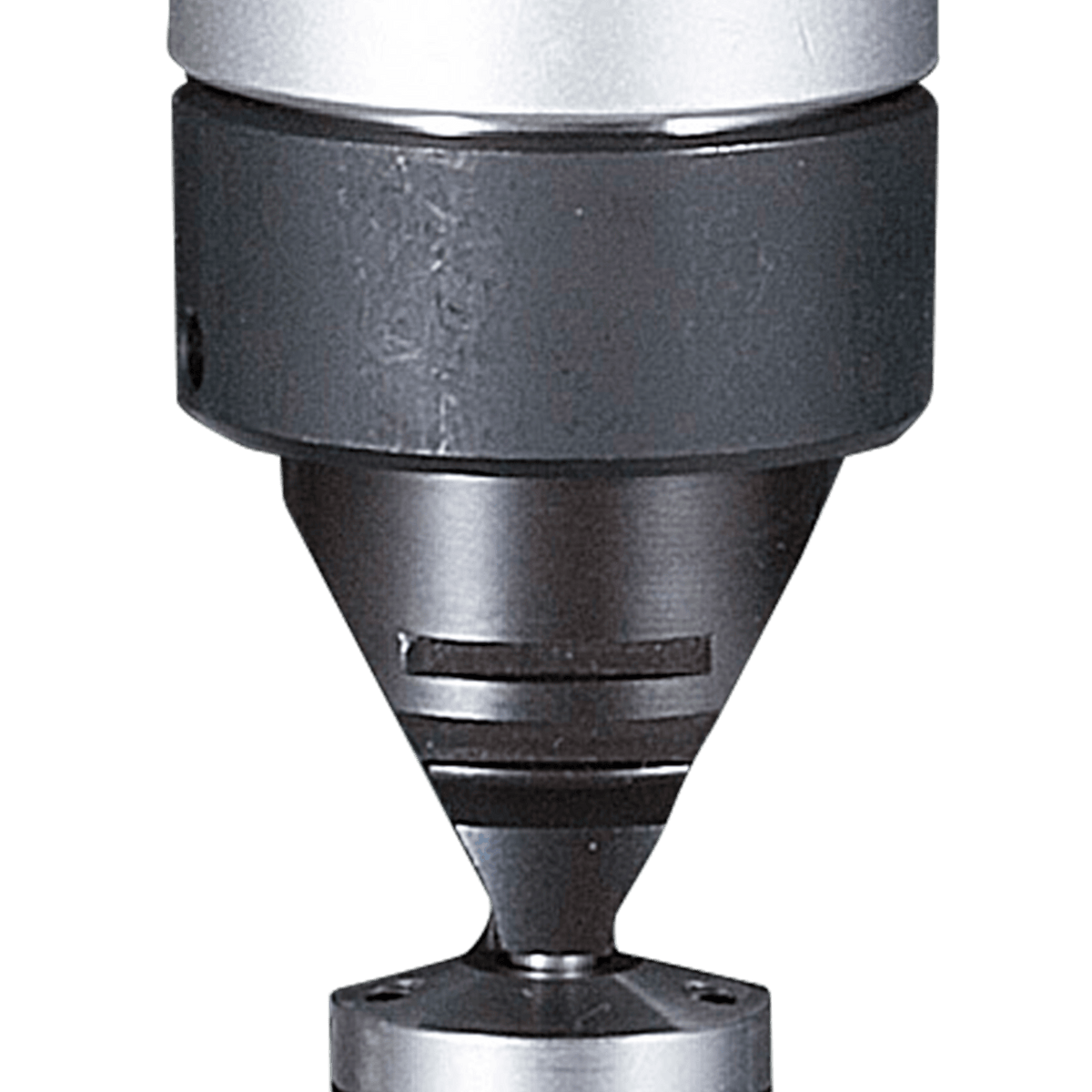

Detailed close-up of the high-strength replacement punch and die assembly on the Makita JN3201 nibbler engineered for distortion-free shearing.

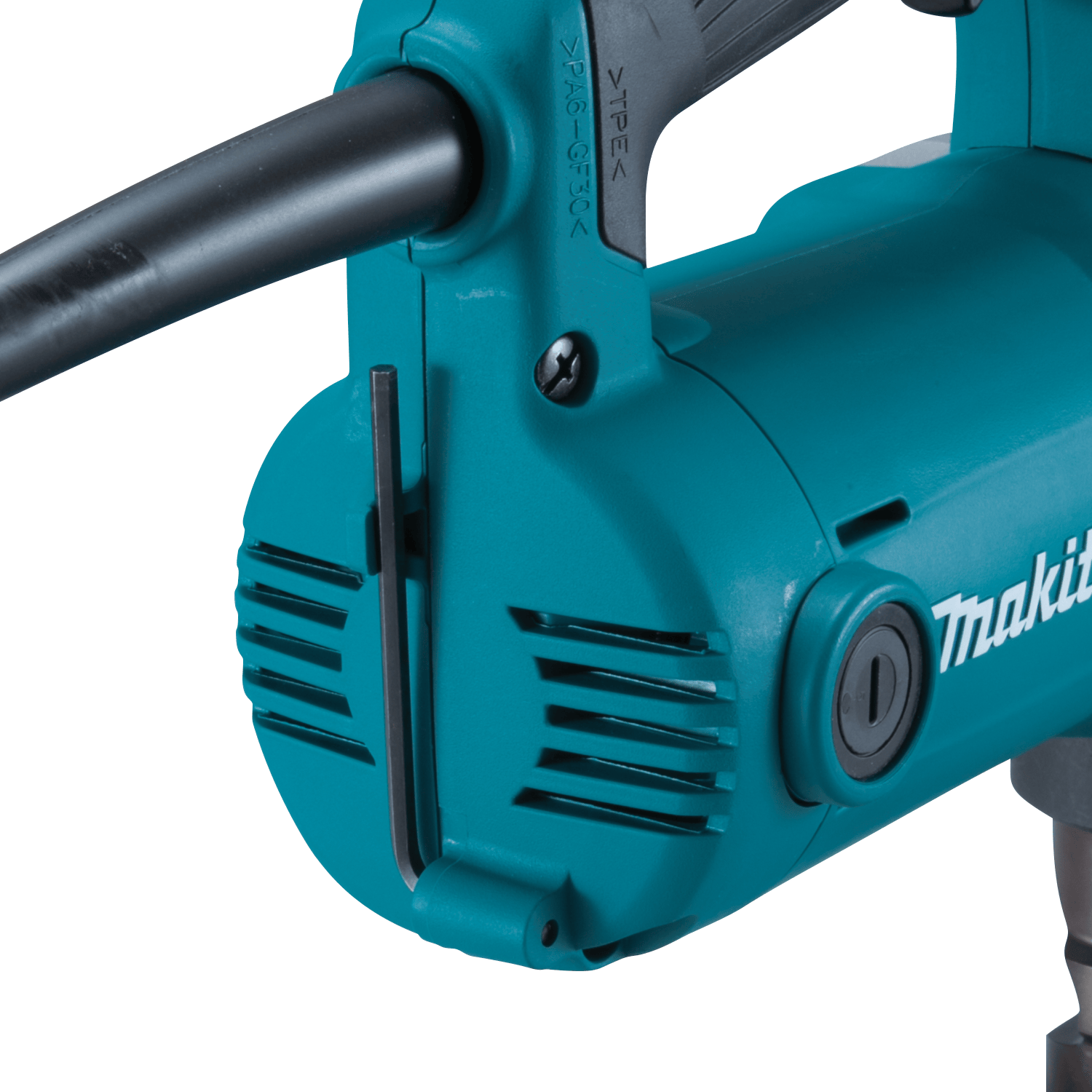

Rear motor housing of the Makita JN3201 nibbler displaying the integrated hex wrench storage slot for quick on-site punch and die adjustments.

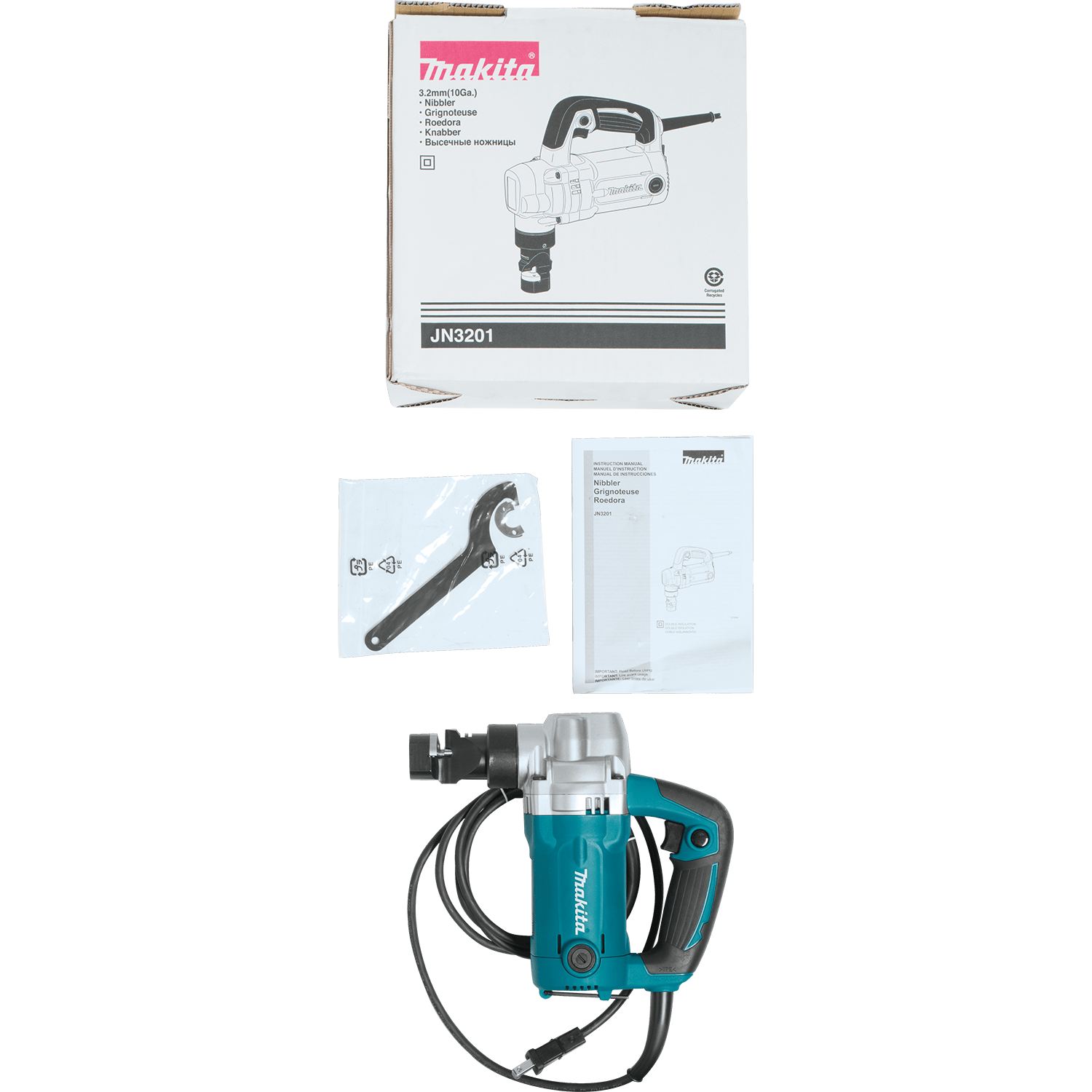

Makita JN3201 10-gauge nibbler kit components including the instruction manual, spanner wrench, and original manufacturer packaging.

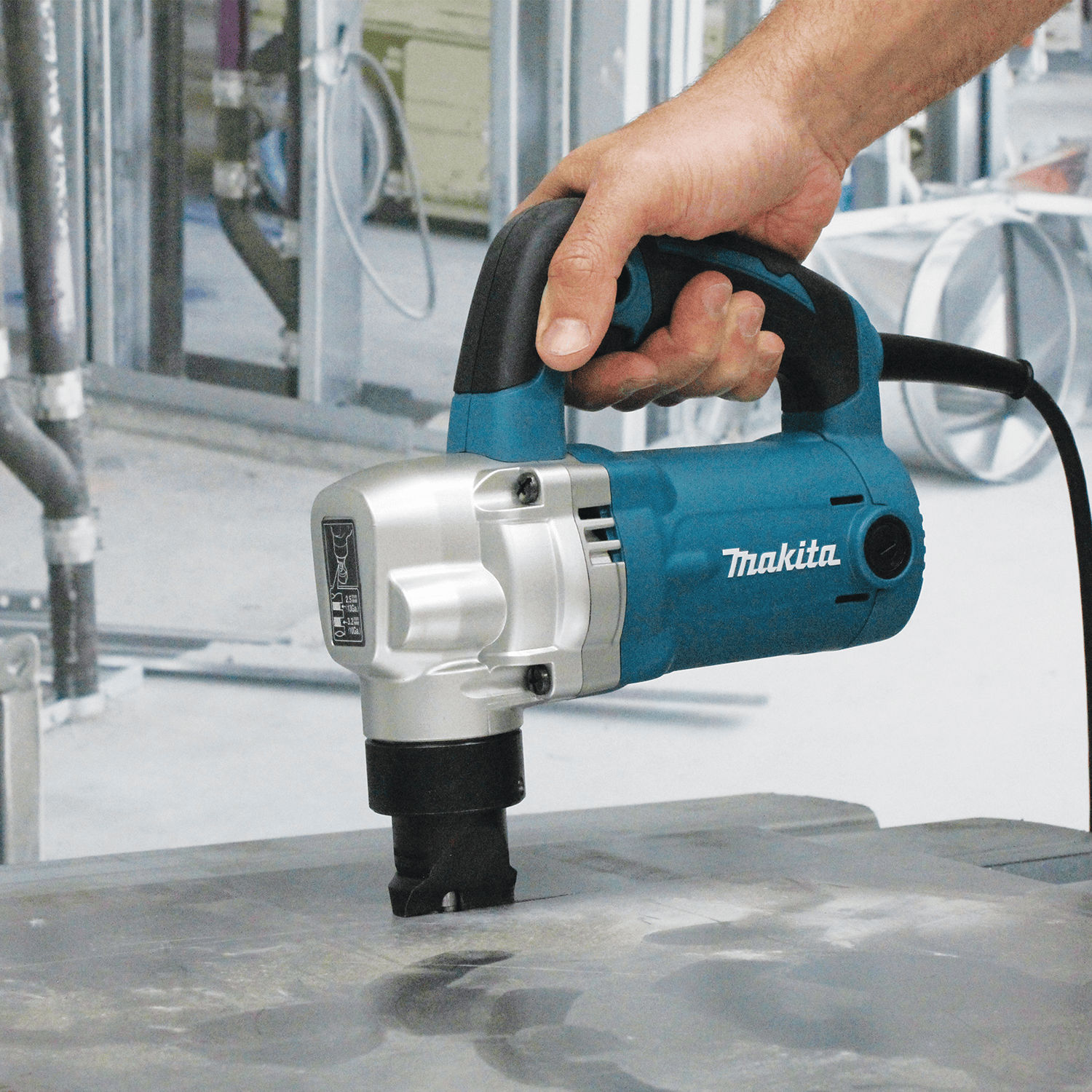

Metalworker making a straight cut through heavy steel plate using the Makita JN3201 corded nibbler on a jobsite prep table.

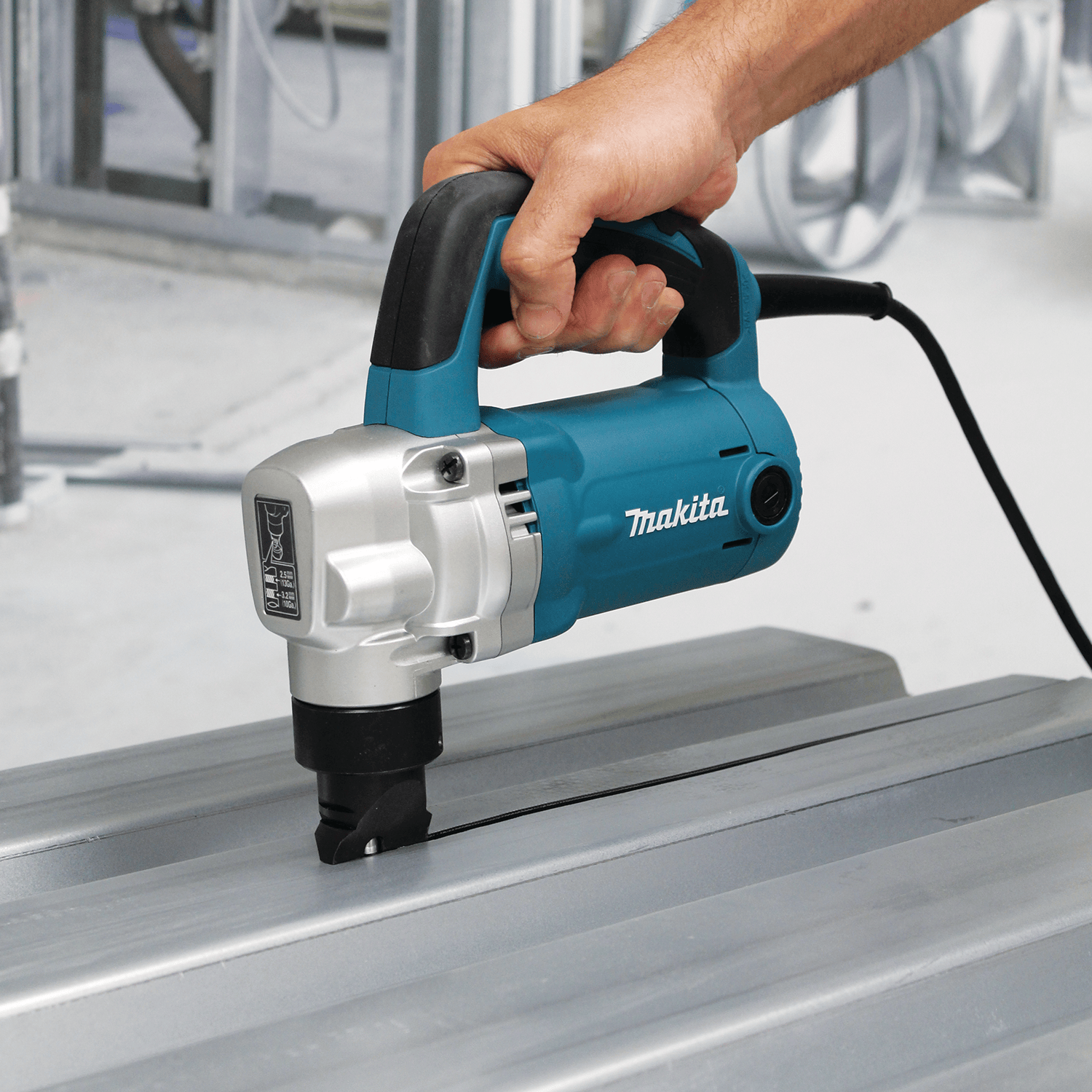

Roofing contractor guiding the Makita JN3201 nibbler across corrugated metal decking while discharging waste chips downward away from the finish.

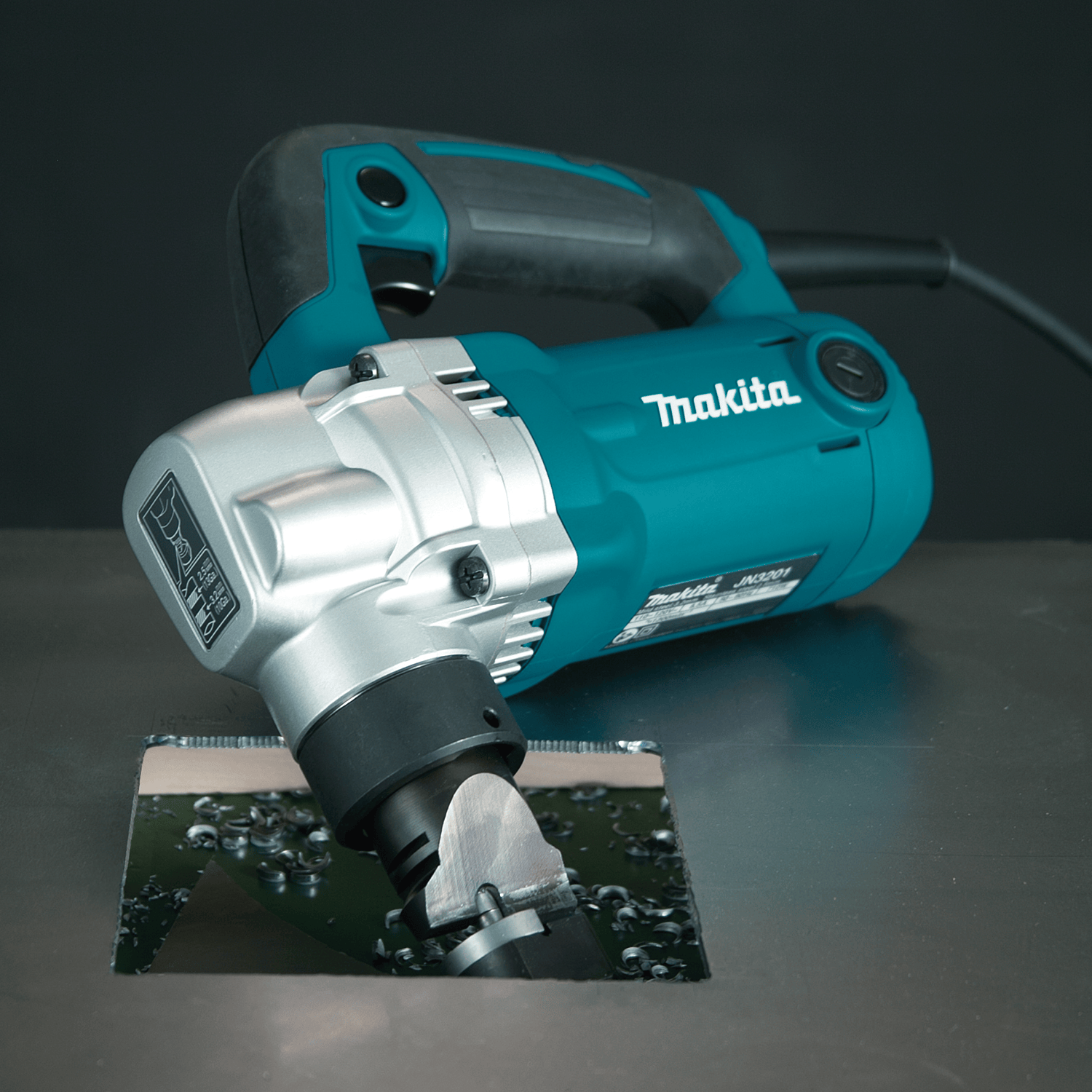

Makita JN3201 10-gauge nibbler completing a square internal cutout in sheet metal showing downward chip disposal beneath the work surface.
Makita JN3201 6.2 Amp 10-gauge corded sheet metal nibbler featuring a rubberized D-handle and cast aluminum gear housing for clean metal cutting.
Makita JN3201 corded metal nibbler with its grounded heavy-duty power cord prepared for continuous 1,300 SPM sheet metal cutting operations.
Close-up of the Makita JN3201 nibbler cutting head slicing smoothly through 10-gauge steel plate with clear material thickness reference markings.
Detailed close-up of the high-strength replacement punch and die assembly on the Makita JN3201 nibbler engineered for distortion-free shearing.
Rear motor housing of the Makita JN3201 nibbler displaying the integrated hex wrench storage slot for quick on-site punch and die adjustments.
Makita JN3201 10-gauge nibbler kit components including the instruction manual, spanner wrench, and original manufacturer packaging.
Metalworker making a straight cut through heavy steel plate using the Makita JN3201 corded nibbler on a jobsite prep table.
Roofing contractor guiding the Makita JN3201 nibbler across corrugated metal decking while discharging waste chips downward away from the finish.
Makita JN3201 10-gauge nibbler completing a square internal cutout in sheet metal showing downward chip disposal beneath the work surface.
Makita

Makita Corded Sheet Metal Nibbler JN3201 10 Gauge 6.2 Amp Motor (1300 SPM 4-3/4 Inch Cutting Radius 13 Ga Stainless Steel Pattern Trimming)

Only 2 left
SKU: JN3201
$799.00 USD

Description

Makita Logo Logout

Makita JN3201 6.2 Amp 10-Gauge Corded Metal Sheet Nibbler

The Makita JN3201 is a heavy-duty corded metal sheet nibbler powered by a 6.2 Amp motor delivering 1,300 strokes per minute for precise distortion-free cutting in up to 10-gauge mild steel and 13-gauge stainless steel sheet stock. Featuring a tight 4-3/4 inch inner edge cutting radius, this 7.5-pound metalworking tool easily cuts tight curves, intricate templates, and corrugated roofing sheets while directing metal chips downward away from the work surface. Engineered with double insulation, an integrated thickness gauge, and quick-change punch and die mechanisms, it provides quiet 81 dB(A) operation and continuous lock-on control for HVAC duct fabricators, roofing contractors, and auto body technicians.

Best Used For:

  • HVAC Ductwork & Curved Sheet Fabrication: Trimming 10-gauge galvanized steel ducts and cutting tight 4-3/4 inch radius round cutouts without bending or distorting panel edges.
  • Corrugated Metal Roofing & Siding Installation: Cutting angled pitch lines and ridgelines through corrugated panel profiles while discharging metal chips underneath the cut line.
  • Auto Body & Stainless Steel Equipment Repair: Following complex layout lines across 13-gauge stainless steel sheets and structural body panels with a direct, unobstructed line of sight.

Key Performance & Safety Features

  • Powerful 6.2 Amp Industrial Motor: Drives the punch mechanism at 1,300 SPM to slice through heavy sheet metals without binding or stalling.
  • Tight 4-3/4 Inch Cutting Radius: Enables precision pattern cutting with an inner edge radius of 4-3/4 inches and outer edge radius of 5-1/16 inches.
  • Downward Metal Chip Waste Disposal: Ejects waste chips underneath the workpiece to prevent scratching or damaging finished metal coatings.
  • Built-In Material Thickness Gauge: Integrated measuring slot on the die neck allows rapid verification of sheet metal gauge before starting cuts.
  • Quiet 81 dB(A) Noise Level Rating: Low noise motor housing design minimizes workplace decibel levels during extended cutting tasks.
  • Fast Punch & Die Replacement: Simple mechanical locking system allows quick access for field replacement of worn punches and dies to minimize project downtime.

What's Included

  • (1) Makita 10-Gauge Nibbler (Model JN3201)
  • (1) Replacement Cutting Punch (792728-1)
  • (1) Replacement Cutting Die (792292-2)
  • (1) Hex Wrench (783201-2)
  • (1) Spanner Wrench (781019-5)

Technical Specifications

Brand Manufacturer Makita® USA
Model Part Number OEM SKU JN3201
Motor Electrical Rating 6.2 Amps / 120V AC 60Hz Corded
Strokes Per Minute Rate 1,300 SPM
Mild Steel Cutting Capacity 10 Gauge (3-5/10 mm)
Stainless Steel Cutting Capacity 13 Gauge (2-5/10 mm)
Aluminum Cutting Capacity 10 Gauge (3-5/10 mm)
Inner Edge Cutting Radius 4-3/4 inches (120 mm)
Outer Edge Cutting Radius 5-1/16 inches (128 mm)
Operating Sound Output Level 81 dB(A)
Overall Tool Body Length 8-1/2 inches (215-9/10 mm)
Net Tool Weight 7-1/2 lbs (7.5 lbs / 3.4 kg)
Insulation & Safety Rating Double Insulated Construction
Total Shipping Package Weight 8-8/10 lbs (8.8 lbs / 3.99 kg)
Universal Product Code UPC 088381-637770

Pro-Tip: Lightly coat the cutting line with machine oil or cutting wax prior to making cuts in stainless steel; lubricating the punch stem significantly extends die lifespan and reduces heat friction.
