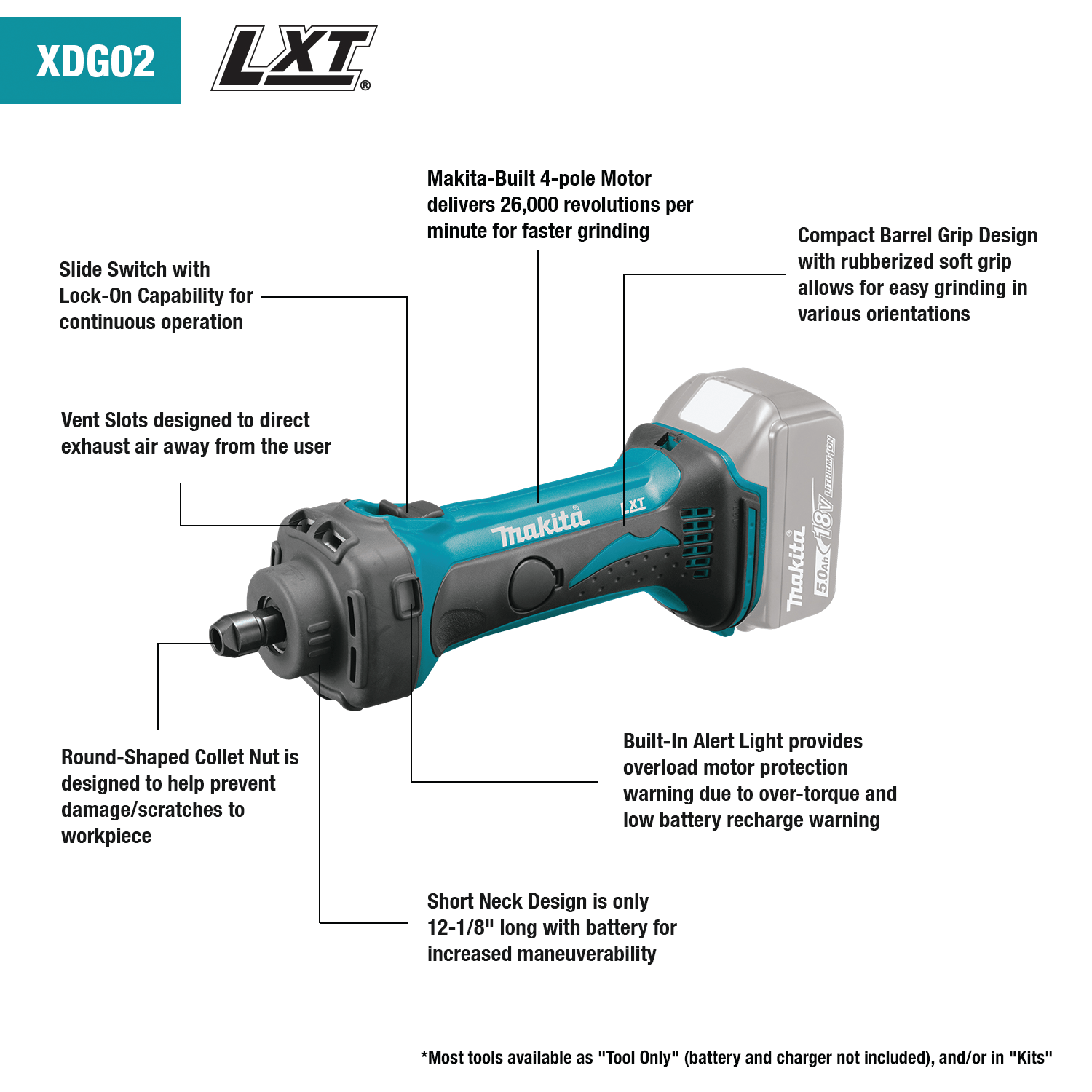

Feature callout diagram of the Makita XDG02Z highlighting its 26,000 RPM motor, 12-1/8 inch length, non-marring collet nut, and overload LED light.

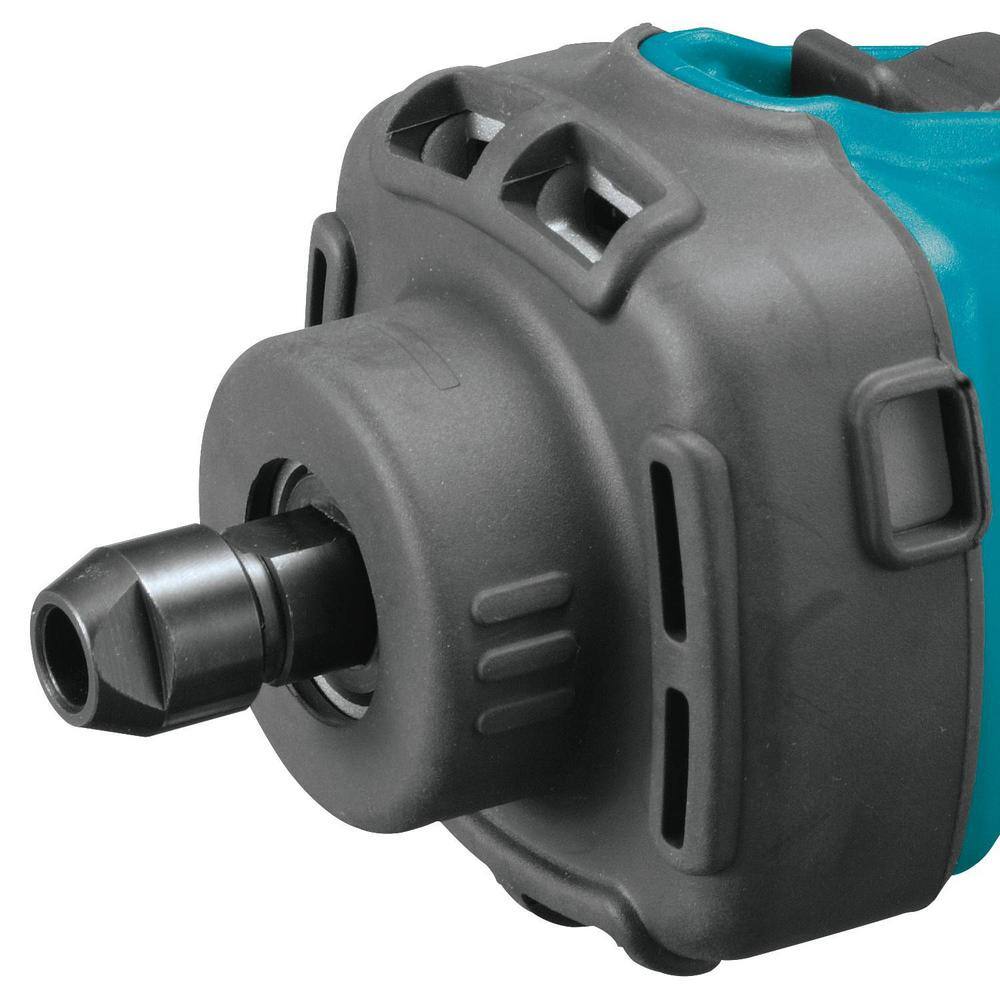

Close-up of the Makita XDG02Z cast aluminum front housing showing the round 1/4-inch collet nut designed to prevent workpiece scratching.

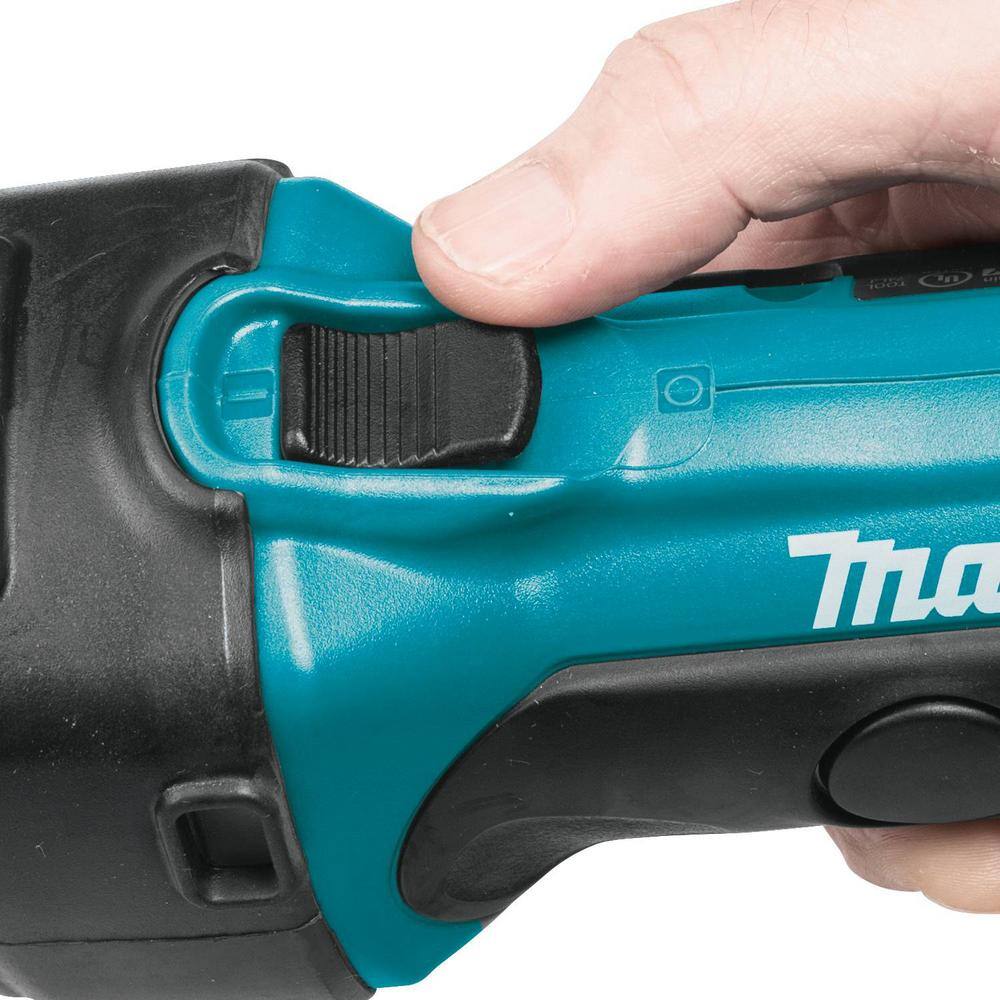

Operator sliding the top thumb switch with lock-on capability on the Makita XDG02Z die grinder for continuous metal grinding.
Directional air vent diagram on the Makita XDG02Z demonstrating how exhaust airflow is channeled forward away from the operator's face.
Tradesman holding the slim rubberized barrel grip of the Makita XDG02Z die grinder, demonstrating one-handed control and ergonomics.

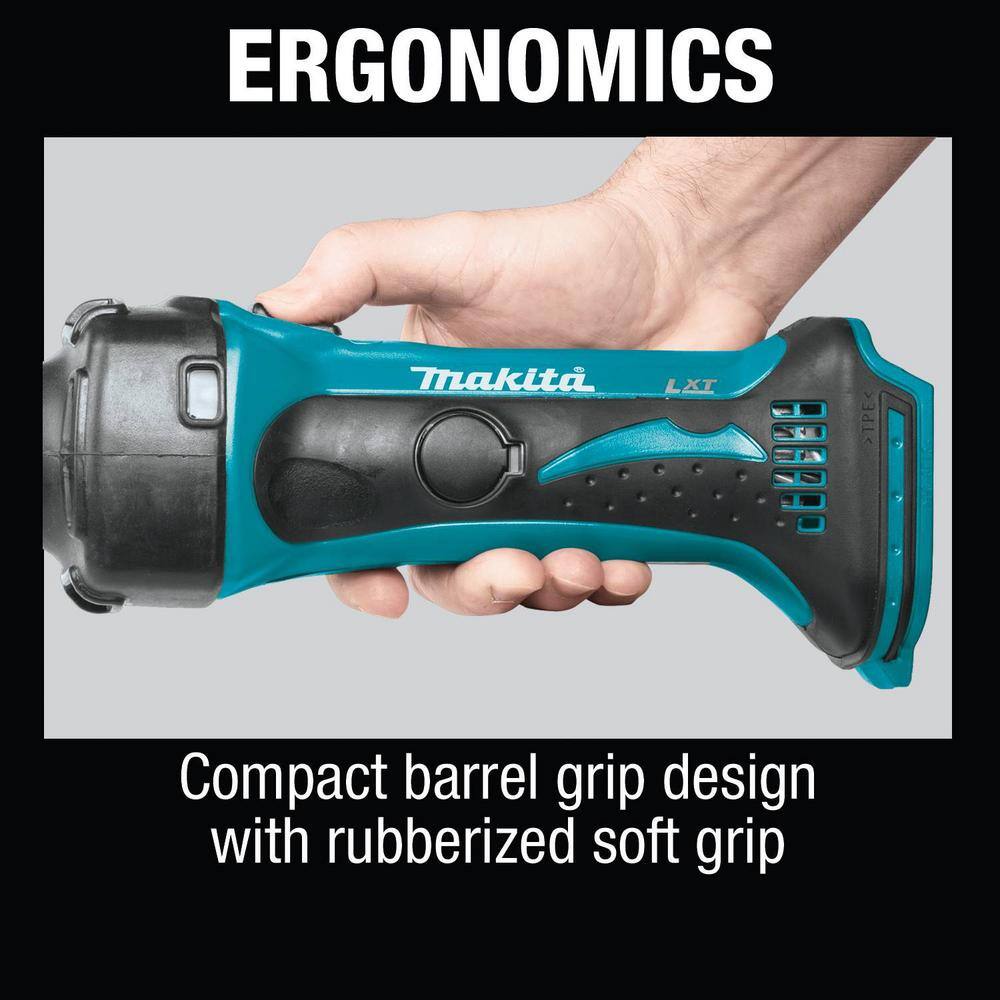

Ergonomics callout graphic showing the compact rubber overmolded barrel body of the Makita XDG02Z for comfortable multi-angle grinding.
Metal fabricator using the short-neck 12-1/8 inch Makita XDG02Z die grinder with a carbide burr to deburr a weld seam in a tight joint.

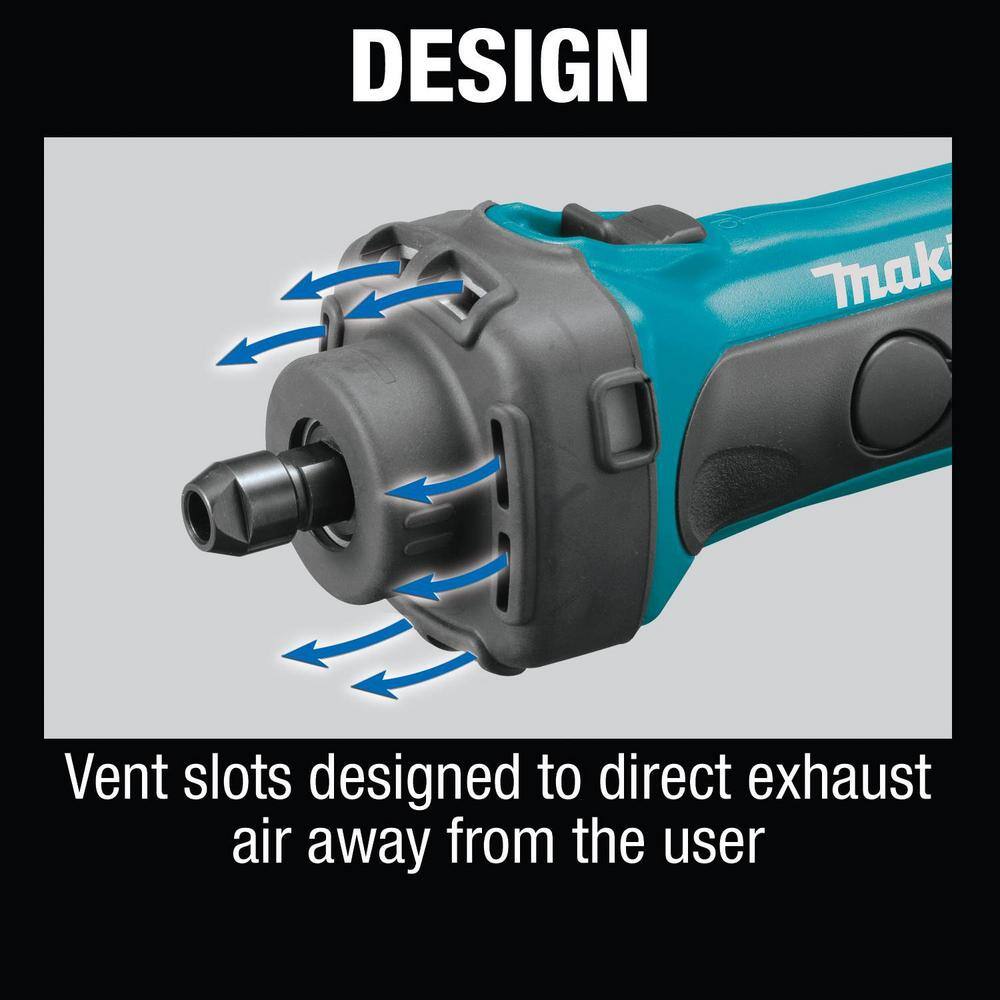

Exhaust design graphic showing forward-facing directional vent slots on the Makita XDG02Z front housing that direct dust away from the user.

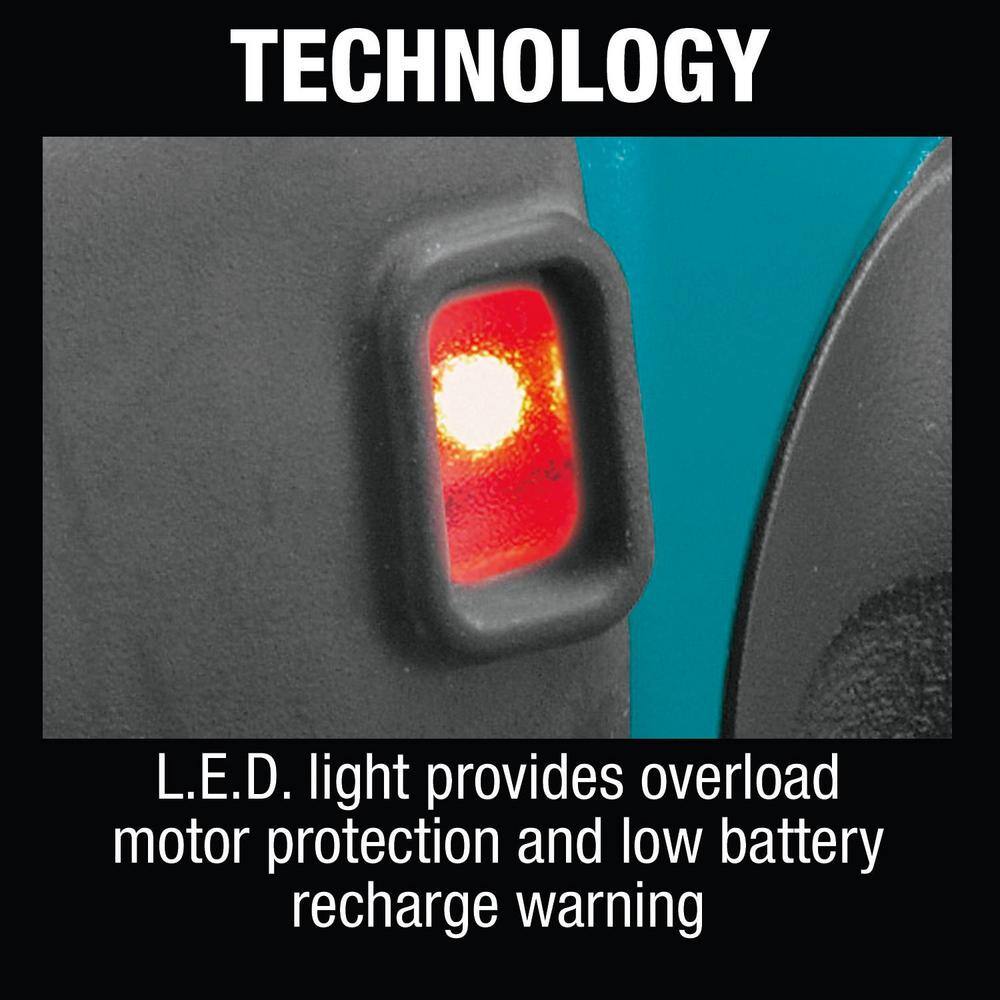

Illuminated red LED indicator light on the Makita XDG02Z warning of motor overload conditions and low 18V battery voltage.

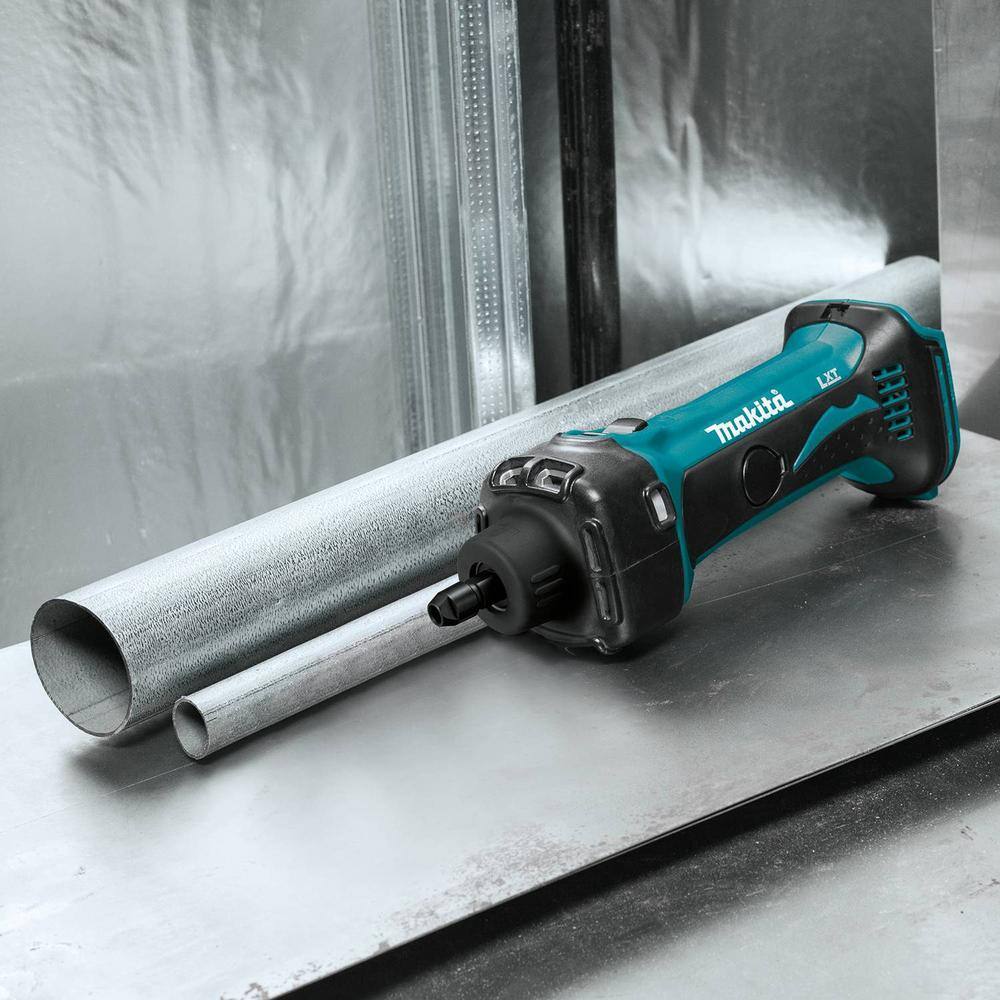

Makita XDG02Z cordless die grinder resting on a steel fabrication workbench alongside metal tubing for internal deburring jobs.
Metalworker holding the Makita XDG02Z die grinder with a mounted stone point to grind a steel weld joint inside a confined metal bracket.

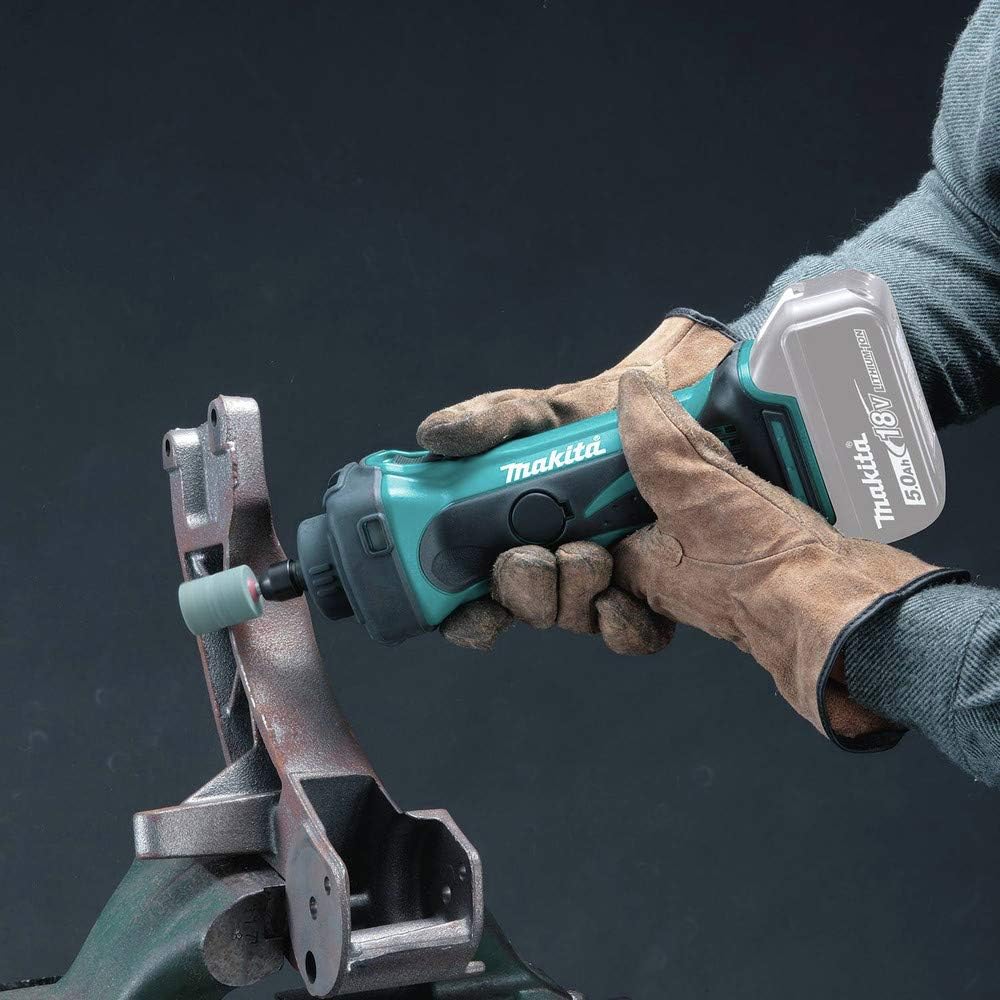

Fabricator using the 18V LXT Makita XDG02Z die grinder with a cylindrical grinding wheel to smooth rough cast iron casting edges.
MAKITA – The LXT® Advantage promotional video
Makita XDG02Z 18V LXT cordless die grinder featuring a compact barrel grip, 1/4-inch collet cone, and short-neck design for grinding in tight spaces.
Feature callout diagram of the Makita XDG02Z highlighting its 26,000 RPM motor, 12-1/8 inch length, non-marring collet nut, and overload LED light.
Close-up of the Makita XDG02Z cast aluminum front housing showing the round 1/4-inch collet nut designed to prevent workpiece scratching.
Operator sliding the top thumb switch with lock-on capability on the Makita XDG02Z die grinder for continuous metal grinding.
Directional air vent diagram on the Makita XDG02Z demonstrating how exhaust airflow is channeled forward away from the operator's face.
Tradesman holding the slim rubberized barrel grip of the Makita XDG02Z die grinder, demonstrating one-handed control and ergonomics.
Ergonomics callout graphic showing the compact rubber overmolded barrel body of the Makita XDG02Z for comfortable multi-angle grinding.
Metal fabricator using the short-neck 12-1/8 inch Makita XDG02Z die grinder with a carbide burr to deburr a weld seam in a tight joint.
Exhaust design graphic showing forward-facing directional vent slots on the Makita XDG02Z front housing that direct dust away from the user.
Illuminated red LED indicator light on the Makita XDG02Z warning of motor overload conditions and low 18V battery voltage.
Makita XDG02Z cordless die grinder resting on a steel fabrication workbench alongside metal tubing for internal deburring jobs.
Metalworker holding the Makita XDG02Z die grinder with a mounted stone point to grind a steel weld joint inside a confined metal bracket.
Fabricator using the 18V LXT Makita XDG02Z die grinder with a cylindrical grinding wheel to smooth rough cast iron casting edges.
MAKITA – The LXT® Advantage promotional video
Makita

Makita Cordless Die Grinder XDG02Z 18V LXT Bare Tool 1/4 Inch (26000 RPM Motor Short Neck Compact Barrel Grip Metal Weld Deburring Surface Prep)

Only 1 left
SKU: XDG02Z
$229.00 USD

Description

Makita Logo Logout

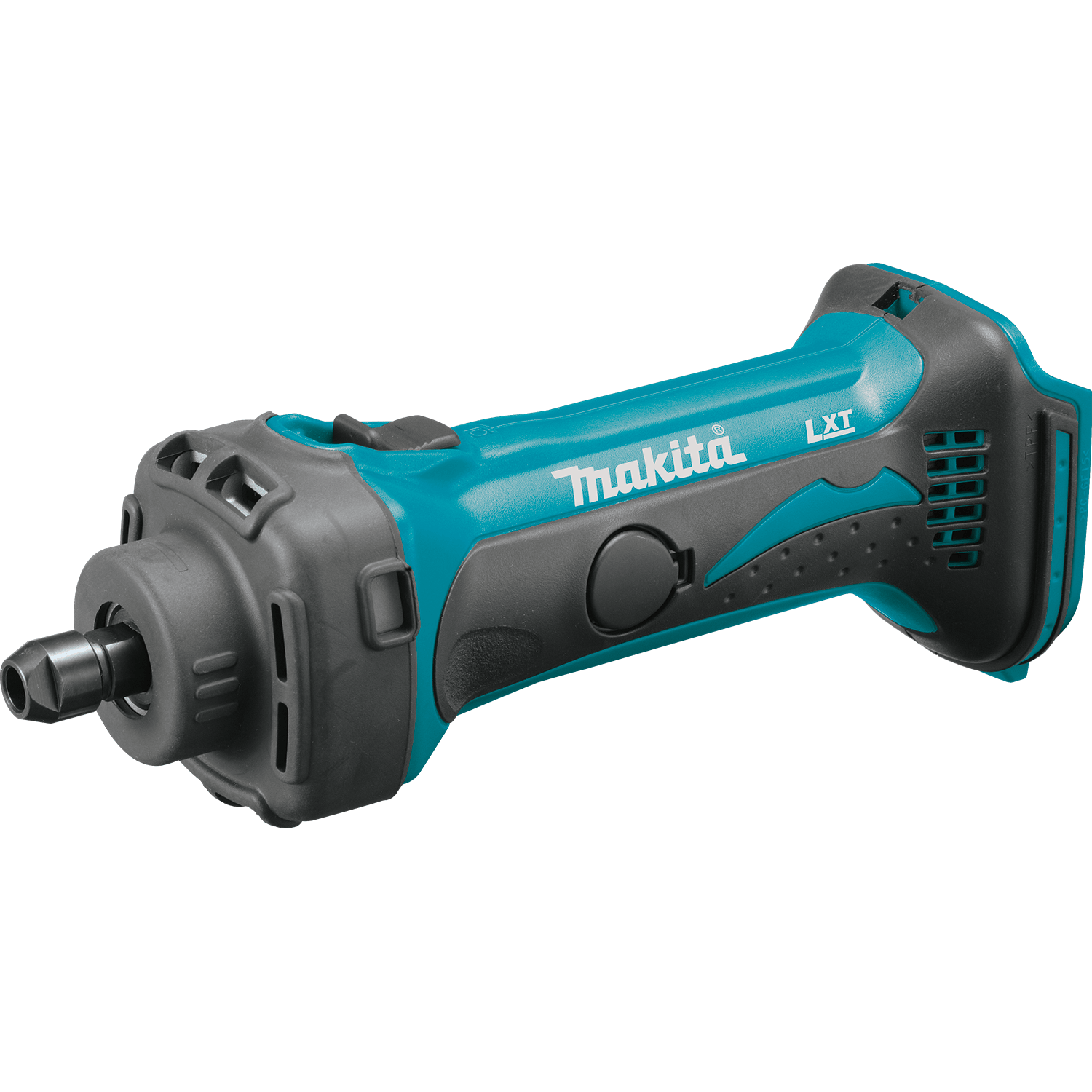

Makita XDG02Z 18V LXT 1/4-Inch Cordless Compact Die Grinder Bare Tool

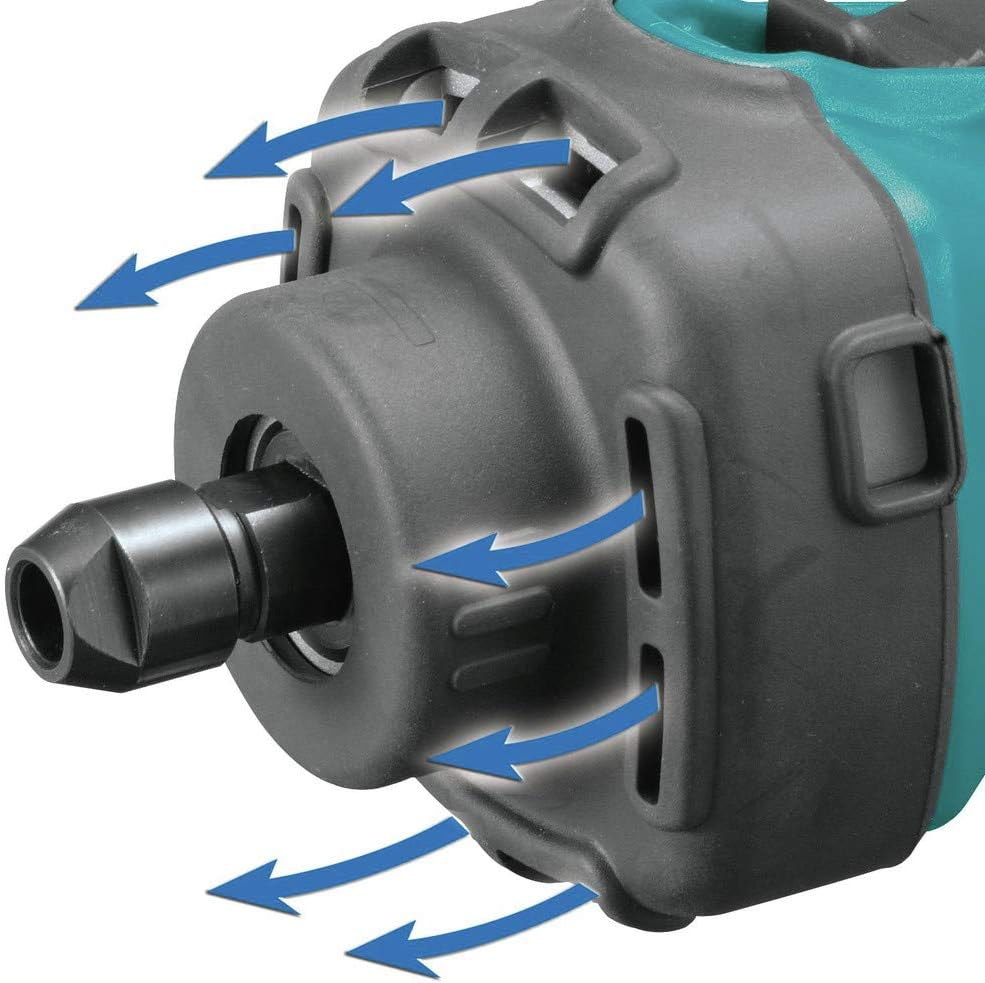

The Makita XDG02Z is an 18V LXT cordless 1/4-inch die grinder powered by a high-output 4-pole motor delivering 26,000 RPM for fast metal deburring, weld smoothing, and surface preparation in confined work areas. Weighing 3.8 pounds with an overall short-neck length of 12-1/8 inches, this compact rotary tool features a slim barrel grip, solid aluminum gear housing, and directional exhaust vents to blow debris away from the operator. Integrated with Star Protection Computer Controls, an anti-restart safety function, and an overload/low-battery LED alert system, it provides high-speed grinding performance across steel fabrication, auto body restoration, and industrial pipe fitting applications. **Battery and charger sold separately.

Best Used For:

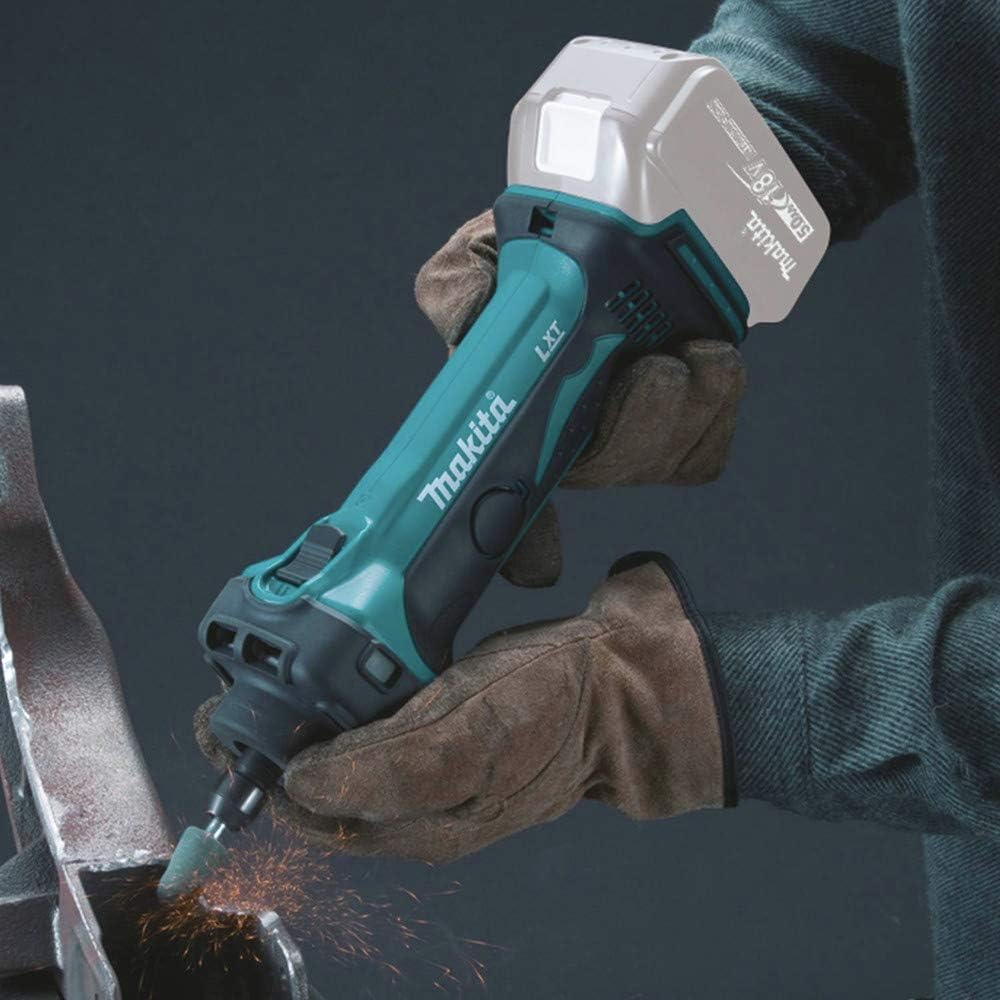

  • Metal Weld Seam Smoothing & Deburring: Blending structural steel welds, smoothing plasma-cut edges, and removing internal pipe burrs using carbide rotary burrs.
  • Confined Engine Bay & Machinery Rebuilding: Reaching restricted spaces inside automotive engine blocks, chassis frames, and custom metal fabrications with a short 12-1/8 inch profile.
  • Industrial Metal Surface Preparation: Removing rust, mill scale, and old paint from curved steel surfaces using 1/4-inch shank mounted grinding stones or flap wheels.

Key Performance & Safety Features

  • Makita 4-Pole Motor Architecture: High-efficiency motor delivers 26,000 RPM non-load speed for rapid material removal with mounted rotary accessories.

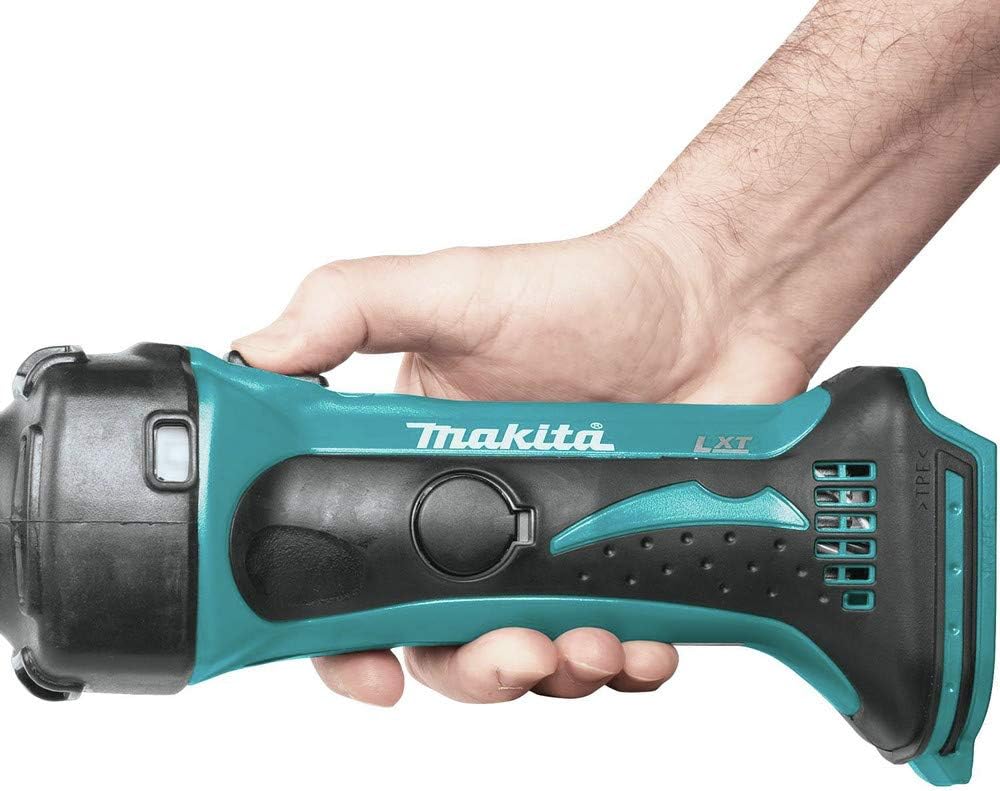

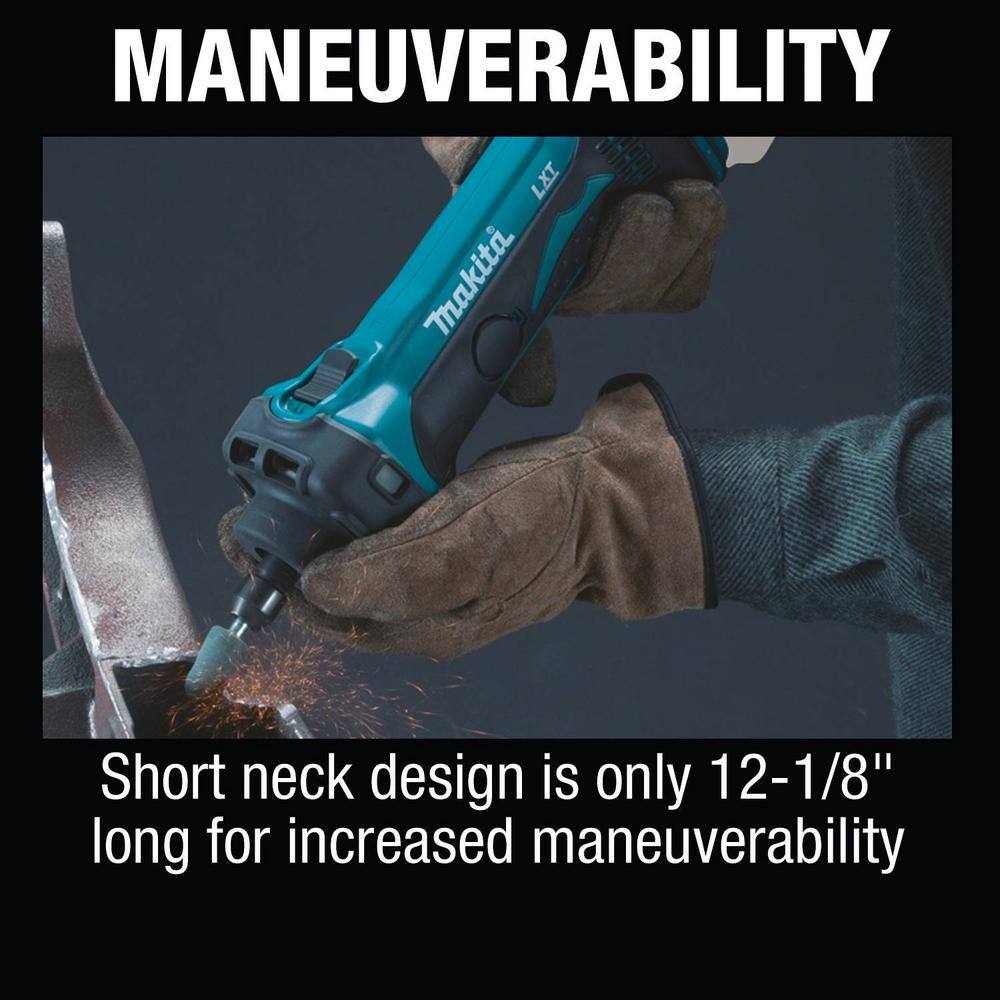

  • Short-Neck Compact Housing: 12-1/8 inch length combined with a slim rubberized barrel grip maximizes tool maneuverability inside tight compartments.
  • Star Protection Computer Controls: Real-time electronic communication monitors operating conditions to safeguard against motor overloading, over-discharging, and thermal overheating.
  • Anti-Restart & Overload Warning LED: Electronic safety relay prevents motor startup when inserting a battery with the switch locked on, while a red LED warns of motor over-torque.
  • Round Smooth Collet Nut Profile: Smooth, non-marring collet nut reduces the risk of accidental workpiece scratching during close-quarter grinding.
  • Externally Accessible Carbon Brushes: Serviceable brush caps allow quick maintenance to extend motor operating lifespan on production sites.

What's Included

  • (1) Makita 18V LXT® Cordless 1/4" Compact Die Grinder (Model XDG02Z)
  • (1) 1/4" Collet Cone (763673-7)
  • (1) Collet Nut (763668-0)
  • (1) Spanner Wrench (781039-9)

Technical Specifications

Brand Manufacturer Makita® USA
Model Part Number OEM SKU XDG02Z
Operating Voltage Rating 18V DC Slide-Style Battery
No-Load Rotational Speed 26,000 RPM
Collet Capacity Diameter 1/4 inches (6-35/100 mm)
Motor Type Construction Makita 4-Pole Brushed Motor
Switch Type Configuration Slide Switch with Lock-On Function
Electronic Protection System Star Protection Computer Controls™
Overall Tool Body Length 12-1/8 inches (307-97/100 mm)
Net Weight with Battery 3-8/10 lbs (3.8 lbs / 1.72 kg)
Front Housing Construction Solid Cast Aluminum Gear Case
Battery Platform Compatibility Makita 18V LXT® Lithium-Ion Series
Manufacturer Warranty Term 3-Year Limited Warranty

Pro-Tip: Always match your accessory shank diameter precisely to the 1/4-inch collet cone and tighten the collet nut firmly with the included spanner wrench to prevent bit vibration or slippage at 26,000 RPM.
