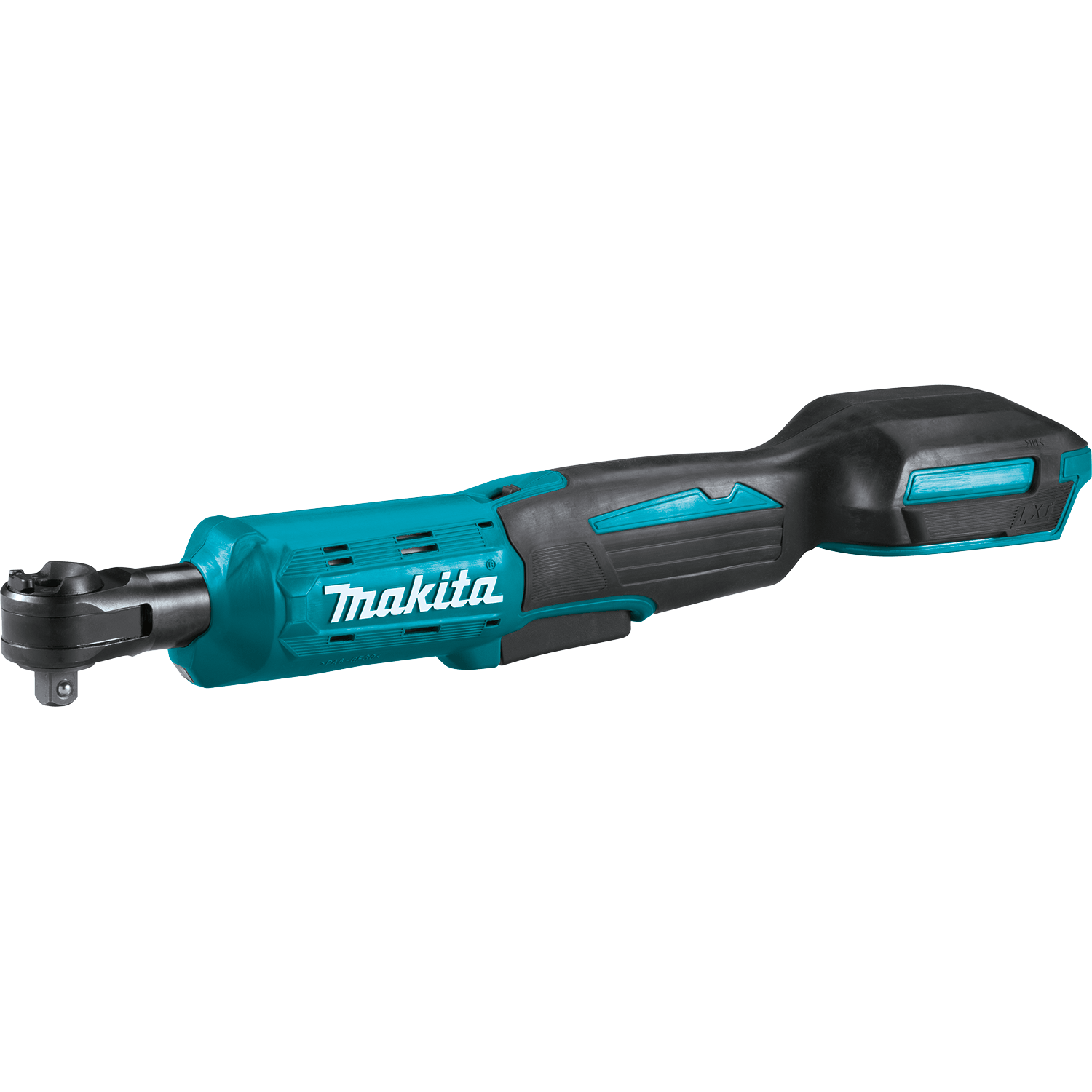

Makita XRW01Z 18V LXT cordless drive ratchet featuring a low-profile head and slim rubberized handle for tight engine bay fastening.

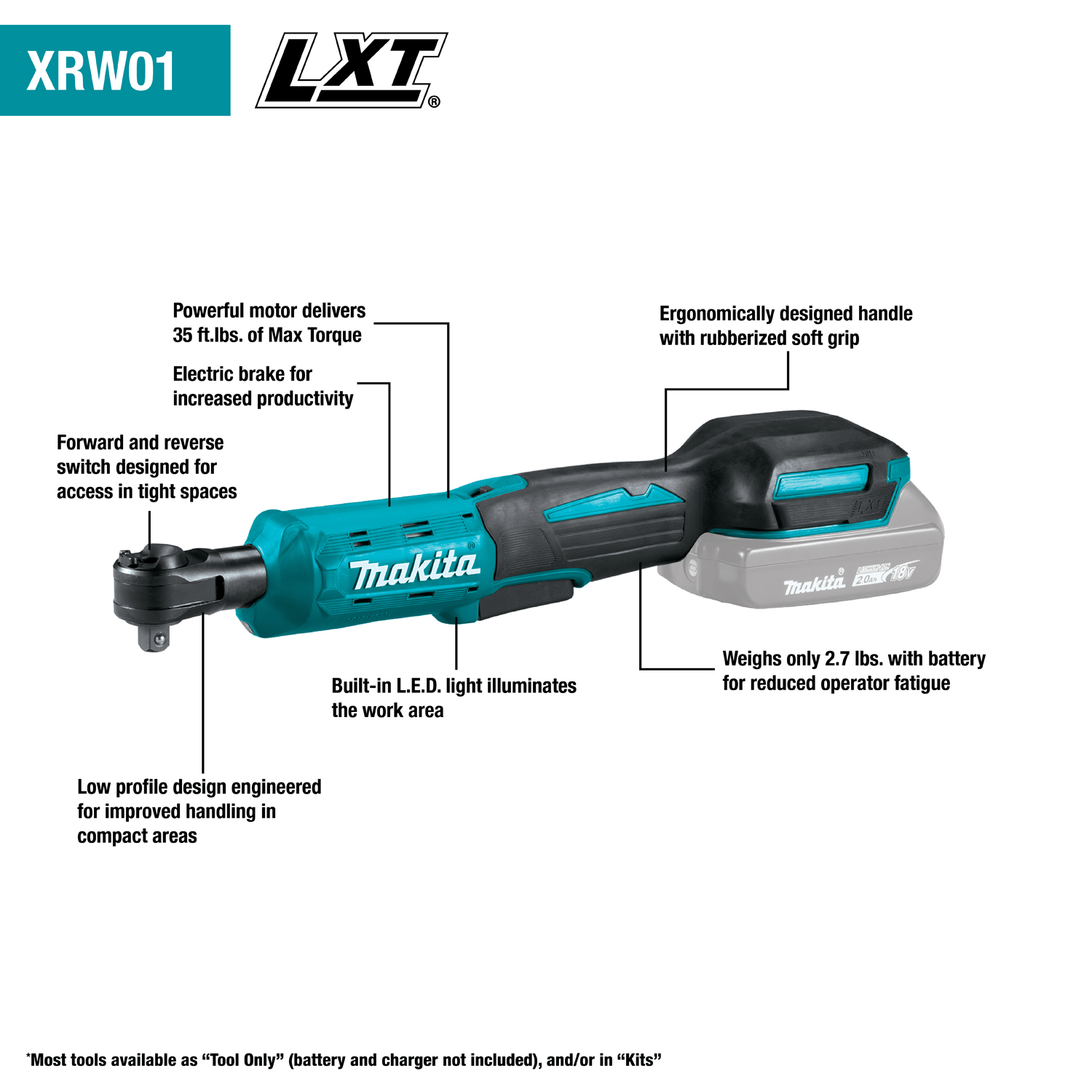

Feature callout graphic of the Makita XRW01Z ratchet detailing its 35 ft-lbs max torque, 800 RPM motor, electric brake, and 2.7-pound weight.

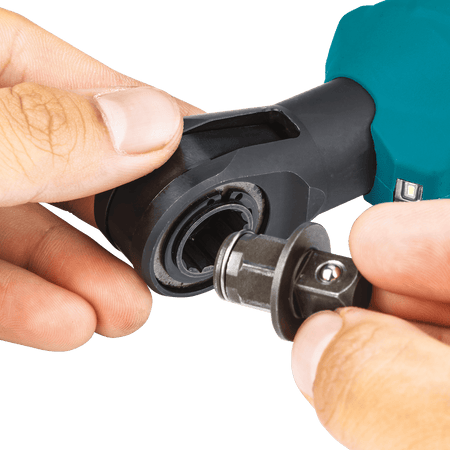

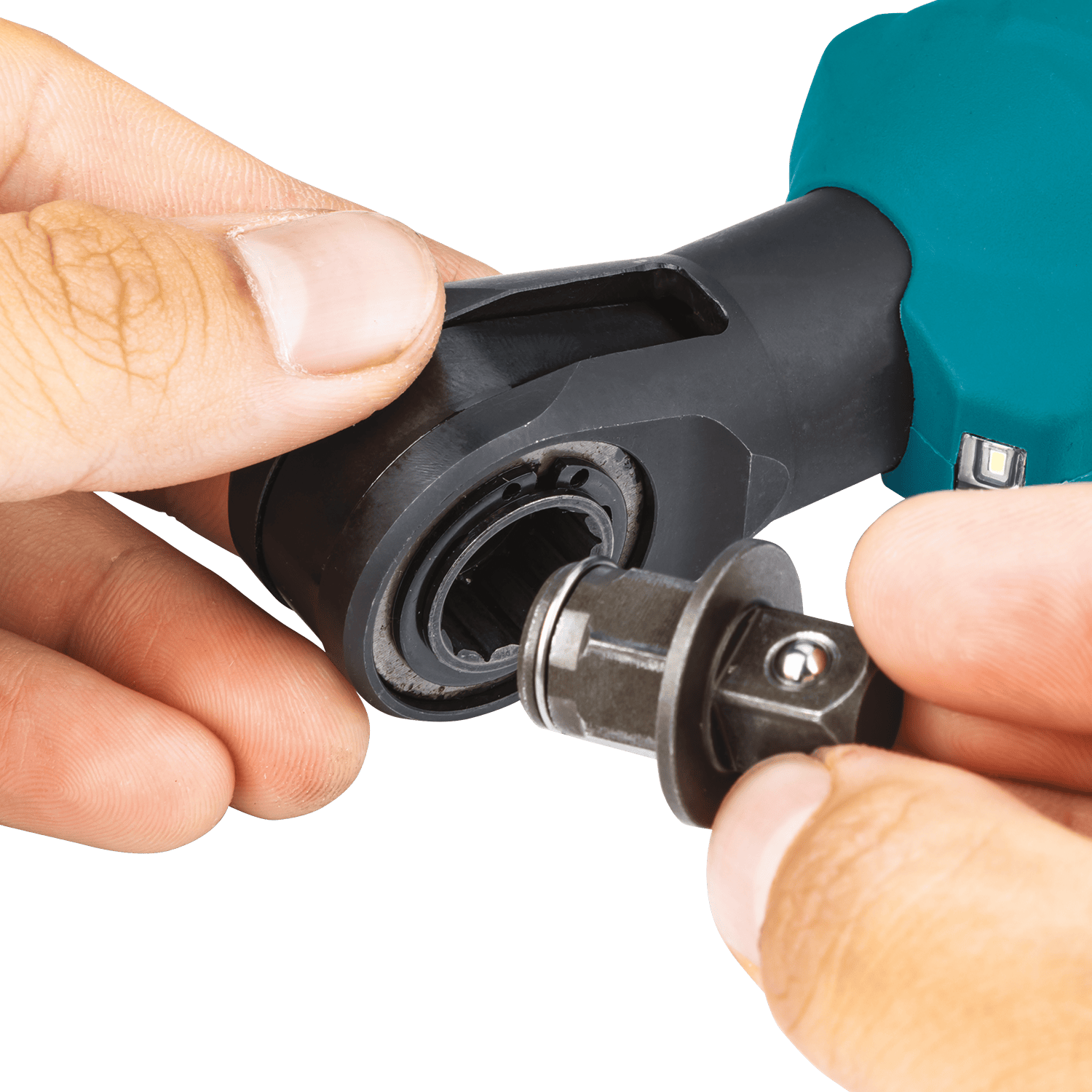

Hands installing an interchangeable square drive anvil adapter into the low-profile head mechanism of the Makita XRW01Z ratchet.

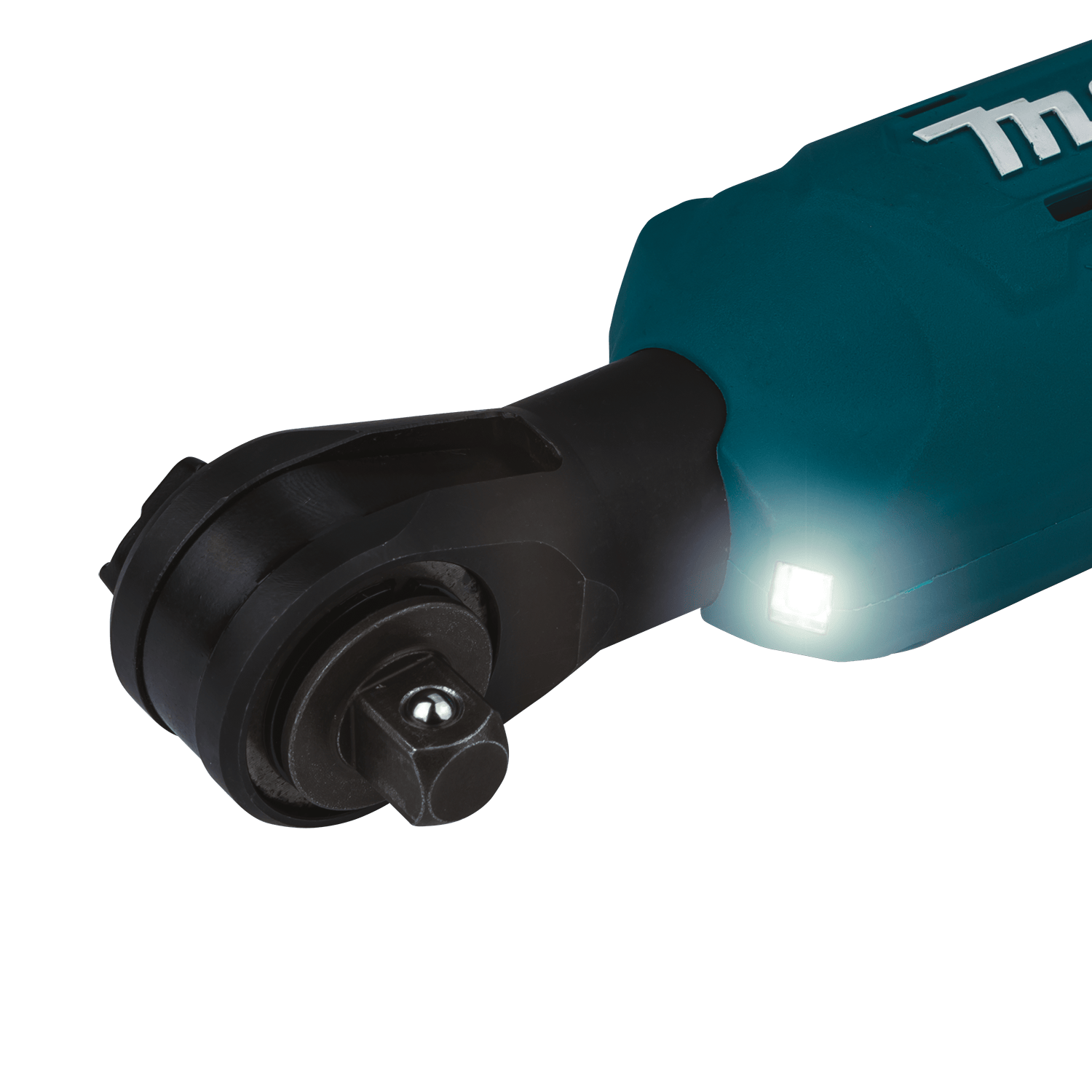

Close-up of the built-in front LED work light on the Makita XRW01Z cordless ratchet illuminating the drive square and socket connection.

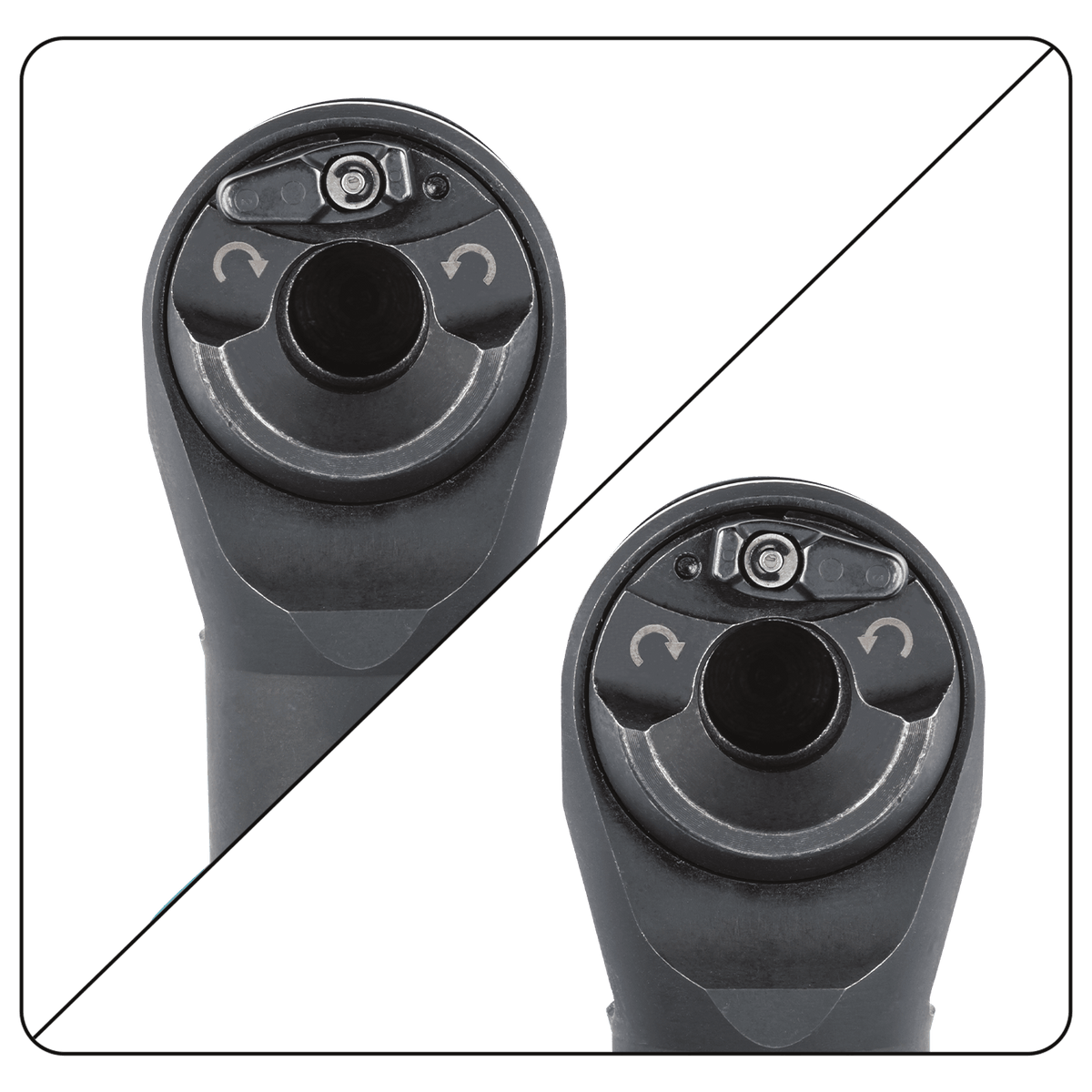

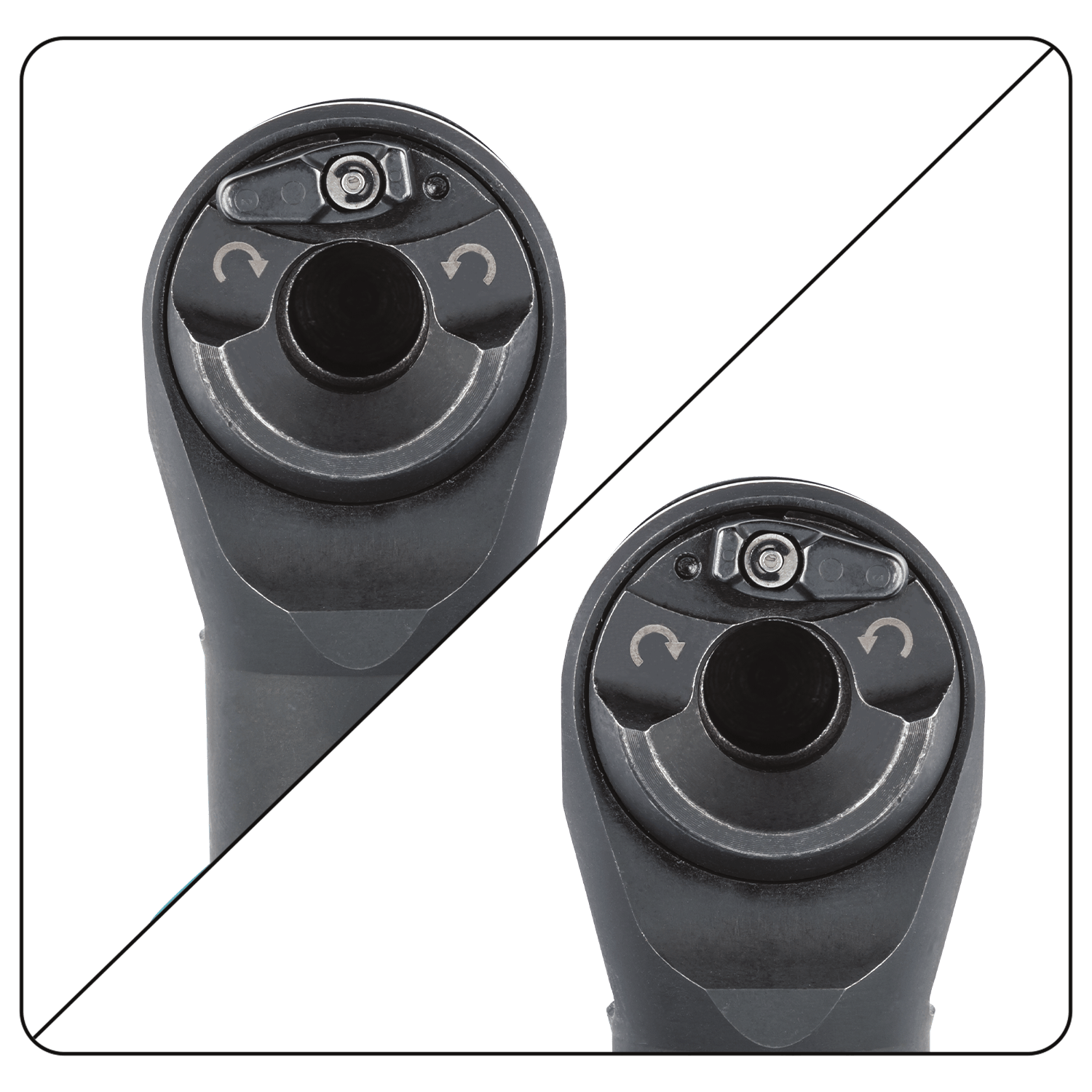

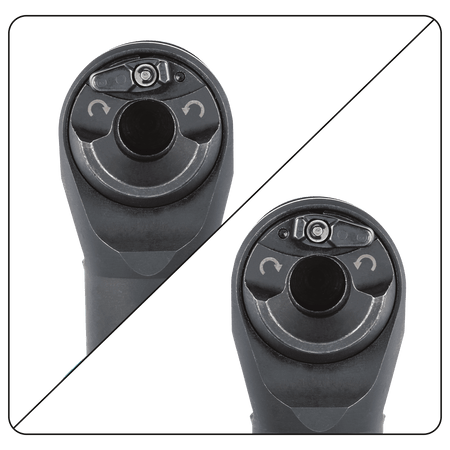

Top-down view of the directional forward and reverse selector switch on the Makita XRW01Z ratchet head for changing drive rotation.

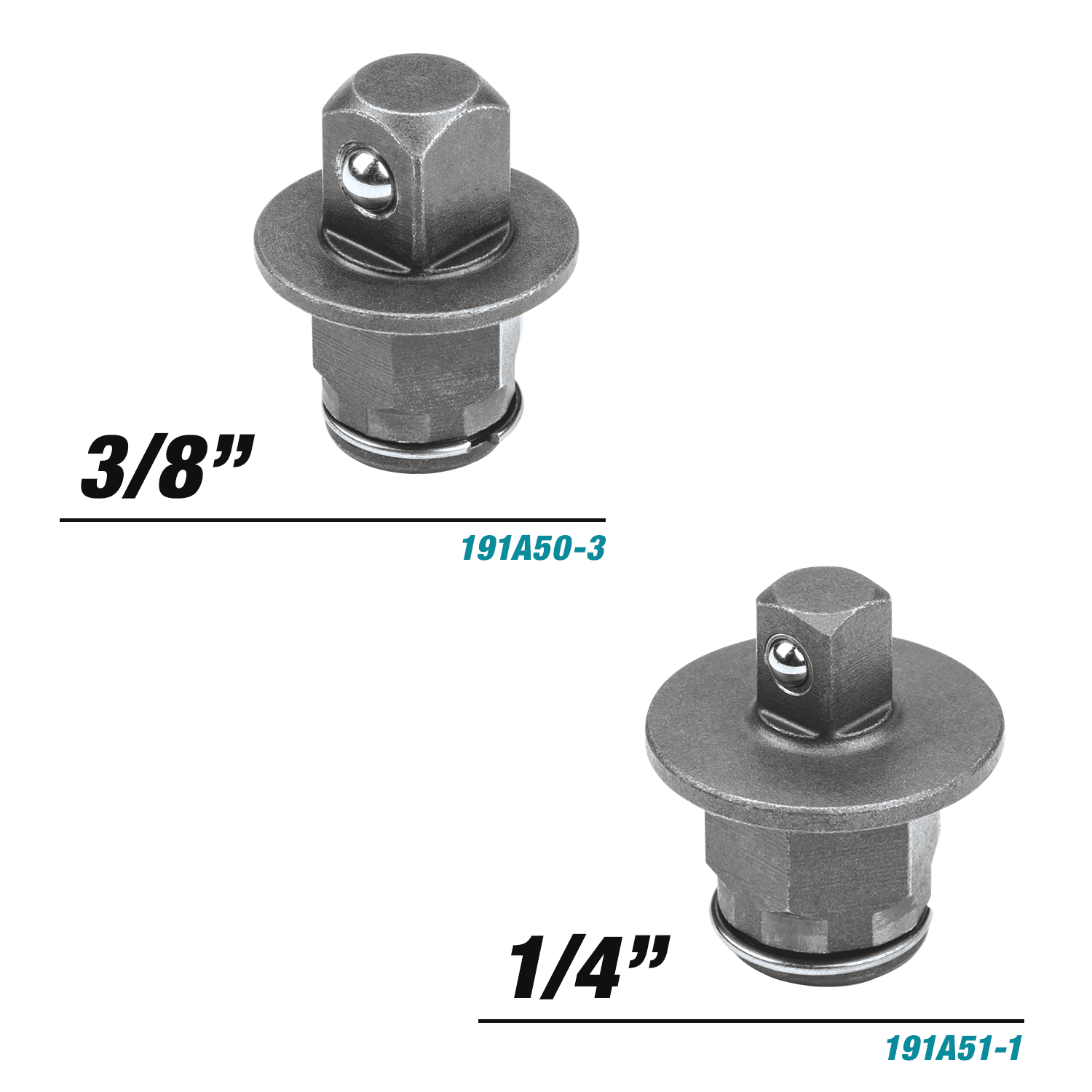

Pair of included interchangeable square drive anvil adapters for the Makita XRW01Z ratchet showing 3/8-inch and 1/4-inch drive sizes.

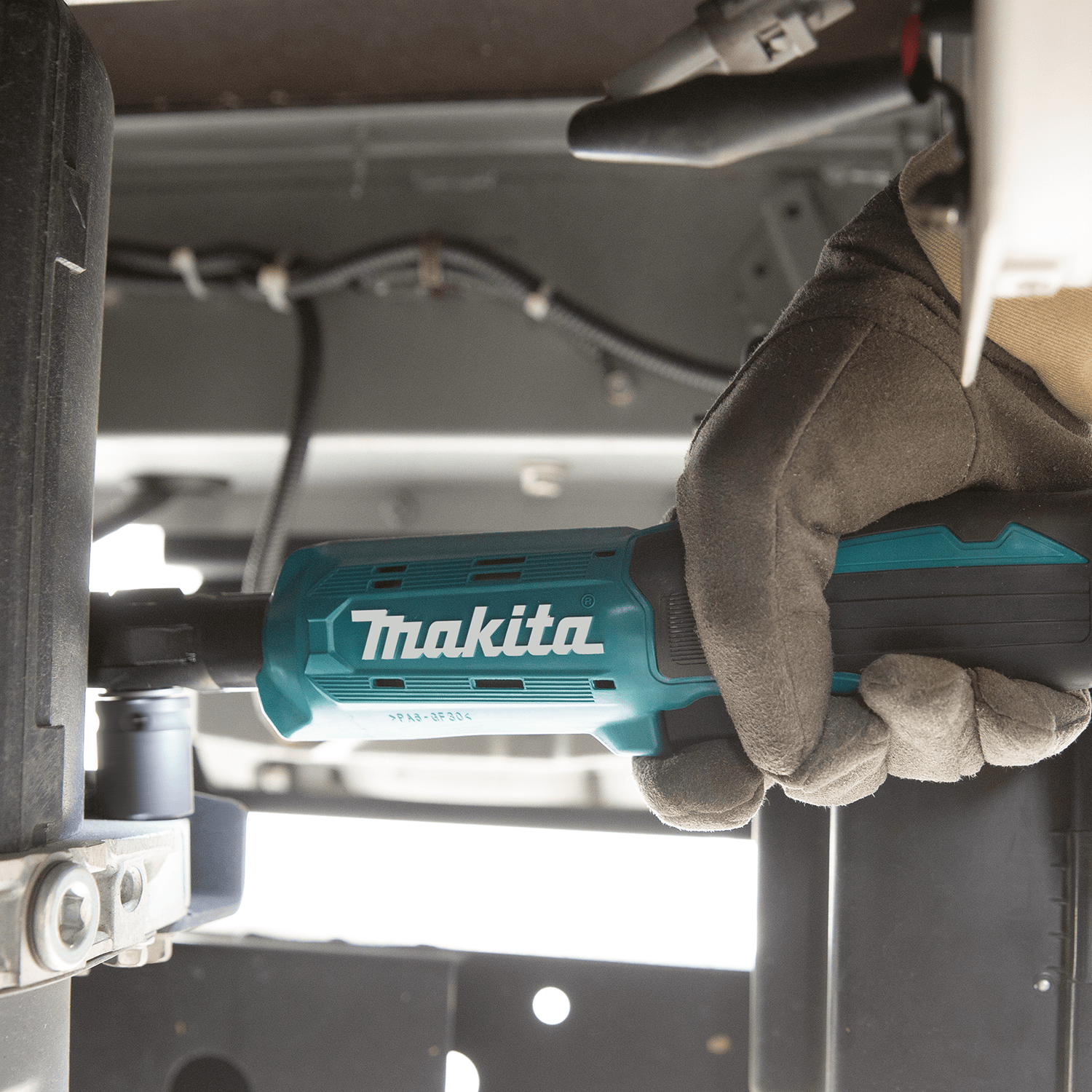

Mechanic using the low-profile Makita XRW01Z cordless ratchet to drive fasteners in a confined under-chassis vehicle compartment.

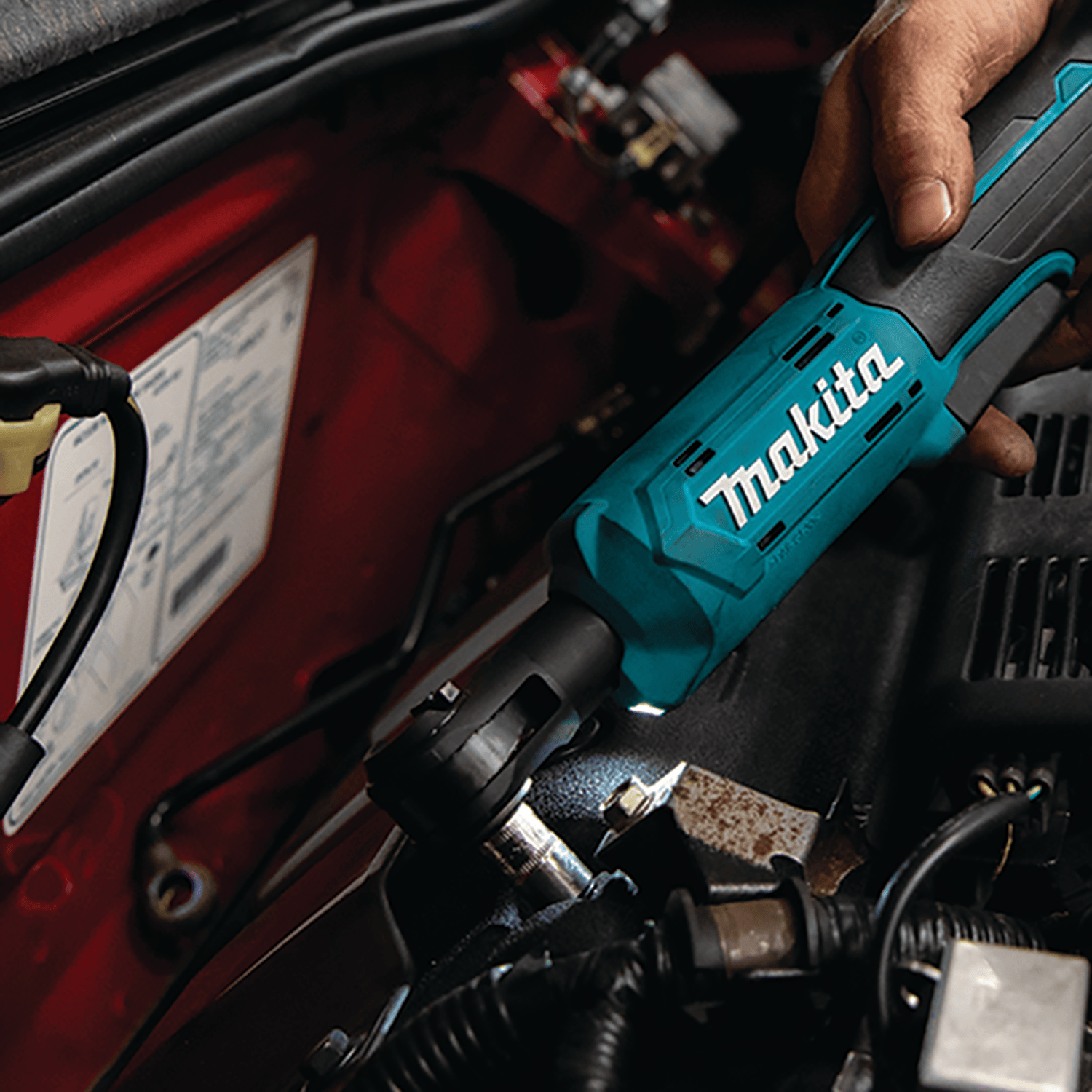

Automotive technician using the Makita XRW01Z 18V ratchet with LED illumination to loosen bolts inside a tight engine bay.

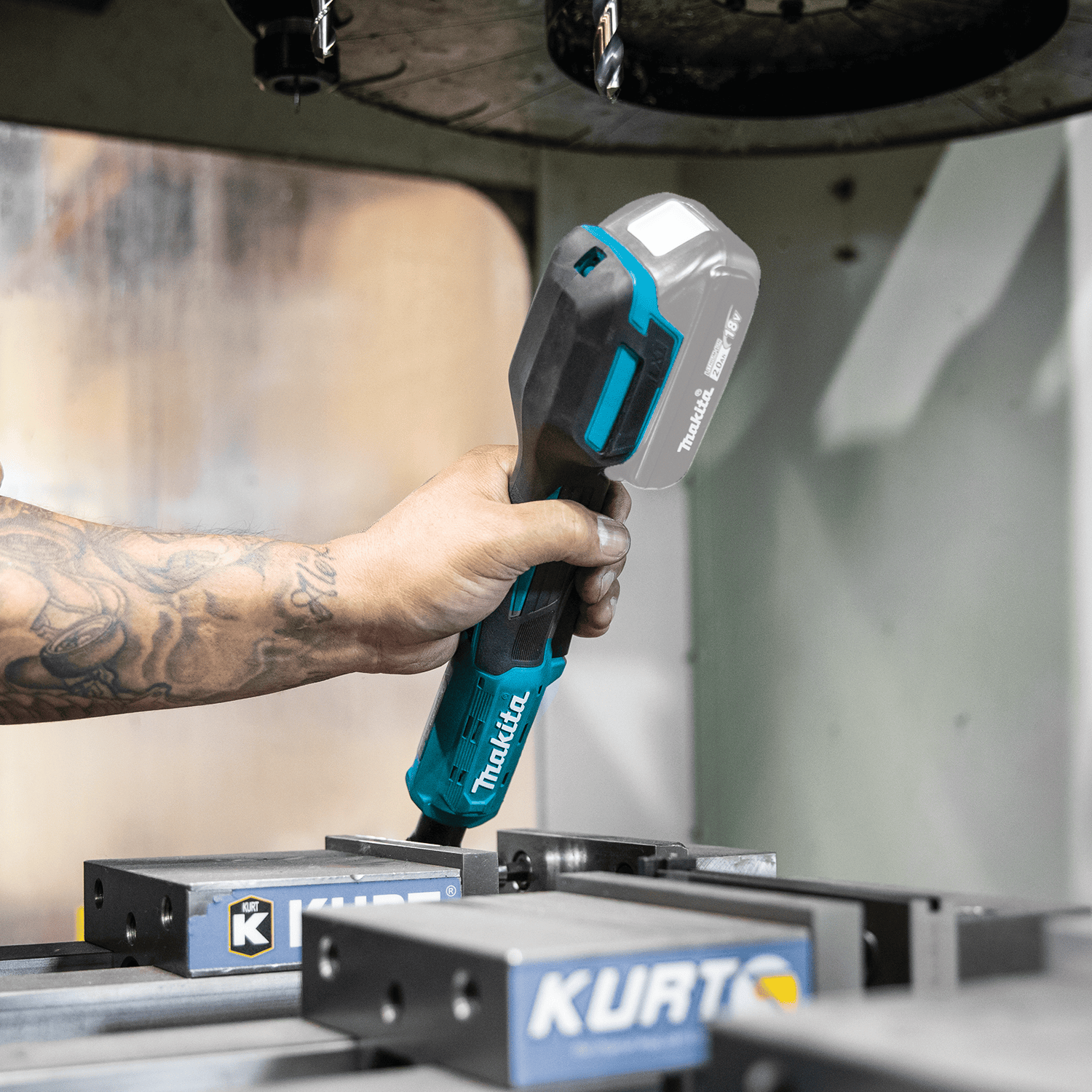

Operator holding the ergonomic rubberized handle of the Makita XRW01Z ratchet during overhead mechanical equipment maintenance.

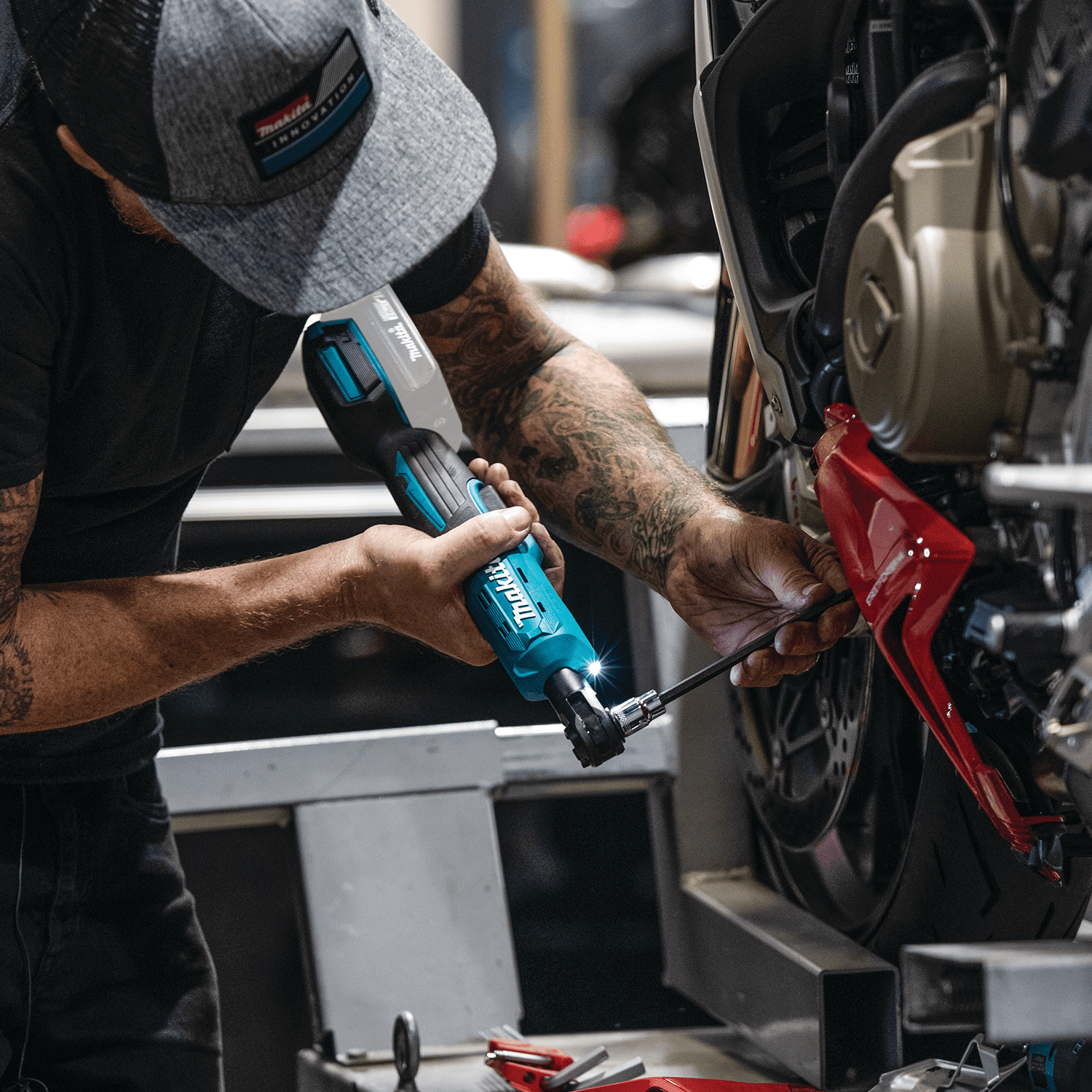

Motorcycle mechanic using the Makita XRW01Z 18V cordless ratchet with an extended bit socket to service fairing bolts in tight engine bays.

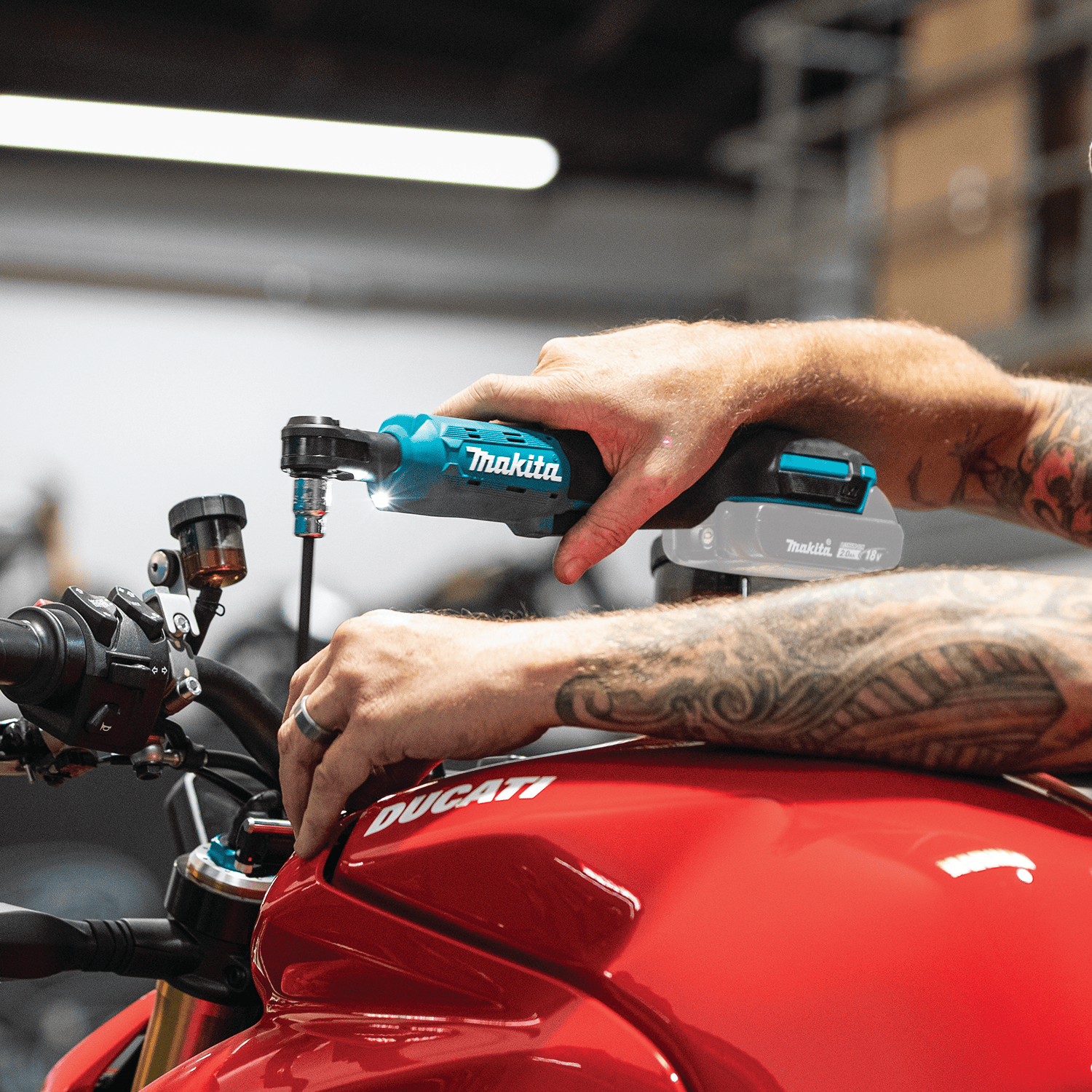

Technician using the low-profile head and LED light of the Makita XRW01Z ratchet to fasten handlebar hardware without scratching painted panels.

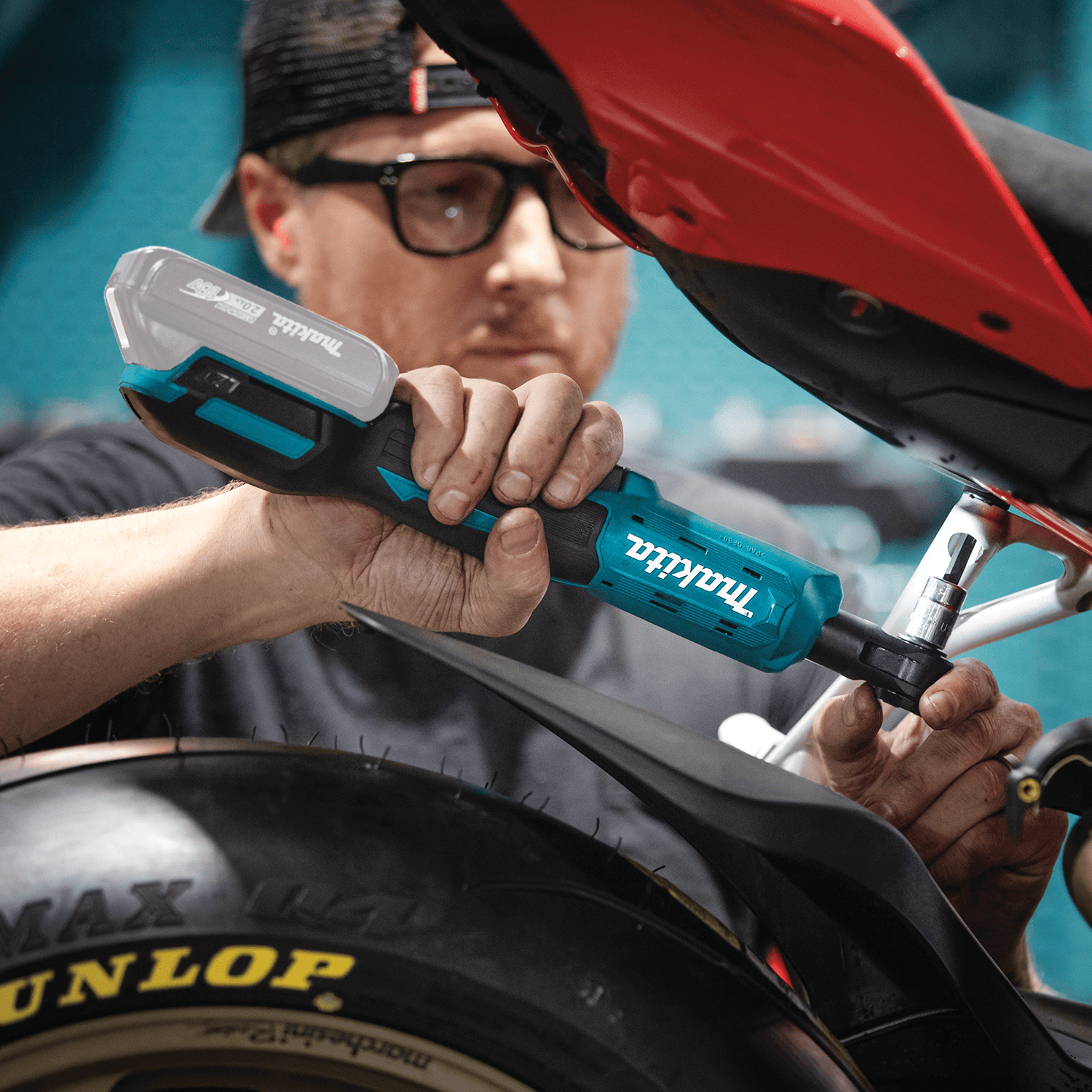

Mechanic operating the Makita XRW01Z 18V ratchet to run bolts into a motorcycle subframe beneath tight rear fender bodywork.

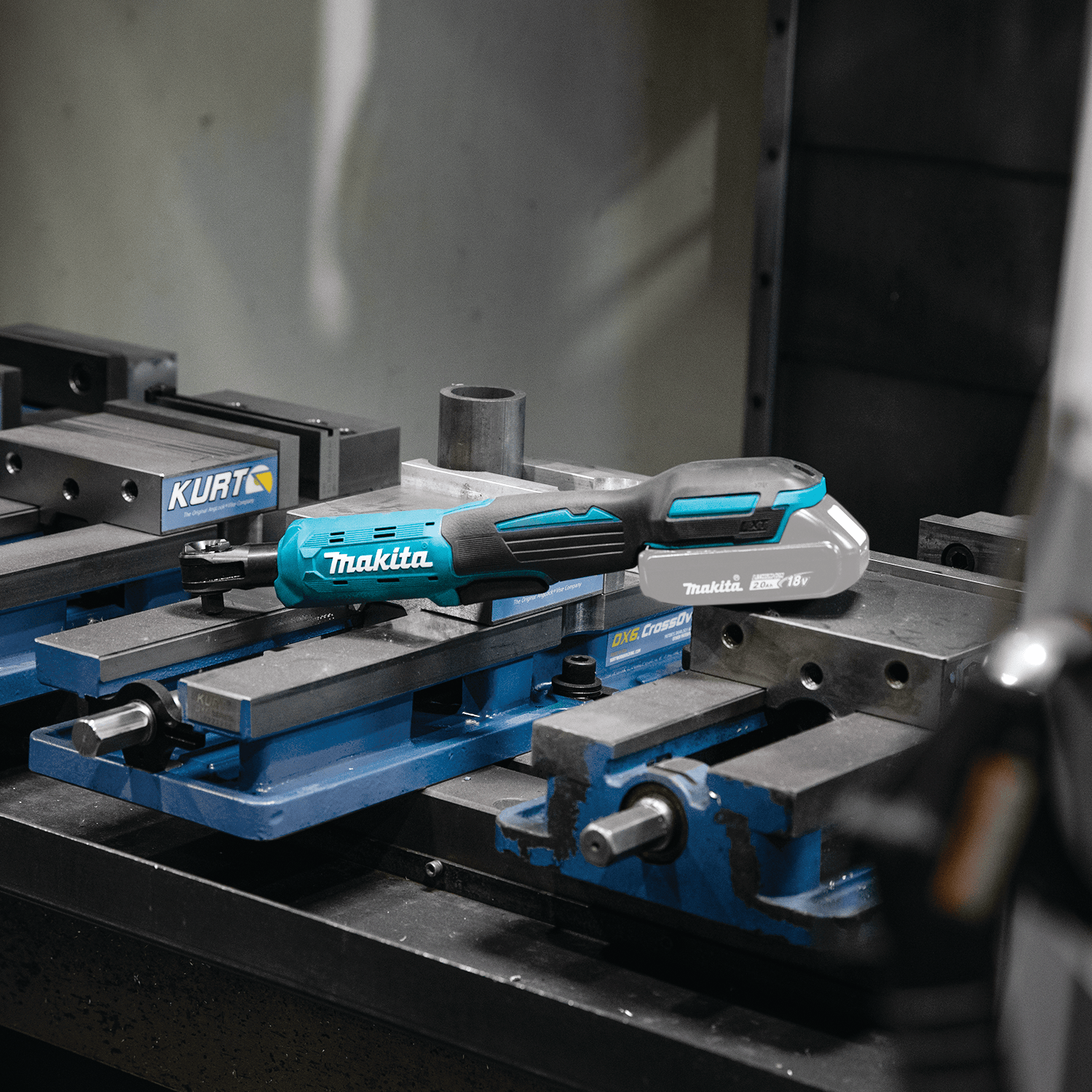

Makita XRW01Z 18V LXT cordless drive ratchet resting on a machinist's workbench vise for quick access during mechanical assembly.
MAKITA – The LXT® Advantage promotional video
Makita XRW01Z 18V LXT cordless drive ratchet featuring a low-profile head and slim rubberized handle for tight engine bay fastening.
Feature callout graphic of the Makita XRW01Z ratchet detailing its 35 ft-lbs max torque, 800 RPM motor, electric brake, and 2.7-pound weight.
Hands installing an interchangeable square drive anvil adapter into the low-profile head mechanism of the Makita XRW01Z ratchet.
Close-up of the built-in front LED work light on the Makita XRW01Z cordless ratchet illuminating the drive square and socket connection.
Top-down view of the directional forward and reverse selector switch on the Makita XRW01Z ratchet head for changing drive rotation.
Pair of included interchangeable square drive anvil adapters for the Makita XRW01Z ratchet showing 3/8-inch and 1/4-inch drive sizes.
Mechanic using the low-profile Makita XRW01Z cordless ratchet to drive fasteners in a confined under-chassis vehicle compartment.
Automotive technician using the Makita XRW01Z 18V ratchet with LED illumination to loosen bolts inside a tight engine bay.
Operator holding the ergonomic rubberized handle of the Makita XRW01Z ratchet during overhead mechanical equipment maintenance.
Motorcycle mechanic using the Makita XRW01Z 18V cordless ratchet with an extended bit socket to service fairing bolts in tight engine bays.
Technician using the low-profile head and LED light of the Makita XRW01Z ratchet to fasten handlebar hardware without scratching painted panels.
Mechanic operating the Makita XRW01Z 18V ratchet to run bolts into a motorcycle subframe beneath tight rear fender bodywork.
Makita XRW01Z 18V LXT cordless drive ratchet resting on a machinist's workbench vise for quick access during mechanical assembly.
MAKITA – The LXT® Advantage promotional video
Makita

Makita Cordless Ratchet XRW01Z 18V LXT Bare Tool 3/8 1/4 Inch (35 Ft Lbs Torque 800 RPM Variable Speed Electric Brake Engine Bay Fastening)

In stock
SKU: XRW01Z
$199.99 USD

Description

Makita Logo Logout

Makita XRW01Z 18V LXT Cordless 3/8-Inch and 1/4-Inch Drive Ratchet Bare Tool

The Makita XRW01Z is an 18V LXT cordless drive ratchet engineered with interchangeable 3/8-inch and 1/4-inch square drive anvils to quickly remove and install threaded fasteners in tight automotive and mechanical assemblies. Delivering up to 35 ft-lbs of maximum torque and a 0 to 800 RPM variable speed paddle switch, this low-profile power tool can also be operated manually when the motor is disengaged for break-away leverage. Weighing 2.7 pounds with a battery, it features an electric brake, integrated LED work light, Star Protection Computer Controls, and Extreme Protection Technology (XPT) for moisture and dust resistance on job sites. **Battery and charger sold separately.

Best Used For:

  • Automotive Engine Bay Maintenance: Reaching tight clearance spaces around intake manifolds, valve covers, and fluid lines without manual hand-ratcheting room.
  • Overhead HVAC & Mechanical Ducting Assembly: Running long threaded fasteners and suspension hardware efficiently overhead with minimal operator arm strain.
  • Equipment Service & Maintenance Repair: Swapping drive socket sizes between 3/8-inch and 1/4-inch to service machinery panels and electrical enclosures.

Key Performance & Safety Features

  • Interchangeable Anvil System: Easily switches between included 3/8-inch and 1/4-inch square drive adapters to accommodate different socket sizes.
  • High-Speed 800 RPM Motor: Variable speed motor delivers up to 35 ft-lbs torque and 0 to 800 RPM for high-efficiency nut running.
  • Manual Ratcheting Utility: Internal gear design allows manual torque application to break stubborn fasteners free before motorized rundown.
  • Electric Motor Brake System: Immediately stops socket rotation upon trigger release to prevent over-tightening or fastener stripping.
  • Extreme Protection Technology (XPT): Protective internal seals divert water and dust away from sensitive electronic components during harsh jobsite exposure.
  • Slim Low-Profile Ergonomics: Narrow neck and rubberized soft grip provide precision handling and control inside narrow engine compartments.

What's Included

  • (1) Makita 18V LXT® Cordless Ratchet (Model XRW01Z)
  • (1) 3/8" Square Drive Anvil Adapter (191A50-3)
  • (1) 1/4" Square Drive Anvil Adapter (191A51-1)

Technical Specifications

Brand Manufacturer Makita® USA
Model Part Number OEM SKU XRW01Z
Operating Voltage Rating 18V DC Slide-Style Battery
Interchangeable Square Drives 3/8 inches and 1/4 inches
Maximum Fastening Torque 35 ft-lbs (47 N-m)
No-Load Velocity Speed Range 0 - 800 RPM Variable Speed
Braking Safety System Electric Motor Brake
Overall Tool Body Length 14-1/2 inches (368-3/10 mm)
Net Weight with Battery 2-7/10 lbs (2.7 lbs / 1.22 kg)
Weather Protection Technology Extreme Protection Technology (XPT™)
Packaged Shipping Dimensions 3-39/100" D x 3-31/100" H x 14-69/100" W
Total Shipping Weight 2-58/100 lbs (2.58 lbs / 1.17 kg)
Universal Product Code UPC 088381-732864

Pro-Tip: Use the ratchet manually without pulling the trigger to break frozen or over-torqued bolts loose first; then engage the motor to spin the nut off at 800 RPM without straining internal gears.
