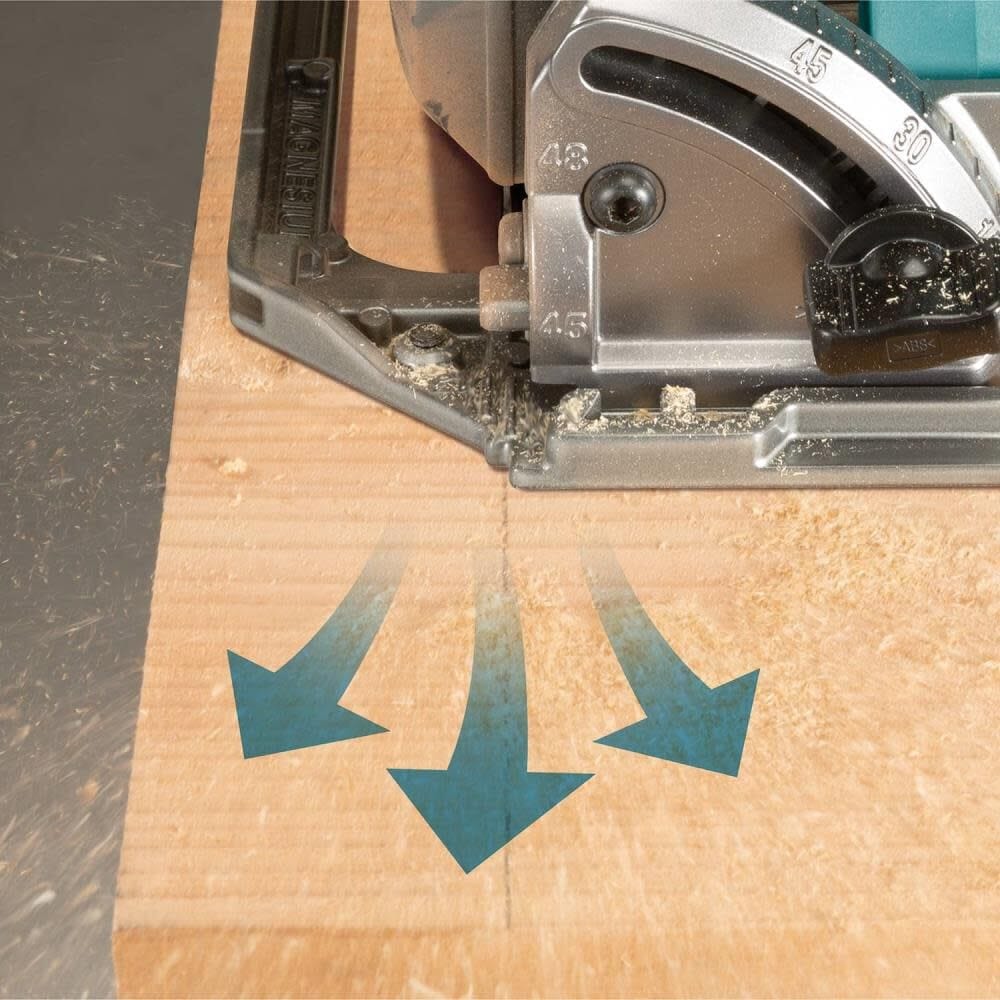

Close-up view of the front of the saw base on wood, with blue arrows indicating the dust blower function clearing the cut line.

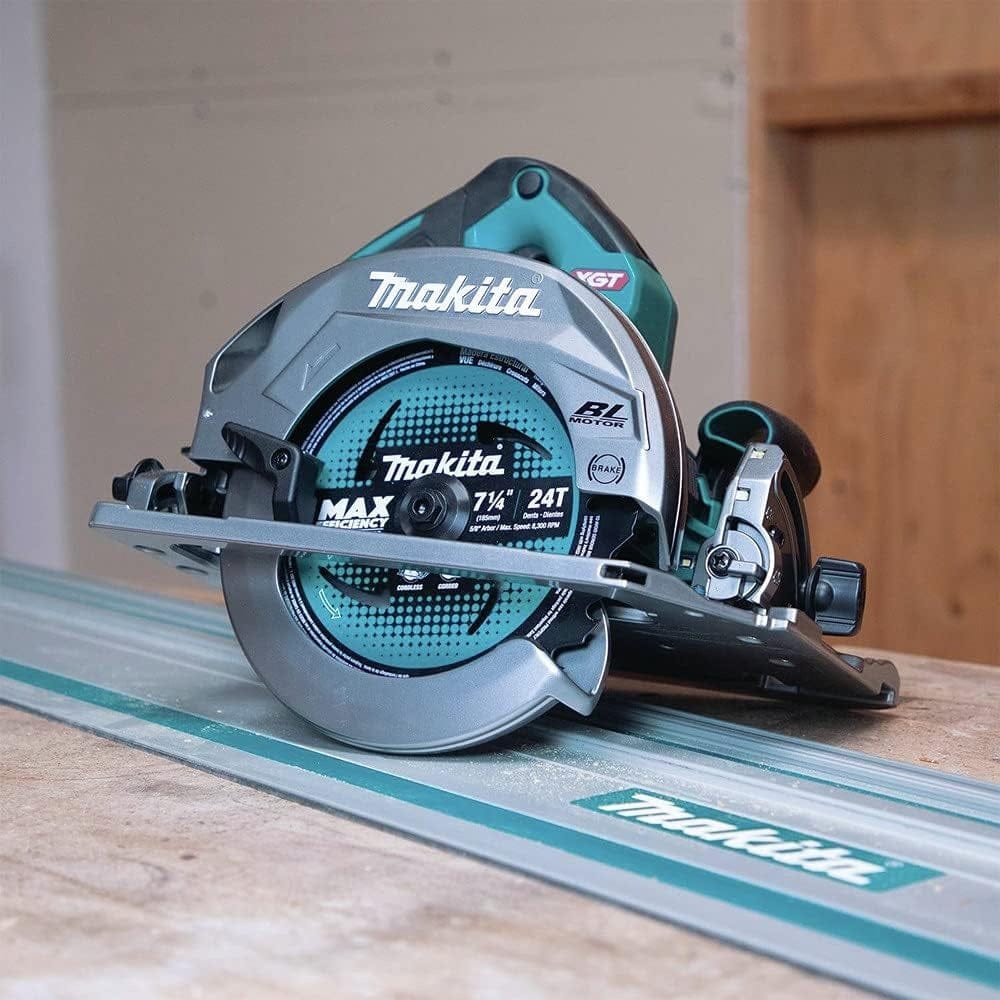

Action shot of the circular saw resting on a guide rail track on top of a wooden workpiece, highlighting the base compatibility.
Makita 40V | 80V max XGT Intro Video
Studio view of the Makita GSH02M1 circular saw kit including the 40V Max XGT saw, one 4.0Ah battery, rapid charger, and large carrying bag.
Infographic diagram of the circular saw highlighting features such as the guide rail compatible base, dual LED lights, and large 2-3/8 inch cutting capacity.
Studio side profile view of the Makita 40V Max XGT circular saw showing the blade, upper handle, and magnesium blade guard.
Angled studio view of the Makita DC40RA 40V Max XGT Rapid Optimum Charger showing the battery dock and LED status panel.
Studio view of the black Makita 40V Max XGT 4.0Ah Lithium-Ion battery pack featuring the teal XGT logo and LED charge indicator.

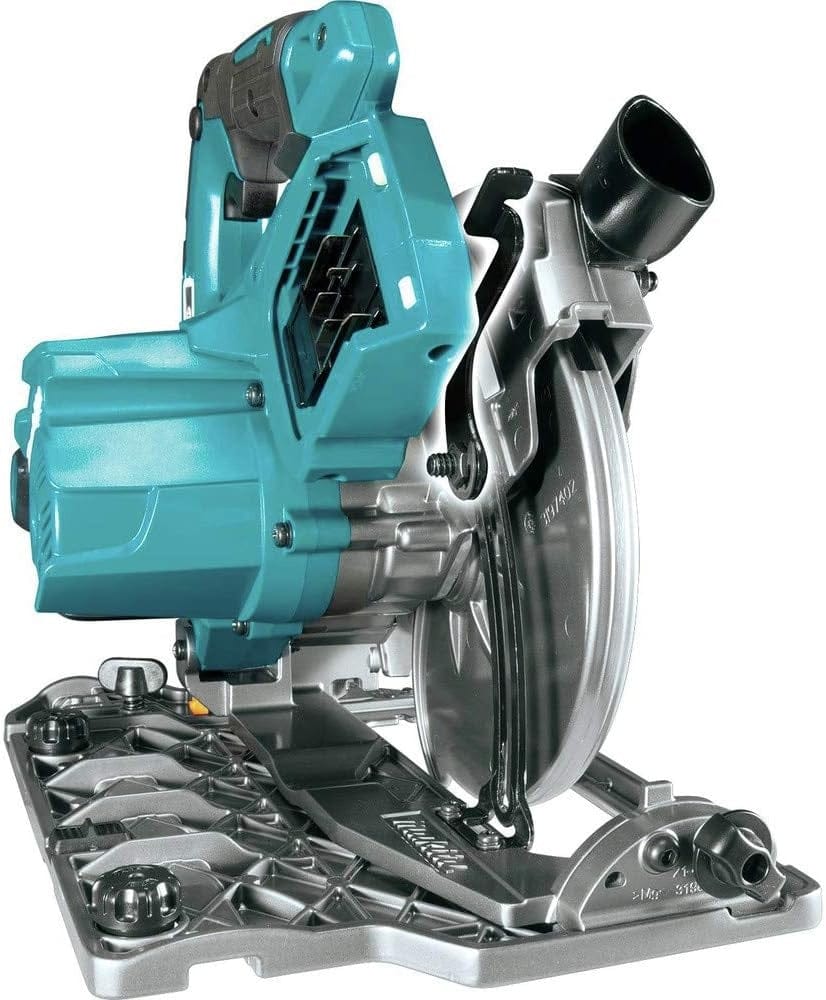

Front angled view of the circular saw showing the dust extraction port, front grip, and the sturdy magnesium base plate.
Rear view of the circular saw demonstrating the bevel adjustment scale and the compact motor housing design.

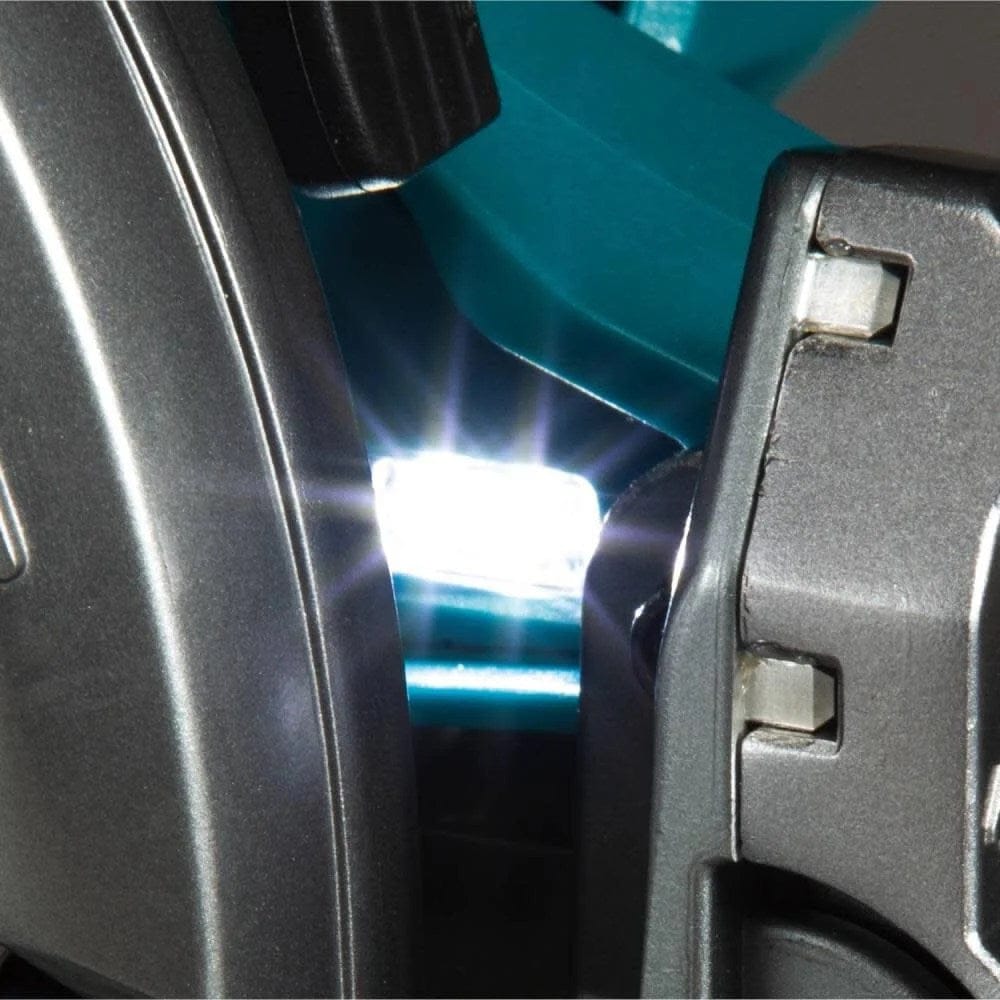

Close-up detail view of the built-in LED light located near the blade housing illuminating the cutting area.

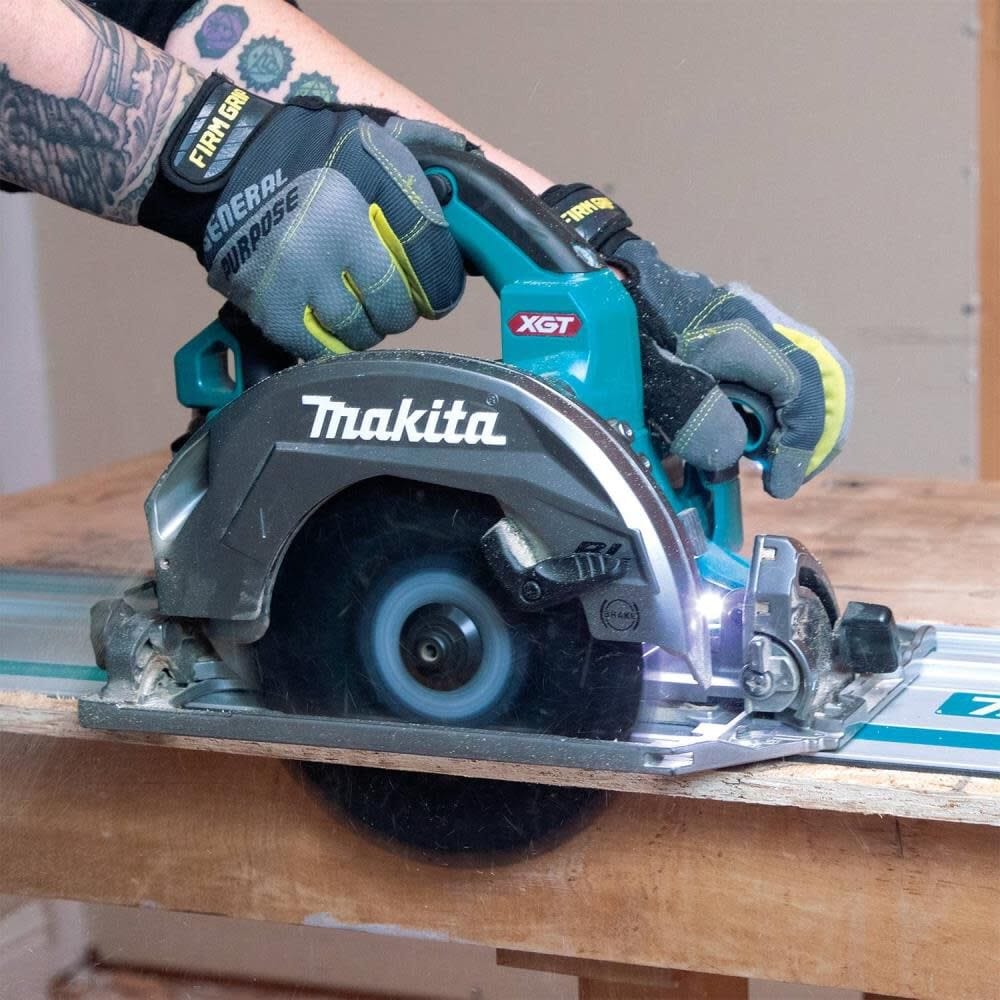

Action shot of a worker using the circular saw on a guide rail track to perform a long rip cut on a wooden panel.

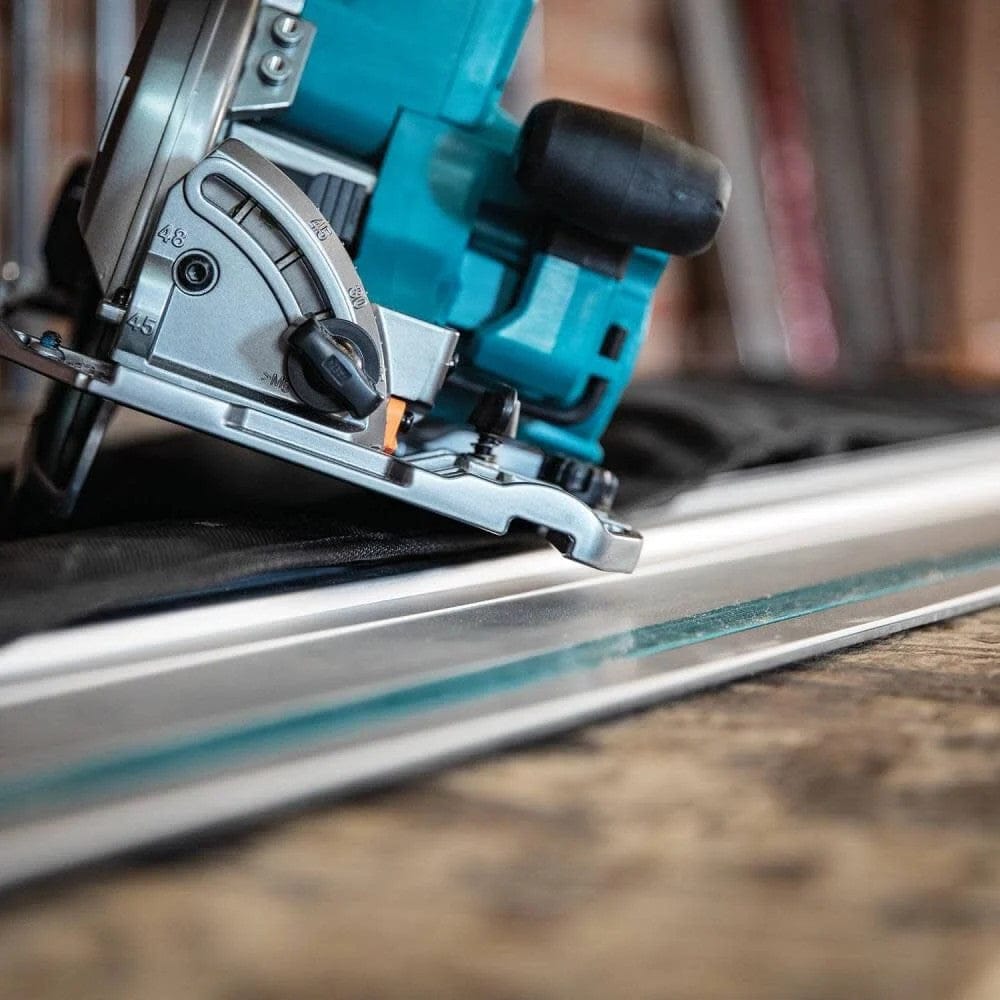

Close-up detail view of the saw's magnesium base plate sitting perfectly on a guide rail track, highlighting the compatibility feature.

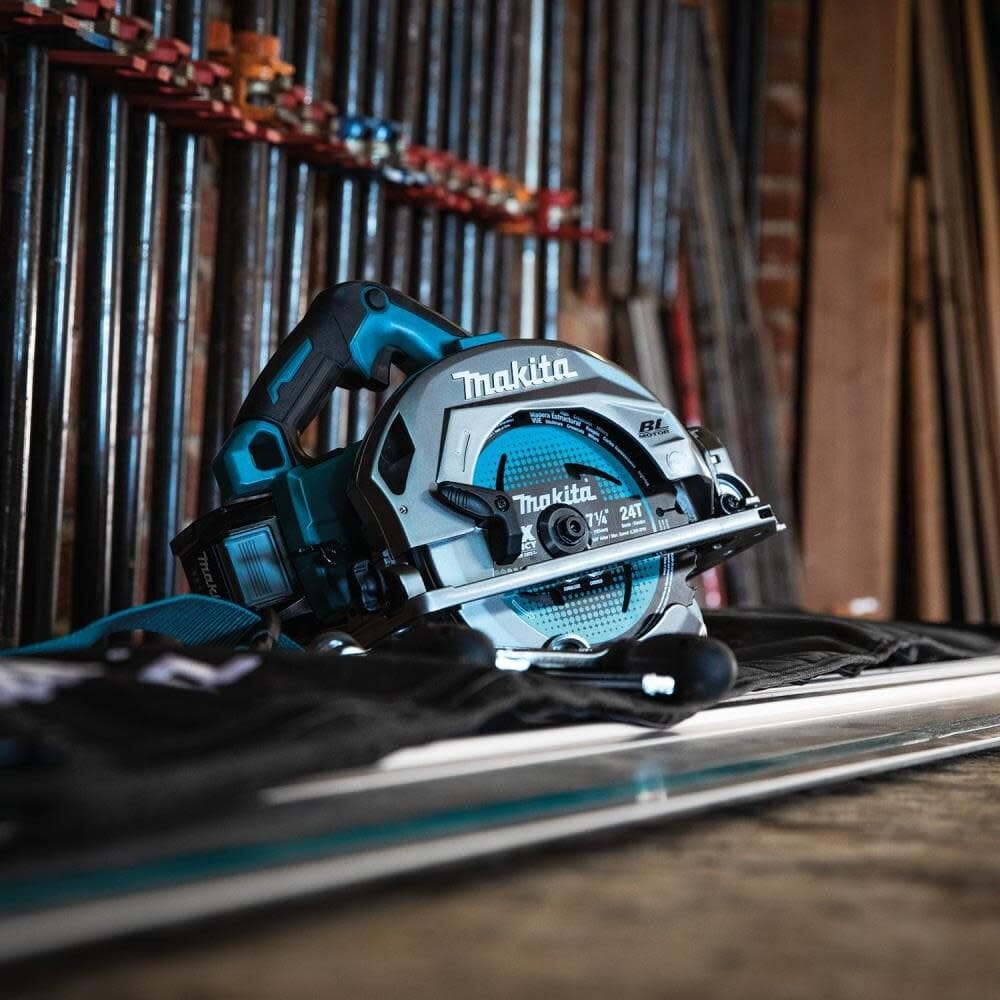

Low angle studio shot of the circular saw sitting on a guide rail track with a blurred workshop background.
Close-up view of the front of the saw base on wood, with blue arrows indicating the dust blower function clearing the cut line.
Action shot of the circular saw resting on a guide rail track on top of a wooden workpiece, highlighting the base compatibility.
Makita 40V | 80V max XGT Intro Video
Makita

Makita Circular Saw GSH02M1 40V Max XGT Brushless 7-1/4 Inch Cordless Framing Saw Kit (4.0Ah Battery Charger Guide Rail Compatible Base AWS Bag)

In stock
SKU: GSH02M1
$609.00 USD

Description

Makita Logo Logout

Industrial-Grade 40V Max XGT Brushless 7-1/4 Inch Circular Saw Kit with Native Guide Rail Base, 6,000 RPM Motor, and AWS Bluetooth Telemetry

The Makita GSH02M1 40V Max XGT Brushless Cordless 7-1/4 Inch Circular Saw Kit Guide Rail Compatible Base AWS Capable 4.0Ah Battery delivers specialized high-velocity wood profiling utility and exceptional straight-line cutting accuracy across commercial timber framing and concrete formwork applications. Engineered with a proprietary XGT brushless motor platform that generates a high-performance 6,000 RPM no-load velocity, this top-handle cutting instrument maintains uniform blade momentum under heavy loads via integrated Automatic Torque Drive speed regulation controls. This professional structural solution resolves jobsite cord management bottlenecks, slow adapter assembly setups on track systems, and hazardous airborne silica dust cycles by combining a direct guide-rail interlocking magnesium base shoe with a 2-3/8 inch deep cutting capacity at 90 degrees and an Auto-Start Wireless System (AWS) for Bluetooth dust extractor activation. Outfitted with comprehensive Extreme Protection Technology (XPT) moisture seals, a rapid safety electric blade brake, a wide 56-degree bevel tilt track, and a fast-charging 4.0Ah battery system, this robust layout engine optimizes subcontractor workspace throughput during continuous rafter sizing, straight sheet plywood breakdown runs, and heavy composite timber modifications.

Best Used For:

  • Track-Guided Sheet Ripping: Executing dead-on, perfectly straight dimensional splits through thick structural plywood panels natively without using separate clamp guides or custom shoe adapters.
  • Single-Pass Framing Cuts: Deep-slicing through dimensional 3X timber studs and heavy structural wood headers cleanly in a single pass without experiencing motor bog-down errors.
  • Compound Bevel Carpentry: Cutting steep rafter angles, roof valley lines, and pitch transitions accurately using the wide 0 to 56 degree bevel adjustment scale.

Key Performance & Safety Features

  • Native Rail Interlock Base: Specially channeled magnesium alloy base slide interfaces directly with commercial guide tracks, dropping setup tracking errors.
  • Automatic Torque Drive: Advanced internal digital monitoring scales adjust cutting speed and torque dynamically under high loads to maintain peak surface finish metrics.
  • AWS Bluetooth Connectivity: Intelligent Auto-Start Wireless System enables automated on/off vacuum pairing via wireless signal bands to limit workspace debris clouds.
  • Extreme Protection Seals (XPT): Rubberized internal housing gaskets isolate the electrical grid, routing invading moisture sprays and fine drywall dust cleanly away from circuitry.
  • Rapid Electric Safety Brake: Internal braking system halts the spinning 7-1/4 inch blade surface immediately upon trigger release to protect digits and maximize workflow speed.

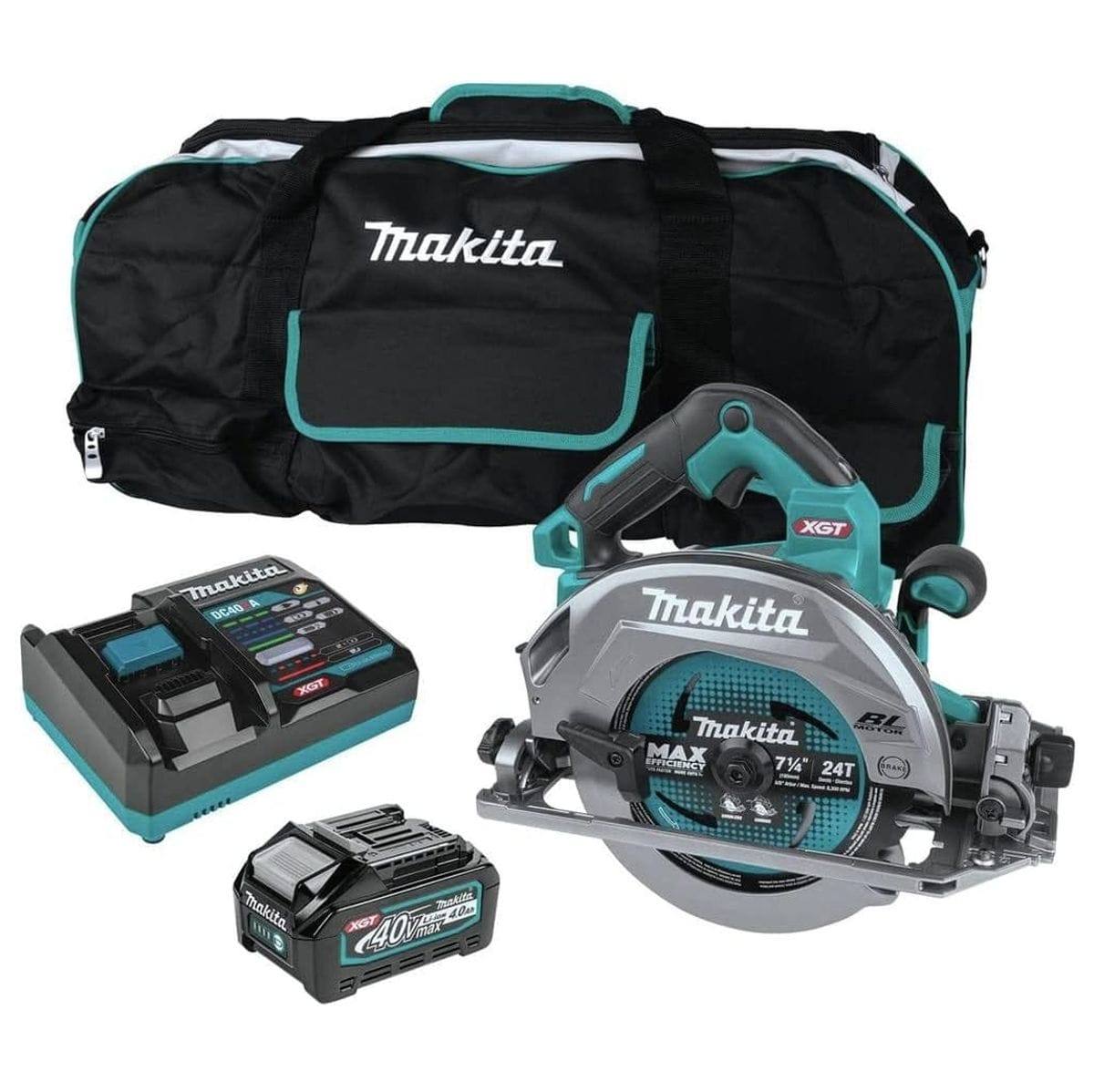

What's Included

  • (1) 40V Max XGT Brushless 7-1/4 Inch Circular Track-Ready Saw Chassis (GSH02Z)

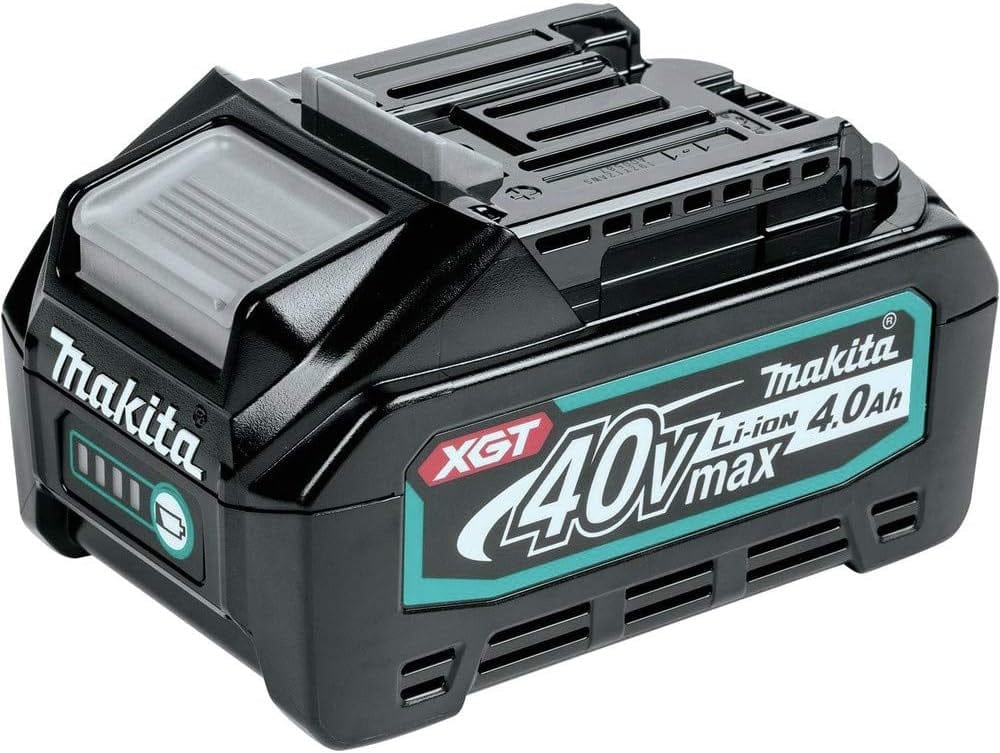

  • (1) 40V Max XGT 4.0Ah Rechargeable Lithium-Ion Slide Battery Module (BL4040)

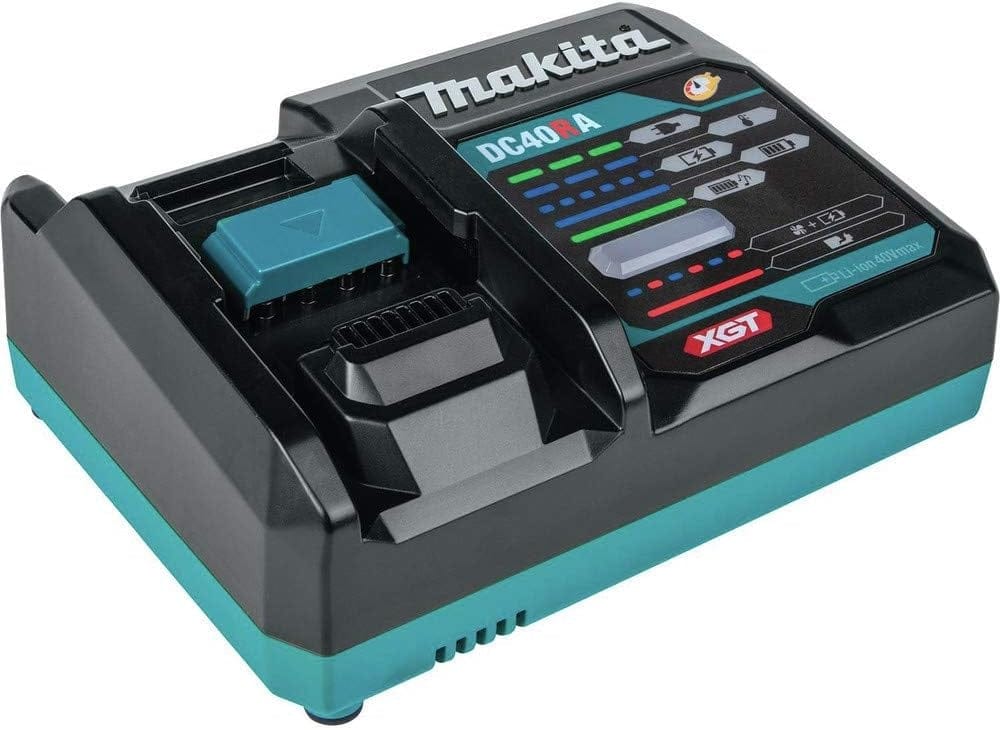

  • (1) 40V Max XGT Rapid Optimum Forced-Air Battery Charger Bay (DC40RA)
  • (1) 7-1/4 Inch Carbide-Tipped Structural Framing Circular Saw Blade
  • (1) Hex Allen Service Wrench for Fast Blade Changes
  • (1) Heavy-Duty Woven Fabric Zippered Tool Storage Bag

Technical Specifications

Specification Value
Brand Name Makita
Model Number GSH02M1
Product Classification Type Cordless Track-Compatible Circular Saw Kit
System Battery Voltage 40V Max XGT Lithium-Ion
Energy Storage Capacity 4.0 Ah
Rotational Spindle Speed 6,000 RPM No-Load Speed Scale
Blade Face Capacity Diameter 7-1/4 in.
Arbor Center Pin Size 5/8 in.
Maximum Cutting Capacity at 90° 2-3/8 in.
Maximum Cutting Capacity at 45° 1-11/16 in.
Maximum Cutting Capacity at 48° 1-5/8 in.
Bevel Range Capacity Angle 0° - 56° (Positive Detent Stops at 22.5°, 45°, and 56°)
Core Internal Motor Architecture Brushless Armature Configuration Array
Net Hardware Tool Weight with Battery 10.4 lbs.

Pro-Tip: When indexing the integrated guide rail track channels over aluminum guide rail bars, adjust the dual dial tension glides on the magnesium base shoe until all lateral carriage play is removed. Eliminating micro base wobble paths guarantees laser-straight cut line tracking specs across long sheet panels.
