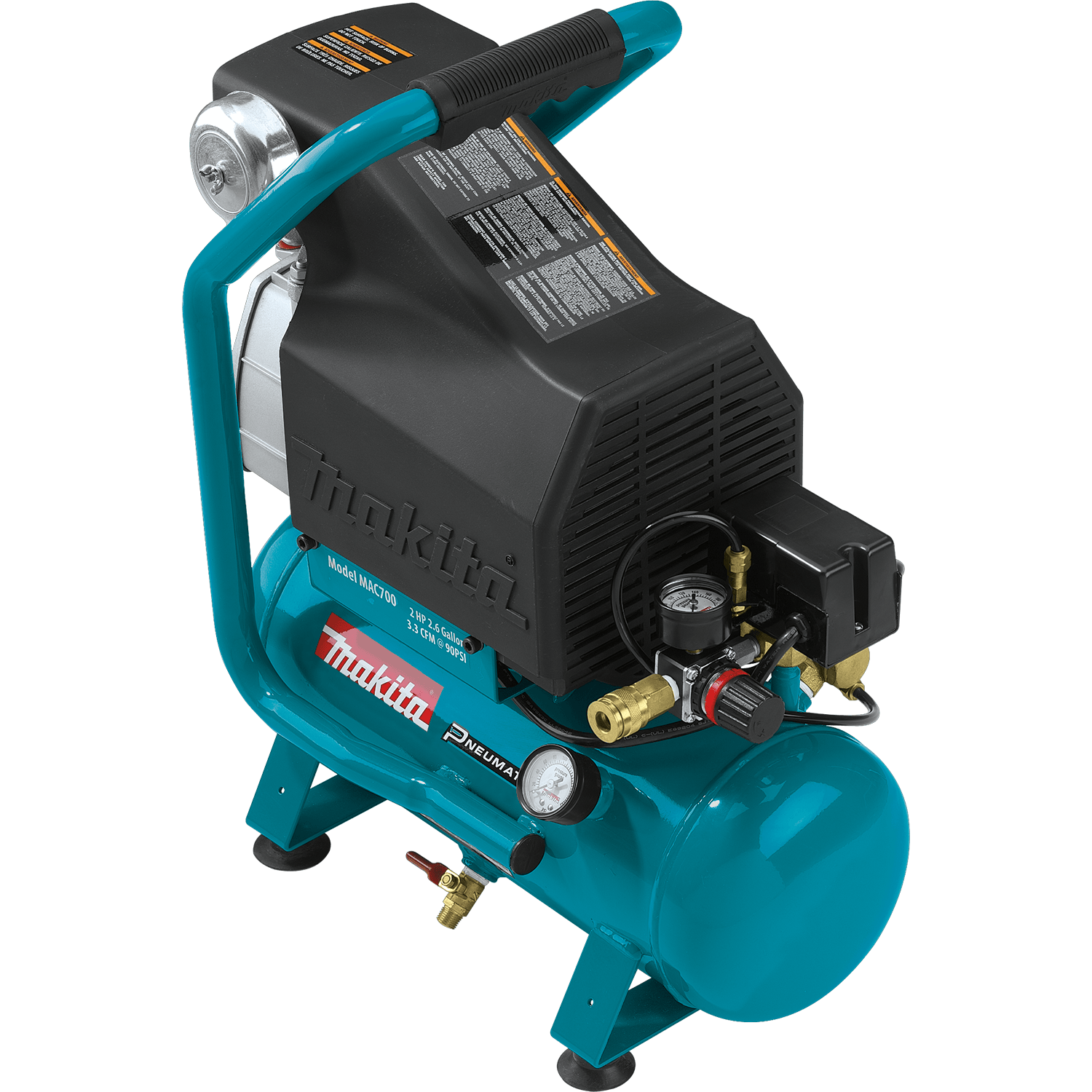

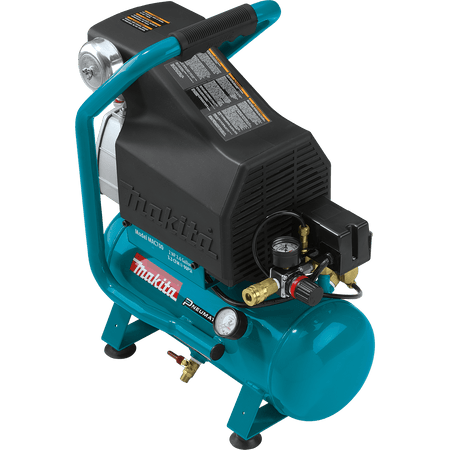

Makita MAC700 2.0 HP 2.6-gallon electric air compressor featuring a cast iron pump, roll-bar handle, and pressure gauges.

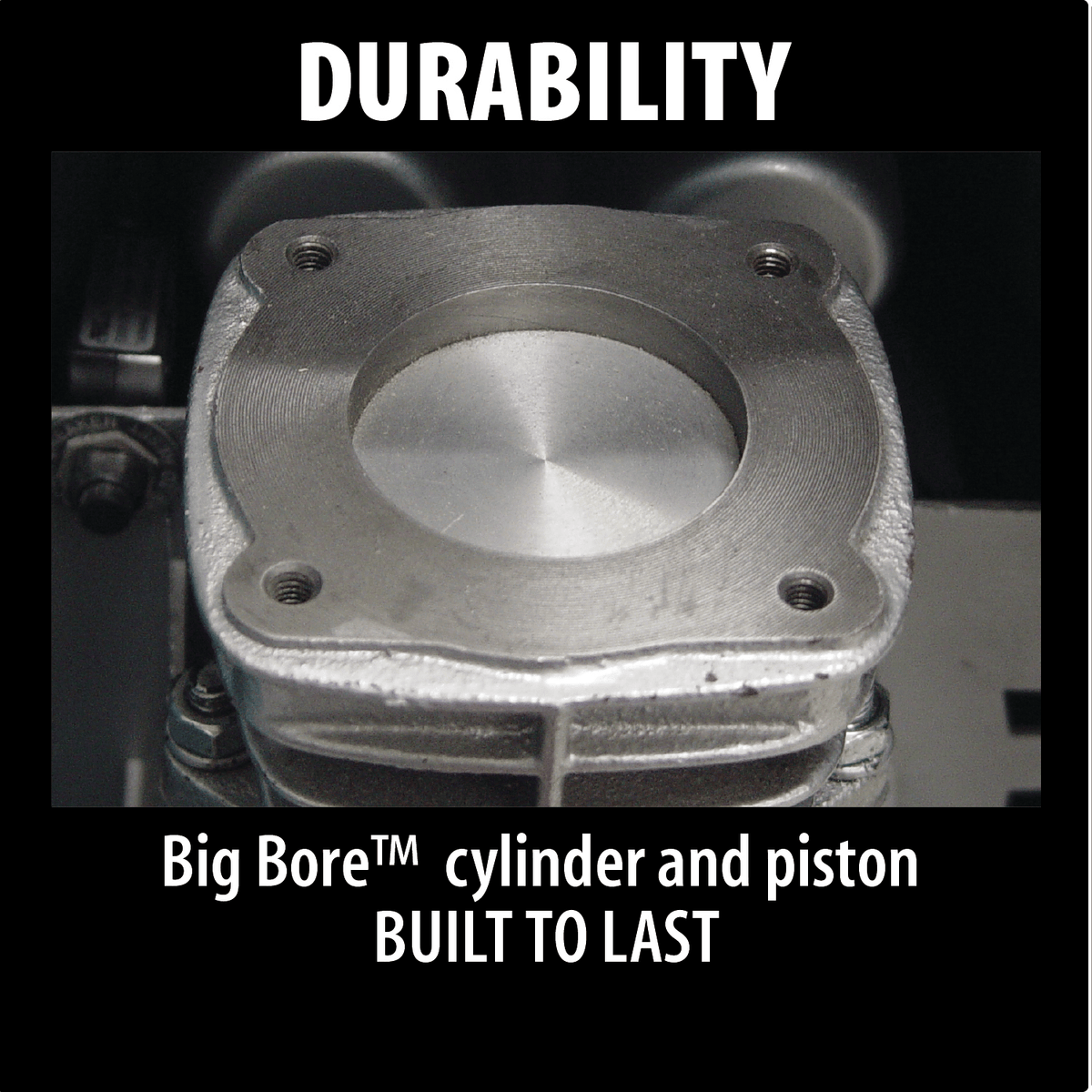

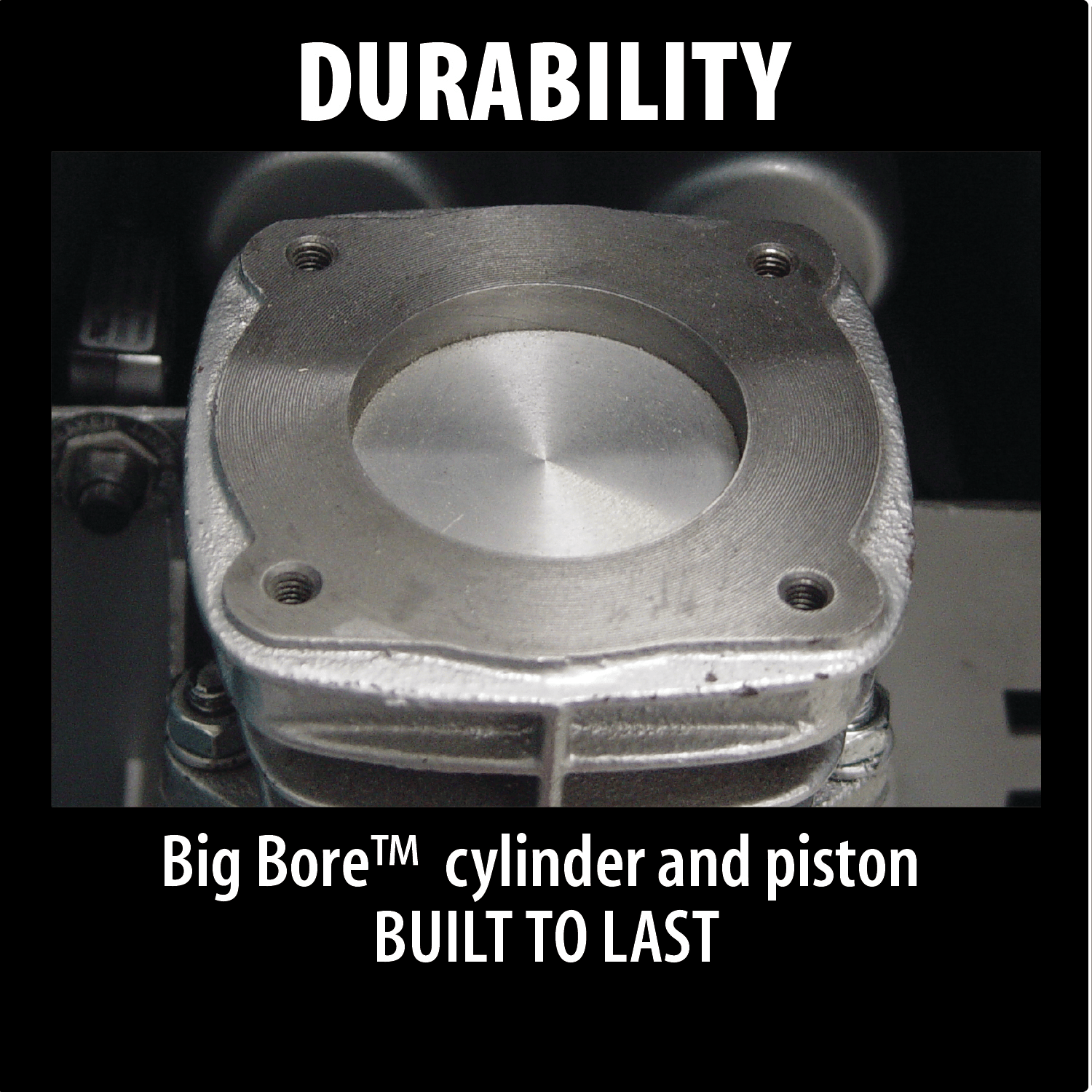

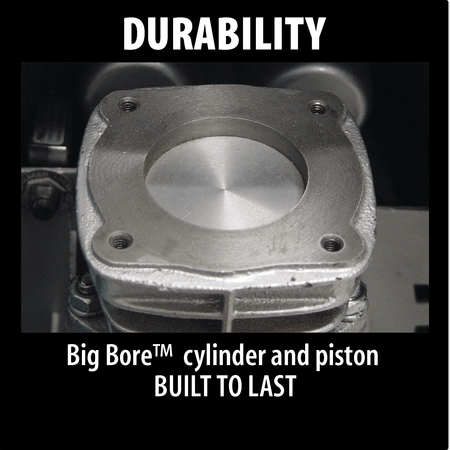

Top-down view of the Makita Big Bore cast iron cylinder and piston engineered for increased air compression and durability.

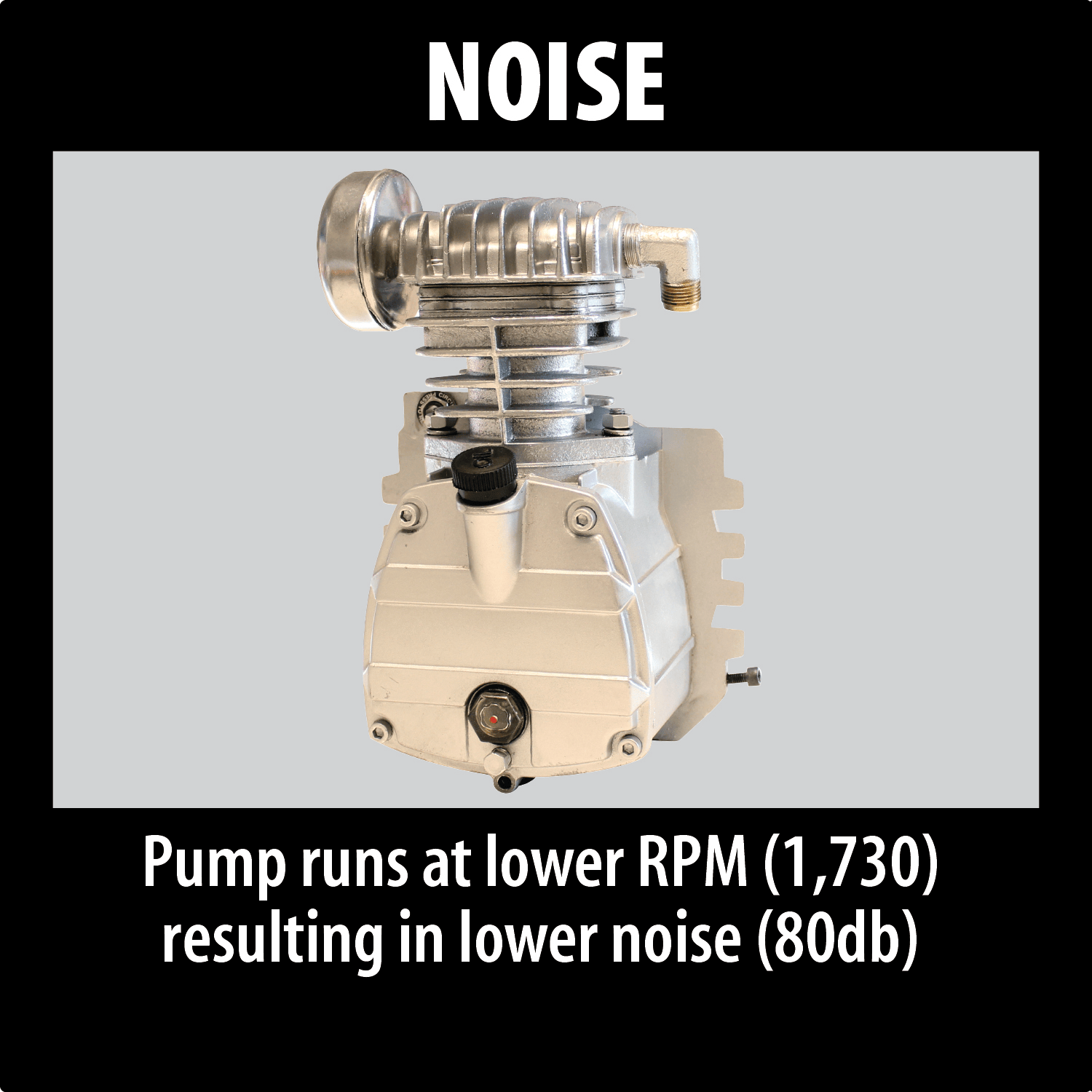

Makita MAC700 oil-lubricated cast iron pump engineered to operate at a low 1,730 RPM for quiet 80 dB jobsite sound output.

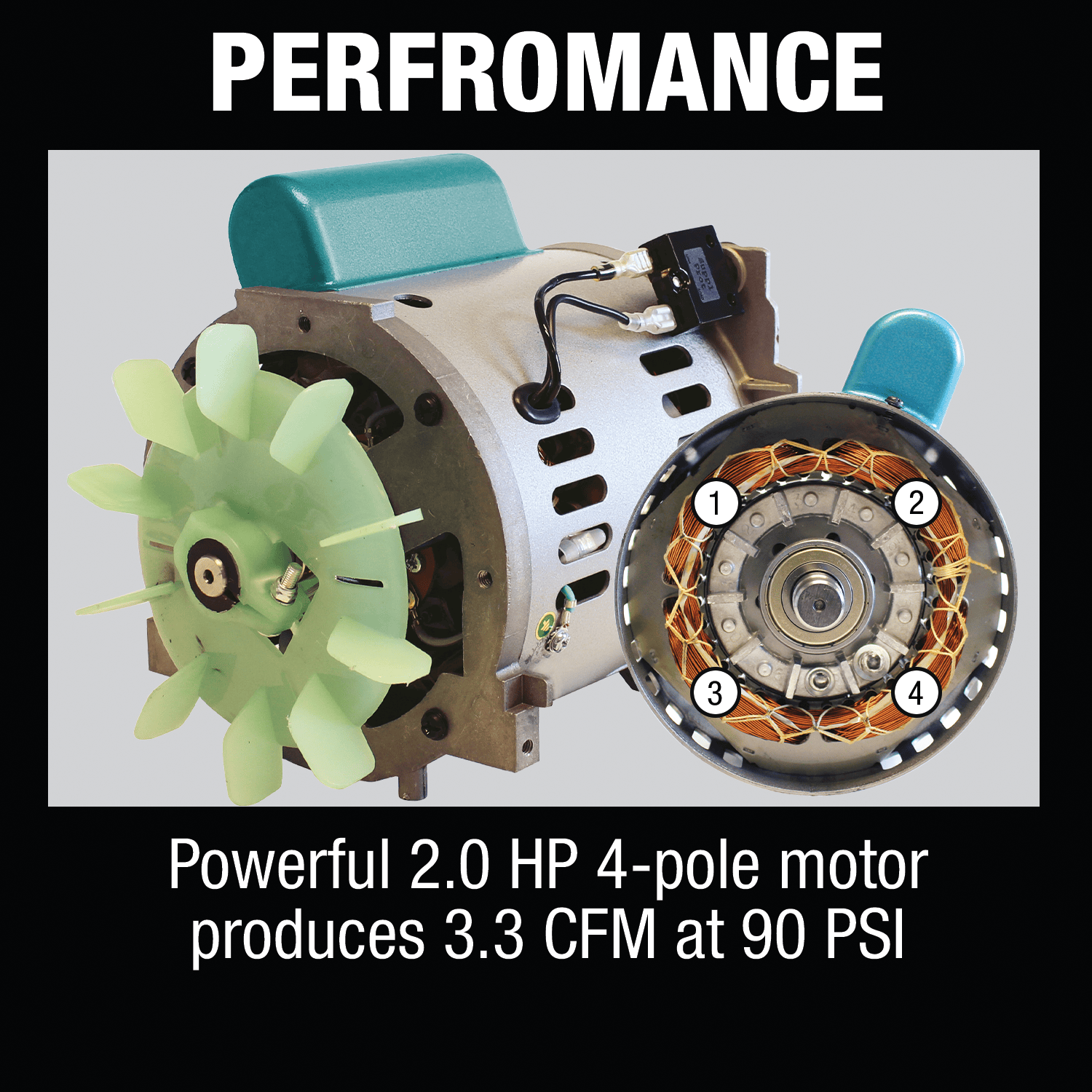

Makita MAC700 2.0 HP 4-pole motor with copper windings delivering 3.3 CFM at 90 PSI while reducing startup breaker trips.

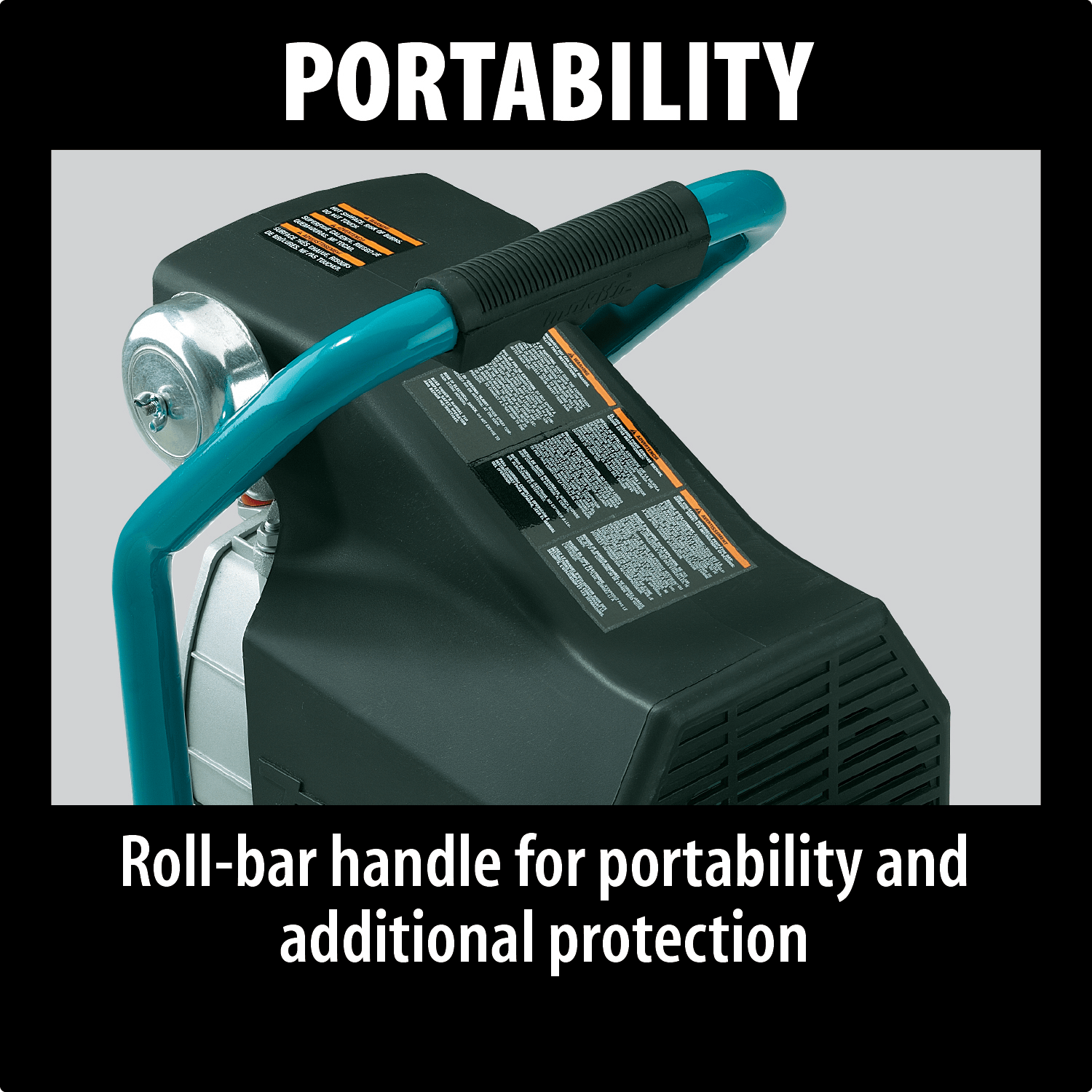

Close-up of the tubular steel roll-bar handle on the Makita MAC700 compressor designed for portability and pump protection.

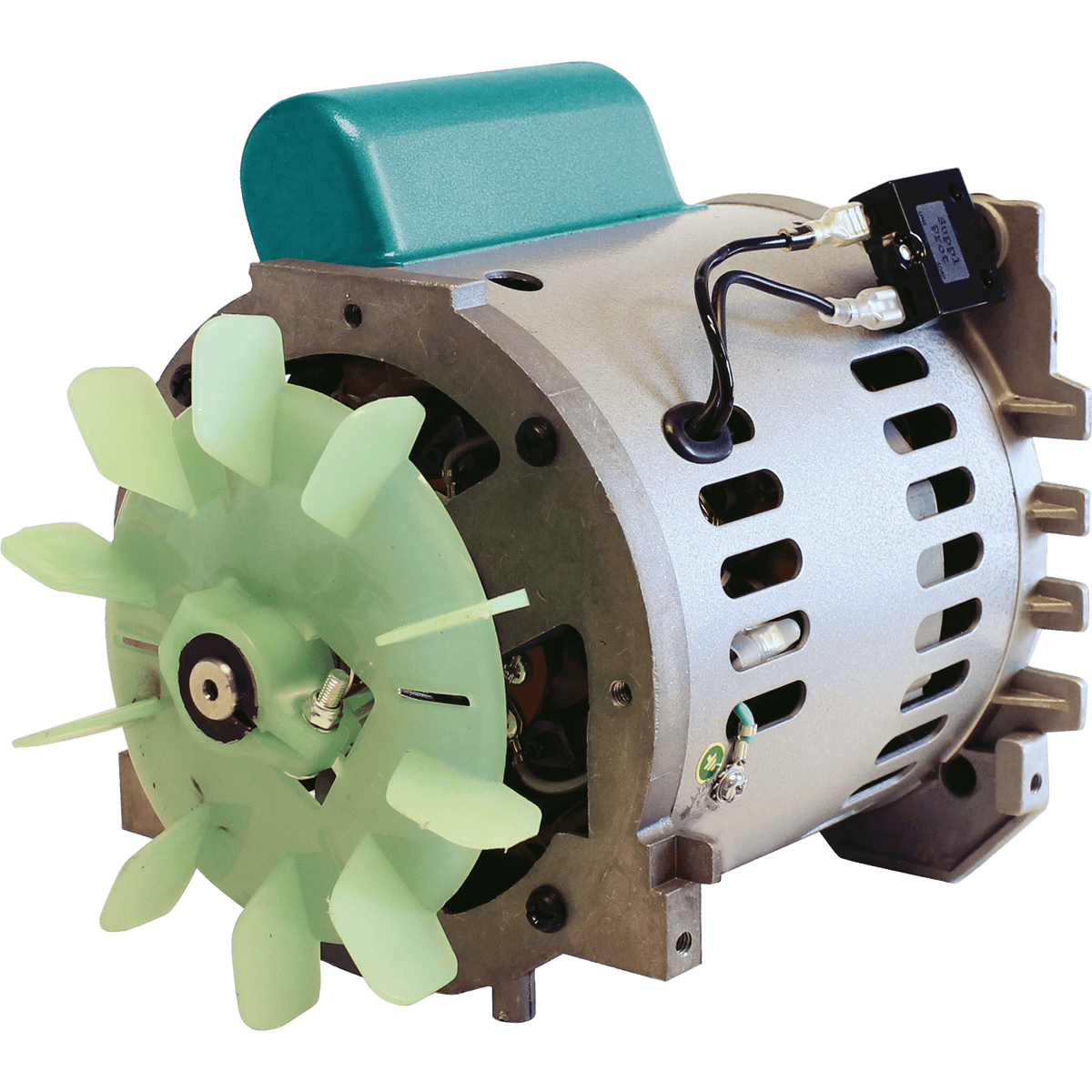

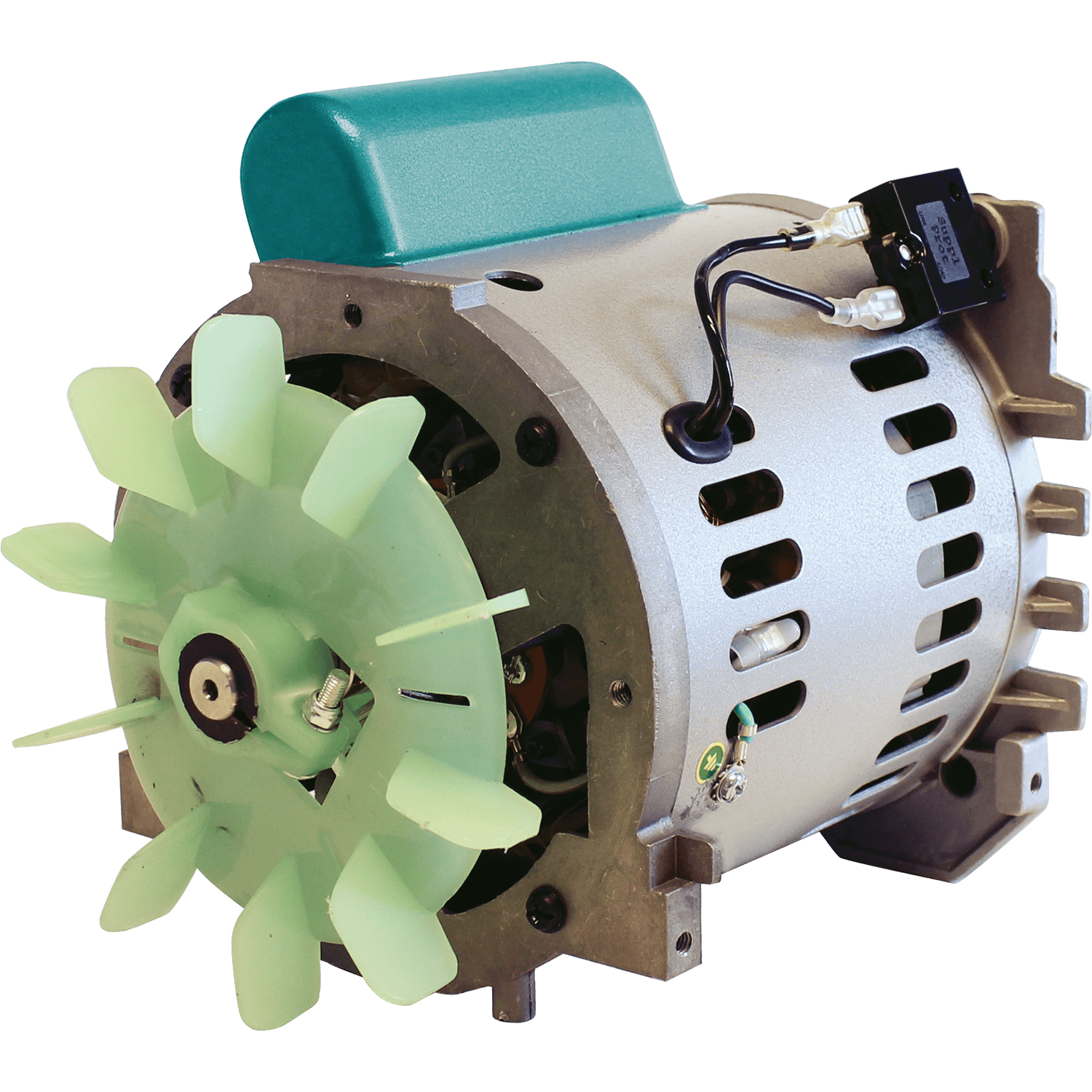

Makita MAC700 replacement 4-pole electric motor assembly with cooling fan and integrated thermal overload protection switch.

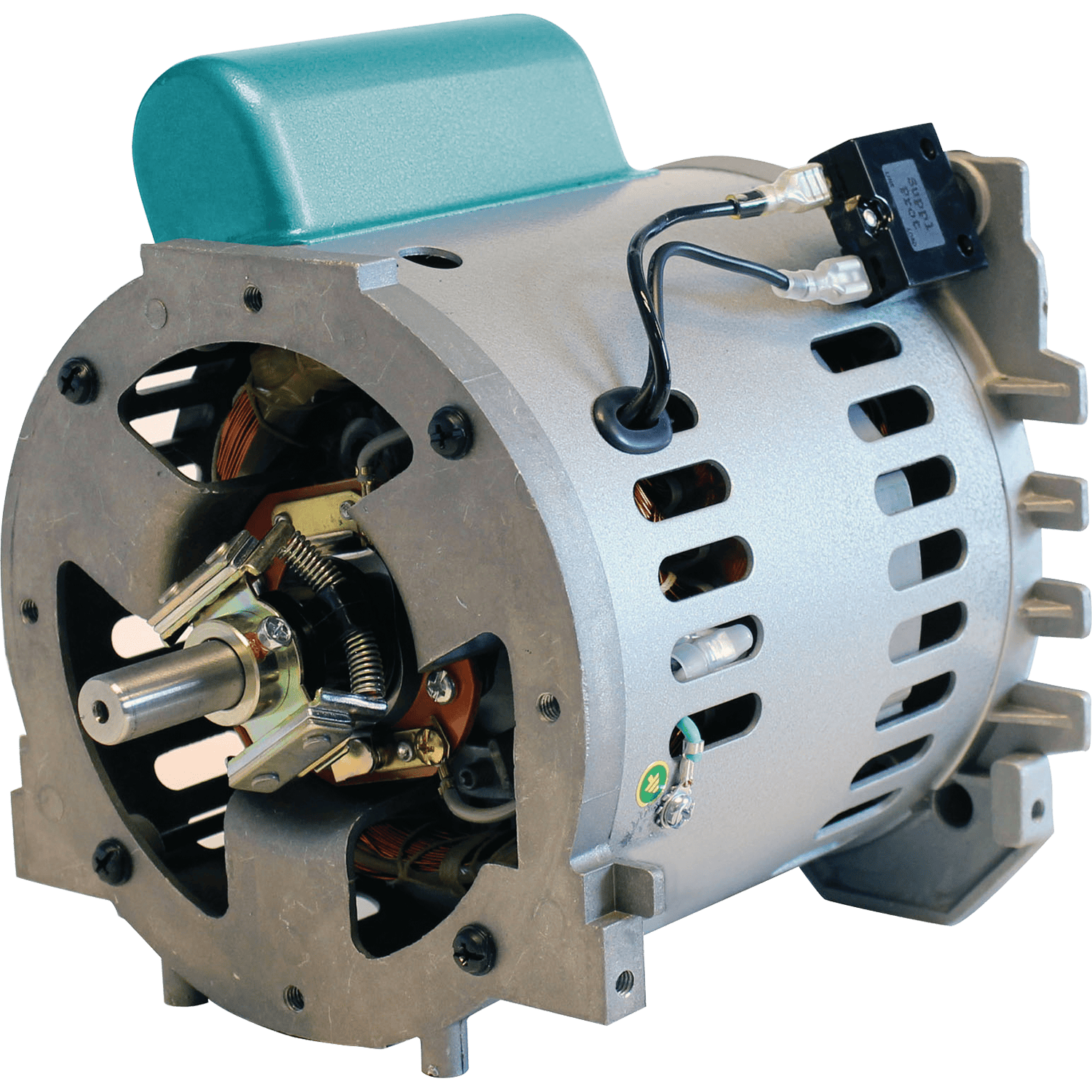

Drive shaft side of the Makita MAC700 electric motor showing the centrifugal starting switch and heavy-duty housing.

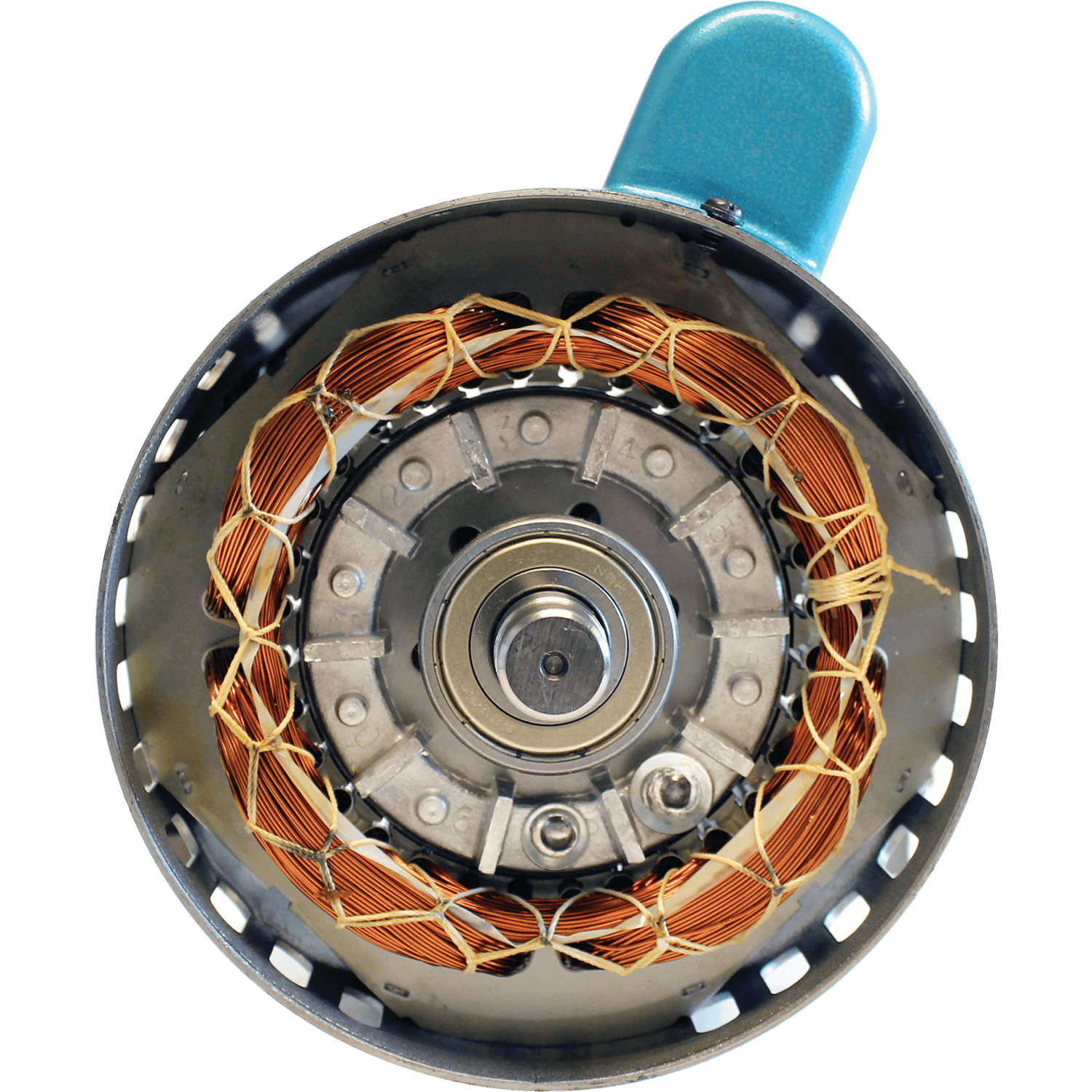

Internal copper stator windings and precision sealed ball bearing assembly inside the Makita MAC700 2.0 HP electric motor.

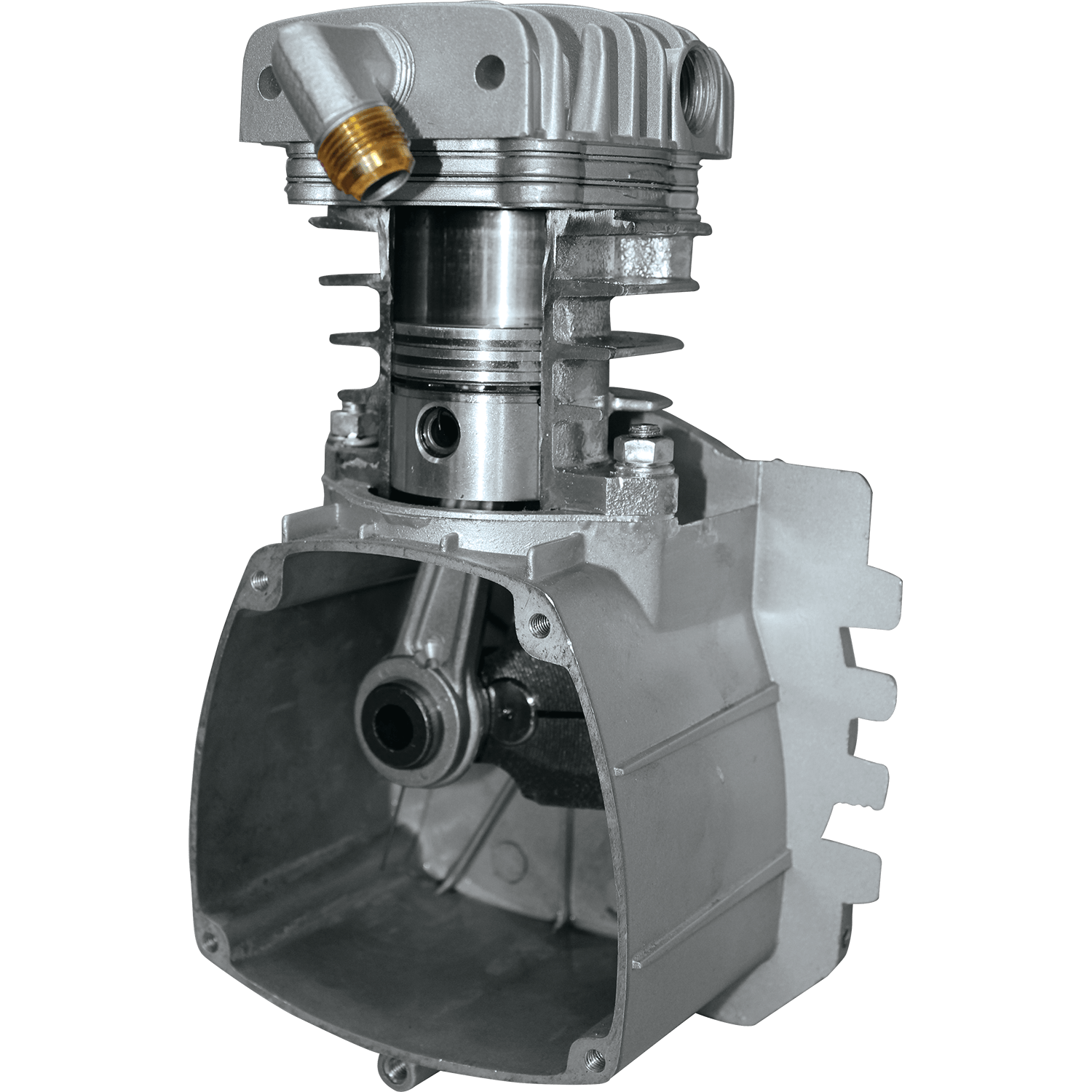

Cutaway diagram of the Makita MAC700 Big Bore pump showing the cast iron cylinder wall, piston, and connecting rod assembly.

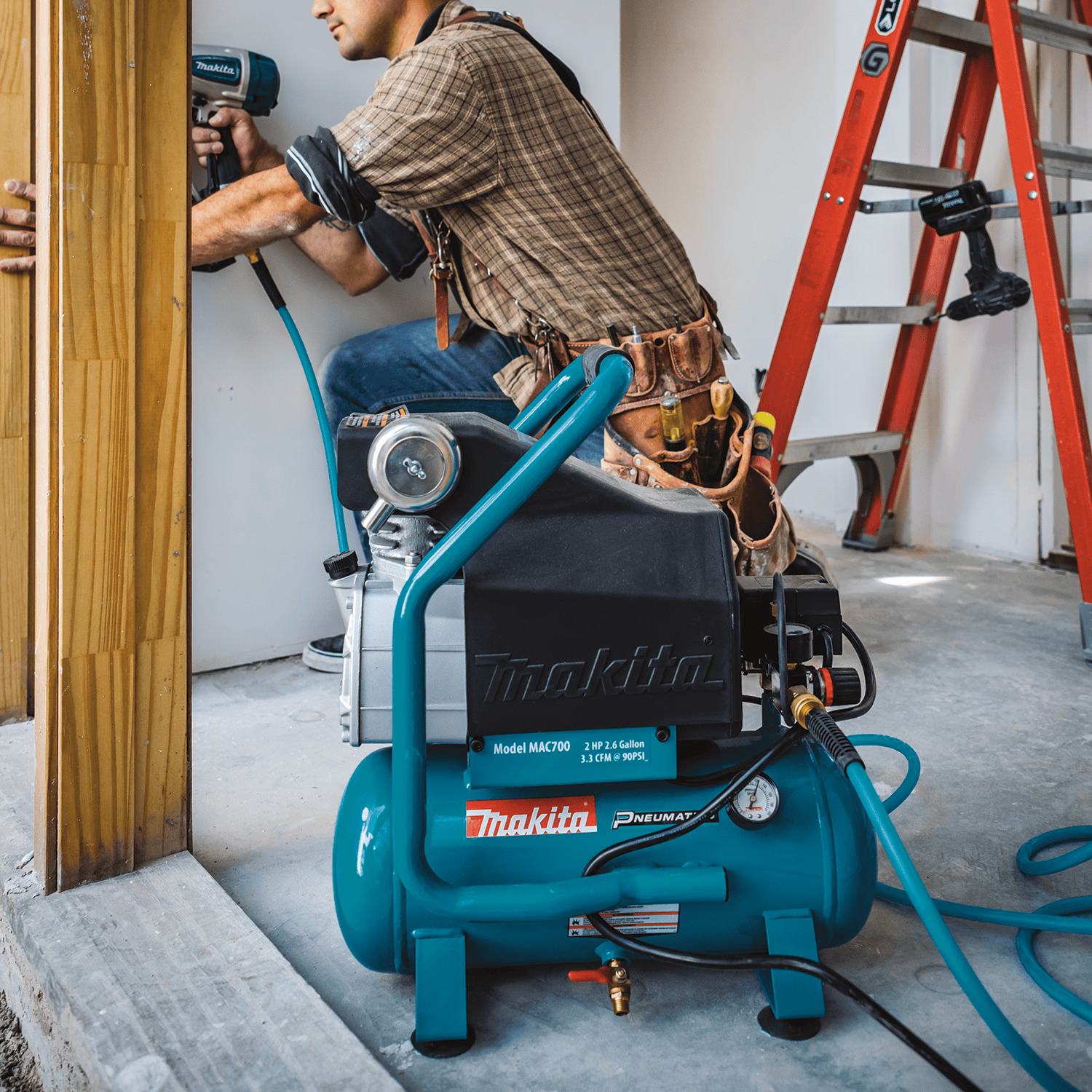

Carpenter operating a pneumatic finish nailer powered by the quiet 80 dB Makita MAC700 air compressor on an interior jobsite.

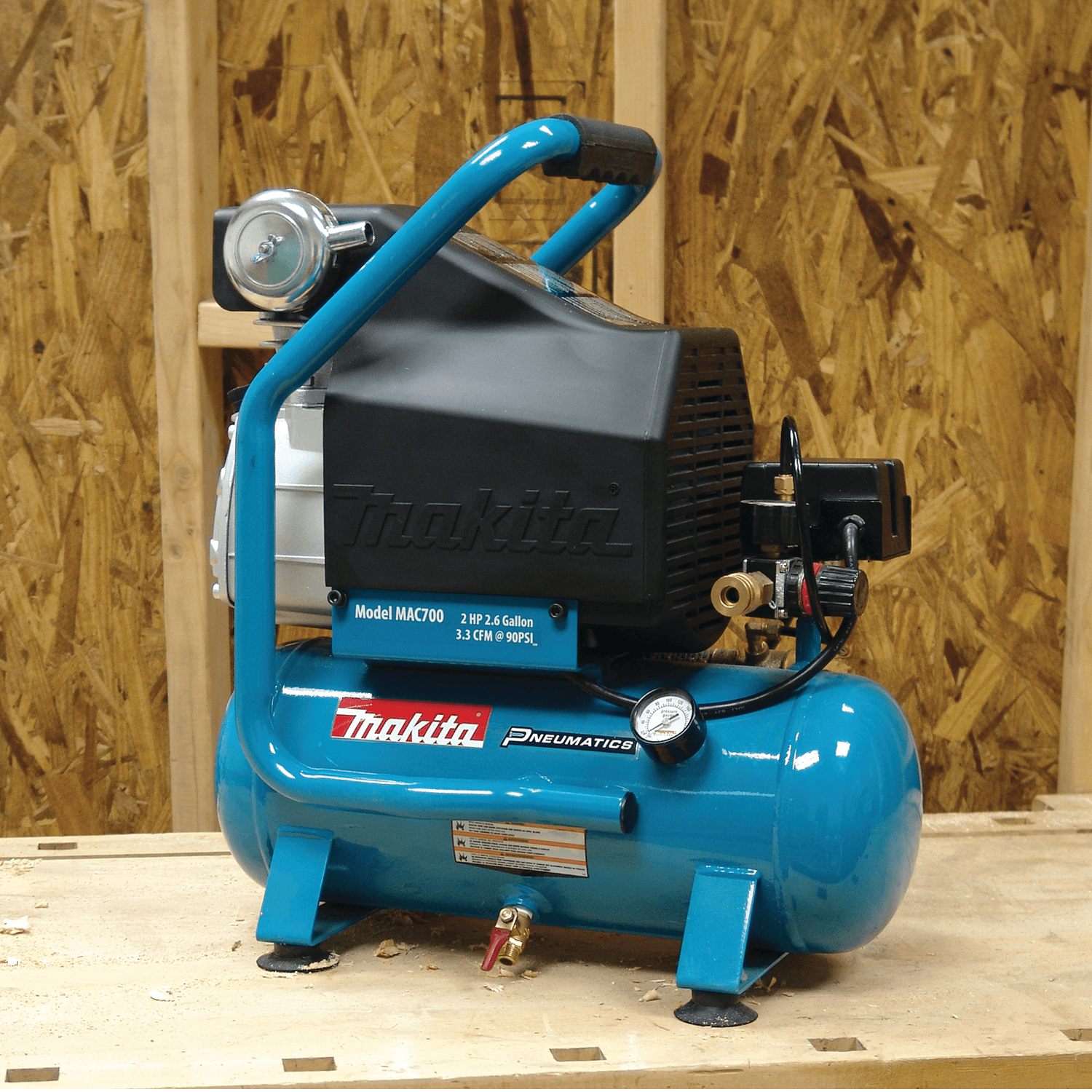

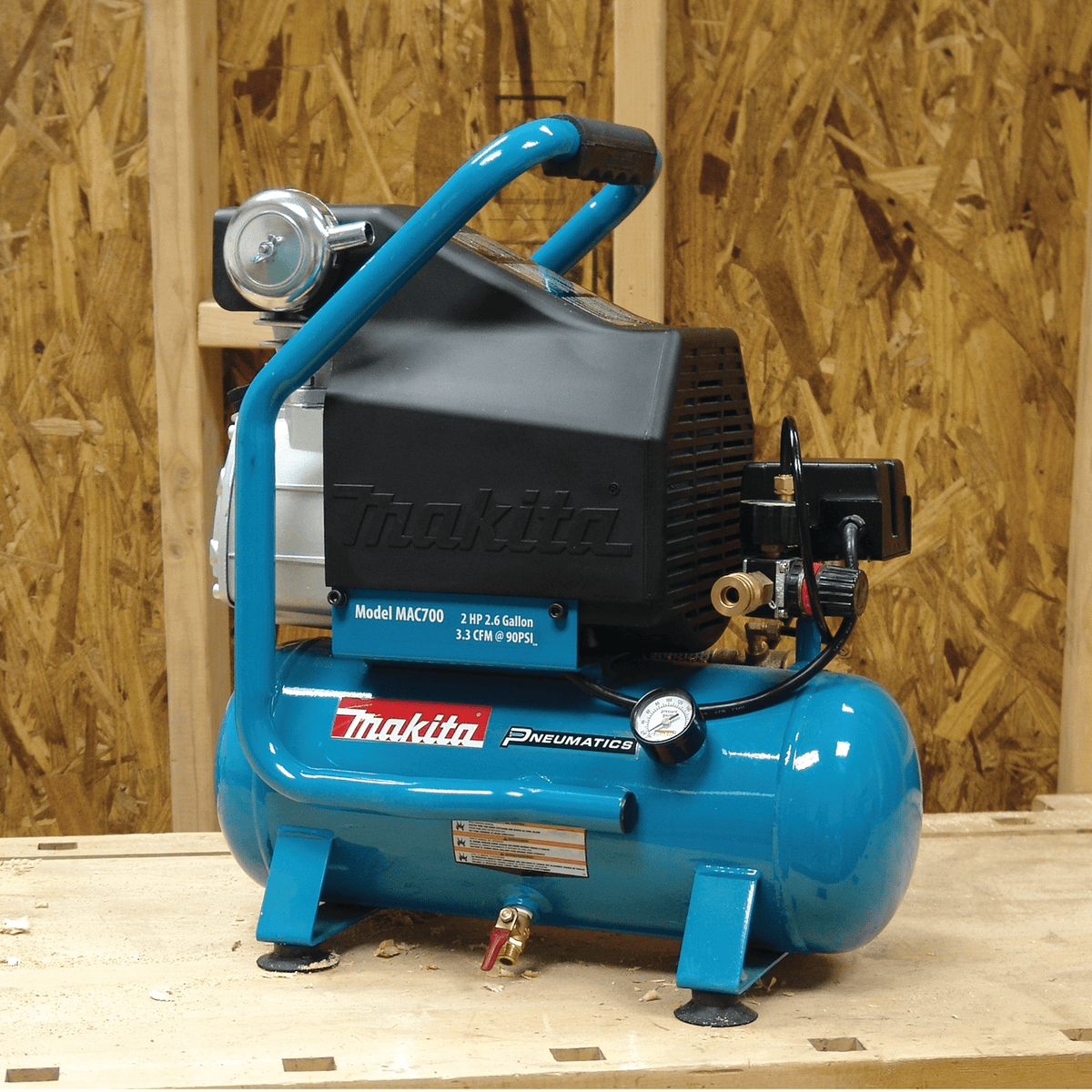

Makita MAC700 2.6-gallon electric air compressor on a workbench showing pressure gauge and quick coupler.

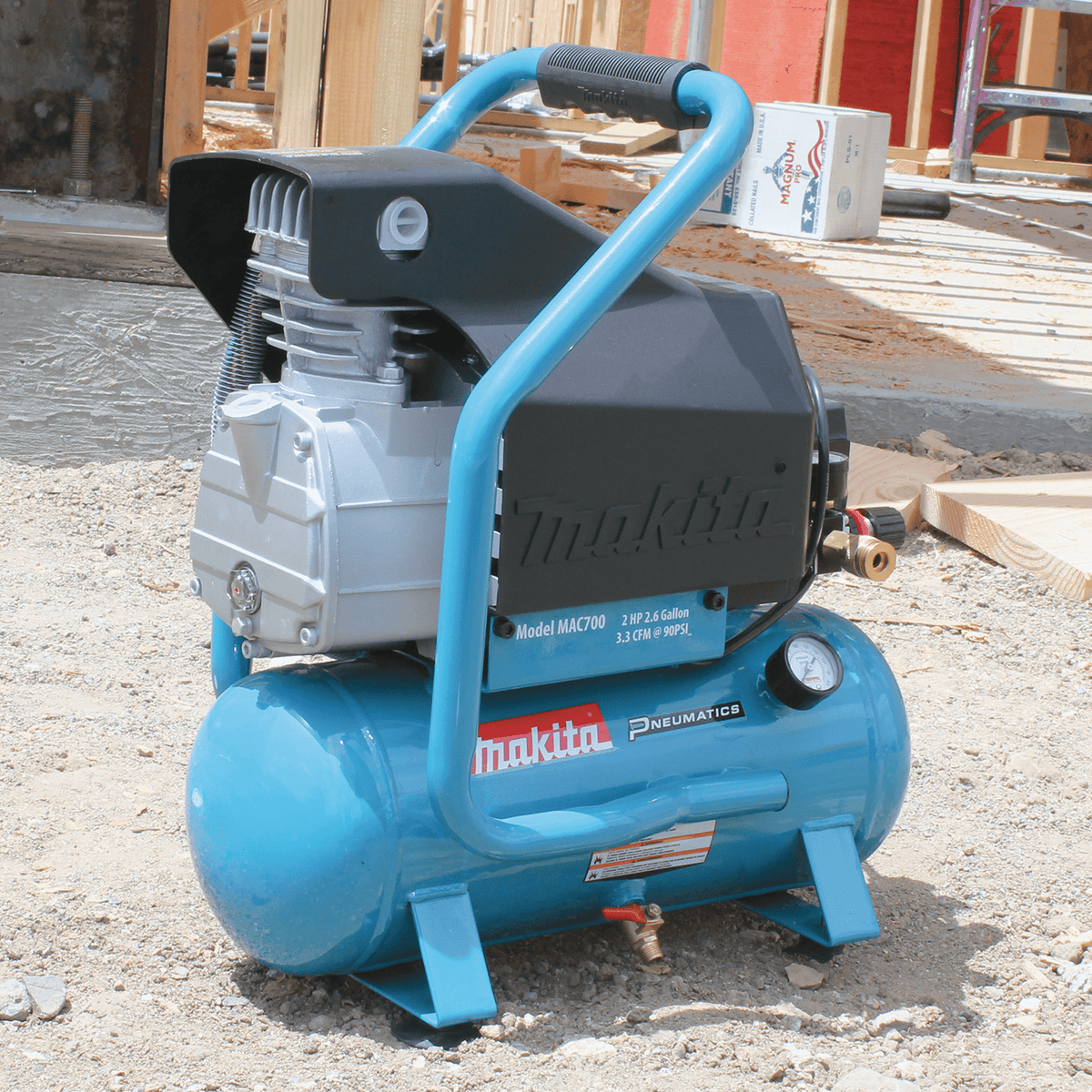

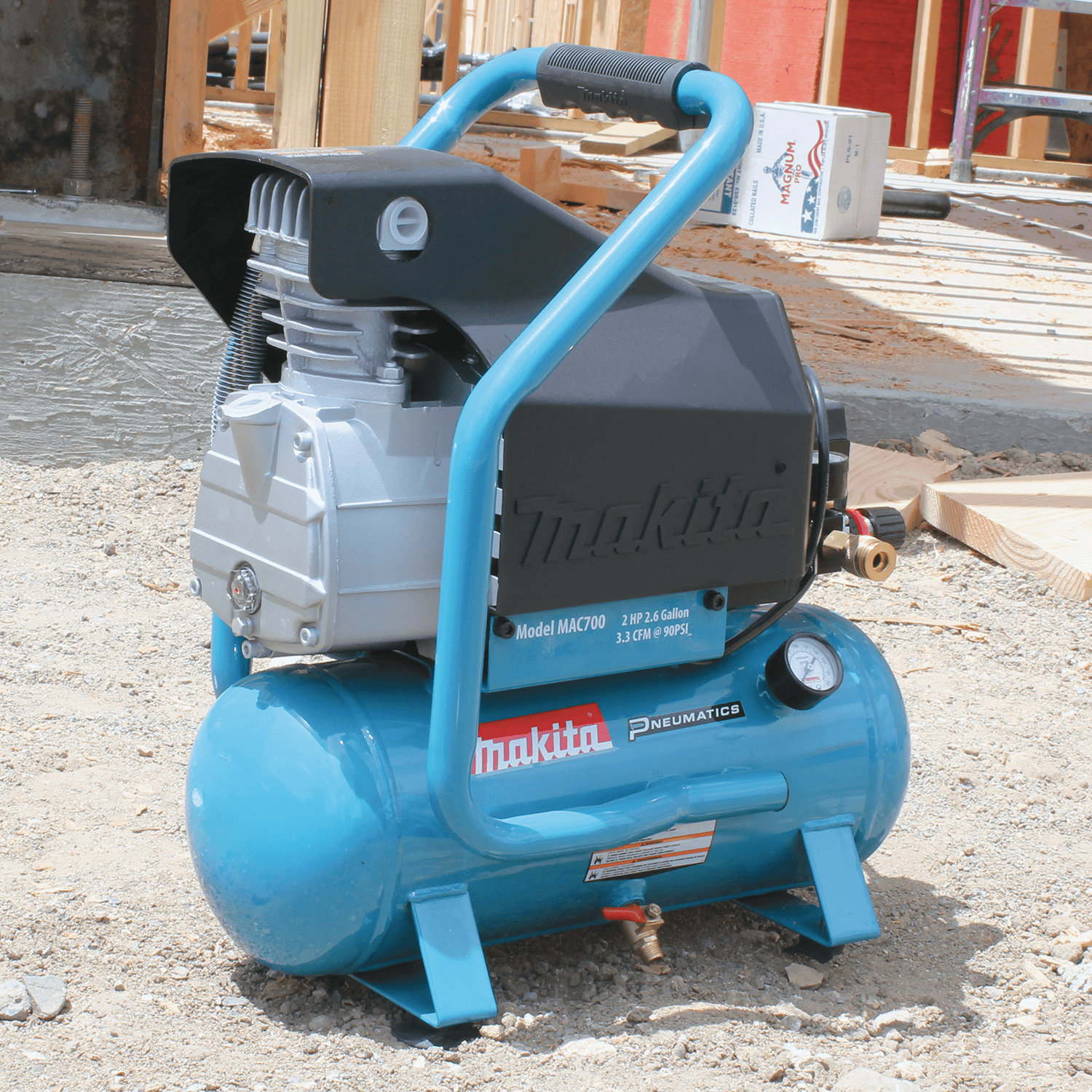

Makita MAC700 2.0 HP air compressor on a gravel framing jobsite displaying cast iron pump and brass drain valve.
MAKITA Air Compressors (MAC5200, MAC700, MAC2400) Promotional video
Makita MAC700 2.0 HP 2.6-gallon electric air compressor featuring a cast iron pump, roll-bar handle, and pressure gauges.
Top-down view of the Makita Big Bore cast iron cylinder and piston engineered for increased air compression and durability.
Makita MAC700 oil-lubricated cast iron pump engineered to operate at a low 1,730 RPM for quiet 80 dB jobsite sound output.
Makita MAC700 2.0 HP 4-pole motor with copper windings delivering 3.3 CFM at 90 PSI while reducing startup breaker trips.
Close-up of the tubular steel roll-bar handle on the Makita MAC700 compressor designed for portability and pump protection.
Makita MAC700 replacement 4-pole electric motor assembly with cooling fan and integrated thermal overload protection switch.
Drive shaft side of the Makita MAC700 electric motor showing the centrifugal starting switch and heavy-duty housing.
Internal copper stator windings and precision sealed ball bearing assembly inside the Makita MAC700 2.0 HP electric motor.
Cutaway diagram of the Makita MAC700 Big Bore pump showing the cast iron cylinder wall, piston, and connecting rod assembly.
Carpenter operating a pneumatic finish nailer powered by the quiet 80 dB Makita MAC700 air compressor on an interior jobsite.
Makita MAC700 2.6-gallon electric air compressor on a workbench showing pressure gauge and quick coupler.
Makita MAC700 2.0 HP air compressor on a gravel framing jobsite displaying cast iron pump and brass drain valve.
MAKITA Air Compressors (MAC5200, MAC700, MAC2400) Promotional video
Makita

Makita Corded Electric Air Compressor MAC700 2.6 Gallon Tank (2.0 HP Big Bore Cast Iron Pump 3.3 CFM 90 PSI 130 Max Low Noise Framing Nailer Power)

In stock
SKU: MAC700
$299.00 USD

Description

Makita Logo Logout

Makita MAC700 2.0 HP Big Bore 2.6-Gallon Portable Electric Air Compressor

The Makita MAC700 2.0 HP Big Bore 2.6-Gallon Electric Air Compressor delivers 3.3 CFM at 90 PSI and achieves a 130 PSI maximum operating pressure to drive pneumatic framing, finish, and trim nailers with rapid recovery. Powered by a low-RPM 4-pole induction motor running at just 1,730 RPM and 80 dB noise output, this jobsite compressor pairs a cast iron Big Bore cylinder and piston assembly with an oil-lubricated pump to minimize mechanical wear and prevent tripped breakers through low electrical AMP draw. Engineered with an integrated tubular steel roll-bar handle, copper-finned heat dissipation tubing, and a front oil sight glass, it provides durable, low-noise pneumatic performance across demanding interior remodeling and carpentry projects.

Best Used For:

  • Interior Finish & Trim Carpentry: Supplying clean, stable air delivery for 15-gauge finish nailers, 16-gauge straight brad guns, and pinners without disrupting indoor residential spaces due to quiet 80 dB operation.
  • Punch-List Framing & Sheathing: Operating standard pneumatic framing guns and metal connector tools with fast pressure recovery powered by 3.3 CFM at 90 PSI output.
  • Shared-Circuit Residential Remodeling: Starting reliably on 15A household circuits without causing voltage drops or nuisance breaker trips enabled by low AMP draw engineering.

Key Performance & Safety Features

  • Big Bore Cast Iron Pump: Larger cylinder bore and stroke provides superior compression efficiency, accelerated air recovery, and extended pump service life.
  • Low-RPM 4-Pole Motor: Operates at 1,730 RPM to cut noise down to 80 dB while dramatically reducing internal friction and heat compared to high-speed motors.
  • Low AMP Electrical Draw: Engineered motor reduces startup electrical current spikes, preventing tripped circuit breakers on shared jobsite power.
  • Copper-Finned Discharge Tubing: Dissipates heat rapidly as air leaves the pump, lowering operational temperatures and reducing condensation inside the 2.6-gallon tank.
  • Protective Roll-Bar Handle: Heavy-duty tubular steel frame protects internal motor, pump, and gauge components from jobsite impacts during transport.
  • Convenient Maintenance Access: Equipped with a front oil sight glass, accessible oil drain, large automotive-style intake filter, and a quarter-turn lever ball valve tank drain.

What's Included

  • (1) Makita 2.0 HP Big Bore 2.6-Gallon Air Compressor (MAC700)
  • (1) 1/4" Universal Quick Coupler, Male (447013-E)
  • (1) Bottle of Makita Premium Air Compressor Oil (181122-A)

Technical Specifications

Specification Detail
Model Number / MPN MAC700
Maximum Motor Horsepower 2.0 HP (1.7 HP Running)
Air Tank Capacity 2.6 Gallons (9.84 L) Hot Dog Tank
Air Flow Delivery Rate @ 90 PSI 3.3 CFM
Air Flow Delivery Rate @ 40 PSI 3.8 CFM
Maximum Operating Pressure 130 PSI
Operating Speed & Noise Output 1,730 RPM / 80 dBA
Pump Lubrication Architecture Oil-Lubricated Big Bore Cast Iron
Power Supply & Motor Type Corded Electric 120V (4-Pole Induction)
Outlet Connection Style 1/4 in Universal Quick-Connect Coupler
Cooling Line Architecture Copper Finned Heat Dissipation Discharge Tube
Drain Valve Mechanism Lever-Handle Brass Ball Valve
Net Tool Weight 52.0 lbs (23.59 kg)
Pro-Tip: Before turning on the compressor in cold weather, check the oil sight glass to ensure the ISO-100 compressor oil is fluid; warming the pump briefly or keeping the unit at room temperature ensures rapid startup without triggering the thermal overload switch.
