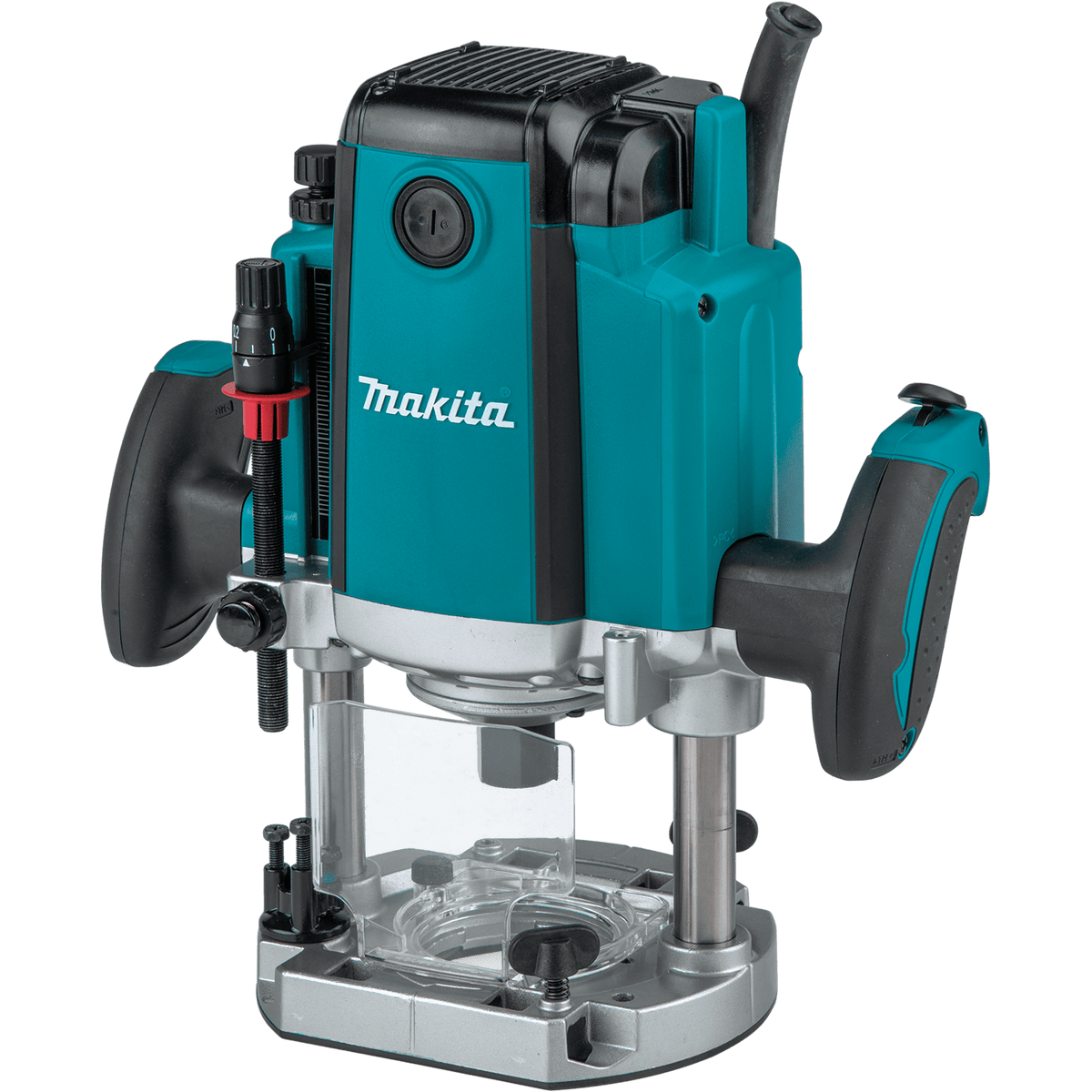

Makita RP1800 3-1/4 HP corded plunge router with depth adjustment scale, plunge lock lever, and 1/2-inch collet.
Makita RP1800 diagram highlighting 15 Amp 22,000 RPM motor, 2-3/4-inch plunge stroke, and linear ball bearings.
Makita RP1800 plunge base showcasing 0 to 2-3/4-inch plunge capacity, clear chip deflector, and 3-stage turret stop.
Underside view of the Makita RP1800 router housing displaying dual linear ball bearings for smooth vertical plunging.
Woodworker guiding Makita RP1800 15 Amp 22,000 RPM plunge router with edge guide across a solid wood board.
Close-up of the micro-control depth stop rod and 3-preset depth turret on the Makita RP1800 precision plunge router.

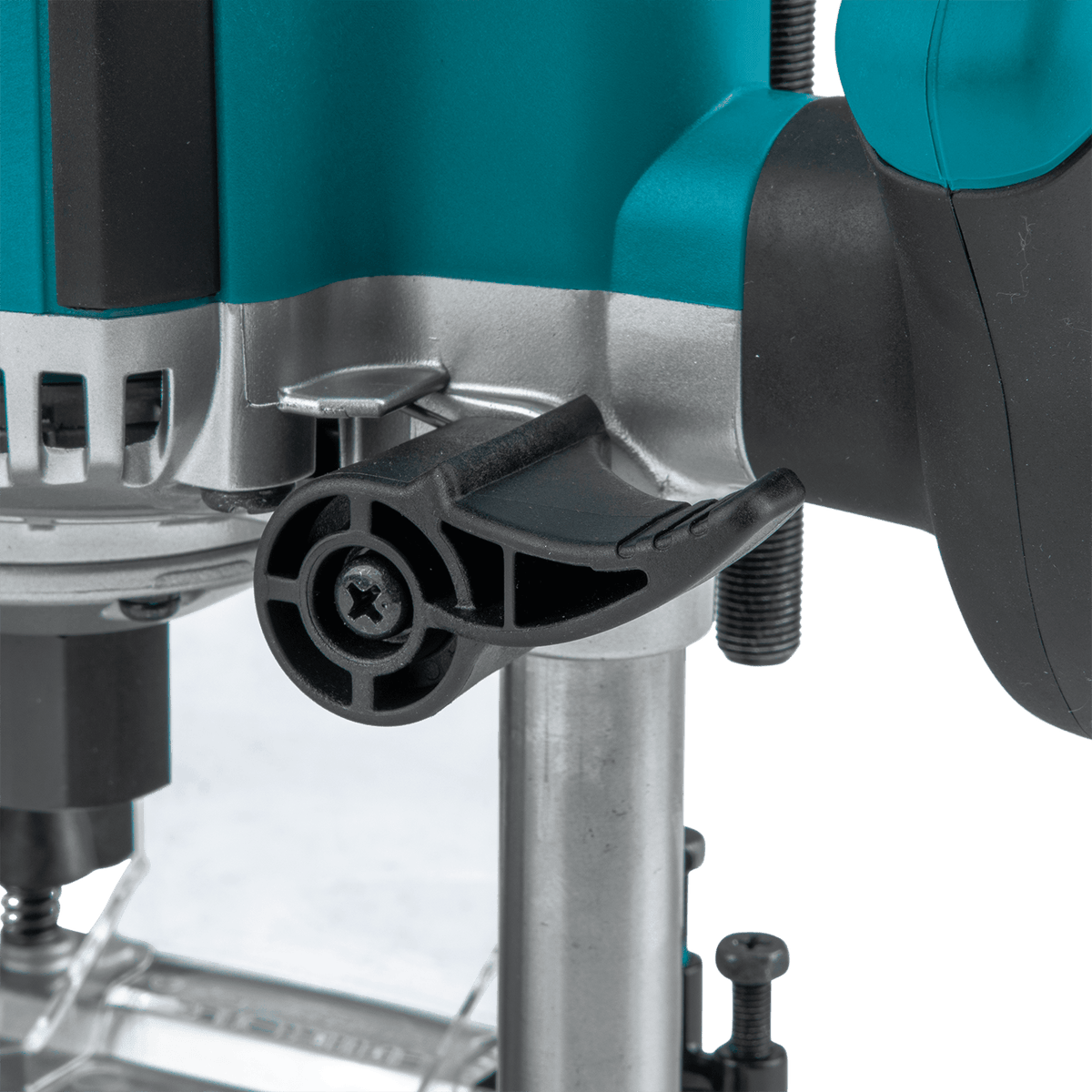

Ergonomic quick-release plunge lock lever on the Makita RP1800 router for instant depth-locking during mortising.
Clear polycarbonate chip deflector and 1/2-inch collet spindle assembly on the Makita RP1800 cast aluminum plunge base.

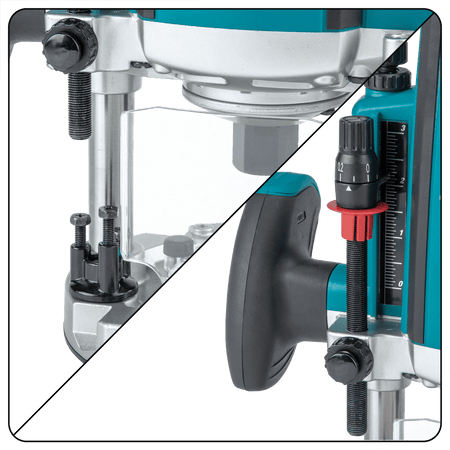

Makita RP1800 micro-depth adjustment dial and imperial scale rod for stepped-pass woodworking joinery.
Craftsman using Makita RP1800 plunge router with parallel fence to mill straight dado grooves into lumber stock.
Makita RP1800 3-1/4 HP corded plunge router with depth adjustment scale, plunge lock lever, and 1/2-inch collet.
Makita RP1800 diagram highlighting 15 Amp 22,000 RPM motor, 2-3/4-inch plunge stroke, and linear ball bearings.
Makita RP1800 plunge base showcasing 0 to 2-3/4-inch plunge capacity, clear chip deflector, and 3-stage turret stop.
Underside view of the Makita RP1800 router housing displaying dual linear ball bearings for smooth vertical plunging.
Woodworker guiding Makita RP1800 15 Amp 22,000 RPM plunge router with edge guide across a solid wood board.
Close-up of the micro-control depth stop rod and 3-preset depth turret on the Makita RP1800 precision plunge router.
Ergonomic quick-release plunge lock lever on the Makita RP1800 router for instant depth-locking during mortising.
Clear polycarbonate chip deflector and 1/2-inch collet spindle assembly on the Makita RP1800 cast aluminum plunge base.
Makita RP1800 micro-depth adjustment dial and imperial scale rod for stepped-pass woodworking joinery.
Craftsman using Makita RP1800 plunge router with parallel fence to mill straight dado grooves into lumber stock.
Makita

Makita Plunge Router RP1800 1/2 Inch Collet (3-1/4 HP 15 Amp Single Speed 22000 RPM Linear Bearing Fine Woodworking Cabinetry Shaping Machine)

In stock
SKU: RP1800
$379.00 USD

Description

Makita Logo Logout

Makita RP1800 3-1/4 HP 15.0 Amp Single-Speed Corded Plunge Router

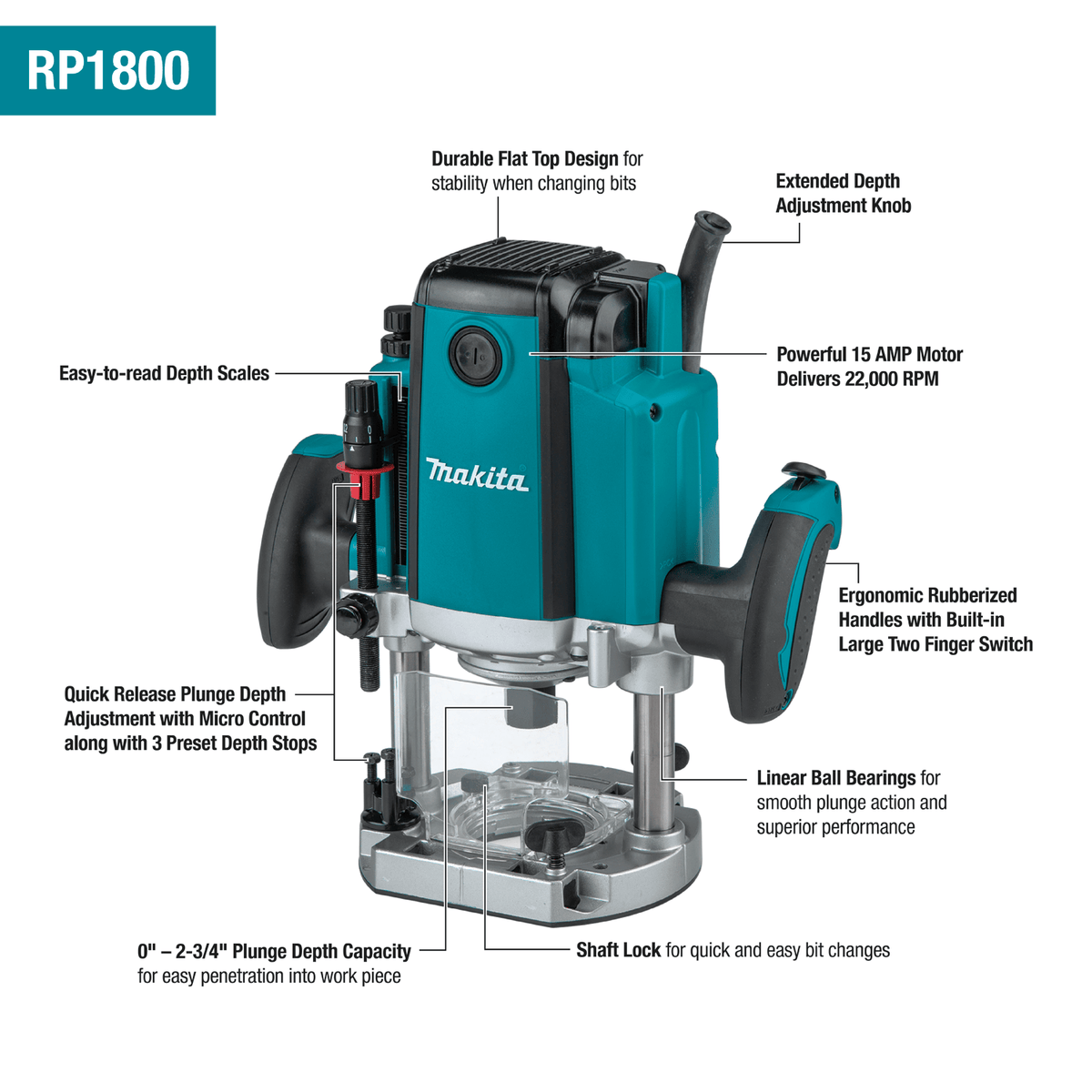

The Makita RP1800 3-1/4 HP Plunge Router combines a heavy-duty 15.0 Amp motor running at a continuous 22,000 RPM with smooth linear ball bearing plunge action for high-production cabinetry, architectural millwork, and joinery. Engineered with an extensive 0-inch to 2-3/4-inch plunge depth capacity, this corded production tool utilizes a micro-control depth adjustment screw and a 3-stage turret stop to execute stepped passes without chatter. Outfitted with oversized motor bearings, a labyrinth-sealed cooling fan to block fine sawdust ingress, and an under-table extended depth control knob, it equips professional woodworkers and furniture makers with unyielding cutting power across dense hardwoods, composites, and solid surface slabs.

Best Used For:

  • Deep Plunge Mortising & Hardware Cutouts: Sinking clean mortises for door hinges, locksets, and tenons through the full 2-3/4-inch plunge stroke via smooth linear ball bearing columns.
  • Router Table & Shaper Inverted Routing: Utilizing the included extended depth adjustment knob for fast, micro-precise cutter height adjustments when mounted under a table base.
  • Continuous High-Speed Edge Profiling: Powering through long hardwood edge moldings, countertop trims, and deck boards at an uninterrupted 22,000 RPM.

Key Performance & Safety Features

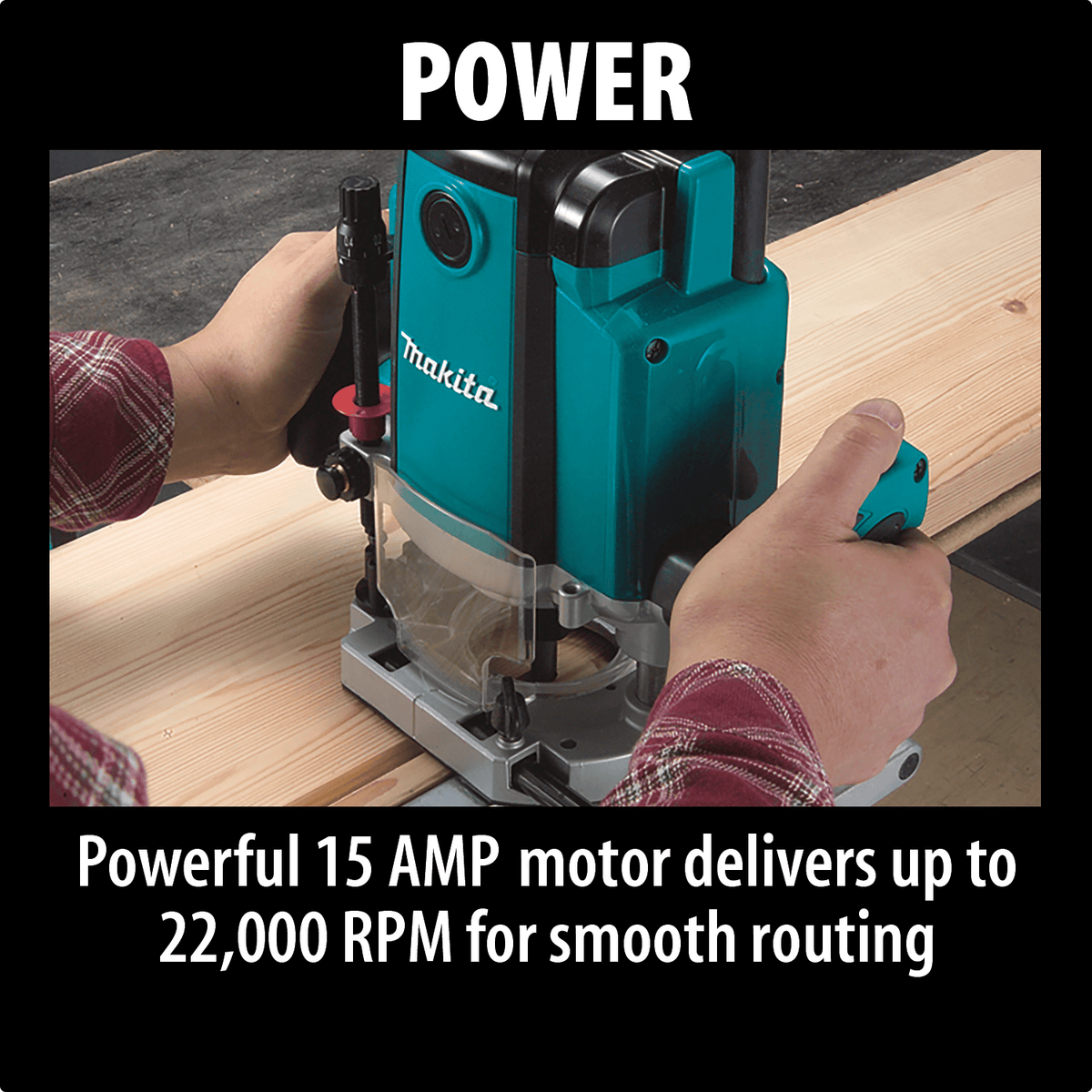

  • High-Output 15.0 Amp Motor: Delivers 3-1/4 maximum horsepower and 22,000 RPM to power heavy 1/2-inch shank carbide cutters through dense stock without bogging.

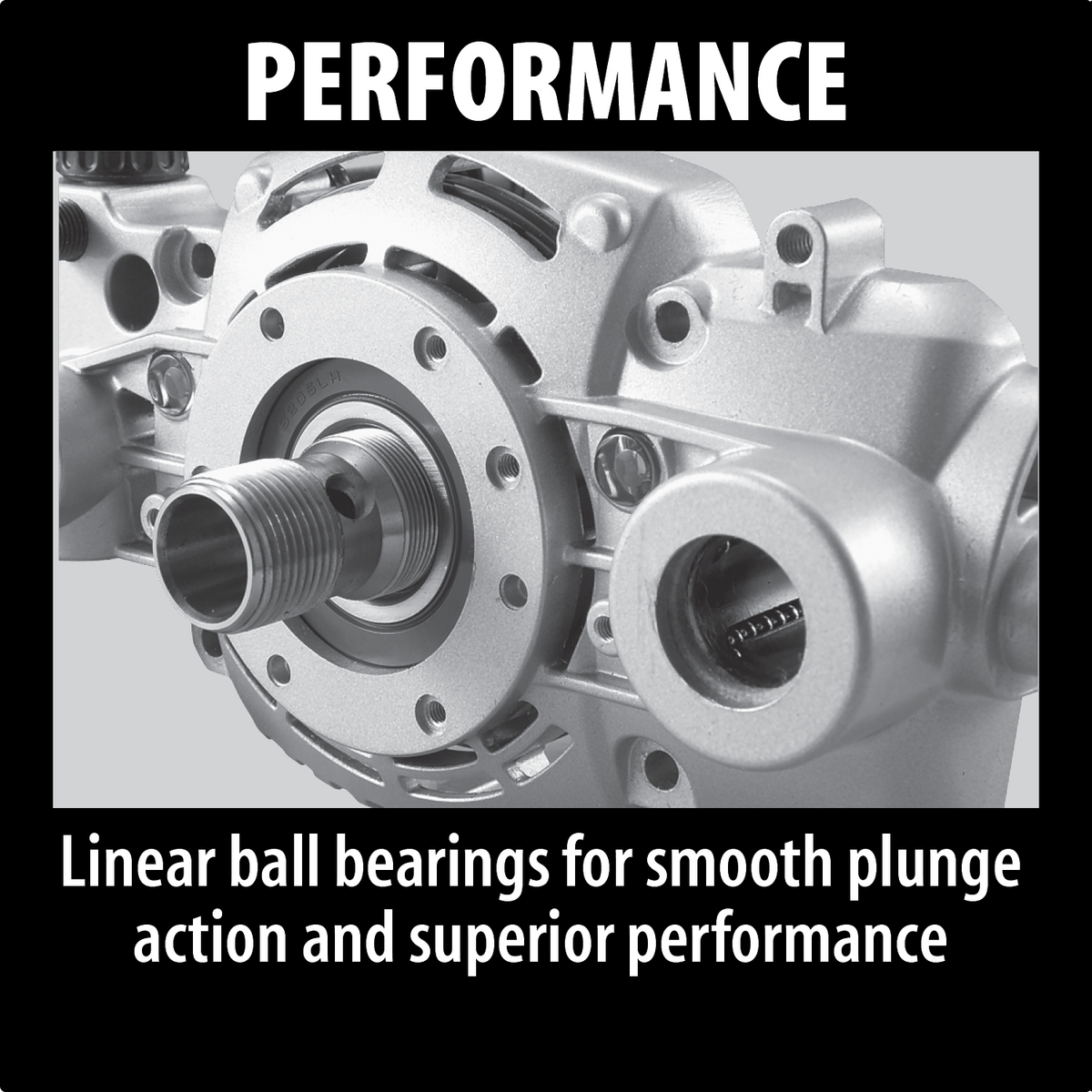

  • Linear Ball Bearing Architecture: Ensures fluid, precision vertical plunging without post binding or lateral deflection under heavy feed pressure.

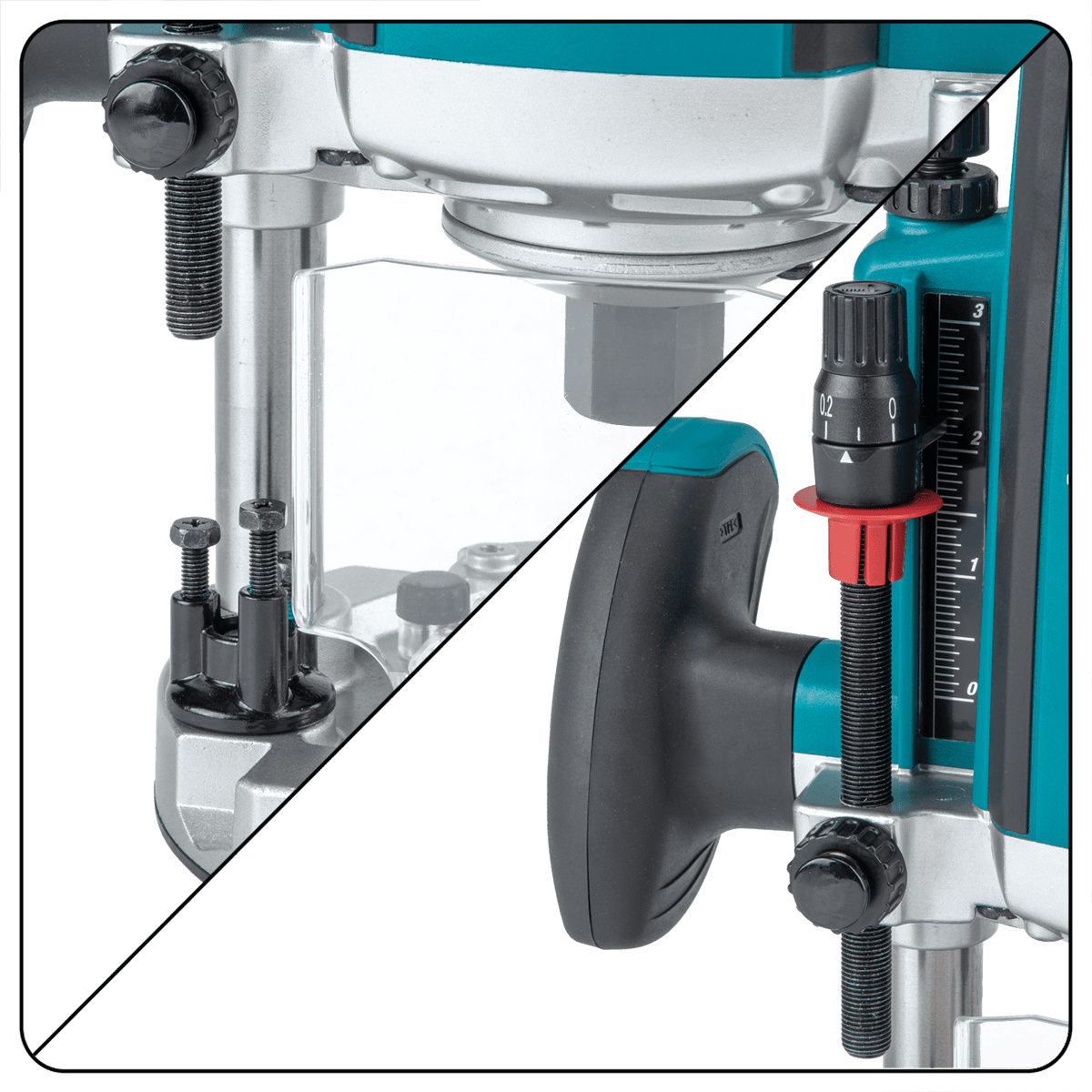

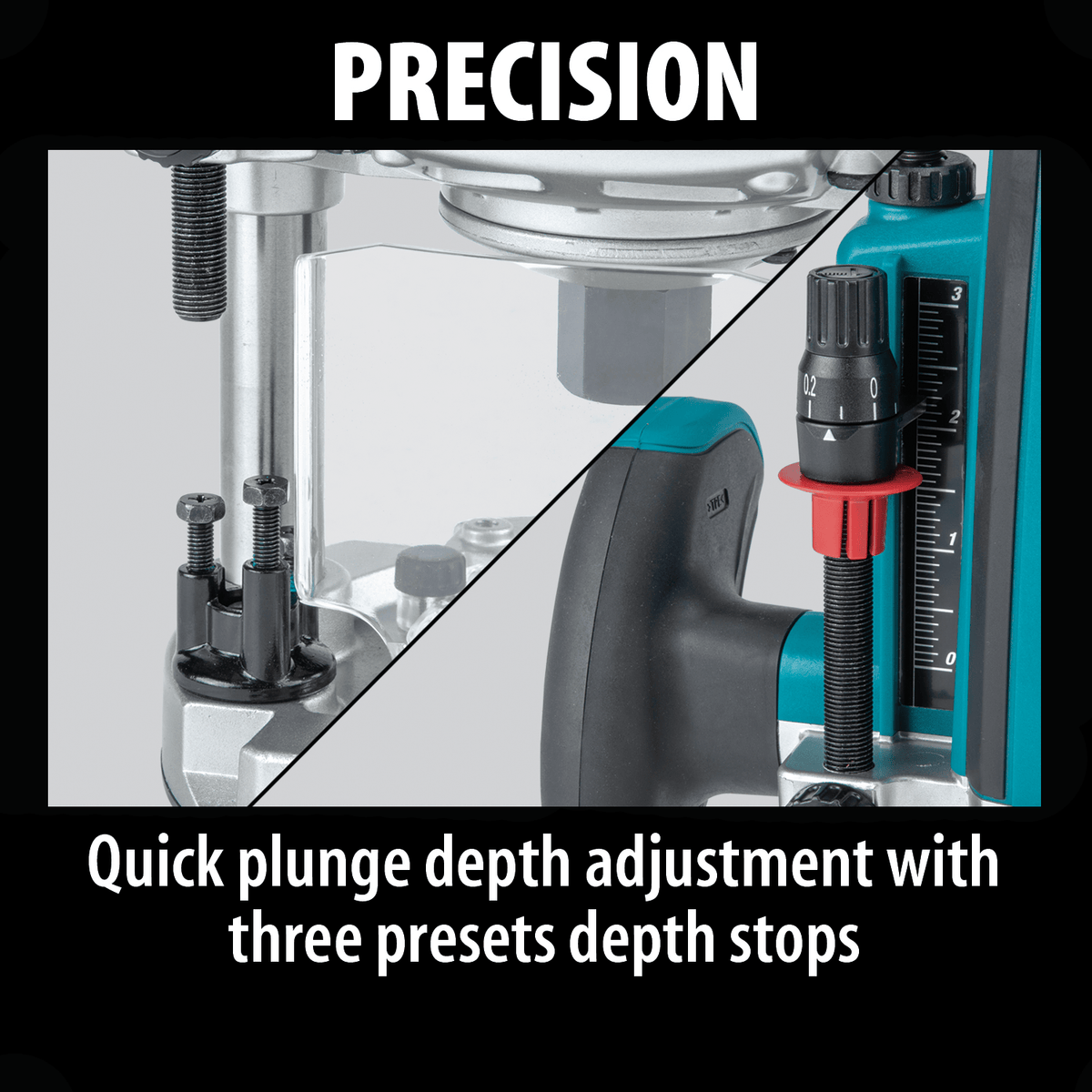

  • Micro-Fine Plunge Adjustment: Quick-release depth rod features fine micro-tuning controls paired with a 3-preset depth turret stop for rapid step-down routing.
  • Labyrinth Seal Airflow Geometry: Built-in motor cooling fan channels incoming air away from electrical armatures to prevent airborne sawdust contamination.
  • Tool-Less Template System: Enables rapid template guide bushing swaps without requiring separate alignment screwdrivers.
  • Flat-Top Housing Design: Stable, flat motor cap allows the router to sit inverted securely on the workbench for effortless two-handed bit and collet changes.

What's Included

  • (1) Makita 3-1/4 HP Single-Speed Plunge Router (RP1800)
  • (1) 1/2" Precision Collet Cone (763622-4)
  • (1) 1/4" Precision Collet Cone (763803-0)
  • (1) Extended Depth Adjustment Knob for Table Mounting (158980-5)
  • (1) Heavy-Duty Spanner Wrench (781030-7)

Technical Specifications

Specification Detail
Model Number / MPN RP1800
Motor Power Rating 15.0 Amps (120V) / 3-1/4 Maximum HP
Collet Shank Capacities 1/2 in and 1/4 in Collets Included

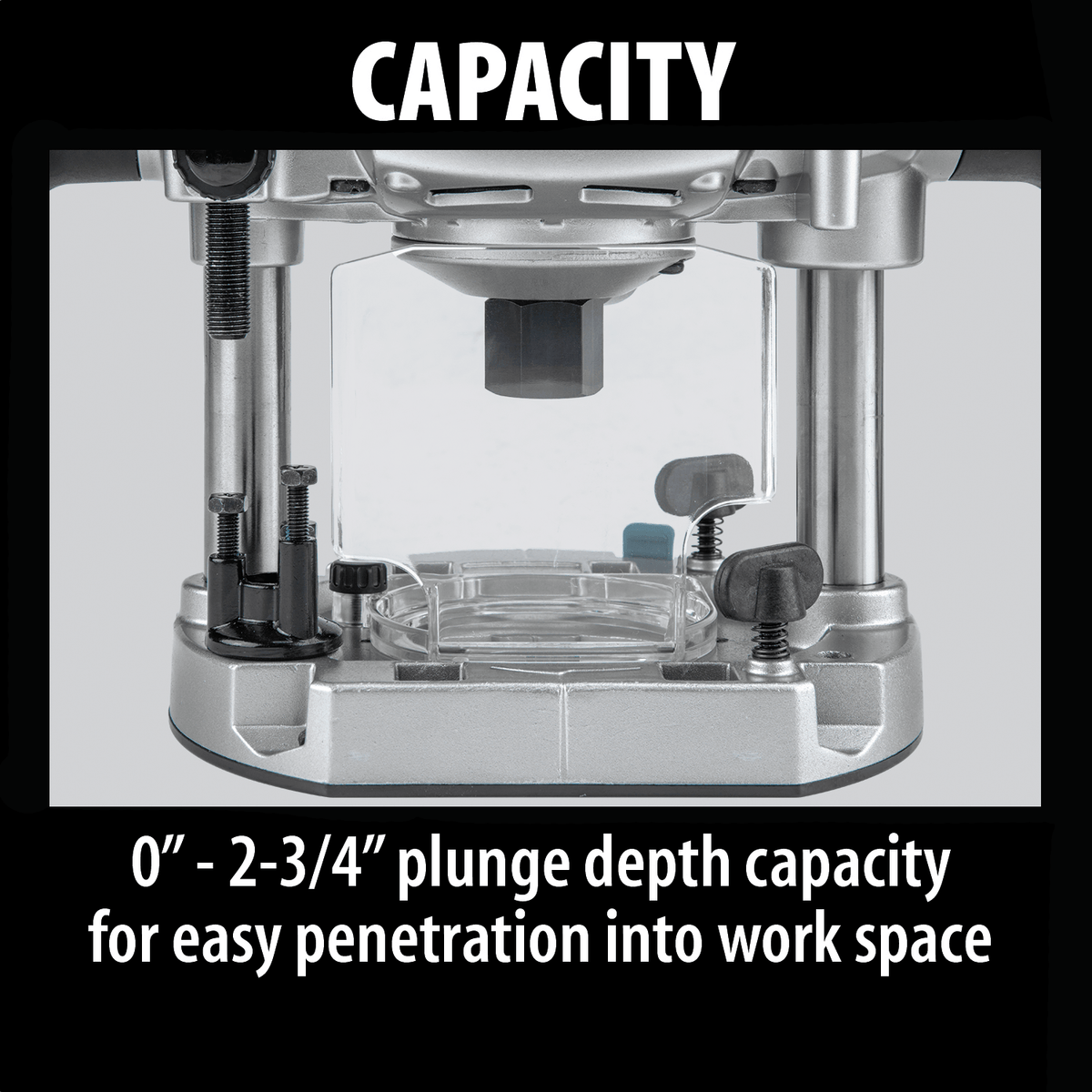

Plunge Depth Capacity 0 to 2.75 in (0 to 2-3/4 in / 70.0 mm)
No Load Operating Speed 22,000 RPM (Single Speed)

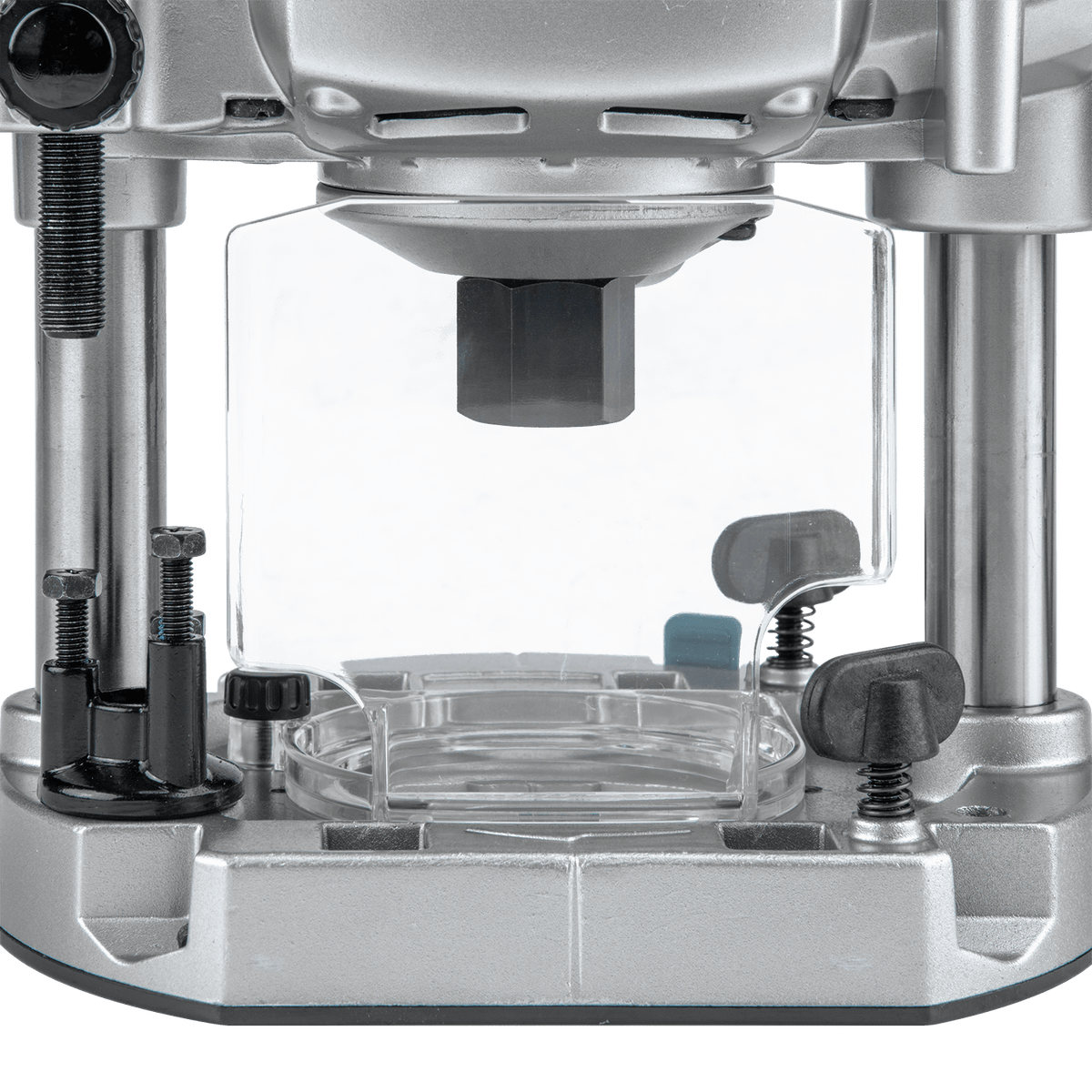

Base Architecture Heavy-Duty Plunge Base with Clear Chip Deflector
Plunge Bearing System Dual Precision Linear Ball Bearings
Depth Stop Configuration 3-Stage Rotating Turret with Micro-Adjustment Screw
Template Guide Architecture Tool-Less Quick-Change Template System
Switch Configuration Two-Finger Trigger with Lock-On Button
Overall Tool Height 12.25 in (12-1/4 in)
Net Tool Weight 13.4 lbs (6.08 kg)
Electrical Insulation Class Double Insulated
Pro-Tip: When routing deep mortises or dados, utilize the 3-stage rotating turret stop to remove material in progressive 1/4-inch depth passes; stepping down gradually maximizes cutter longevity and eliminates motor overload.
