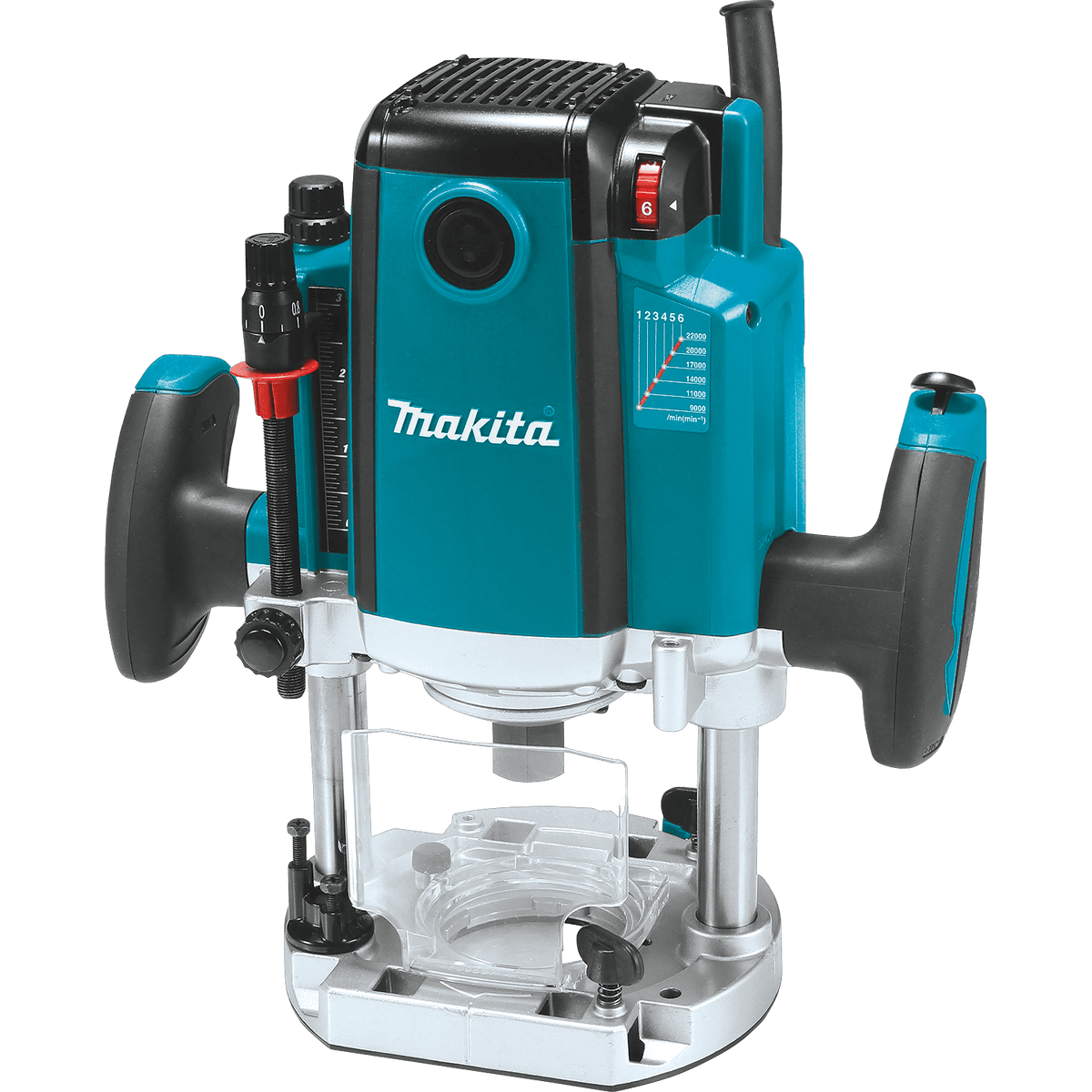

Makita RP2301FC 3-1/4 HP variable-speed plunge router with depth-adjustment scale, twin LED lights, and 1/2-inch collet.

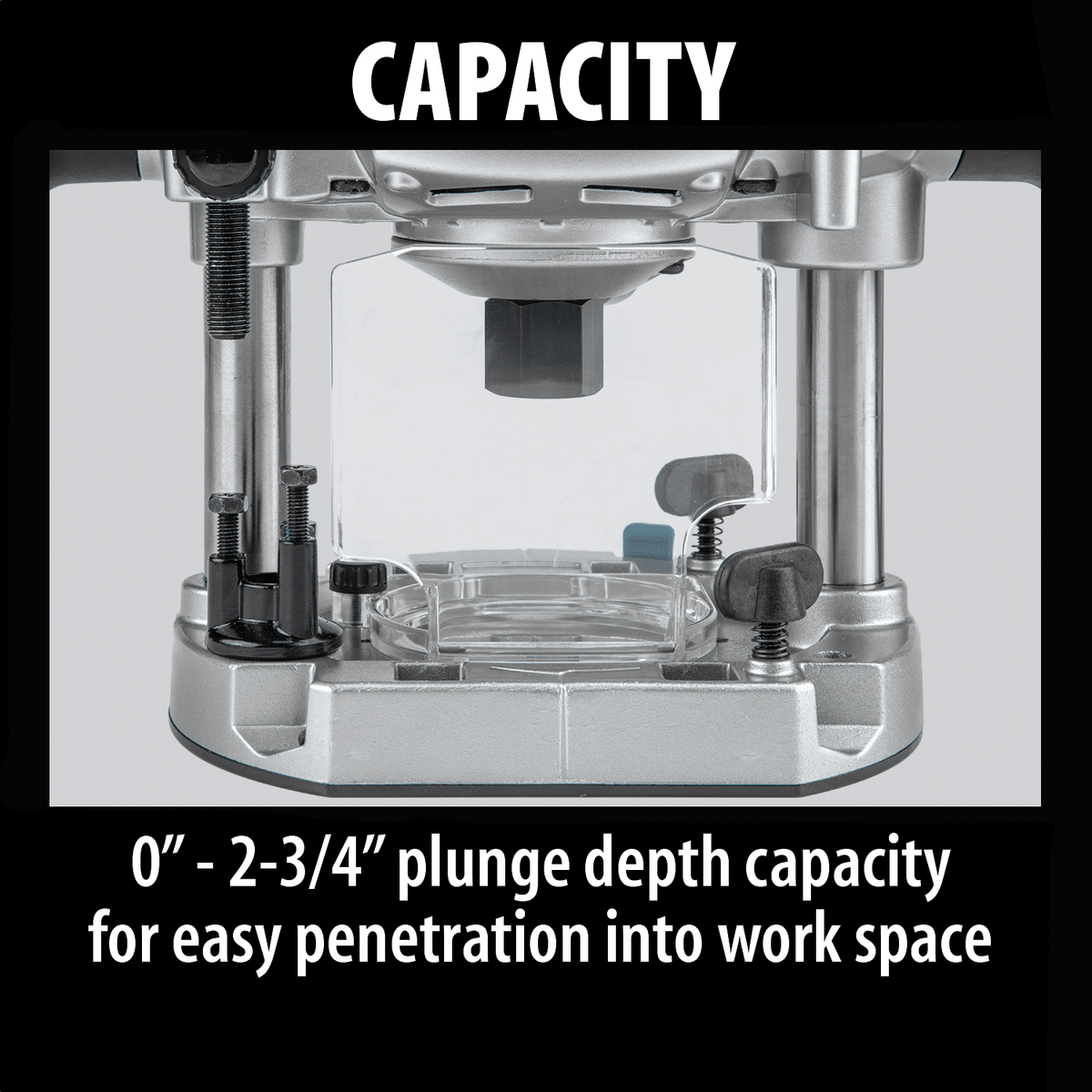

Makita RP2301FC plunge base showing 0 to 2-3/4-inch plunge stroke capacity, clear chip deflector, and 3-stage turret stop.

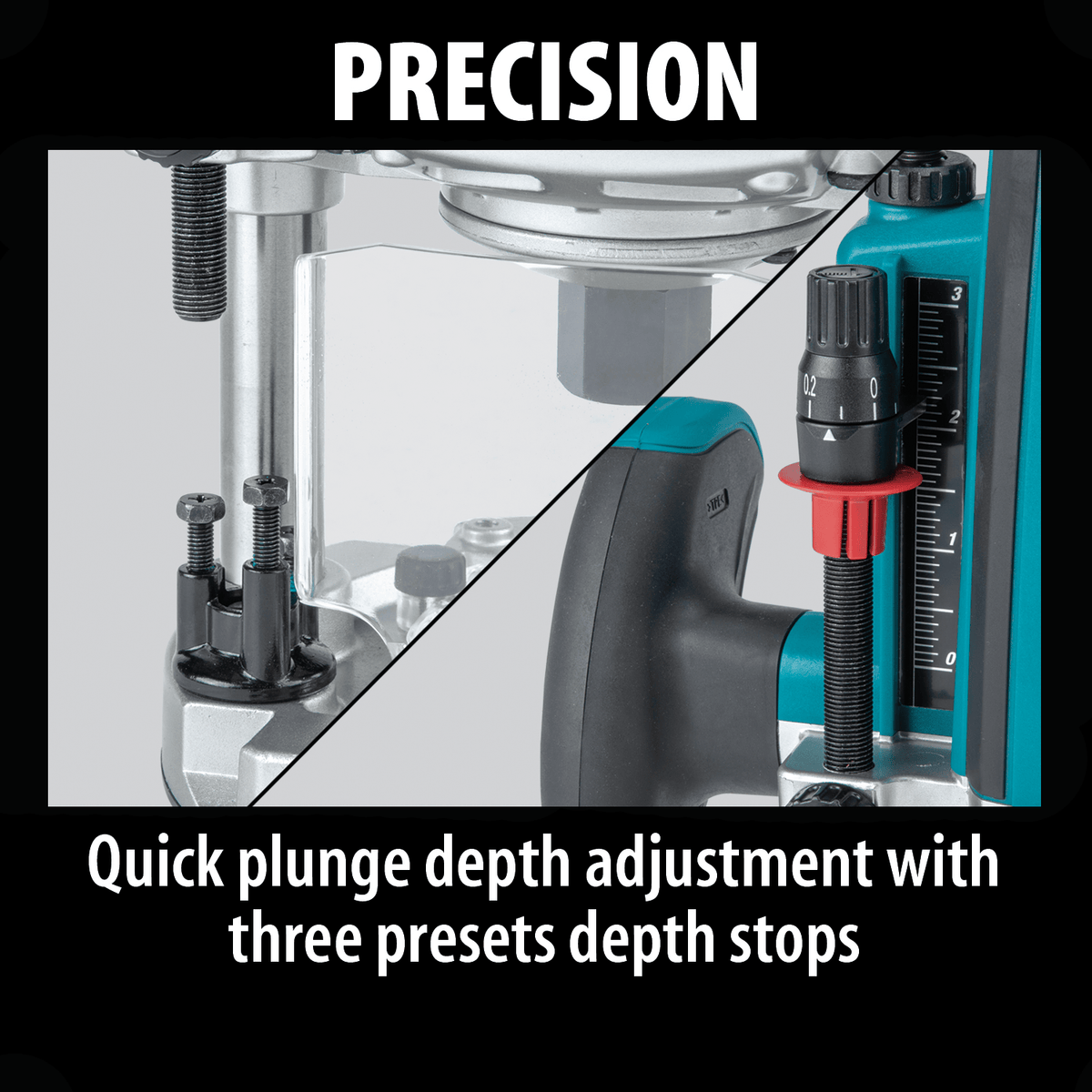

Close-up of the micro-depth adjustment dial and 3-preset depth turret on the Makita RP2301FC precision plunge router.

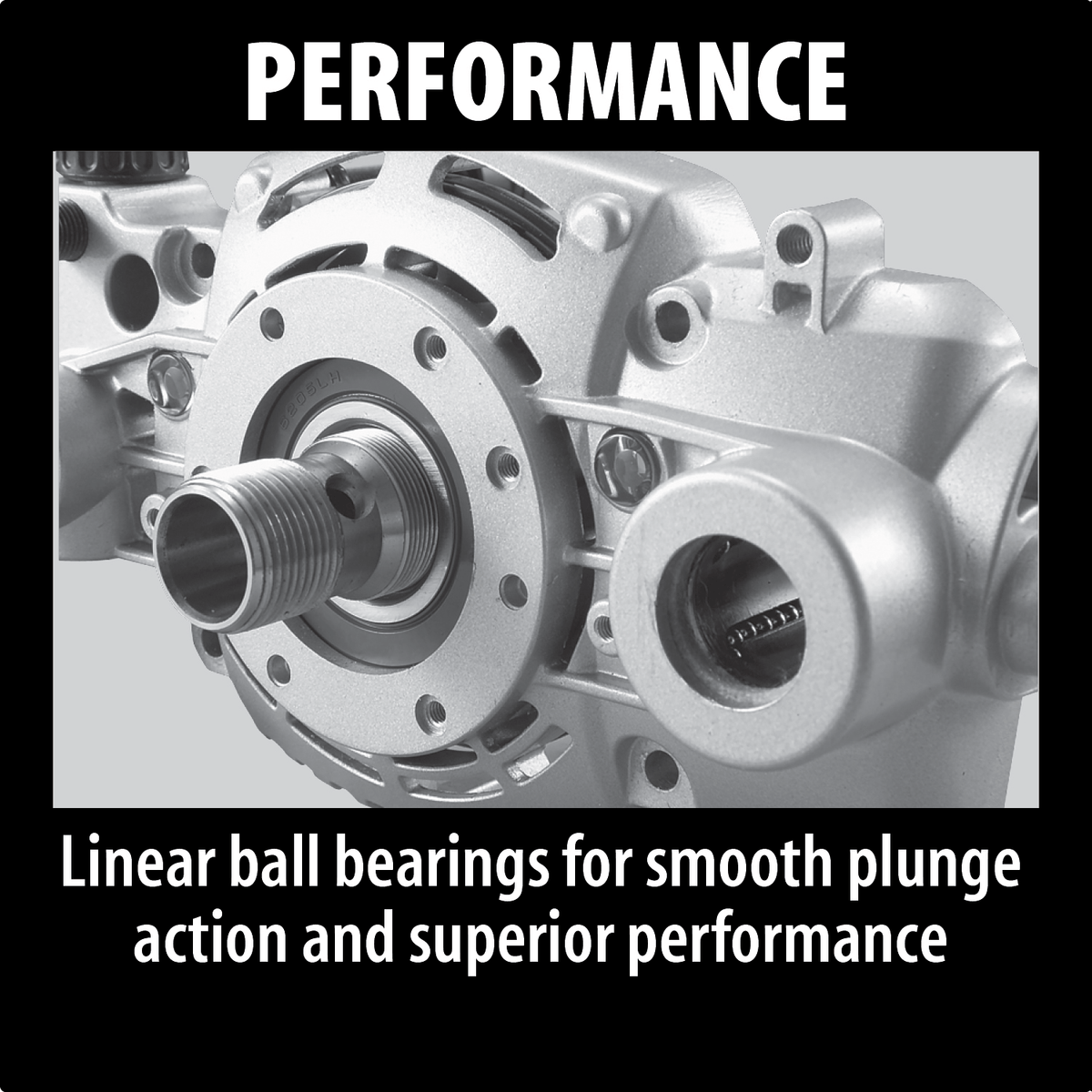

Underside view of the Makita RP2301FC cast aluminum housing showcasing smooth dual linear ball bearings for plunge action.

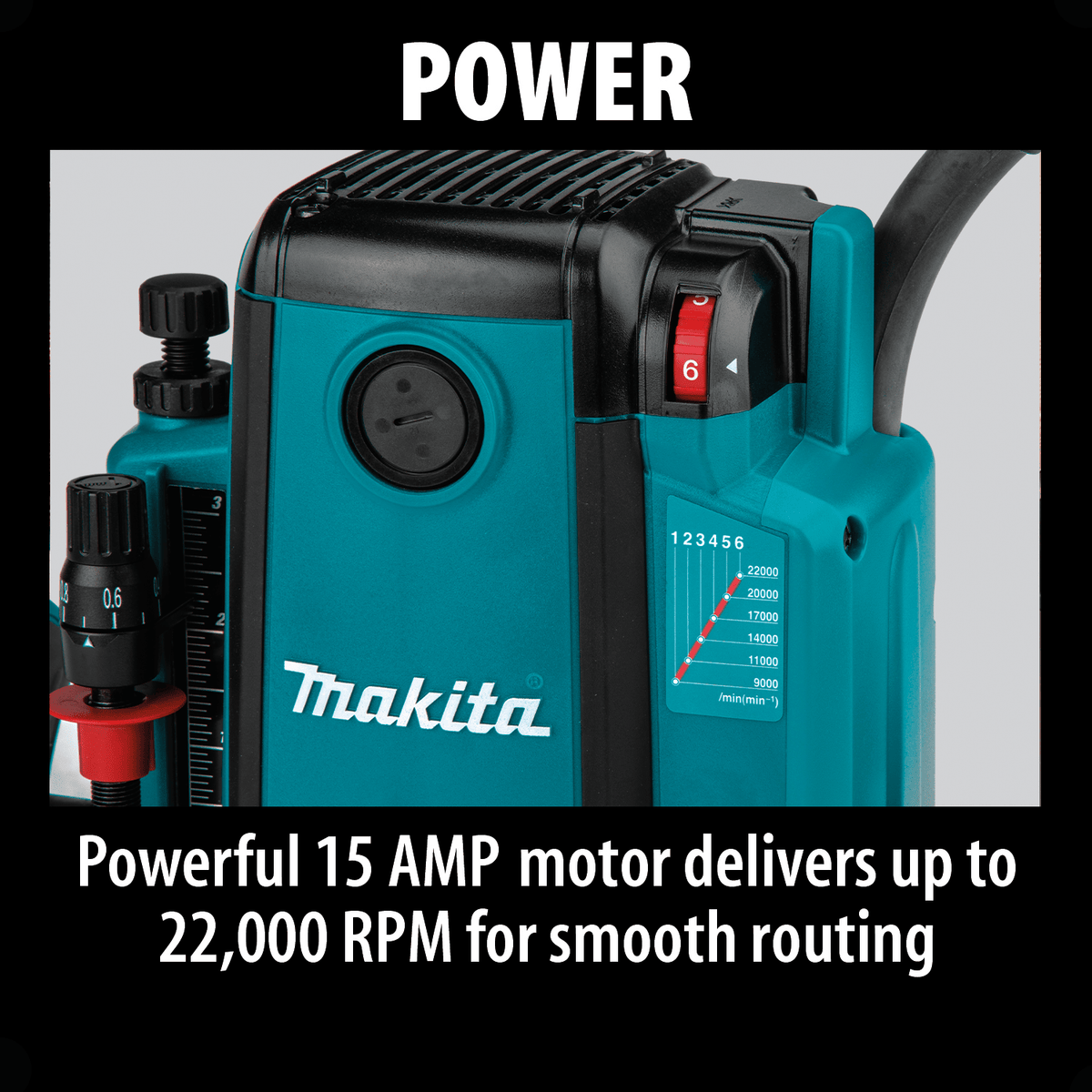

Makita RP2301FC speed chart and 6-position dial regulating the 15 Amp motor from 9,000 to 22,000 RPM for clean routing.

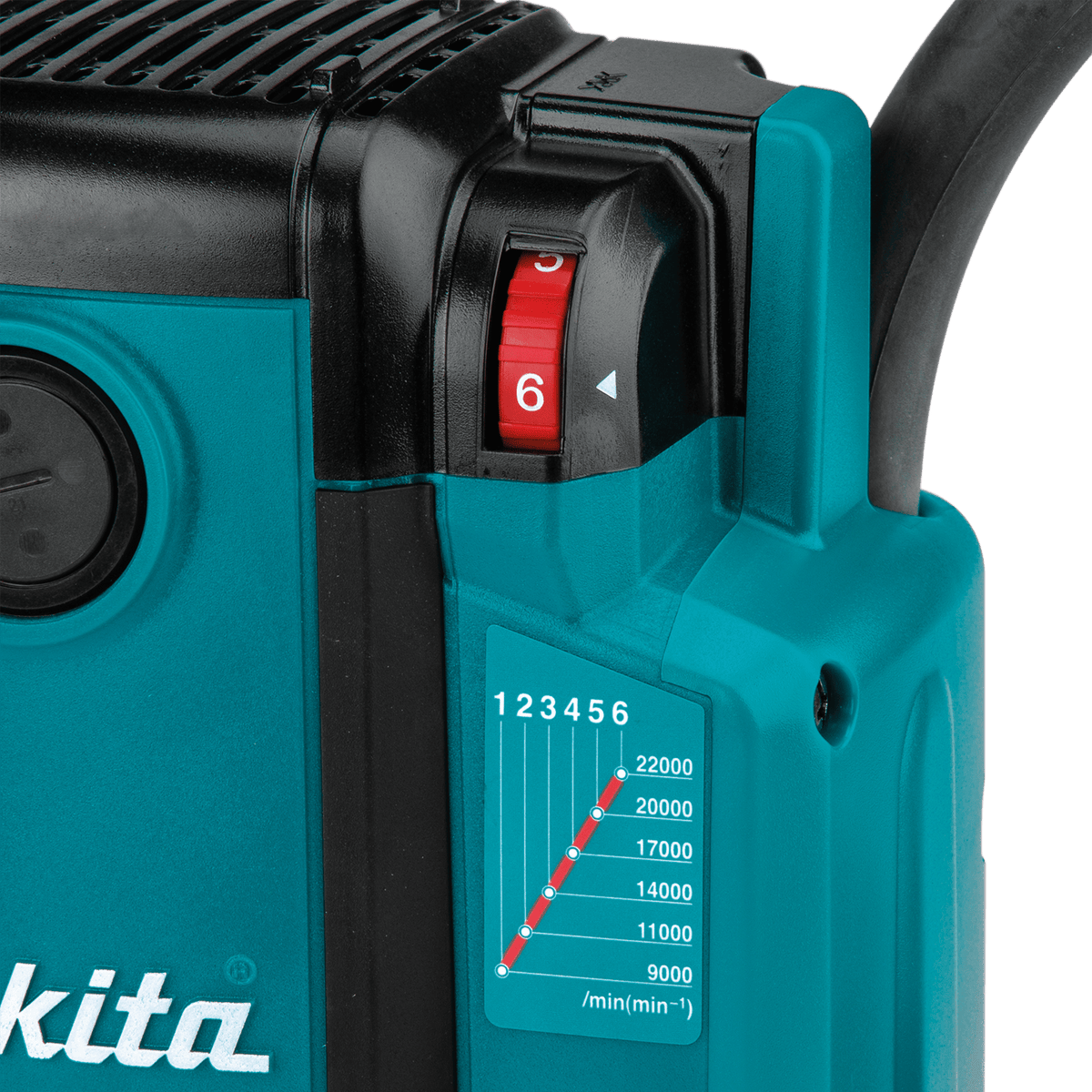

Detailed view of the 6-speed variable control thumb dial on the Makita RP2301FC router for material speed matching.

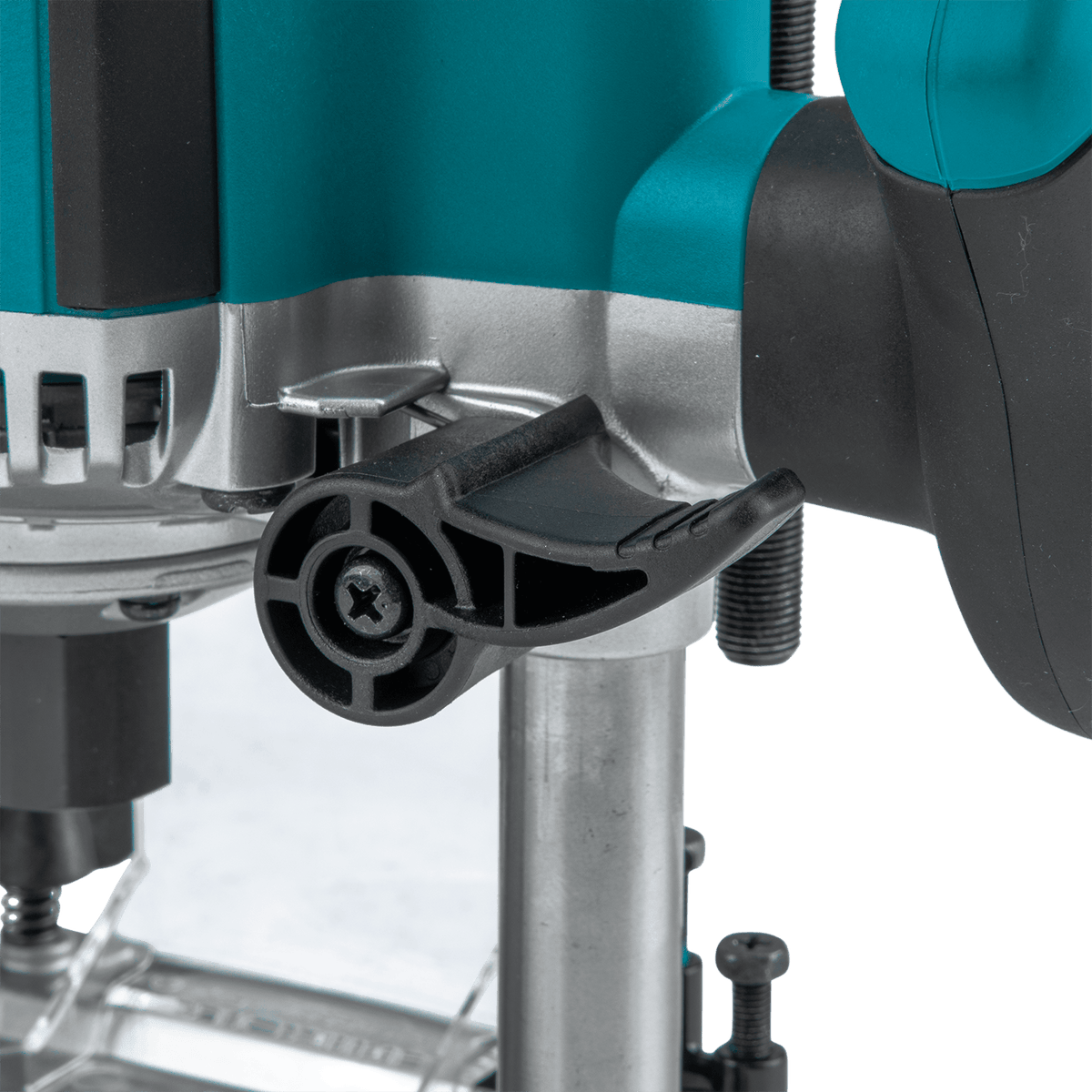

Ergonomic quick-lock plunge lever on the Makita RP2301FC router for fast depth-locking during detailed wood profiling.

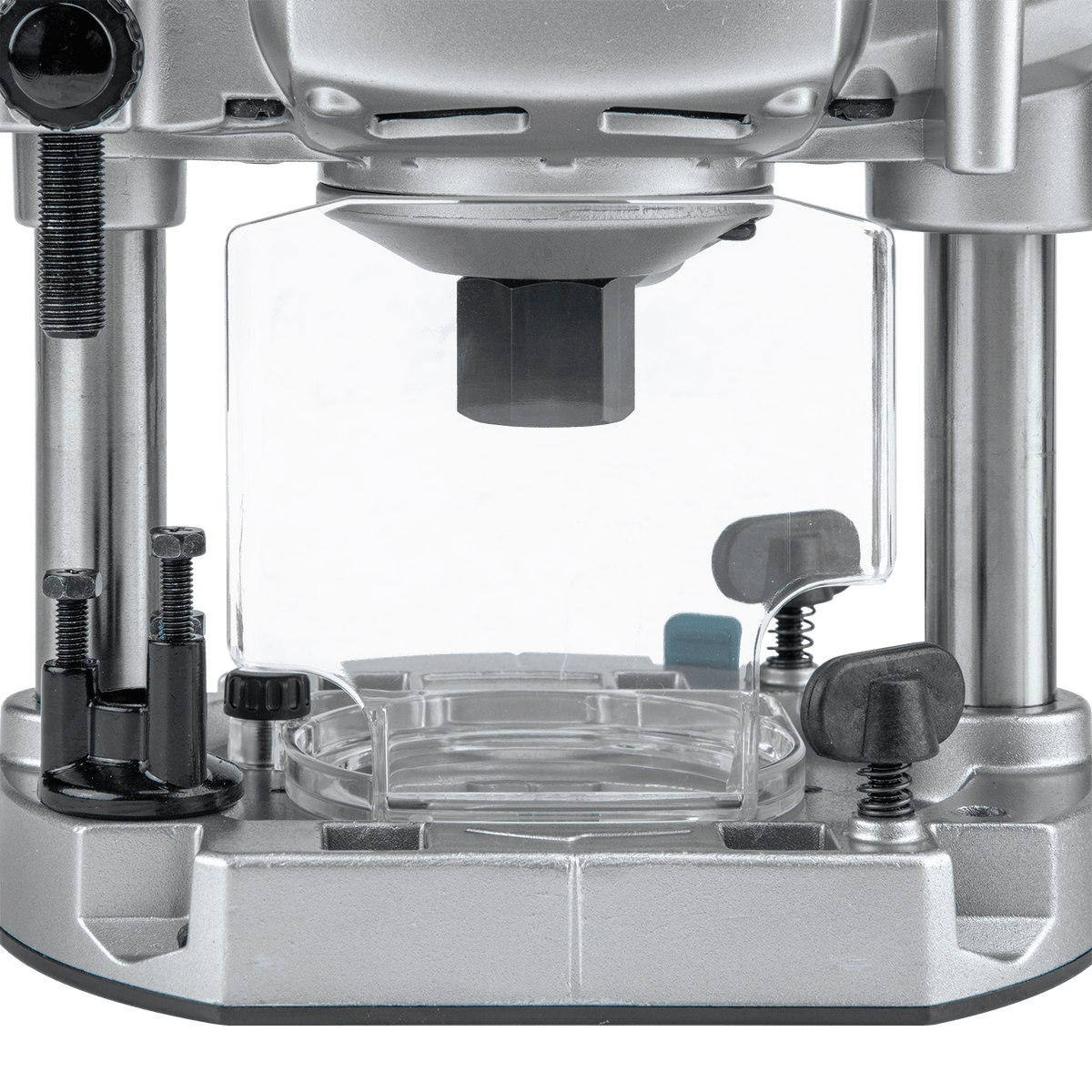

Transparent chip deflector and heavy-duty 1/2-inch collet spindle assembly on the Makita RP2301FC plunge base.

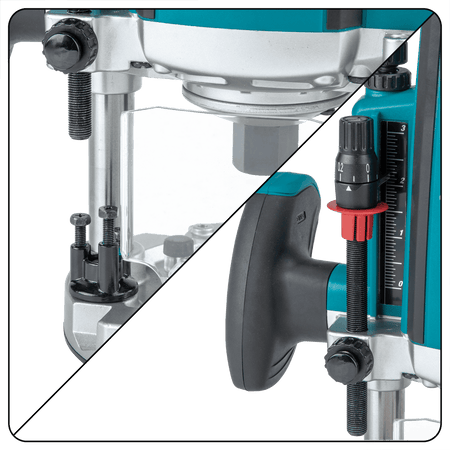

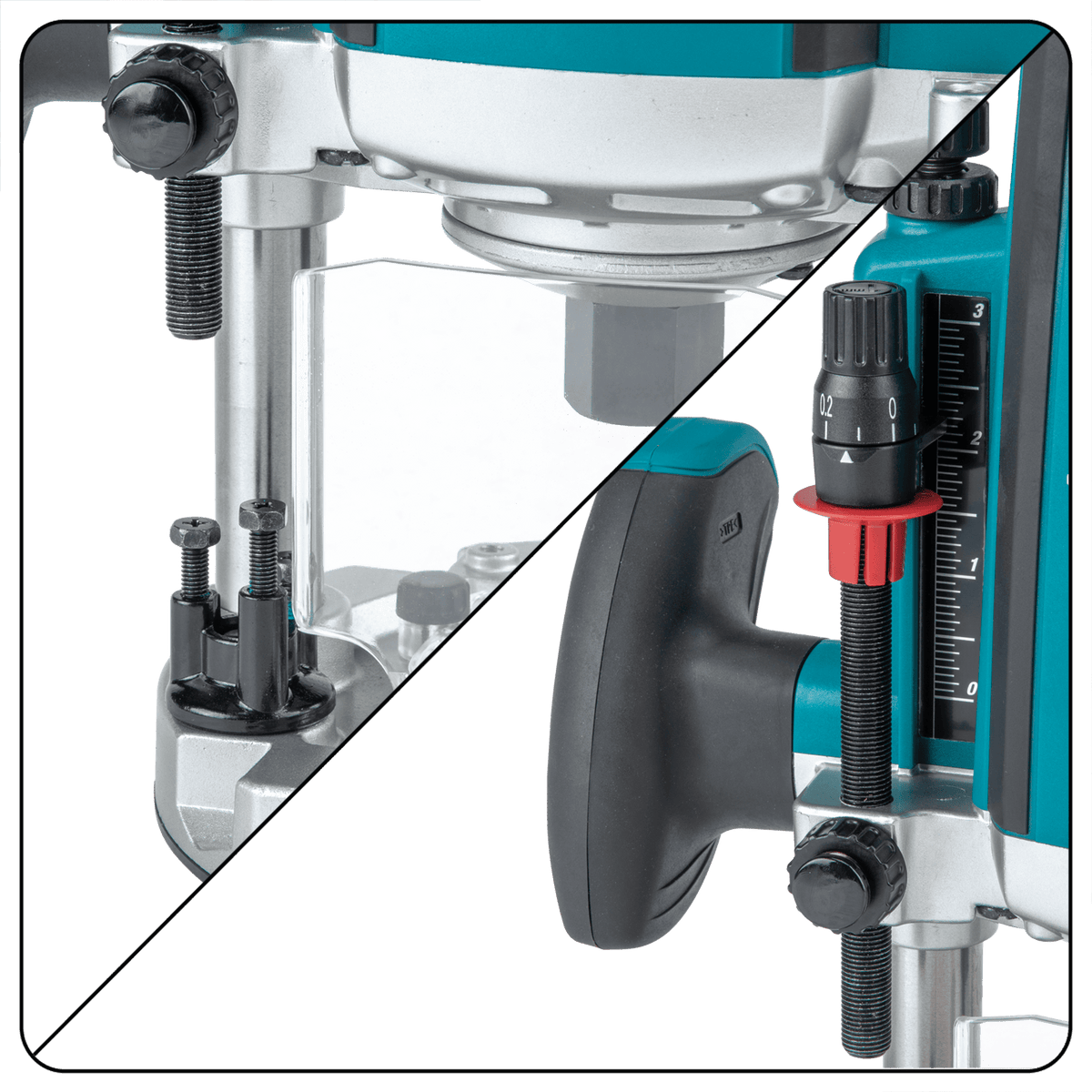

Makita RP2301FC micro-control depth stop rod and threaded adjustment knob for repetitive, stepped mortising passes.

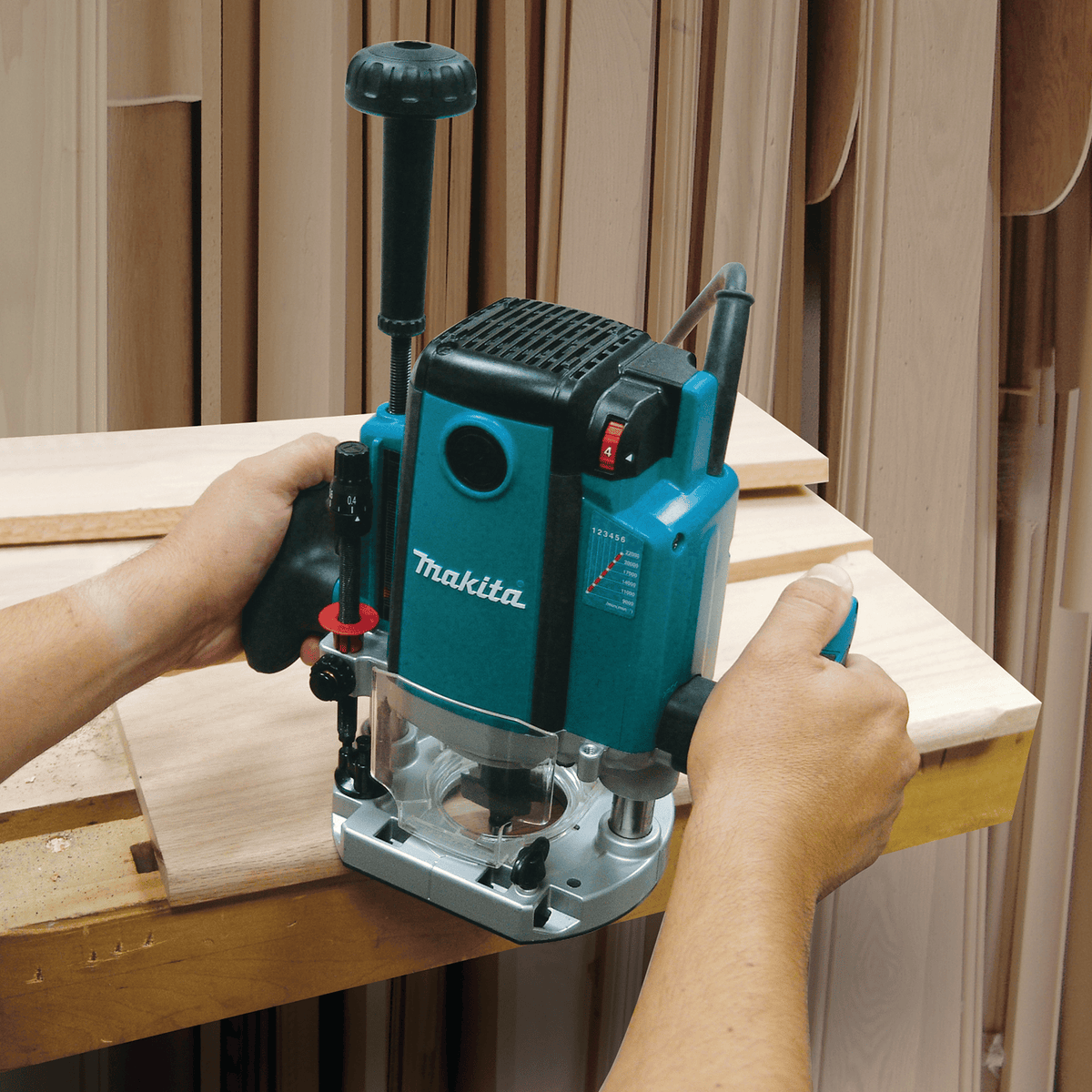

Woodworker guiding the Makita RP2301FC 3-1/4 HP plunge router with extended depth knob across hardwood edge profile.
Makita

Makita Plunge Router RP2301FC 1/2 Inch Collet (3-1/4 HP 15 Amp Variable Speed 22000 RPM Electric Brake Precision Woodworking Cabinetry Tool)

In stock
SKU: RP2301FC
$411.00 USD

Description

Makita Logo Logout

Makita RP2301FC 3-1/4 HP Variable Speed Plunge Router with Electric Brake and Twin LED Lights

The Makita RP2301FC 3-1/4 HP Plunge Router combines a heavy-duty 15.0 Amp motor with variable speed control from 9,000 to 22,000 RPM and an electric brake for high-precision architectural woodwork, mortising, and solid surface profiling. Engineered with smooth linear ball bearings, this corded production tool delivers a deep 2-3/4-inch plunge stroke with micro-fine depth adjustments and 3 preset depth stops. Outfitted with constant electronic speed control, soft start technology, twin LED work lights, and a tool-free template guide system, it equips cabinetmakers, commercial millwork shops, and furniture builders with smooth, tearout-free cutting performance across dense hardwoods and composites.

Best Used For:

  • Deep Plunge Mortising & Joinery: Executing deep 0-inch to 2-3/4-inch plunge cuts for architectural door locksets, hinge mortises, and loose tenon joinery with smooth linear bearing action.
  • Solid Surface & Hardwood Edge Profiling: Milling heavy raised panels, hardwood counter edges, and intricate moldings without rotational bogging down under heavy load.
  • Pattern & Template Routing: Running duplicate custom millwork, window templates, and cabinet parts using the rapid tool-free template guide system.

Key Performance & Safety Features

  • Constant Electronic Speed Control: Maintains constant rotational velocity from 9,000 to 22,000 RPM under heavy milling resistance to prevent burning or surface stalling.
  • Integrated Electric Brake & Soft Start: Stops bit rotation rapidly upon trigger release for fast repetitive indexing while eliminating startup rotational kick.
  • Linear Ball Bearing Plunge Action: Provides effortless, ultra-smooth downward plunge stroke through the complete 2-3/4-inch depth capacity.
  • Micro-Fine Depth Control: Features a quick-release depth adjustment screw with fine micro-tuning and 3 turret preset depth stops for stepped passes.
  • Labyrinth Fan & Chip Deflection: Built-in motor cooling fan incorporates labyrinth airflow geometry to block fine sawdust ingress, extending bearing life.
  • Twin LED Illumination: Dual bright LEDs illuminate the workpiece and bit path, eliminating shadows for superior cutter line visibility.

What's Included

  • (1) Makita 3-1/4 HP Variable Speed Plunge Router (RP2301FC)
  • (1) 1/2" Collet Cone Assembly (763622-4)
  • (1) 1/4" Collet Cone Assembly (763803-0)
  • (1) Extended Depth Adjustment Knob (158980-5)
  • (1) Heavy-Duty Spanner Wrench (781030-7)

Technical Specifications

Specification Detail
Model Number / MPN RP2301FC
Motor Power Rating 15.0 Amps (120V) / 3-1/4 Maximum HP
Collet Shank Capacities 1/2 in and 1/4 in Collets Included
Plunge Depth Capacity 0 to 2.75 in (0 to 2-3/4 in / 70.0 mm)
No Load Variable Speeds 9,000 to 22,000 RPM (Variable Speed Dial)
Spindle Stopping Mechanism Rapid-Response Electric Brake
Plunge Bearing System Dual Precision Linear Ball Bearings
Depth Stop Configuration 3-Stage Rotating Turret with Micro-Adjustment Screw
Workplace Illumination Twin Integrated LED Headlights
Template Guide Architecture Tool-Less Quick-Change Template System
Overall Tool Height 12.25 in (12-1/4 in)
Net Tool Weight 13.4 lbs (6.08 kg)
Electrical Insulation Class Double Insulated
Pro-Tip: When milling large-diameter profile or panel-raising bits in dense hardwoods, dial the variable speed down to 9,000–12,000 RPM; the constant electronic speed governor maintains full 15.0A cutting torque without scorching the wood fibers.
