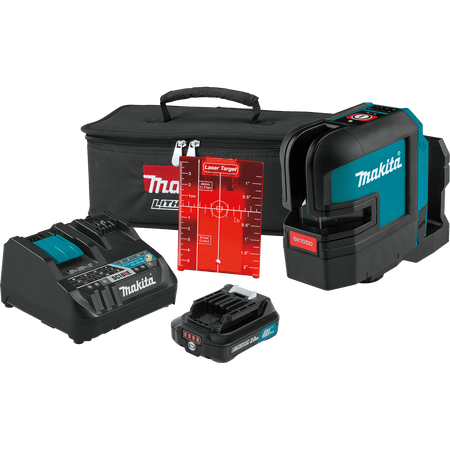

Makita SK105DNAX 12V CXT red cross-line laser kit including 2.0Ah battery, DC18RE charger, magnetic bracket, target plate, and bag.
Feature callout diagram of Makita SK105D laser highlighting single-button controls, IP54 rubberized housing, and pendulum lock.

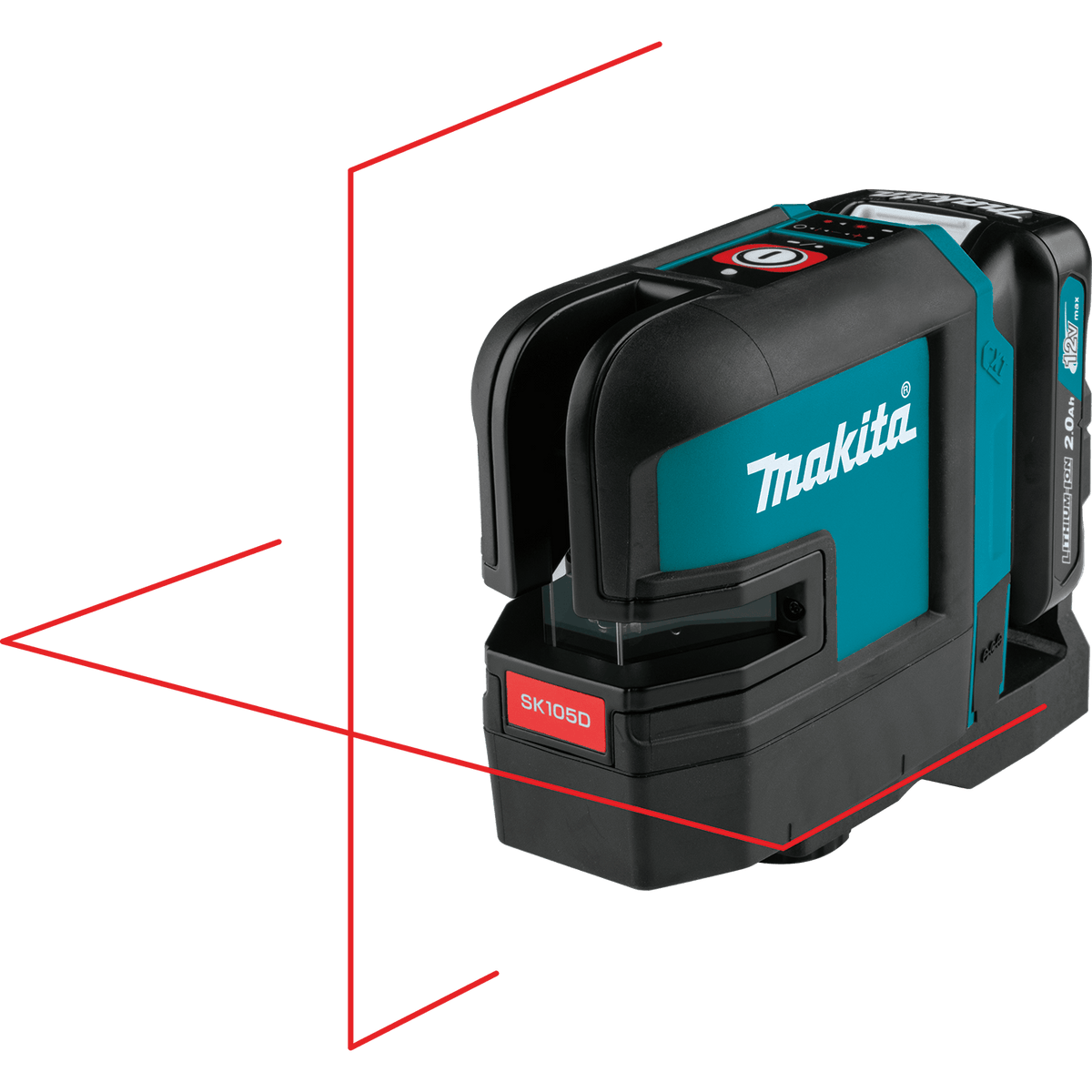

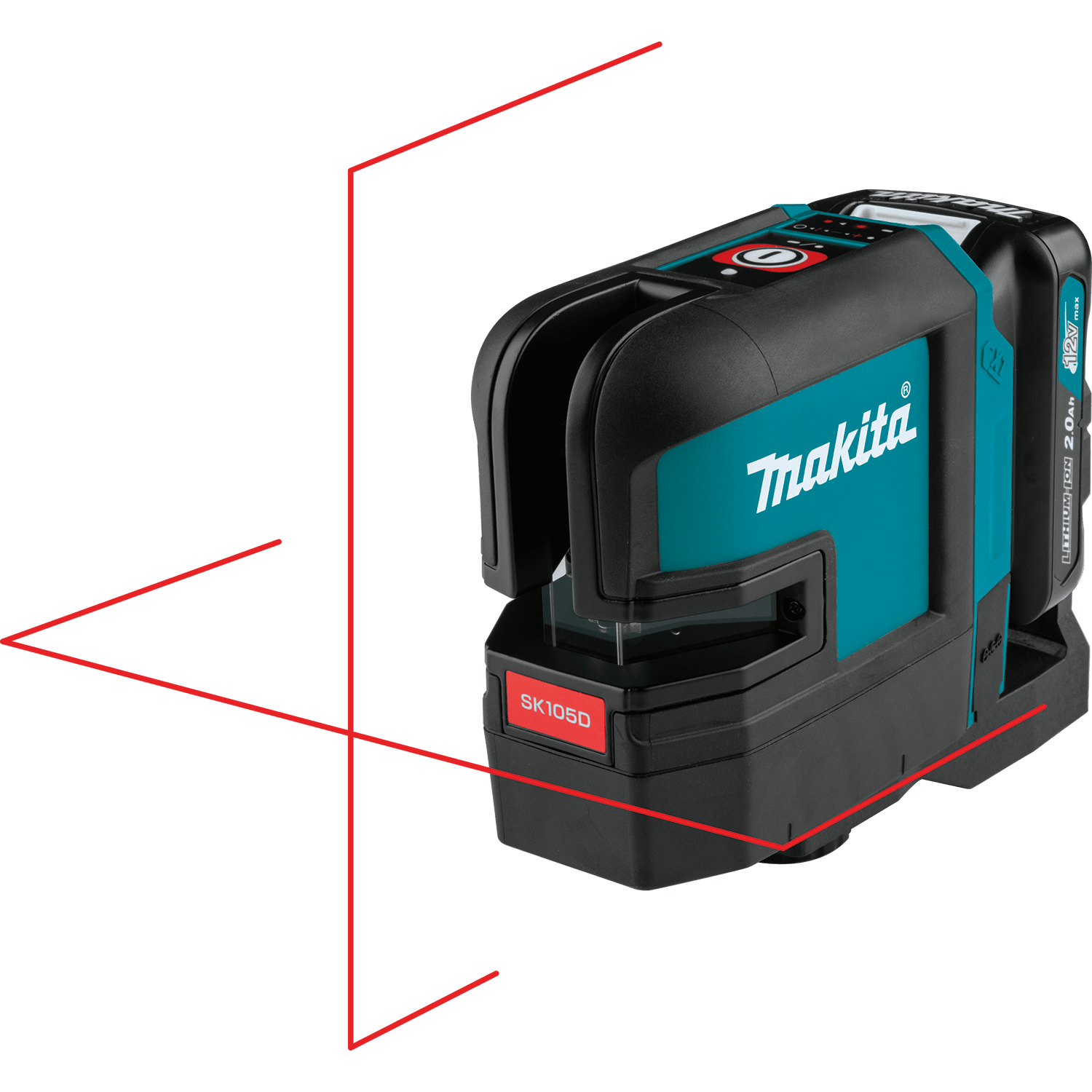

Makita SK105D self-leveling laser projecting bright red horizontal and vertical cross-reference lines for room layout alignment.
Rear view of Makita SK105D laser showing the magnetic mounting base and 12V max CXT 2.0Ah slide battery connection port.

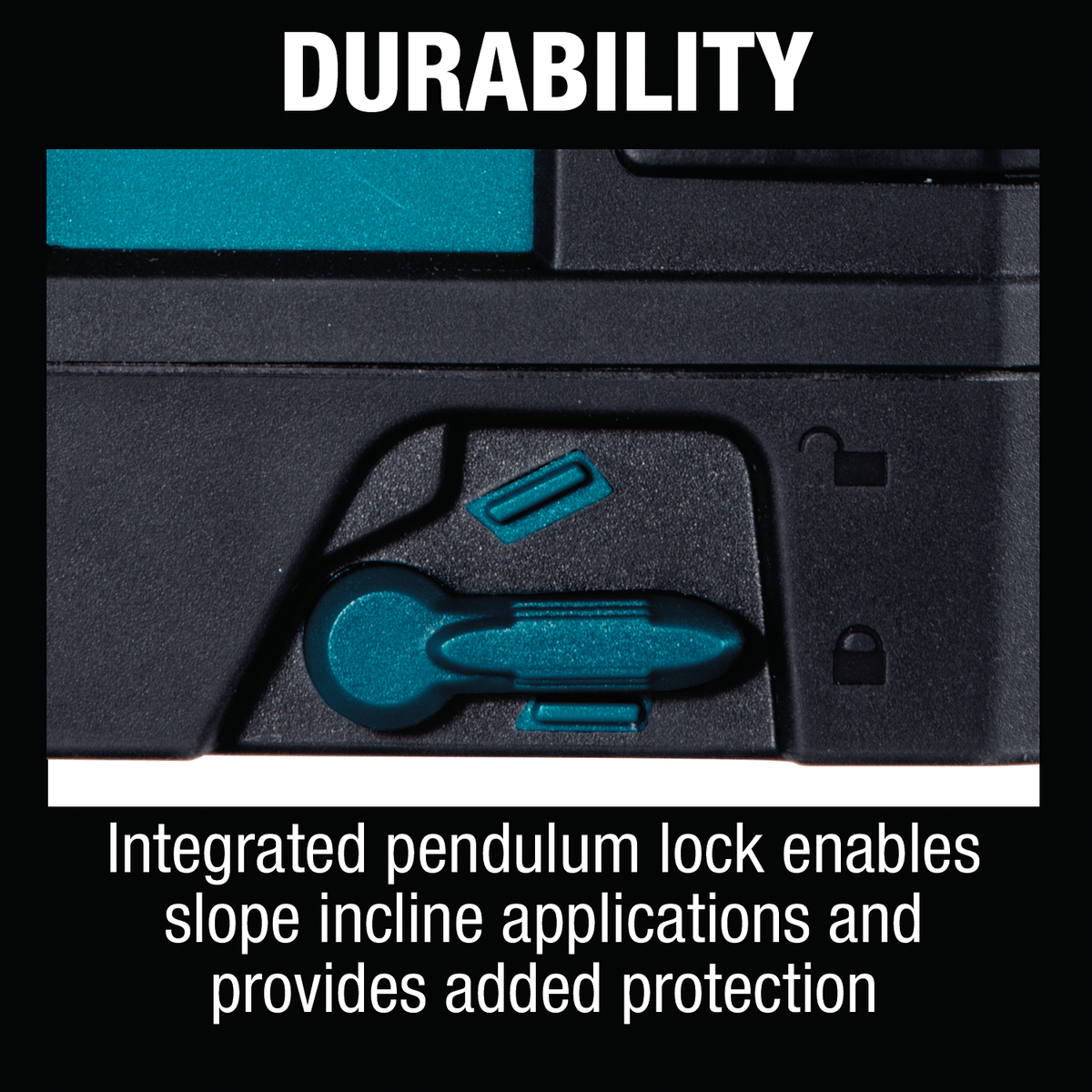

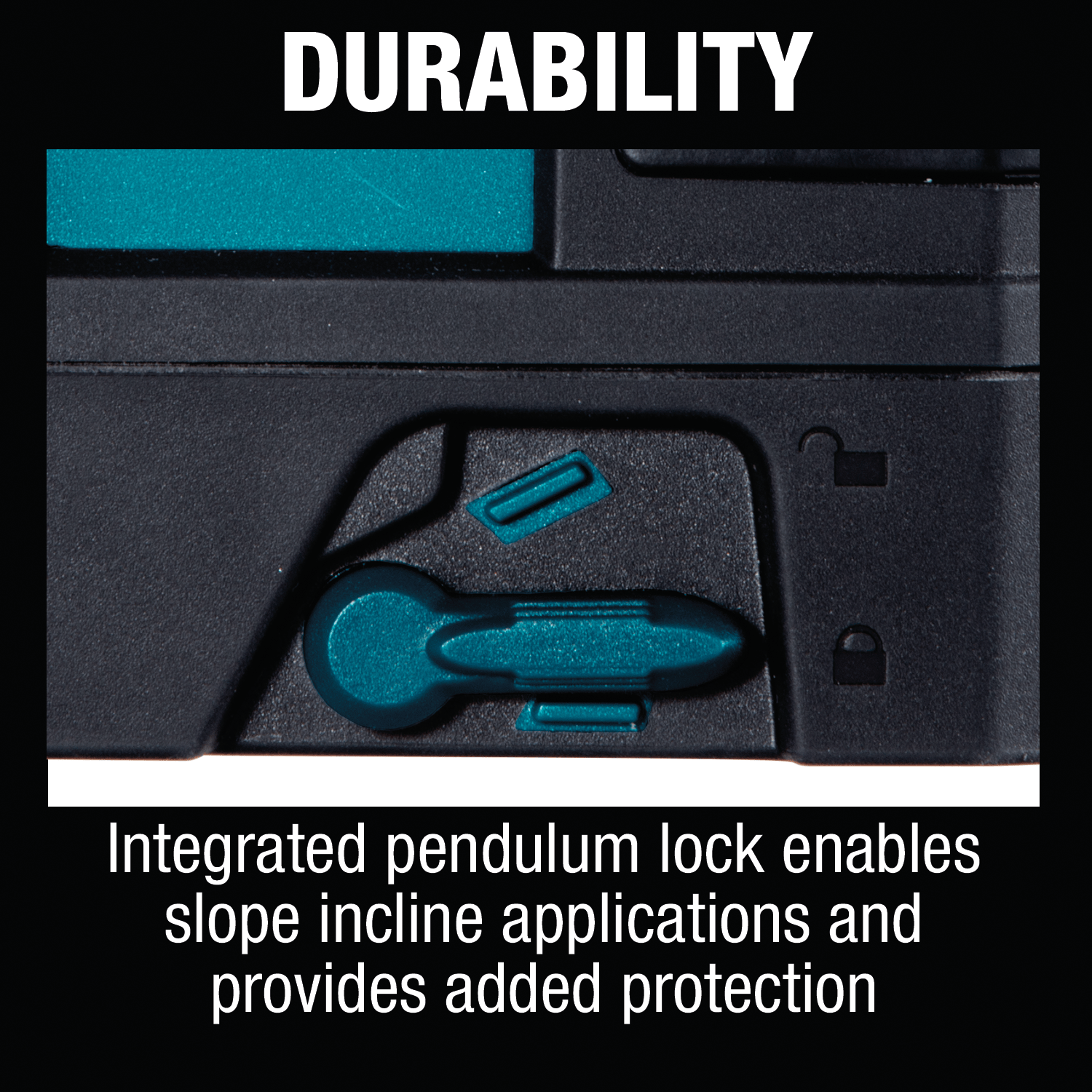

Close-up of the integrated manual pendulum lock switch on the Makita SK105D laser used for sloped incline applications.

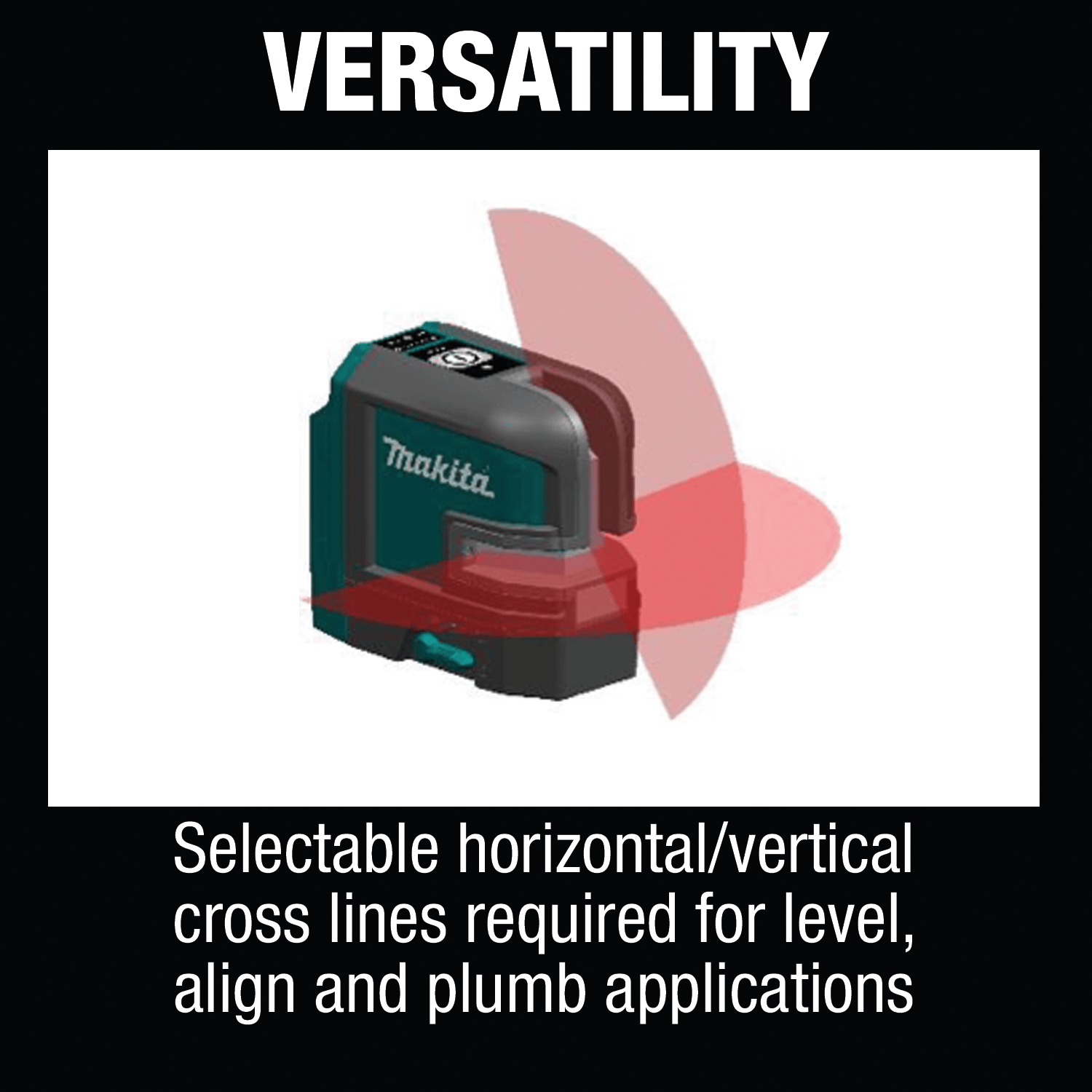

Beam fan angle diagram illustrating selectable horizontal and vertical red cross-line projections on the Makita SK105D laser.

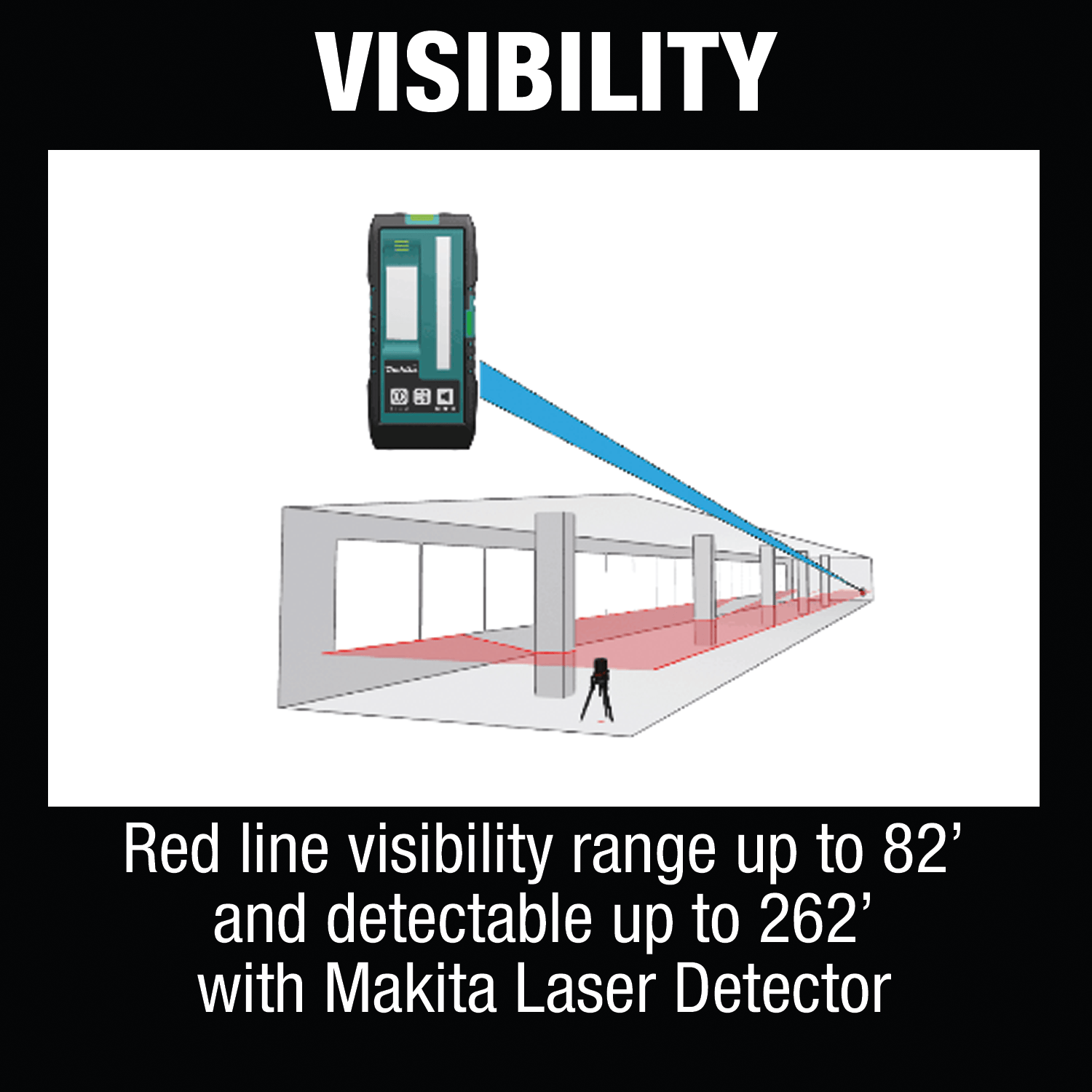

Visibility range graphic demonstrating 82-foot red line visibility expandable to 262 feet using a Makita laser receiver detector.

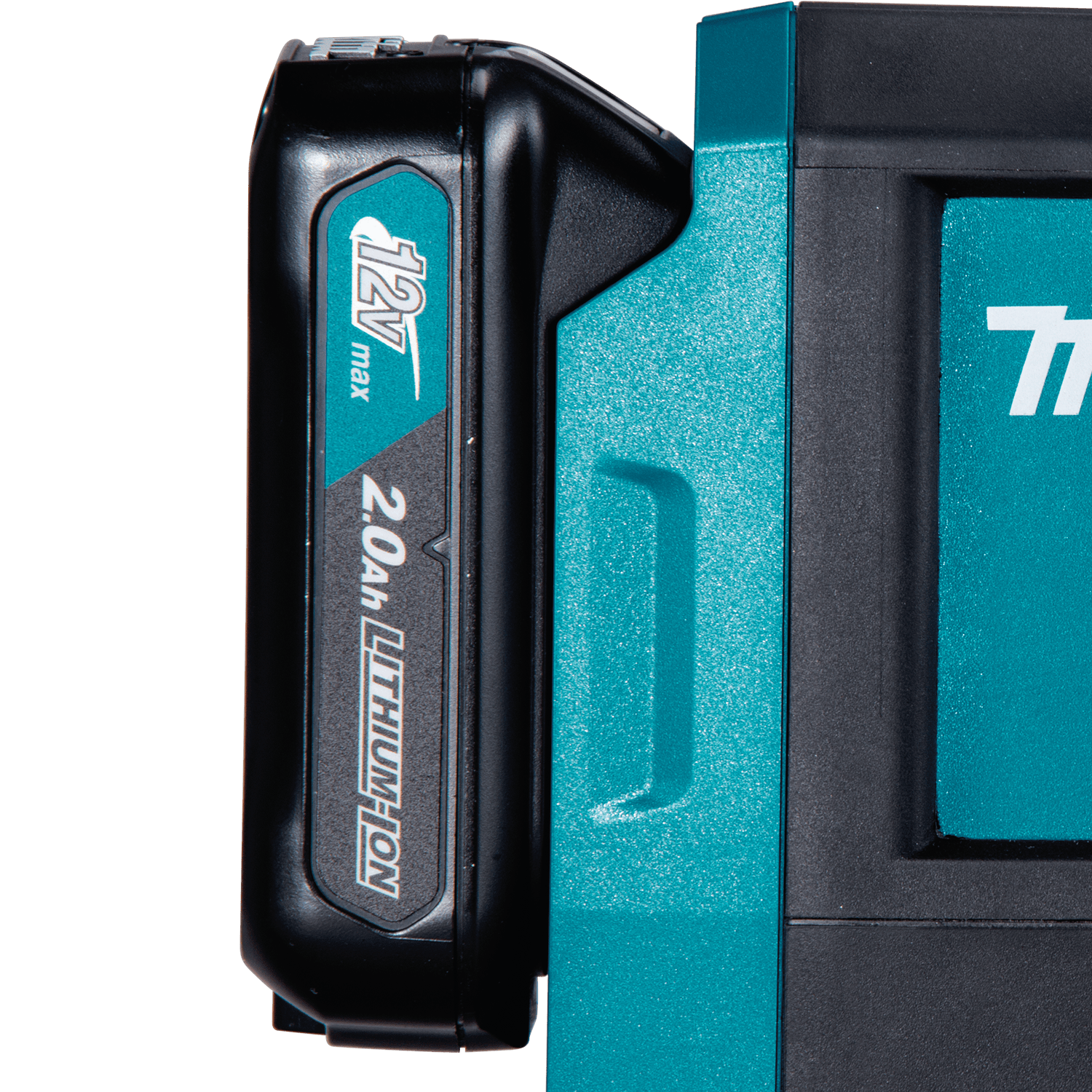

Makita 12V max CXT 2.0Ah lithium-ion slide battery BL1021B mounted on the back of the SK105D cross-line laser level.
Makita SK105D self-leveling 12V CXT laser level projecting a 635nm red cross-line reference beam across perpendicular surfaces.

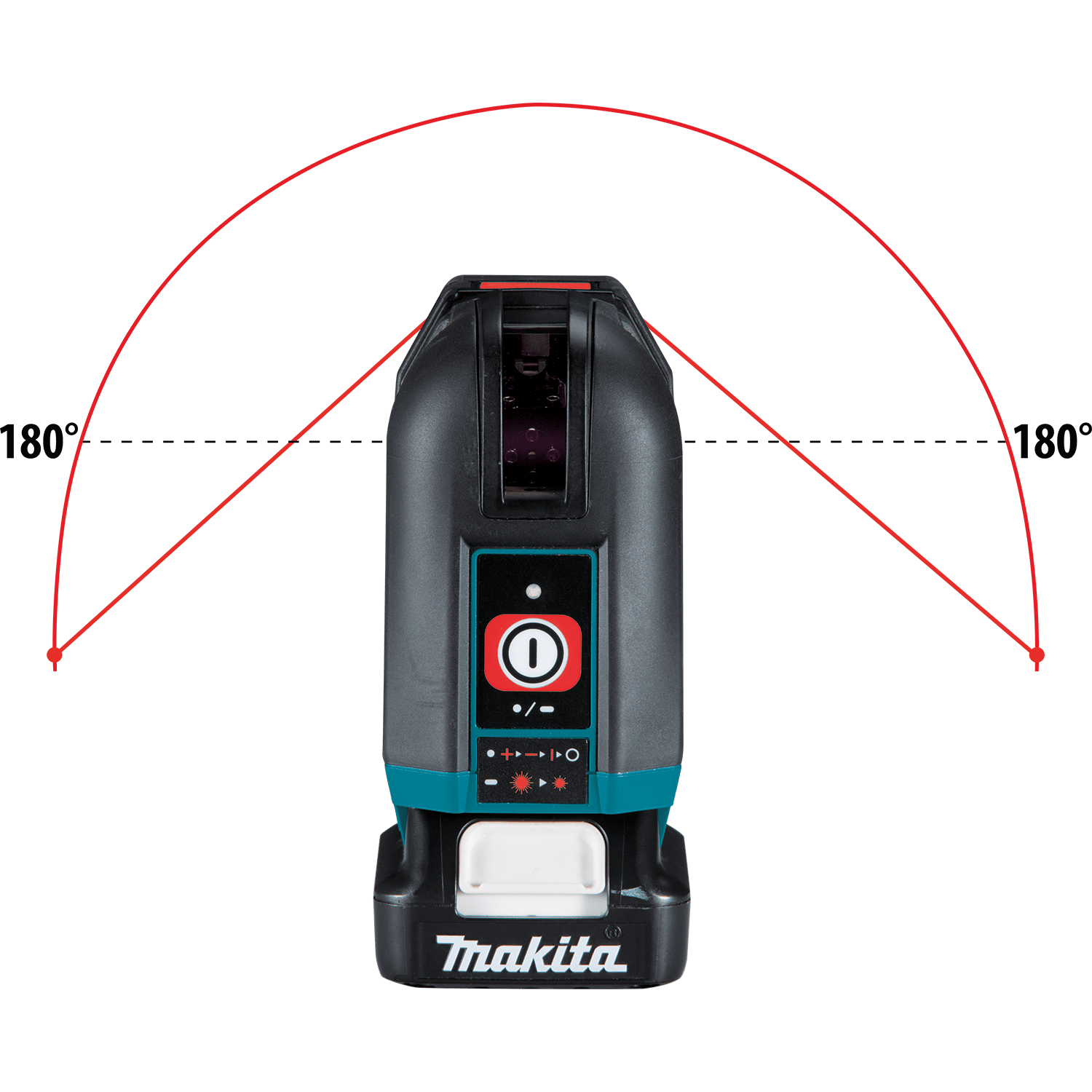

Top-down view of Makita SK105D laser displaying the 180-degree horizontal fan angle coverage arc and one-button control pad.
Kit component grid showing the Makita SK105D laser, magnetic red target plate, 2.0Ah battery, DC18RE charger, and padded carrying bag.
Rear magnetic L-adapter mount on the Makita SK105D cross-line laser securing a 12V max CXT 2.0Ah lithium-ion battery to steel studs.

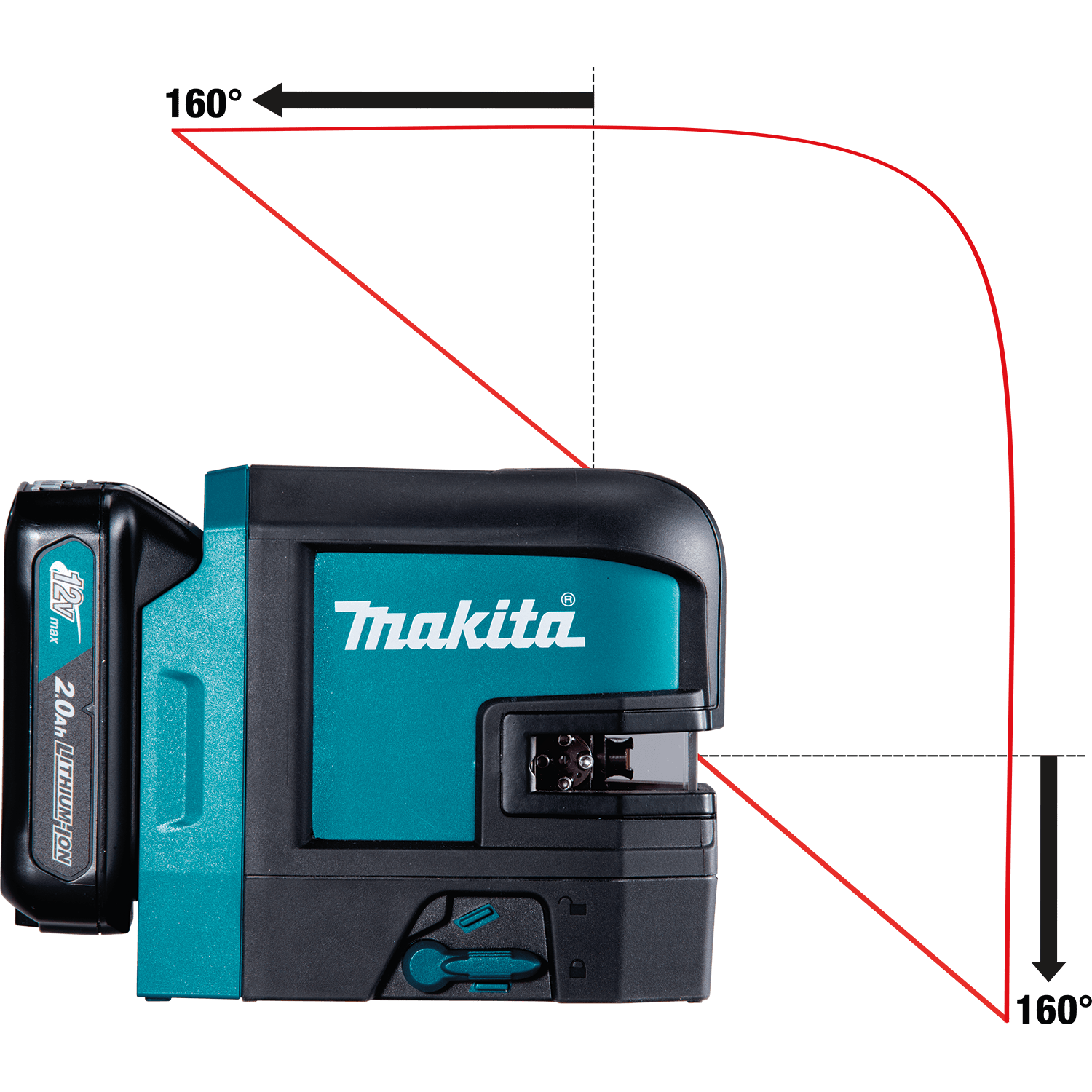

Diagram showing the 160-degree vertical line fan angle projection coverage delivered by the Makita SK105D self-leveling cross-line laser.

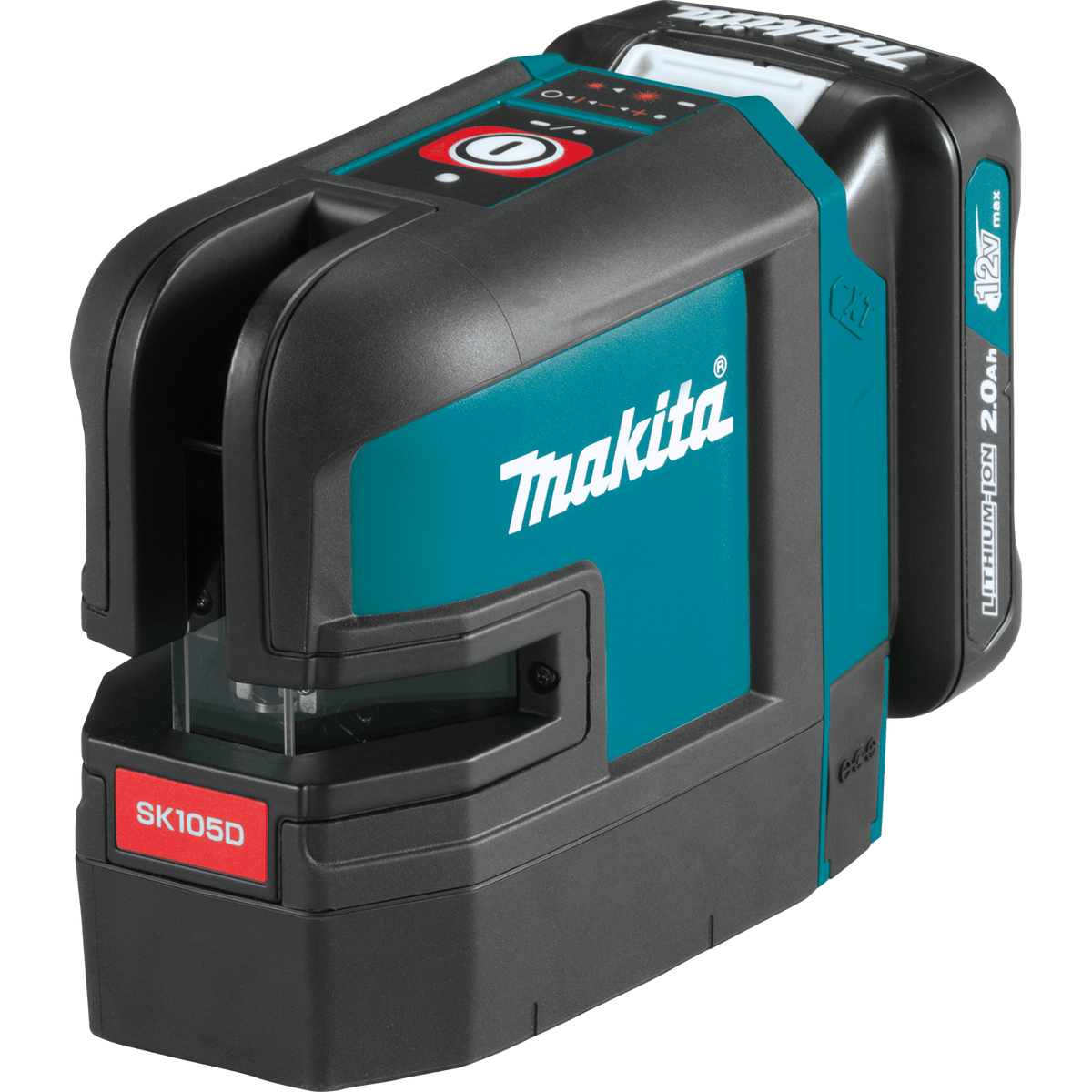

Makita SK105D 12V max CXT self-leveling red cross-line laser level shown in a three-quarter perspective angle.

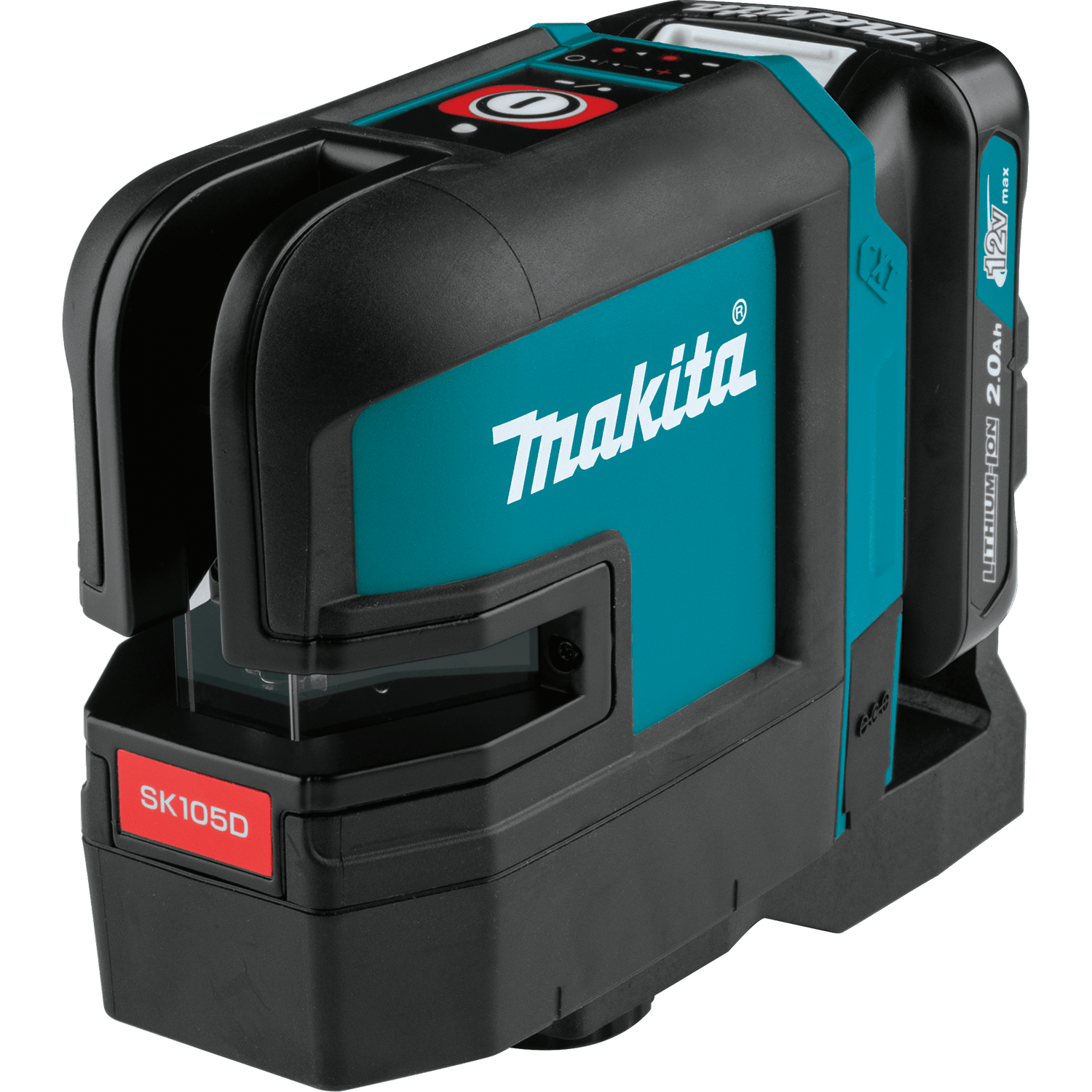

Side view of the Makita SK105D self-leveling cross-line laser featuring an IP54-rated protective rubber overmold body shell.

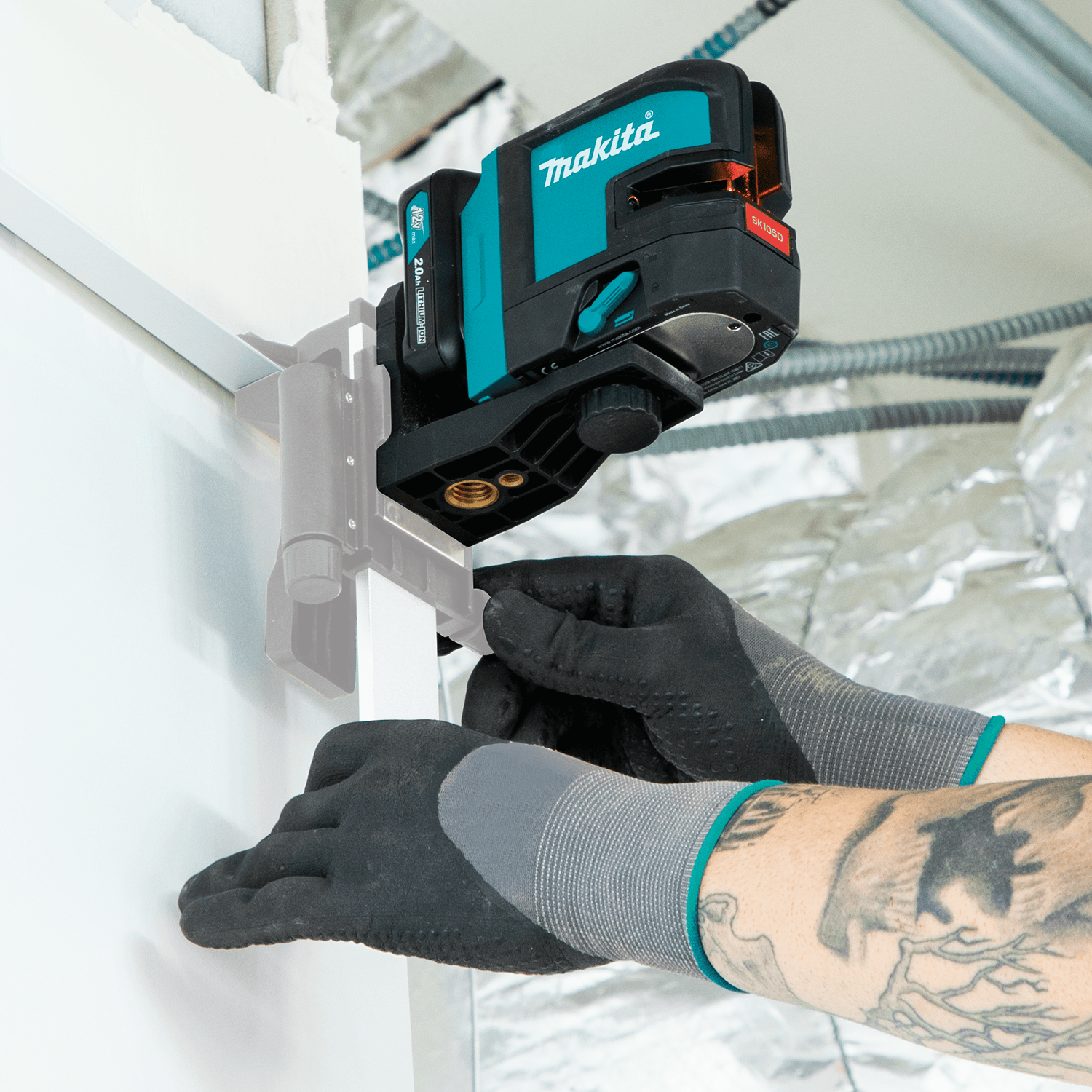

Tradesman adjusting the magnetic bracket height of the Makita SK105D laser mounted onto a metal wall track for drop ceiling alignment.

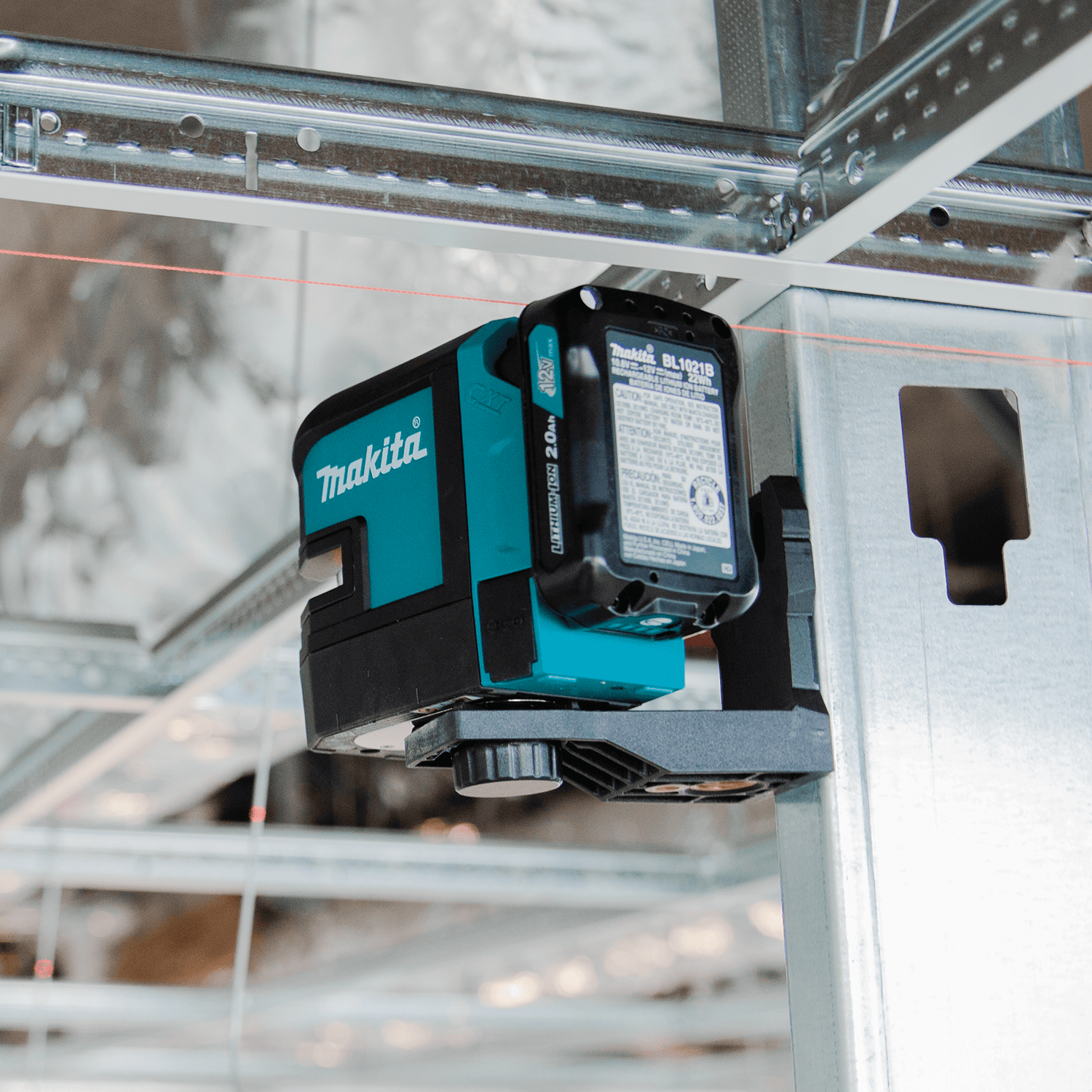

Makita SK105D cross-line laser magnetically attached to a commercial steel stud projecting a red datum line for drywall track layout.

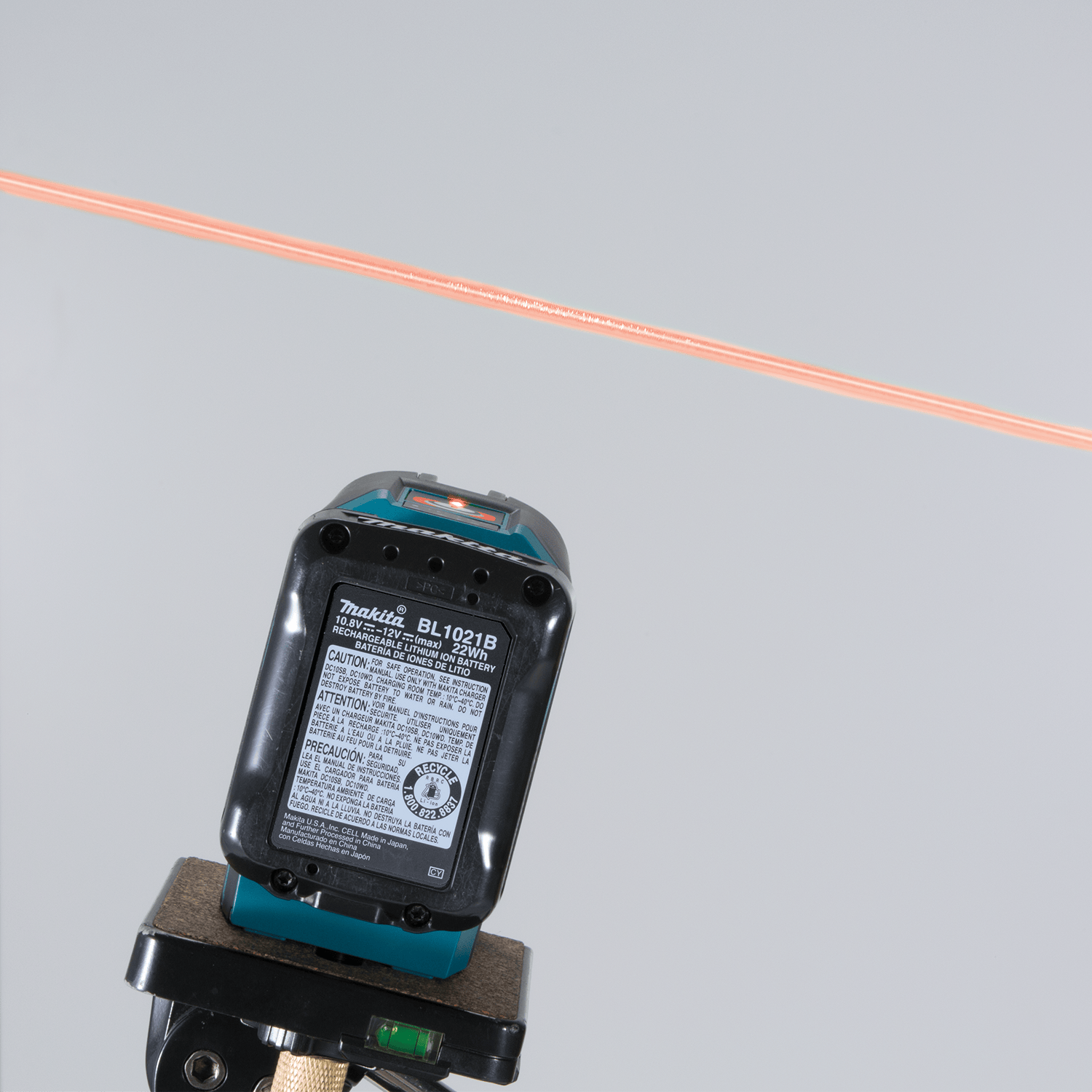

Tripod-mounted Makita SK105D 12V max CXT laser projecting a level red reference beam across a commercial interior wall.

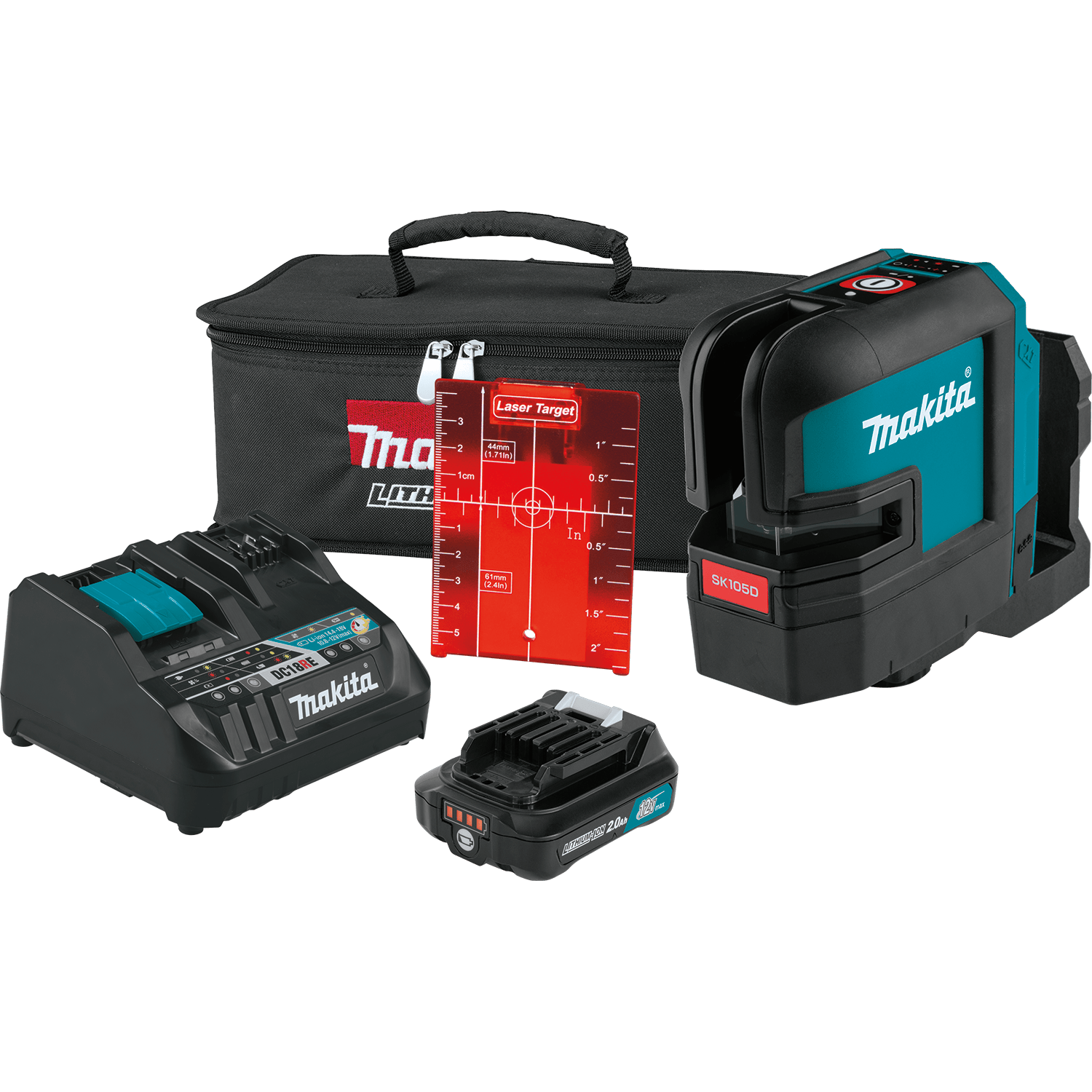

Makita SK105DNAX 12V CXT red cross-line laser kit including 2.0Ah battery, DC18RE charger, magnetic bracket, target plate, and bag.

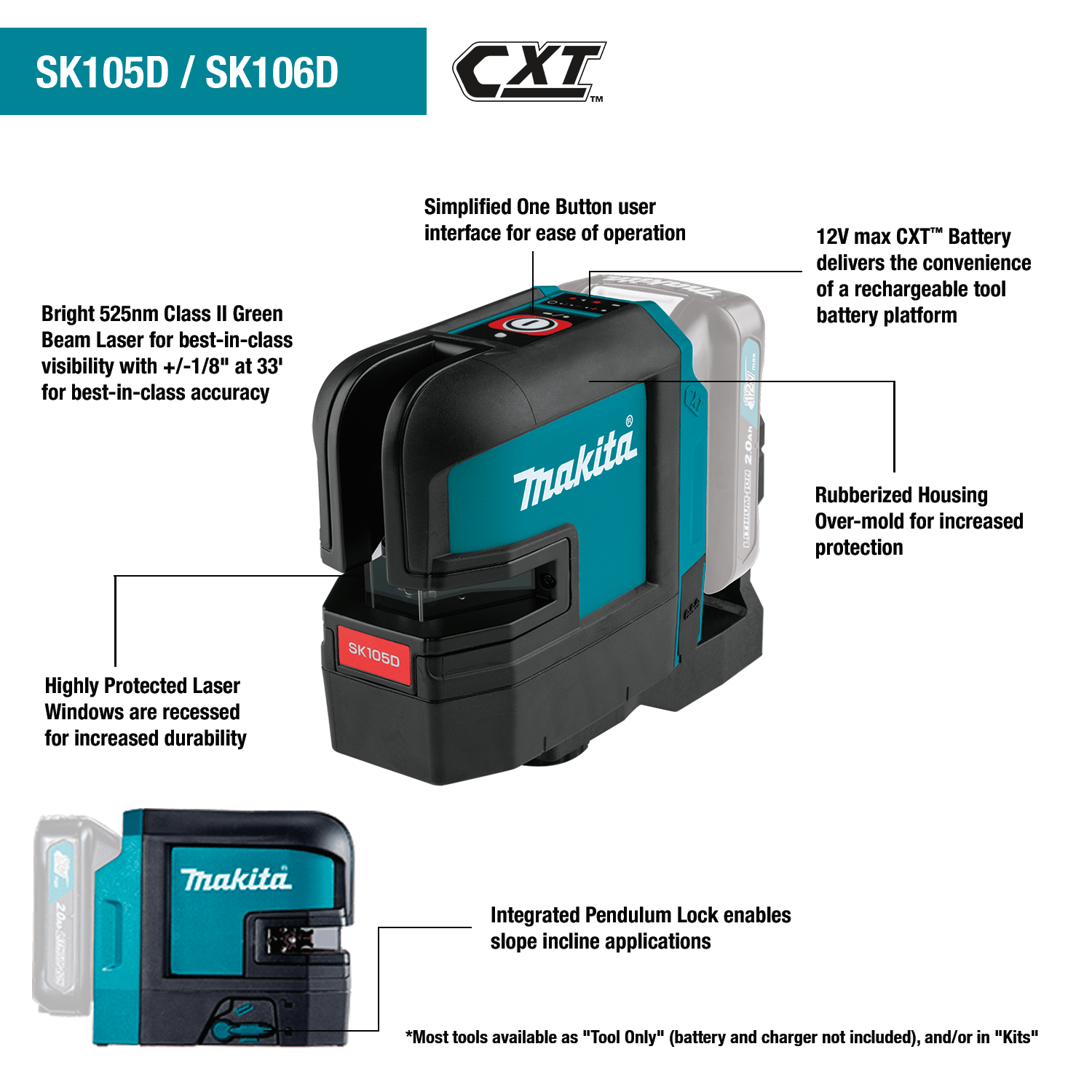

Feature callout diagram of Makita SK105D laser highlighting single-button controls, IP54 rubberized housing, and pendulum lock.
Makita SK105D self-leveling laser projecting bright red horizontal and vertical cross-reference lines for room layout alignment.

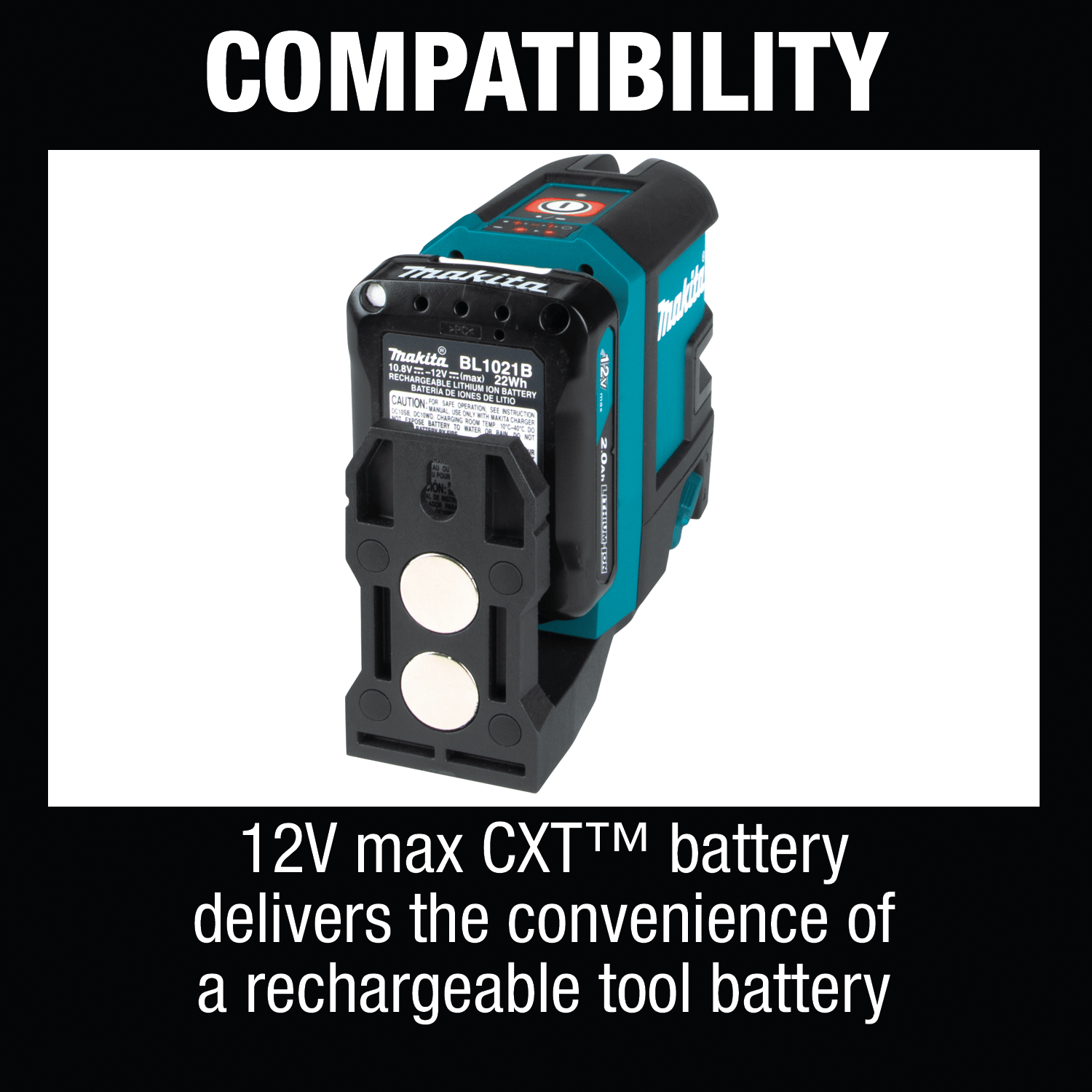

Rear view of Makita SK105D laser showing the magnetic mounting base and 12V max CXT 2.0Ah slide battery connection port.
Close-up of the integrated manual pendulum lock switch on the Makita SK105D laser used for sloped incline applications.
Beam fan angle diagram illustrating selectable horizontal and vertical red cross-line projections on the Makita SK105D laser.
Visibility range graphic demonstrating 82-foot red line visibility expandable to 262 feet using a Makita laser receiver detector.
Makita 12V max CXT 2.0Ah lithium-ion slide battery BL1021B mounted on the back of the SK105D cross-line laser level.

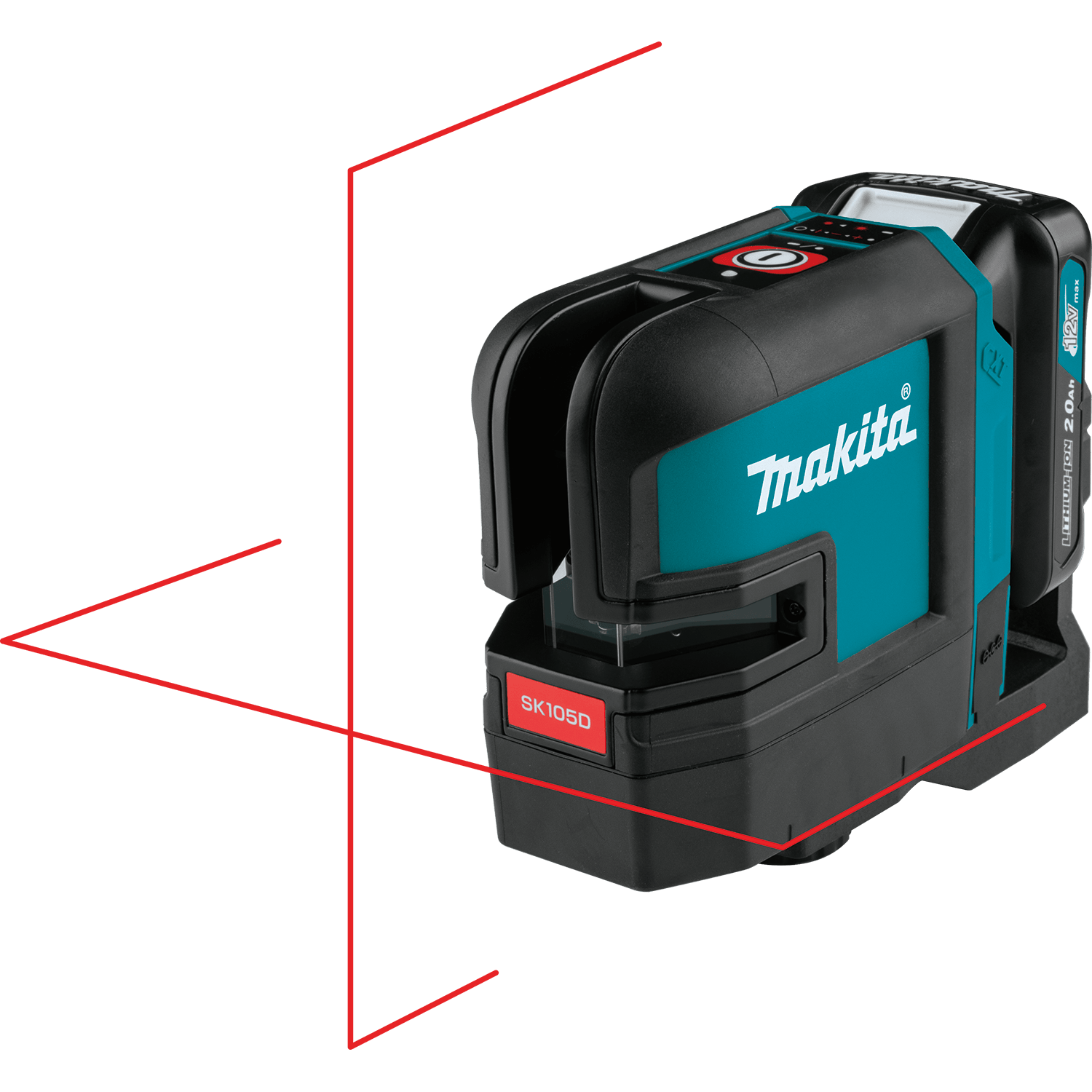

Makita SK105D self-leveling 12V CXT laser level projecting a 635nm red cross-line reference beam across perpendicular surfaces.
Top-down view of Makita SK105D laser displaying the 180-degree horizontal fan angle coverage arc and one-button control pad.
Kit component grid showing the Makita SK105D laser, magnetic red target plate, 2.0Ah battery, DC18RE charger, and padded carrying bag.

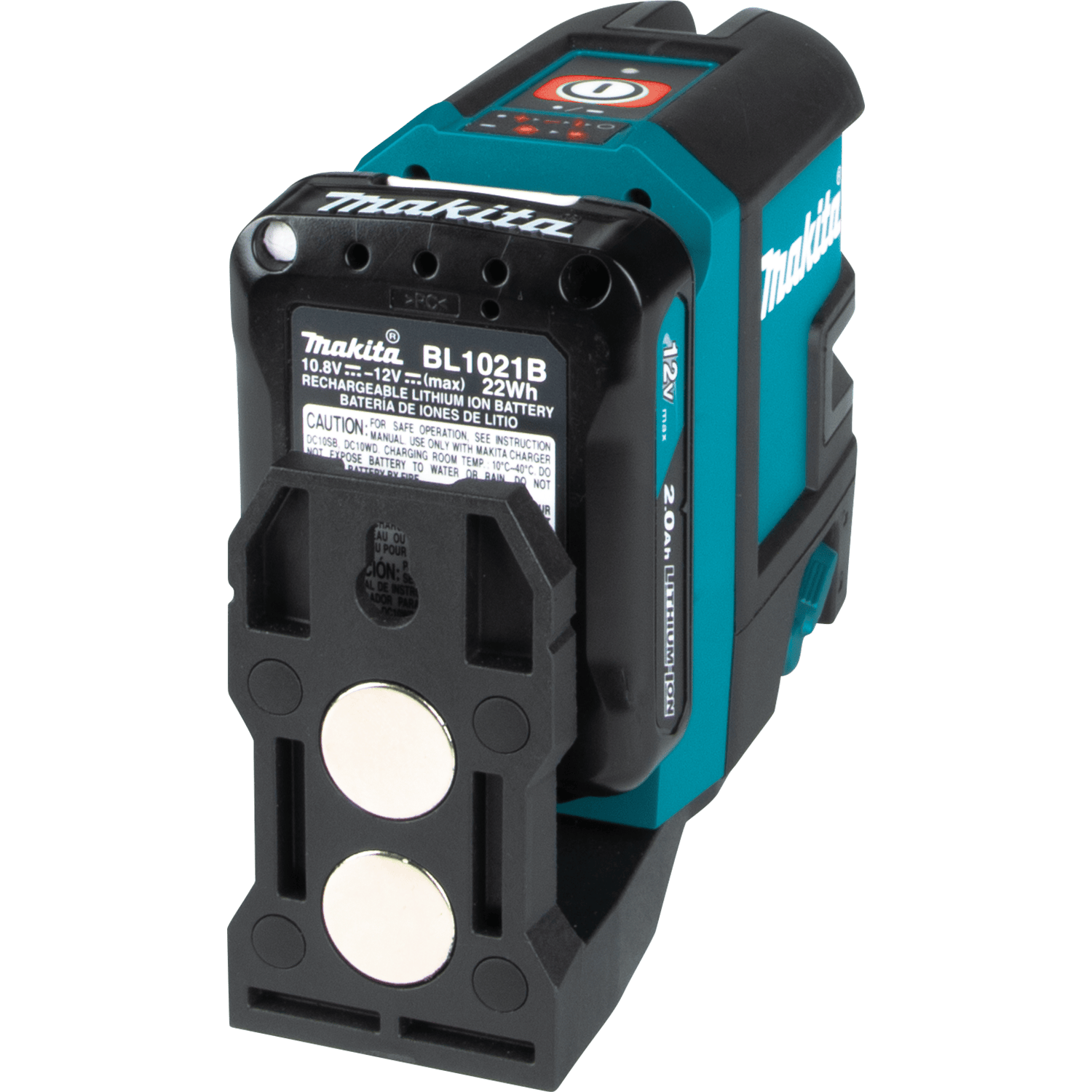

Rear magnetic L-adapter mount on the Makita SK105D cross-line laser securing a 12V max CXT 2.0Ah lithium-ion battery to steel studs.

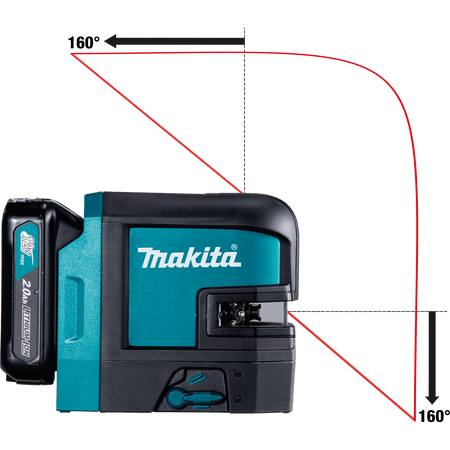

Diagram showing the 160-degree vertical line fan angle projection coverage delivered by the Makita SK105D self-leveling cross-line laser.

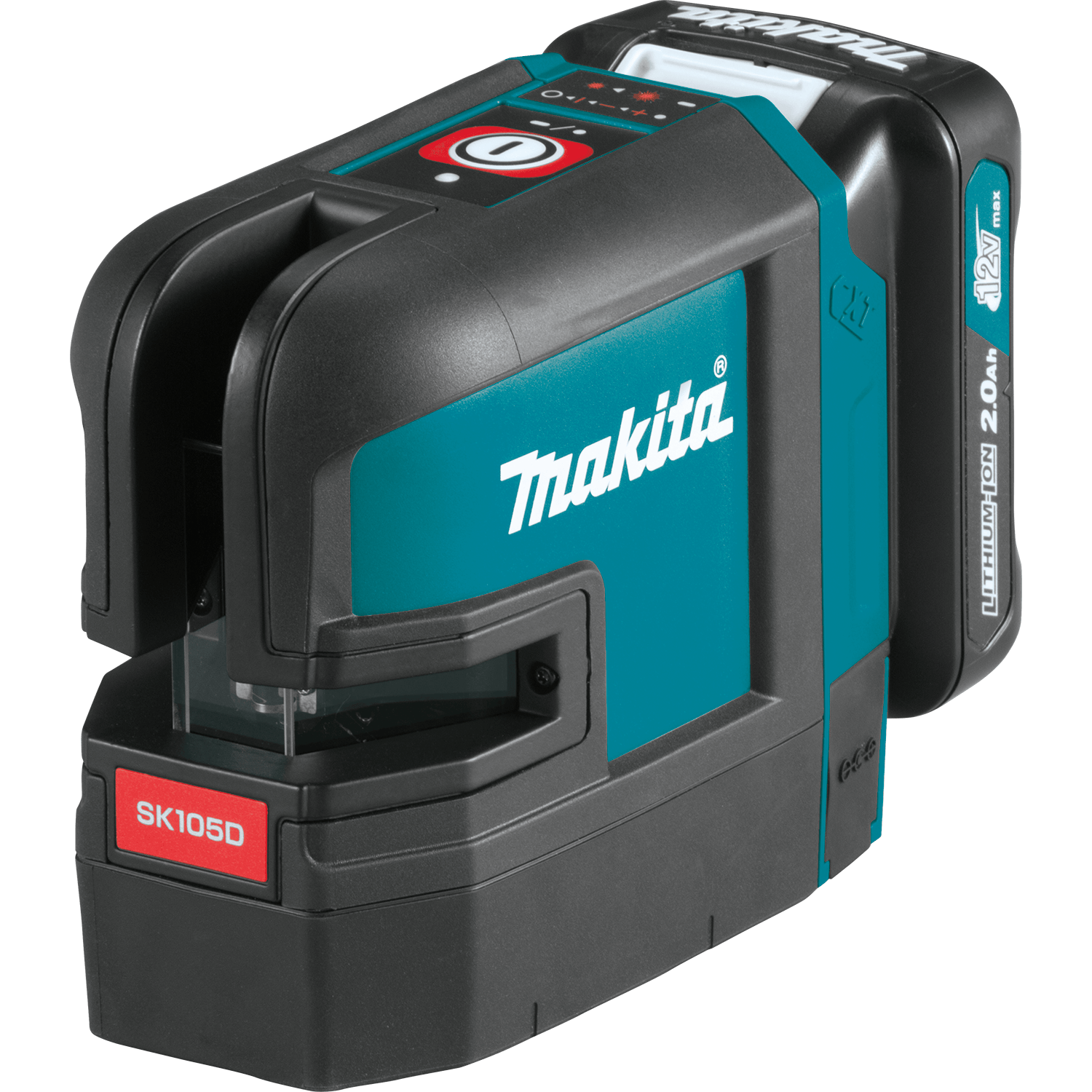

Makita SK105D 12V max CXT self-leveling red cross-line laser level shown in a three-quarter perspective angle.
Side view of the Makita SK105D self-leveling cross-line laser featuring an IP54-rated protective rubber overmold body shell.
Tradesman adjusting the magnetic bracket height of the Makita SK105D laser mounted onto a metal wall track for drop ceiling alignment.
Makita SK105D cross-line laser magnetically attached to a commercial steel stud projecting a red datum line for drywall track layout.
Tripod-mounted Makita SK105D 12V max CXT laser projecting a level red reference beam across a commercial interior wall.
Makita

Makita Self Leveling Red Cross Line Laser SK105DNAX 12V max CXT Kit (Class II 635nm Plus Minus 1/8 Inch at 33 Feet 82 Feet Visibility IP54 Alignment)

Only 1 left
SKU: SK105DNAX
$394.00 USD

Description

Makita Logo Logout

Makita SK105DNAX 12V max CXT Cordless Self-Leveling Cross-Line Red Laser Kit

The Makita SK105DNAX is a 12V max CXT cordless cross-line red beam laser providing +/-1/8-inch accuracy at 33 feet for high-precision leveling, vertical alignment, and layout applications. Powered by a 635 nm Class II laser diode, this self-leveling instrument projects 180-degree horizontal and 160-degree vertical reference lines with an 82-foot visual range, expandable to 262 feet using a laser detector. Featuring an IP54 dust and water resistance rating, rapid 3-second pendulum stabilization, self-leveling correction up to 4 degrees, and a manual pendulum lock for sloped incline layouts, it delivers up to 20 hours of continuous runtime on a single 2.0Ah battery charge for commercial framing, tile installation, and drop ceiling alignment.

Best Used For:

  • Commercial Wall Framing & Track Layout: Projecting crisp plumb lines across studs and floor channels to verify vertical track squareness and wall positioning.
  • Acoustical Drop Ceiling & Cabinet Installation: Establishing continuous 180-degree horizontal datum lines for mounting ceiling grids, upper cabinetry, and electrical conduit.
  • Stairway & Sloped Surface Alignment: Locking the internal pendulum mechanism to project steady angled reference lines for handrail installations and custom tile risers.

Key Performance & Safety Features

  • 635 nm Class II High-Visibility Diode: Emits crisp red cross-lines visible up to 82 feet indoors and detectable up to 262 feet using an optional laser receiver.
  • Rapid 3-Second Self-Leveling Mechanism: Internal gimbal system settles reference lines within 3 seconds, compensating automatically for up to 4 degrees of slope.
  • Integrated Transport Pendulum Lock: Secures delicate laser diodes during transport and enables manual locking for slope and angle projection.
  • IP54 Dust & Water Splash Protection: Sealed rubberized housing overmolding and recessed glass windows guard internal optics against harsh jobsite conditions.
  • Dual-Thread Multi-Purpose Magnetic Bracket: Heavy-duty magnetic mount attaches to steel studs or wooden headers with integrated 1/4-inch and 5/8-inch tripod sockets.
  • Flexible Dual Power Options: Runs on 12V max CXT batteries or accepts 18V LXT batteries using an optional power source adapter and cord.

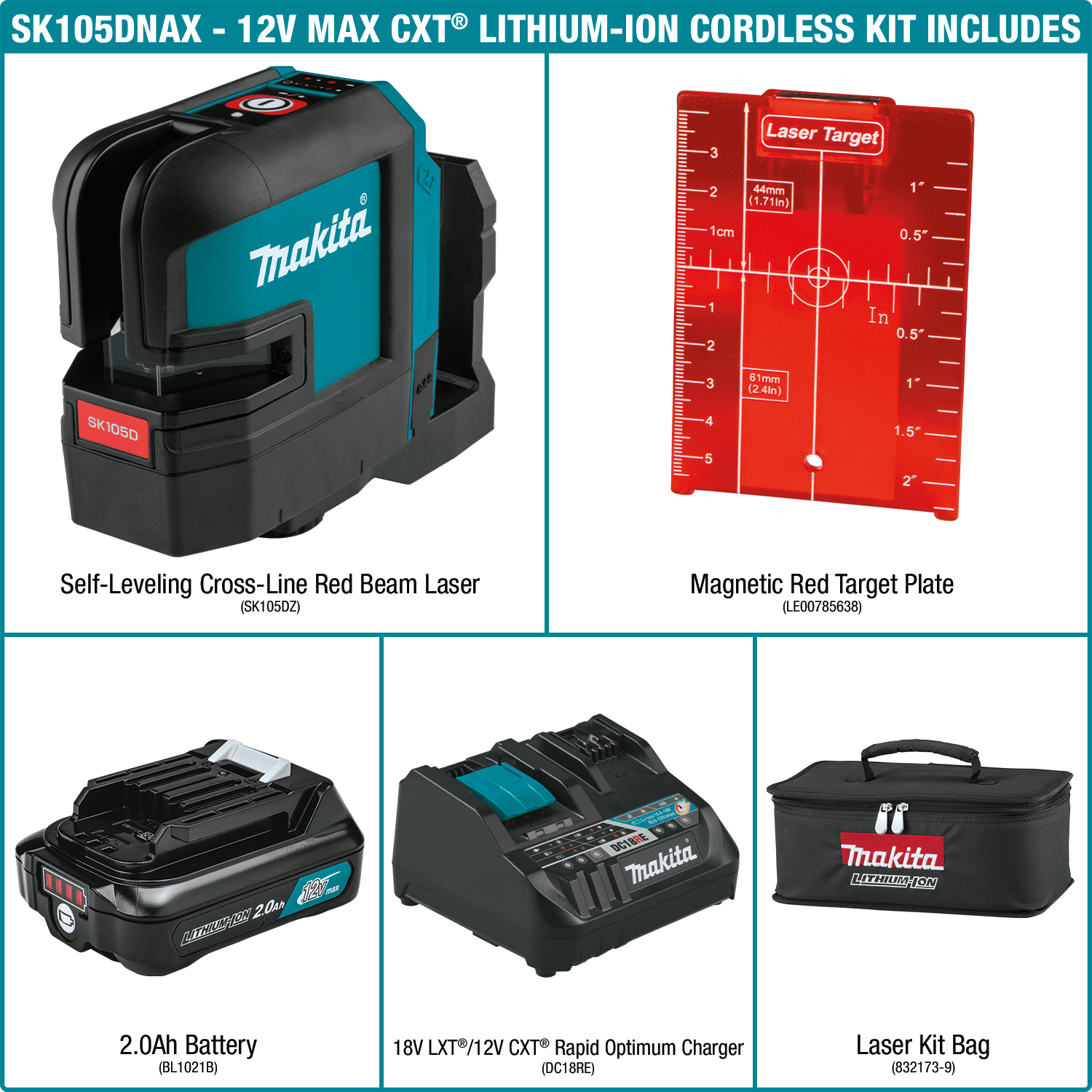

What's Included

  • (1) 12V max CXT® Self-Leveling Cross-Line Red Beam Laser (SK105DZ)
  • (1) 12V max CXT® Lithium-Ion 2.0Ah Battery (BL1021B)
  • (1) 18V LXT® / 12V max CXT® Lithium-Ion Rapid Optimum Charger (DC18RE)
  • (1) Magnetic L-Adapter (LE00870131)
  • (1) Magnetic Red Target Plate (LE00785638)
  • (1) Heavy-Duty Laser Kit Bag (832173-9)

Technical Specifications

Brand Manufacturer Makita® USA
Model Part Number OEM SKU SK105DNAX / SK105DWAX
Laser Line Accuracy Rating +/- 1/8 inch at 33 feet (3-18/100 mm at 10 m)
Laser Diode Class & Wavelength Class II, 635 nanometers (<1 mW)
Visual Working Range (Line) 82 feet (25 meters)
Detector Working Range 262 feet (80 meters)
Self-Leveling Compensation Range 4 degrees
Horizontal Fan Beam Angle 180 degrees
Vertical Fan Beam Angle 160 degrees
Ingress Protection Rating IP54 (Dust and Water Splash Resistant)
Max Operating Time (2.0Ah Battery) 20 Hours Continuous Use
Max Operating Time (4.0Ah Battery) 40 Hours Continuous Use
Mounting Thread Interface 1/4-20 and 5/8-11 Thread Sockets
Net Weight with Battery 1-9/10 lbs (1.9 lbs / 0.86 kg)
Packaged Dimensions (D x H x W) 8" x 6" x 13-1/4"
Total Shipping Weight 6-7/10 lbs (6.7 lbs / 3.04 kg)
Universal Product Code UPC 088381-878173

Pro-Tip: Always engage the manual pendulum lock before moving or storing the laser; securing the internal gimbal prevents shock damage to optical calibration during transport.
