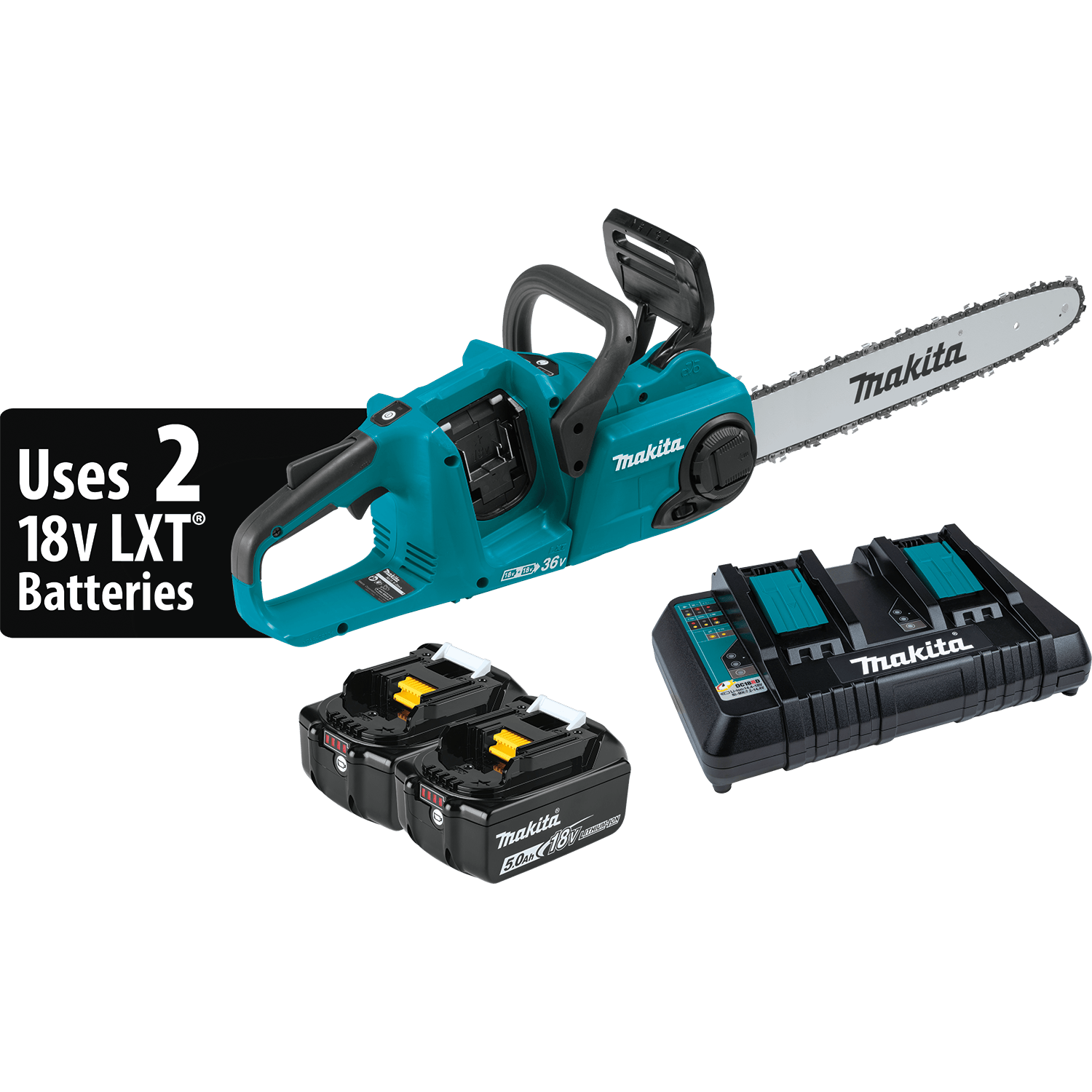

Makita XCU04PT 36V 18V X2 LXT 16-inch brushless chainsaw kit including two 5.0Ah lithium-ion batteries and a dual-port rapid charger.

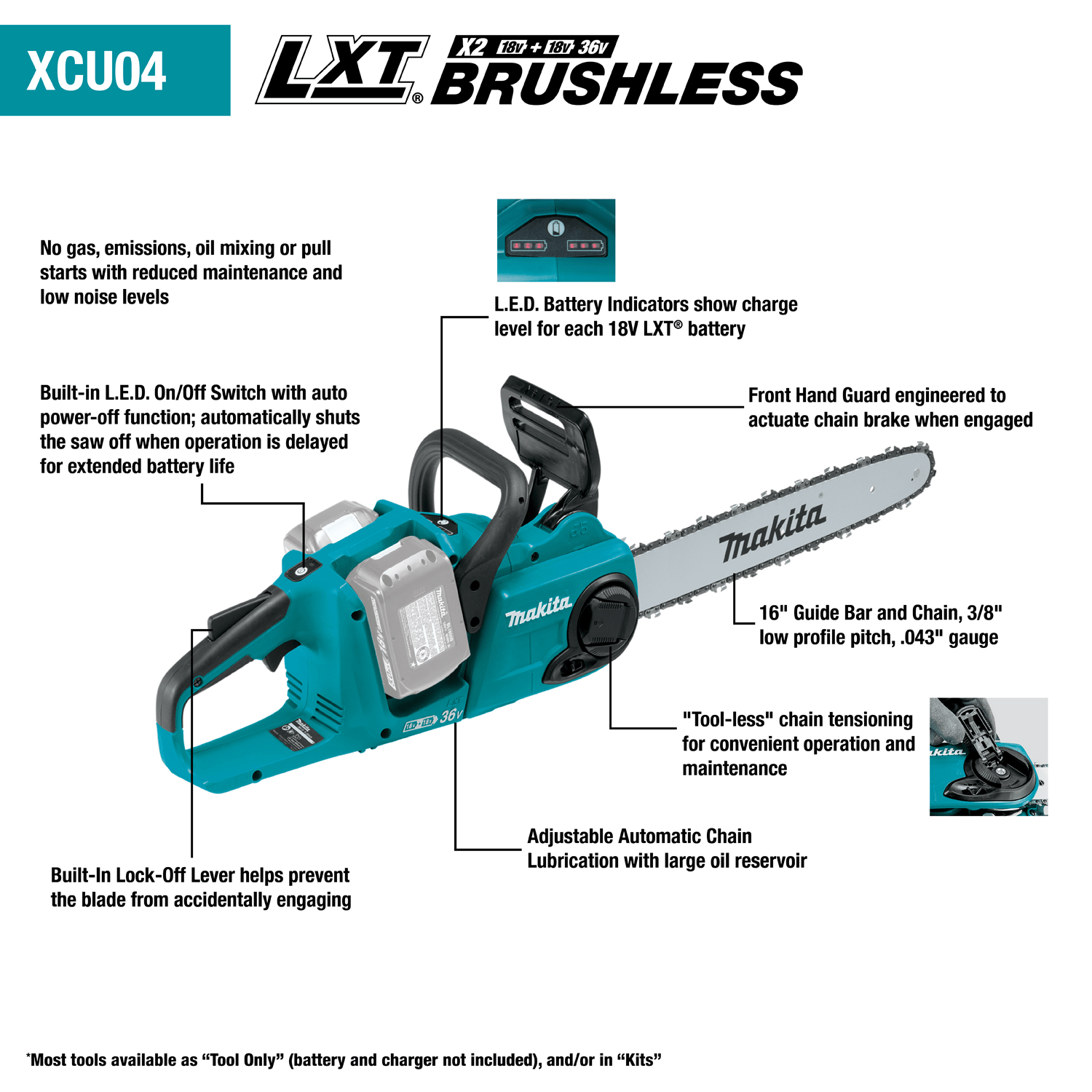

Annotated callout diagram of the Makita XCU04 chainsaw detailing its 16-inch guide bar, tool-less chain tensioning, and 36V brushless motor.

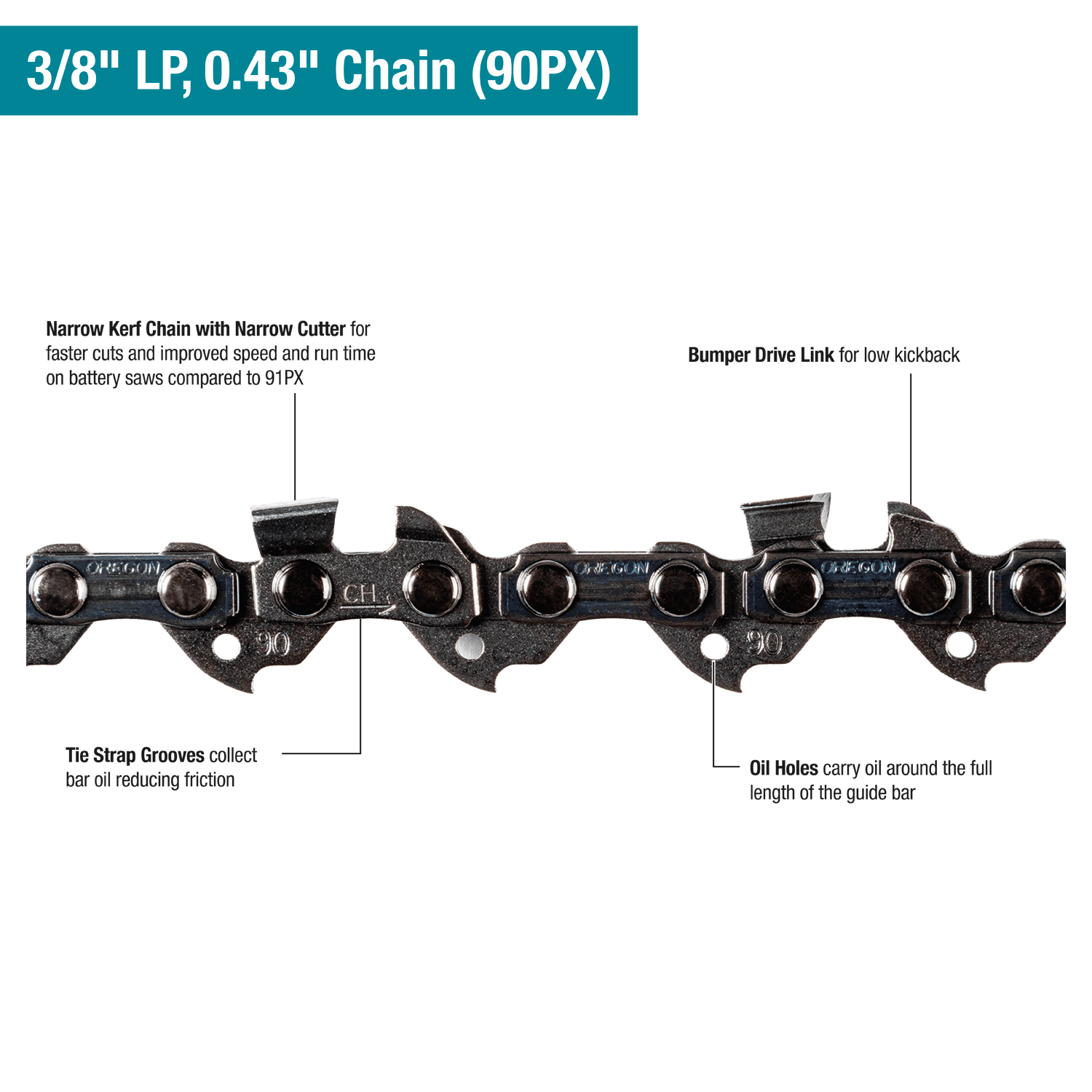

Detailed breakdown of the 3/8-inch low-profile .043-gauge chainsaw chain showing narrow kerf cutters and oil-retaining drive links.

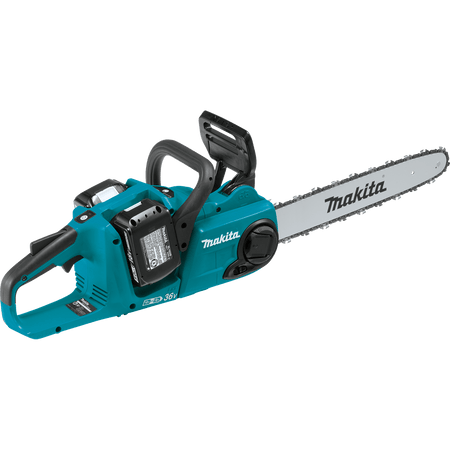

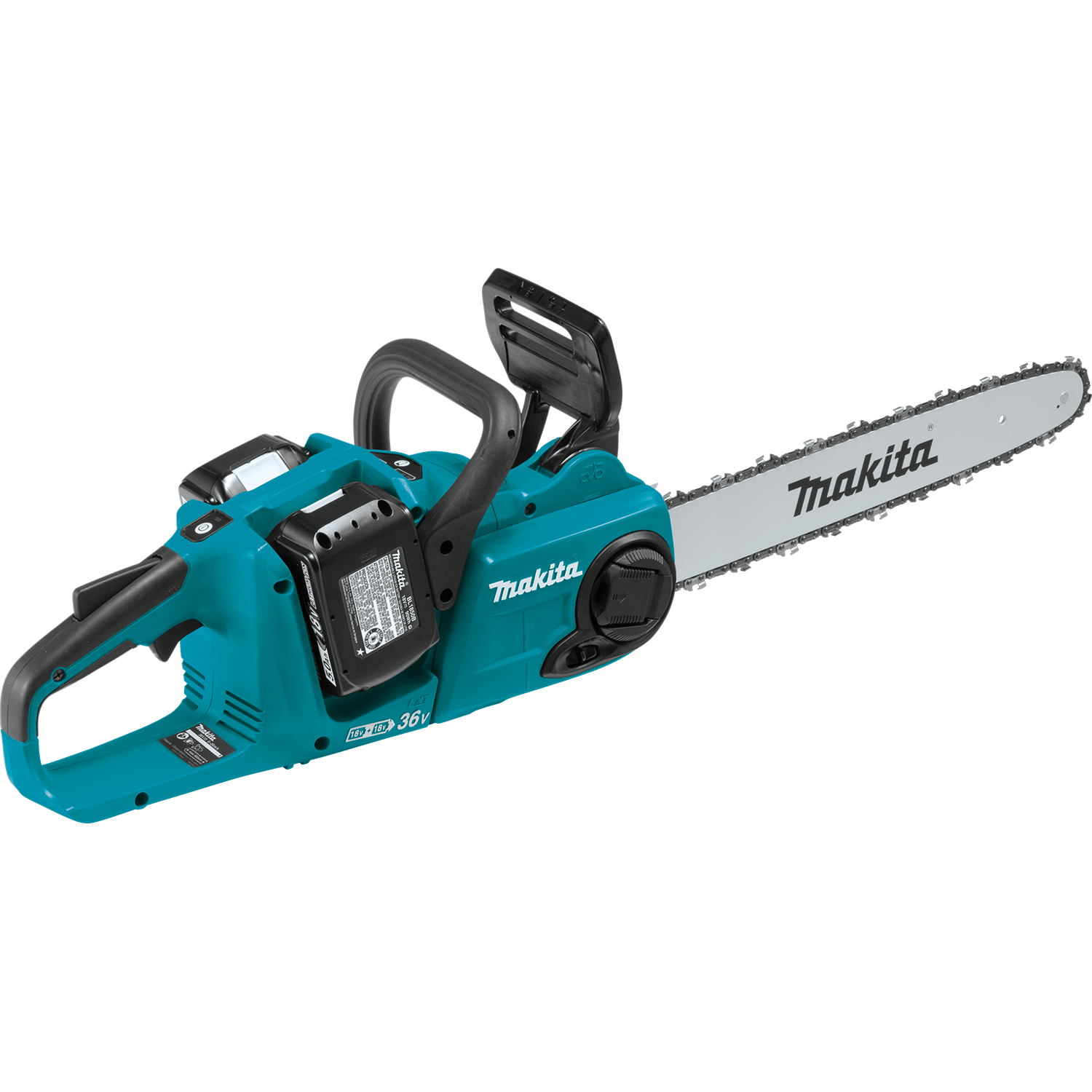

Side view of the Makita XCU04 36V cordless chainsaw showing dual 18V battery ports, rear handle controls, and 16-inch guide bar setup.

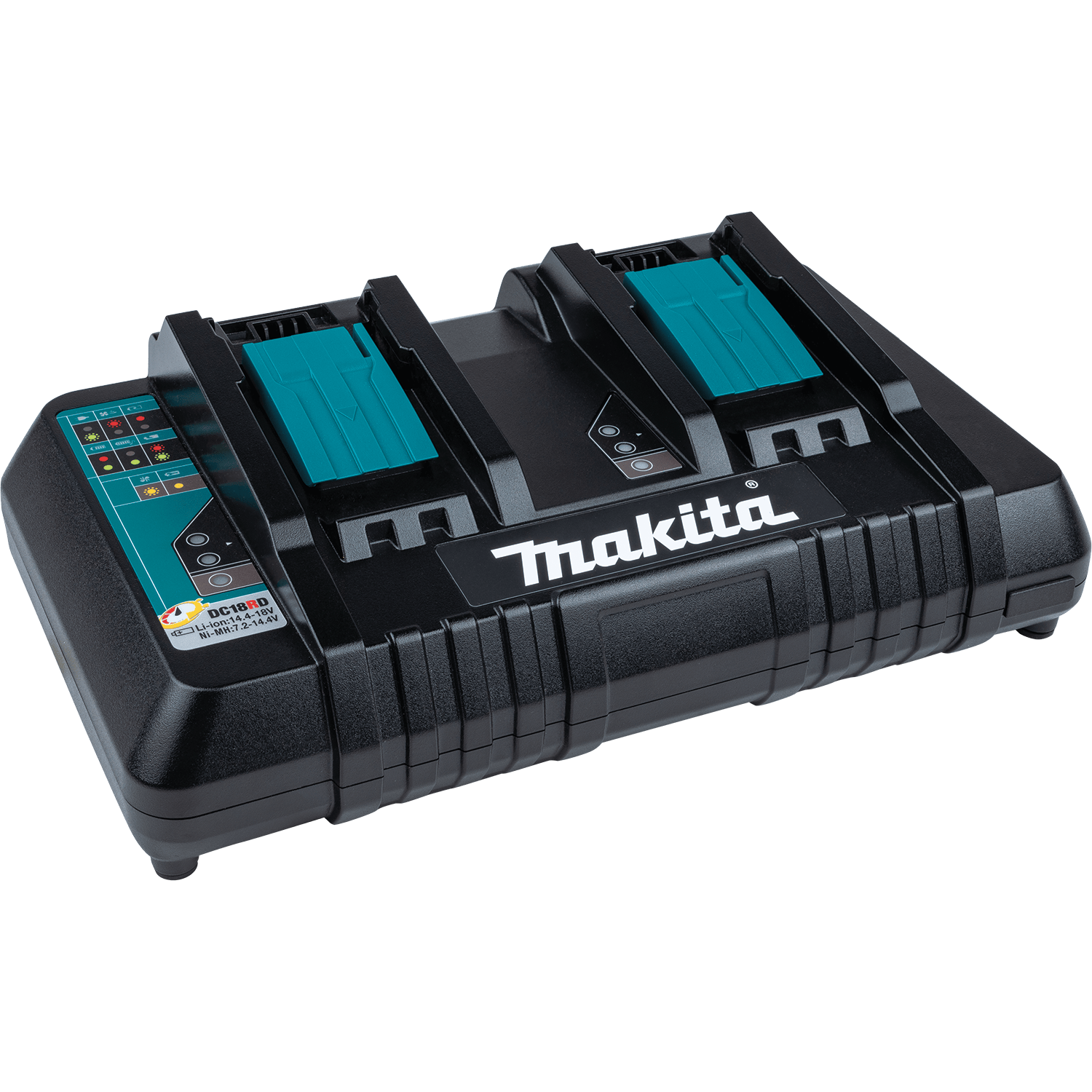

Makita DC18RD 18V LXT dual-port rapid charger capable of simultaneously charging two 5.0Ah lithium-ion batteries for continuous power.

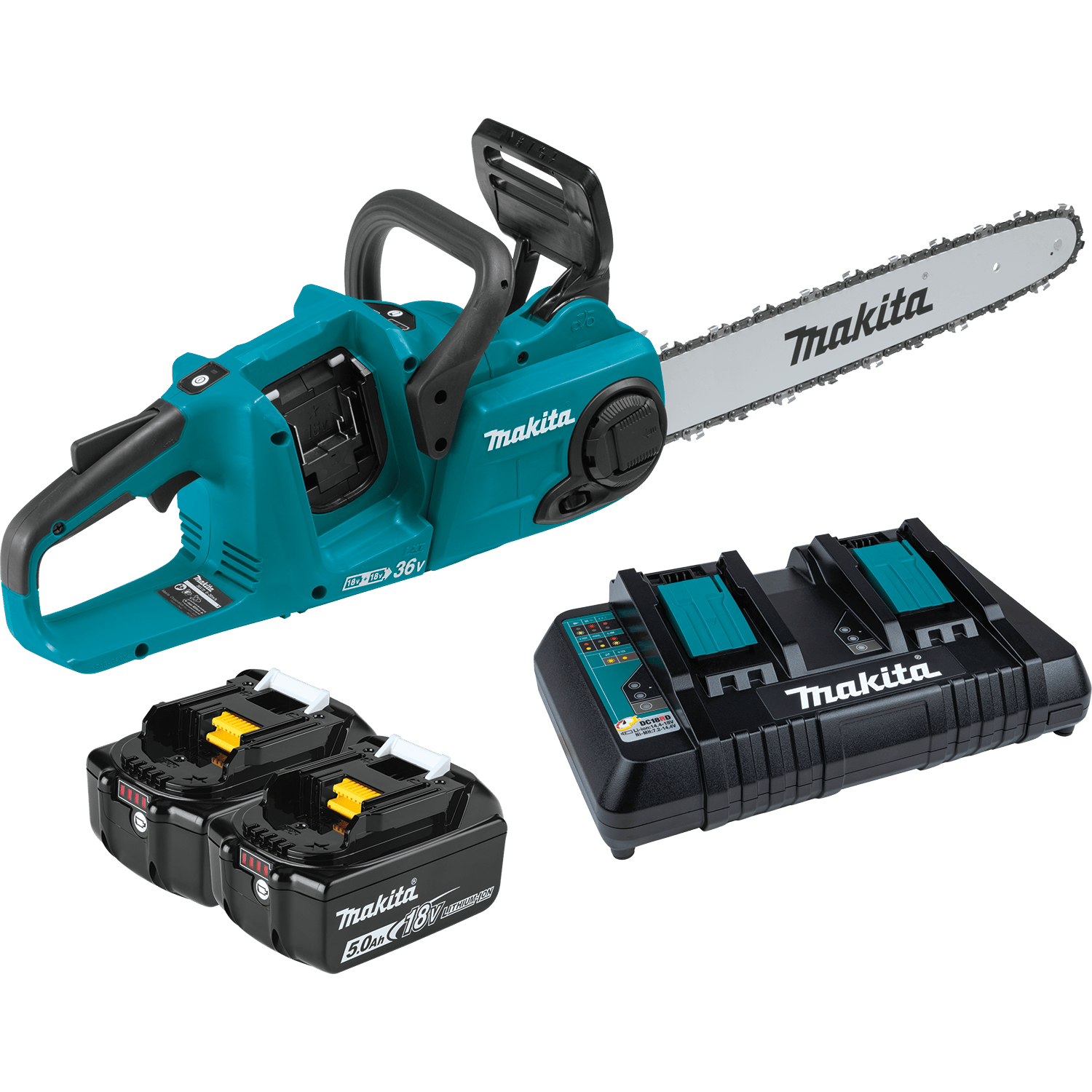

Full Makita XCU04PT cordless chainsaw kit laid out with the 16-inch rear-handle saw, two 18V 5.0Ah batteries, and a dual-port rapid charger.

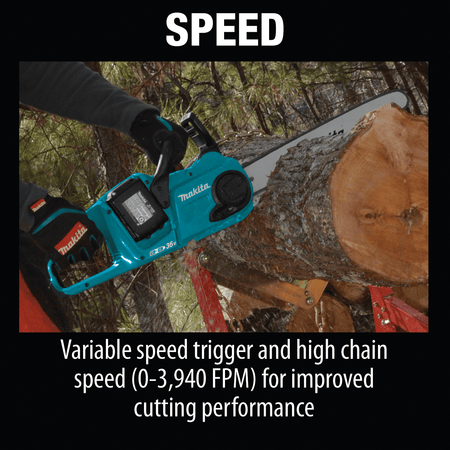

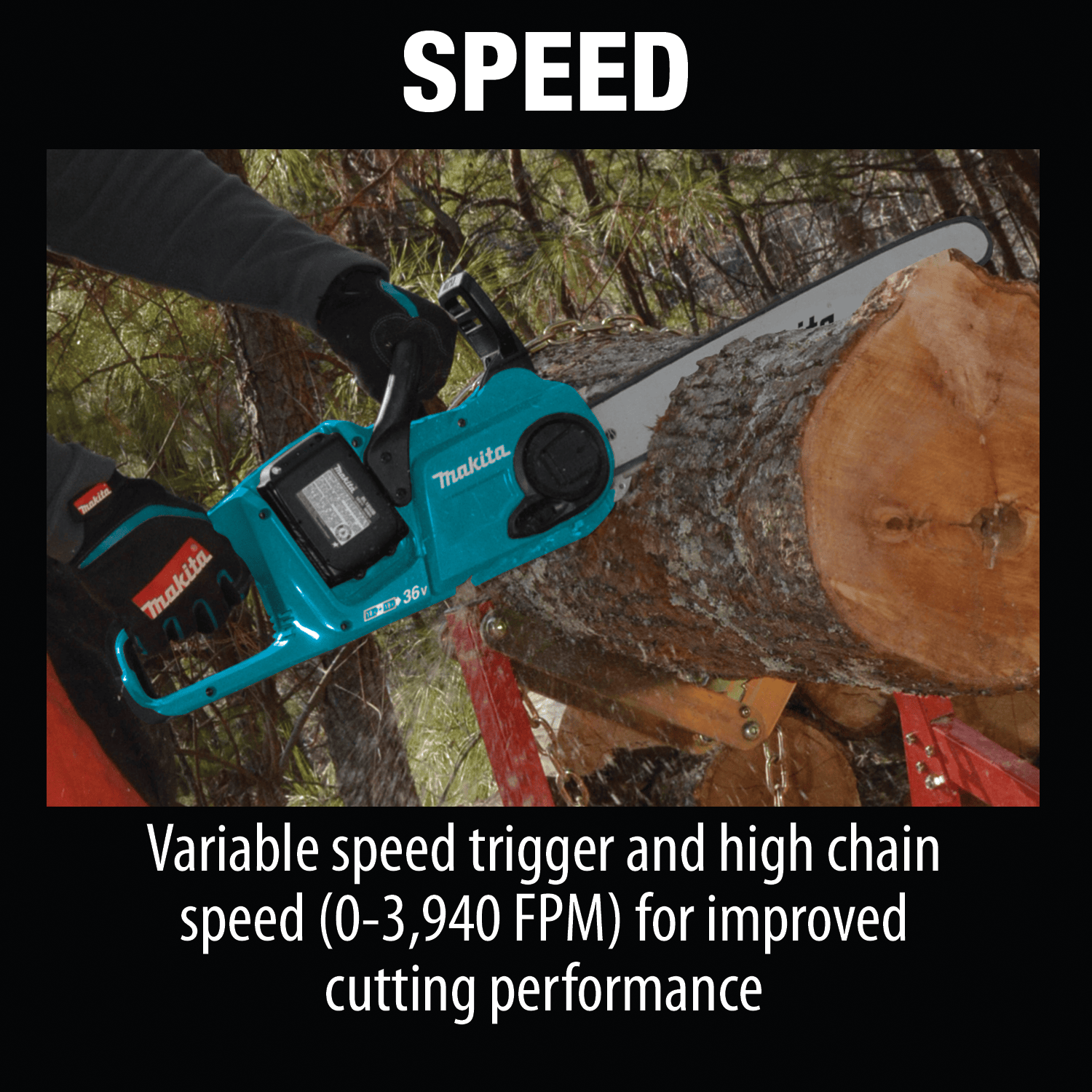

Landscaper cutting a thick downed log with the Makita XCU04PT 36V brushless chainsaw operating at 3,940 FPM chain speed.

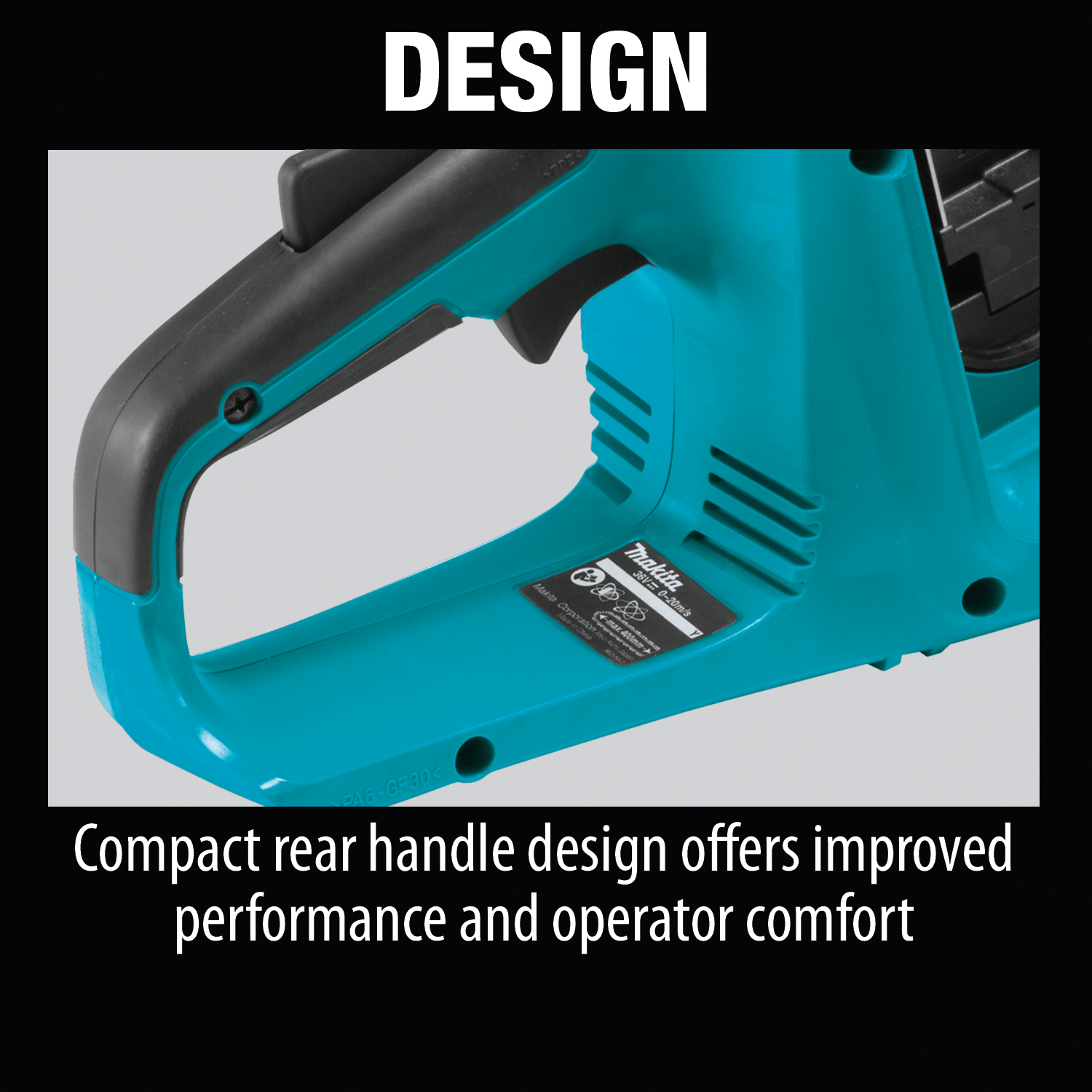

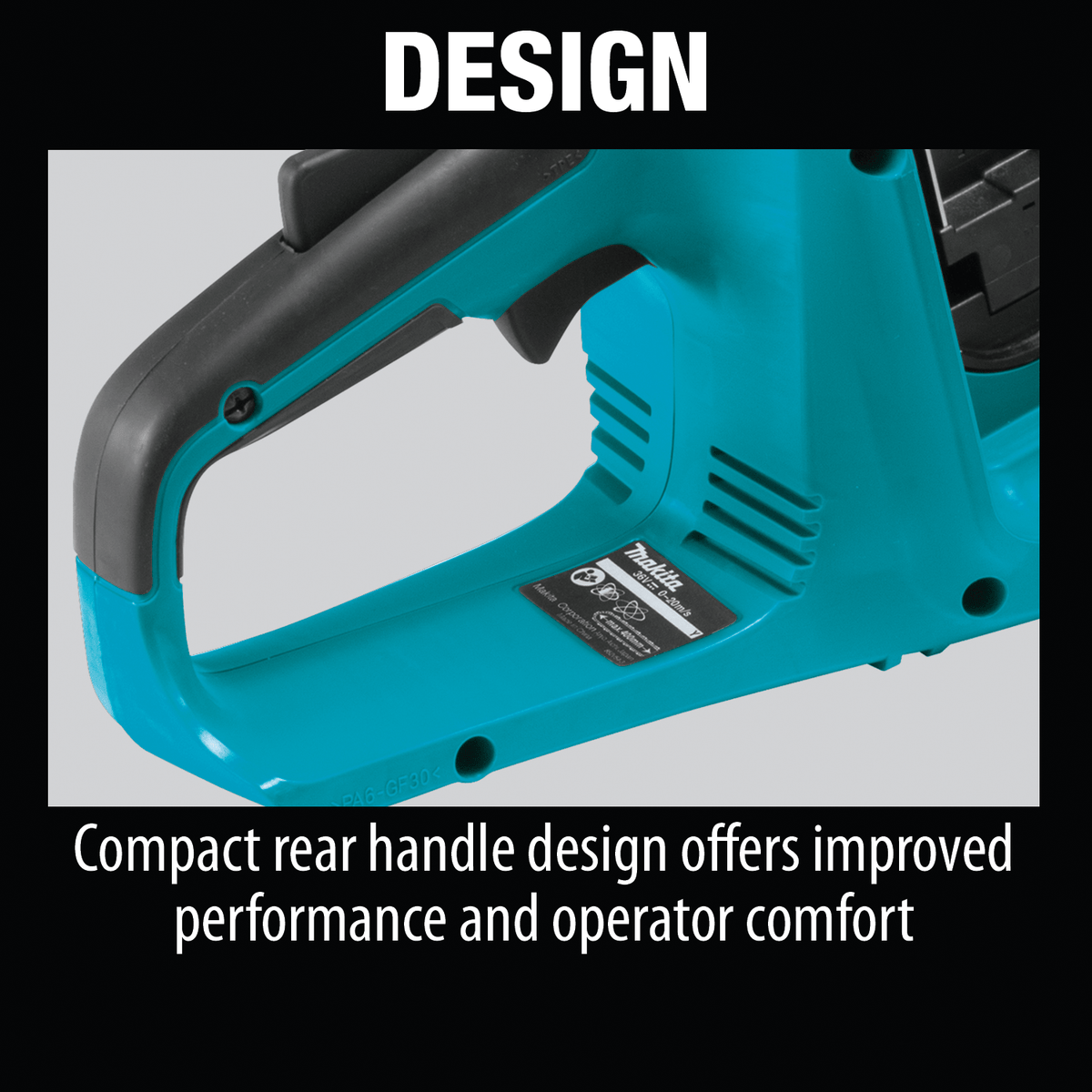

Close-up of the ergonomic rear handle grip and lock-off safety switch on the Makita XCU04 36V cordless chainsaw.

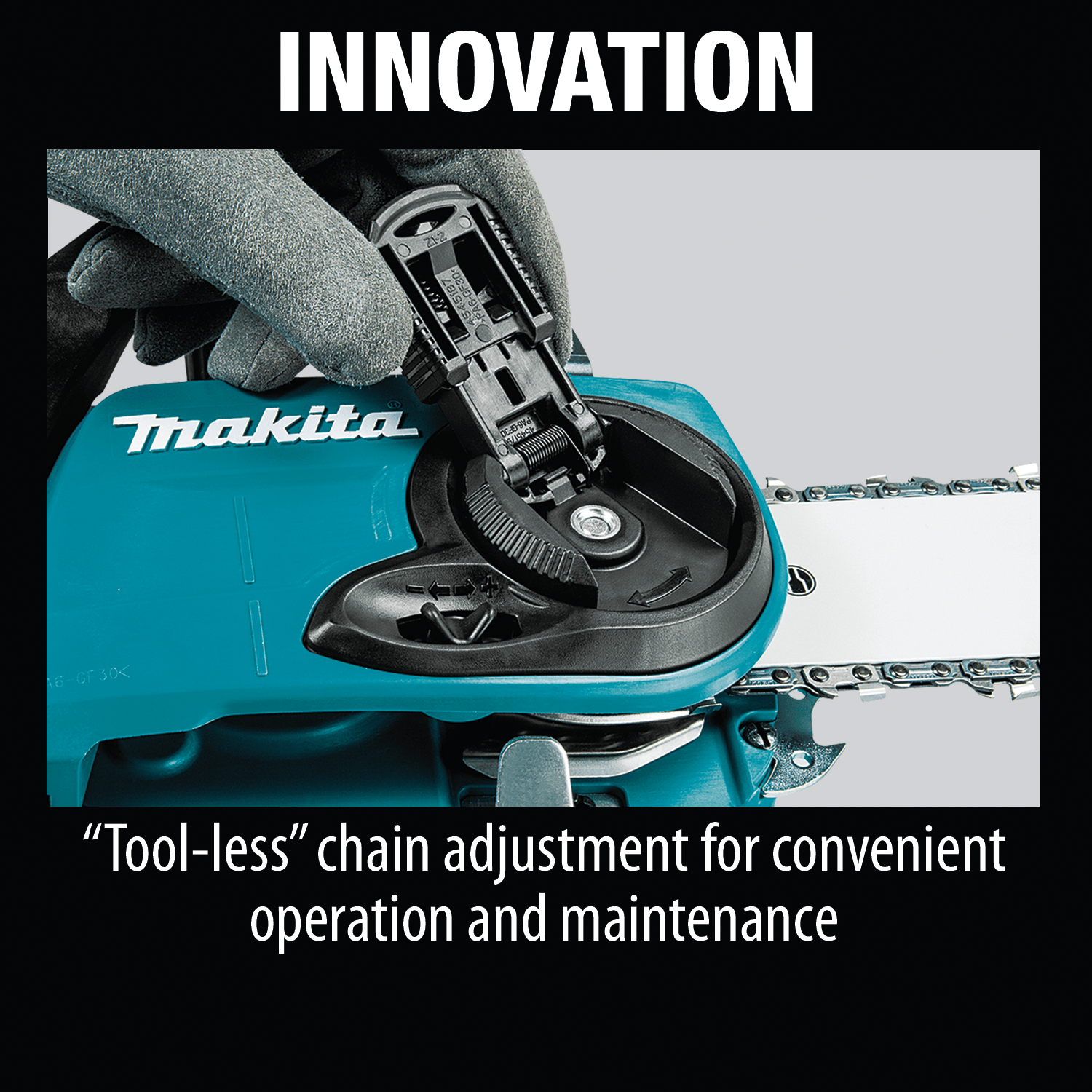

Gloved operator lifting the tool-less chain tensioning lever on the Makita XCU04 chainsaw for quick field chain adjustments.
Cutaway diagram of the Makita outer rotor brushless motor direct-drive system delivering 32cc gas-equivalent cutting efficiency.

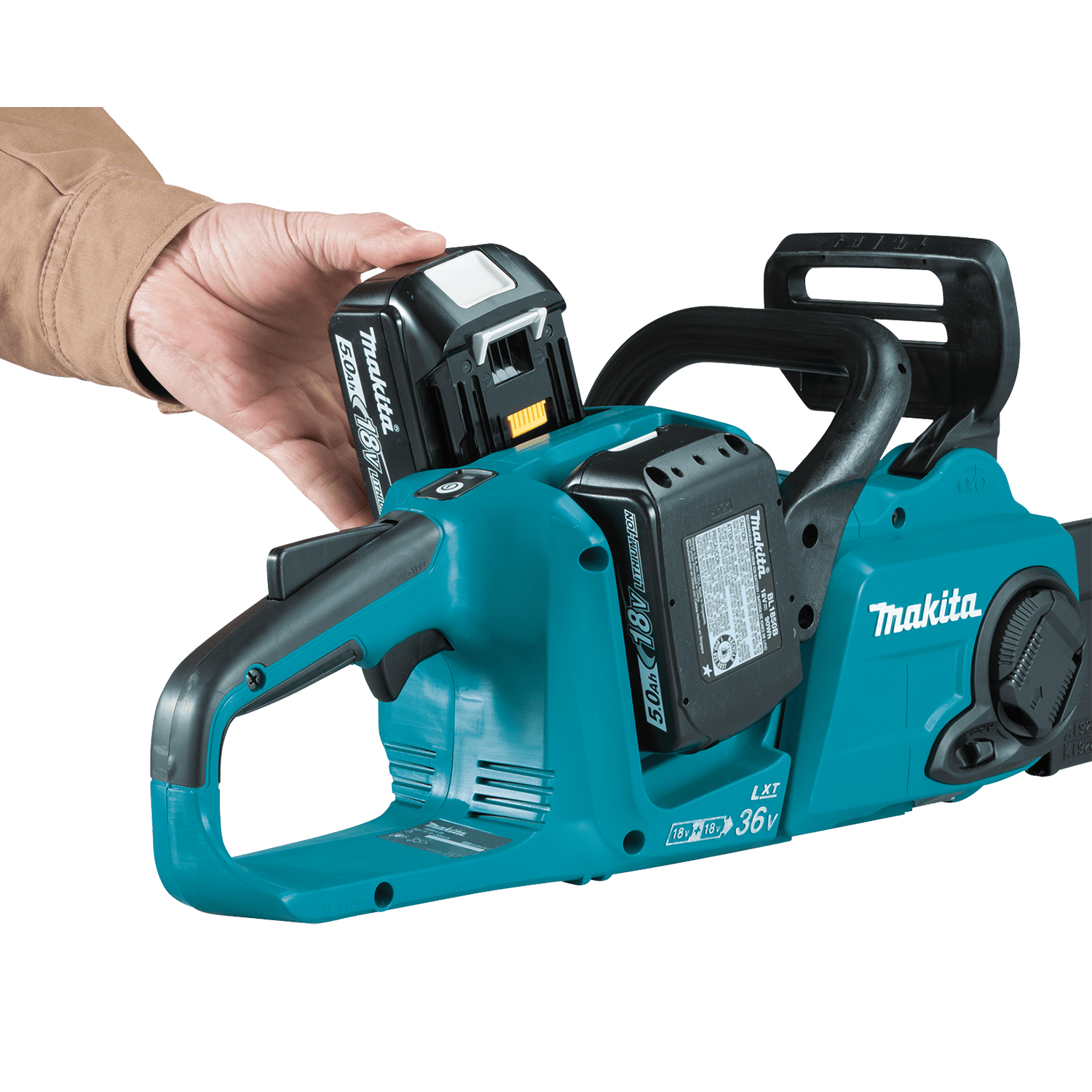

Hand loading an 18V LXT 5.0Ah lithium-ion battery into the dual battery receptacle of the Makita XCU04 36V cordless chainsaw.

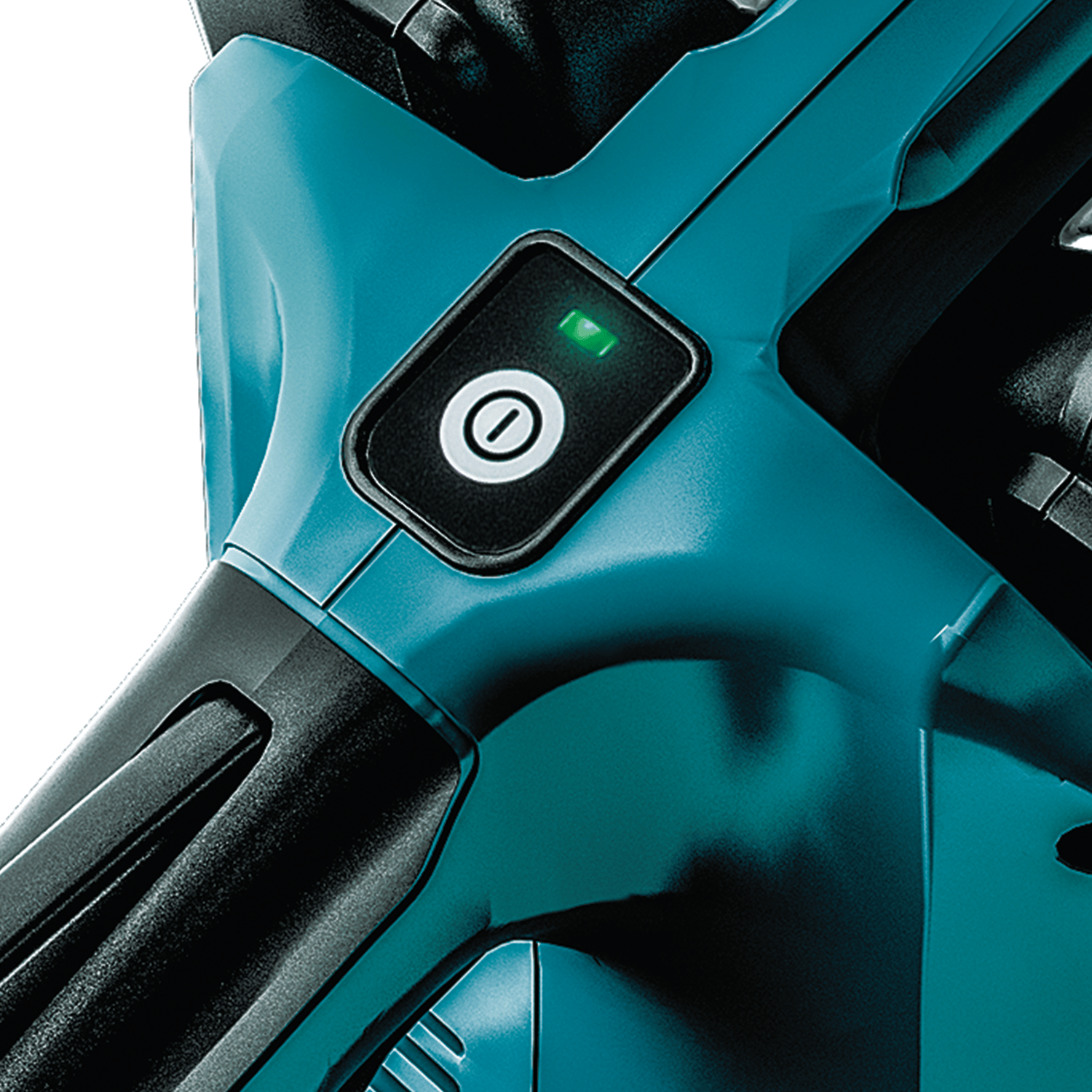

Illuminated main power button and LED status indicator on the Makita XCU04 36V brushless chainsaw displaying active standby mode.

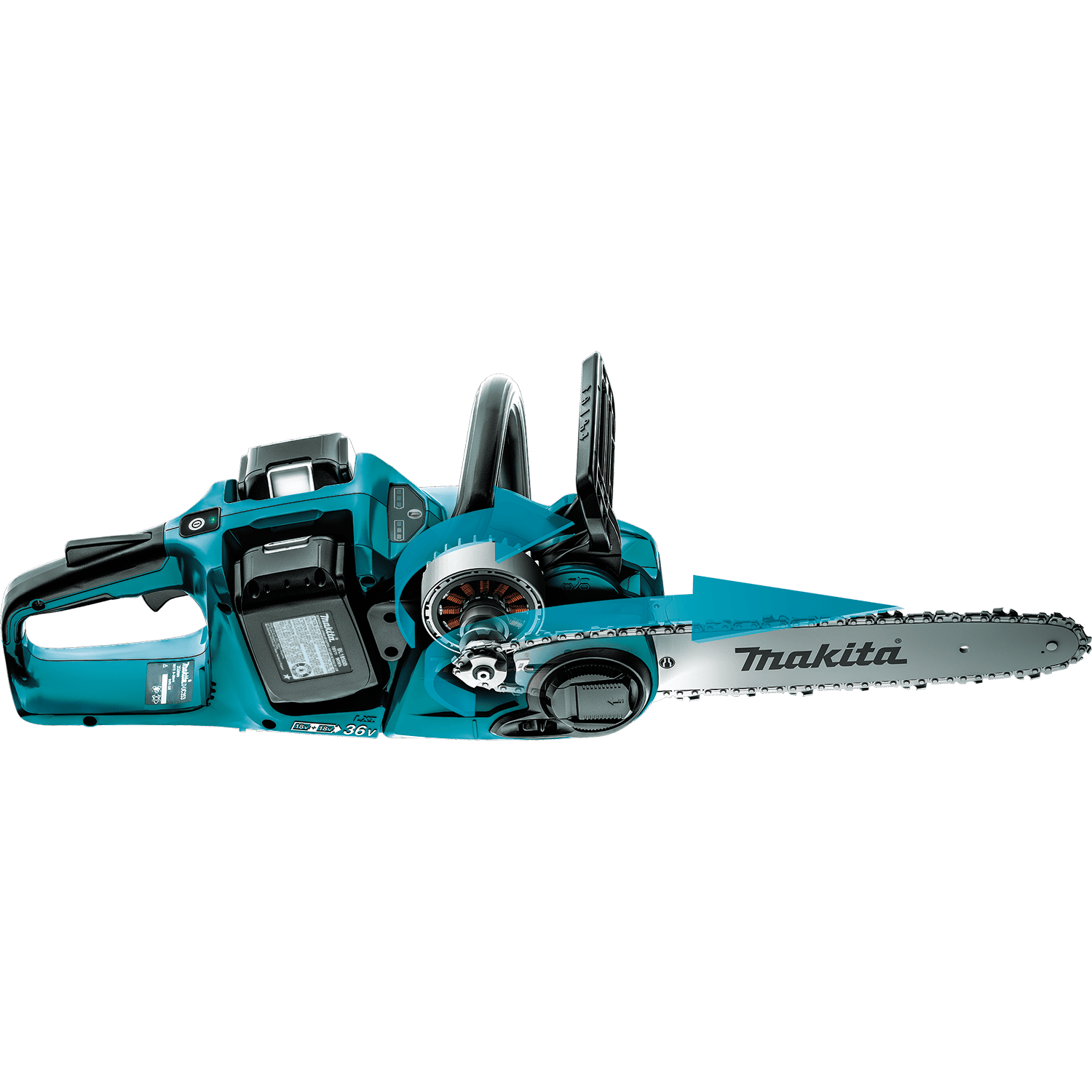

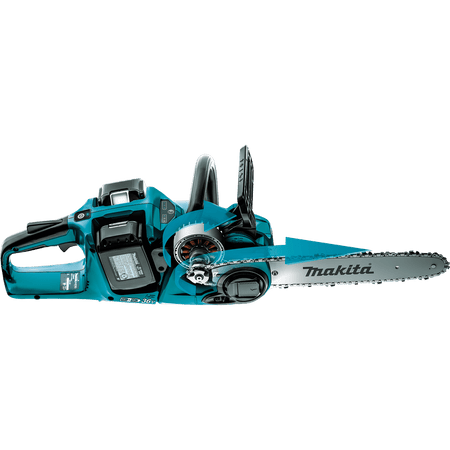

Cutaway graphic illustrating the outer rotor BL brushless direct-drive motor assembly on the Makita XCU04 36V 16-inch chainsaw.

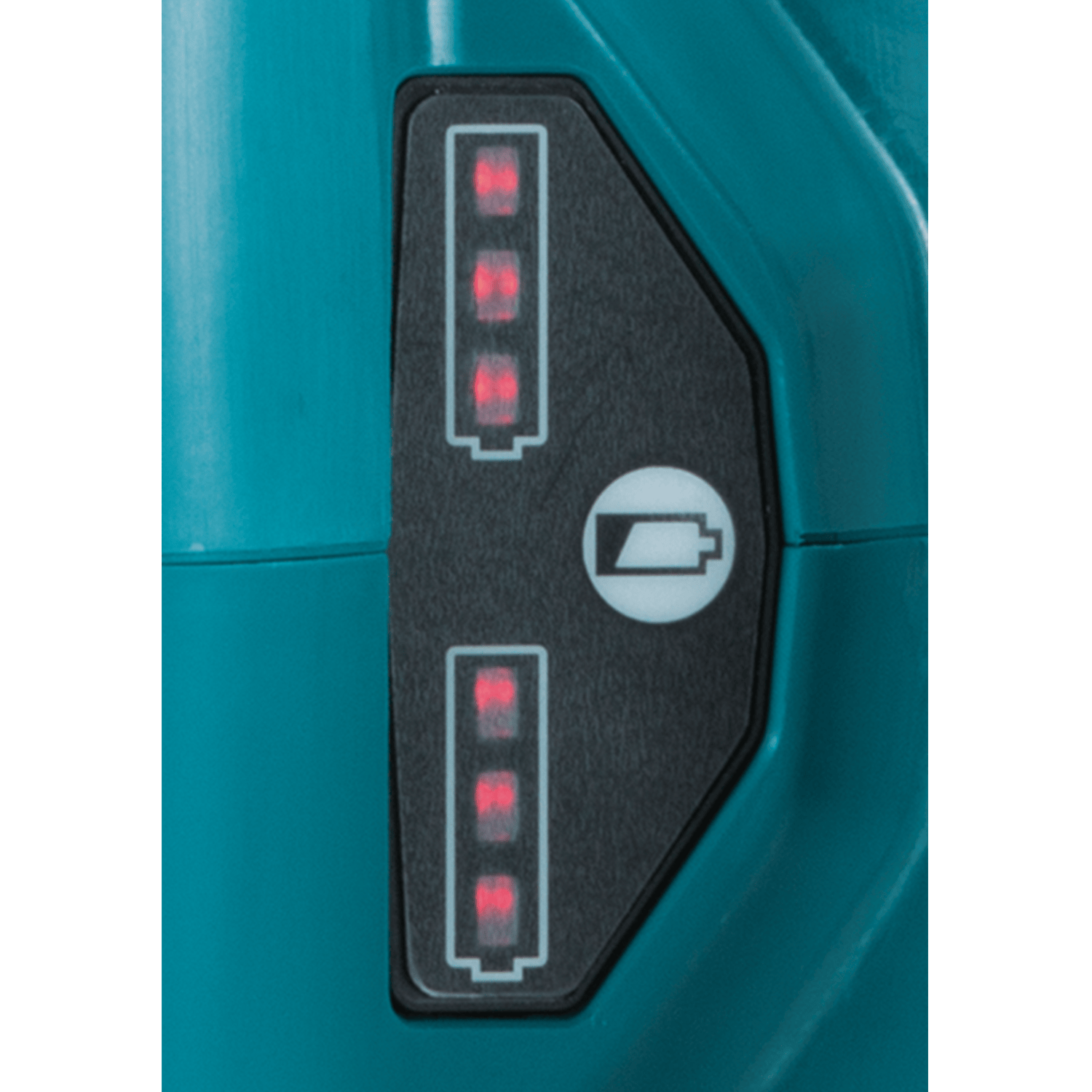

LED battery fuel gauge panel on the Makita XCU04 chainsaw indicating full 3-bar charge levels for both installed 18V LXT batteries.

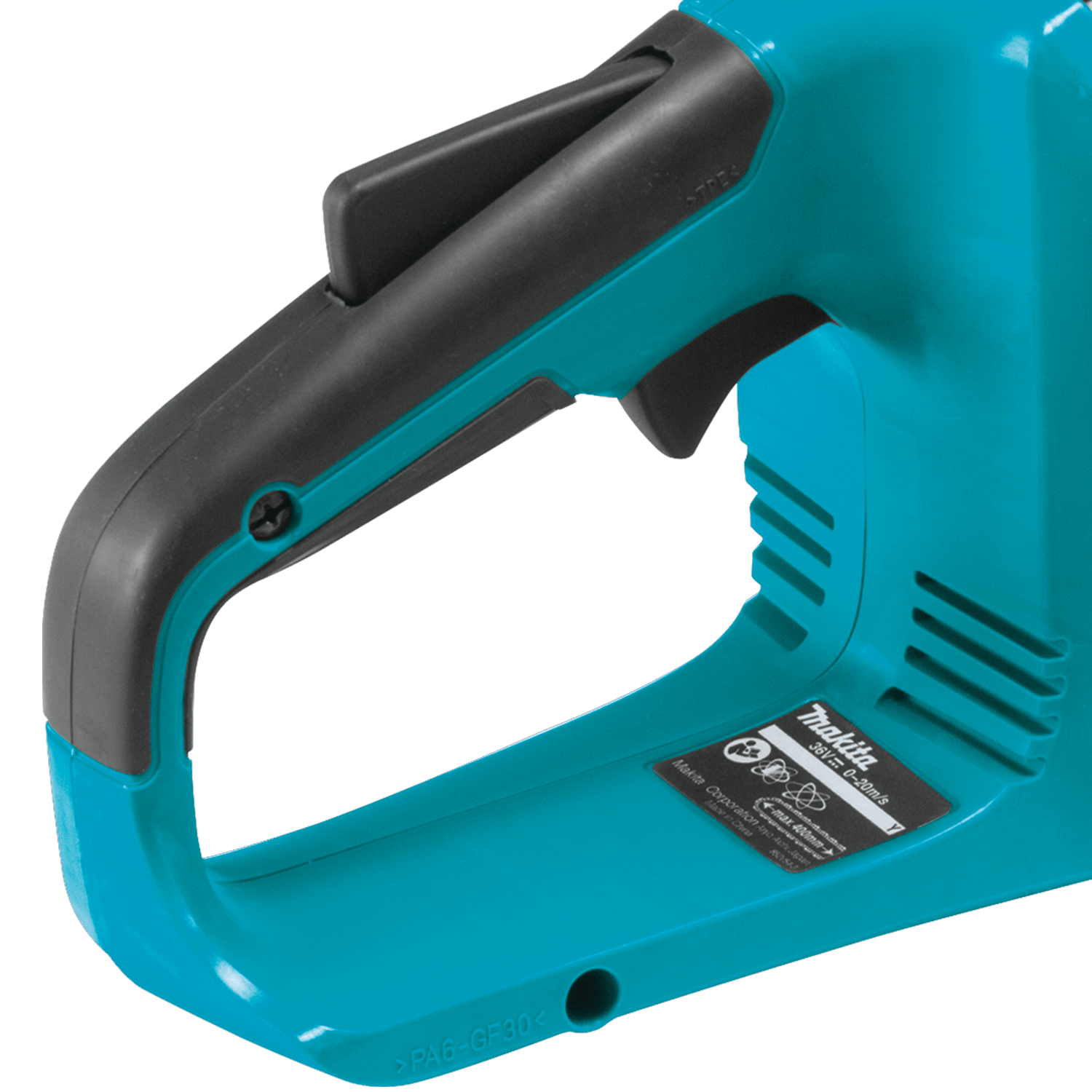

Close-up of the ergonomic rear handle assembly, lock-off safety lever, and variable speed trigger on the Makita XCU04 chainsaw.

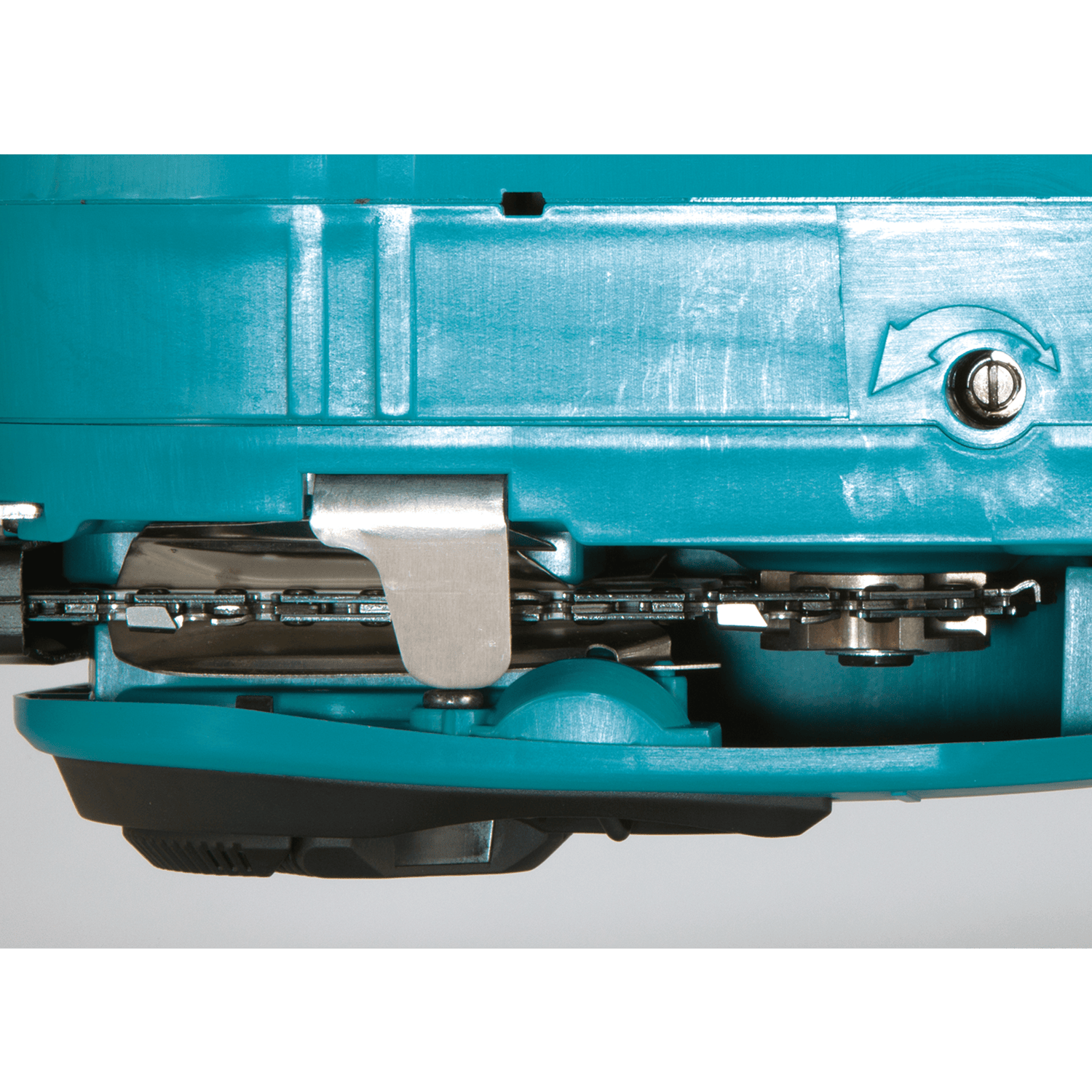

Bottom view of the bar lubrication channel and metal chain drive sprocket on the Makita XCU04 36V 16-inch chainsaw.

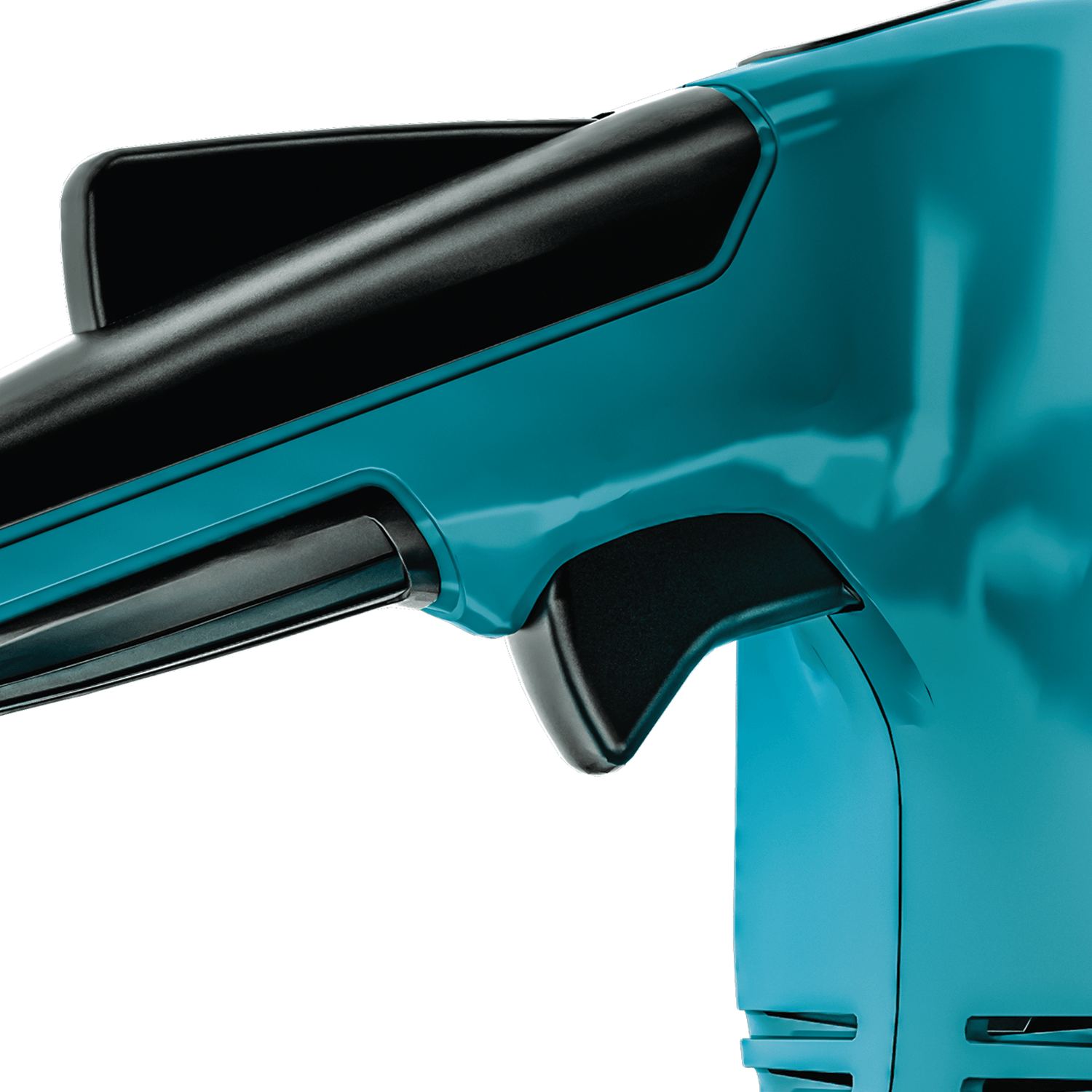

Close-up of the variable speed throttle trigger on the Makita XCU04 chainsaw that regulates chain velocity from 0 up to 3,940 FPM.

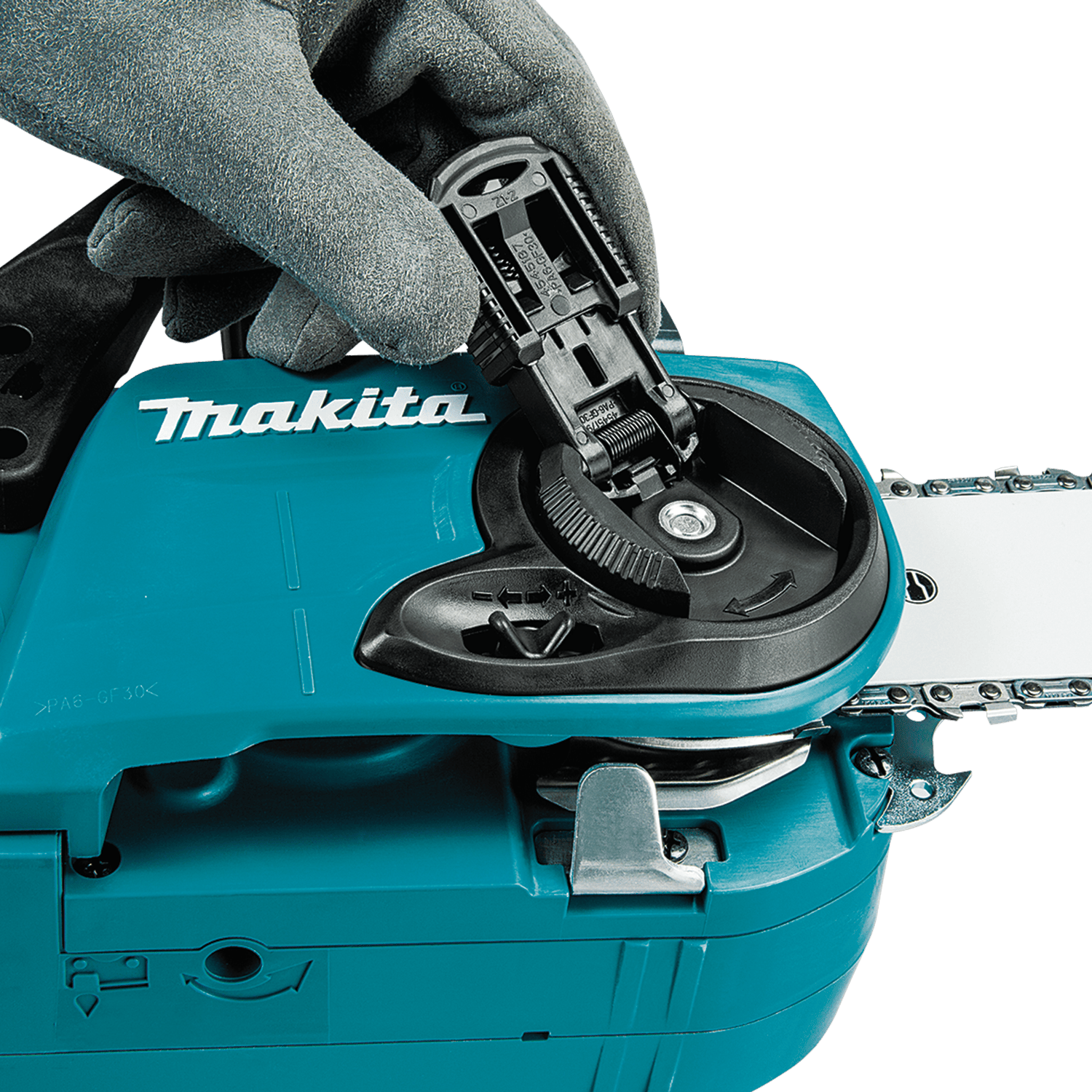

Gloved hand rotating the tool-less chain tensioning lever on the side cover of the Makita XCU04 36V 16-inch brushless chainsaw.

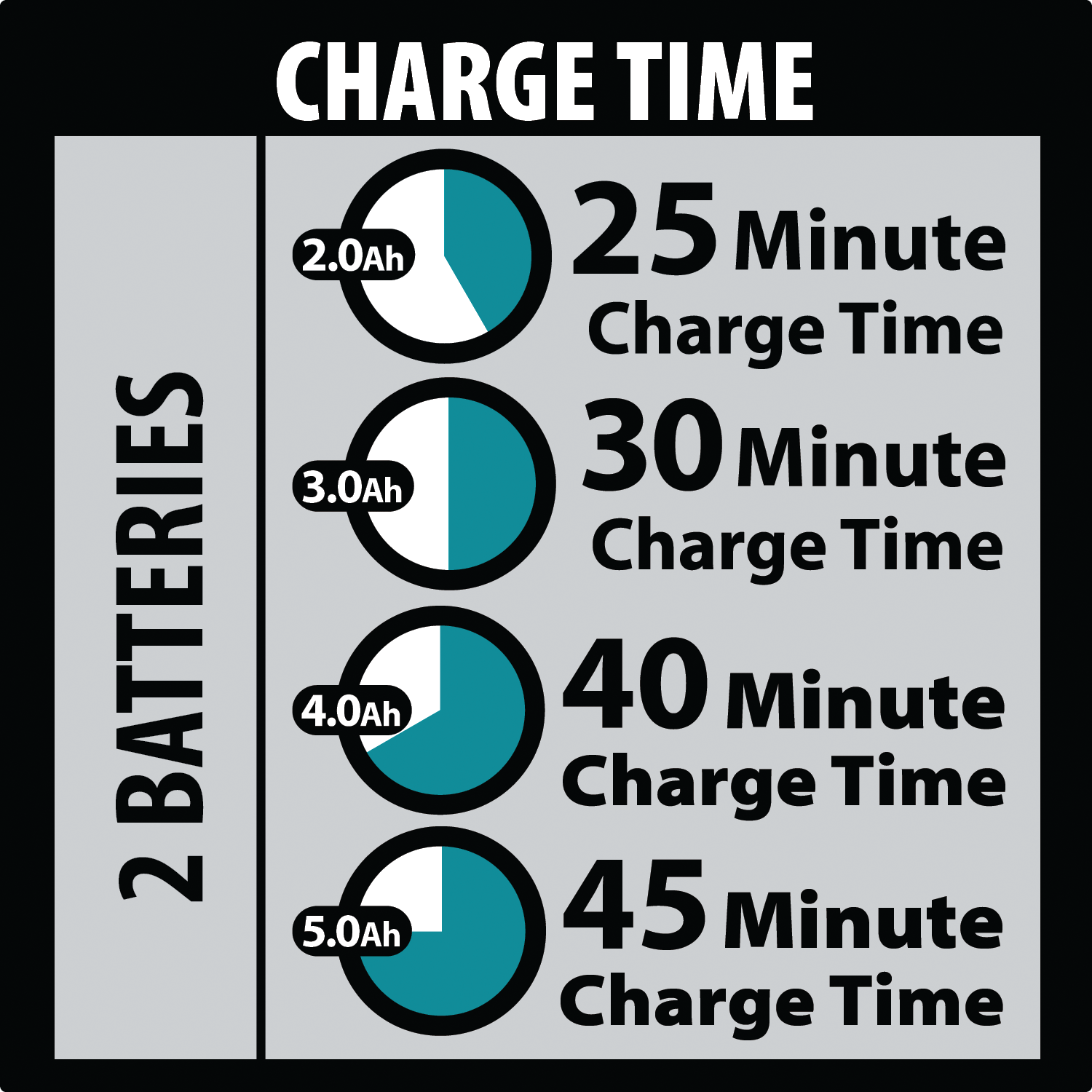

Charging time chart for the Makita DC18RD charger showing 45-minute simultaneous recharge times for two 18V 5.0Ah LXT batteries.
Forester bucking a large pine log using the Makita XCU04PT 36V 16-inch brushless chainsaw operating at 3,940 FPM chain speed.
Makita 18V LXT® Dual Port Rapid Optimum Charger (DC18RD) promotional video
Rule the Outdoors - Fall 2021 - 30 sec promotional video
Makita XCU04PT 36V 18V X2 LXT 16-inch brushless chainsaw kit including two 5.0Ah lithium-ion batteries and a dual-port rapid charger.
Annotated callout diagram of the Makita XCU04 chainsaw detailing its 16-inch guide bar, tool-less chain tensioning, and 36V brushless motor.
Detailed breakdown of the 3/8-inch low-profile .043-gauge chainsaw chain showing narrow kerf cutters and oil-retaining drive links.
Side view of the Makita XCU04 36V cordless chainsaw showing dual 18V battery ports, rear handle controls, and 16-inch guide bar setup.
Makita DC18RD 18V LXT dual-port rapid charger capable of simultaneously charging two 5.0Ah lithium-ion batteries for continuous power.
Full Makita XCU04PT cordless chainsaw kit laid out with the 16-inch rear-handle saw, two 18V 5.0Ah batteries, and a dual-port rapid charger.
Landscaper cutting a thick downed log with the Makita XCU04PT 36V brushless chainsaw operating at 3,940 FPM chain speed.
Close-up of the ergonomic rear handle grip and lock-off safety switch on the Makita XCU04 36V cordless chainsaw.
Gloved operator lifting the tool-less chain tensioning lever on the Makita XCU04 chainsaw for quick field chain adjustments.
Cutaway diagram of the Makita outer rotor brushless motor direct-drive system delivering 32cc gas-equivalent cutting efficiency.
Hand loading an 18V LXT 5.0Ah lithium-ion battery into the dual battery receptacle of the Makita XCU04 36V cordless chainsaw.
Illuminated main power button and LED status indicator on the Makita XCU04 36V brushless chainsaw displaying active standby mode.
Cutaway graphic illustrating the outer rotor BL brushless direct-drive motor assembly on the Makita XCU04 36V 16-inch chainsaw.
LED battery fuel gauge panel on the Makita XCU04 chainsaw indicating full 3-bar charge levels for both installed 18V LXT batteries.
Close-up of the ergonomic rear handle assembly, lock-off safety lever, and variable speed trigger on the Makita XCU04 chainsaw.
Bottom view of the bar lubrication channel and metal chain drive sprocket on the Makita XCU04 36V 16-inch chainsaw.
Close-up of the variable speed throttle trigger on the Makita XCU04 chainsaw that regulates chain velocity from 0 up to 3,940 FPM.
Gloved hand rotating the tool-less chain tensioning lever on the side cover of the Makita XCU04 36V 16-inch brushless chainsaw.
Charging time chart for the Makita DC18RD charger showing 45-minute simultaneous recharge times for two 18V 5.0Ah LXT batteries.
Forester bucking a large pine log using the Makita XCU04PT 36V 16-inch brushless chainsaw operating at 3,940 FPM chain speed.
Makita 18V LXT® Dual Port Rapid Optimum Charger (DC18RD) promotional video
Rule the Outdoors - Fall 2021 - 30 sec promotional video
Makita

Makita Chainsaw Kit XCU04PT 16 Inch 36V 18V X2 LXT Brushless (32cc Gas Equivalent 3940 FPM Tool-less Tension Dual 5Ah Batteries Charger)

In stock
SKU: XCU04PT
$499.00 USD

Description

Makita Logo Logout

Makita XCU04PT 36V (18V X2) LXT Brushless 16-Inch Chainsaw Kit

The Makita XCU04PT 36V (18V X2) LXT Brushless 16-Inch Chainsaw Kit is an outdoor power equipment cutting system engineered to deliver 32cc gas-engine equivalent cutting force for arborists, landscapers, and forestry contractors. Driven by an outer rotor brushless motor direct-drive system producing variable chain speeds up to 3,940 FPM, this 11.1-pound rear-handle saw features a 16-inch guide bar with a 3/8-inch LP pitch and .043-inch gauge chain. Powered by two 18V LXT 5.0Ah lithium-ion batteries without leaving the 18V battery ecosystem, this high-performance timber cutting kit solves gas-engine pull starts, fuel mixing, exhaust emissions, and restrictive cord length challenges on demanding jobsites.

Best Used For:

  • Commercial Tree Trimming & Bucking: Cutting downed timber, thick tree limbs, and logs cleanly with zero gas exhaust emissions.
  • Storm Damage Cleanup & Land Clearing: Clearing fallen trees and dense brush quickly using high 3,940 FPM chain velocity without engine maintenance.
  • Noise-Sensitive Utility Pruning: Executing municipal landscaping and residential tree pruning near schools, hospitals, and quiet neighborhood zones.

Key Performance & Safety Features

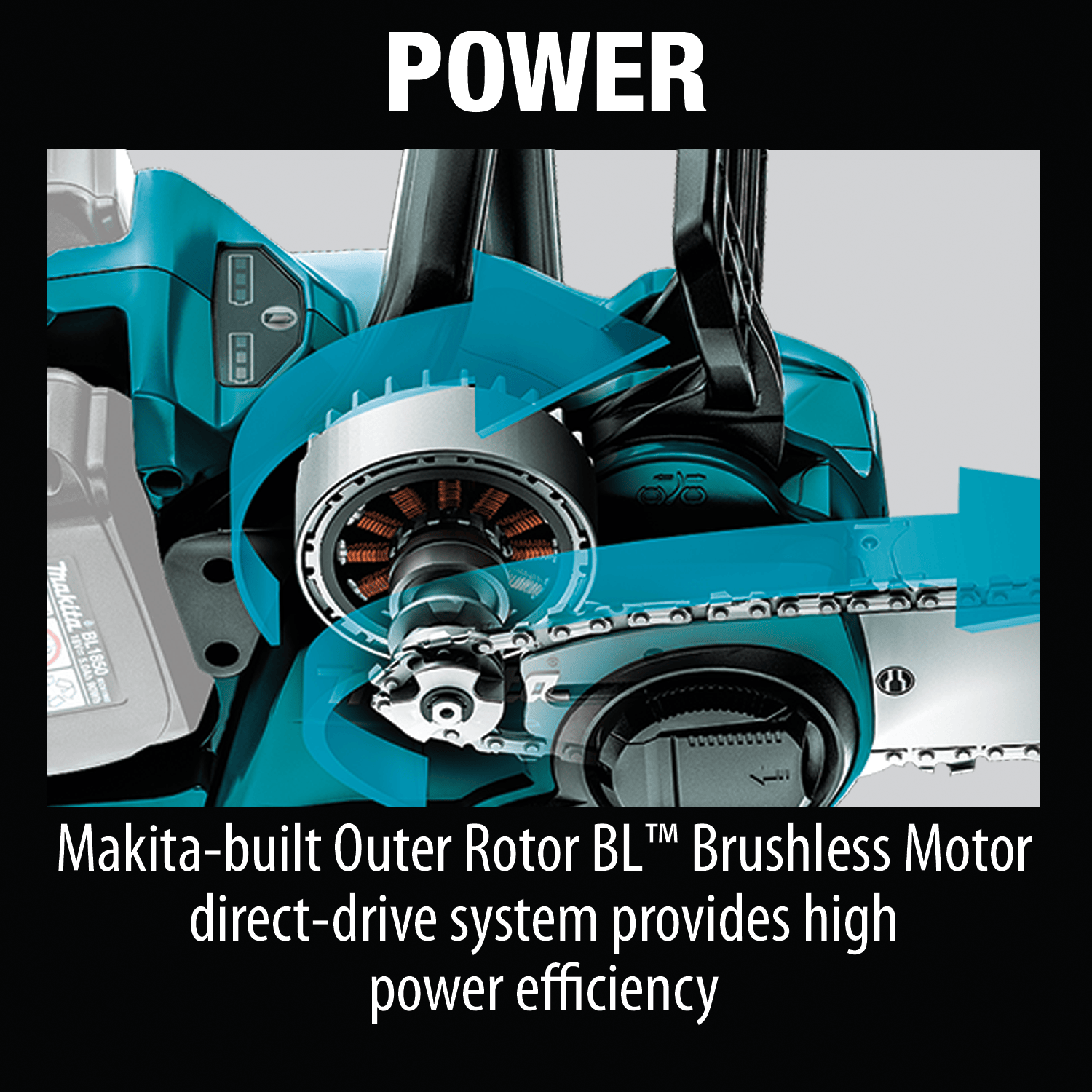

  • Outer Rotor BL Brushless Direct Drive System: Provides high power efficiency equal to a 32cc gas-powered chainsaw without engine oil, spark plugs, or carburetors.
  • Tool-less Chain Tensioning Assembly: Enables rapid on-the-fly bar adjustment and chain replacement without requiring external wrenches or screwdrivers.
  • Built-In Electric & Mechanical Chain Brakes: Front hand guard actuates the mechanical safety chain brake immediately, backed by an instant electric motor stop.
  • Adjustable Automatic Chain Oiler: Features a large oil reservoir with a sight view window so operators can meter lubrication based on wood hardness.
  • Extreme Protection Technology (XPT): Internal protective seals divert water spray and fine sawdust away from core motor windings and electronics.
  • Star Protection Computer Controls: Monitors operational current draw, cell voltage, and thermal levels to prevent overload, over-discharge, and overheating.

What's Included

  • (1) 36V (18V X2) LXT Brushless 16" Chainsaw (XCU04Z)
  • (2) 18V LXT Lithium-Ion 5.0Ah Batteries (BL1850B)
  • (1) 18V LXT Lithium-Ion Dual Port Rapid Charger (DC18RD)
  • (1) 16" Guide Bar, 3/8" LP, .043" (E-00094)
  • (1) 16" Saw Chain, 3/8" LP, .043", 56 Drive Links (E-00240)
  • (1) Protective Plastic Guide Bar Chain Cover

Technical Specifications

Manufacturer Brand Makita USA
Model Part Number (OEM) XCU04PT
Gas Power Output Equivalency 32cc Gas Engine
Guide Bar Length Capacity 16.0 in. (406.4 mm)
Saw Chain Pitch & Gauge 3/8 in. Low Profile Pitch / .043 in. Gauge
Maximum Chain Speed 0 - 3,940 FPM (0 - 20 m/s)
Chain Tensioning Adjustment Mechanism Tool-less Quick-Adjust Dial
Operating Battery Voltage System 36V (Requires Two 18V LXT® Batteries)
Included Battery Capacity Rating (2) 18V LXT® 5.0Ah Packs (BL1850B)
Motor Type & Drive System Outer Rotor BL™ Brushless Direct Drive
Net Weight (With Two 5.0Ah Batteries) 11.1 lbs (5.03 kg)
Universal Product Code (UPC) 088381-852142
Pro-Tip: Top off the bar and chain oil reservoir before every cutting session and ensure the automatic oiler adjustment screw is set higher when cutting hard oak or dry lumber.
