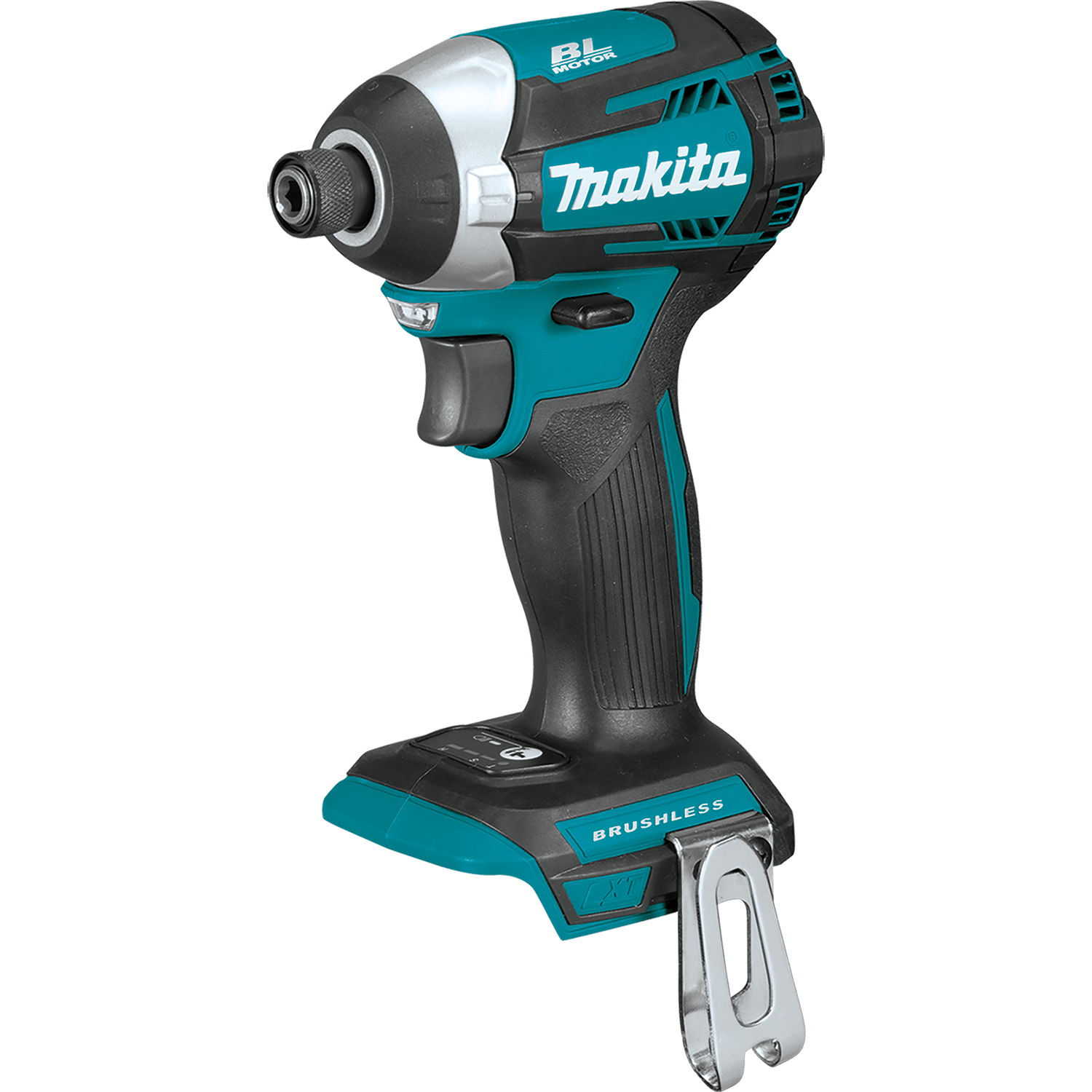

Makita XDT14Z 18V LXT cordless brushless 1/4-inch hex impact driver bare tool with belt clip for jobsite fastening.

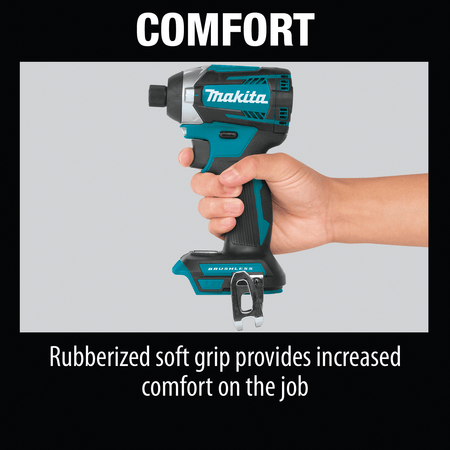

Ergonomic rubberized grip handle on the Makita impact driver provides operator comfort and control during extended work.

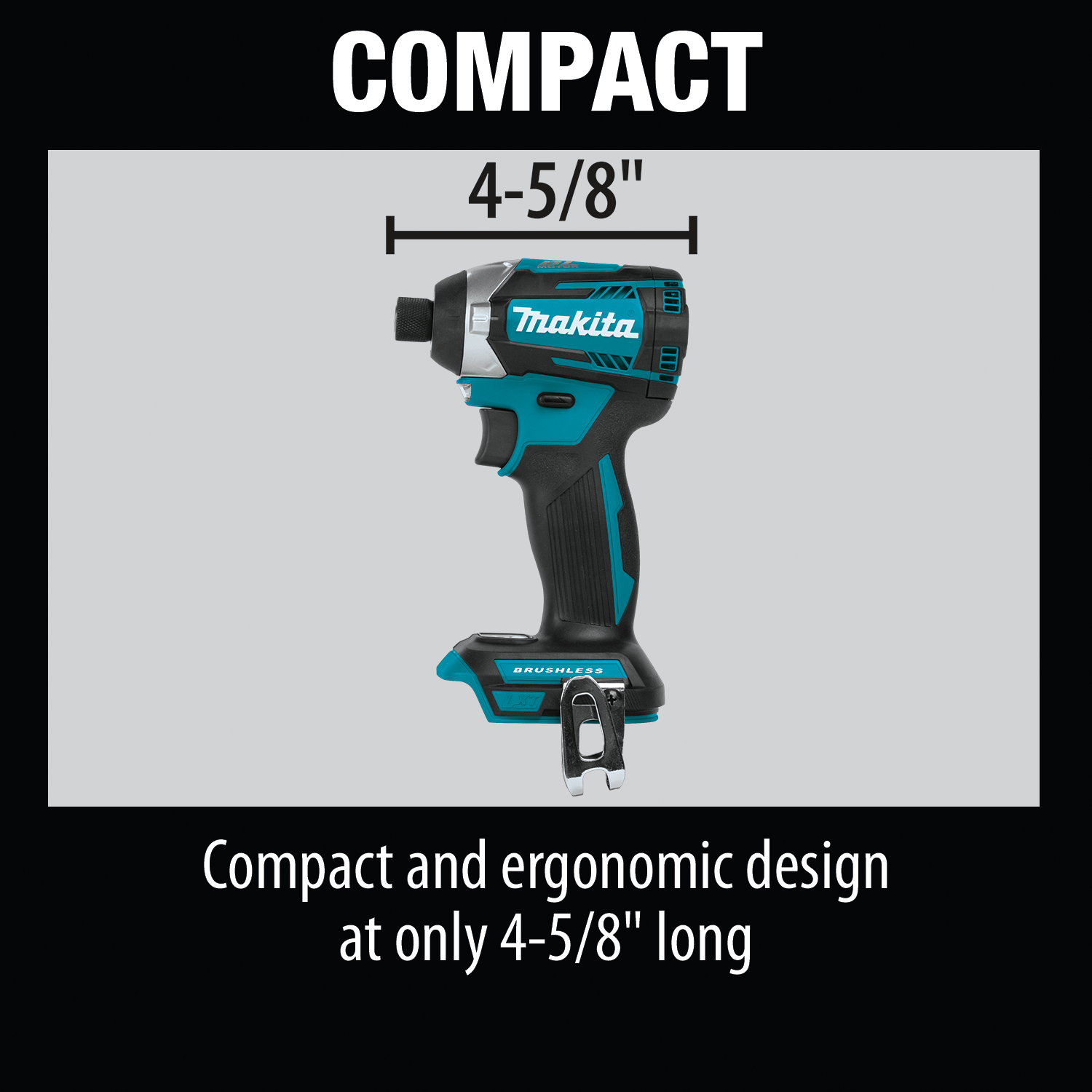

Makita XDT14Z compact body measures 4-5/8 inches long to fit easily between narrow stud bays and tight framing spaces.
Makita brushless motor delivers 1,550 in-lbs of torque and 3,600 RPM for driving screws into steel studs and wood.

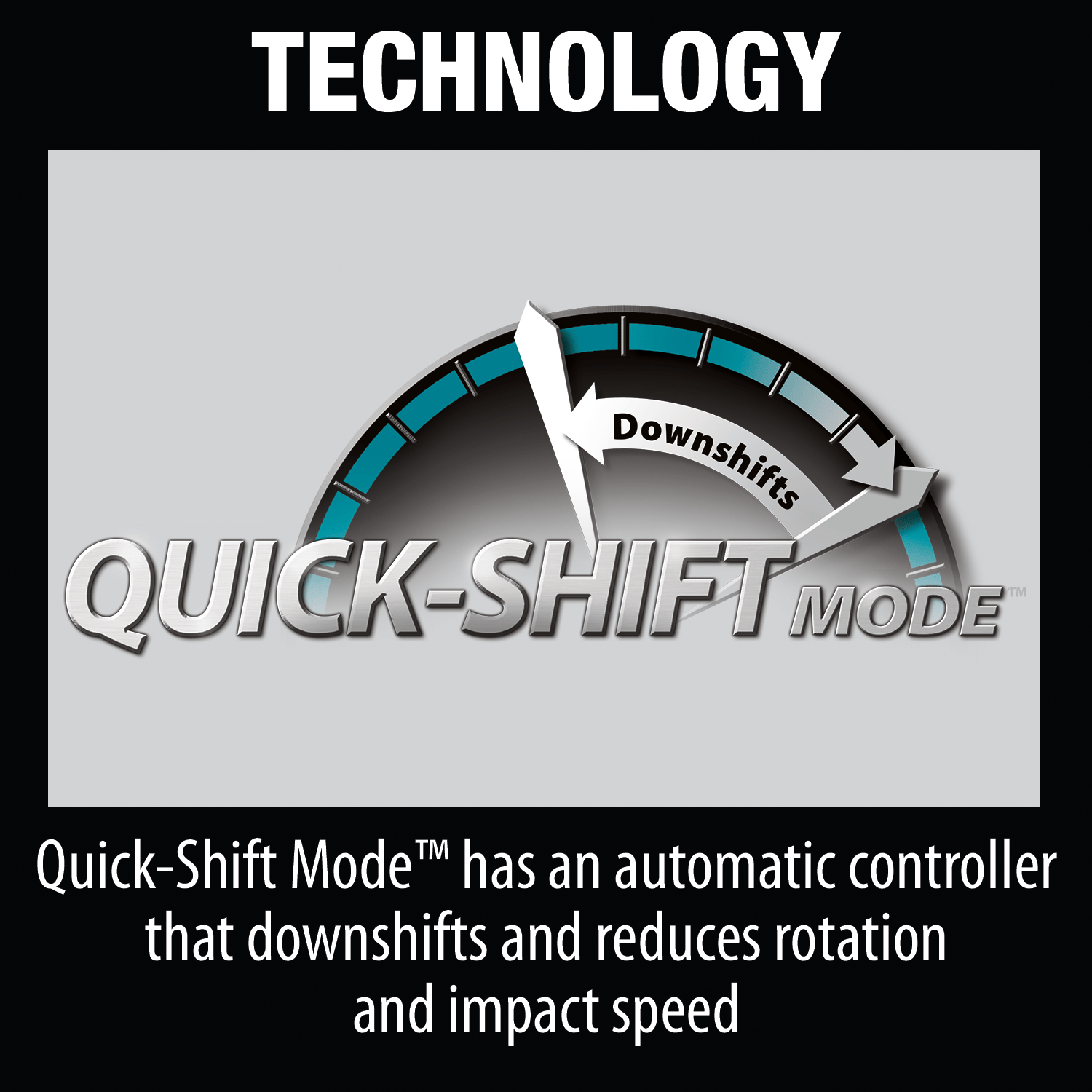

Makita Quick-Shift Mode diagram illustrates automatic downshifting to prevent screw cam-out and stripped threads.

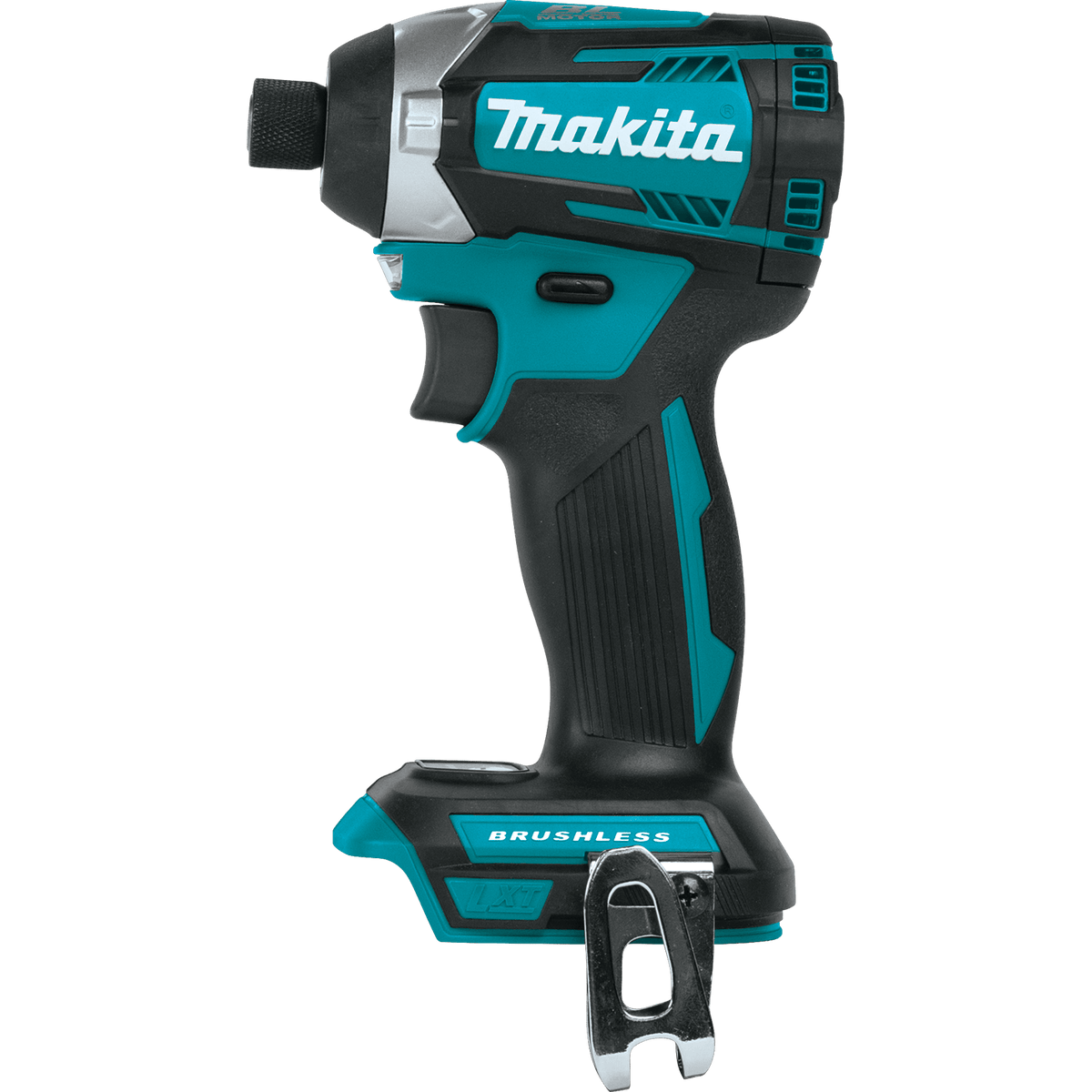

Side profile of the Makita 18V brushless impact driver bare tool highlights the balanced motor housing and belt clip.

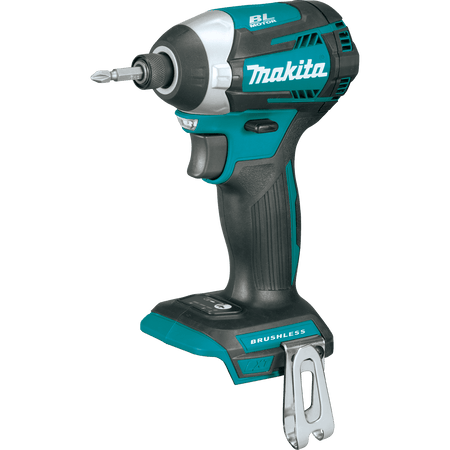

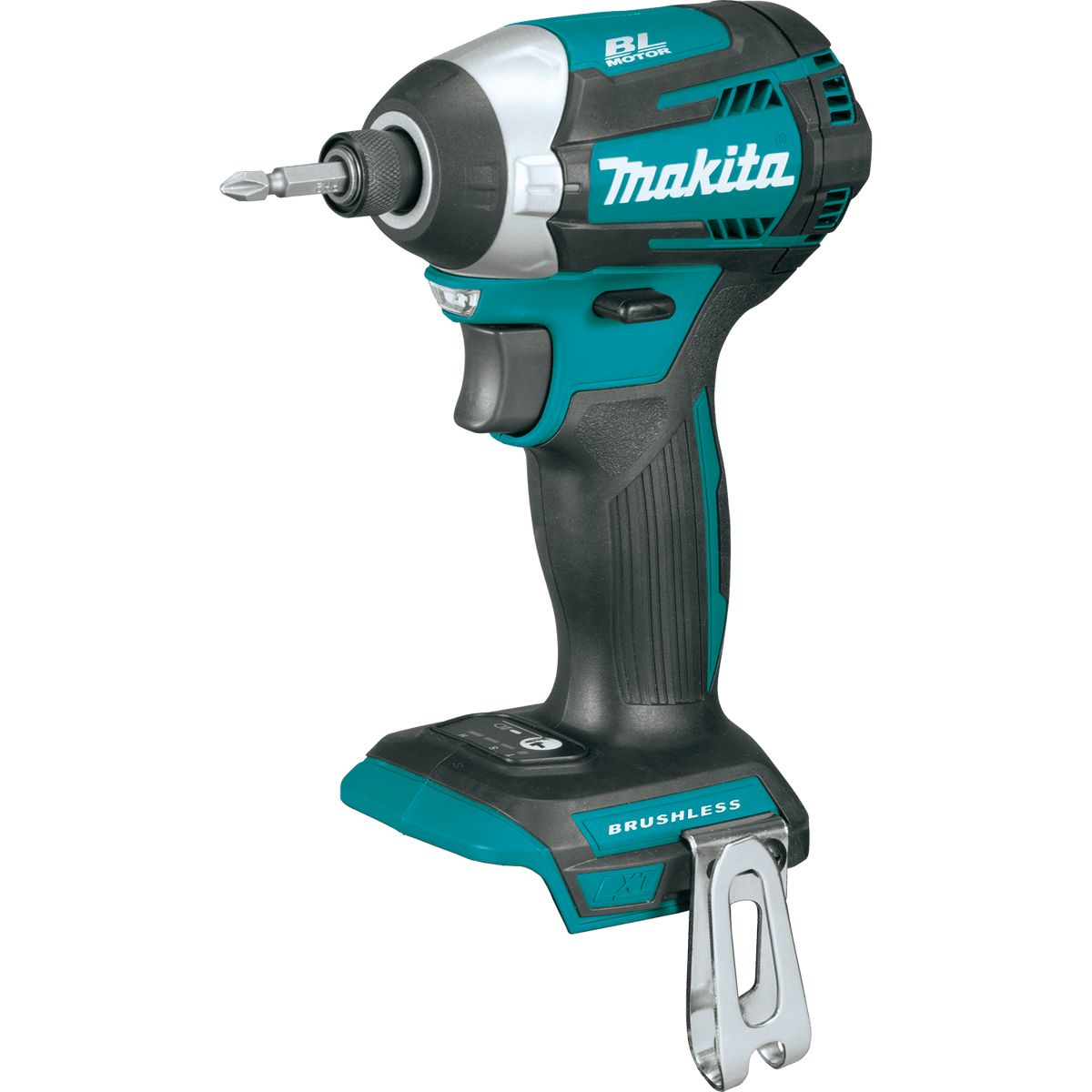

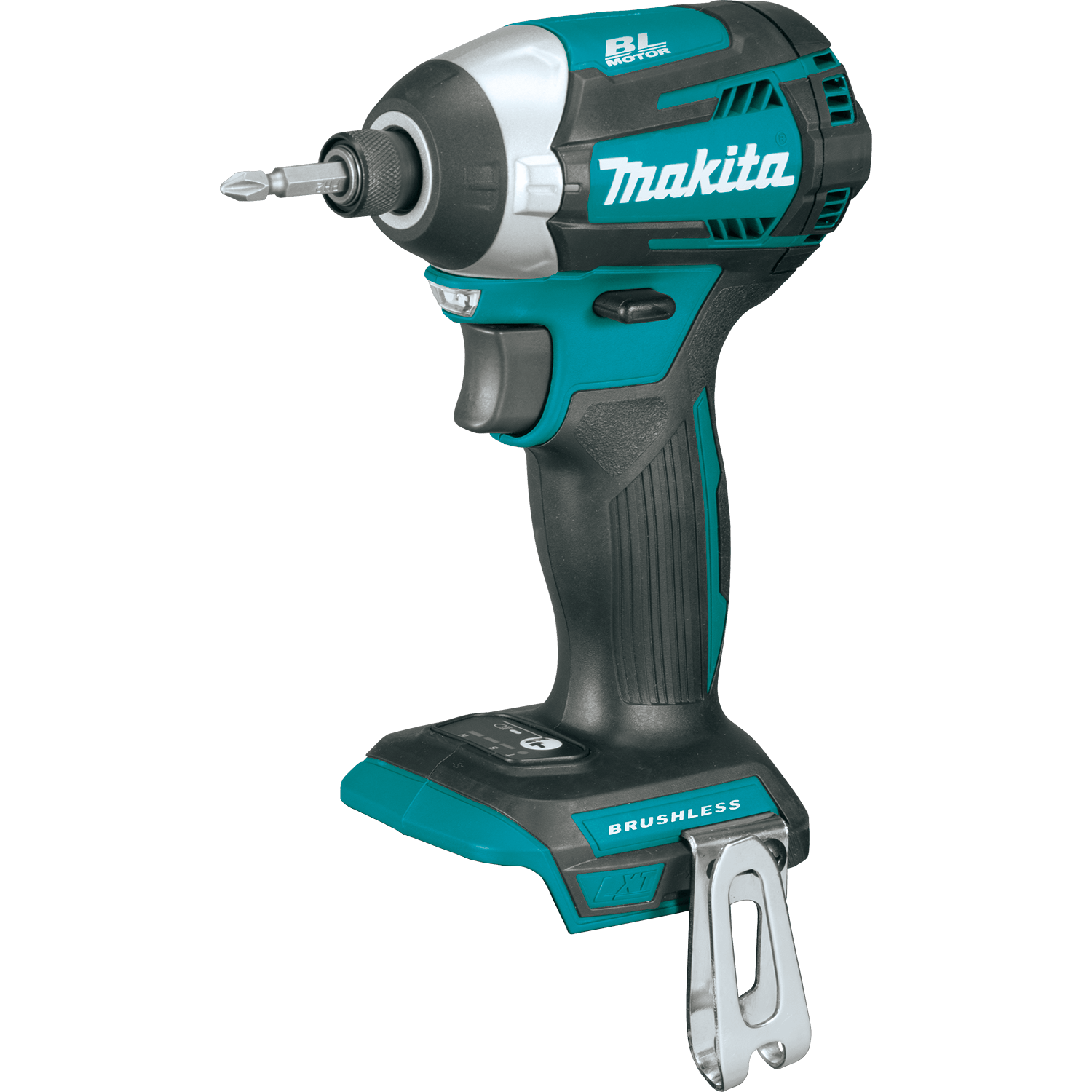

Makita XDT14Z impact driver with a 1/4-inch hex driver bit inserted into the quick-release chuck for rapid bit changes.

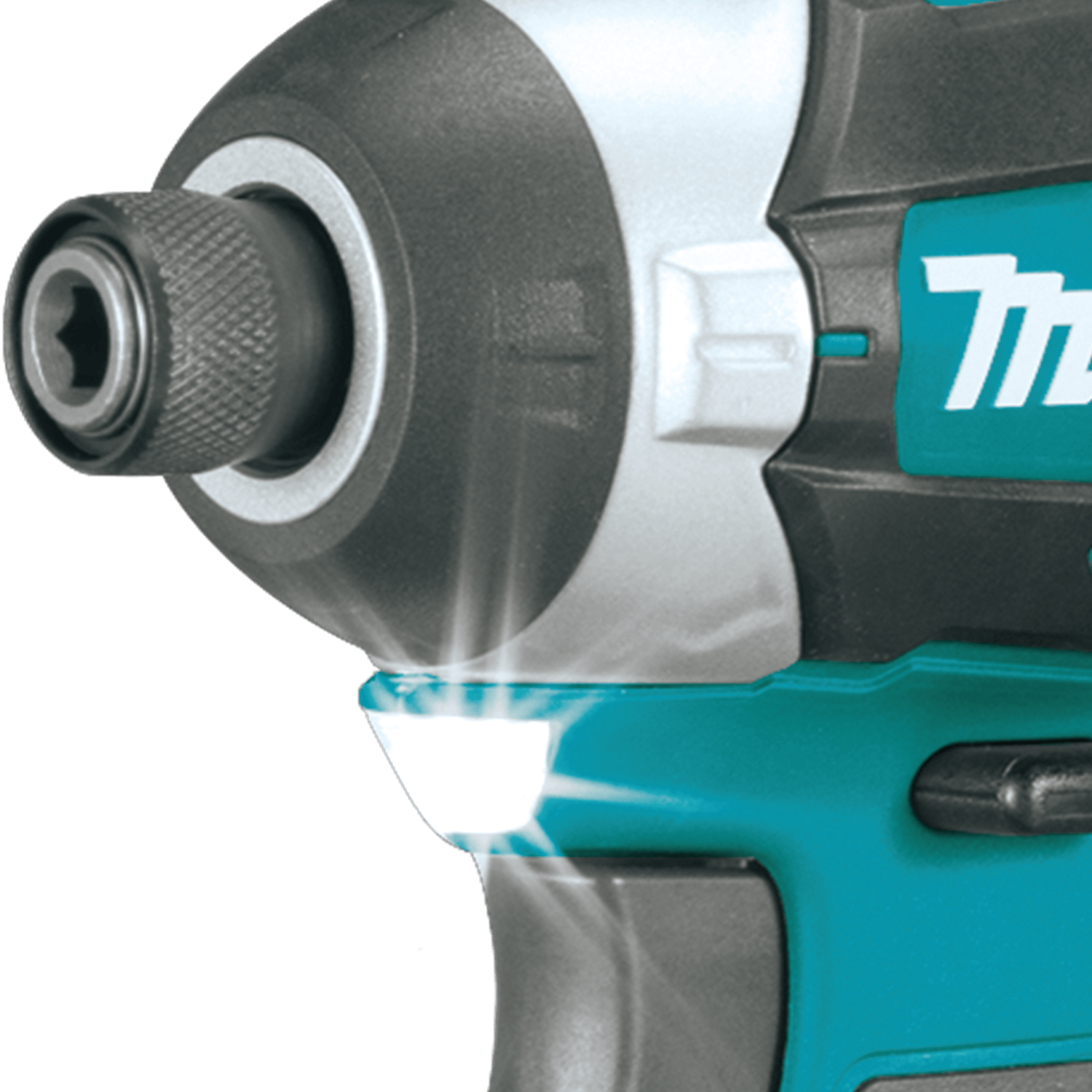

Integrated LED work light below the 1/4-inch hex chuck on the Makita impact driver illuminates dark work areas.

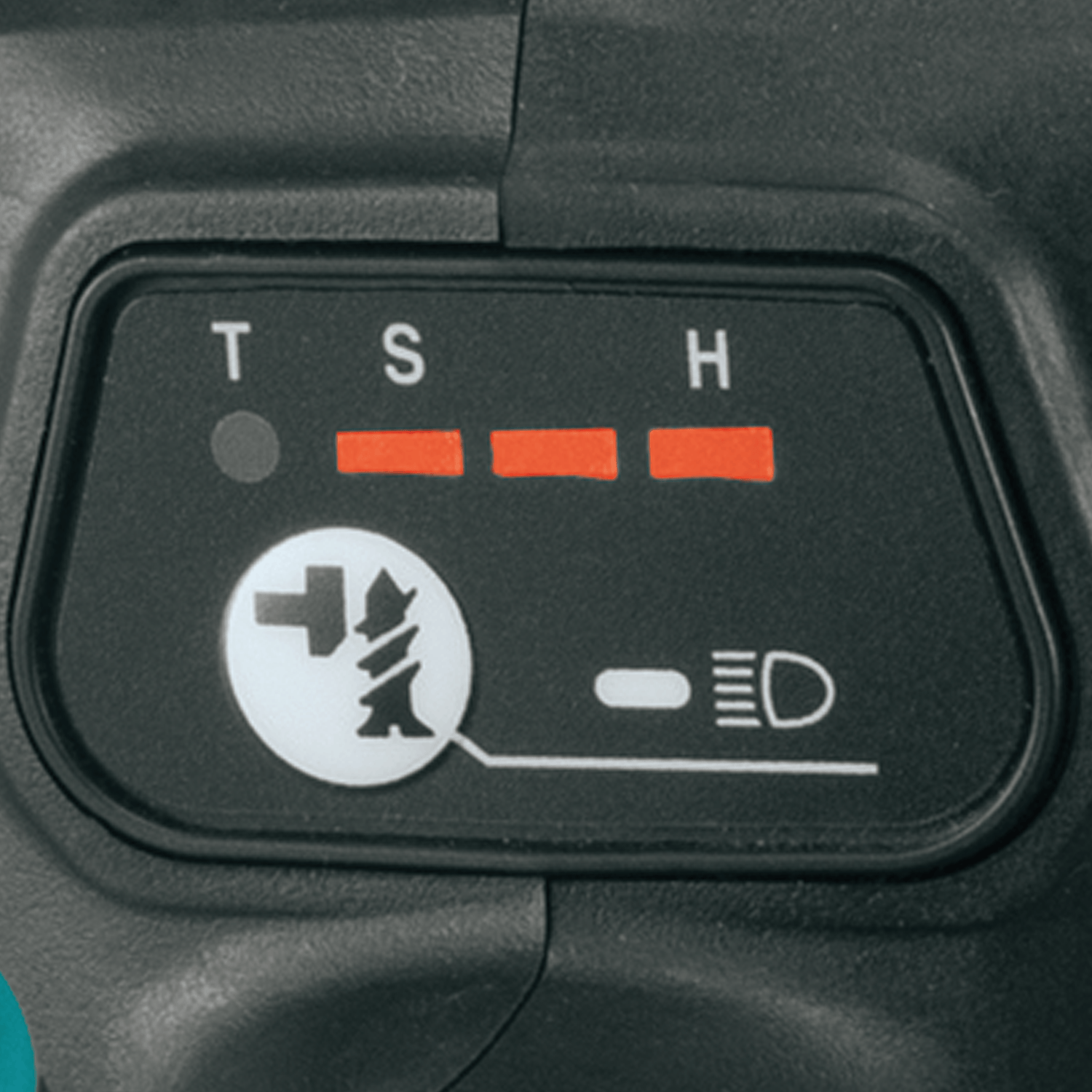

Digital control panel on the Makita XDT14Z displays 3-speed power levels, T-mode setting, and light controls.

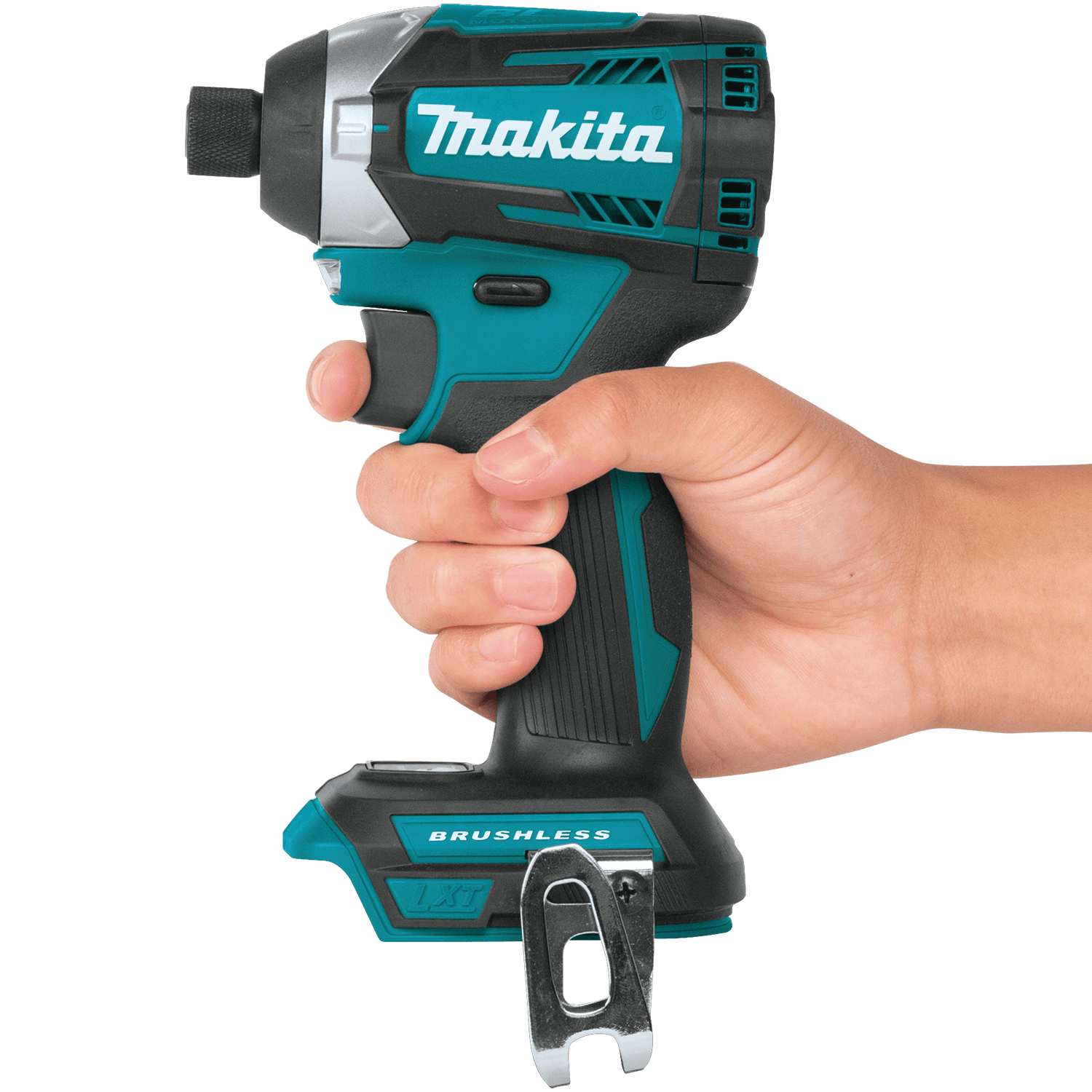

User holding the compact 4-5/8-inch Makita 18V brushless impact driver demonstrating balanced one-handed operation.

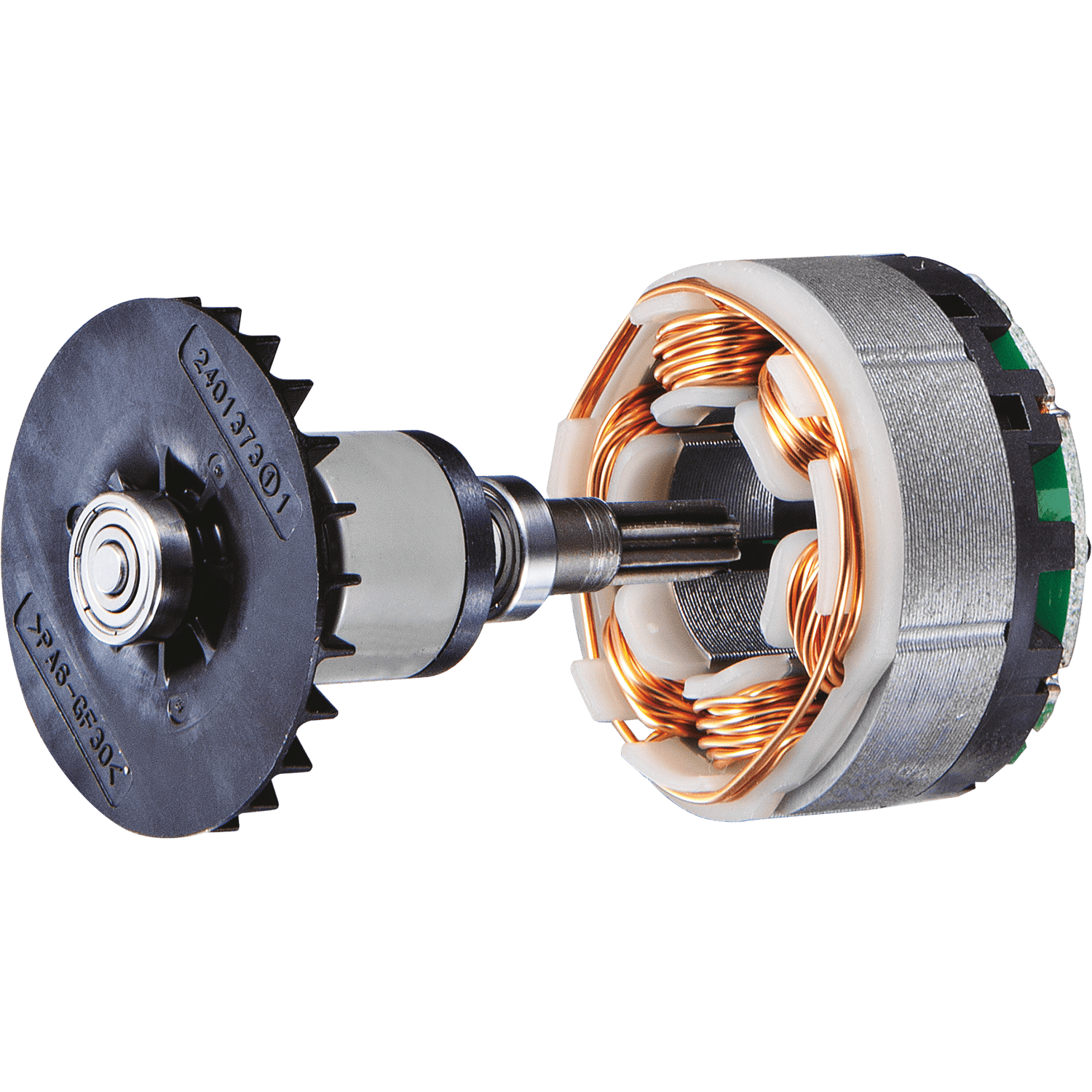

Makita brushless motor assembly with copper windings and rotor delivers high energy efficiency and extended tool runtime.
Contractor drives a self-drilling screw into a metal stud using the Makita 18V impact driver with illuminated LED light.

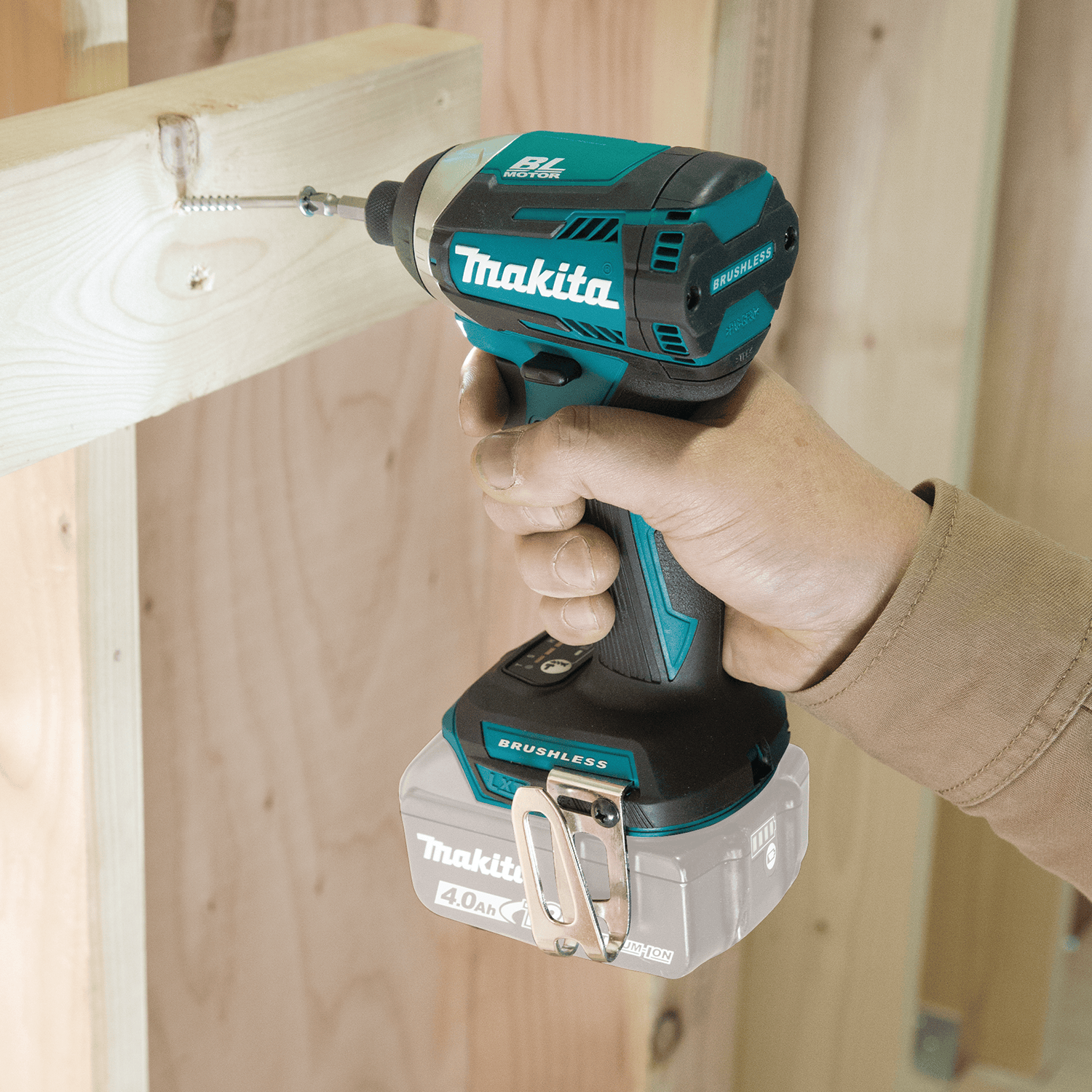

Fastening wood framing screws with the compact Makita XDT14Z 18V cordless brushless impact driver on a construction site.

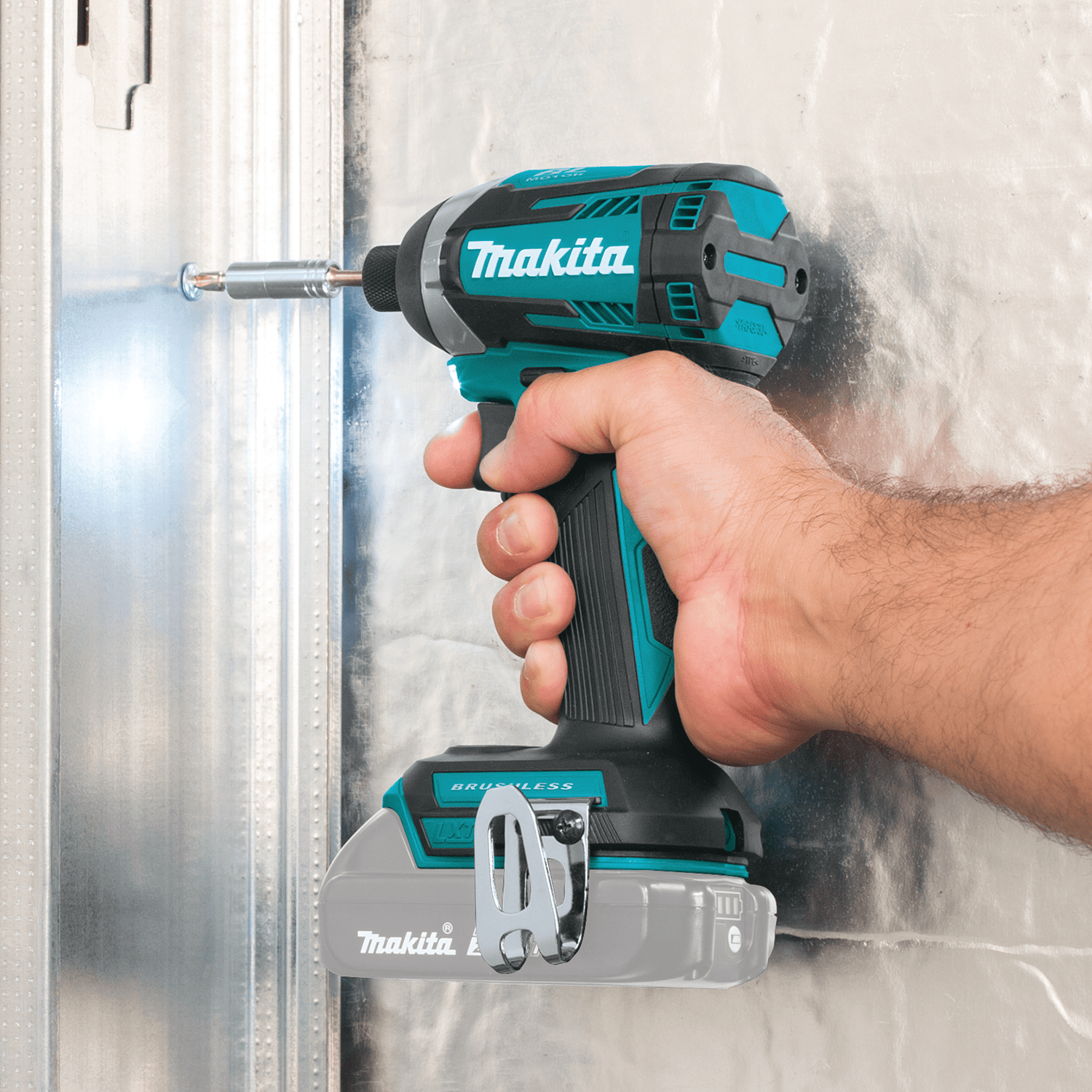

Worker uses the Makita XDT14Z 1/4-inch hex impact driver to drive self-tapping fasteners into commercial steel framing.

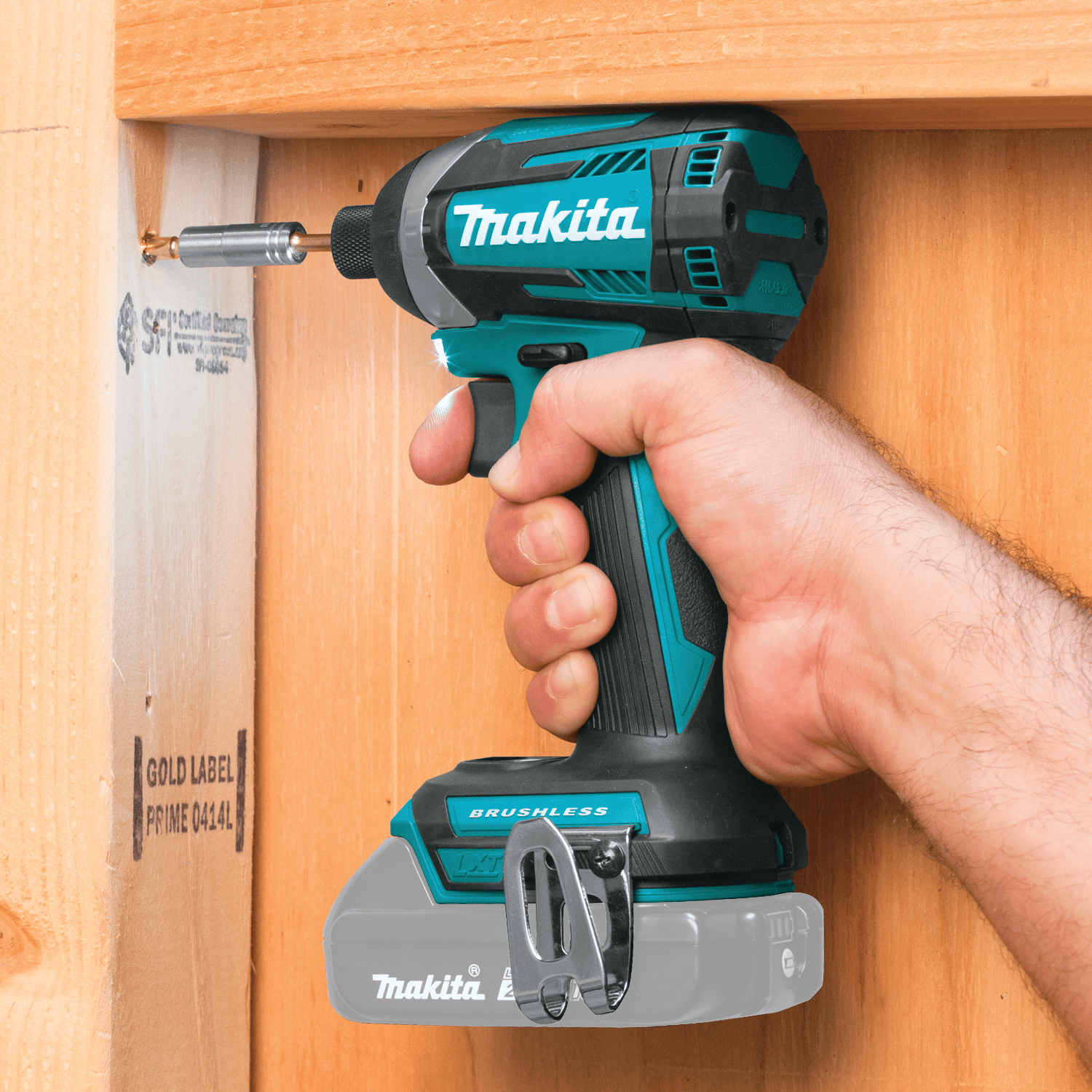

Compact 4-5/8-inch Makita impact driver fits between narrow 2x4 wood wall studs to drive fasteners in tight corners.

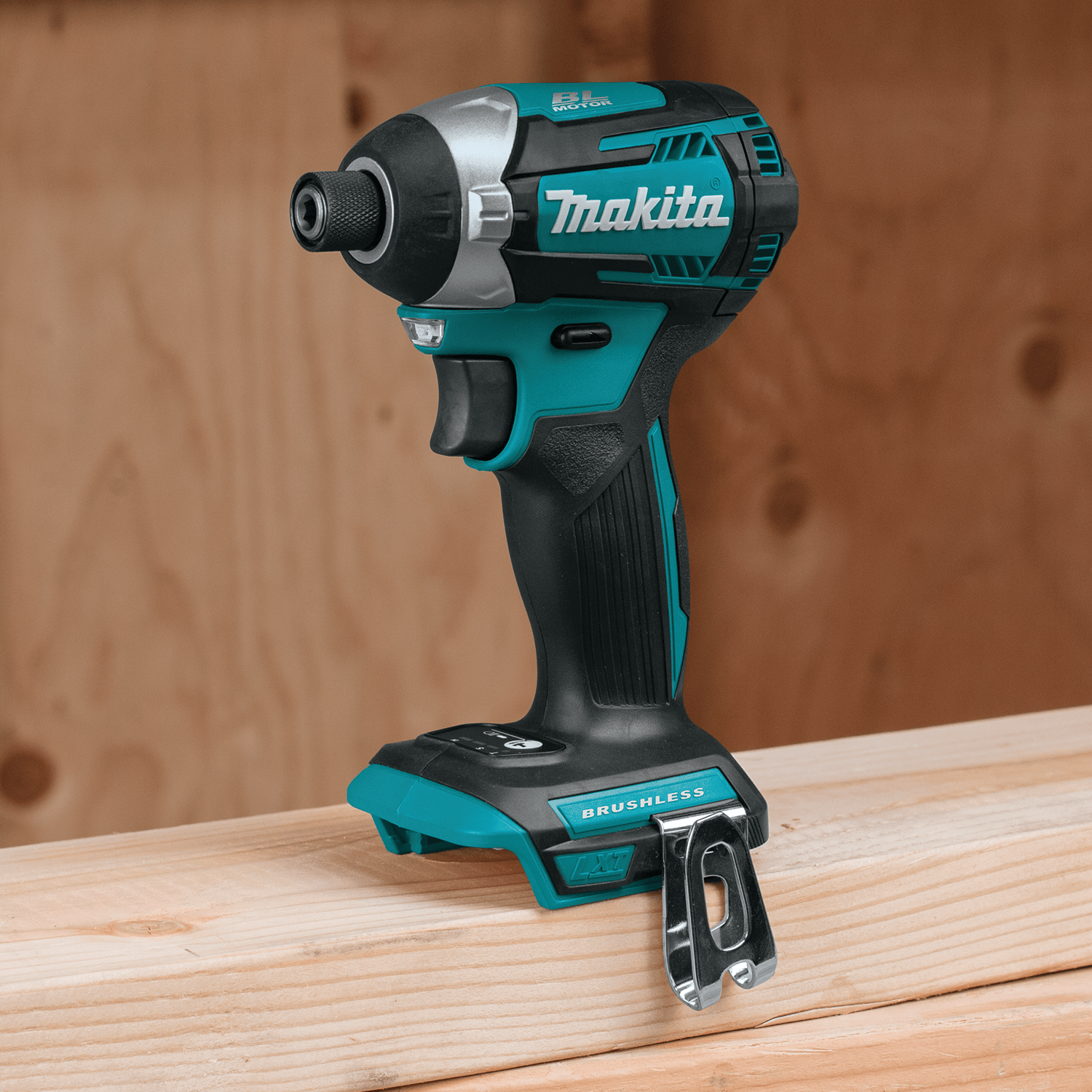

Makita XDT14Z 18V LXT cordless brushless impact driver resting upright on a 2x4 lumber framing board in a workshop.
MAKITA – The LXT® Advantage promotional video
Makita XDT14Z 18V LXT cordless brushless 1/4-inch hex impact driver bare tool with belt clip for jobsite fastening.

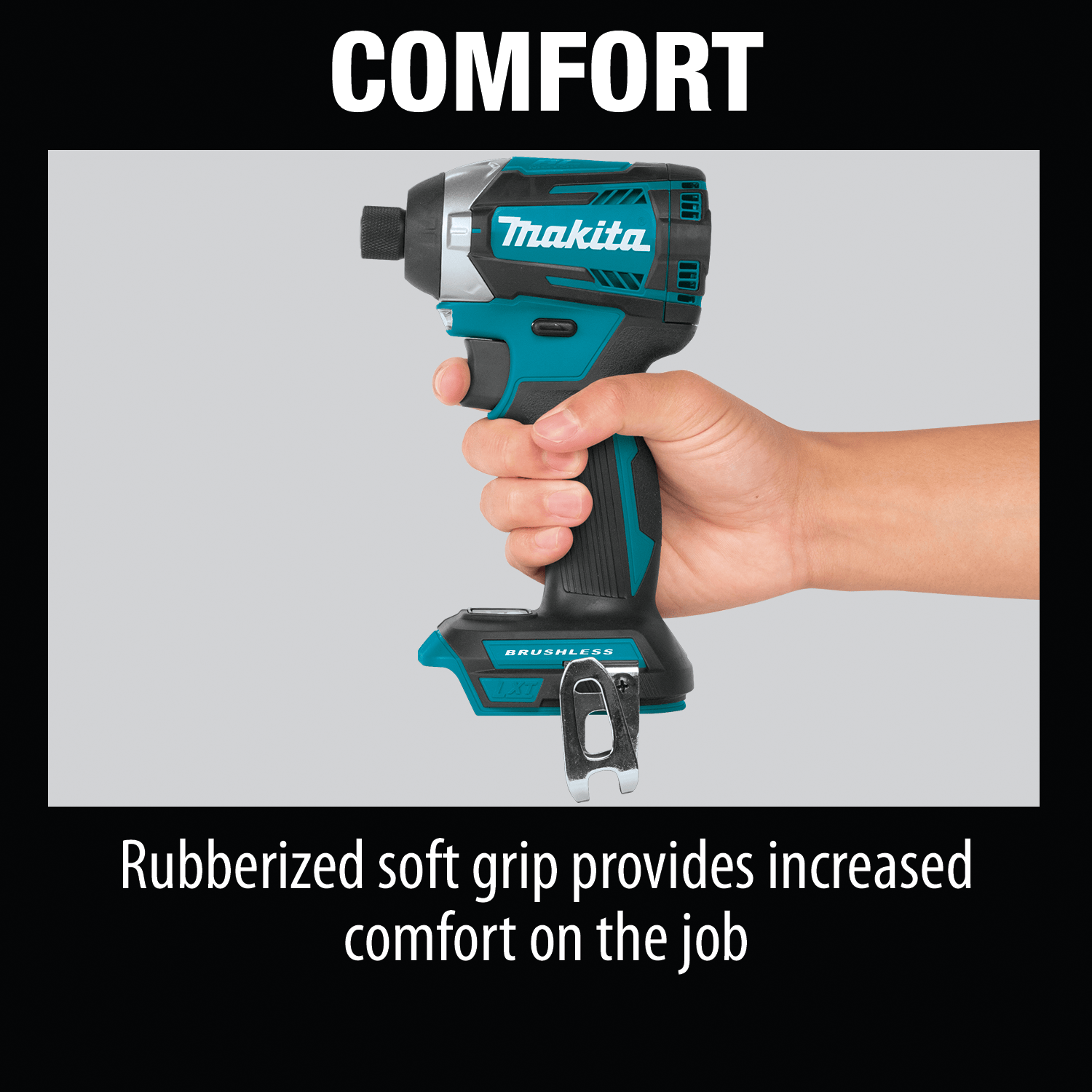

Ergonomic rubberized grip handle on the Makita impact driver provides operator comfort and control during extended work.
Makita XDT14Z compact body measures 4-5/8 inches long to fit easily between narrow stud bays and tight framing spaces.

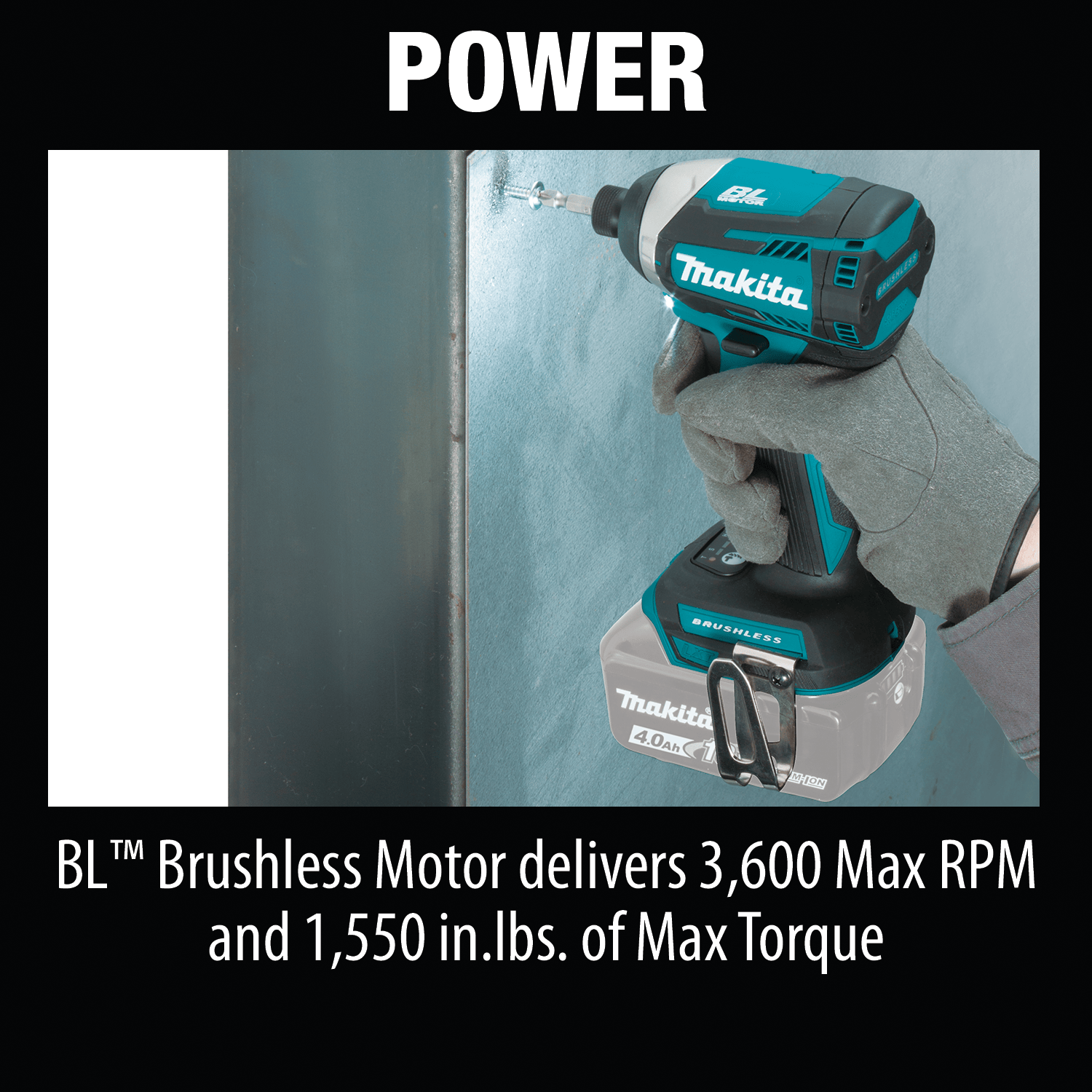

Makita brushless motor delivers 1,550 in-lbs of torque and 3,600 RPM for driving screws into steel studs and wood.
Makita Quick-Shift Mode diagram illustrates automatic downshifting to prevent screw cam-out and stripped threads.

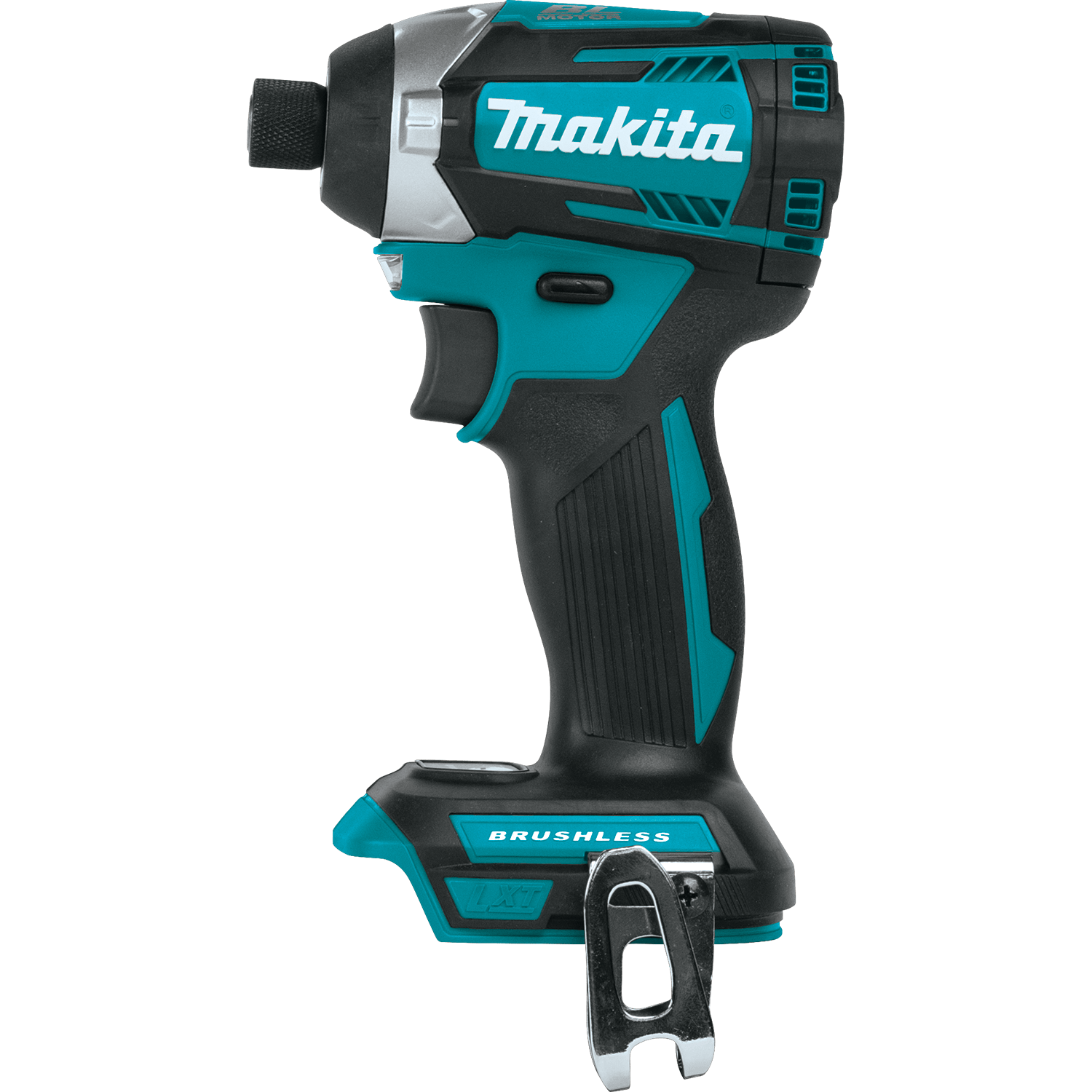

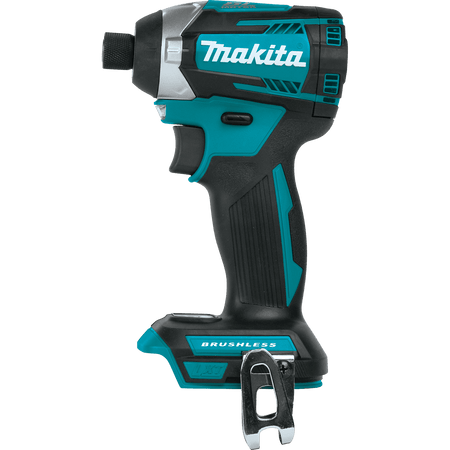

Side profile of the Makita 18V brushless impact driver bare tool highlights the balanced motor housing and belt clip.
Makita XDT14Z impact driver with a 1/4-inch hex driver bit inserted into the quick-release chuck for rapid bit changes.
Integrated LED work light below the 1/4-inch hex chuck on the Makita impact driver illuminates dark work areas.
Digital control panel on the Makita XDT14Z displays 3-speed power levels, T-mode setting, and light controls.
User holding the compact 4-5/8-inch Makita 18V brushless impact driver demonstrating balanced one-handed operation.
Makita brushless motor assembly with copper windings and rotor delivers high energy efficiency and extended tool runtime.

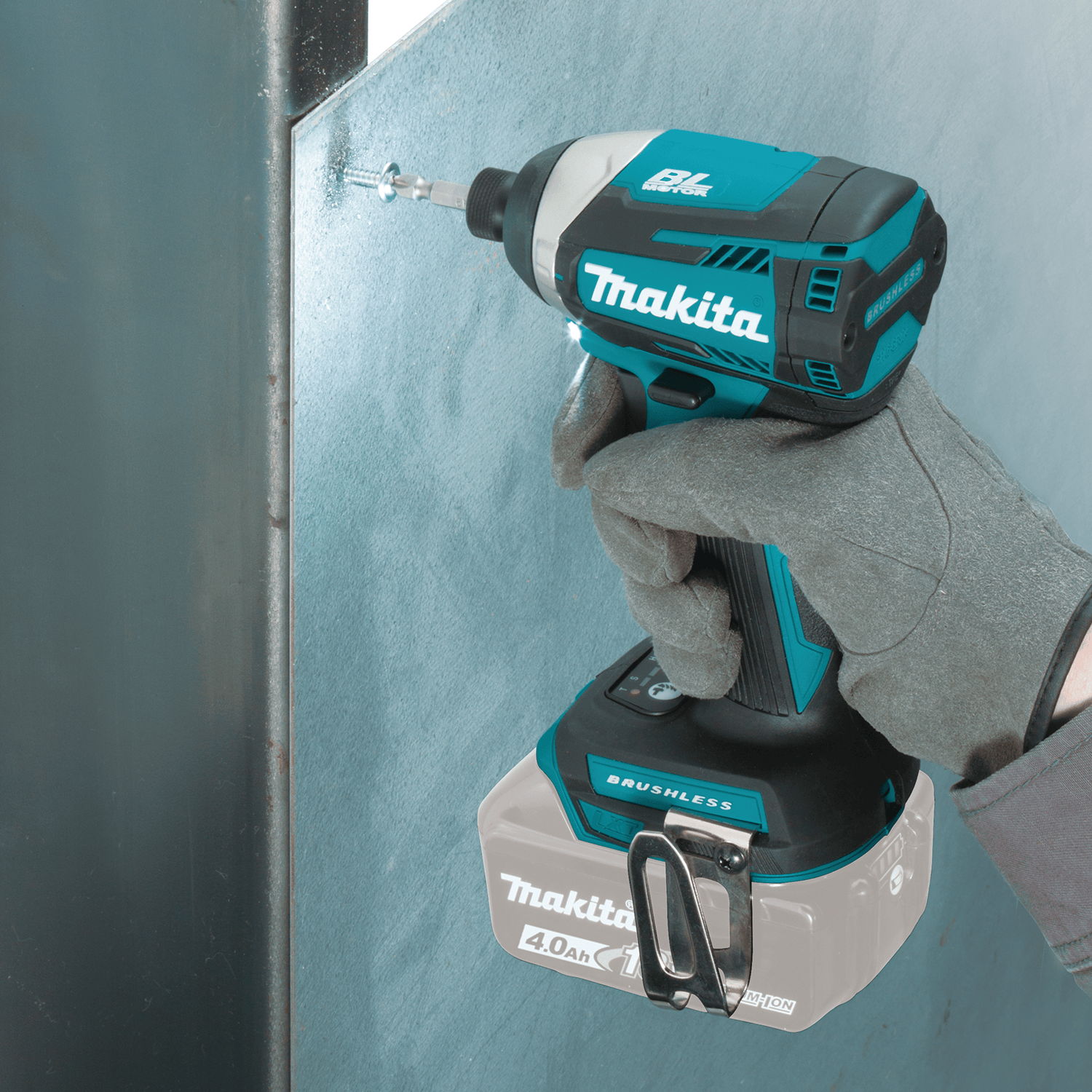

Contractor drives a self-drilling screw into a metal stud using the Makita 18V impact driver with illuminated LED light.
Fastening wood framing screws with the compact Makita XDT14Z 18V cordless brushless impact driver on a construction site.
Worker uses the Makita XDT14Z 1/4-inch hex impact driver to drive self-tapping fasteners into commercial steel framing.
Compact 4-5/8-inch Makita impact driver fits between narrow 2x4 wood wall studs to drive fasteners in tight corners.
Makita XDT14Z 18V LXT cordless brushless impact driver resting upright on a 2x4 lumber framing board in a workshop.
MAKITA – The LXT® Advantage promotional video
Makita

Makita Cordless Impact Driver XDT14Z 18V 1/4 Inch Hex (1550 In Lbs Torque 3 Speed Quick Shift Brushless Fastening Bare Tool)

In stock
SKU: XDT14Z
$299.00 USD

Description

Makita Logo Logout

Makita XDT14Z 18V LXT Brushless Cordless Quick-Shift Mode 3-Speed 1/4-Inch Hex Impact Driver Bare Tool

The Makita XDT14Z 18V LXT Brushless Cordless 1/4-Inch Hex Impact Driver drives structural lag bolts, self-tapping sheet metal screws, and dense framing fasteners across demanding commercial construction jobsites. Powered by an advanced Makita-built brushless motor, this compact 4-5/8-inch long tool generates 1,550 inch-pounds of max torque while delivering up to 3,600 RPM and 3,800 IPM for high-speed fastening. Featuring proprietary Quick-Shift Mode™ technology that automatically downshifts rotation before driving screws into place to prevent stripping and thread shearing, this lightweight 3.3-pound impact driver provides electricians, carpenters, and HVAC installers with unmatched precision. **Battery and charger sold separately.

Best Used For:

  • Self-Drilling Sheet Metal Fastening: Preventing screw cam-out, thread stripping, and head shearing in metal framing using automated Quick-Shift Mode™.
  • High-Speed Wood Framing & Decking: Driving long structural lag screws and deck fasteners continuously at up to 3,600 RPM.
  • Electrical & Cabinet Installation in Tight Spaces: Maneuvering into narrow cabinet enclosures and stud bays with an ultra-short 4-5/8-inch head profile.

Key Performance & Safety Features

  • High-Torque Brushless Motor: Delivers 1,550 in-lbs of maximum fastening torque while optimizing battery energy for up to 50% longer run time per charge.
  • Quick-Shift Mode™ Electronic Controller: Automatically decreases rotation speed right before the fastener seats to prevent screw cross-threading and material blowouts.
  • 3-Speed Power Selection: Digital 3-speed selector switch provides 0-1,100 / 0-2,100 / 0-3,600 RPM and 0-1,100 / 0-2,600 / 0-3,800 IPM for matched application control.
  • Ultra-Compact Ergonomic Design: Compact 4-5/8-inch overall length minimizes operator fatigue and fits easily into tight framing bays.
  • Extreme Protection Technology (XPT™): Engineered protective seals channel moisture and airborne jobsite dust away from vital internal electronics.

What's Included

  • (1) Makita 18V LXT Brushless 3-Speed Impact Driver (XDT14Z - Bare Tool)
  • (1) Reversible Heavy-Duty Steel Belt Clip

Technical Specifications

Specification Detail
Model Number / Part ID XDT14Z (Impact Driver)
Hex Shank Drive Interface 0.25 in (1/4 in) Quick-Release Hex Chuck
Operating Battery Voltage 18V LXT® Lithium-Ion Platform
Maximum Fastening Torque 1,550 in-lbs (130 ft-lbs / 175 N•m)
No-Load Speed (3 Speeds) 0 - 1,100 / 0 - 2,100 / 0 - 3,600 RPM
Impact Frequency (3 Speeds) 0 - 1,100 / 0 - 2,600 / 0 - 3,800 IPM
Smart Drive Technology Quick-Shift Mode™ Automated Speed Controller
Overall Tool Length 4.625 in (4-5/8 in / 117 mm)
Tool Weight with Battery 3.3 lbs (1.50 kg)
Motor Technology Type Electronically Controlled Brushless (BL™)
Manufacturer Warranty Makita 3-Year Limited Warranty
Pro-Tip: Enable Quick-Shift Mode™ when driving self-drilling Tek screws into steel studs; the tool automatically downshifts rotational speed just before seating to prevent stripping fastener heads or snapping screw shanks.
