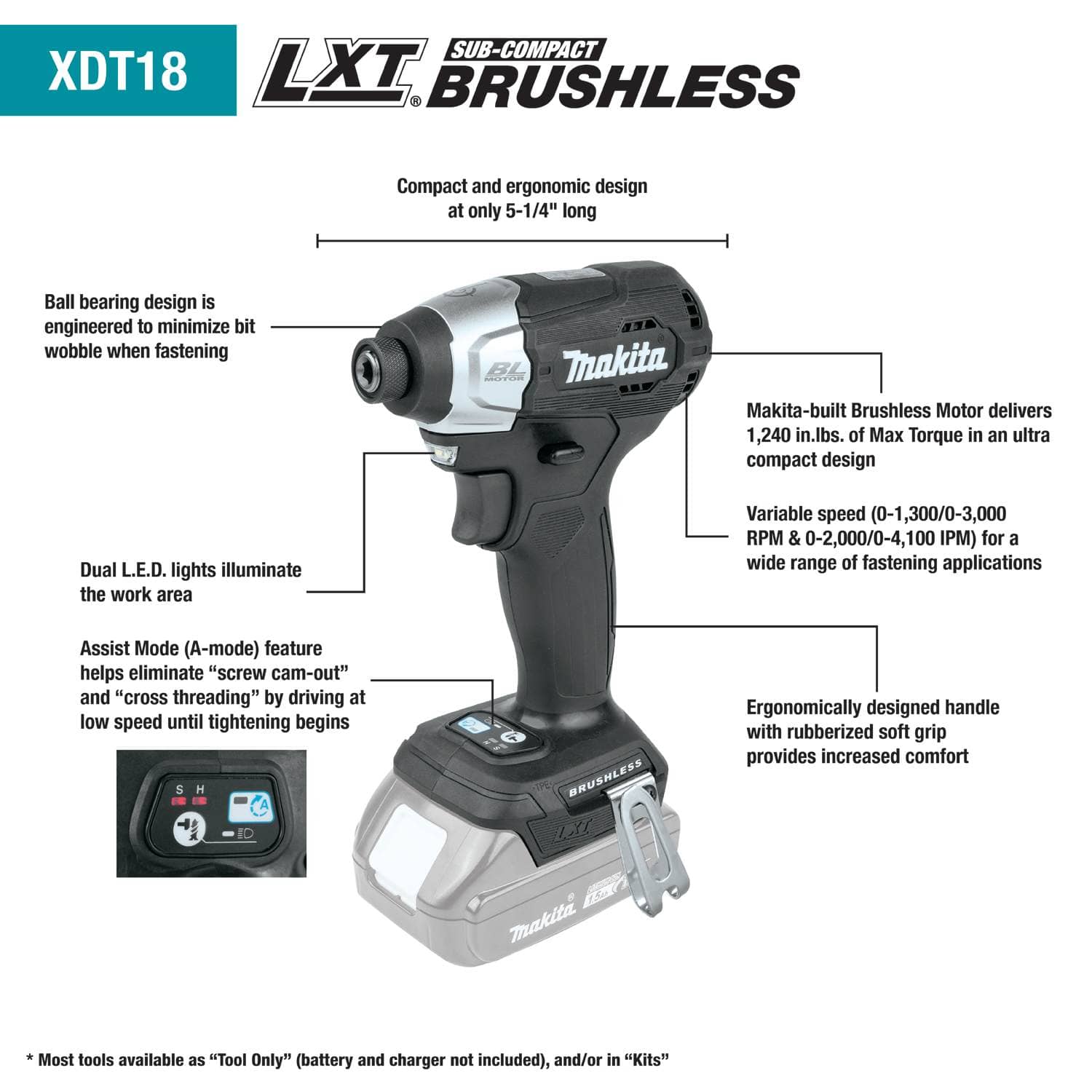

Feature diagram of the Makita XDT18ZB impact driver with callouts detailing its brushless motor, variable speed, A-mode, and ergonomic design.
Side profile of the Makita XDT18ZB impact driver showing its compact length of 5 and 1/4 inches.
A hand holding the compact Makita XDT18ZB impact driver to demonstrate its small, ergonomic size.
The Makita XDT18ZB impact driver resting on a wooden workbench in a workshop setting.
Close-up of the Makita impact driver's electronic control panel showing speed, assist mode, and light settings.
A worker using the Makita impact driver to install a metal electrical junction box onto a steel stud.

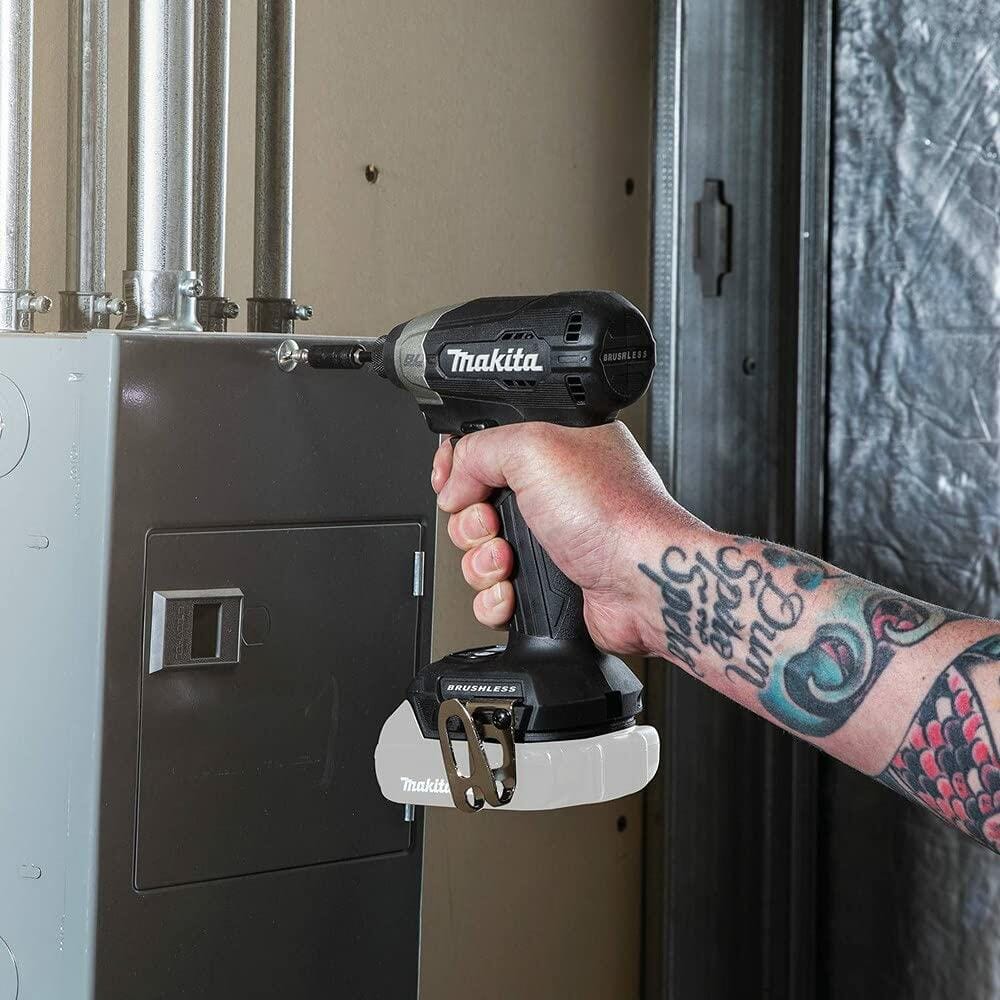

The Makita impact driver being used by a tradesperson to fasten conduit fittings to an electrical panel.

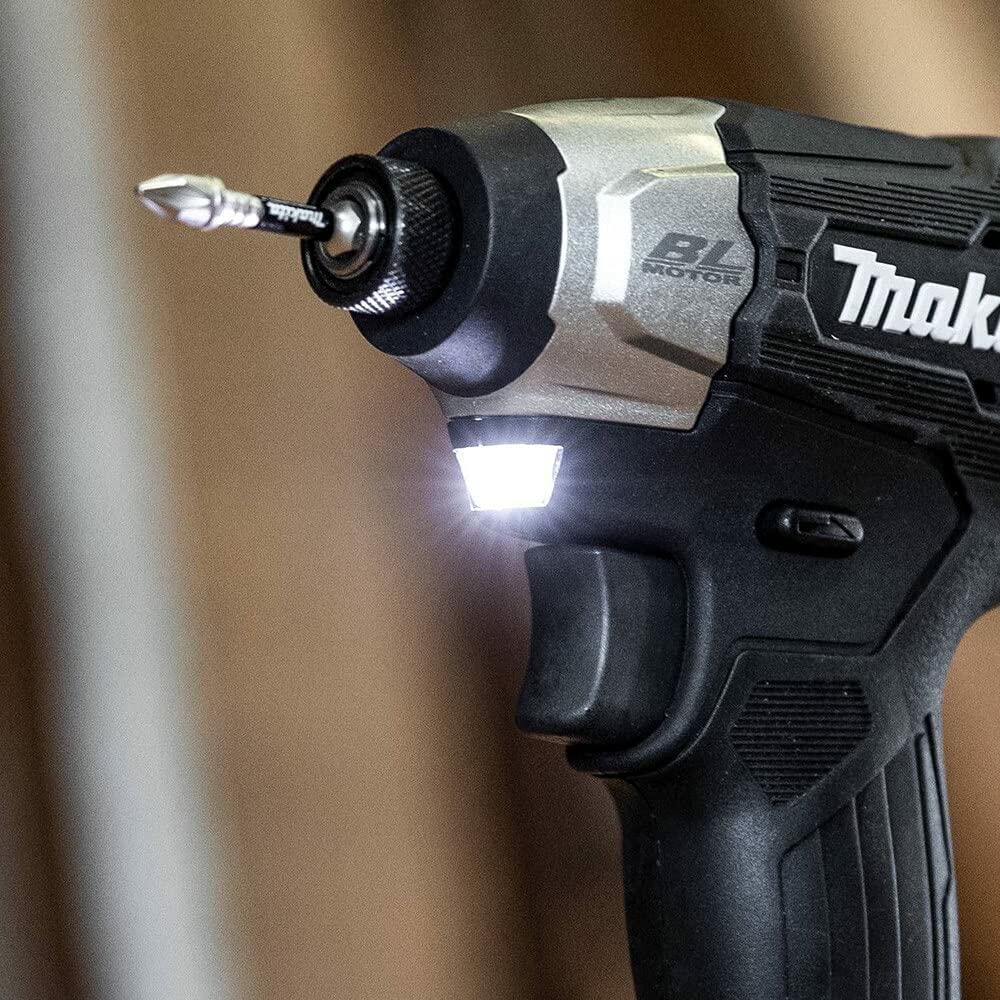

A detailed view of the front of the Makita XDT18ZB, highlighting the bright, illuminated dual LED work lights.
A studio shot of the black and silver Makita 18V LXT Sub-Compact Brushless Cordless Impact Driver XDT18ZB against a white background.
Feature diagram of the Makita XDT18ZB impact driver with callouts detailing its brushless motor, variable speed, A-mode, and ergonomic design.
Side profile of the Makita XDT18ZB impact driver showing its compact length of 5 and 1/4 inches.

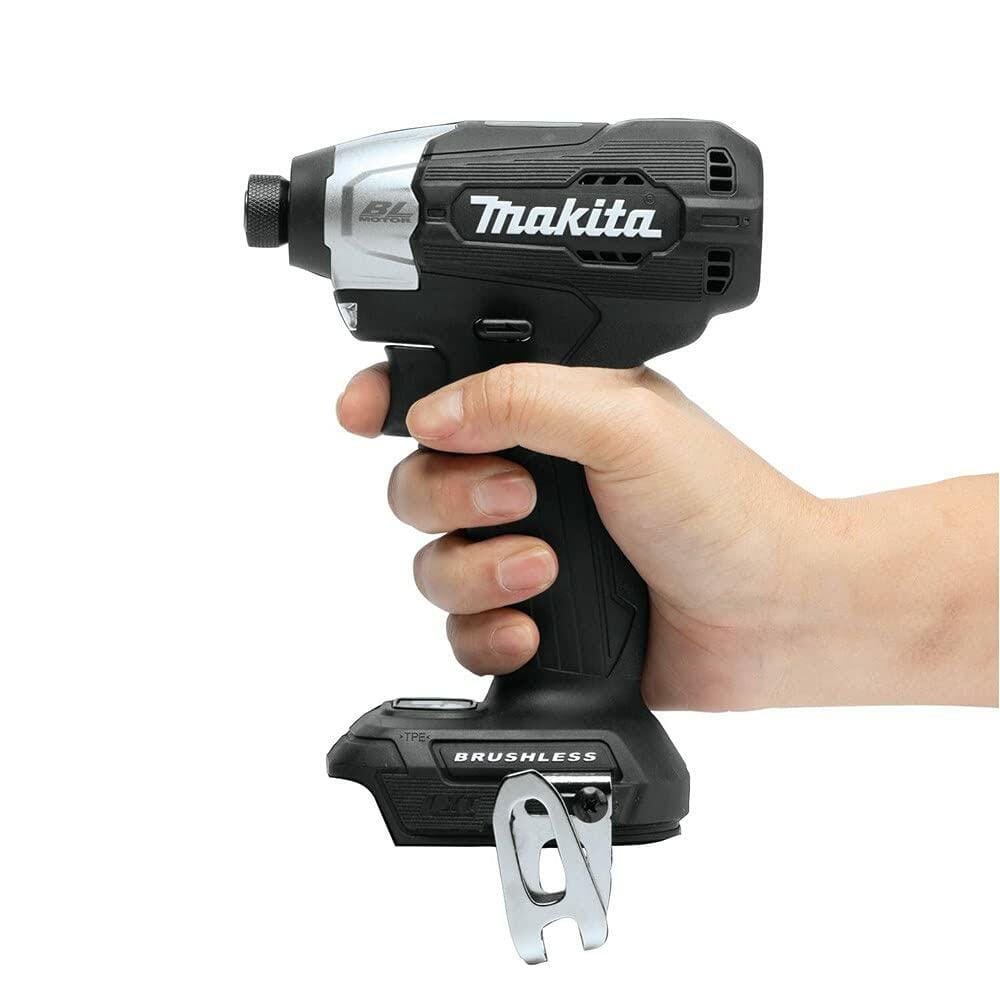

A hand holding the compact Makita XDT18ZB impact driver to demonstrate its small, ergonomic size.

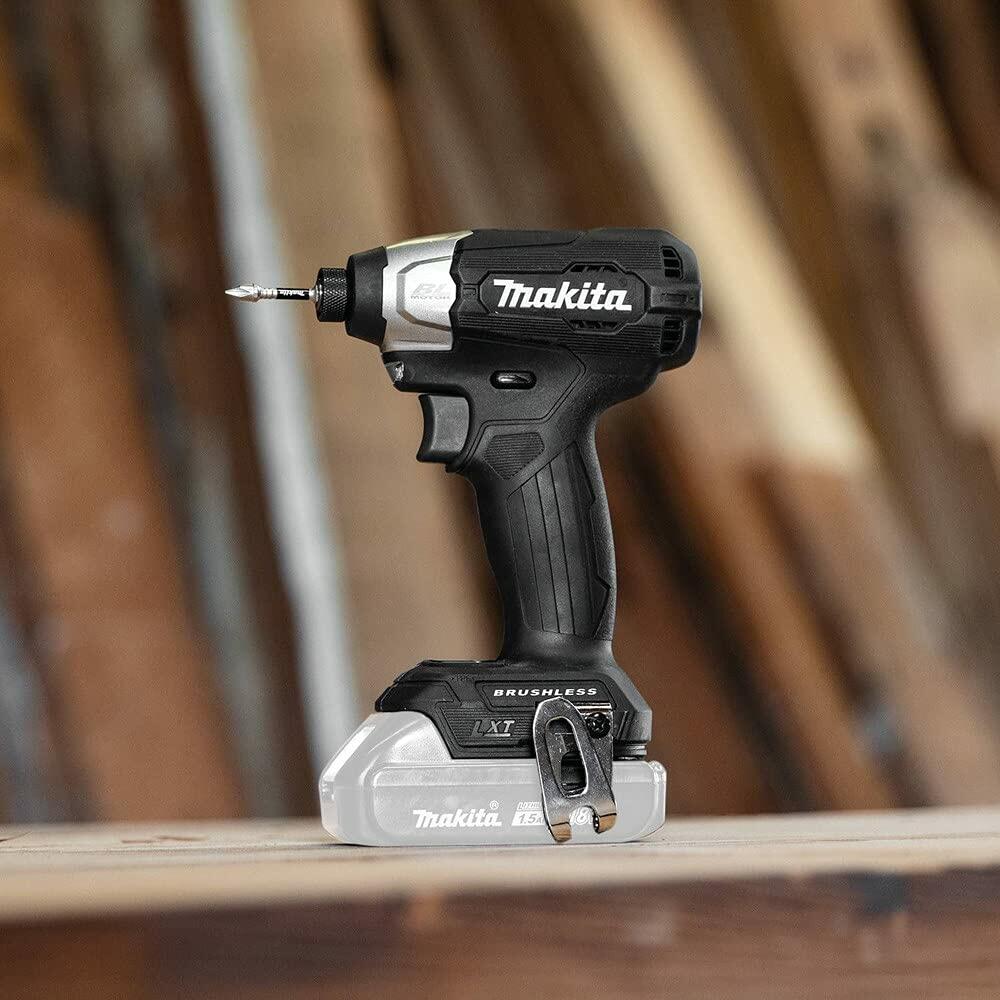

The Makita XDT18ZB impact driver resting on a wooden workbench in a workshop setting.

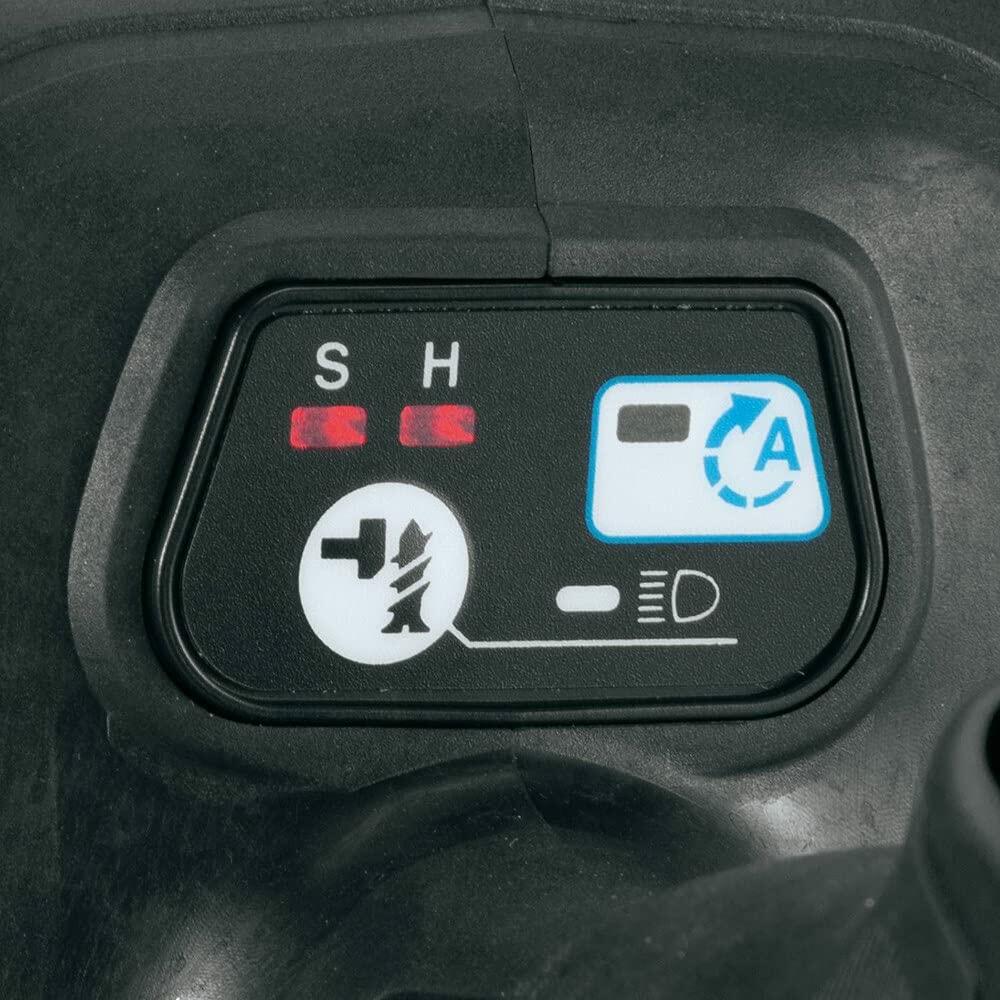

Close-up of the Makita impact driver's electronic control panel showing speed, assist mode, and light settings.
A worker using the Makita impact driver to install a metal electrical junction box onto a steel stud.
The Makita impact driver being used by a tradesperson to fasten conduit fittings to an electrical panel.
A detailed view of the front of the Makita XDT18ZB, highlighting the bright, illuminated dual LED work lights.
Makita

Makita Sub-Compact Impact Driver XDT18ZB 18V LXT 1/4 Inch Hex Brushless Bare Tool (1240 in lbs Torque Assist Mode A-Mode Dual LED Lights Cabinetry)

Only 1 left
SKU: XDT18ZB
$139.00 USD
$200.40 USD Sale $139.00 USD

Description

Makita Logo Logout

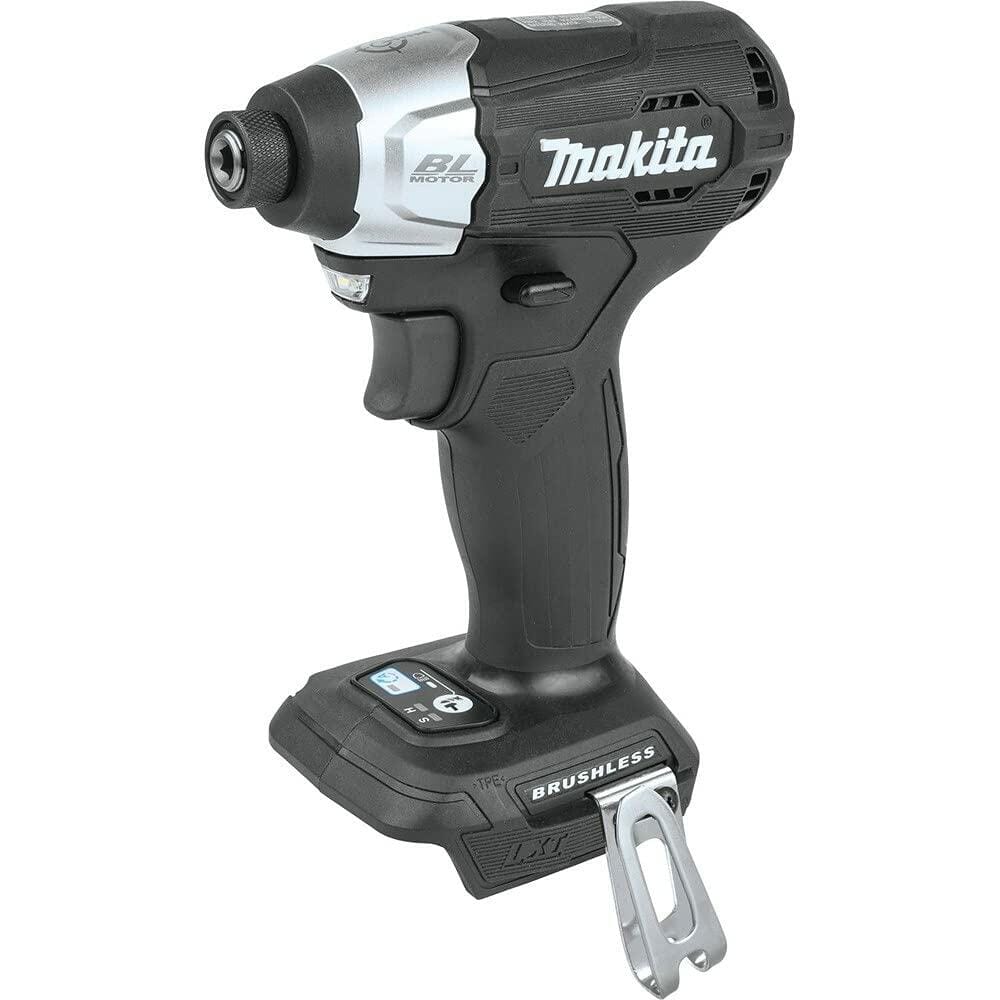

Makita XDT18ZB 18V LXT Sub-Compact Brushless Cordless 1/4-Inch Hex Impact Driver Bare Tool

The Makita XDT18ZB 18V LXT Sub-Compact Brushless 1/4-Inch Hex Impact Driver Bare Tool is a ultra-compact fastening tool engineered for cabinet installation, electrical box mounting, and tight stud-bay drywall framing. Driven by an electronically controlled BL Brushless motor delivering 1,240 in-lbs of maximum torque, this 2.6-pound sub-compact tool measures just 5-1/4 inches in total length to fit into cramped quarters. Outfitted with an Assist Mode (A-Mode) feature that eliminates screw cam-out and cross-threading by driving at low speeds until thread engagement begins, a 2-speed power selector (0-1,300 / 0-3,000 RPM & 0-2,000 / 0-4,100 IPM), and a ball-bearing supported chuck to minimize bit wobble, this 18V tool offers 12V handling ergonomics on a high-capacity 18V platform. **Battery and charger sold separately.

Best Used For:

  • Cabinetry & Interior Trim Installation: Driving hinge screws and finish fasteners inside dark, confined cabinet boxes using Assist Mode to prevent material damage.

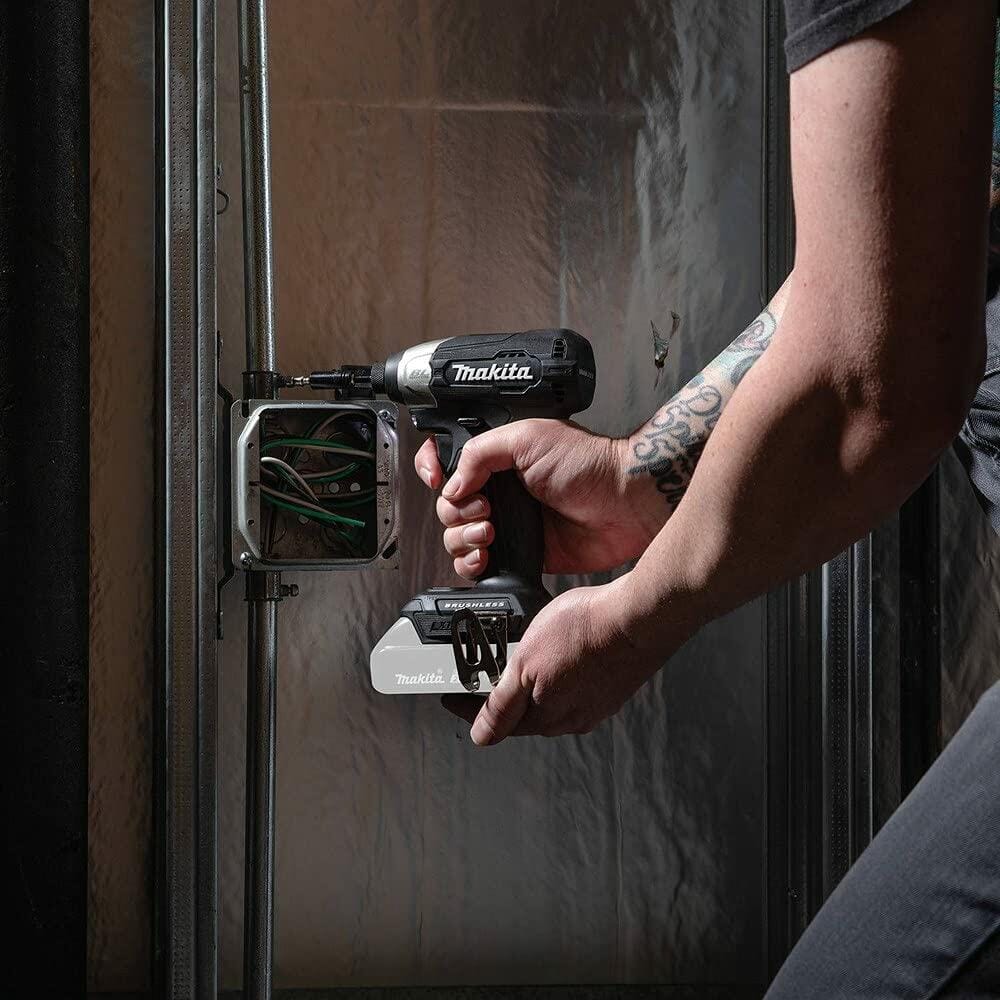

  • Electrical Box & Conduit Mounting: Driving self-tapping screws through sheet metal studs and electrical enclosures between standard 16-inch stud bays.
  • Overhead Framing & HVAC Ducting: Setting drywall screws and ductwork fasteners overhead using a lightweight 2.6-pound tool body to minimize arm fatigue.

Key Performance & Safety Features

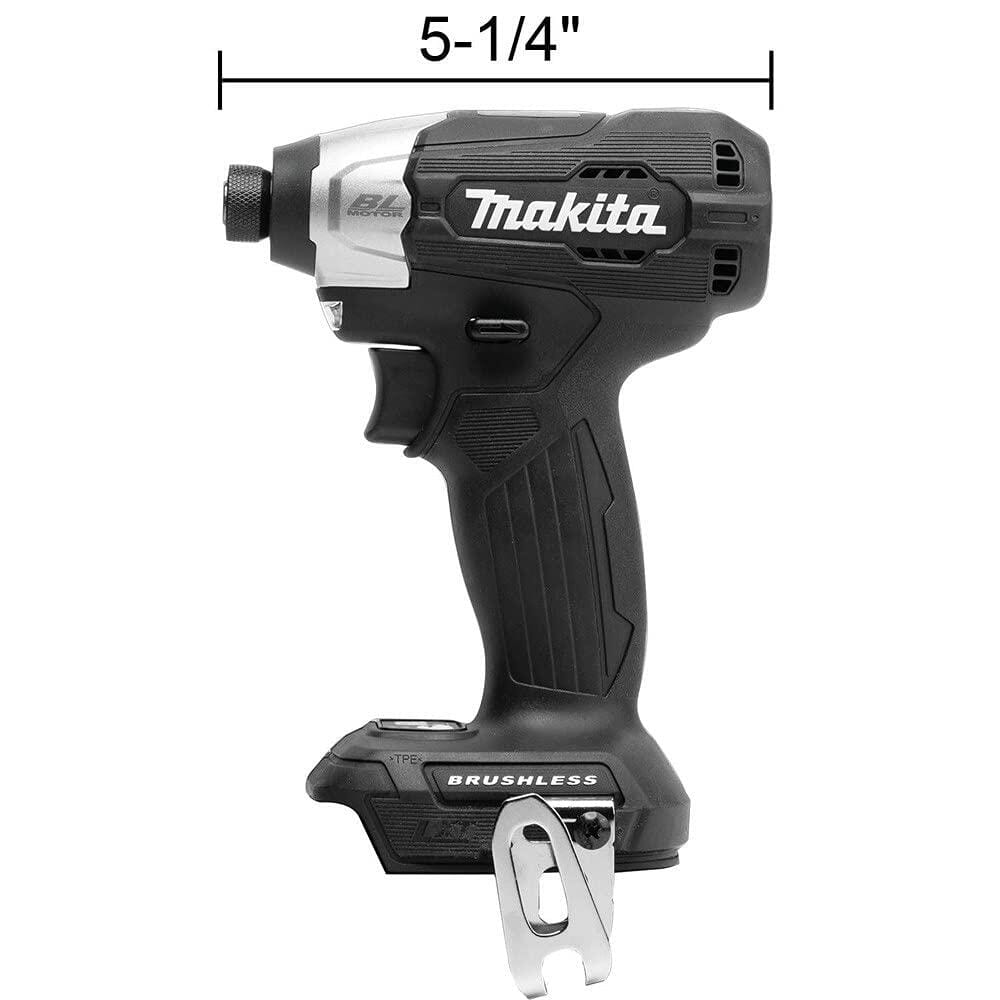

  • Sub-Compact 5-1/4" Head Profile: Ultra-short body length provides access to narrow gaps and corner joints unachievable with full-size drivers.
  • BL Brushless Motor Efficiency: Delivers 1,240 in-lbs of torque while optimizing battery energy consumption for up to 50% longer run time per charge.
  • Smart Assist Mode (A-Mode) Drive: Automatically modulates rotation speed from slow start to high-speed impact once load resistance is sensed.
  • Variable 2-Speed Power Selector: Dual RPM ranges (0-1,300 / 0-3,000 RPM) allow operators to switch between delicate finish work and heavy fastening.
  • Precision Ball Bearing Chuck Support: Internal dual ball bearings stabilize the 1/4-inch hex shank to prevent bit wobble and screw head slipping.
  • Star Protection Computer Controls: Integrated communication technology guards against motor thermal overload, over-discharge, and electrical overheating.

What's Included

  • (1) Makita XDT18ZB 18V LXT Sub-Compact Brushless 1/4" Hex Impact Driver Bare Tool
  • (1) Reversible Belt Clip

Technical Specifications

Brand / Manufacturer Makita
Model / Part Number XDT18ZB
System Voltage & Battery Compatibility 18V LXT Lithium-Ion Slide-Style Batteries
Drive Shank Interface 0.25 in. (1/4 in.) Quick-Change Hex Shank
Maximum Fastening Torque 1,240 in-lbs (103.3 ft-lbs / 140 N·m)
2-Speed No Load Speed Ranges 0 - 1,300 / 0 - 3,000 RPM
2-Speed Impact Frequencies 0 - 2,000 / 0 - 4,100 IPM
Auto-Drive Functionality Assist Mode (A-Mode) Slow-Start Drive System
Overall Tool Length 5.25 in. (133.35 mm / 5-1/4 in.)
Tool Net Operating Weight 2.6 lbs (1.18 kg with 18V battery installed)
UPC Code 088381-733052
Pro-Tip: Toggle on Assist Mode (A-Mode) when driving long wood screws into finished cabinet hardwoods to allow the initial threads to bite slowly before high-speed impacting kicks in, preventing bit slippage and surface marring.
