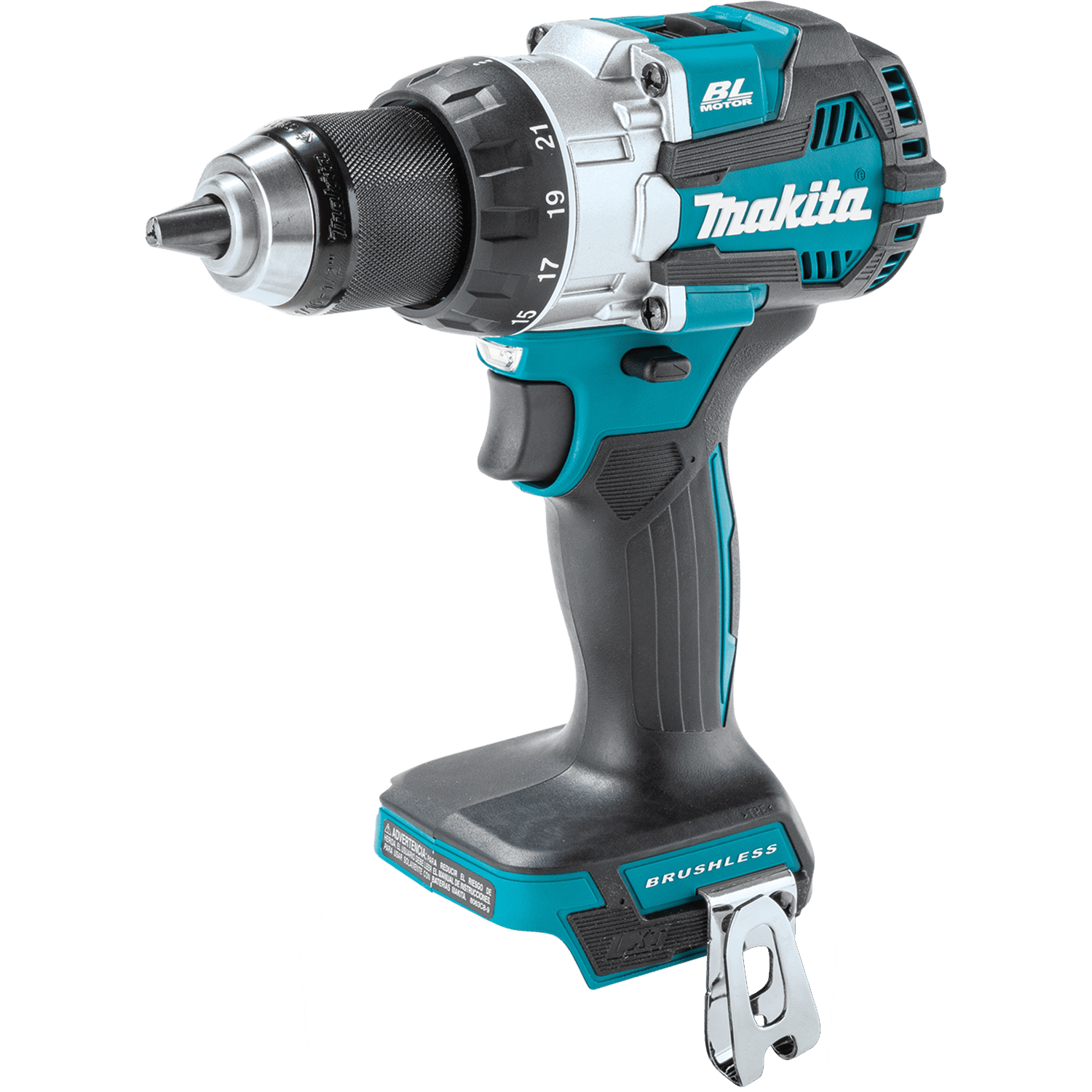

Makita XFD16Z 18V LXT cordless driver-drill showing the 1/2-inch keyless chuck, torque adjustment collar, and steel belt clip.

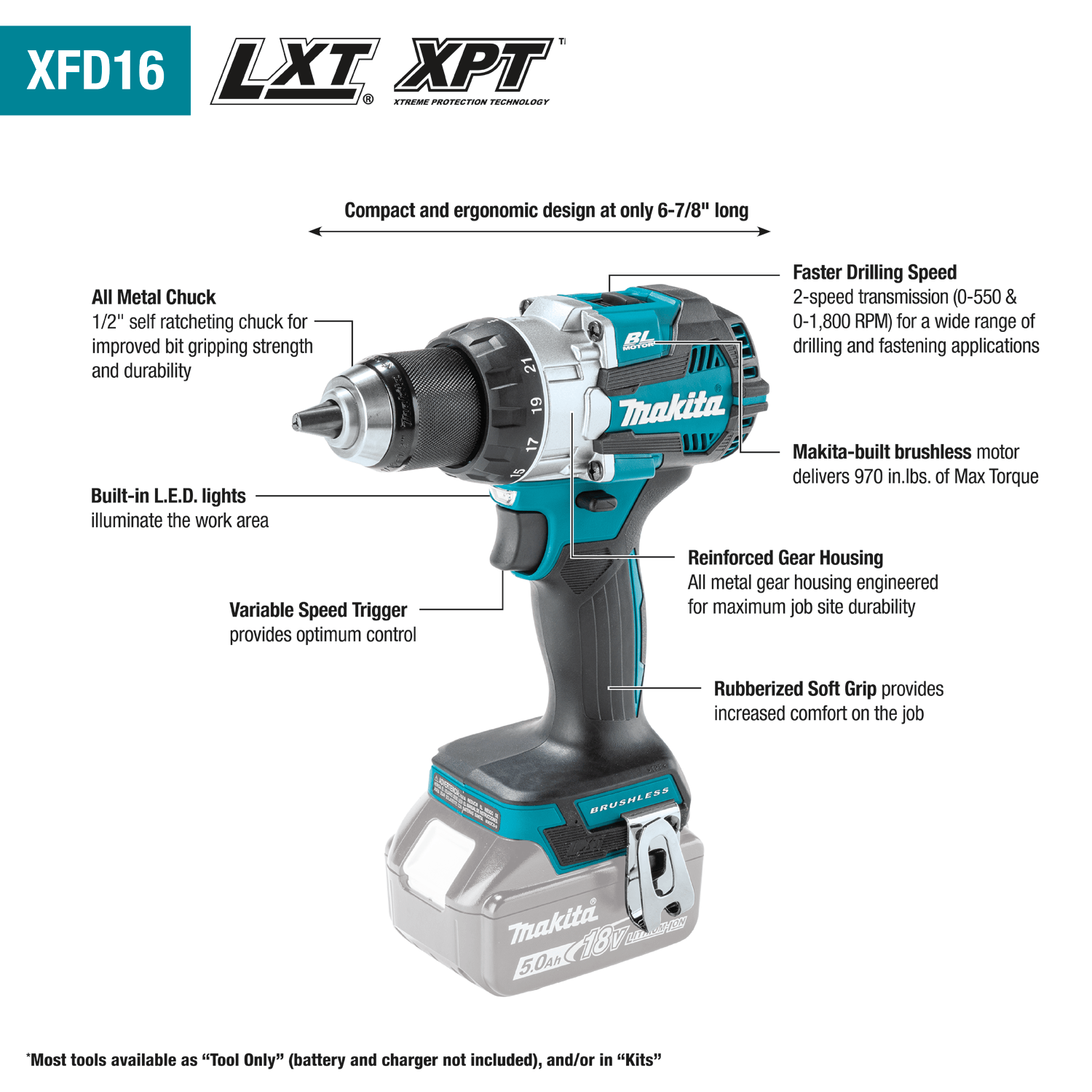

Diagram callout of the Makita XFD16Z drill displaying its 970 in-lbs torque brushless motor, 1/2-inch metal chuck, and 6-7/8-inch length.

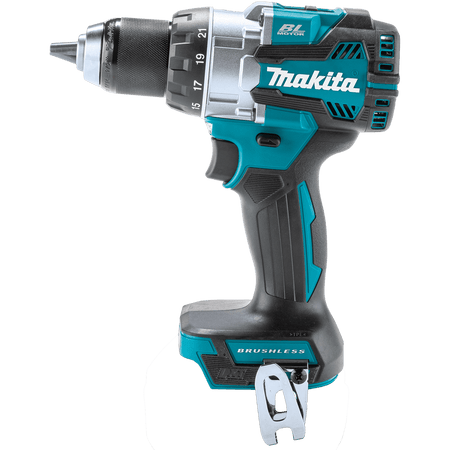

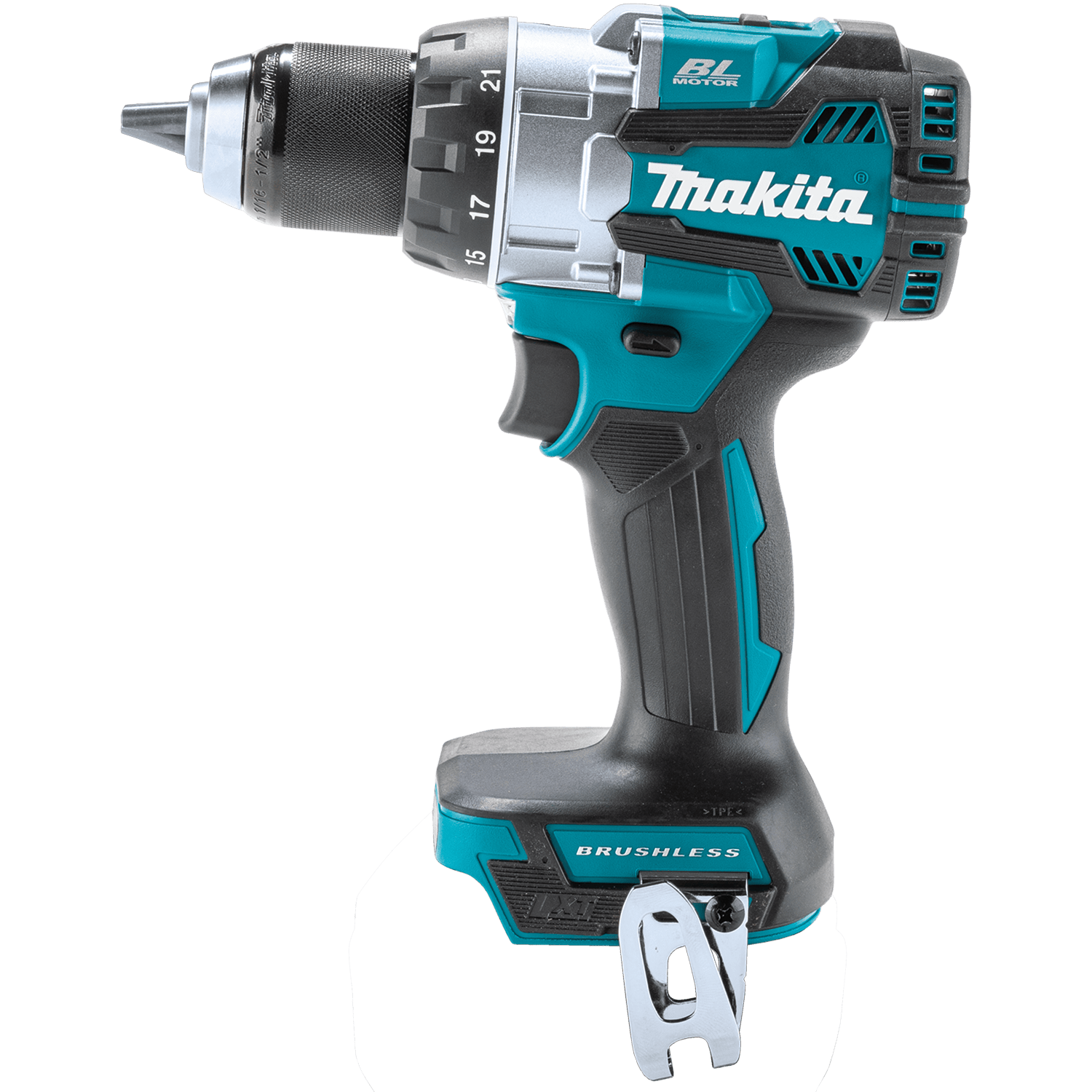

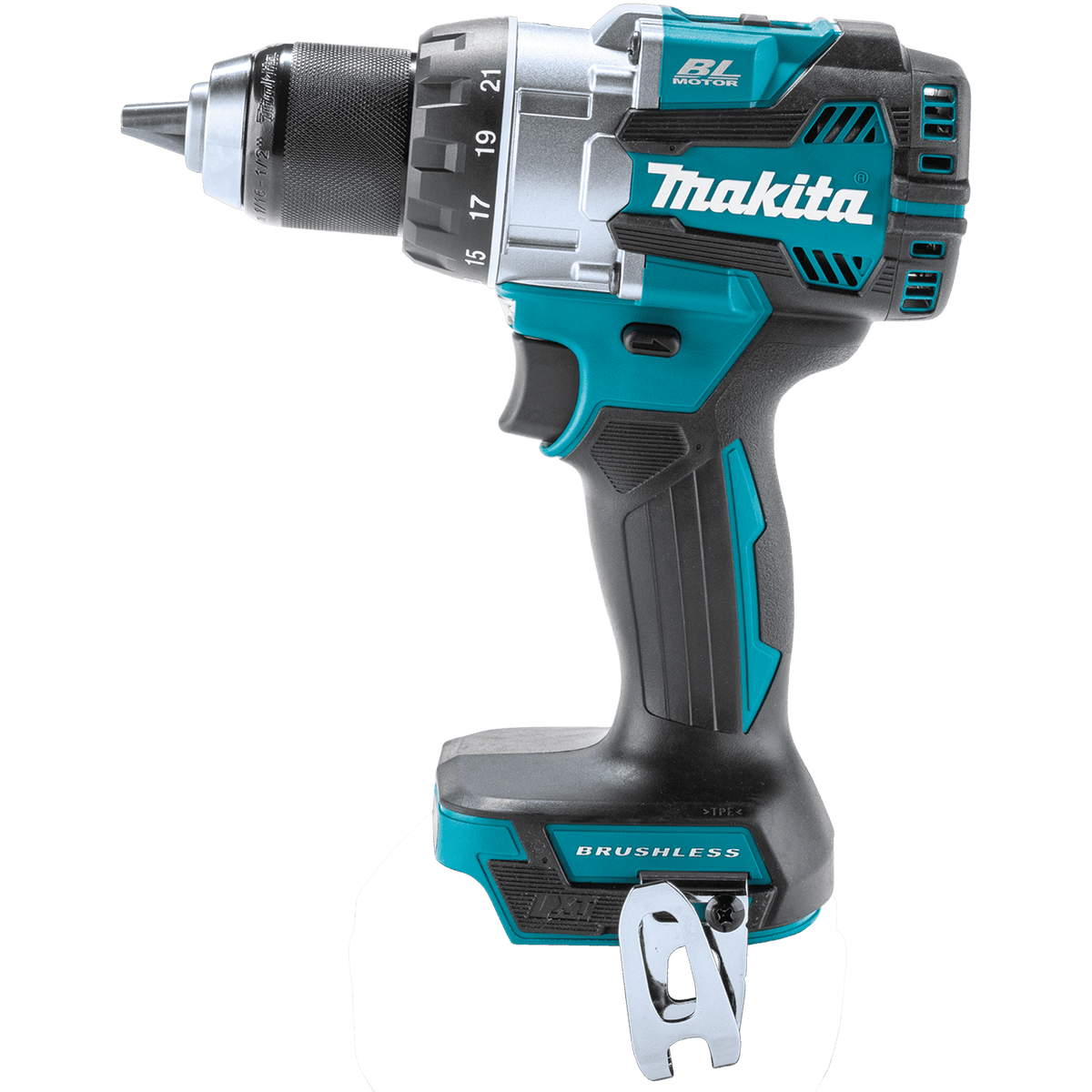

Side profile of the Makita XFD16Z 18V cordless drill highlighting the rubberized soft grip and variable speed trigger switch.

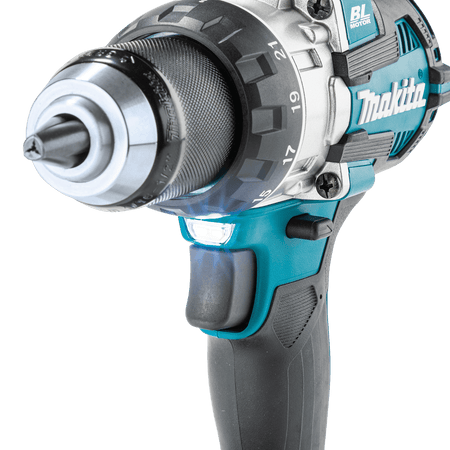

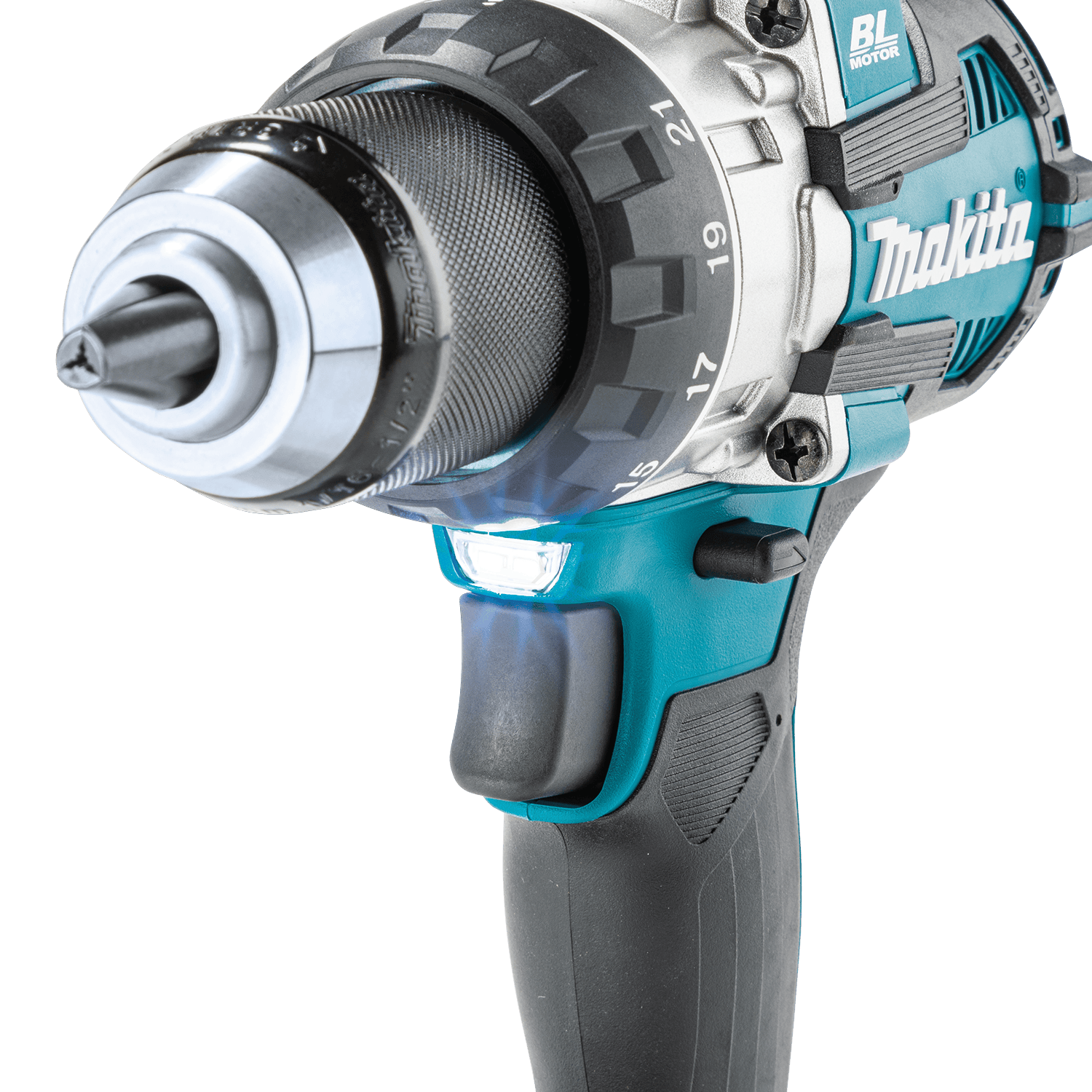

Close-up of the built-in LED work light below the torque collar on the Makita XFD16Z drill illuminating dark jobsite work areas.

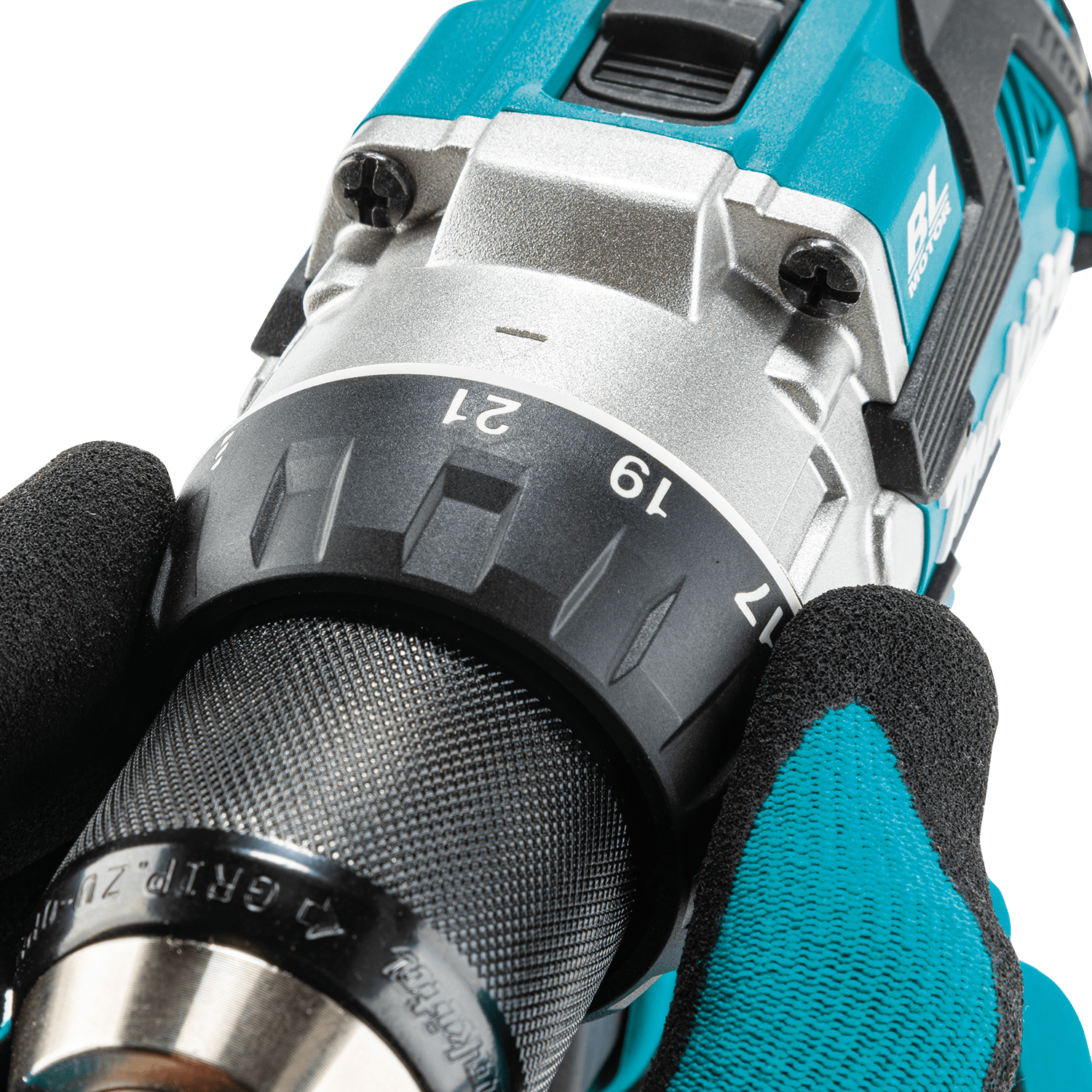

Gloved hand adjusting the 21-stage clutch torque collar on the Makita XFD16Z 1/2-inch driver-drill for precise fastener depth.

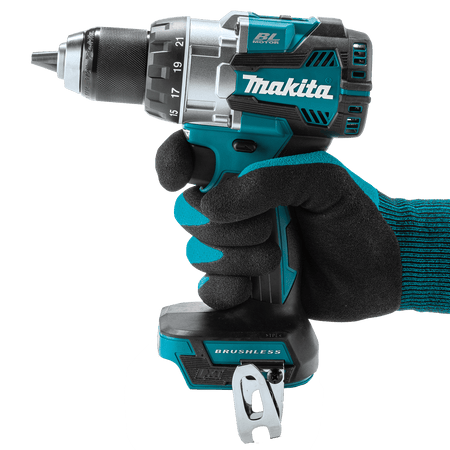

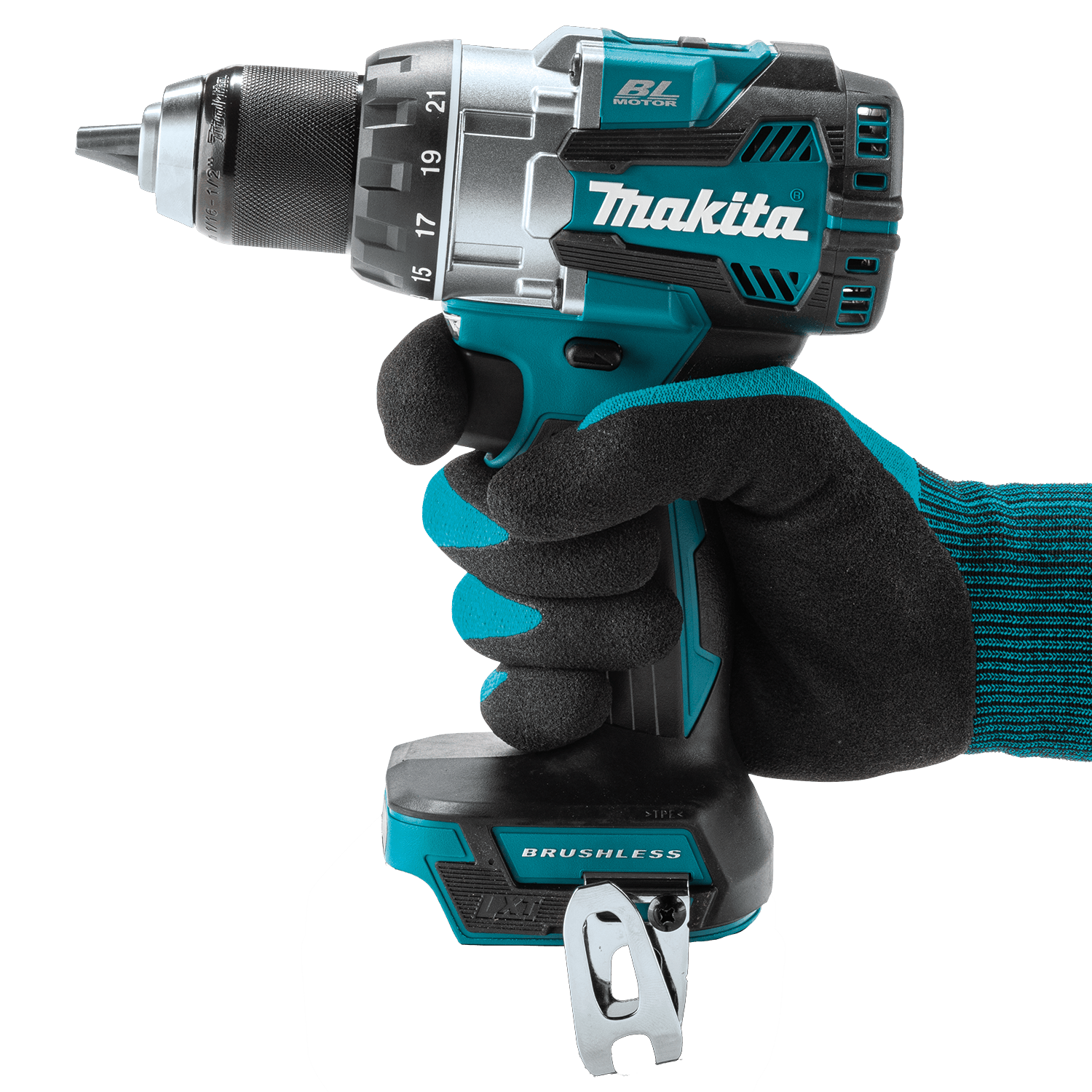

Operator holding the Makita XFD16Z 18V brushless driver-drill showing its compact 6-7/8-inch head length and ergonomic balance.

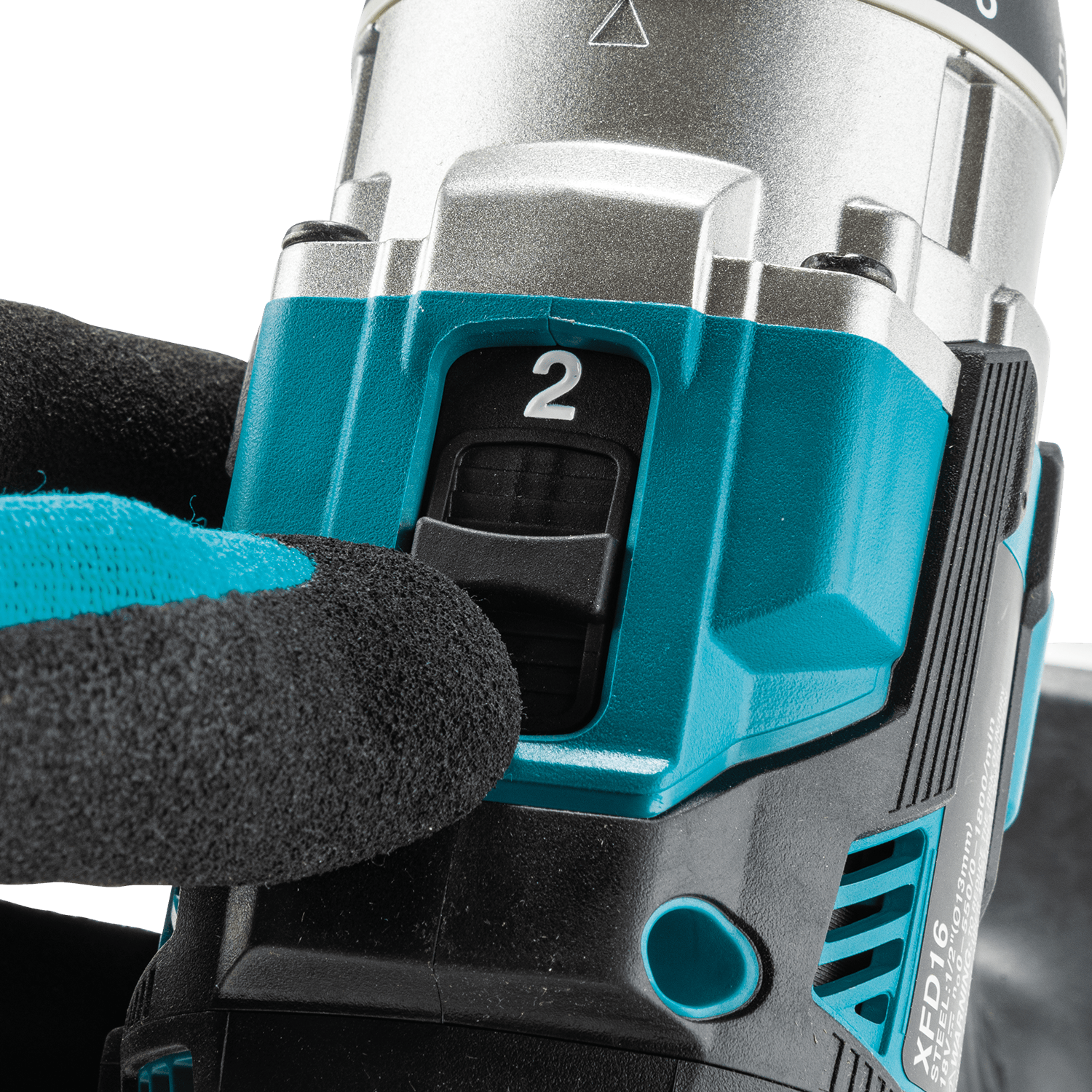

Close-up of the 2-speed mechanical gear selector switch on the Makita XFD16Z drill toggling between 0-550 and 0-1,800 RPM.

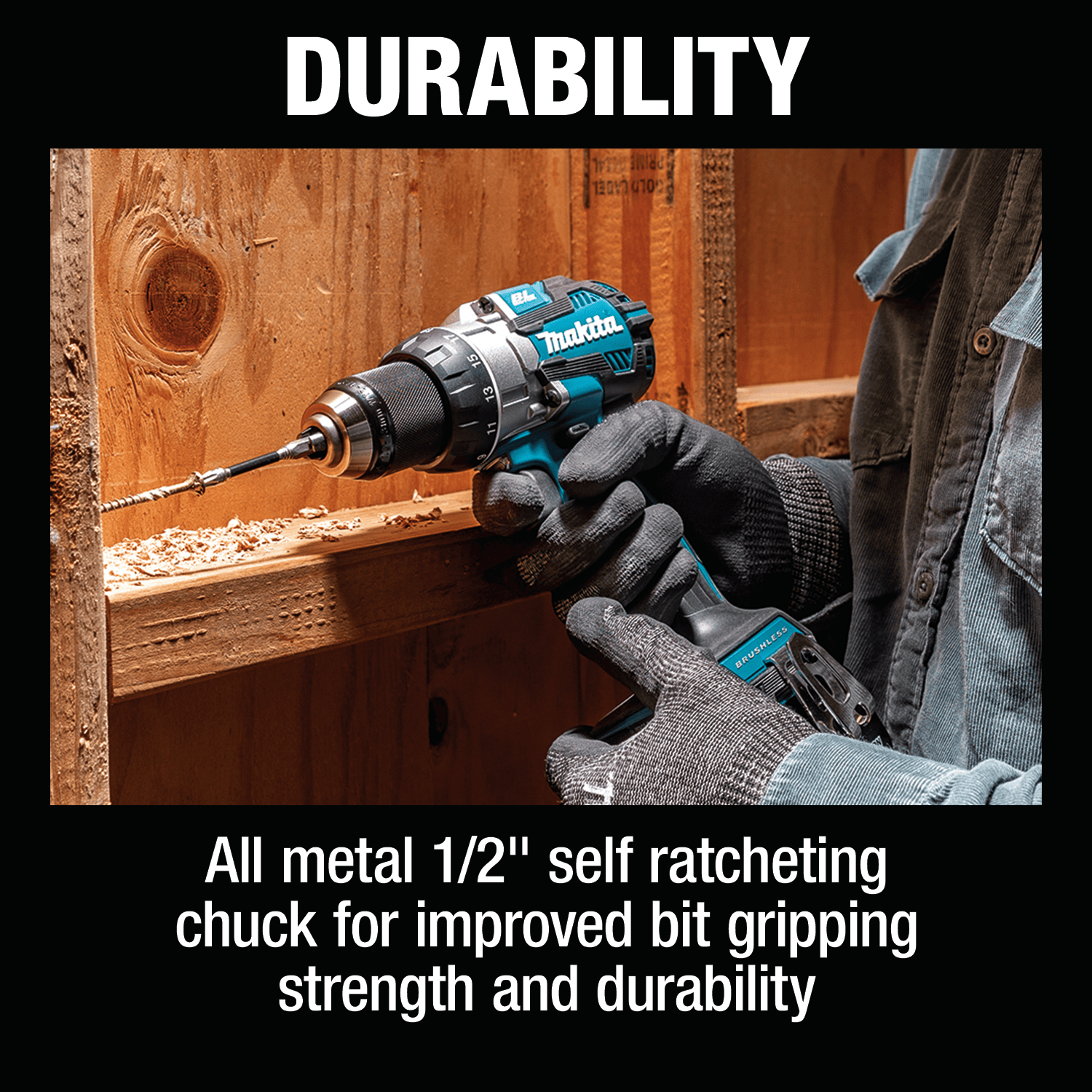

Contractor driving a structural lag screw into wood framing using the Makita XFD16Z drill with its 1/2-inch all-metal ratcheting chuck.

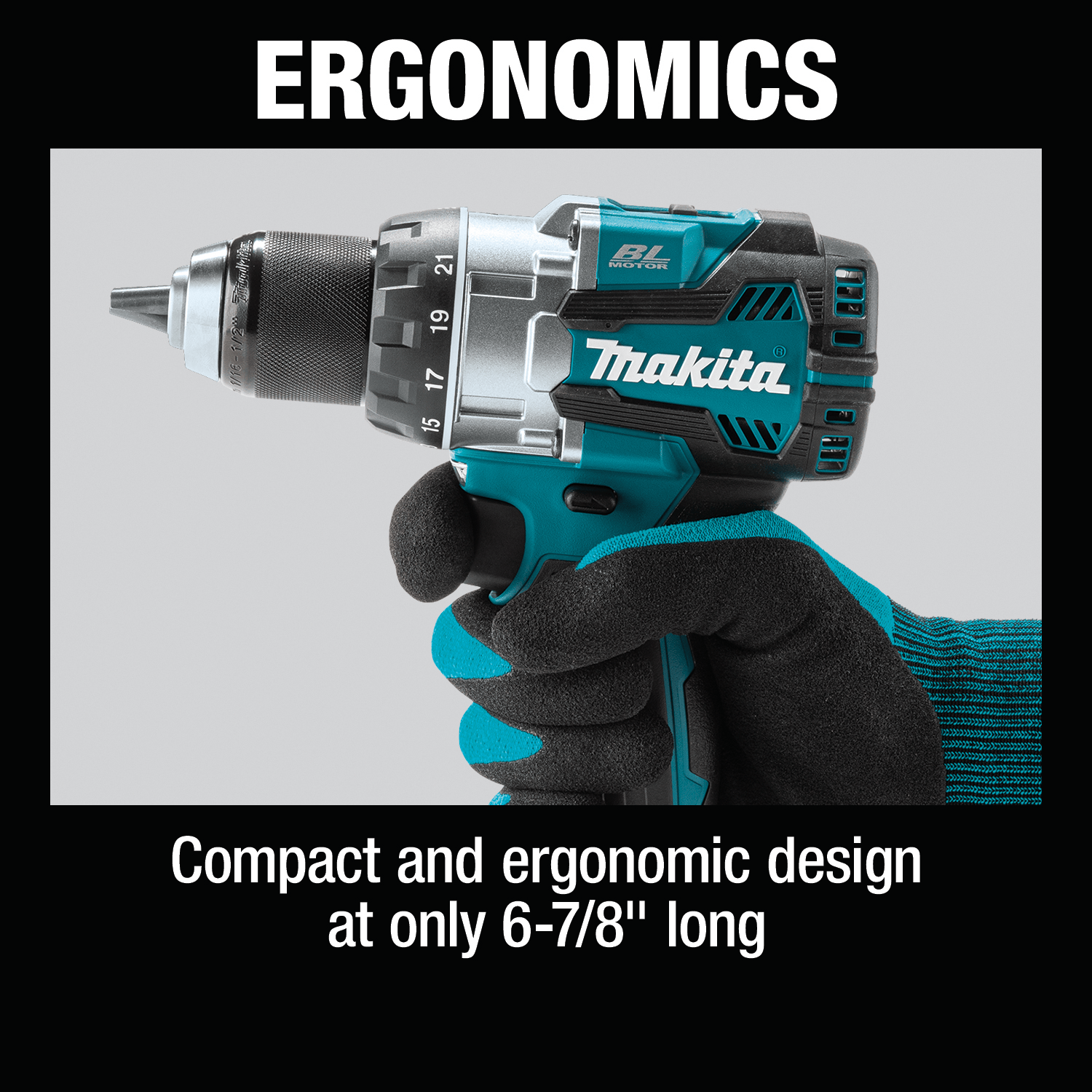

Compact 6-7/8-inch head length profile of the Makita XFD16Z drill allowing easy access between standard 16-inch wall stud bays.

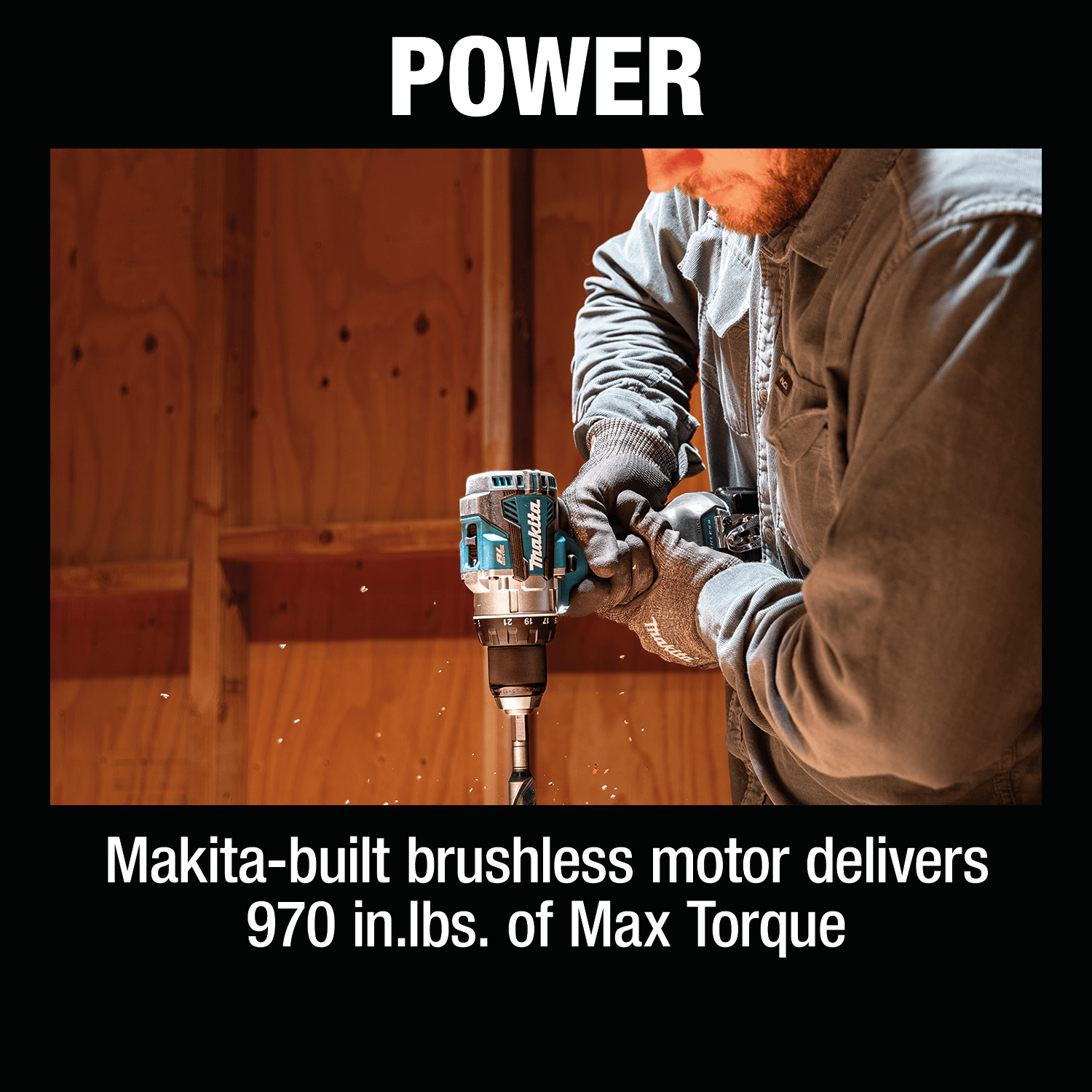

Worker boring a large hole in timber using the Makita XFD16Z 18V LXT brushless driver-drill delivering 970 in-lbs of maximum torque.

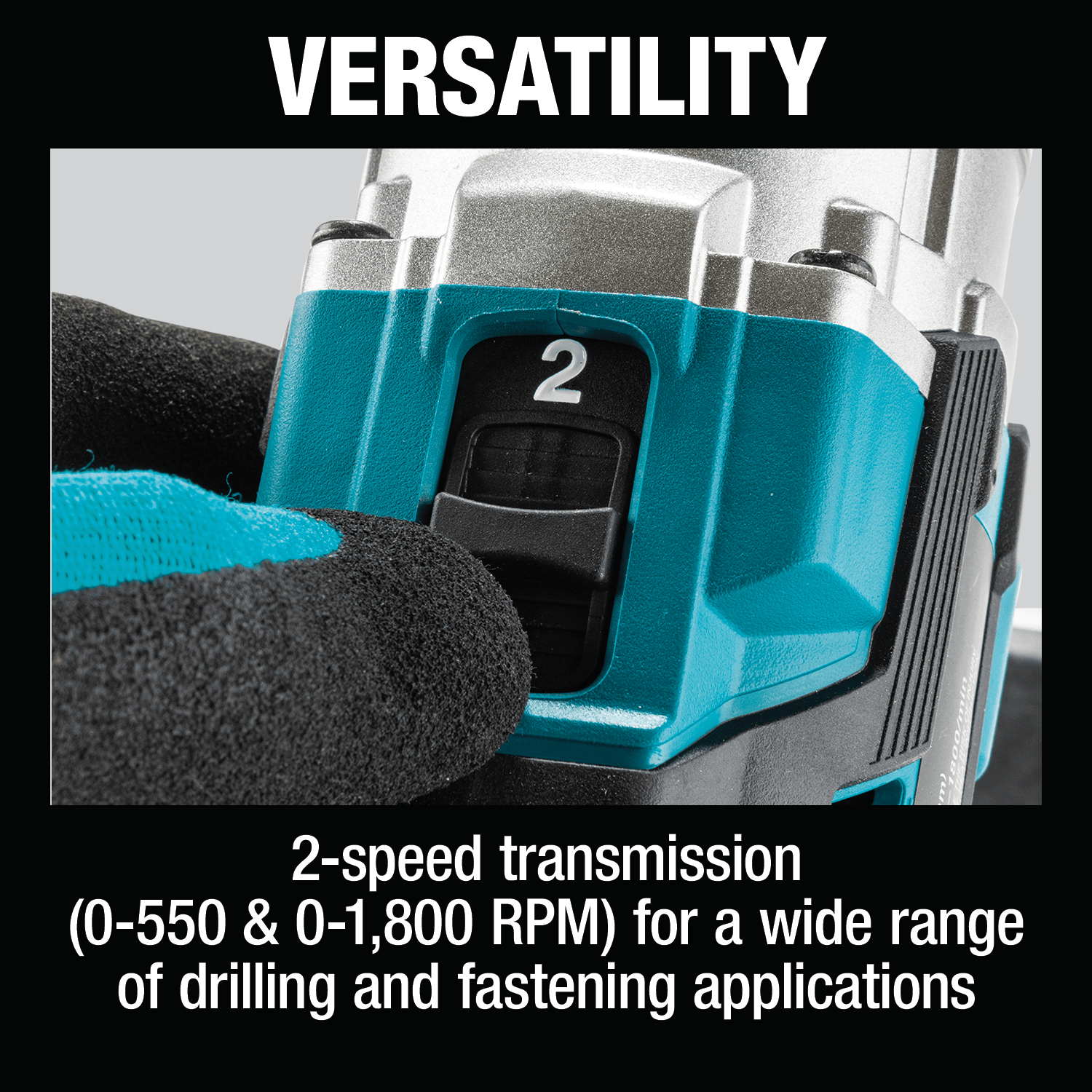

Mechanical gear selector on the Makita XFD16Z drill toggling between low speed high torque and high speed 1,800 RPM.

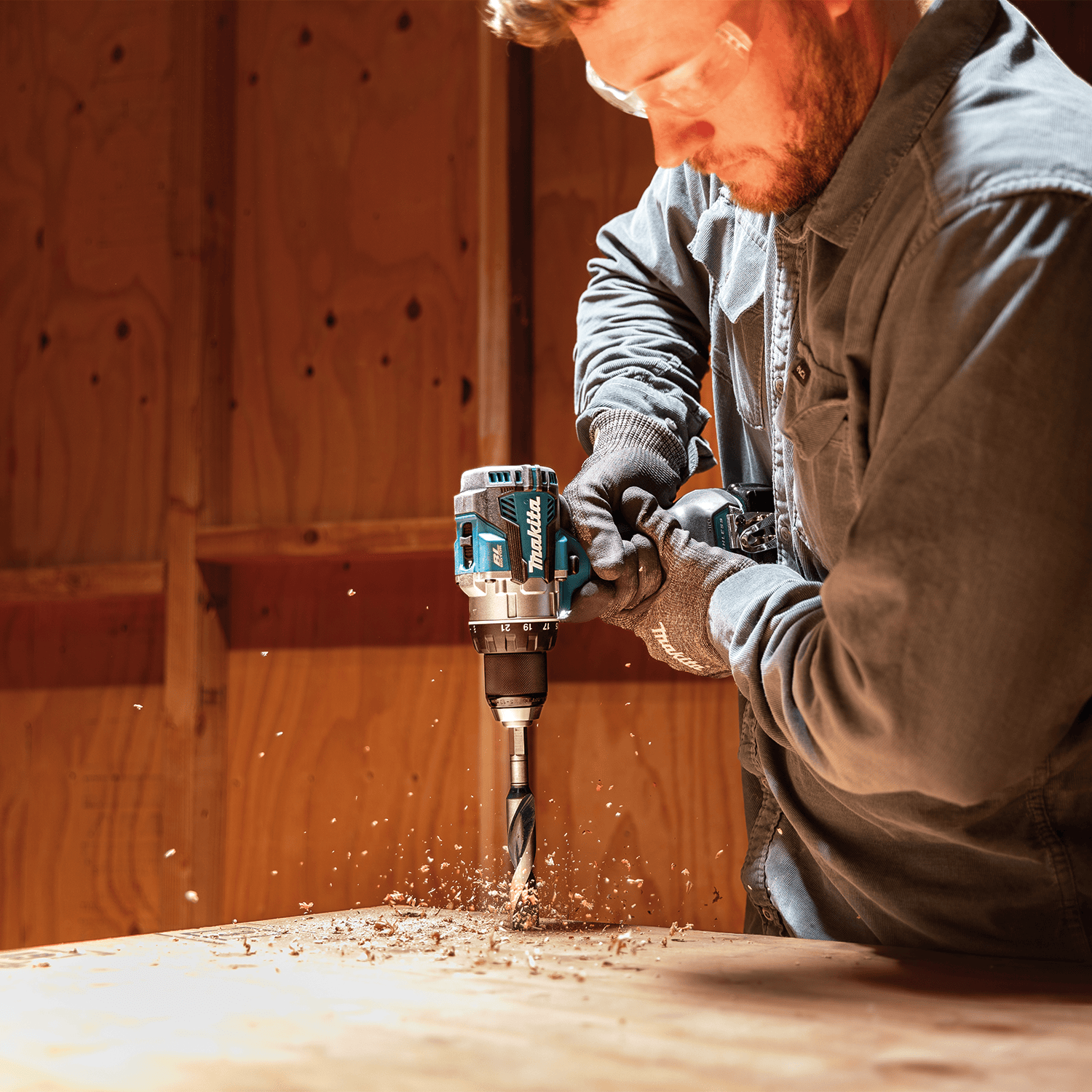

Tradesman using the Makita XFD16Z 18V brushless driver-drill with a spade bit to bore clean holes through wood subflooring.

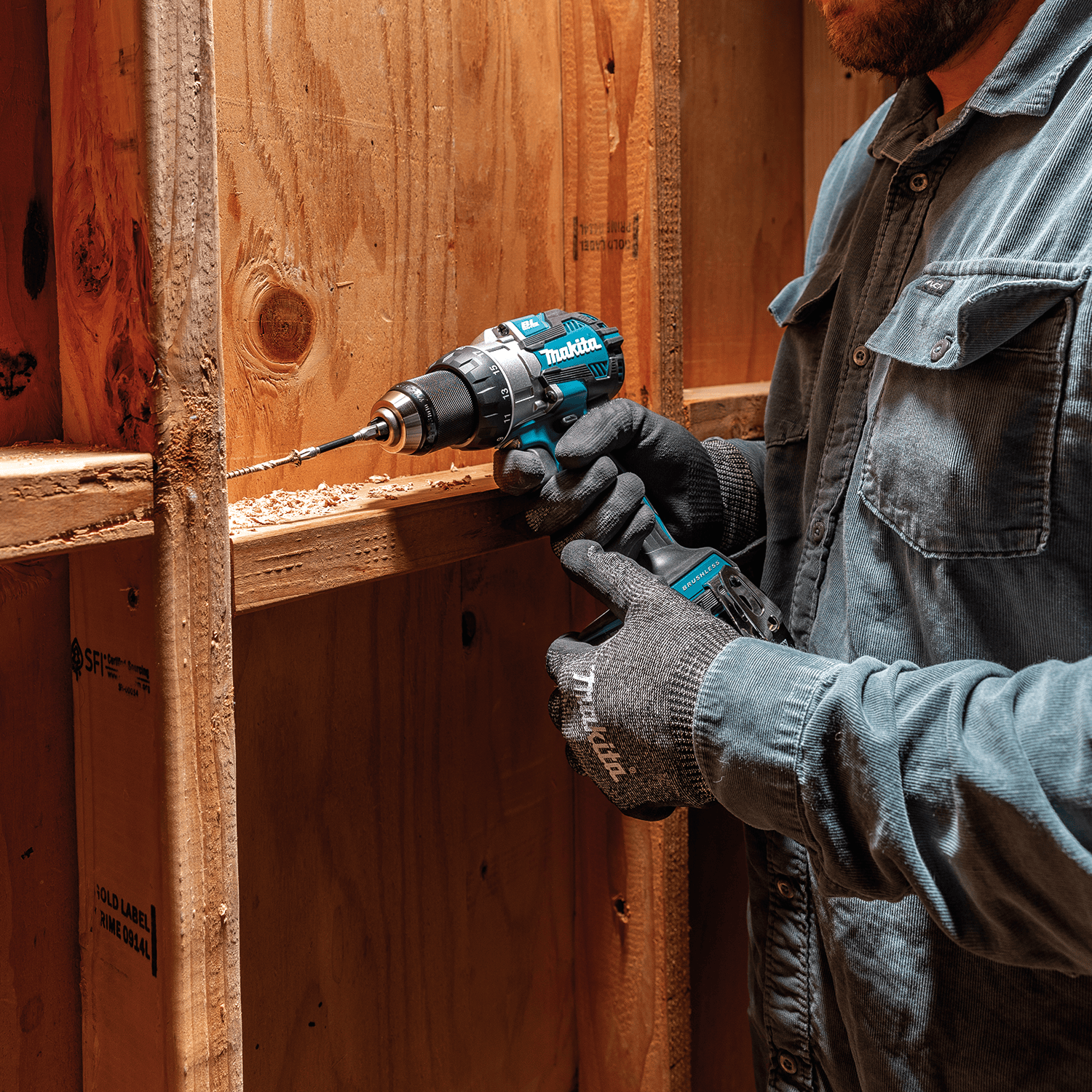

Electrician driving structural fasteners into wall studs using the Makita XFD16Z cordless drill in a tight framing bay.

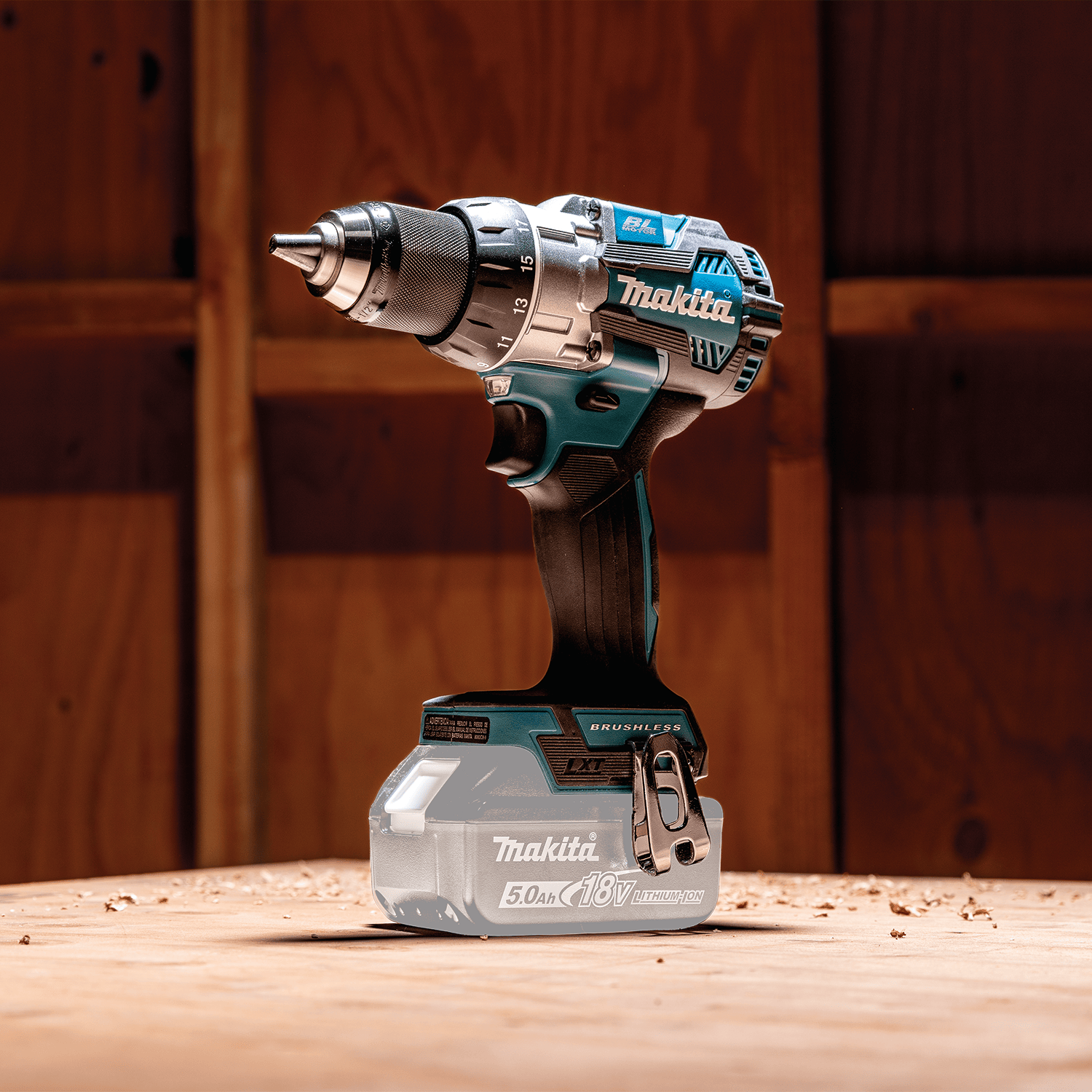

Studio view of the Makita XFD16Z 18V LXT brushless driver-drill bare tool resting on a jobsite workbench.
Makita XFD16Z 18V LXT cordless driver-drill showing the 1/2-inch keyless chuck, torque adjustment collar, and steel belt clip.
Diagram callout of the Makita XFD16Z drill displaying its 970 in-lbs torque brushless motor, 1/2-inch metal chuck, and 6-7/8-inch length.
Side profile of the Makita XFD16Z 18V cordless drill highlighting the rubberized soft grip and variable speed trigger switch.
Close-up of the built-in LED work light below the torque collar on the Makita XFD16Z drill illuminating dark jobsite work areas.
Gloved hand adjusting the 21-stage clutch torque collar on the Makita XFD16Z 1/2-inch driver-drill for precise fastener depth.
Operator holding the Makita XFD16Z 18V brushless driver-drill showing its compact 6-7/8-inch head length and ergonomic balance.

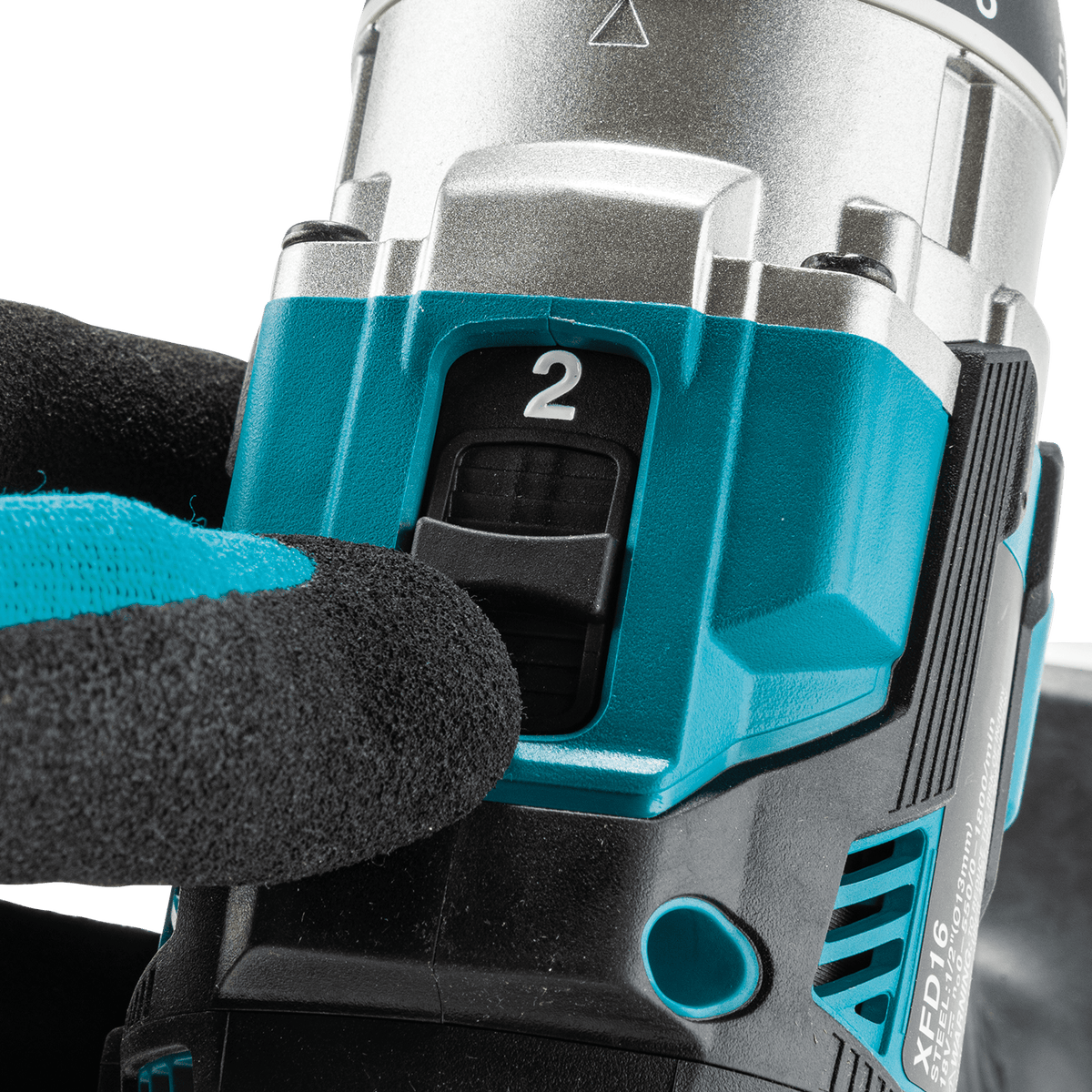

Close-up of the 2-speed mechanical gear selector switch on the Makita XFD16Z drill toggling between 0-550 and 0-1,800 RPM.
Contractor driving a structural lag screw into wood framing using the Makita XFD16Z drill with its 1/2-inch all-metal ratcheting chuck.
Compact 6-7/8-inch head length profile of the Makita XFD16Z drill allowing easy access between standard 16-inch wall stud bays.
Worker boring a large hole in timber using the Makita XFD16Z 18V LXT brushless driver-drill delivering 970 in-lbs of maximum torque.
Mechanical gear selector on the Makita XFD16Z drill toggling between low speed high torque and high speed 1,800 RPM.
Tradesman using the Makita XFD16Z 18V brushless driver-drill with a spade bit to bore clean holes through wood subflooring.
Electrician driving structural fasteners into wall studs using the Makita XFD16Z cordless drill in a tight framing bay.
Studio view of the Makita XFD16Z 18V LXT brushless driver-drill bare tool resting on a jobsite workbench.
Makita

Makita XFD16ZMakita Cordless Drill XFD16Z 1/2 Inch 18V LXT Bare Tool (Brushless Motor 970 Inch Pounds Torque 1800 RPM 2 Speed Chuck Heavy Duty Fastening)

In stock
SKU: XFD16Z
$159.00 USD

Description

Makita Logo Logout

Makita XFD16Z 18V LXT Brushless 1/2-Inch Cordless Driver-Drill Bare Tool

The Makita XFD16Z 18V LXT Brushless 1/2-Inch Cordless Driver-Drill Bare Tool is an industrial high-torque drilling motor engineered to sink large lag screws and bore deep holes across heavy timber, steel plates, and composites. Driven by an electronically controlled brushless motor outputting 970 in-lbs of maximum torque, a 2-speed transmission (0-550 and 0-1,800 RPM), and an all-metal 1/2-inch self-ratcheting chuck, this 6-7/8-inch ultra-compact tool provides a 2-inch wood hole saw drilling capacity and 1/2-inch steel capacity. Designed for commercial electricians, carpenters, and steel erectors, this 18V bare tool solves high-torque motor stalling, chuck slipping, and operator fatigue in tight joist bays and overhead structural framing installations.

**Battery and charger sold separately.

Best Used For:

  • Heavy Structural Timber Fastening: Driving heavy-gauge structural lag screws and timber fasteners into dense pressure-treated wood framing without pre-drilling.
  • High-Torque Hole Saw Boring: Drilling clean 2-inch utility conduit pass-through openings using hole saws or self-feed wood bits between standard wall studs.
  • Structural Steel & Plate Drilling: Boring high-precision 1/2-inch holes through thick steel junction boxes, channel iron, and metal plates.

Key Performance & Safety Features

  • High-Output Brushless Motor: Electronically matches torque and RPM to application demands, delivering up to 50% longer run time per charge.
  • 970 In-Lbs Maximum Torque: Industrial-grade power output provides extreme turning force for heavy-duty drilling and structural fastening tasks.
  • All-Metal 1/2-Inch Self-Ratcheting Chuck: Heavy-duty keyless chuck maintains supreme bit gripping force to prevent slippage under severe loads.
  • Extreme Protection Technology (XPT): Engineered internal seals channel dust and water away from core electronic components on harsh jobsites.
  • Star Protection Computer Controls: Enables real-time data communication between tool and battery to prevent thermal overloading, over-discharging, and overheating.
  • Ultra-Compact Ergonomic Profile: Measuring only 6-7/8 inches in overall length, it navigates confined framing bays easily while reducing user strain.

What's Included

  • (1) Makita XFD16Z 18V LXT Brushless 1/2 in. Driver-Drill (Bare Tool)
  • (1) Heavy-Duty Belt Clip
  • Note: 18V LXT Lithium-Ion battery and charger sold separately.

Technical Specifications

Manufacturer Brand Makita USA
Model Part Number (OEM) XFD16Z
Operating Voltage Rating 18V LXT® Lithium-Ion
Motor Drive Type Electronically Controlled Brushless Motor
Maximum Output Torque 970 in-lbs (110 N·m)
Transmission Speed Ranges 0 - 550 RPM (Low) / 0 - 1,800 RPM (High)
Chuck Mechanism Type & Size 1/2 in. (12.7 mm) All-Metal Self-Ratcheting
Steel Drilling Capacity 1/2 in. (12.7 mm)
Wood Hole Saw Drilling Capacity 2.0 in. (50.8 mm)
Wood Self-Feed Bit Capacity 2.0 in. (50.8 mm)
Wood Ship Auger Bit Capacity 1-1/2 in. (38.1 mm)
Overall Tool Length 6-7/8 in. (174.6 mm)
Net Weight (with 5.0Ah Battery) 4.65 lbs (2.11 kg)
Work Area Illumination Integrated Dual L.E.D. Lights
Universal Product Code (UPC) 088381-775694
Pro-Tip: Select low gear (0-550 RPM) when running 2-inch self-feed bits or hole saws to maximize torque transfer and protect the brushless motor controls from thermal overload.
