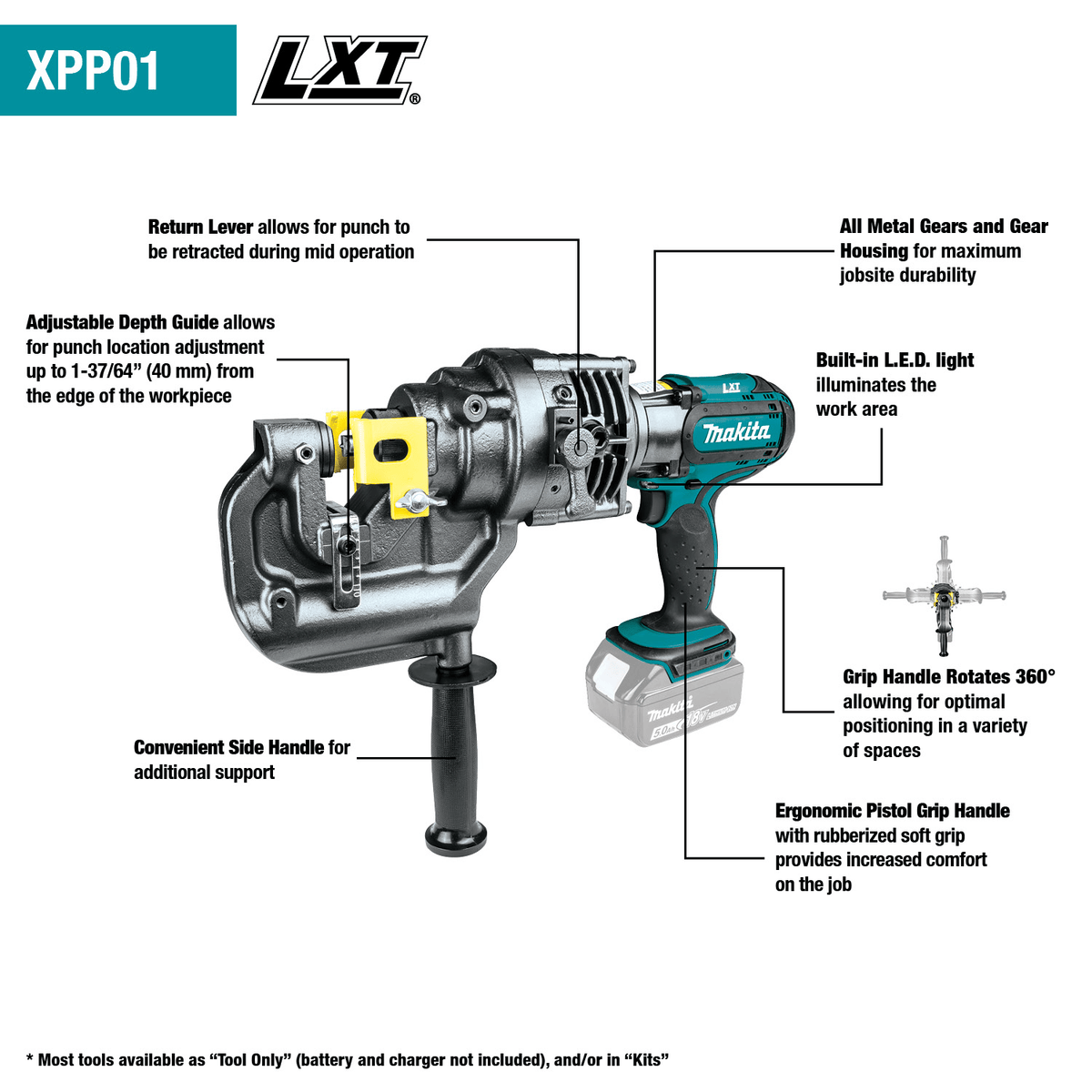

Diagram showing key features of the Makita XPP01 hole puncher, including the 360-degree rotating grip and depth guide.
Close-up of the automatic punch return mechanism that retracts the die immediately after completing a hole.
Top-down view demonstrating the 360-degree rotating grip handle for optimal tool positioning in tight spaces.
Steel bar with clean, burr-free holes punched up to 5/16-inch thick in general steel and 15/64-inch in stainless steel.

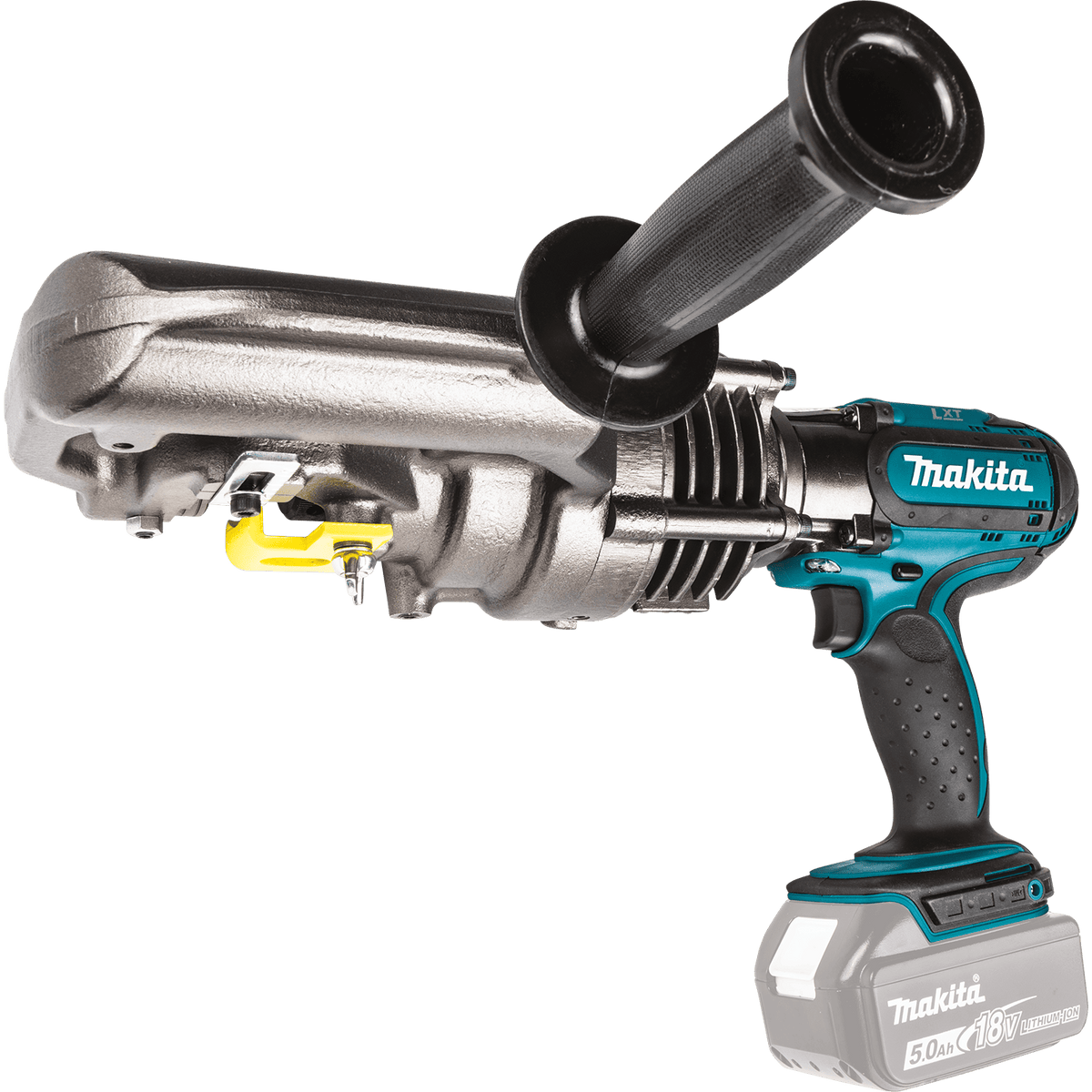

Angled side profile of the Makita 18V LXT cordless hole puncher highlighting its heavy-duty cast metal housing.

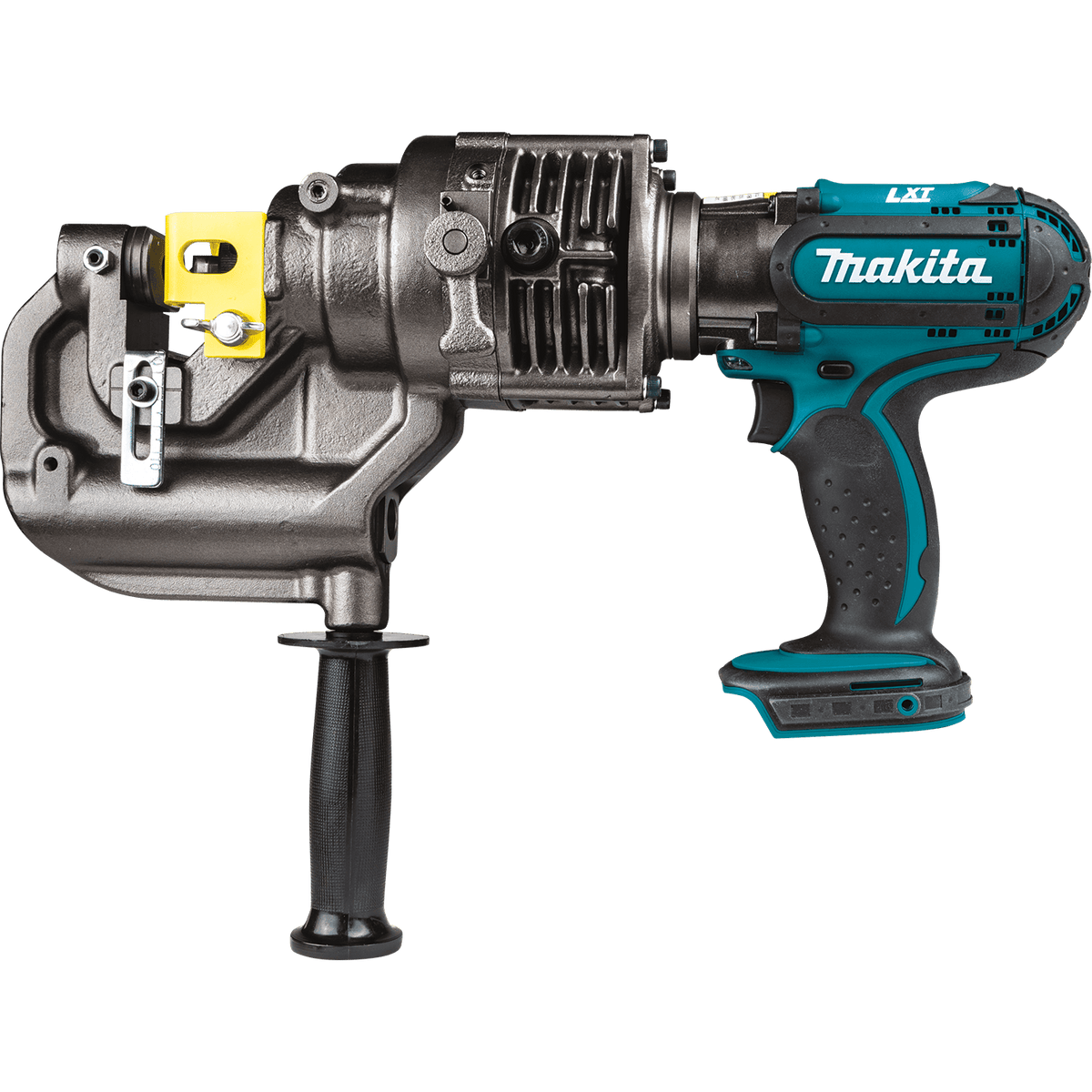

Side view of the Makita XPP01ZK cordless metal puncher showing the adjustable depth guide and ergonomic pistol grip.
Overhead rotational graphic illustrating the full 360-degree multi-position adjustment of the puncher head.

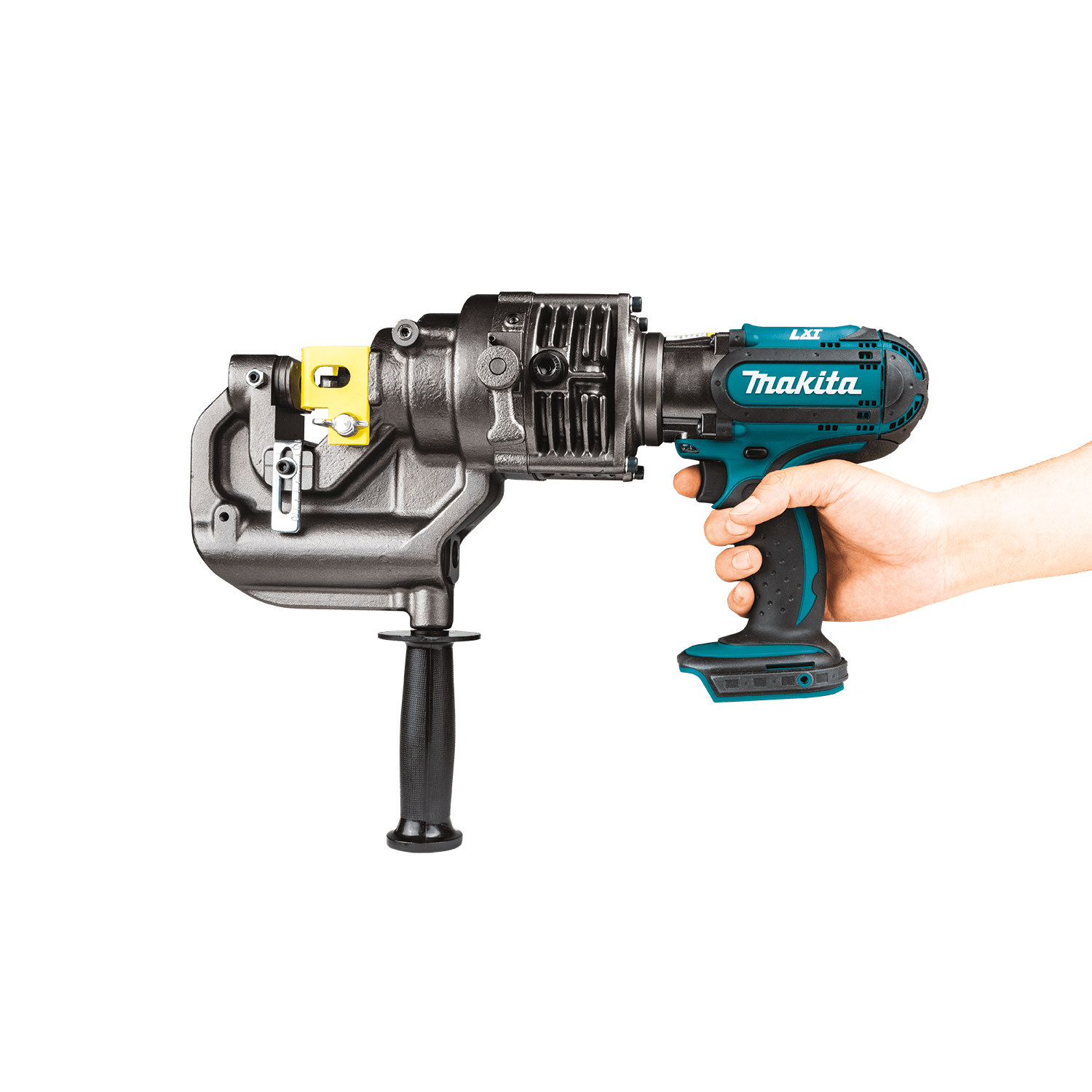

Hand holding the Makita XPP01ZK metal puncher to demonstrate balanced ergonomics and responsive trigger control.

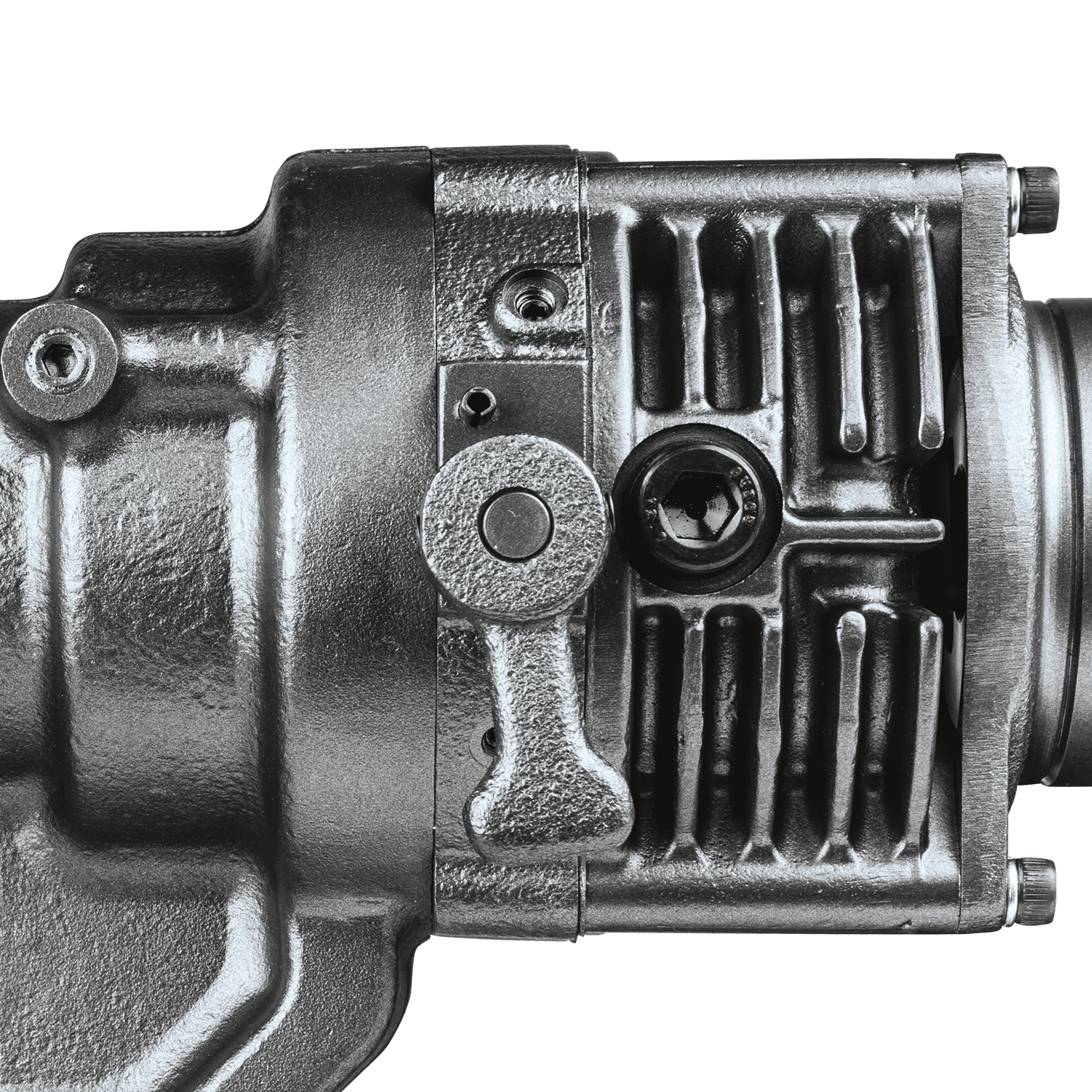

Close-up view of the manual return lever used to retract the punching die mid-operation on the metal punch housing.

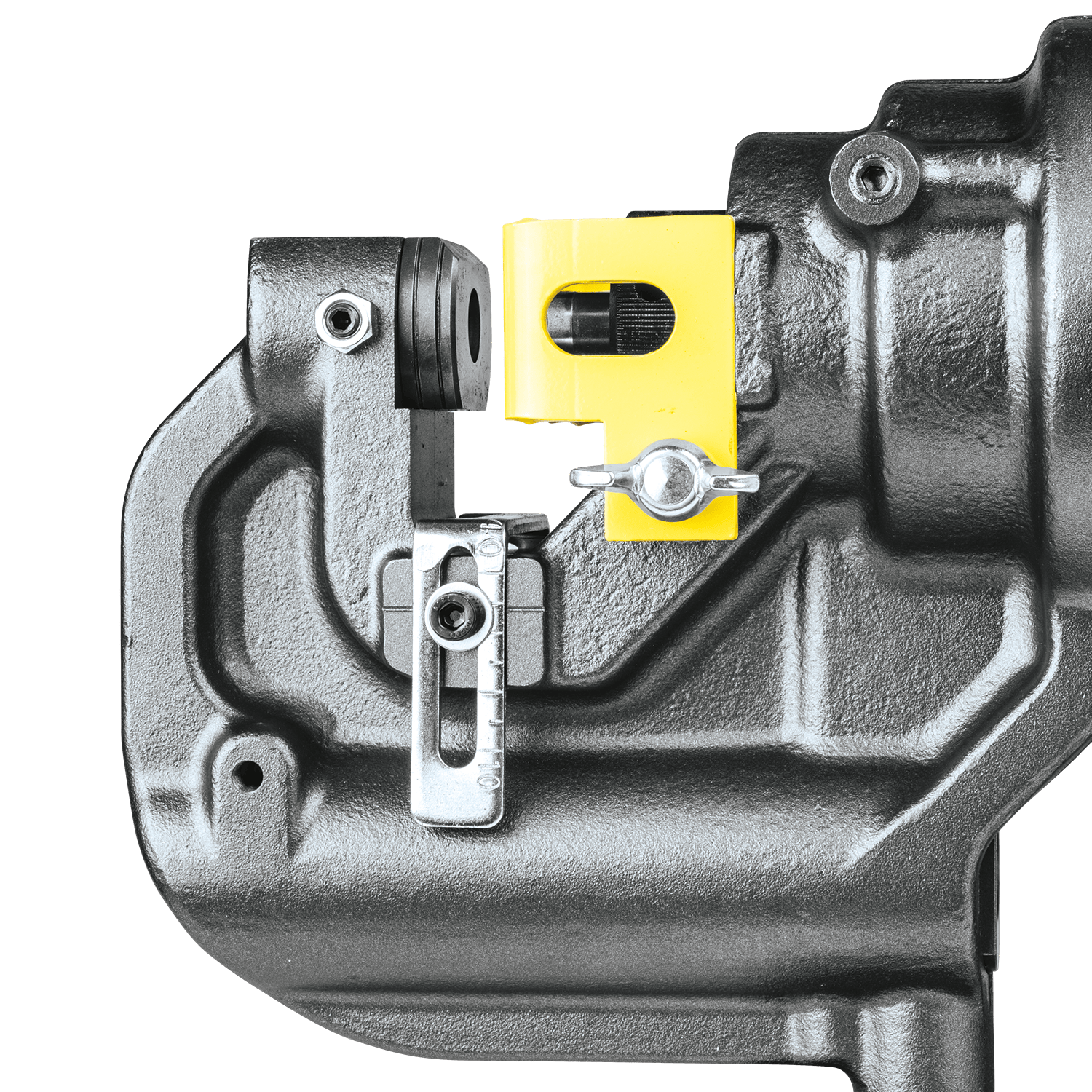

Close-up of the adjustable depth guide and punch die assembly on the Makita metal hole puncher.

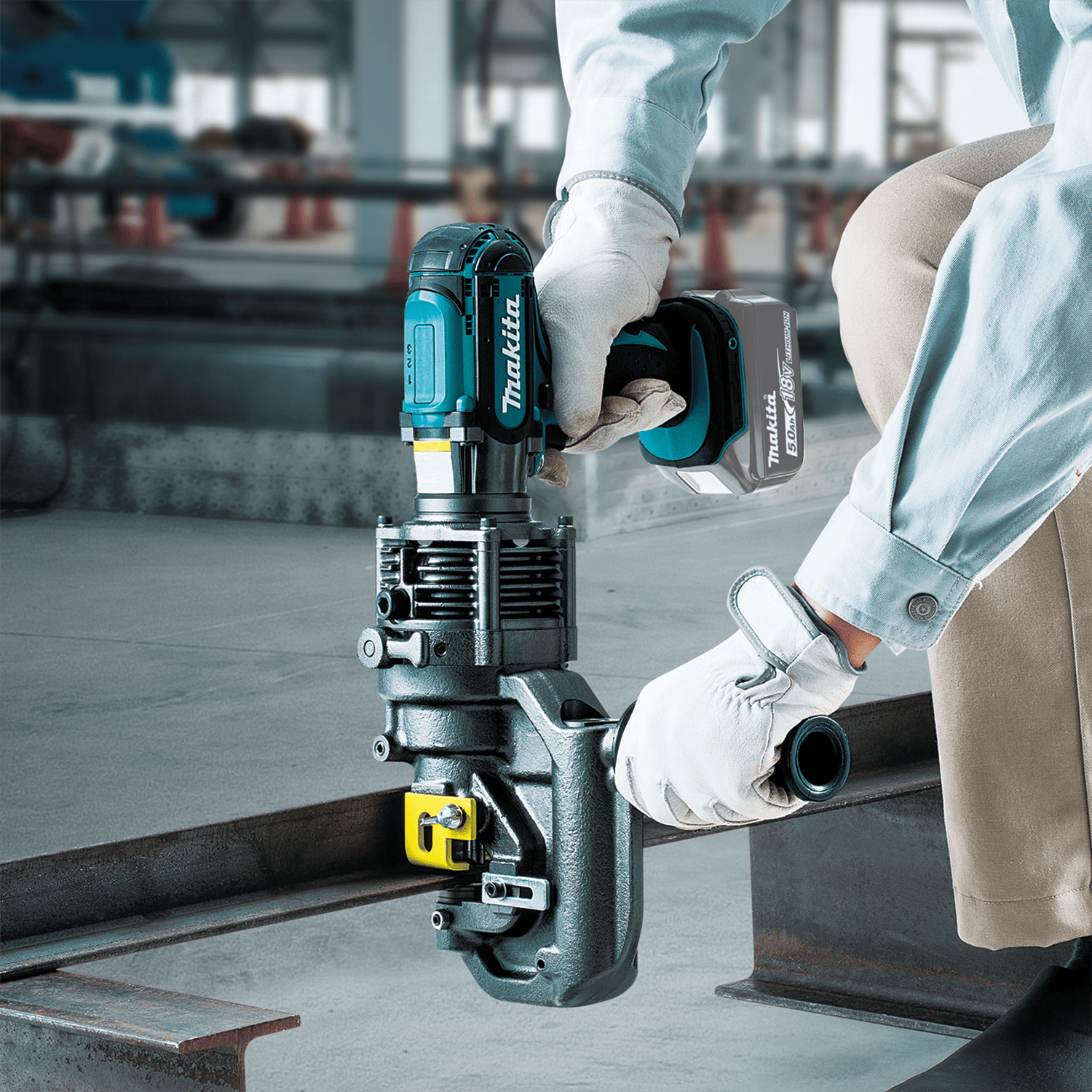

Ironworker using the Makita 18V cordless hole puncher to punch a clean hole through a structural steel beam flange.
Fabricator operating the Makita XPP01ZK cordless puncher to pierce thick steel angle iron on a shop work table.
Makita XPP01ZK 18V cordless 5/16-inch metal hole puncher bare tool featuring a rugged steel C-frame and side handle.
Diagram showing key features of the Makita XPP01 hole puncher, including the 360-degree rotating grip and depth guide.
Close-up of the automatic punch return mechanism that retracts the die immediately after completing a hole.
Top-down view demonstrating the 360-degree rotating grip handle for optimal tool positioning in tight spaces.
Steel bar with clean, burr-free holes punched up to 5/16-inch thick in general steel and 15/64-inch in stainless steel.
Angled side profile of the Makita 18V LXT cordless hole puncher highlighting its heavy-duty cast metal housing.
Side view of the Makita XPP01ZK cordless metal puncher showing the adjustable depth guide and ergonomic pistol grip.
Overhead rotational graphic illustrating the full 360-degree multi-position adjustment of the puncher head.
Hand holding the Makita XPP01ZK metal puncher to demonstrate balanced ergonomics and responsive trigger control.
Close-up view of the manual return lever used to retract the punching die mid-operation on the metal punch housing.
Close-up of the adjustable depth guide and punch die assembly on the Makita metal hole puncher.
Ironworker using the Makita 18V cordless hole puncher to punch a clean hole through a structural steel beam flange.
Fabricator operating the Makita XPP01ZK cordless puncher to pierce thick steel angle iron on a shop work table.
Makita

Makita Metal Hole Puncher XPP01ZK 18V 5/16 Inch Bare Tool (Cordless 25/32 Inch Capacity Steel Punching Fabrication Construction Tool Unit)

Only 3 left
SKU: XPP01ZK
$2,949.00 USD

Description

Makita Logo Logout

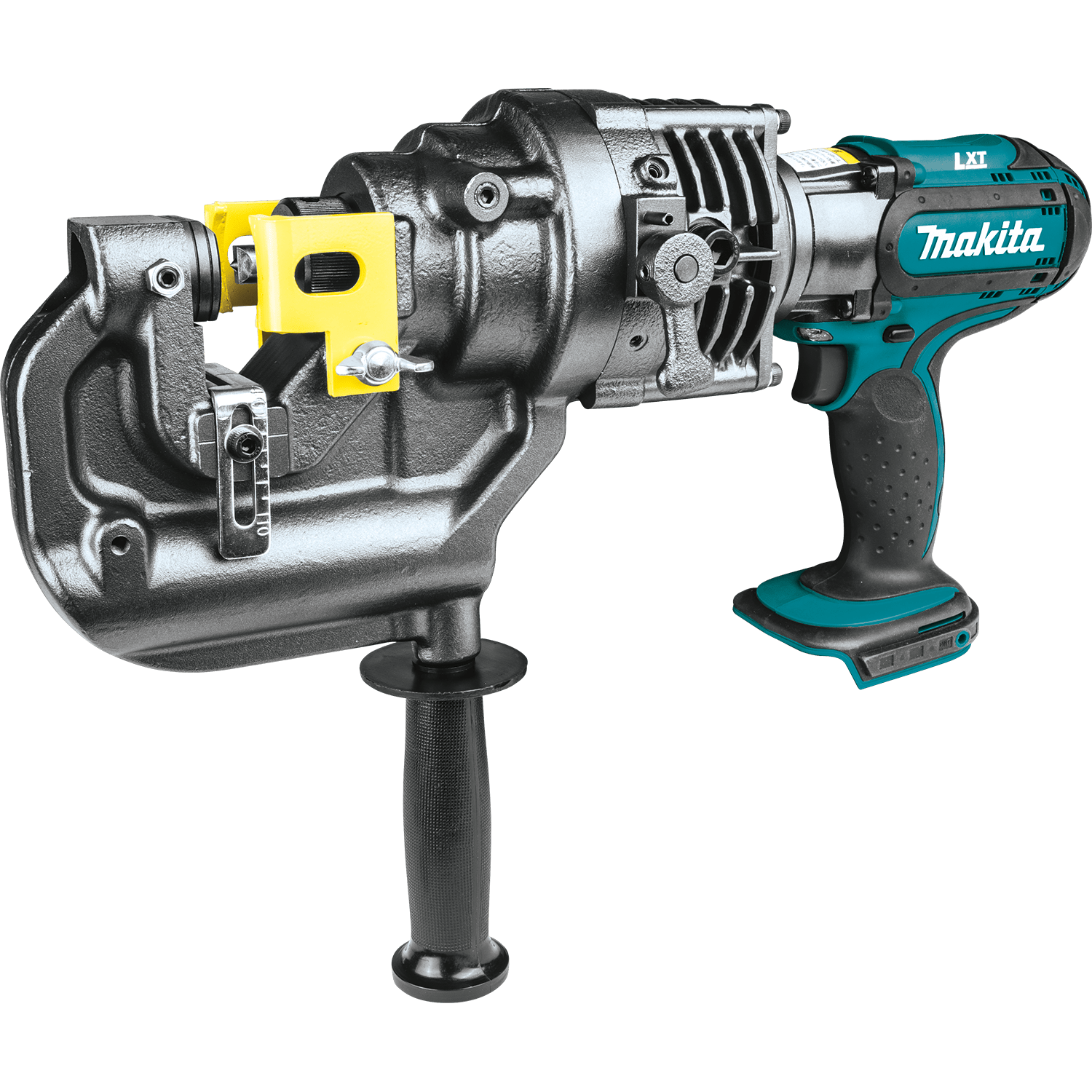

Makita XPP01ZK 18V LXT 5/16" Cordless Metal Hole Puncher Bare Tool

The Makita XPP01ZK 18V LXT cordless 5/16-inch metal hole puncher pierces clean holes through structural steel plates, steel channels, and stainless steel sheets in under 5 seconds for electrical, plumbing, and HVAC fabrication. **Battery and charger sold separately. Engineered with a powerful cordless 18V motor and an automatic punch stop mechanism that retracts the die instantly upon completion, this heavy-duty puncher delivers rapid, effortless hole punching up to 5/16-inch thickness in general steel. Outfitted with a 360-degree rotating pistol grip handle, an adjustable depth guide up to 1-37/64 inches, and all-metal gear construction, it equips professional fabricators and contractors with portable, cordless punching mobility.

Best Used For:

  • Electrical Panel and Junction Box Knockouts: Punching clean mounting and conduit holes quickly through heavy steel enclosures and strut channels.
  • HVAC Ductwork and Steel Stud Fabrication: Piercing precise fastener holes through structural steel studs and metal framing without creating metal burrs or sparks.
  • Plumbing and Mechanical Pipe Hanger Mounting: Creating rapid hanging attachment points in structural steel beams and flat bar stock on commercial jobsites.

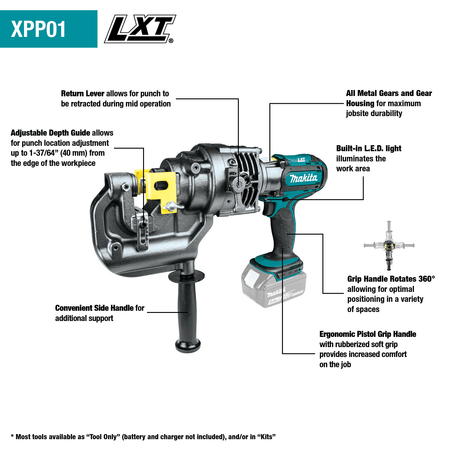

Key Performance & Safety Features

  • Fast Sub-5-Second Punching Speed: High-performance hydraulic-assist mechanism completes clean holes in thick metal plate rapidly to maximize jobsite productivity.

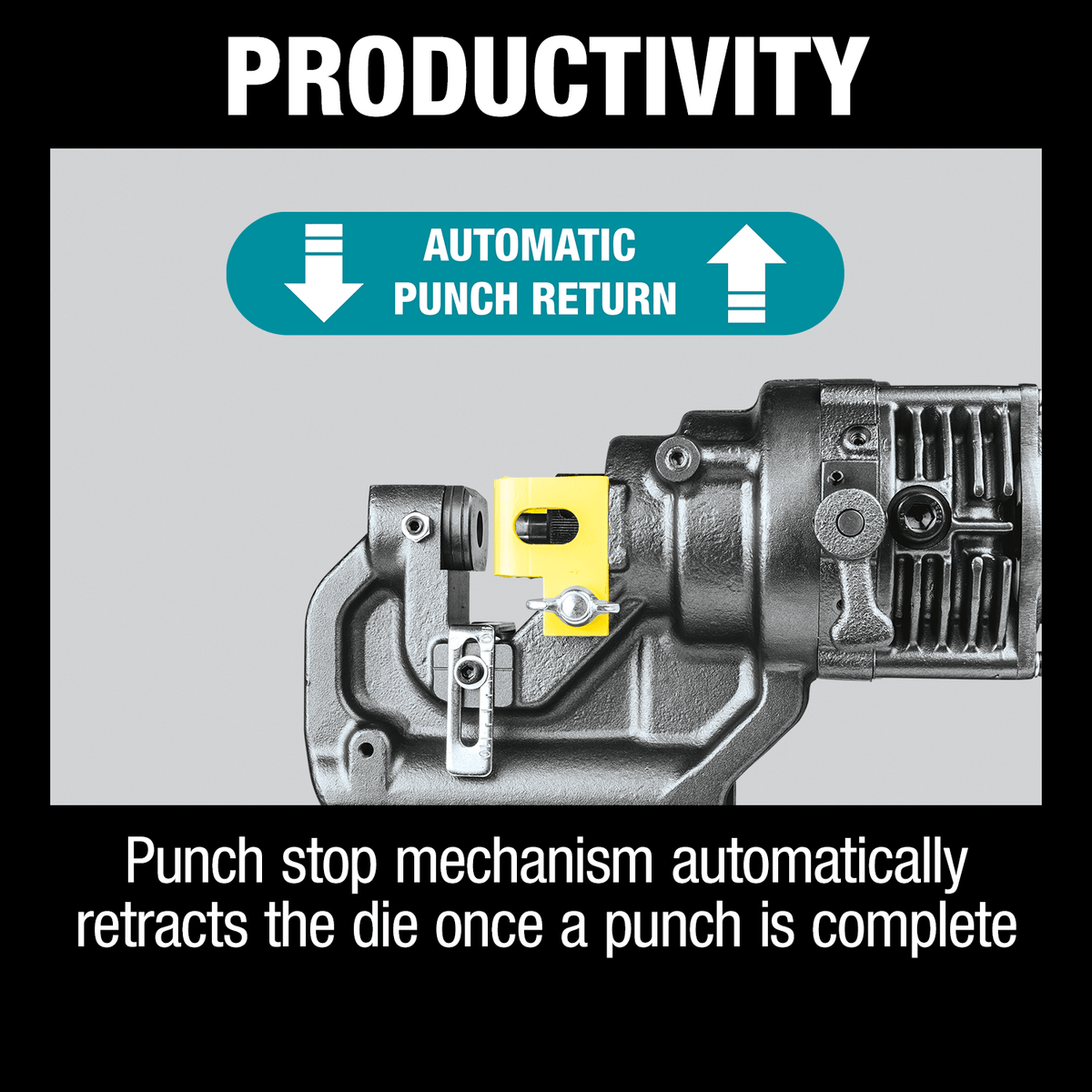

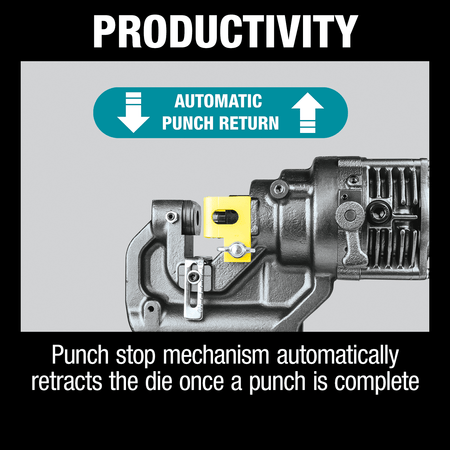

  • Automatic Punch Stop Mechanism: Built-in sensor logic automatically retracts the punching die once a cycle finishes to allow immediate repositioning.

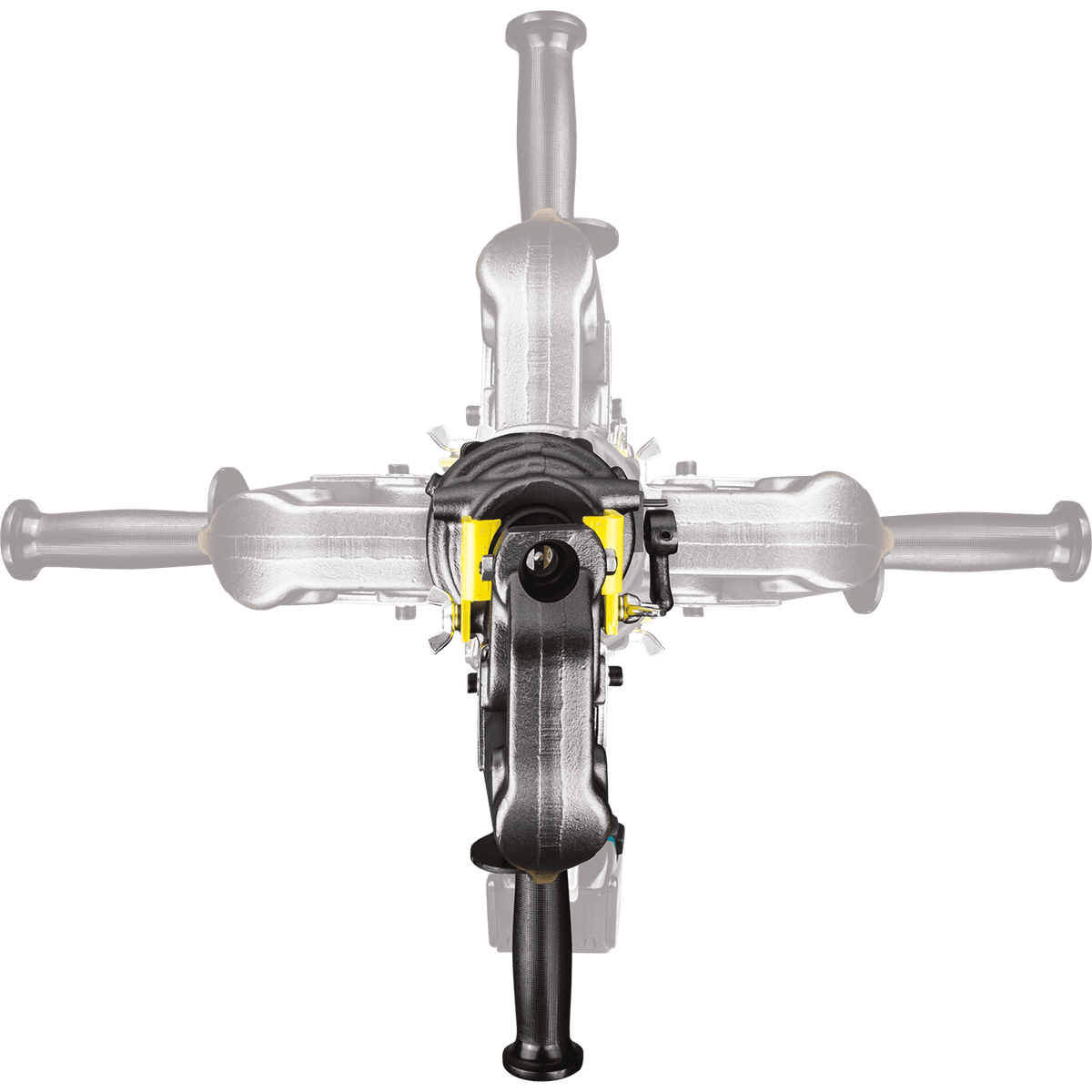

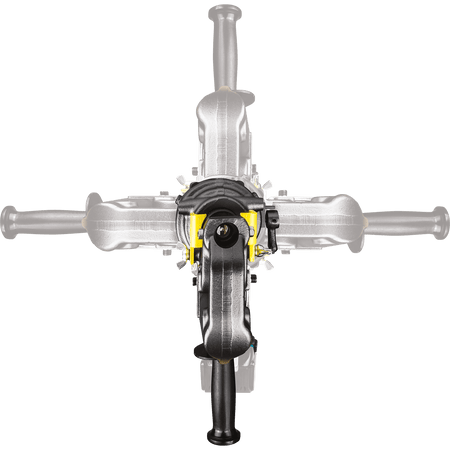

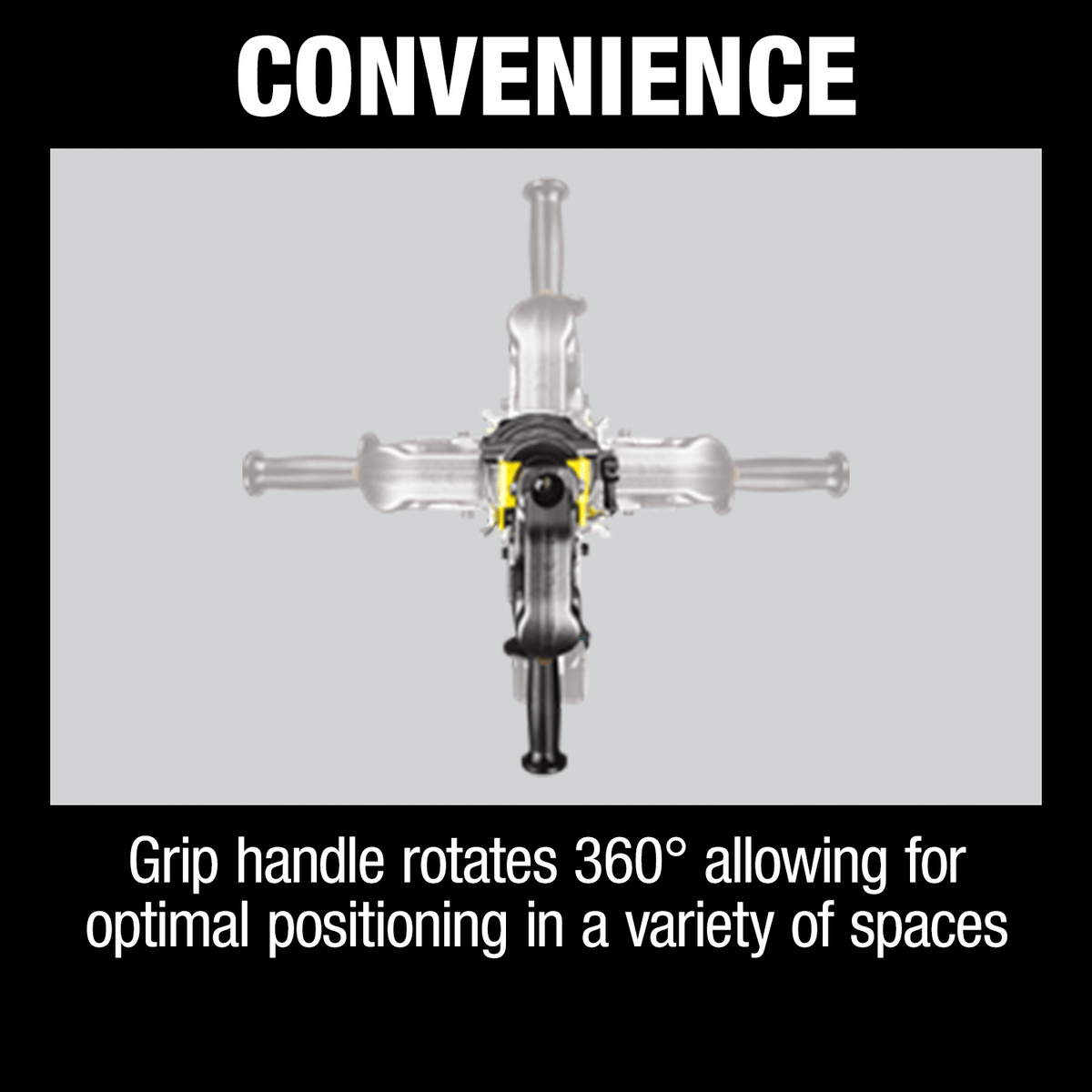

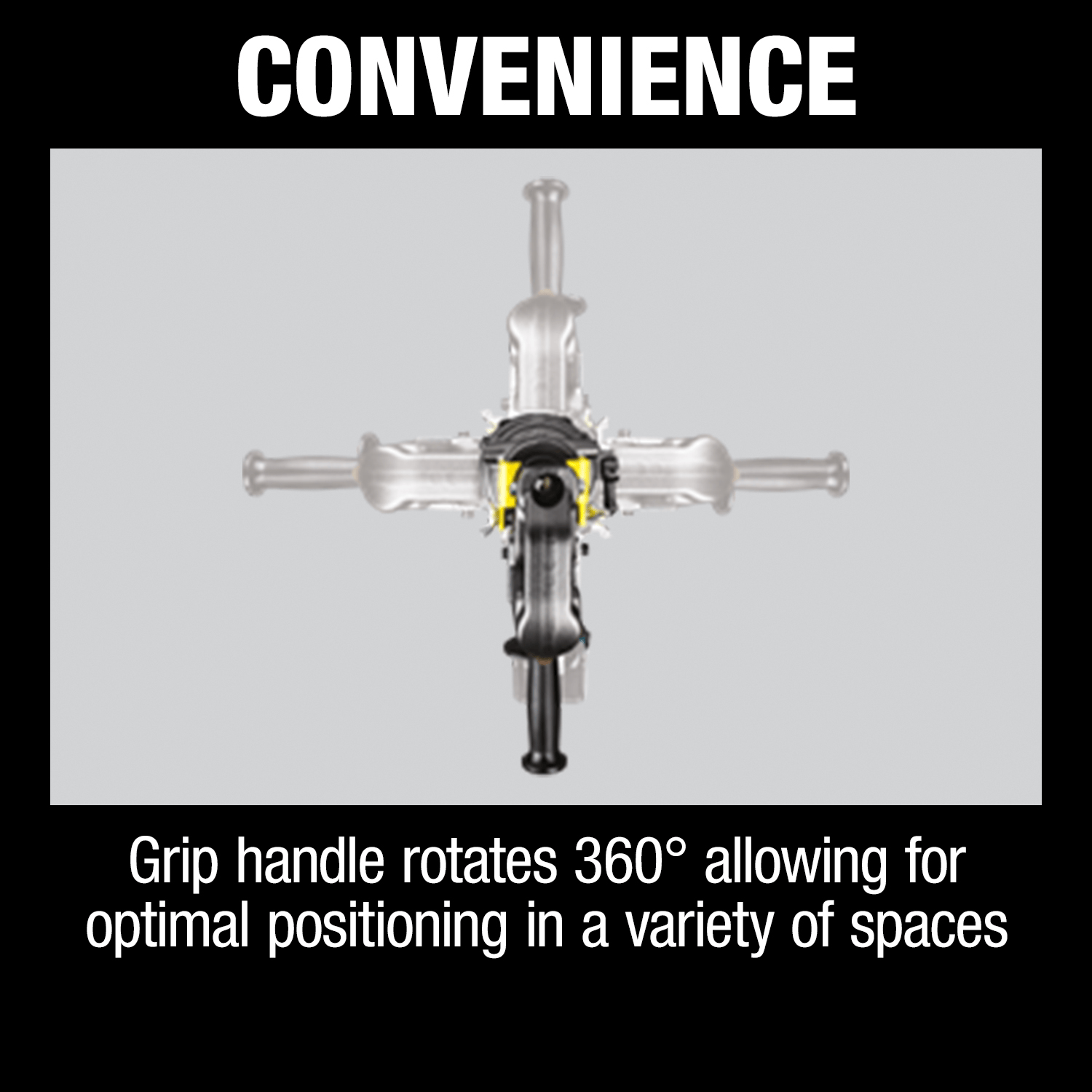

  • 360-Degree Rotating Handle: Ergonomic pistol grip rotates completely around the tool body to provide optimal operator positioning in tight framing spaces.
  • Adjustable Depth Guide: Allows precise punch location adjustments up to 1-37/64 inches from the material edge for consistent alignment.
  • Star Protection Computer Controls: Advanced communication technology protects against overloading, over-discharging, and overheating during intense cordless operation.

What's Included

  • (1) Makita XPP01ZK 18V LXT 5/16" Metal Hole Puncher (Bare Tool)
  • (1) Round Punch, 15/32" (12 mm) (SC05340100)
  • (1) Round Die, 15/32" (12 mm) - SB (SC00000215)
  • (1) Hydraulic Oil, 35 ml (SC00000106)
  • (1) Hex Wrench, 3mm (SC00000103)
  • (1) Hex Wrench, 4mm (SC00000104)
  • (1) Hex Wrench, 8mm
  • (1) Spanner Wrench, 8mm / 10mm (SC00000166)
  • (1) Nut Bar (SC03505300)
  • (1) Side Handle Assembly (SC00000155)
  • (1) Heavy-Duty Storage Tool Case

Technical Specifications

Manufacturer Makita U.S.A. Inc.
Model Number XPP01ZK (XPP01)
Product Classification 18V LXT® Cordless 5/16" Metal Hole Puncher (Bare)
Battery Platform Voltage 18V LXT® Lithium-Ion Slide-Style Battery

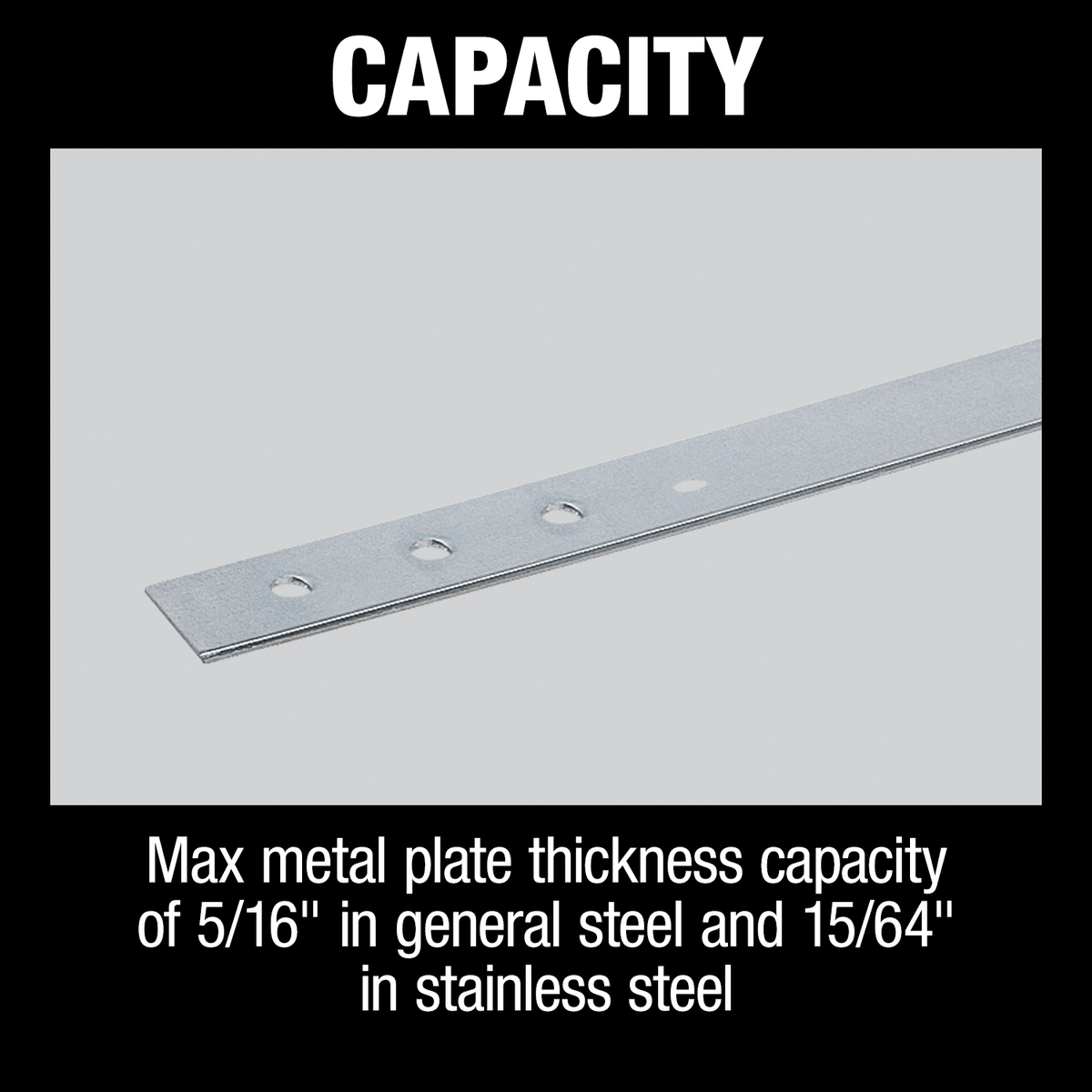

Max Steel Plate Thickness 0.3125 inches (5/16 in General Mild Steel Capacity)
Max Stainless Steel Thickness 0.234 inches (15/64 in Stainless Steel Capacity)
Maximum Round Hole Diameter 0.781 inches (25/32 in Max Hole Size)
Maximum Throat Depth 1.578 inches (1-37/64 in Edge Clearance)
Overall Tool Length 12.42 inches (12-27/64 in / 31.53 cm)
Net Weight (with Battery) 23.80 lbs (10.80 kg Loaded Operating Weight)
Motor Technology Type Brushed Industrial Motor with All-Metal Gears
Target Substrates Mild Steel, Stainless Steel Plates, & Channel Iron

Pro-Tip: When punching multiple holes in heavy structural steel plate, apply a small drop of cutting oil to the punch tip periodically to reduce friction, extend die life, and ensure clean slug ejection.
