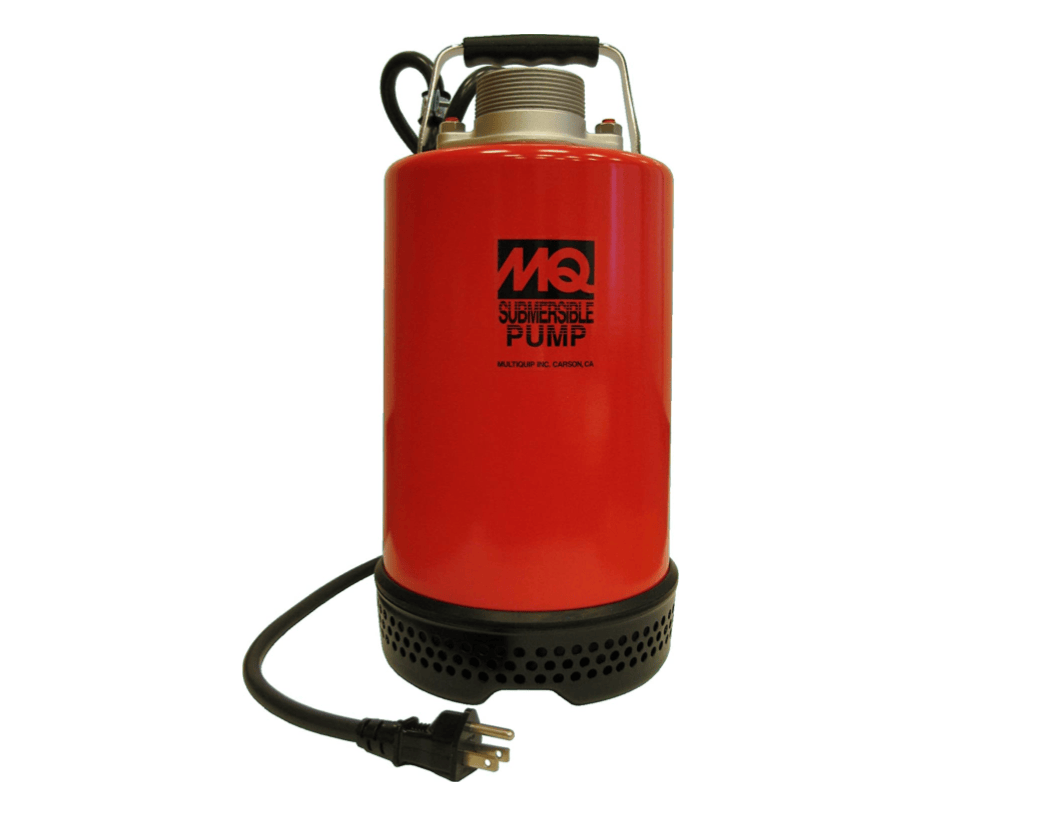

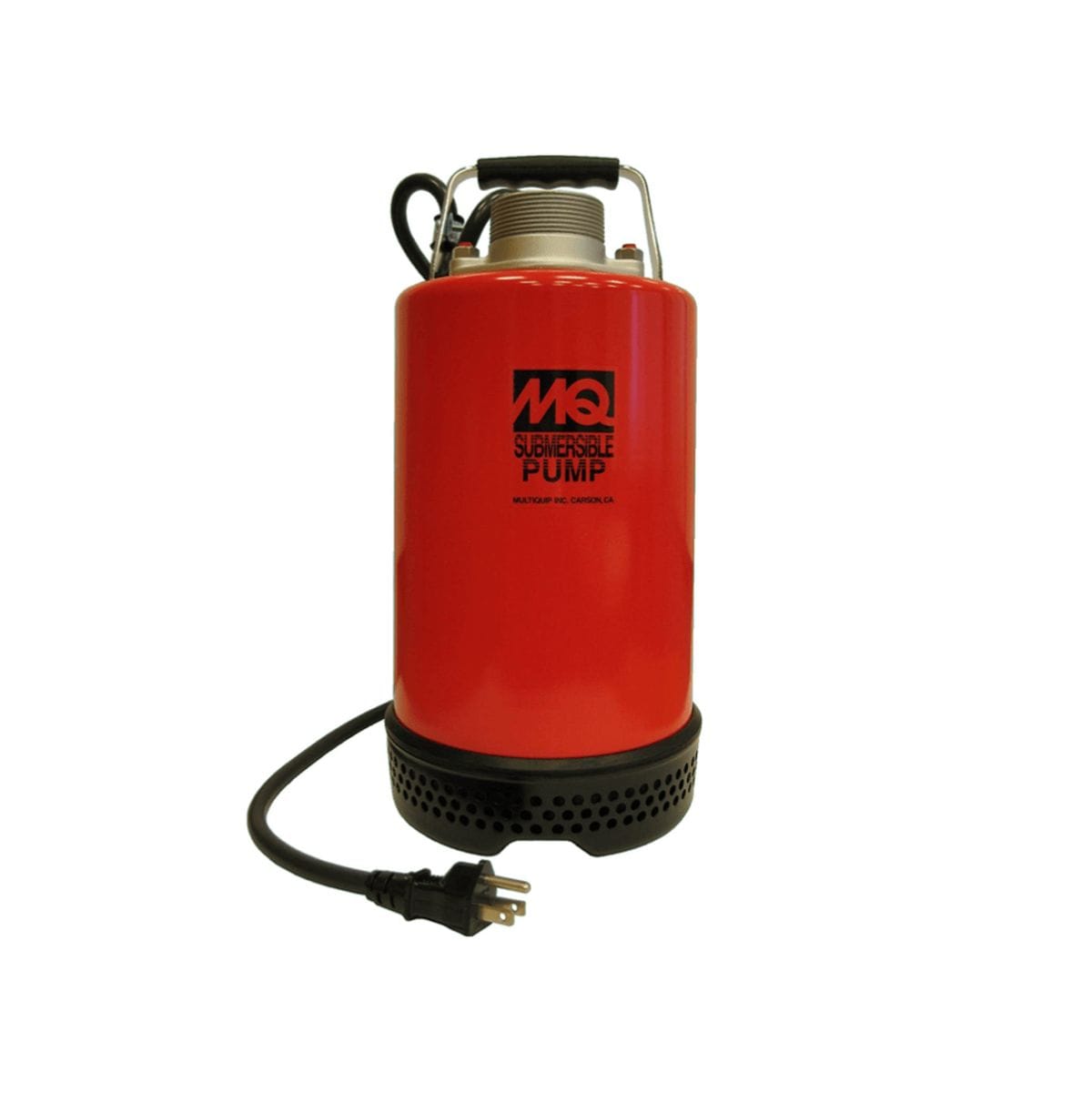

Front Image of MultiQuip 2" Electric Submersible Centrifugal Pump Red. This is an eye-level, full-shot of a bright red cylindrical submersible pump, standing upright against a plain white background. The pump has a black base with circular vents, a black handle on top, and a black electrical cord with a three-pronged plug extending from its side.
Front Image of MultiQuip 2" Electric Submersible Centrifugal Pump Red. This is an eye-level, full-shot of a bright red cylindrical submersible pump, standing upright against a plain white background. The pump has a black base with circular vents, a black handle on top, and a black electrical cord with a three-pronged plug extending from its side.
Front Image of MultiQuip 2" Electric Submersible Centrifugal Pump Red. This is an eye-level, full-shot of a bright red cylindrical submersible pump, standing upright against a plain white background. The pump has a black base with circular vents, a black handle on top, and a black electrical cord with a three-pronged plug extending from its side.
Front Image of MultiQuip 2" Electric Submersible Centrifugal Pump Red. This is an eye-level, full-shot of a bright red cylindrical submersible pump, standing upright against a plain white background. The pump has a black base with circular vents, a black handle on top, and a black electrical cord with a three-pronged plug extending from its side.
MULTIQUIP

Multiquip Submersible Centrifugal Pump ST2037 2 In 1HP Electric Dewatering (73 GPM Flow Rate 37 Ft Total Head Cast Aluminum Heavy Duty Utility Kit)

In stock
SKU: ST2037
$379.00 USD
$429.00 USD Sale $379.00 USD

Description

Multiquip ST2037 2-Inch 1HP Electric Submersible Centrifugal Dewatering Pump

The Multiquip ST2037 2-Inch Electric Submersible Centrifugal Pump functions as a high-flow fluid evacuation unit engineered to transfer clean and silt-laden water out of flooded construction excavations, utility vaults, and mechanical pits. Driven by a 1 HP 115V single-phase electric motor drawing 6.9 running amps, this compact 31-lb. pump moves up to 73 GPM with a maximum head lift of 37 ft. and dewaters flat concrete surfaces down to 1/2 in. depths. Built with a rugged cast aluminum outer housing, dual mechanical oil-lubricated seals, and an elastomer-molded impeller, this dewatering equipment provides reliable liquid transfer for municipal crews, utility contractors, and facility maintenance teams operating in confined sites.

Best Used For:

  • Utility Pit & Vault Dewatering: Evacuating standing water down to 1/2 in. depths from narrow electrical vaults, manholes, and utility trenches prior to cable splicing or maintenance.
  • Jobsite Foundation & Excavation Drainage: Pumping accumulated groundwater and rainwater runoff out of concrete footings and foundation basements at rates up to 73 GPM.
  • Confined Space Flood Mitigation: Rapidly deploying a slim 7.4 in. diameter electric pump into restricted sump pits and drainage basins requiring continuous pumping up to 120°F.

Key Performance & Safety Features

  • 1 HP Thermal-Protected Electric Motor: UL and cUL listed 115V motor incorporates internal thermal overload protection to prevent stator burnout during high-load continuous pumping.
  • Dual Mechanical Shaft Seals: Oil-filled dual mechanical seal chamber isolates electrical motor windings from fluid intrusion to ensure long service life.
  • Neoprene Over Cast-Iron Impeller: Abrasion-resistant rubberized impeller absorbs grit and particulate impact without eroding or binding against the volute wall.
  • Cast Aluminum Outer Casing: High-strength lightweight cast aluminum housing dissipates heat efficiently while maintaining structural durability at just 31 lbs.
  • Flat-Surface Evacuation Capabilities: Engineered suction casing geometry lowers standing water levels down to a minimal 1/2 in. depth on level concrete floors.
  • Heavy-Duty Molded 25-Foot Cable: Industrial-grade power cord features integrated strain relief protection to withstand continuous pulling and rough jobsite handling.

What's Included

  • (1) Multiquip ST2037 2 in. 1HP Electric Submersible Centrifugal Pump
  • (1) 25 ft. Molded Power Cord with Strain Relief

Technical Specifications

Brand Manufacturer Multiquip®
Model Part Number OEM SKU ST2037
Equipment Classification Type Electric Submersible Centrifugal Dewatering Pump
Motor Horsepower Rating 1.0 HP (1 HP)
Operating Voltage & Phase 115 V, Single Phase (60 Hz)
Running Amperage Draw 6.9 A
Starting Inrush Amperage 34.5 A
Maximum Pumping Flow Rate 73 GPM (Gallons Per Minute)
Maximum Total Dynamic Head 37 ft. (Total Dynamic Head Lift)
Discharge Connection Thread Size 2 in. NPT Female Threaded Port
Impeller Construction Architecture Neoprene Rubber Over Cast-Iron Core
Minimum Flat Clearance Dewatering Depth 1/2 in. Surface Water Clearance
Maximum Liquid Fluid Temperature 120°F Maximum Fluid Rating
Power Cable Length Specification 25 ft. Molded Cord with Strain Relief
Pump Dimensions (Diameter x Height) 7.4 in. Dia. x 15.4 in. H
Total Assembled Net Weight 31.0 lbs. Operating Weight
Safety Agency Listing Certifications UL Listed & cUL Certified

Pro-Tip: Before lowering the ST2037 into heavily silted trenches or muddy foundation sumps, place the pump on top of a perforated bucket or solid masonry paver. Elevating the base screen 2 to 3 inches above loose sediment prevents the neoprene impeller from drawing in large slurry stones, maintaining optimal 73 GPM flow rates and extending internal seal life.
