Multiquip MQ Power 36 kW 45 kVA Isuzu Tier 4 Final Mobile Diesel Generator Package with TRLR45 Trailer (DCA45SSIU4F)
Shipping Quote Required
Request a Shipping QuoteCouldn't load pickup availability

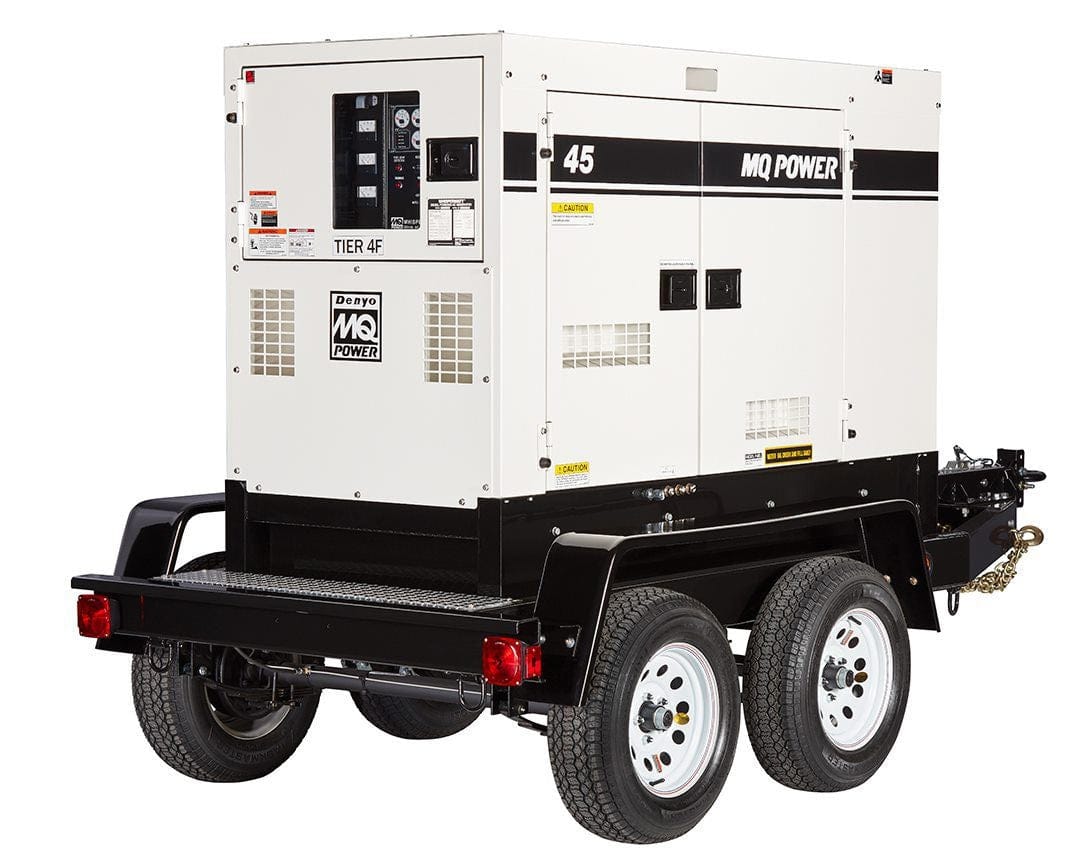

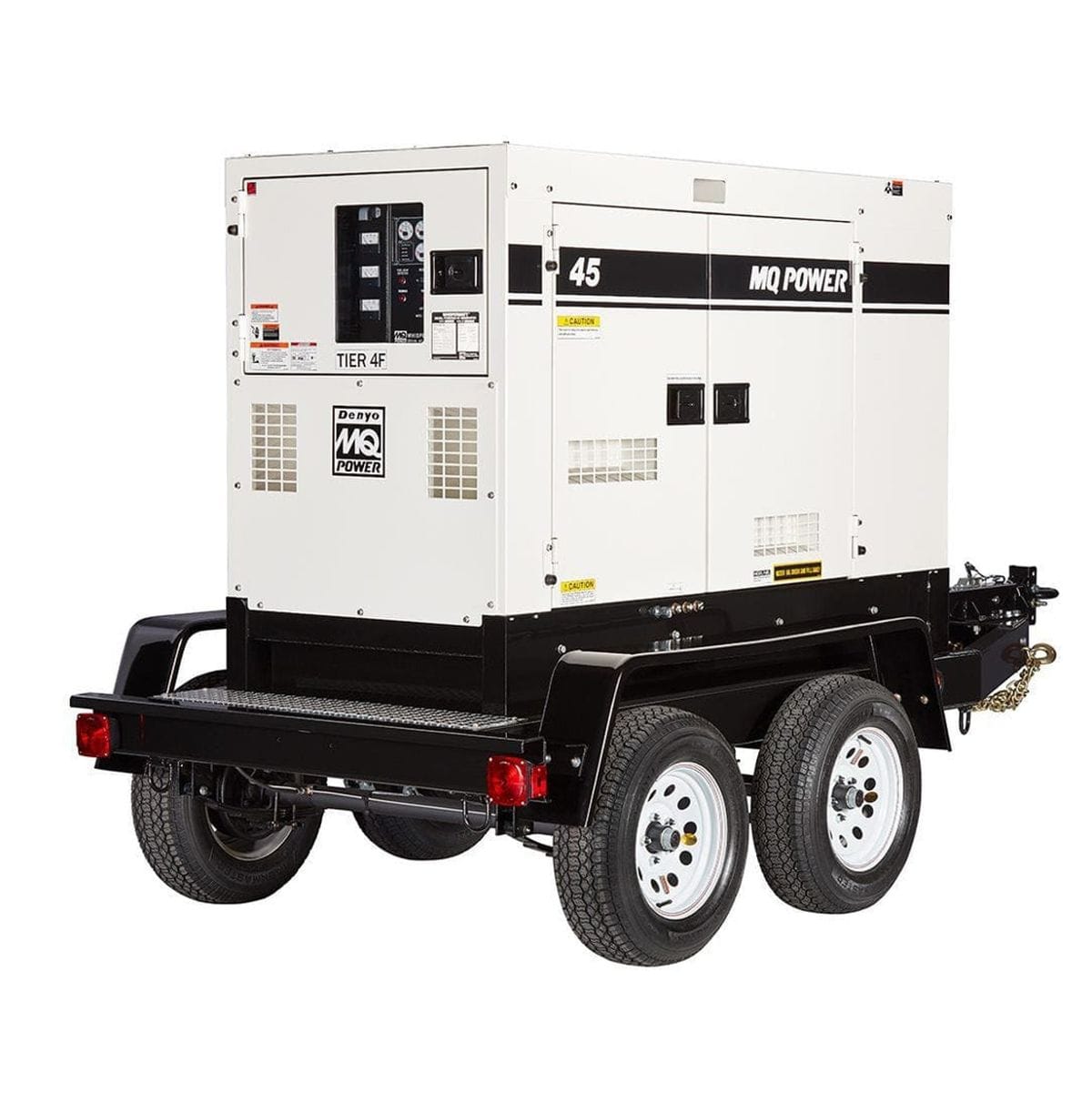

Multiquip MQ Power 36 kW 45 kVA WhisperWatt Mobile Diesel Generator with TRLR45 Trailer (DCA45SSIU4F)
The Multiquip DCA45SSIU4F 45 kVA WhisperWatt Mobile Diesel Generator Package delivers versatile three-phase and single-phase prime electrical power engineered for commercial construction jobsites, municipal utility bypass operations, disaster relief stations, and outdoor event staging. Driven by an EPA Tier 4 Final turbocharged 65.7 BHP Isuzu 4LE2X liquid-cooled diesel engine, this mobile system provides a 36 kW continuous prime output (40 kW maximum standby rating) while restricting operational noise down to an ultra-quiet 66 dB(A) at 23 feet.
Equipped with an open-delta alternator winding design for high inductive motor-starting capacity, an electronic isochronous governor maintaining 60 Hz line frequency within ±0.25%, and an internal 79.2-gallon fuel reservoir with environmental containment, this generator supports up to 49 hours of continuous run time at half load. Factory mounted directly to the Multiquip TRLR45 heavy-duty tandem-axle highway trailer (7,000 lbs GVWR), this turnkey package delivers immediate jobsite mobility, versatile multi-voltage selection, and continuous power generation under tough contractor duty cycles.
Recommended Jobsite Applications
- Commercial Building & Infrastructure Projects: Running high-amperage jobsite sub-panels, structural welders, concrete saws, multi-operator tool stations, and temporary field offices.
- Municipal Bypass & Utility Dewatering: Delivering uninterrupted 3-phase 240V or 480V power to municipal trash pumps, submersible dewatering units, and sewer bypass equipment.
- Emergency Facility Standby: Providing automated emergency power to lift stations, telecommunication towers, and municipal maintenance yards via automatic transfer switch (ATS) integration.
- Entertainment & Urban Sound-Sensitive Venues: Supplying clean, frequency-stabilized power for large concert lighting rigs, film trailers, and urban street work requiring strict 66 dB(A) sound containment.
Key Performance & Functional Features

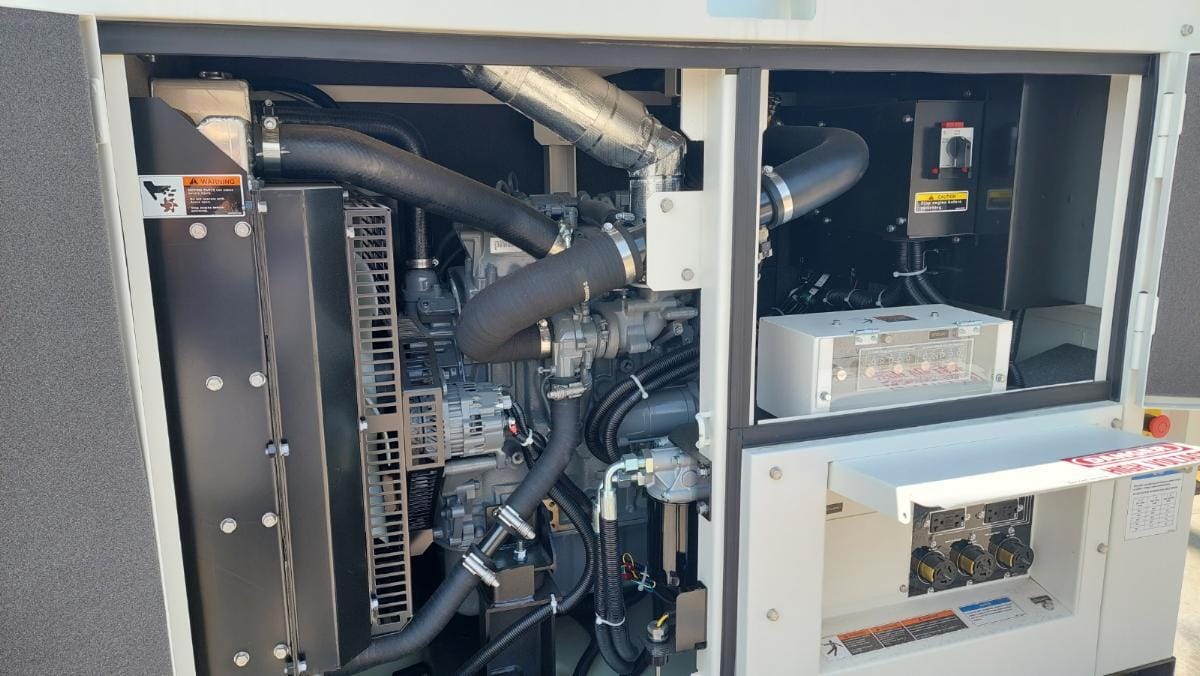

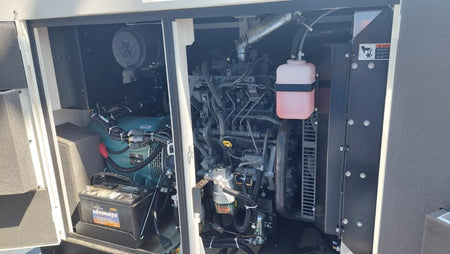

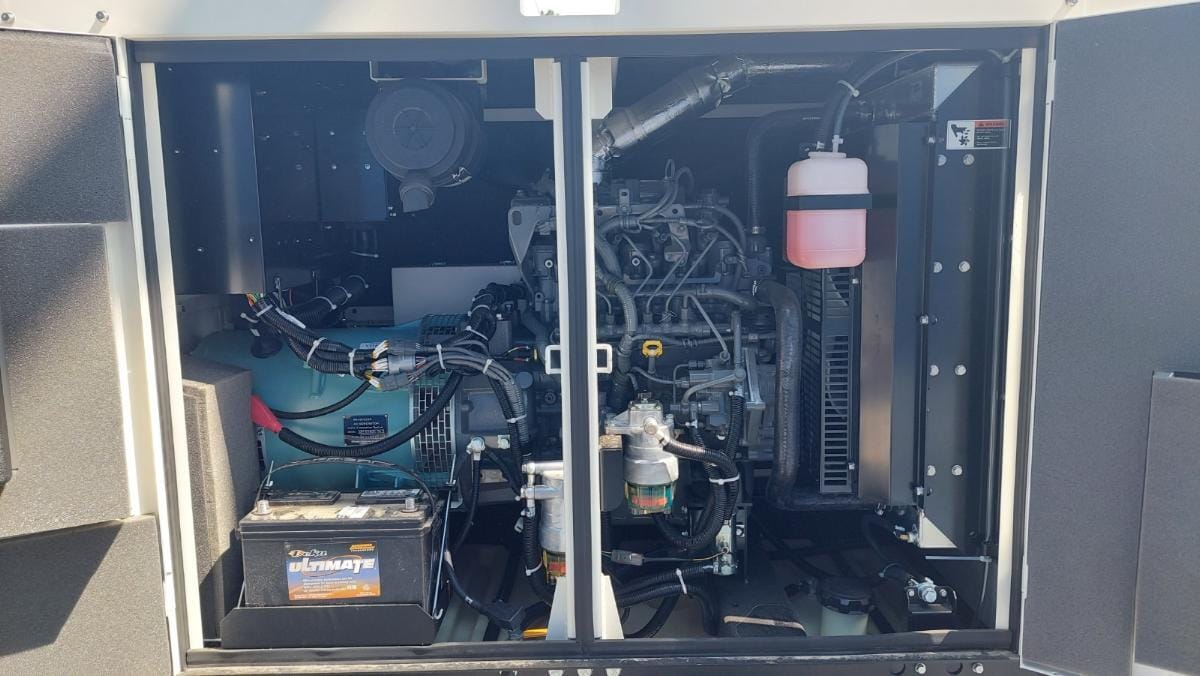

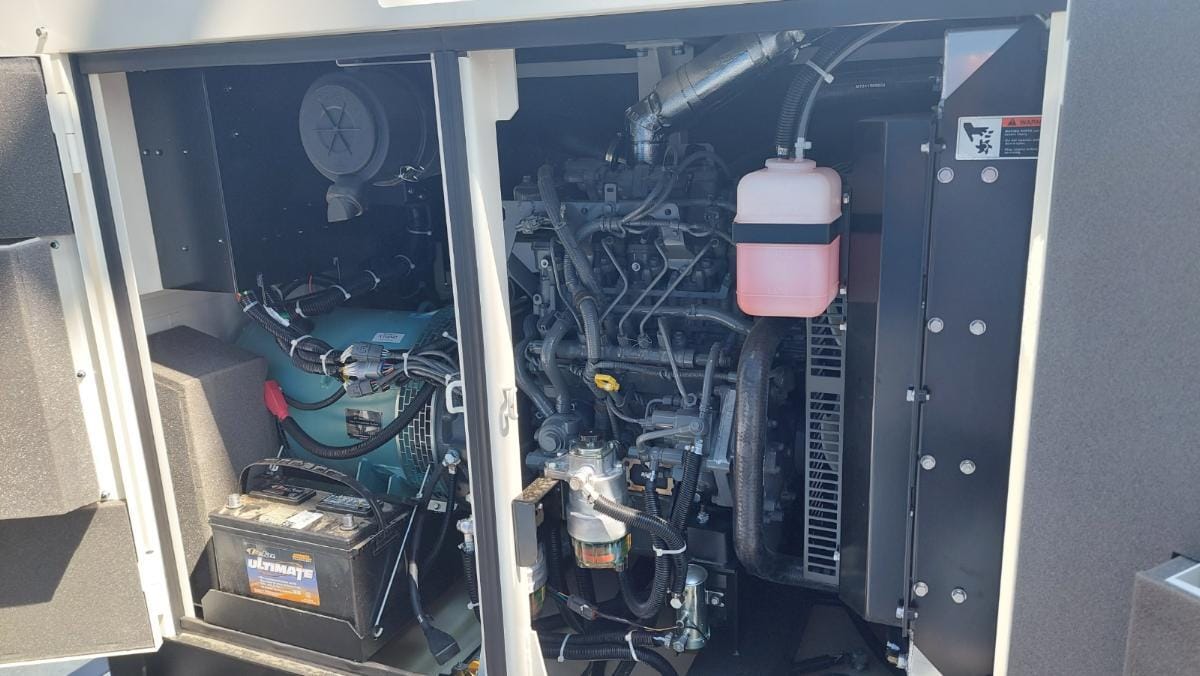

- Tier 4 Final Isuzu 4LE2X Engine: 2.2L 4-cylinder turbocharged, charge-air cooled diesel provides efficient fuel burn and simple maintenance without requiring complex DPF regeneration cycles.

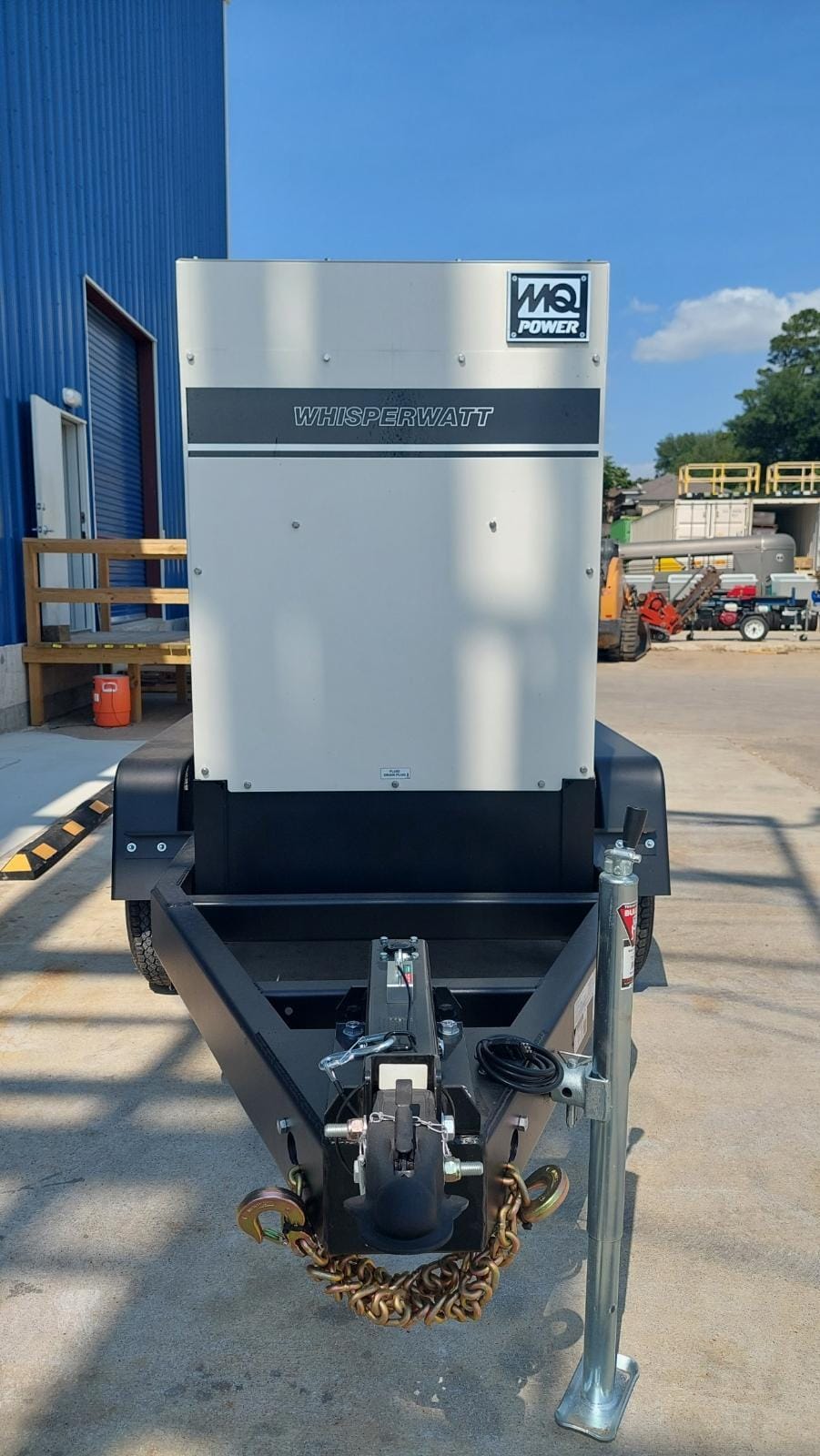

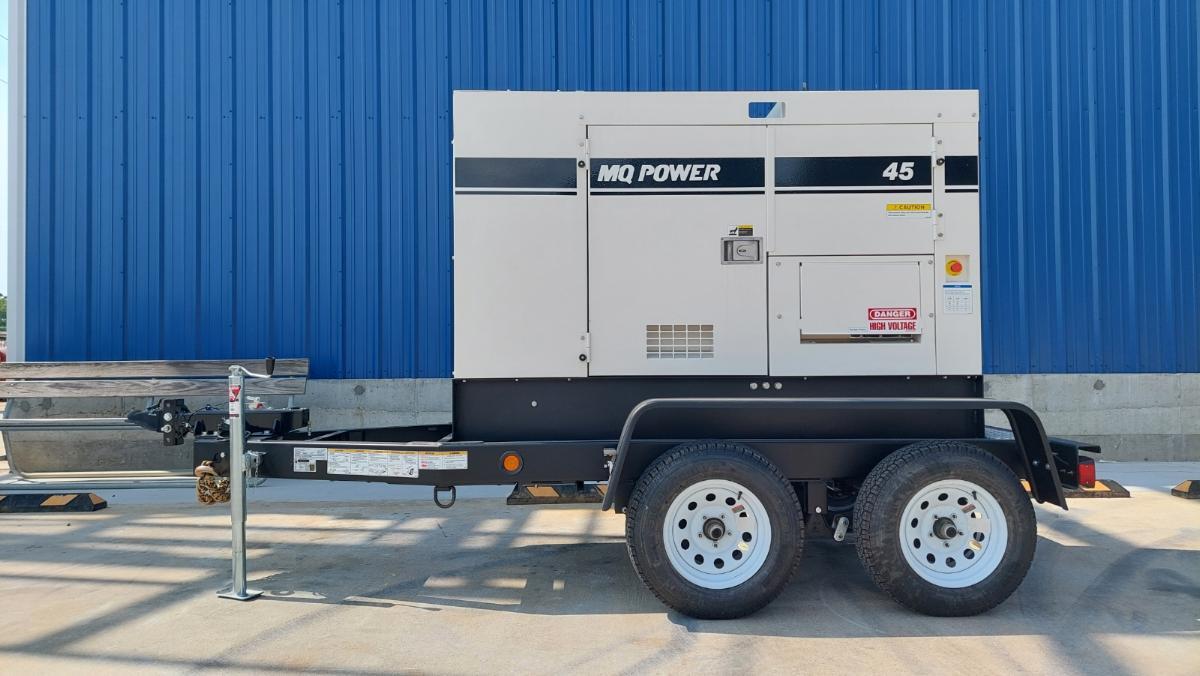

- Complete TRLR45 Highway Trailer Package: DOT-compliant tandem-axle trailer rated at 7,000 lbs GVWR featuring dual 3,500 lb axles, surge hydraulic brakes, heavy-duty suspension, and multi-hitch coupler capability.
- WhisperWatt Sound-Attenuated Enclosure: Heavy-gauge, powder-coated steel housing lined with dense acoustic sound-dampening insulation keeps sound output to 66 dB(A) at 23 feet under full prime continuous load.
- Multi-Voltage Selector Switch: Lockable selector switch enables rapid manual reconfiguration across 3-phase 208V, 220V, 240V, 416V, 440V, and 480V, as well as single-phase 120V and 240V lines.
- Patented Open-Delta Alternator Winding: Ensures superior motor starting capacity, allowing the alternator to start heavy electric motors and inductive loads without excessive voltage drop.
- Long-Range 79.2-Gallon Fuel Reservoir: Internal fuel cell supports extended run times of up to 49 hours at 50% load and 27 hours at 100% full continuous prime load.

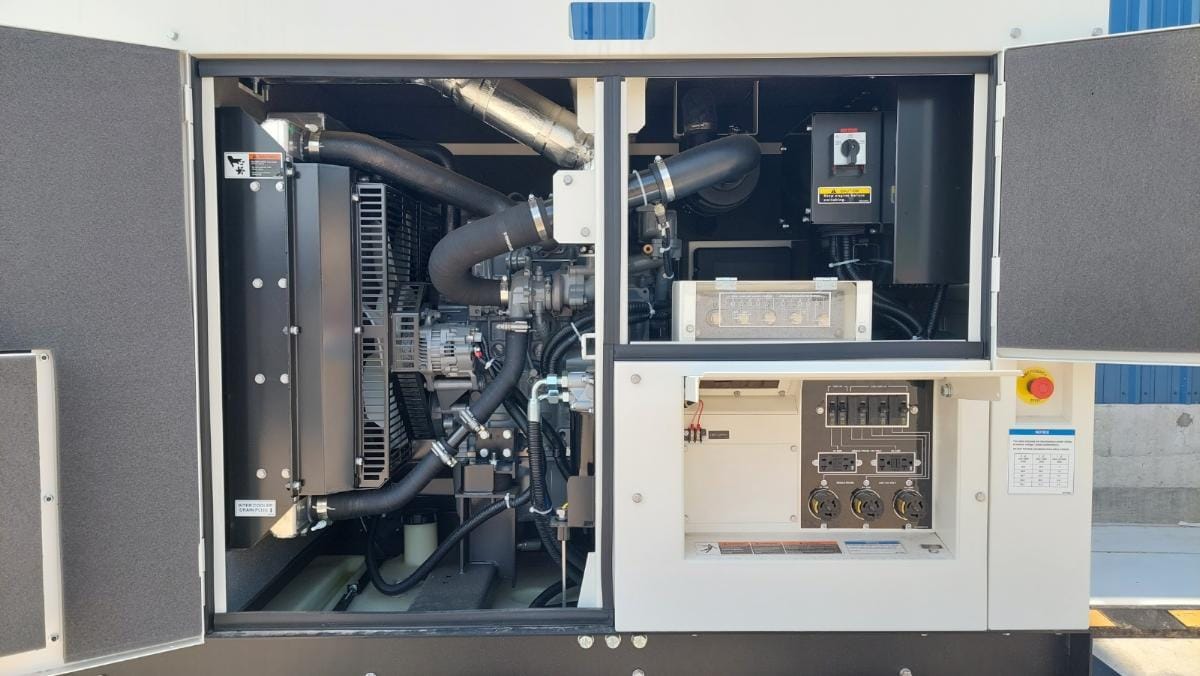

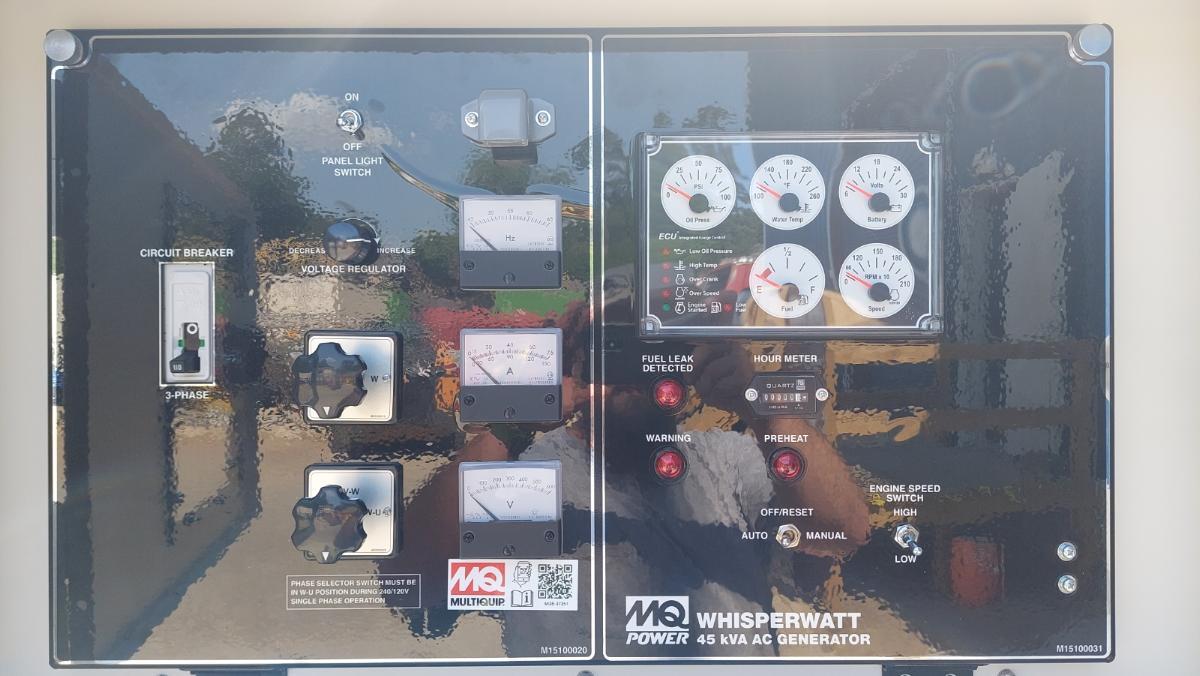

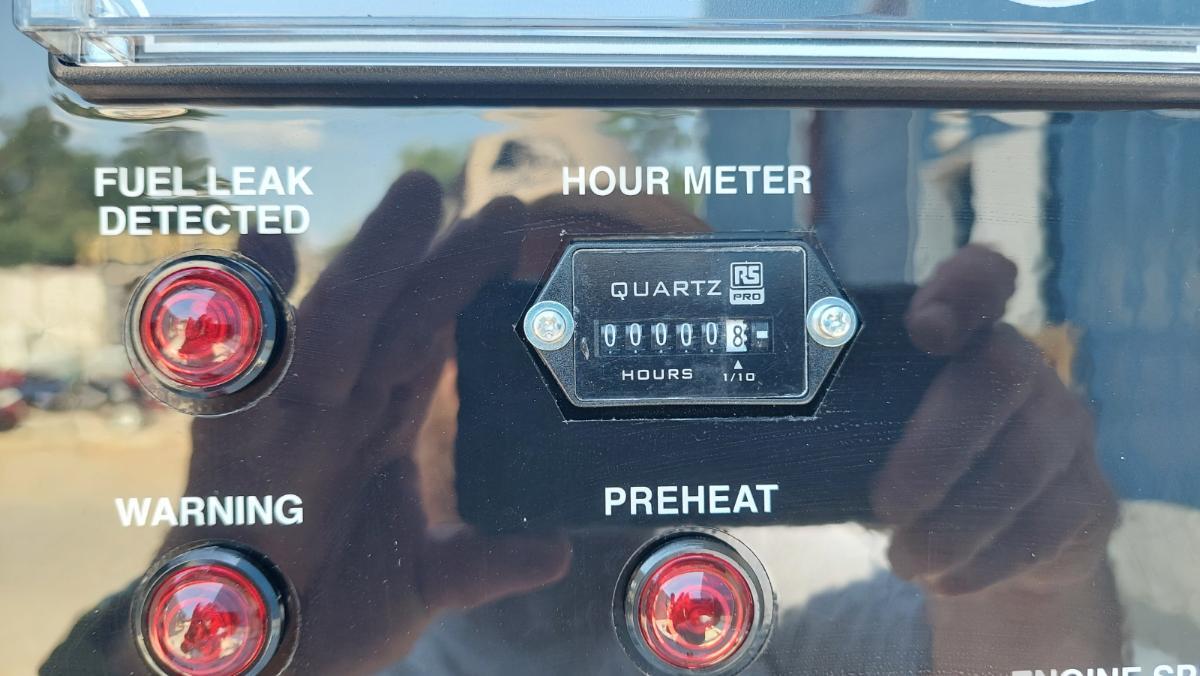

- Analog Diagnostic Dashboard & Auto-Start: Shock-mounted control console provides clear monitoring of line voltage, current amperage, frequency, engine temperature, and oil pressure, with integrated 2-wire auto-start remote terminals.
What's Included
- 1 × Multiquip MQ Power WhisperWatt 36 kW Diesel Generator (MPN: DCA45SSIU4F)
- 1 × Factory-Installed Isuzu 4LE2X Tier 4 Final Turbocharged Diesel Engine (65.7 BHP)
- 1 × Multiquip TRLR45 Heavy-Duty Tandem-Axle Highway Transport Trailer (7,000 lbs GVWR)
- 1 × Multi-Hitch Coupler Assembly (3" Pintle Eye, 2" Ball, and 2-5/16" Ball Attachments)
- 1 × Integrated 79.2-Gallon Sub-Base Fuel Reservoir with Environmental Spill Containment
- 1 × Master Analog Diagnostic Instrument Panel with Keyed Auto-Start Controller
- 1 × Complete Engine & Generator Technical Operations Manual Set
Technical Specifications
| Specification Parameter | Product Detail |
|---|---|
| Manufacturer & Model Series | Multiquip Inc. | WhisperWatt™ Series |
| Model Part Number (MPN) | DCA45SSIU4F |
| Mobility Configuration | Multiquip TRLR45 Tandem-Axle Highway Trailer Package Included |
| Prime Continuous Power Rating | 36 kW (45 kVA) Continuous @ 1,800 RPM |
| Standby Emergency Power Rating | 40 kW (50 kVA) |
| Engine Make & Displacement | Isuzu 4LE2X (2.2L / 133 cu in, 4-Cylinder Turbocharged) |
| Engine Emissions Certification | EPA Tier 4 Final & CARB Certified (DOC System) |
| Gross Engine Mechanical Output | 65.7 bhp (49.0 kW Mechanical Output @ 1,800 RPM) |
| Acoustic Sound Level | 66 dB(A) @ 23 Feet (Full 100% Prime Load) |
| Three-Phase Voltage Selection | 208V, 220V, 240V, 416V, 440V, 480V (Switchable) |
| Single-Phase Voltage Selection | 120V, 127V, 139V, 240V, 254V, 277V (Switchable) |
| Three-Phase Continuous Amps | 108A @ 240V | 54A @ 480V | 125A @ 208V |
| Single-Phase Continuous Amps | 100A × 2 @ 120V | 100A @ 240V (Zig-Zag) |
| Fuel Reservoir Capacity | 79.2 Gallons (300.0 Liters Diesel) |
| Fuel Consumption Rate | 100% Load: 2.9 gal/hr (11.0 L/hr) | 50% Load: 1.6 gal/hr (6.1 L/hr) |
| Trailer Rating (GVWR / GAWR) | 7,000 lbs GVWR | 3,500 lbs GAWR Per Axle (Dual Axles) |
| Trailer Coupler Configuration | Multi-Hitch: 3" Pintle Ring, 2" Ball, and 2-5/16" Ball |
| Trailer Package Dimensions (L × W × H) | 147.33" L × 66.25" W × 65.50" H (374 × 168 × 166 cm) |
| Total Package Operating Weight | Dry: 2,860 lbs (1,297 kg) | Wet: 3,450 lbs (1,565 kg) |
💡 PHASE BALANCING & VOLTAGE SELECTION TIP: When operating in three-phase 120/208V or 277/480V modes while simultaneously powering 120V auxiliary site tools, distribute single-phase branch circuits evenly across Phase A, Phase B, and Phase C lugs. Keeping current draw balanced within 10% across all three legs prevents line voltage unbalance, optimizes generator fuel efficiency, and ensures clean voltage regulation for sensitive diagnostic gear.
Frequently Asked Questions: Multiquip DCA45SSIU4F
A: The DCA45SSIU4F is powered by an Isuzu 4LE2X 2.2-liter 4-cylinder turbocharged, intercooled liquid-cooled diesel engine that produces 65.7 BHP and complies with EPA Tier 4 Final emissions standards using a maintenance-free DOC system.
A: Yes. This configuration comes complete with the factory-matched Multiquip TRLR45 heavy-duty tandem-axle transport trailer featuring a 7,000 lb GVWR, dual 3,500 lb axles, surge brakes, and an interchangeable multi-hitch coupler.
A: The generator features a lockable multi-voltage selector switch supporting three-phase 208V, 220V, 240V, 416V, 440V, and 480V, along with single-phase 120V, 127V, 139V, 240V, 254V, and 277V service at 60 Hz.
A: With its integrated 79.2-gallon (300-liter) internal fuel cell, the generator delivers approximately 49 hours of continuous operation at 50% load (1.6 gal/hr) and 27 hours at 100% continuous prime load (2.9 gal/hr).
A: Enclosed in Multiquip's WhisperWatt sound-attenuated powder-coated steel housing with acoustic baffling, it operates at a quiet 66 dB(A) measured at a distance of 23 feet under 100% prime electrical load.
