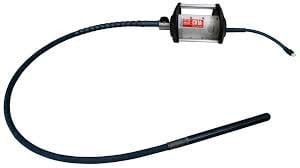

MultiQuip Concrete Vibrator (CV1A)

Designed for pencil head vibrators, up to 1-1/16" in diameter, this heavy-duty motor is designed for the rigors of the job site. Multiquip flex-shaft vibrators are designed for work in medium to high-slump concrete. Typical applications include small pours, slabs, driveways, stem walls and footings.

FEATURES

• Large vibration isolated handles protect the motor and operator
• UL compliance testing to USA and Canadian standards for product confidence
• Strain relief prevents power cord pullouts
• Quick-disconnect knob for easy shaft removal
• Cassette style motor improves durability and performance by minimizing friction and enabling the motor to maintain optimum RPM
• Flow through ventilation reduces contamination by taking in air from the rear of the motor
• Flexible shafts available in lengths from 2 to 21 feet
• Ideal for steel vibrator heads available from 7/8" to 1-1/16" diameter

SPECIFICATIONS

• 10 Amps
• Voltage / Frequency 115v 50/60 Hz
• HP 1  kW 1.2
• RPM 16,000
• Weight 11 lbs
• Required Shaft FSN
• Plug NEMA 5-15P

 INCLUDES

• CV1A Vibrator Motor
• FS10 10’ Flexibe Shaft

Call For Availability And Shipping Options.
