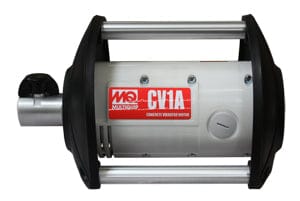

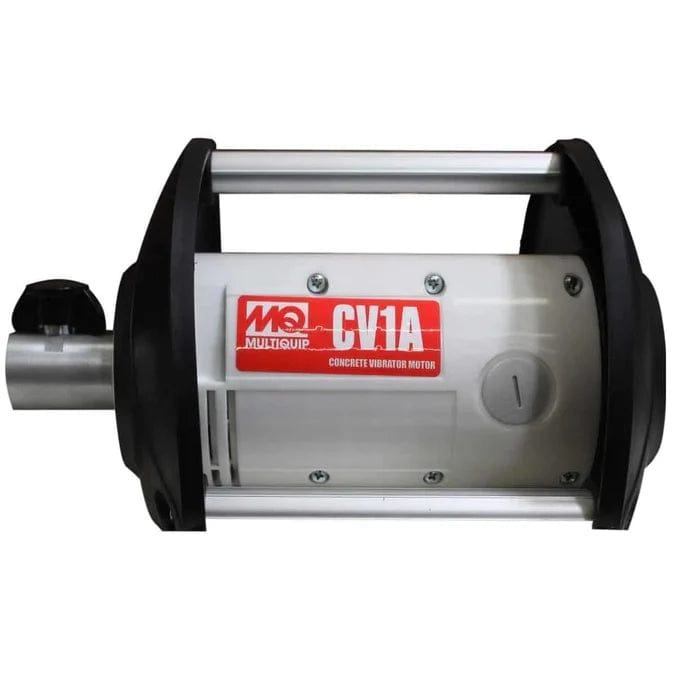

Multiquip CV1A 1 HP 115V Handheld Concrete Vibrator Motor Unit

The Multiquip CV1A 1 HP 115V electric handheld concrete vibrator motor consolidates freshly placed concrete, eliminates entrapped air voids, settles aggregate around rebar cages, and liquefies medium to high-slump mixes across residential footings and stem walls. Engineered with a heavy-duty cassette-style motor design that maintains high-vibration RPM under load, this portable power unit couples to flexible shafts ranging from 2 feet to 21 feet and drives vibrator heads up to 1-1/16 inches in diameter. Featuring vibration-isolated operator roll-cage handles, rear-intake flow-through cooling ventilation to prevent slurry contamination, and a quick-disconnect drive coupling, it provides concrete finishing contractors, foundation crews, and masonry builders with continuous mechanical consolidation on small to medium-scale slab pours.

Best Used For:

• Foundation Footing and Stem Wall Consolidation: Removing trapped air pockets and honeycombing in structural foundation footings, residential stem walls, and cast-in-place retaining walls.
• Flatwork Slab and Driveway Placement: Densifying medium-slump concrete mixes around perimeter forms, wire mesh reinforcement, and expansion joints in patio and driveway pours.
• Tight Rebar and Column Grouting: Driving small-diameter pencil heads to consolidate grout inside congested masonry block bond beams, piers, and narrow formwork.

Key Performance & Safety Features

• High-Torque 1 HP Electric Motor: Delivers consistent rotational power to sustain optimal eccentric head frequencies throughout demanding concrete consolidation passes.
• Vibration-Isolated Roll-Cage Handles: Ergonomic tubular handles isolate mechanical vibration from the operator's hands while physically protecting the motor casing from jobsite drops.
• Rear-Intake Flow-Through Ventilation: Channels clean cooling air through the motor from the rear intake port, shielding critical internal electrical components from wet concrete splatter.
• Low-Friction Cassette Motor Architecture: Precision cassette design minimizes internal rotational friction to maintain stable operational RPM under varying concrete load pressures.
• Quick-Disconnect Shaft Fitting: Robust mechanical coupling collar allows rapid, tool-free connection and removal of flexible drive shafts on the jobsite.
• Molded Strain-Relief Power Cord: Heavy-duty electrical cable includes reinforced rubber boot strain relief to prevent wire pullout and damage from accidental cord tugs.

What's Included

• (1) Multiquip CV1A 1 HP 115V Handheld Concrete Vibrator Motor Unit

Technical Specifications

Pro-Tip: When consolidating vertical stem walls, insert the vibrator head quickly to the bottom of the pour and withdraw it slowly at approximately 3 inches per second; this technique allows air bubbles to escape upward ahead of the head without causing aggregate segregation.
