MultiQuip Concrete Vibrator CV2A 2 HP Electric Drive Motor (22000 RPM 15 Amp Quick Coupler Isolated Handles Slab Footing Consolidation Tool)

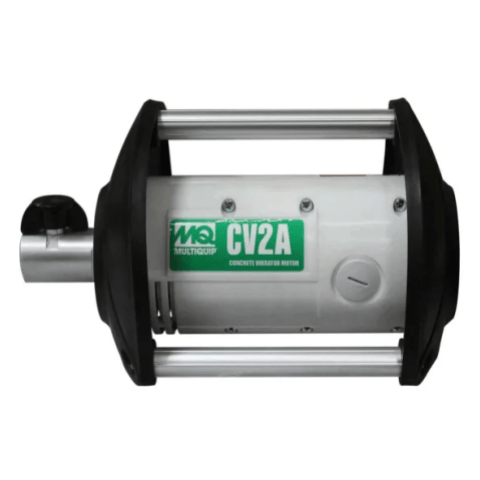

MultiQuip CV2A 2 HP 15-Amp 22,000 RPM Electric Concrete Vibrator Motor

The MultiQuip CV2A 2 HP electric concrete vibrator motor consolidates, densifies, and eliminates trapped air pockets in medium to high-slump concrete pours with a high-speed 22,000 RPM no-load rating. Operating on standard 120V single-phase power with a 15-amp draw, this handheld drive unit features a low-friction cassette-style motor assembly and a quick-disconnect drive coupler compatible with flexible shafts from 3 to 21 feet and vibrator heads from 1-3/8 inches to 2-1/8 inches. Outfitted with impact-resistant Zenoy thermoplastic resin housing that resists concrete splatter adhesion, vibration-isolated ergonomic frame handles, flow-through rear cooling ventilation, and full UL and CSA safety certifications, it equips concrete contractors, commercial flatwork crews, and foundation specialists with continuous high-frequency consolidation power.

Best Used For:

• Monolithic Concrete Slab and Footing Pours: Liquefying and settling stiff concrete mixes around dense rebar mats across residential and commercial slab pours.
• Foundation Stem Walls and Retaining Structures: Driving immersion vibrator shafts deep into vertical wall forms to prevent honeycombing and ensure uniform aggregate consolidation.
• Driveway, Curb, and Gutter Construction: Rapidly leveling and degassing structural concrete along flatwork edges, commercial aprons, and drainage gutters.

Key Performance & Safety Features

• 2 HP High-Frequency Motor: Delivers up to 22,000 RPM no-load speed to ensure rapid, thorough aggregate compaction in diverse concrete mixes.

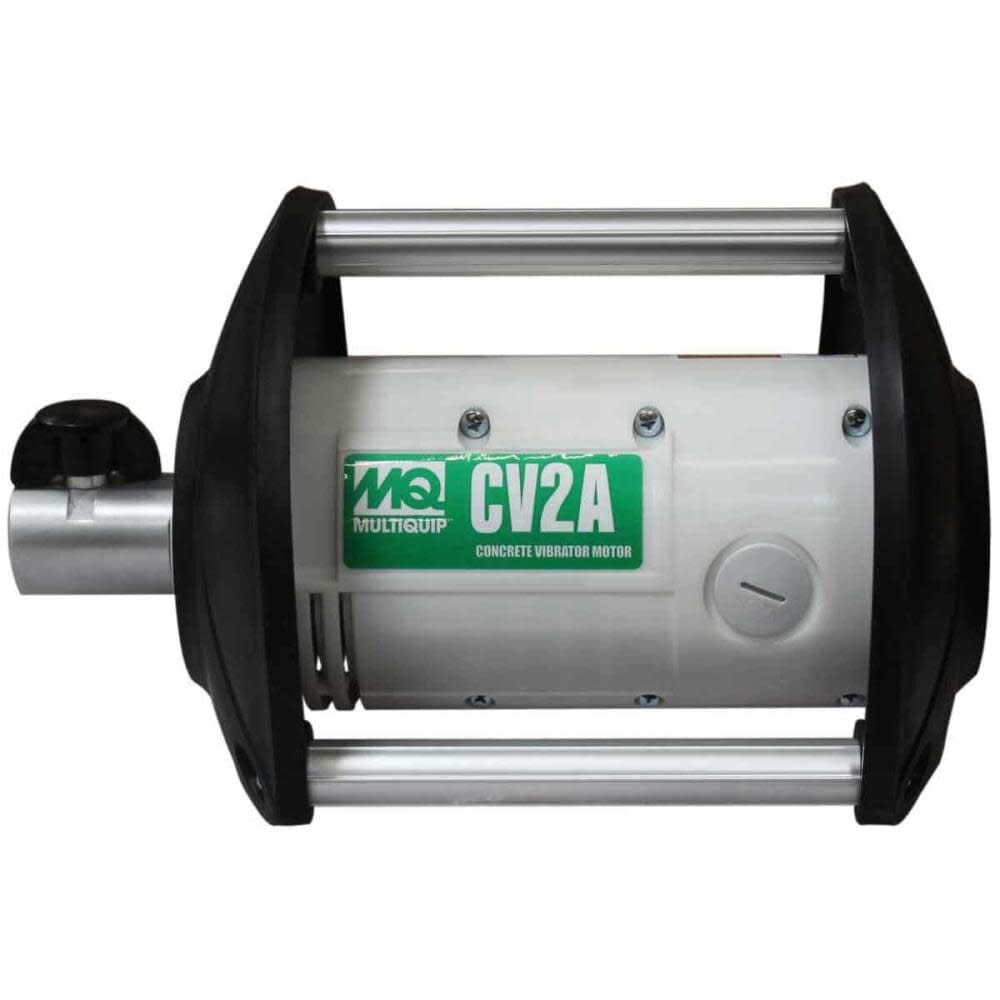

• Low-Friction Cassette Design: Internal cassette architecture minimizes friction and wear, maintaining consistent operating RPM under heavy load conditions.
• Quick-Disconnect Coupler: Heavy-duty quick-connect drive fitting allows instantaneous attachment and swapping of flexible shafts on the jobsite.
• Vibration-Isolated Roll Handles: Protective tubular frame handles isolate the operator from hand-arm vibration while shielding the motor from jobsite impacts.
• Zenoy Resin Impact Housing: Chemical-resistant thermoplastic shell prevents wet concrete buildup from sticking and withstands punishing jobsite abuse.
• Flow-Through Rear Air Ventilation: Intake channels draw clean air exclusively from the rear of the unit to reduce dust contamination and prevent thermal buildup.

What's Included

• (1) MultiQuip CV2A 2 HP Electric Concrete Vibrator Drive Motor

Technical Specifications

Pro-Tip: Insert the vibrator head vertically into the fresh concrete pour and allow it to penetrate 6 inches into the previous lift; hold for 5 to 15 seconds until the surface glistens, then withdraw slowly to let air escape without leaving a core void.
