Multiquip Mobile Diesel Generator DCA220SSJU4F 220 kVA 176 kW WhisperWatt (John Deere Tier 4 Final 480V Reconnectable Towable Trailer Power Station)
Shipping Quote Required
Request a Shipping QuoteCouldn't load pickup availability
Multiquip DCA220SSJU4F 220 kVA WhisperWatt Mobile Diesel Generator
Call or Email for Availability and Shipping:
281-351-2211 - Sales@HilltopTool.com
The Multiquip DCA220SSJU4F 220 kVA WhisperWatt mobile diesel generator delivers continuous, heavy-duty electrical power across major commercial construction sites, large agricultural pumping stations, and critical industrial backup infrastructure. Driven by an EPA Tier 4 Final turbocharged 323 bhp John Deere 6068HFG06 liquid-cooled diesel engine, this sound-attenuated generator provides a 176 kW prime output and a 194 kW standby rating with whisper-quiet 69 dB(A) acoustic operation at 23 feet. Featuring an environmental 110% fluid-containment base, multi-voltage reconnectable selector capabilities spanning 120V through 480V, and a heavy-duty dual-axle TRLR220EV highway trailer, it equips utility contractors, crane operators, and event staging crews with dependable prime electricity and rapid highway mobility.
Best Used For:
- Large Commercial Jobsite Electrification: Running multiple high-amperage multi-operator welding rigs, heavy industrial tower cranes, concrete batch plants, and large air compressors simultaneously.
- Agricultural Pumping and Emergency Irrigation: Powering high-draw electric turbine pumps, center pivot irrigation systems, and grain-drying elevator complexes continuously in remote fields.
- Critical Industrial Facility Backup Power: Serving as emergency standby generation for hospitals, cold storage distribution centers, data centers, and municipal water lift stations during grid outages.
Key Performance & Safety Features

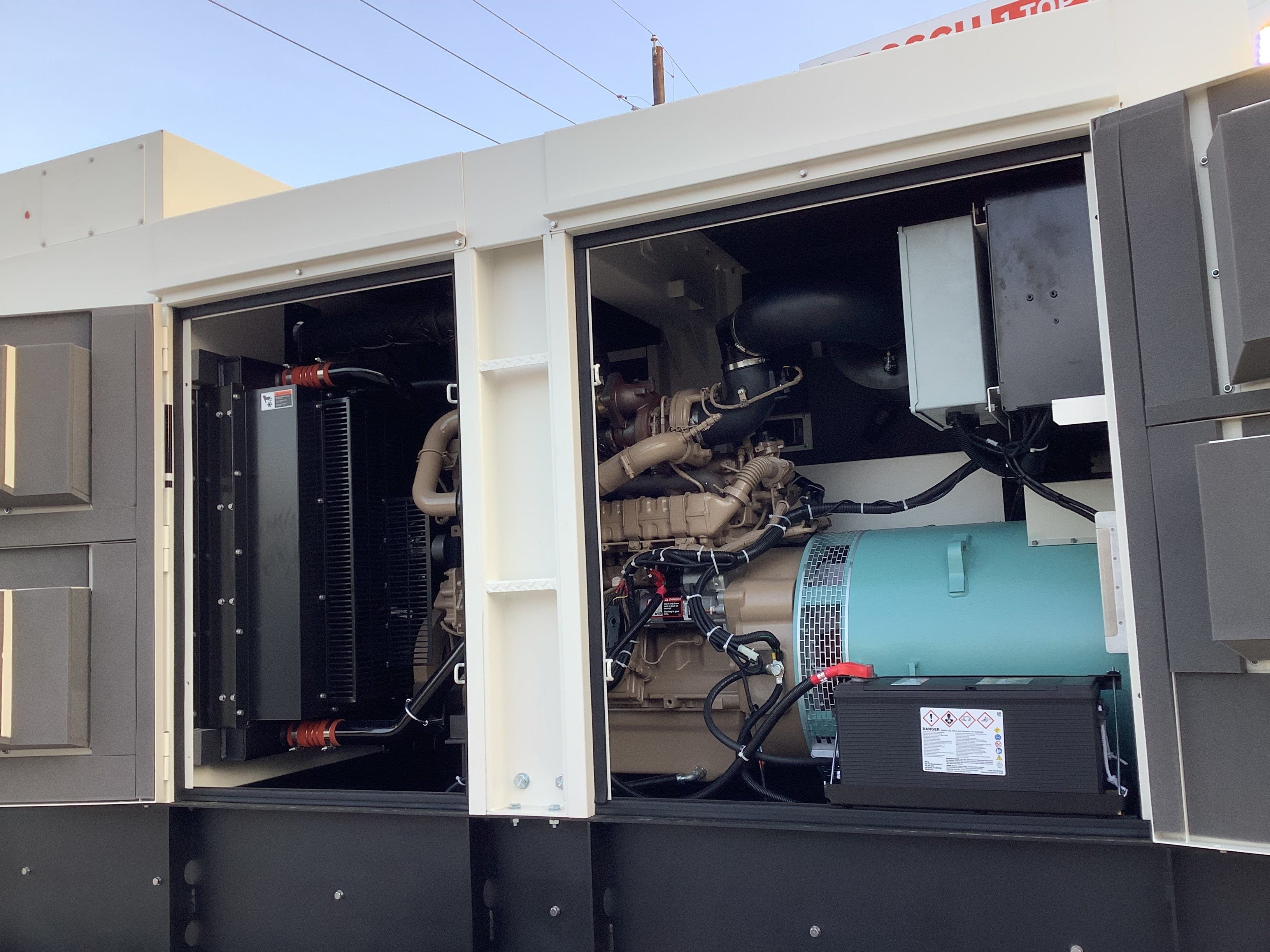

- Tier 4 Final John Deere Turbo Diesel: High-efficiency 6.8L 323 bhp engine delivers stable generator RPM under sudden, heavy motor starting inductive loads.
- Whisper-Quiet Sound Attenuation: Heavy-gauge powder-coated steel acoustic enclosure limits operating sound levels to a low 69 dB(A) at 23 feet.
- Multi-Voltage Simultaneous Output: Reconnectable terminal bus easily configures for three-phase 208V, 240V, or 480V, alongside single-phase 120V to 277V power delivery.

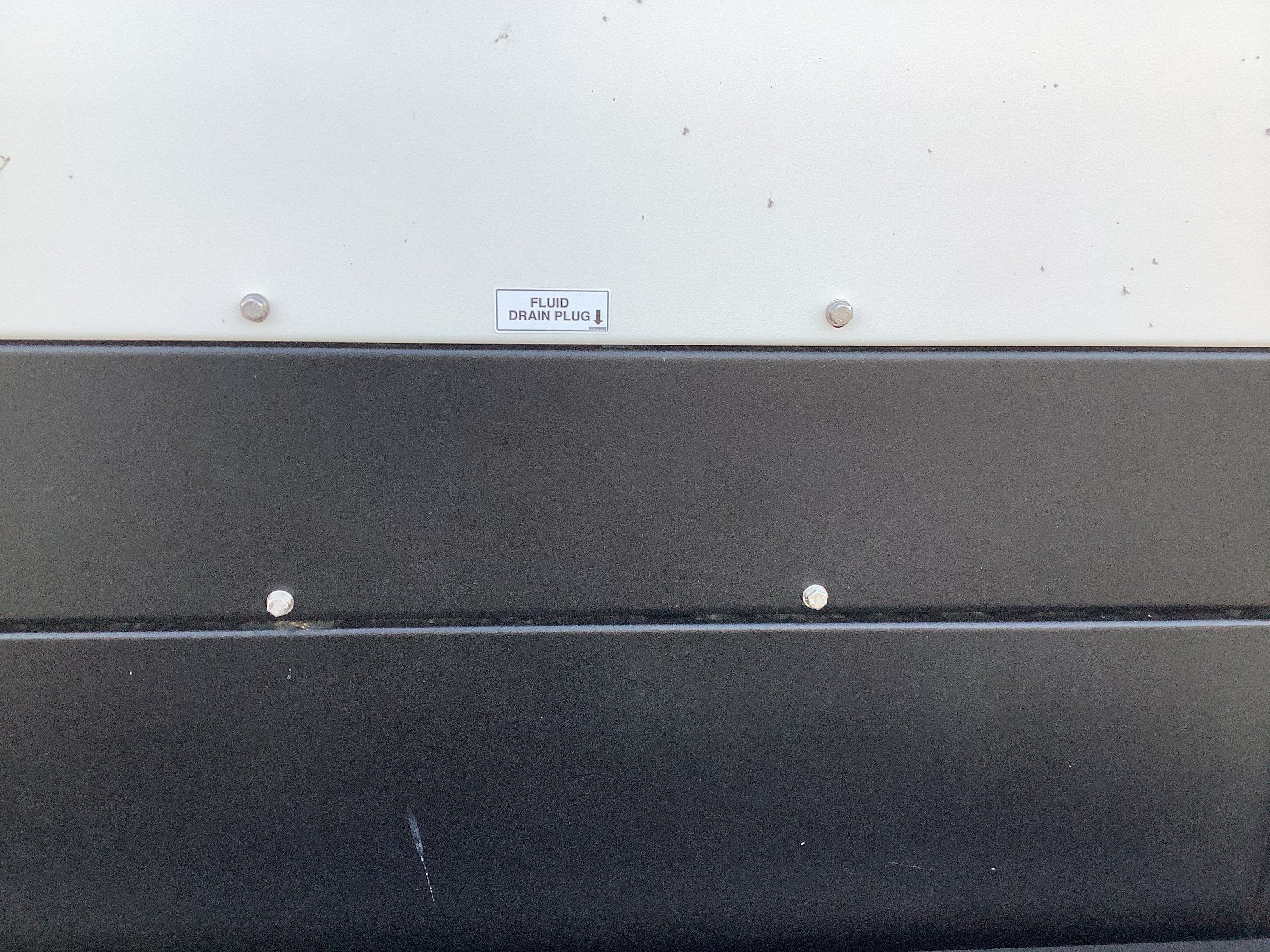

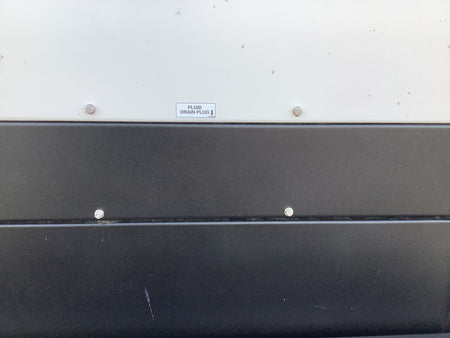

- Environmental 110% Fluid Containment: Integrated double-wall basin captures engine oil, coolant, and diesel fuel to prevent accidental jobsite soil contamination.

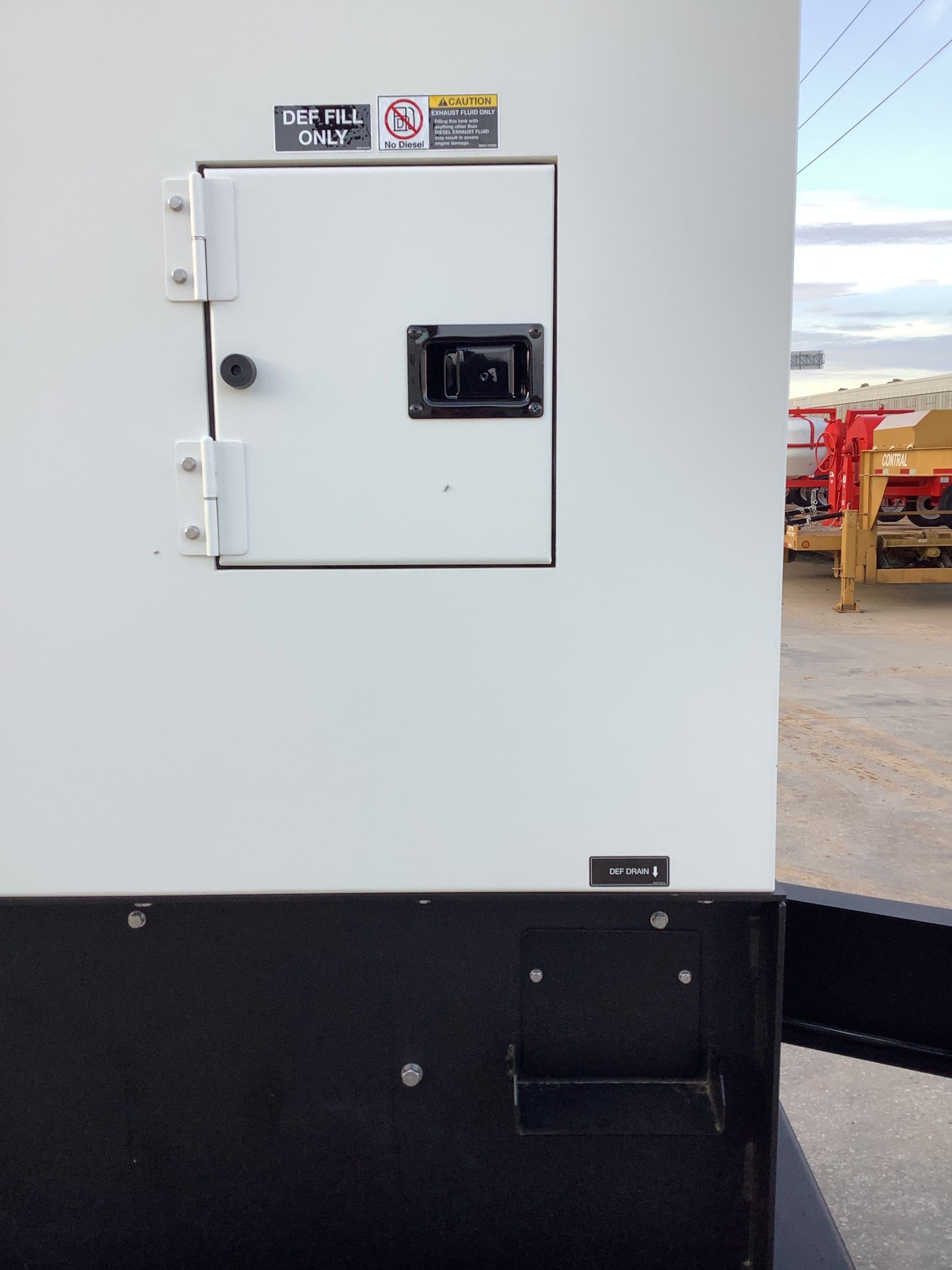

- High-Capacity 319-Gallon Internal Fuel Tank: Extended onboard fuel cell delivers extensive continuous runtime during round-the-clock shift work.

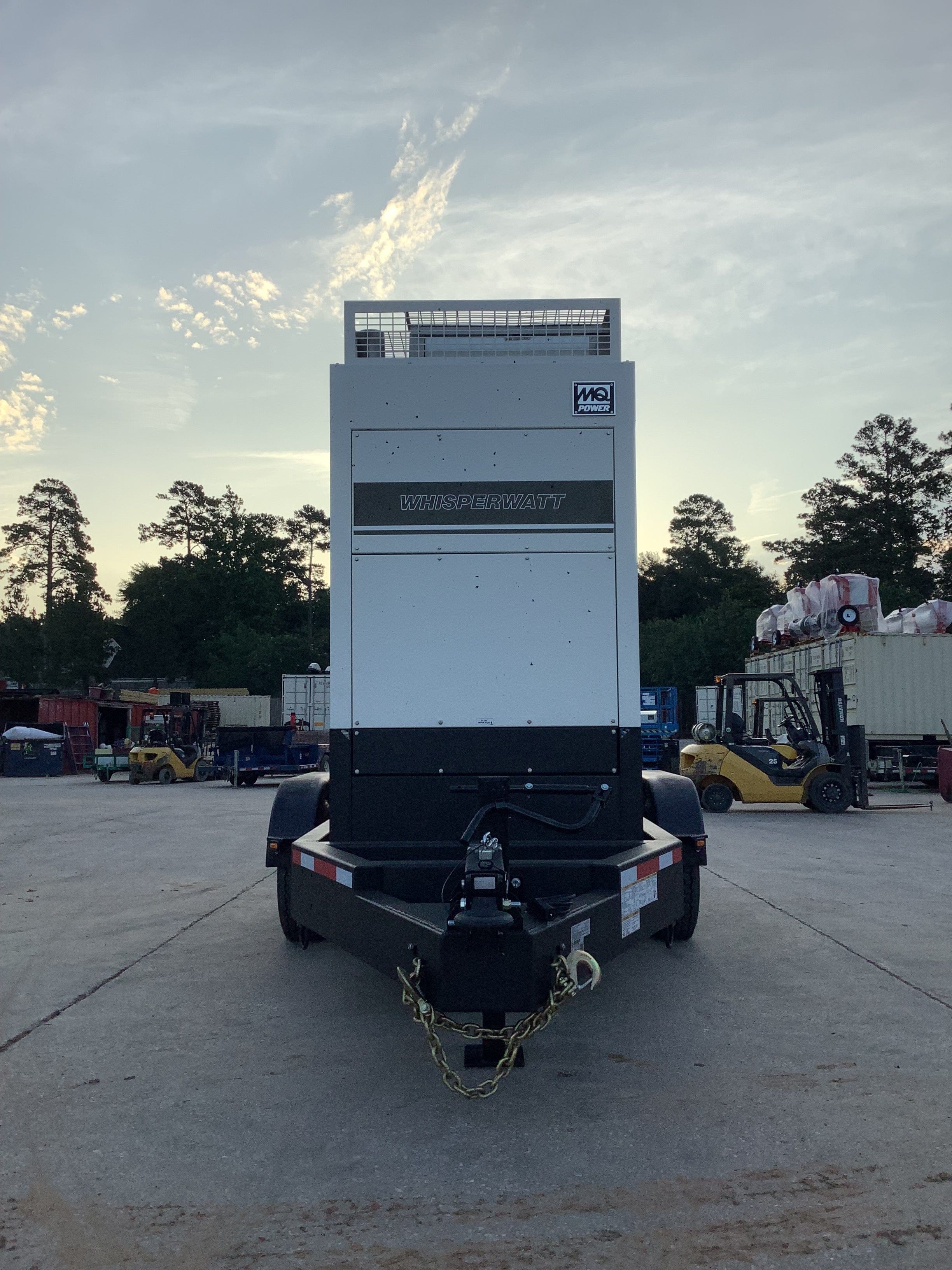

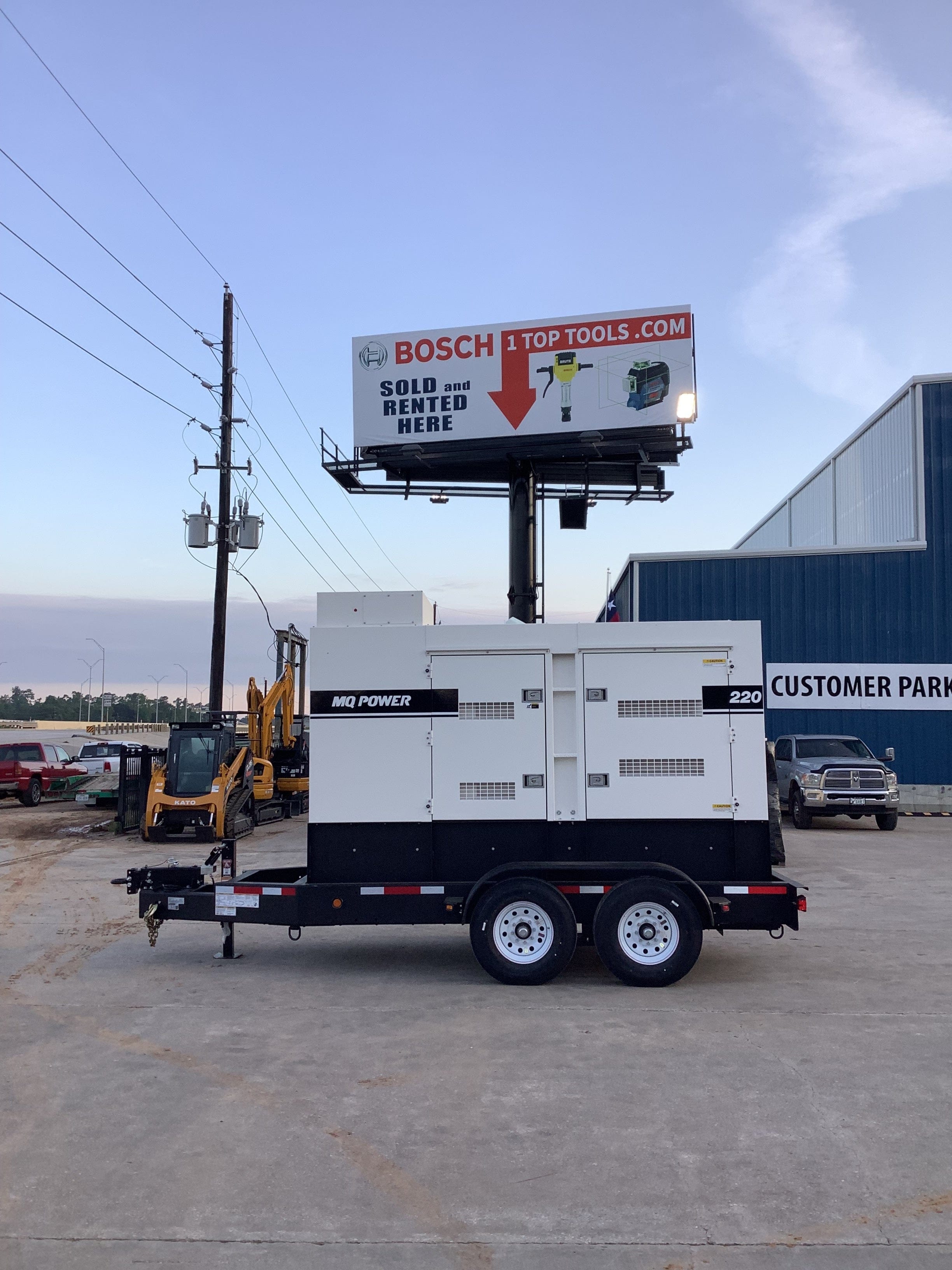

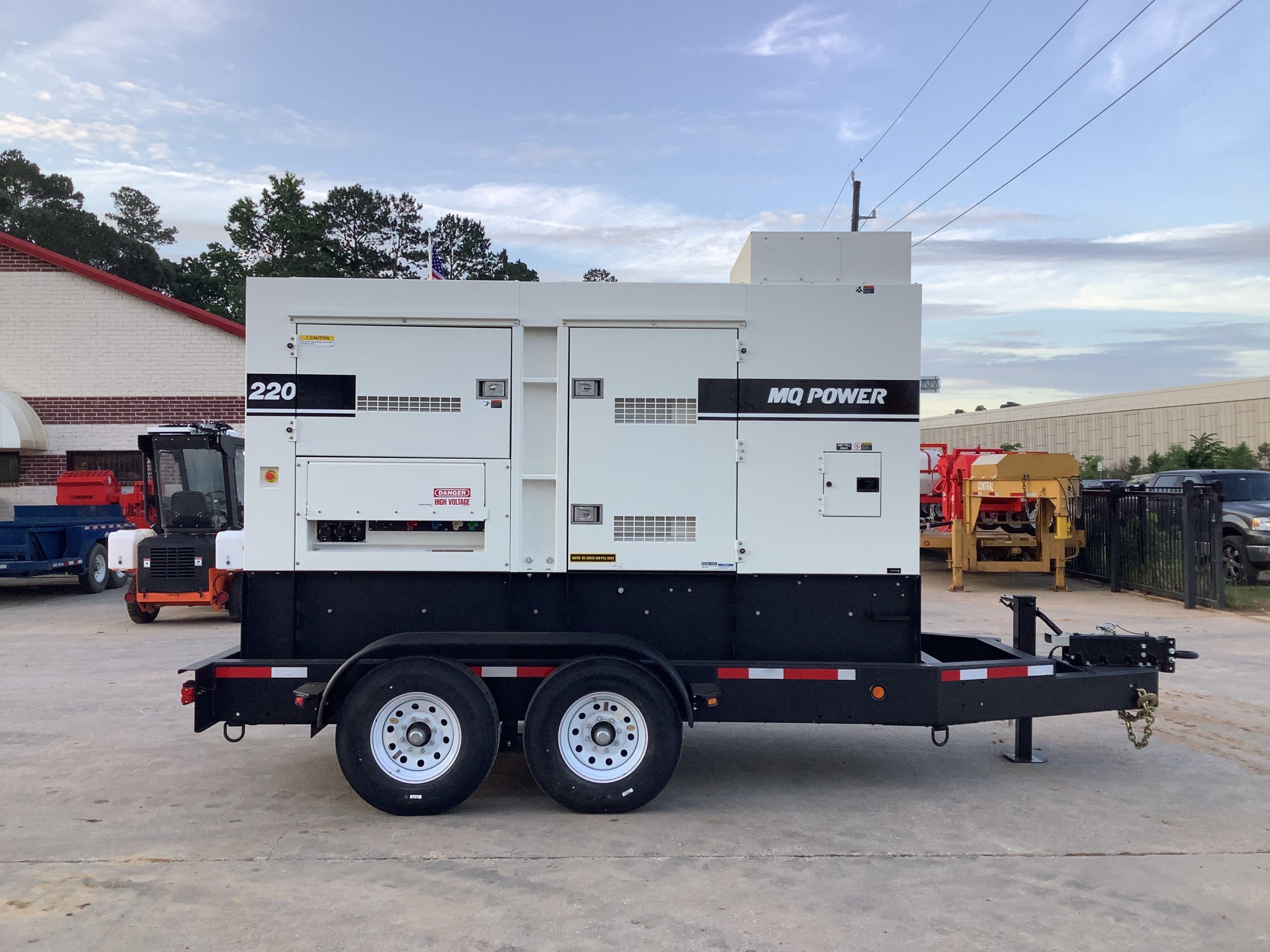

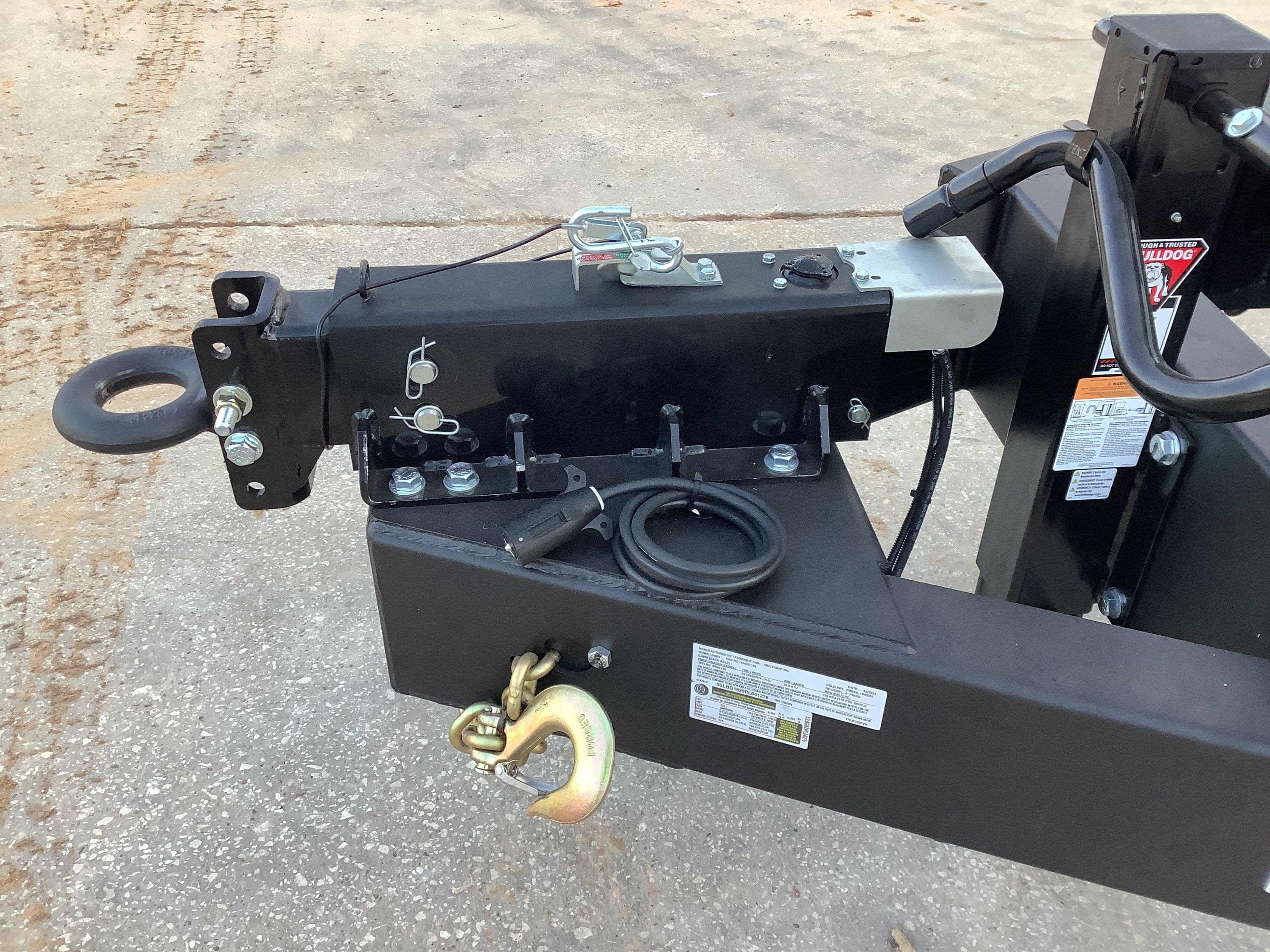

- Included TRLR220EV Dual-Axle Trailer: Heavy-duty 16,000 lb GVWR transport trailer features commercial 8-lug axles, electric brakes, and dual pintle/ball hitch couplers.
What's Included
- (1) Multiquip DCA220SSJU4F 220 kVA WhisperWatt Diesel Generator
- (1) John Deere 6068HFG06 Tier 4 Final Turbo Diesel Engine (Factory Installed)
- (1) Multiquip TRLR220EV Heavy-Duty Dual-Axle Highway Trailer

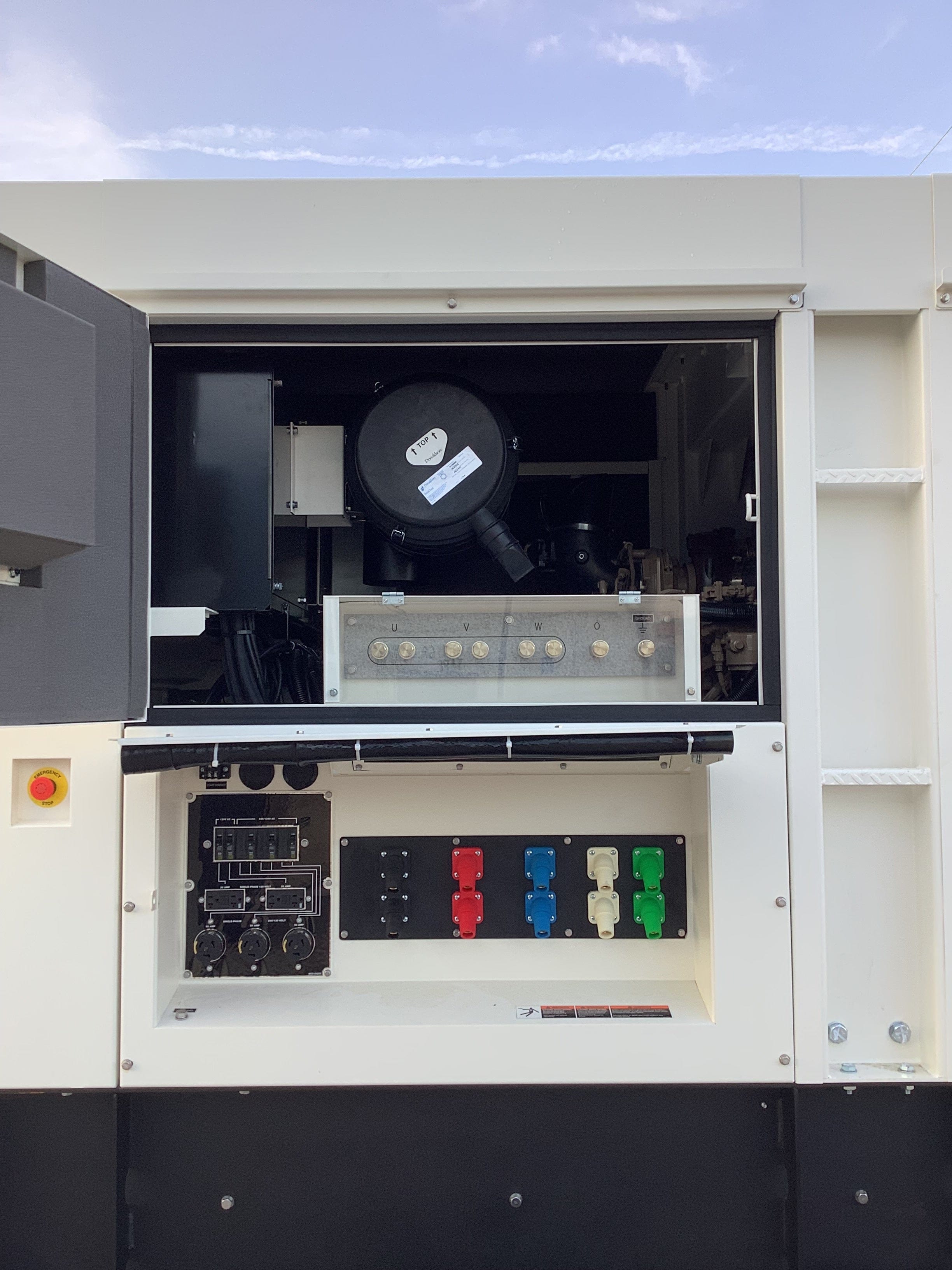

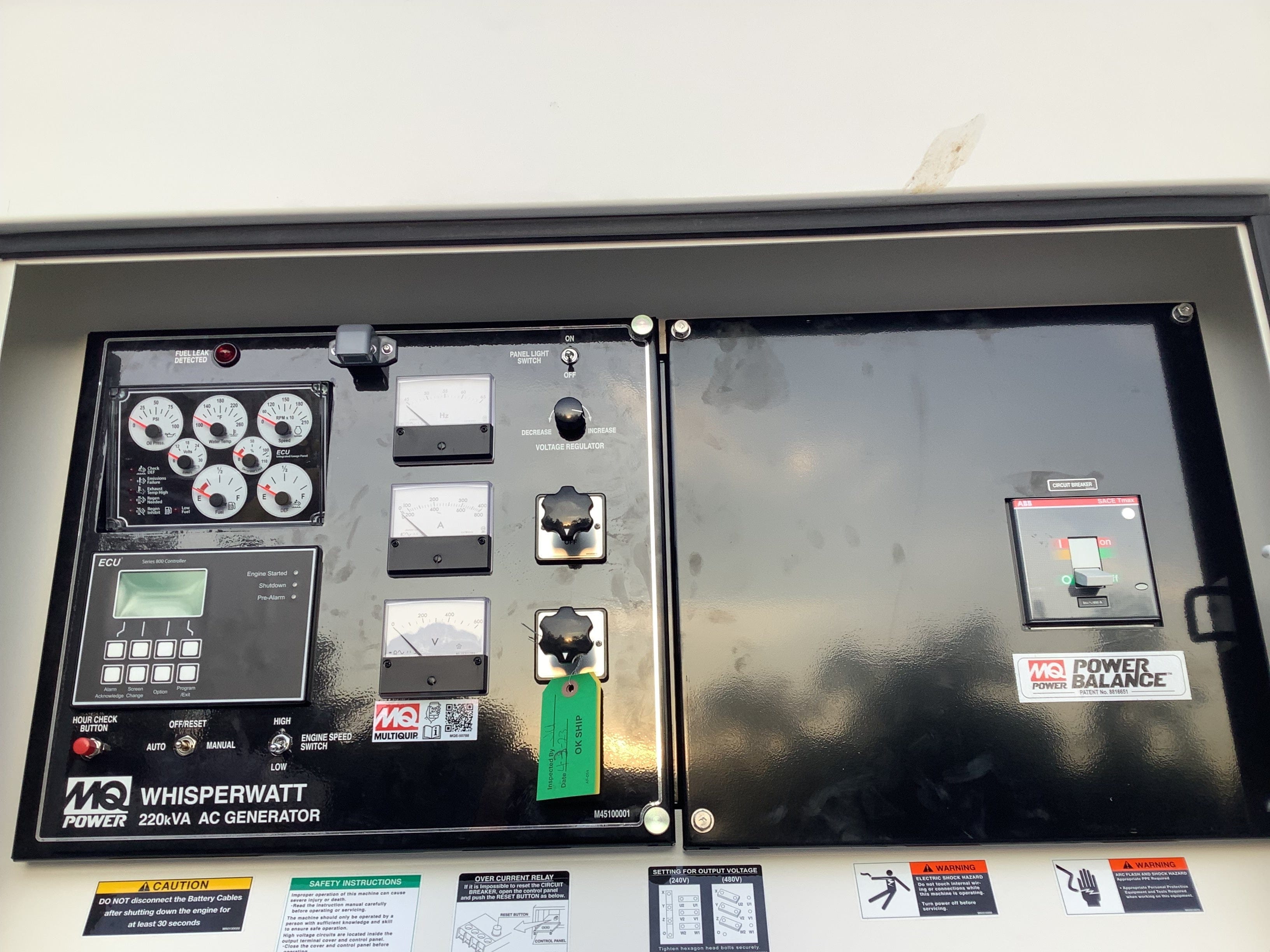

- (1) Digital Auto-Start / Remote Start Controller with Analog Gauge Cluster
- (1) Weatherproof Sound-Attenuated Steel Enclosure with 110% Fluid Containment
- (1) Comprehensive Operator and Engine Service Manual
Available for pickup at our Tomball, TX location:
30702 State Highway 249
Tomball, Texas 77375
Monday-Friday 7am-5pm CST
Saturday 7am-1pm CST
Technical Specifications
| Manufacturer | Multiquip Inc. (WhisperWatt Series) |
| Model Part Number | DCA220SSJU4F |
| Prime Continuous Power Rating | 176 kW / 220 kVA |
| Standby Emergency Power Rating | 194 kW / 242 kVA |
| Engine Model & Type | John Deere 6068HFG06 Turbocharged, Liquid-Cooled Diesel |
| Emissions Certification | EPA Tier 4 Final Certified |
| Gross Engine Output | 323 bhp (241 kW Mechanical Output) |
| Generator Operating Speed | 1,800 RPM (60 Hz Frequency) |
| Three-Phase Voltage Range | 208V, 220V, 240V, 440V, 480V (Reconnectable) |
| Single-Phase Voltage Range | 120V, 127V, 139V, 240V, 277V (Adjustable) |
| Sound Level Output | 69 dB(A) at 23 Feet (Full Load) |
| Fuel Tank Capacity | 319.00 gallons (1,207.50 Liters Diesel) |
| Fluid Containment System | 110% Environmental Spill Containment Basin |
| Trailer Model Specification | TRLR220EV Heavy-Duty Tandem Axle Trailer |
| Trailer Gross Vehicle Rating (GVWR) | 16,000 lbs (8,000 lbs GAWR per Axle) |
| Trailer Dimensions (L x W x H) | 212.90 in. x 89.00 in. x 26.58 in. |
| Trailer Net Dry Weight | 2,404.00 lbs (1,090.44 kg) |
| Suitable for material type | Commercial Welding Rigs, Tower Cranes, Irrigation Pumps, & Backup Grids |
Pro-Tip: When synchronizing or switching between 480V 3-phase and 120/240V single-phase power distribution, always shut down the prime mover completely before rotating the heavy-duty voltage selector switch to prevent arcing and protect sensitive downstream electronic control modules.
