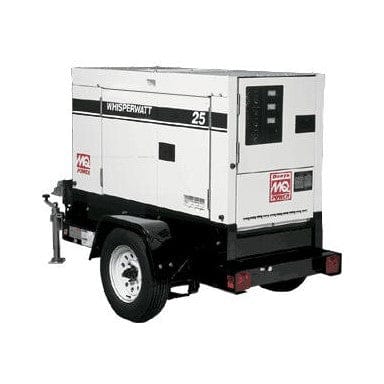

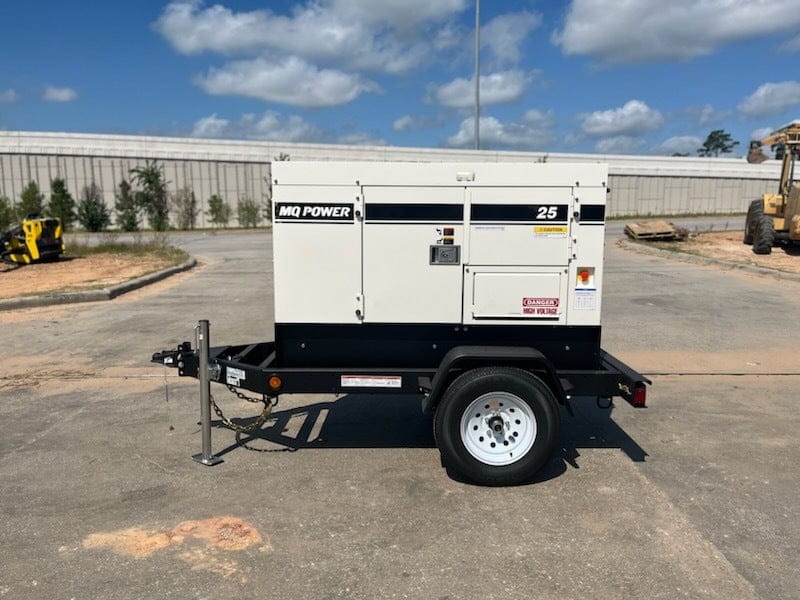

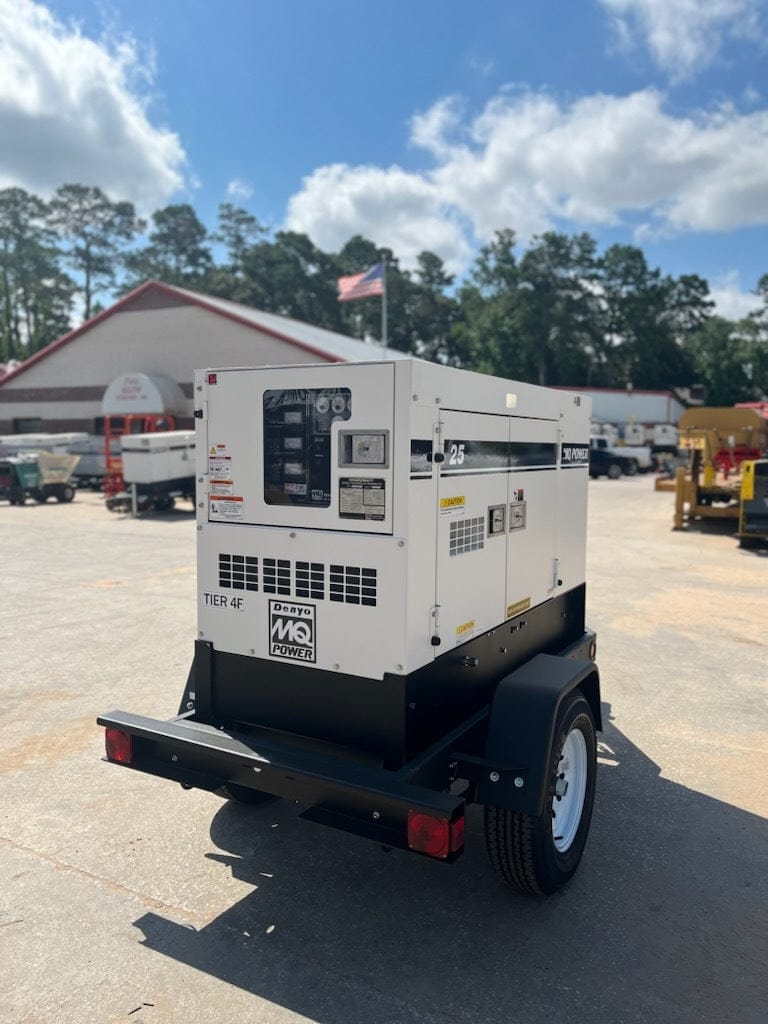

Multiquip MQ Power 20 kW 25 kVA Super-Silent Mobile Diesel Generator (DCA25SSIU4F)
The Multiquip MQ Power WhisperWatt DCA25SSIU4F 20 kW (25 kVA) Diesel Generator delivers switchable three-phase and single-phase electrical output engineered for commercial jobsite distribution, utility repair fleets, sound-sensitive live productions, and automatic emergency standby backup. Driven by an EPA Tier 4 Final turbocharged 40.2 BHP Isuzu 4LE2T liquid-cooled diesel engine, this versatile power station delivers a 20 kW continuous prime rating (22 kW maximum standby output) while maintaining an acoustic sound level of just 65 dB(A) at 23 feet.
Equipped with an open-delta alternator winding for enhanced motor-starting capacity, an electronic governor maintaining 60 Hz line frequency within ±0.25%, and an internal 41.7-gallon fuel tank with 124% fluid containment, the DCA25SSIU4F operates for up to 44 hours at half load without ground-spill risk. Outfitted with a complete analog gauge cluster and 2-wire auto-start remote terminals, this compact unit delivers reliable power across demanding field environments.
Recommended Jobsite Applications
- Commercial Building & Infrastructure Projects: Supplying clean 208V/240V three-phase and 120V single-phase power for site trailers, masonry saws, and multi-bank cordless tool charging stations.
- Utility Bypass & Municipal Pumping: Running continuous 3-phase 240V or 480V electric submersible dewatering pumps and municipal bypass setups.
- Sound-Sensitive & Urban Operations: Powering film trailers, broadcast trucks, and municipal night street repairs requiring strict 65 dB(A) noise limits.
- Facility Emergency Standby: Providing automated emergency power to clinics, commercial refrigeration units, and telecommunications nodes via transfer switch integration.
Key Performance & Operational Features

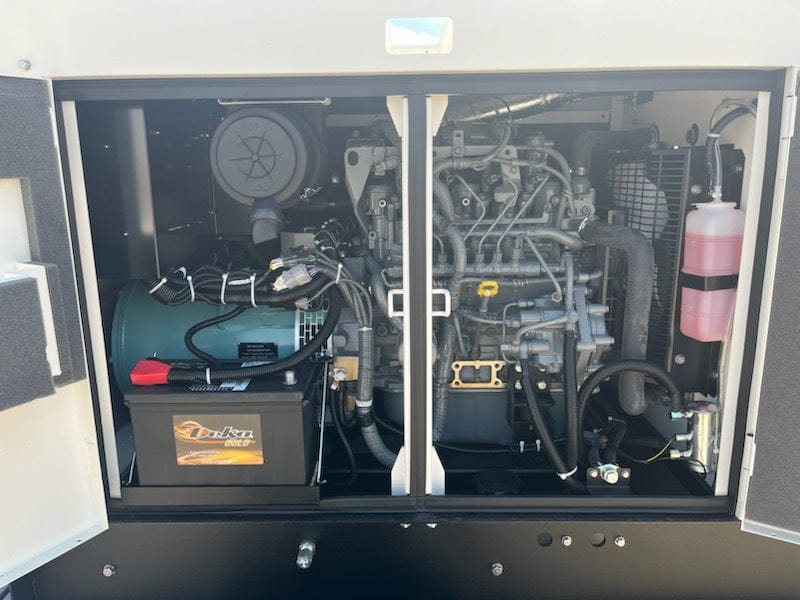

- Tier 4 Final Isuzu 4LE2T Diesel Engine: 2.2L 4-cylinder turbocharged engine uses a DOC aftertreatment system that requires no DEF, simplifying field fuel logistics and servicing.

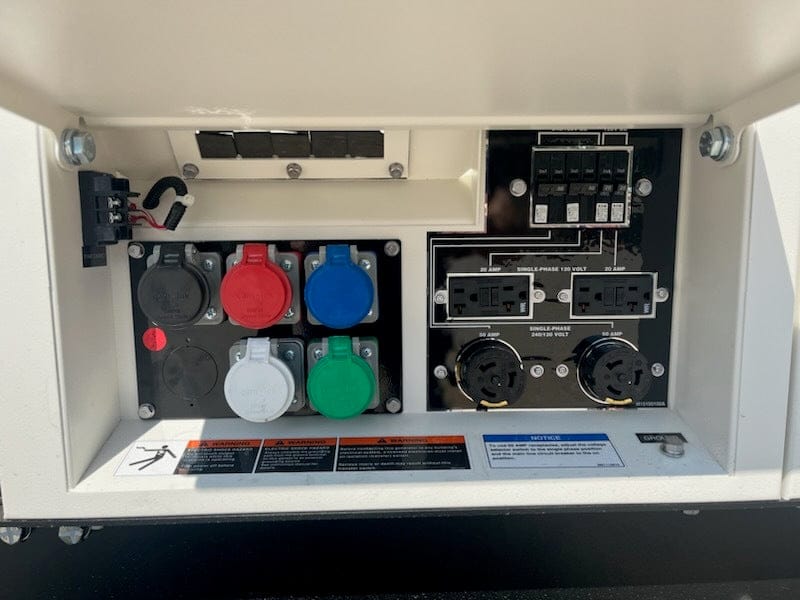

- Multi-Voltage Distribution Selector: Lockable selector switch enables rapid reconfiguration across 3-phase 208V, 220V, 240V, 416V, 440V, and 480V, as well as single-phase 120V and 240V lines.
- WhisperWatt Sound-Attenuated Enclosure: Heavy-gauge, powder-coated steel housing lined with sound-dampening acoustic insulation keeps operating noise to 65 dB(A) at 23 feet under full prime continuous load.
- Patented Open-Delta Alternator Winding: Delivers superior motor starting capacity, allowing the alternator to start heavy electric motors and inductive loads without excessive voltage drop.
- Long-Range 41.7-Gallon Fuel Cell: Internal fuel tank provides extended runtimes of up to 44.3 hours at 50% load and 25.7 hours at 100% full continuous prime load.
- 124% Environmental Fluid Containment: Integrated double-wall chassis basin captures fuel, engine oil, and radiator coolant to safeguard against jobsite ground spills.

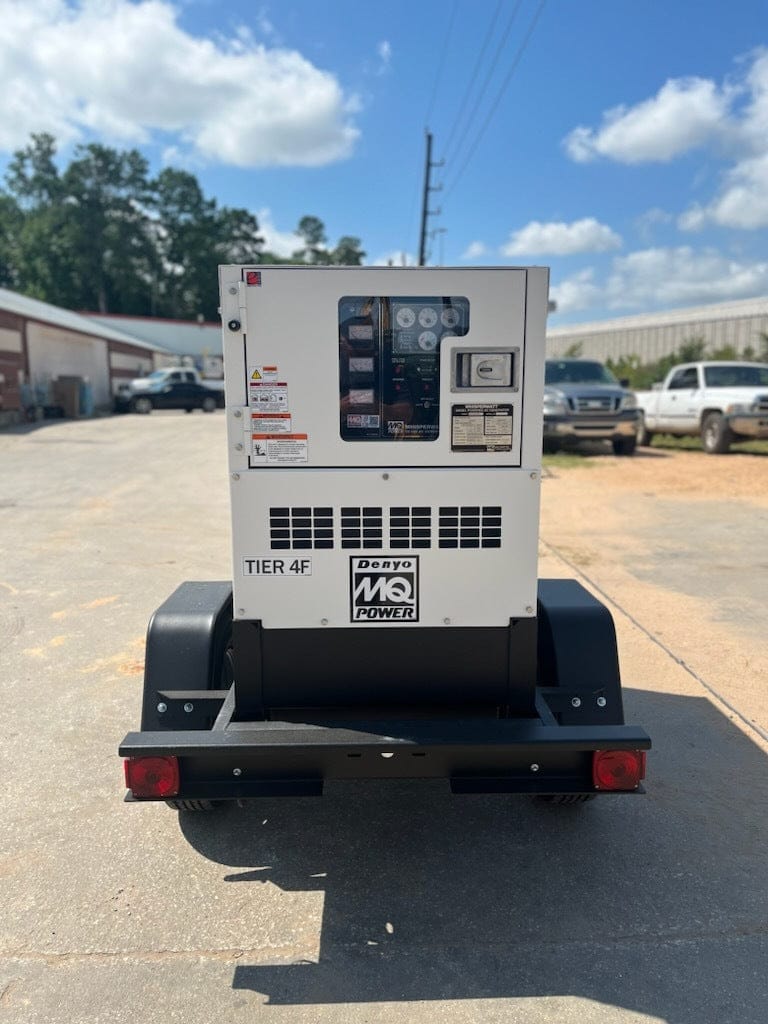

- Analog Control Console & Auto-Start: Shock-mounted dashboard includes an AC ammeter, frequency meter, running hour meter, and two-wire remote auto start/stop terminal block.
What's Included
- 1 × Multiquip MQ Power WhisperWatt 20 kW Diesel Generator (MPN: DCA25SSIU4F)
- 1 × Factory-Installed Isuzu 4LE2T Tier 4 Final Turbocharged Diesel Engine (40.2 BHP)
- 1 × Integrated 41.7-Gallon Sub-Base Fuel Tank with 124% Environmental Fluid Containment
- 1 × Master Analog Diagnostic Instrument Panel with Keyed Auto-Start Controller
- 1 × Primary Fuel/Water Separator Unit & Internal Battery Maintainer
- 1 × Operator Manual, Electrical Wiring Diagram Set & Engine Diagnostic Guide

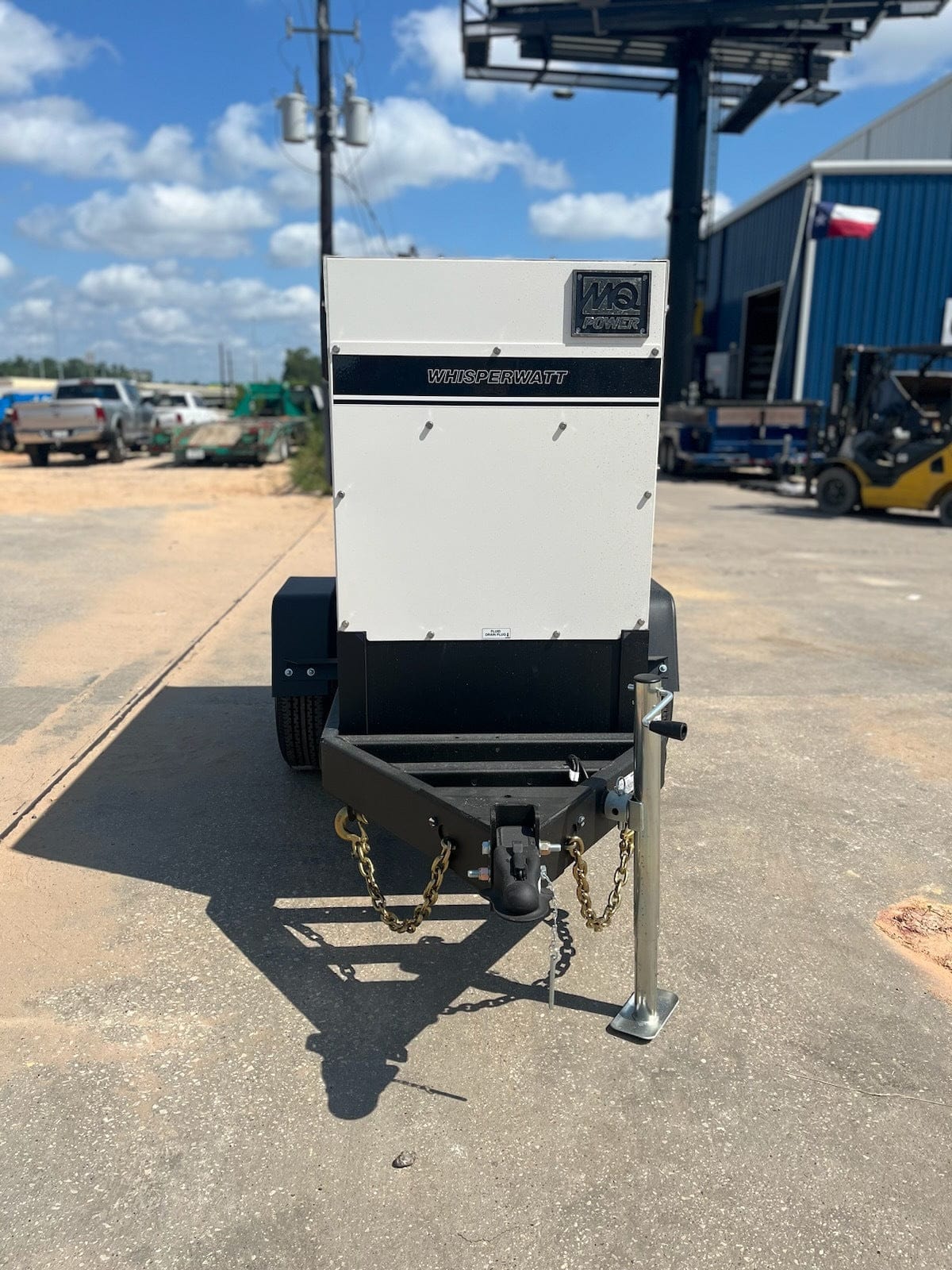

- (Note: Highway transport trailers TRLR25US2 / TRLR75XF2 sold separately)

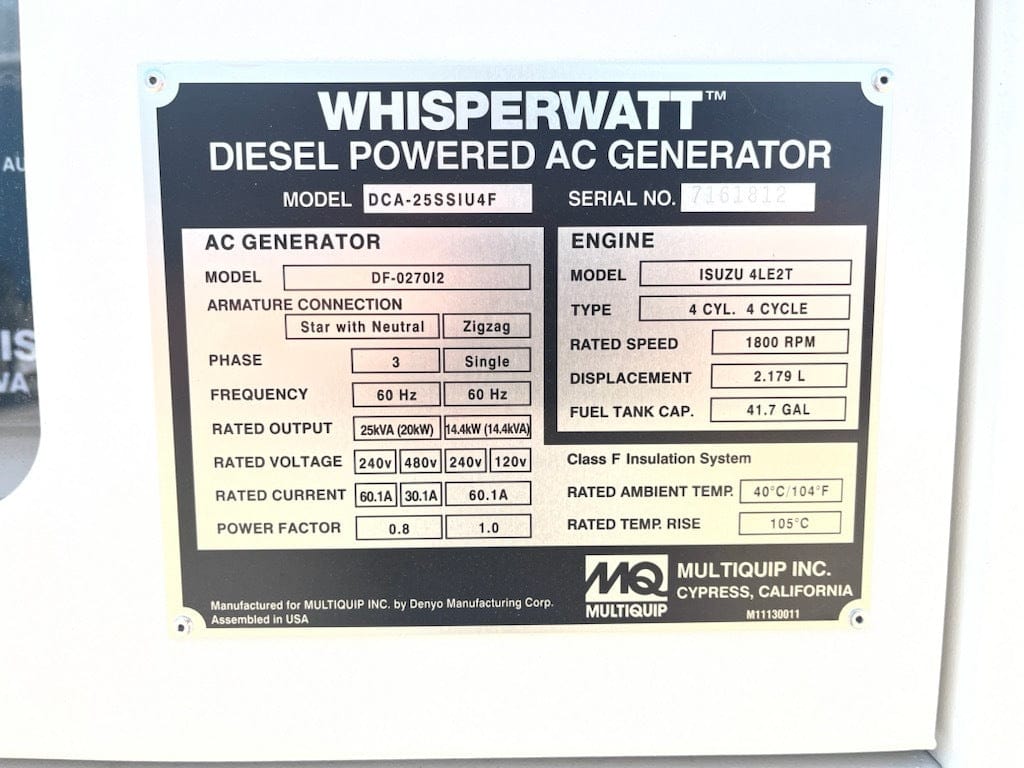

Technical Specifications
| Specification Parameter | Product Detail |
|---|---|
| Manufacturer & Model Series | Multiquip Inc. | WhisperWatt™ Series |
| Model Part Number (MPN) | DCA25SSIU4F |
| Mobility Configuration | Stationary Skid-Mounted (Trailers Sold Separately) |
| Prime Continuous Power Rating | 20 kW (25 kVA) Continuous @ 1,800 RPM (3-Phase) |
| Standby Emergency Power Rating | 22 kW (27.5 kVA) |
| Engine Make & Displacement | Isuzu 4LE2T (2.2L / 133 cu in, 4-Cylinder Turbocharged) |
| Engine Emissions Certification | EPA Tier 4 Final Certified (DOC System; No DEF Required) |
| Gross Engine Output | 40.2 bhp (30.0 kW Mechanical Output @ 1,800 RPM) |
| Acoustic Sound Level | 65 dB(A) @ 23 Feet (Full 100% Prime Load) |
| Three-Phase Voltage Selection | 208V, 220V, 240V, 416V, 440V, 480V (Switchable) |
| Single-Phase Voltage Selection | 120V, 127V, 139V, 240V, 254V, 277V (Switchable) |
| Three-Phase Continuous Amps | 60A @ 240V | 30A @ 480V | 69A @ 208V |
| Single-Phase Continuous Amps | 60A × 2 @ 120V | 60A @ 240V (Zig-Zag) |
| Fuel Reservoir Capacity | 41.7 Gallons (158.0 Liters Diesel) |
| Fuel Consumption Rate | 100% Load: 1.62 gal/hr (6.1 L/hr) | 50% Load: 0.94 gal/hr (3.6 L/hr) |
| Fluid Spill Containment | 124% Environmental Secondary Spill Containment Basin |
| Physical Dimensions (L × W × H) | 63.0" L × 28.0" W × 40.0" H (160 × 71 × 102 cm) |
| Operating Net Weight | Dry: 1,797 lbs (815 kg) | Wet: 2,095 lbs (950 kg) |
💡 MOTOR STARTING & LOAD MANAGEMENT TIP: The DCA25SSIU4F features an open-delta alternator winding that provides high motor-starting kVA. When sizing branch circuits for inductive motor loads (such as 3-phase submersible pumps), utilize the 240V or 480V three-phase settings to minimize line amperage drops and maintain full 60 Hz frequency stability during high-demand motor starts.
Frequently Asked Questions: Multiquip DCA25SSIU4F
A: The DCA25SSIU4F is powered by an Isuzu 4LE2T 2.2-liter 4-cylinder turbocharged liquid-cooled diesel engine that produces 40.2 BHP at 1,800 RPM and complies with EPA Tier 4 Final standards using a maintenance-free DOC system requiring no DEF.
A: The unit features a lockable multi-voltage selector switch supporting 3-phase voltages (208V, 220V, 240V, 416V, 440V, 480V) and single-phase voltages (120V, 127V, 139V, 240V, 254V, 277V) at 60 Hz.
A: Housed in an e-coated and powder-coated sound-attenuated steel enclosure, the generator runs at an ultra-quiet 65 dB(A) measured at a distance of 23 feet under 100% full prime load.
A: With an integrated 41.7-gallon onboard fuel cell, the generator delivers approximately 44.3 hours of continuous operation at 50% load (0.94 gal/hr) and 25.7 hours at 100% full prime continuous load (1.62 gal/hr).
A: This SKU is configured as a stationary skid-mounted unit with integrated forklift pockets. Factory-matched single-axle (TRLR25US2) or tandem-axle (TRLR75XF2) DOT highway trailers are sold separately.
