Multiquip Centrifugal Pump QP2TH 2 Inch Suction Water Gas Trash Engine Unit 211 GPM Max Flow 1 Inch Solids Honda GX160 Dewatering Construction Utility

Gas Powered High Volume Trash Extraction with Dual Port Plumbing Controls

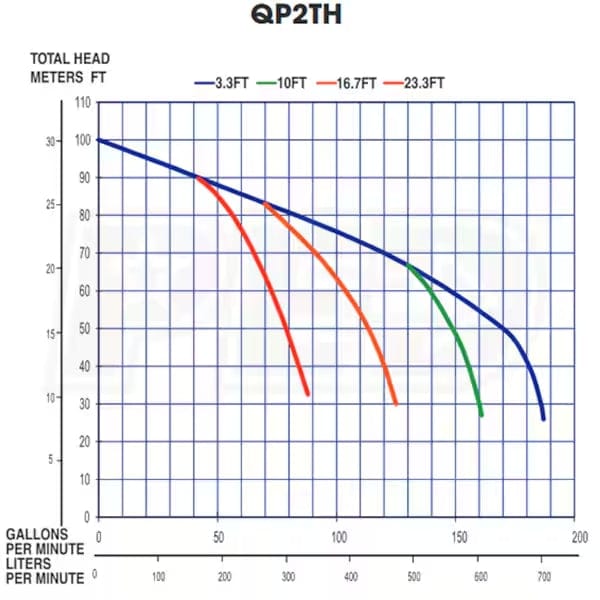

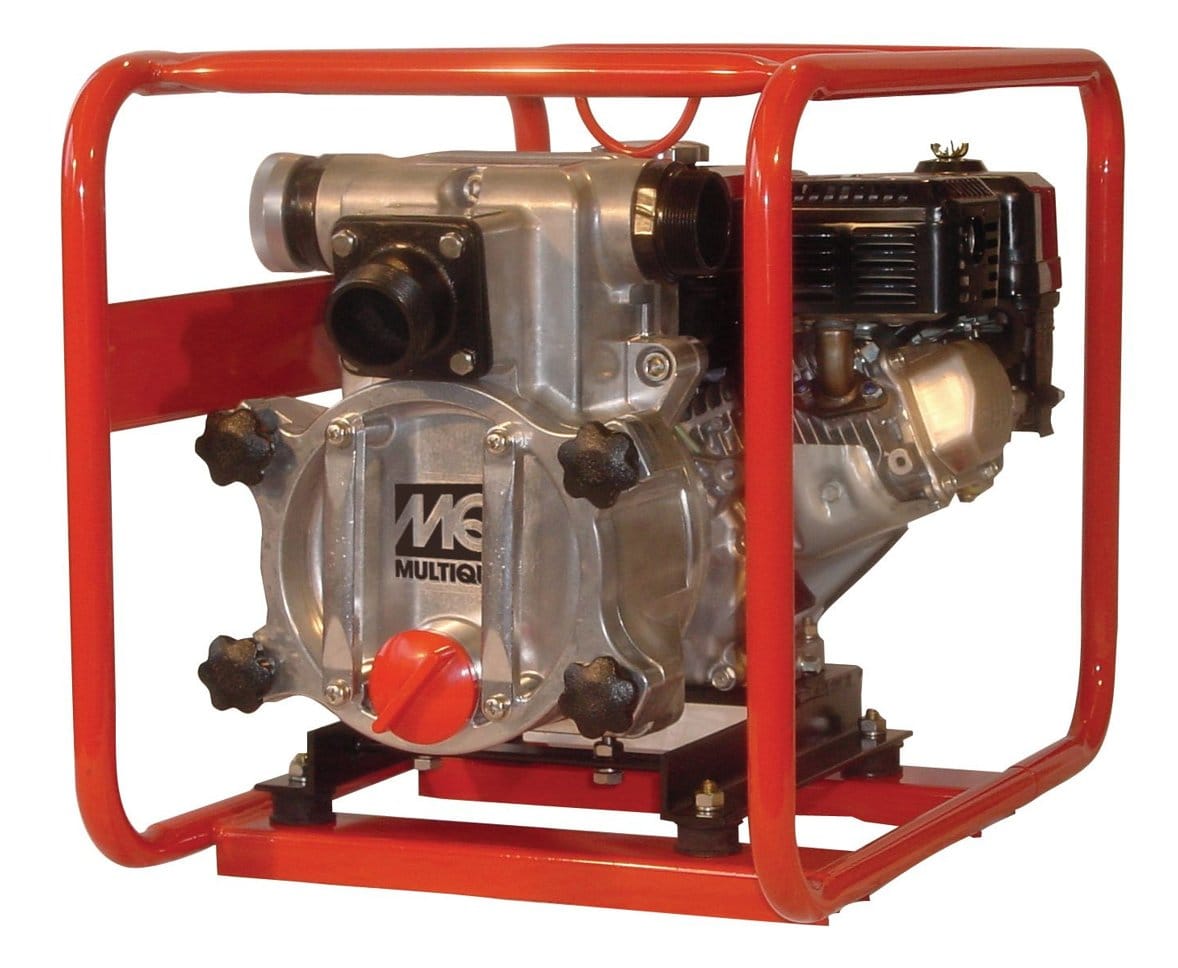

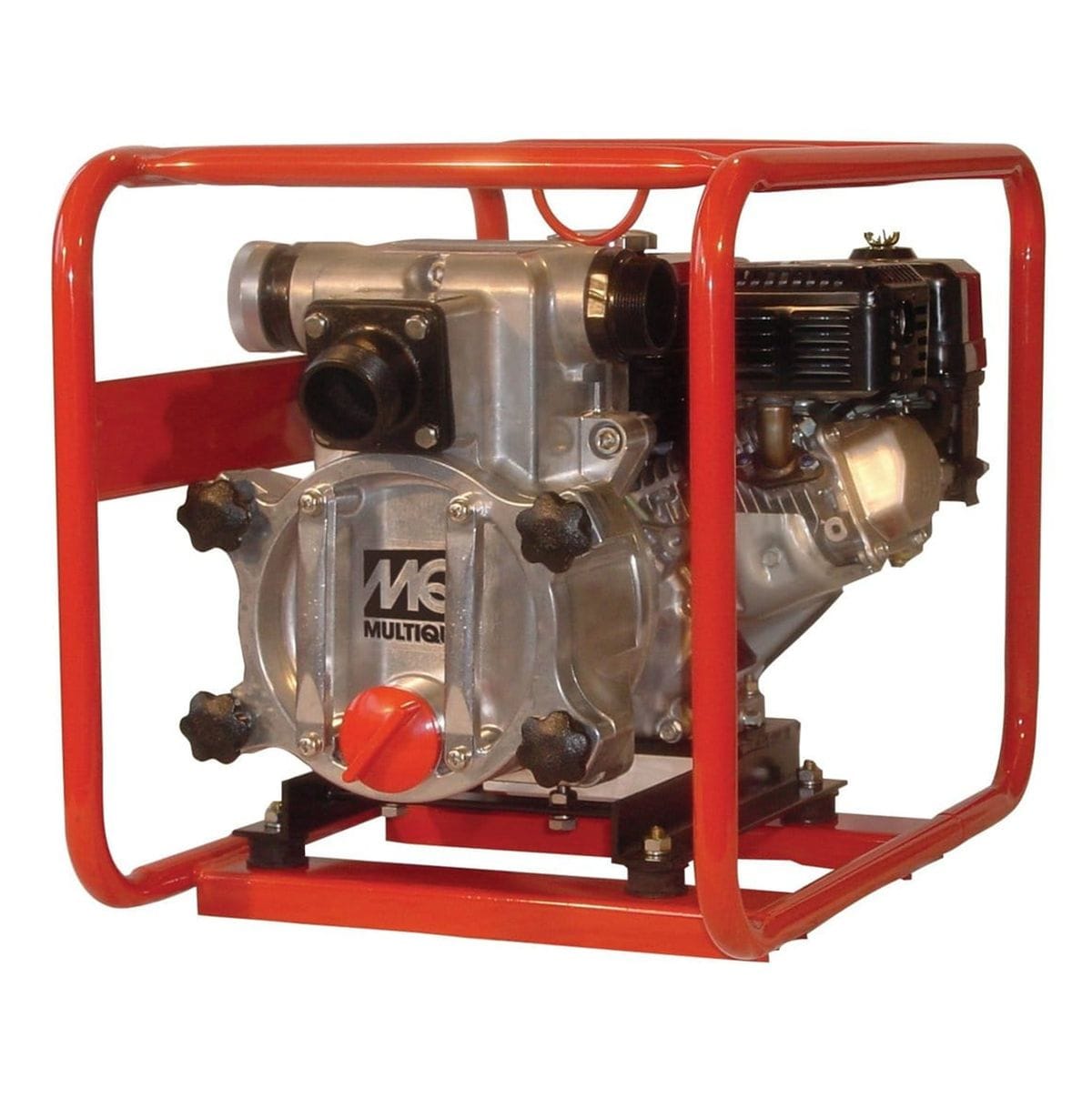

The Multiquip QP2TH 2-Inch Gas Powered Trash Pump is a commercial-grade dewatering system engineered to manage high-velocity fluid transfers laden with suspended solids up to 1 inch in diameter. Driven by a 4.8 HP Honda GX160 gasoline engine, this industrial utility unit delivers up to 211 GPM of volume displacement while sustaining a 98-foot maximum head limit and a 25-foot suction lift capacity. The structural assembly incorporates a die-cast aluminum pump body matched with a cast-iron volute and impeller for high abrasion resistance, alongside an improved silicon-silicon mechanical shaft seal that withstands gritty water parameters. Designed for streamlined field servicing, the architecture features a tool-free quick-release clean-out cover and dual 2-inch discharge ports to provide flexible hose routing configurations across complex construction environments.

Best Used For:

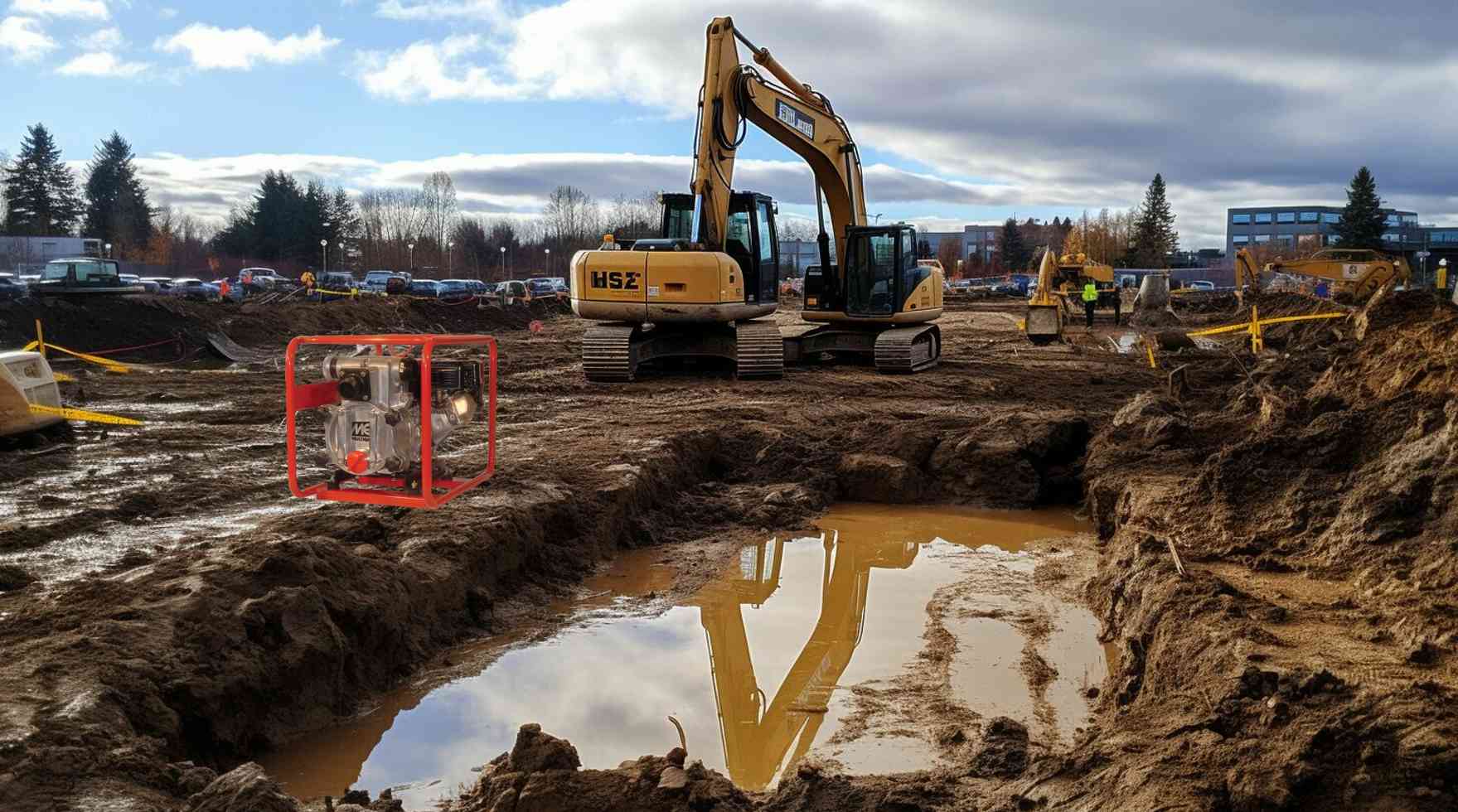

• Excavation Pit Drainage: Rapidly evacuating mud-laden groundwater, small stones, and organic debris out of trenching lines and foundation footings.
• Agricultural Mud Management: Transferring debris-filled runoff from holding ponds, agricultural ditches, or flooded drainage basins cleanly.
• Municipal Emergency Dewatering: Mitigating water accumulation from broken water mains or flash flooding conditions impacting public utility infrastructures.

Key Performance & Safety Features

• Honda GX160 Commercial Drive: Supplies 4.8 HP of mechanical torque with an automated low-oil sensor shutdown array that isolates the engine core from seizure hazards.
• 1-Inch Spherical Solid Pass: Specially clear-cut interior passages permit stones, sticks, and sludge elements up to 1 inch in diameter to pass without choking the volute track.
• Dual 2-Inch Discharge Ports: Built with two independent outlets to facilitate simultaneous or multi-directional drainage hose routing on the fly.
• Tool Free Quick Access Cover: Hand-turn release knobs enable direct access to the impeller chamber for fast cleaning run cycles without requiring separate hand tools.
• Silicon Silicon Face Seals: Advanced mechanical shaft seal faces preserve internal pressure seals when tracking through abrasive fluid mixtures.
• Tubular Steel Frame: Encased inside a 1-inch roll cage chassis that safeguards the utility apparatus from severe impacts while creating reliable tie-down attachment points.

What's Included

• (1) QP2TH 2-Inch Gas Powered Centrifugal Trash Pump

Technical Specifications

Pro-Tip: When sealing the quick-release clean-out casing cover following a debris extraction run, ensure the peripheral O-ring seat track is entirely cleared of granular mud silt or gravel grains. Even a micro-gap in the front seal interface can generate vacuum pressure bleed-offs, altering fluid drawing capacity metrics and shortening maximum lift performance indicators during continuous site dewatering loops.
