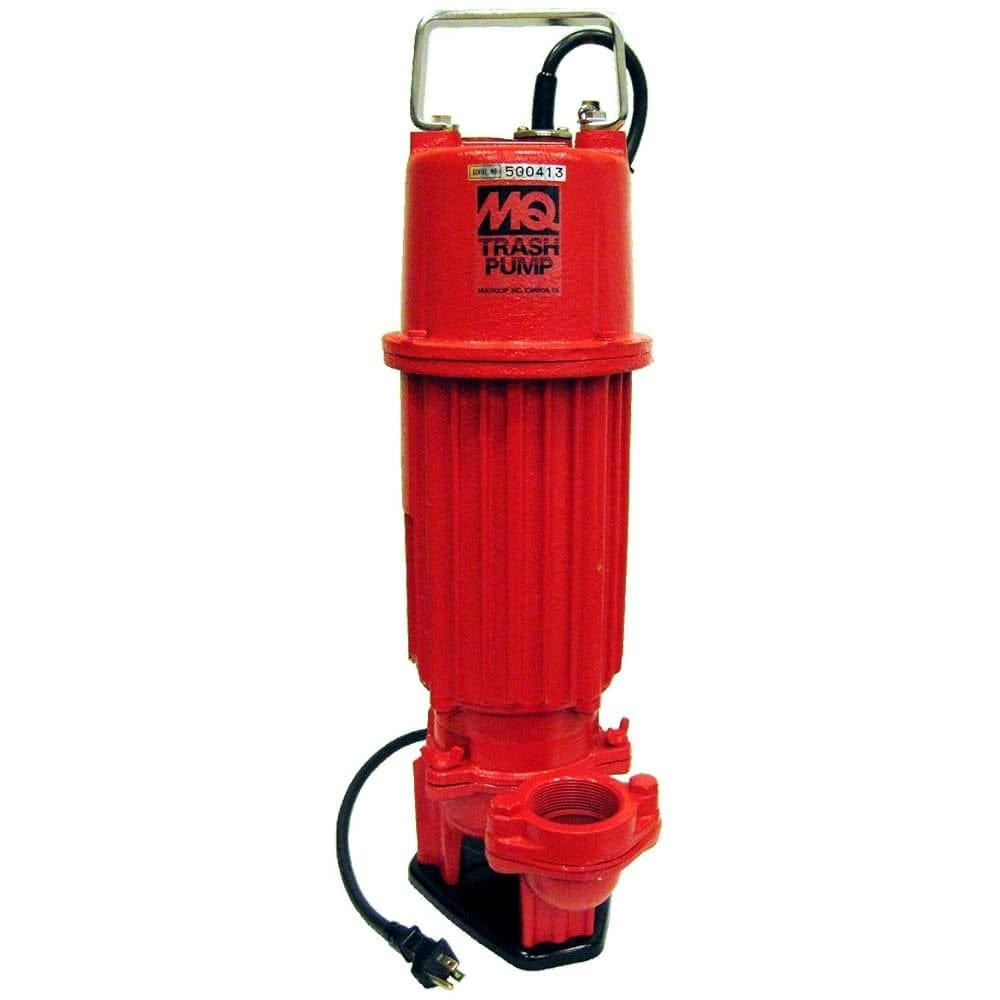

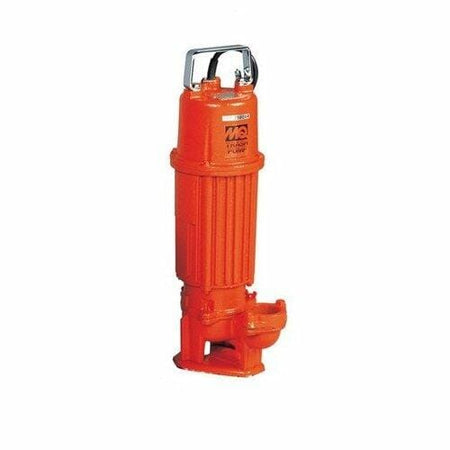

Multiquip Submersible Trash Pump ST2010TCUL 2 Inch Electric Dewatering (1 HP 95 GPM 45 Foot Head 115V Cast Iron Neoprene Impeller Utility Vaults)

Multiquip ST2010TCUL 2" 1 HP Electric Submersible Trash Dewatering Pump

The Multiquip ST2010TCUL 2-inch electric submersible trash pump evacuates slurry, sediment-laden water, and suspended spherical solids up to 1 inch across construction excavations, utility vaults, and flooded industrial basins. Driven by a 1 HP 115V single-phase electric motor drawing 6.8 amps, this 77-lb dewatering pump delivers up to 95 GPM maximum flow with a total dynamic head of 45 feet. Outfitted with heavy-duty cast iron casing, an abrasion-resistant neoprene-coated impeller, dual mechanical shaft seals, automatic internal thermal overload protection, and a molded 50-foot power cord with strain relief, it ensures continuous site dewatering down to 2-inch water depths without motor burnout.

Best Used For:

• Construction Site Foundation and Trench Dewatering: Pumping muddy water, sand slurry, and small rock fragments out of footing excavations and pipeline trenches.
• Utility Vault and Manhole Clearing: Rapidly evacuating flooded electrical vaults, storm catch basins, and municipal access chambers prior to underground maintenance.
• Industrial Basin and Sump Slurry Evacuation: Removing abrasive wastewater, factory washdown runoff, and sediment from processing pits down to 2 inches of liquid.

Key Performance & Safety Features

• 1 HP Single-Phase Electric Motor: High-efficiency 115V UL and CUL listed motor delivers 95 GPM high-volume discharge for rapid floodwater evacuation.
• 1-Inch Spherical Solid Passage: Neoprene-coated cast iron impeller passes debris, sand, and solids up to 1 inch without clogging internal flow passages.
• Industrial Cast Iron Housing: Heavy-gauge cast iron construction resists abrasive slurry wear and structural impact on harsh civil jobsites.
• Automatic Thermal Overload Protection: Built-in sensor automatically cuts electrical power during high-temperature or dry-run events to prevent motor burnout.
• Dual Mechanical Shaft Seals: Premium silicone carbide seals run in an isolated oil chamber to prevent fluid ingress into the motor armature.
• Molded 50-Foot Power Cord: Long heavy-duty power cable features molded watertight strain relief to allow deep vault submersion without secondary extension cords.

What's Included

• (1) Multiquip ST2010TCUL 2-Inch Electric Submersible Trash Pump
• (1) 1 HP 115V Single-Phase Electric Motor (Factory Installed)
• (1) 50-Foot Heavy-Duty Molded Power Cable with Strain Relief
• (1) Operator's Manual & Maintenance Guide

Technical Specifications

Pro-Tip: Always lower and raise the pump into deep utility vaults by securing a dedicated nylon lifting rope to the cast iron handle rather than pulling the 50-foot electrical cord; this protects internal strain relief seals from separating under the 77-lb operating weight.
