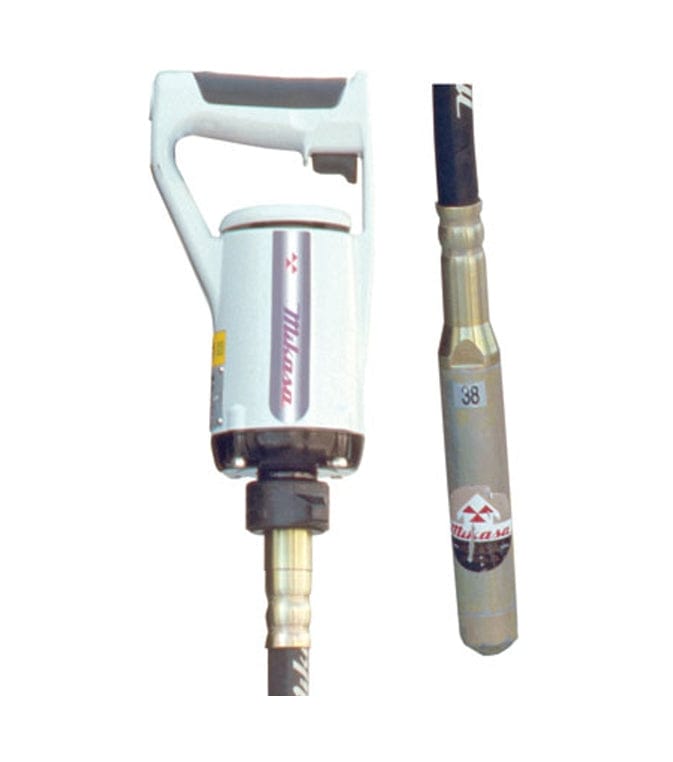

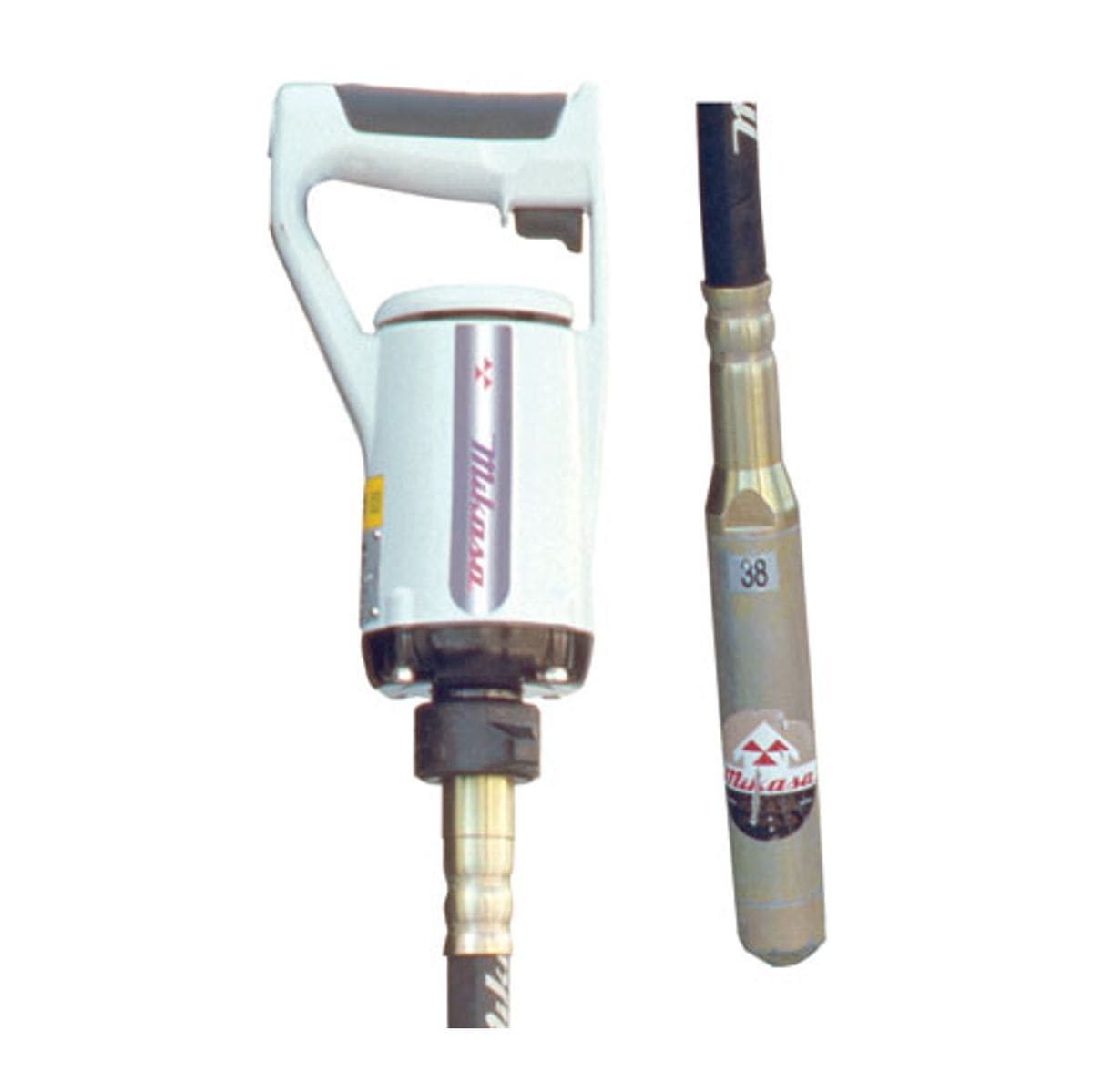

Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Full length view of the complete handheld concrete vibrator assembly displaying the white motor unit, long black flexible shaft, and silver vibrating head.

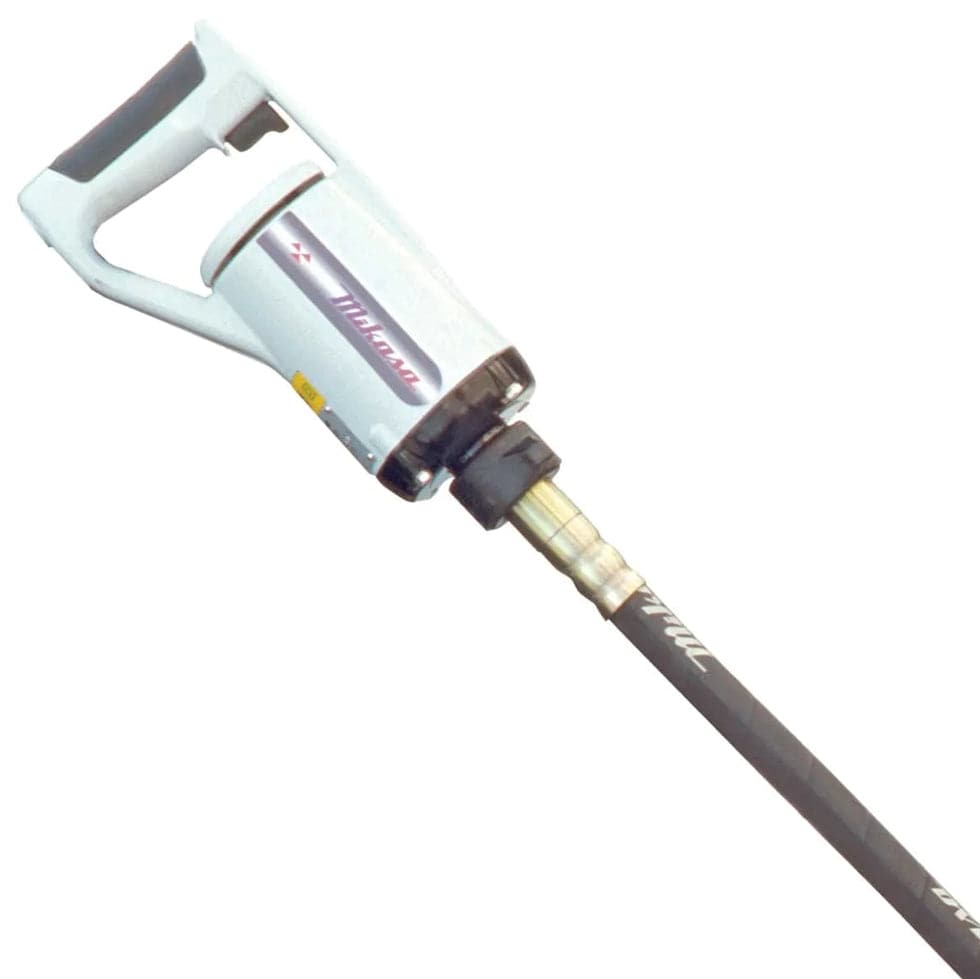

Close-up view of the handheld motor unit featuring a white casing, grey D-handle, and the connection point for the flexible shaft.
Close-up view of the black flexible shaft connecting to the silver metal vibrating head.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
Full length view of the complete handheld concrete vibrator assembly displaying the white motor unit, long black flexible shaft, and silver vibrating head.
Close-up view of the handheld motor unit featuring a white casing, grey D-handle, and the connection point for the flexible shaft.
Close-up view of the black flexible shaft connecting to the silver metal vibrating head.
Split view showing the white aluminum motor unit with handle on the left and a close-up of the metal vibrating head on the right.
MULTIQUIP

Multiquip UM12325 Handheld Electric Concrete Vibrator Assembly 0.9 Inch Head 9.5 Foot Flexible Shaft 115V Construction Tool

Only 1 left
SKU: UM12325
$429.00 USD

Description

Professional Concrete Consolidation in a Lightweight Package

Achieve superior concrete finishing results with the Multiquip UM12325 Handheld Concrete Vibrator Assembly. Designed for the rigorous demands of professional construction sites, this complete assembly combines a powerful electric motor with a flexible shaft and a compact 0.90-inch head. It is specifically engineered to handle concrete slump conditions of 3 inches or more, making it an essential tool for consolidating concrete in walls, footings, and narrow forms where larger vibrators cannot fit. By effectively removing air pockets, this tool ensures the structural integrity and smooth finish of your concrete pours.

The UM12325 is built with operator comfort and safety in mind. It features a lightweight aluminum motor case and a vibration-dampening handle that significantly reduces fatigue during extended use. The durable 120V universal motor is double-insulated, eliminating the need for a ground wire, while a sealed fan system prevents wet concrete and airborne debris from entering the motor housing. With a generous 9.5-foot overall reach, this MGX series vibrator provides the versatility and reliability needed to upgrade your equipment fleet for precise, high-quality work.

Key Features

  • High Efficiency: Delivers 12,000 to 15,500 vibrations per minute (VPM) for rapid concrete consolidation.
  • Compact Design: 0.90-inch head diameter allows access into narrow forms and tight rebar spacing.
  • Operator Comfort: Vibration dampening handle reduces strain and fatigue during prolonged operation.
  • Durable Motor: Rugged 120V universal motor features a lightweight aluminum casing for portability.
  • Enhanced Safety: Double insulated design ensures safe operation without the need for grounding.
  • Debris Protection: Sealed ventilation fan effectively reduces the intake of airborne concrete dust and contamination.
  • Extended Reach: Features an 8.2-foot flexible shaft for a total overall unit length of 9.5 feet.

What's Included

  • (1) Multiquip UM12325 Handheld Motor Unit
  • (1) 8.2 ft. Flexible Shaft
  • (1) 0.90 in. Vibrator Head

Specifications

Model Number UM12325
Head Diameter 0.90 in.
Shaft Length 8.2 ft.
Overall Length 9.5 ft.
Voltage 115V / 120V
Amperage 3.8 Amps
Power 280 Watts
Frequency (VPM) 12,000 - 15,500 VPM
Amplitude 0.047 in.
Total Weight 11.5 lbs

Pro-Tip: To avoid "honeycombing" or segregation of the aggregate, insert the vibrator head vertically into the concrete and withdraw it slowly. Never drag the vibrator horizontally through the mix to move the concrete, as this can separate the paste from the aggregate and weaken the final structure.
